CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
EVGA SuperNOVA 750 G5
1903140701803842
Lab IDEV19750107
  • Report:
  • Receipt Date: Feb 9, 2019
  • Test Date: Nov 9, 2019
  • Report Date: Sep 16, 2019
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

EVGA
Hersteller (OEM)FSP
SuperNOVA G5
1903140701803842
Higher than 0.25W Vampire Power

(Vrms)100-240
(Arms)10-5
(Hz)50-60
(W)750
ATX12V
135mm Fluid Dynamic Bearing Fan
(MGA13512HF-A25)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps242462.530.5
Watts120750156
Total Max. Power (W)750

Electronic Loads Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm+150mm) 2 4 18AWG No
SATA (550mm+100mm+100mm) 3 9 18AWG No
4-pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (100mm) 1 1 22AWG No
AC Power Cord (1420mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 3x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x HY GBJ2506P (600V, 25A @ 100°C)
APFC MOSFETS 2x ROHM R6020KNX (600V, 20A, 0.196Ohm)
APFC Boost Diode 1x ROHM SCS306AM (650V, 6A @ 120°C)
Hold-up Cap(s) 1x Rubycon (450V, 390uF, 3,000h @ 105°C, MXG)
Main Switchers 1x Infineon IPA80R310CE (800V, 10.6A @ 100°C, 0.31Ohm)
Reset Switch 1x Infineon IPD80R1K4CE (800V, 2.3A @ 100°C, 1.4Ohm)
APFC/Switching Controller FSP 6600 IC
Topology Primary side: Active Clamp Reset Forward
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Infineon IPP029N06N (60V, 100A @ 100°C, 2.9mOhm)
5V & 3.3V DC-DC Converters:4x Infineon BSC042N03LS (30V, 59A @ 100°C, 4.2mOhm)
PWM Controllers: ANPEC APW7159C
Filtering Capacitors Electrolytics: 2x Nippon Chemi-Con (1-5,000 @ 105°C, KZE), 2x Rubycon (3-6,000 @ 105°C, YXG), 1x Rubycon (4-10,000 @ 105°C, YXF)
Polymers: 15x United Chemi-Con
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, SCP, PG)
Fan Model Protechnic Electric MGA13512HF-A25 (135mm, 12V, 0.28A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x CET CEF02N7G FET (700V, 1.3A @ 100°C, 6.75Ohm)
Standby PWM Controller FSP 6601 IC

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
ErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014 & CEC: ✓
✓

Performance Summary

Hold-Up Time (ms)23.5
AC Loss to PWR_OK Hold Up Time (ms)20.2
PWR_OK Inactive to DC Loss Delay (ms)3.3

Stromverbrauch im Ruhezustand

Graphs

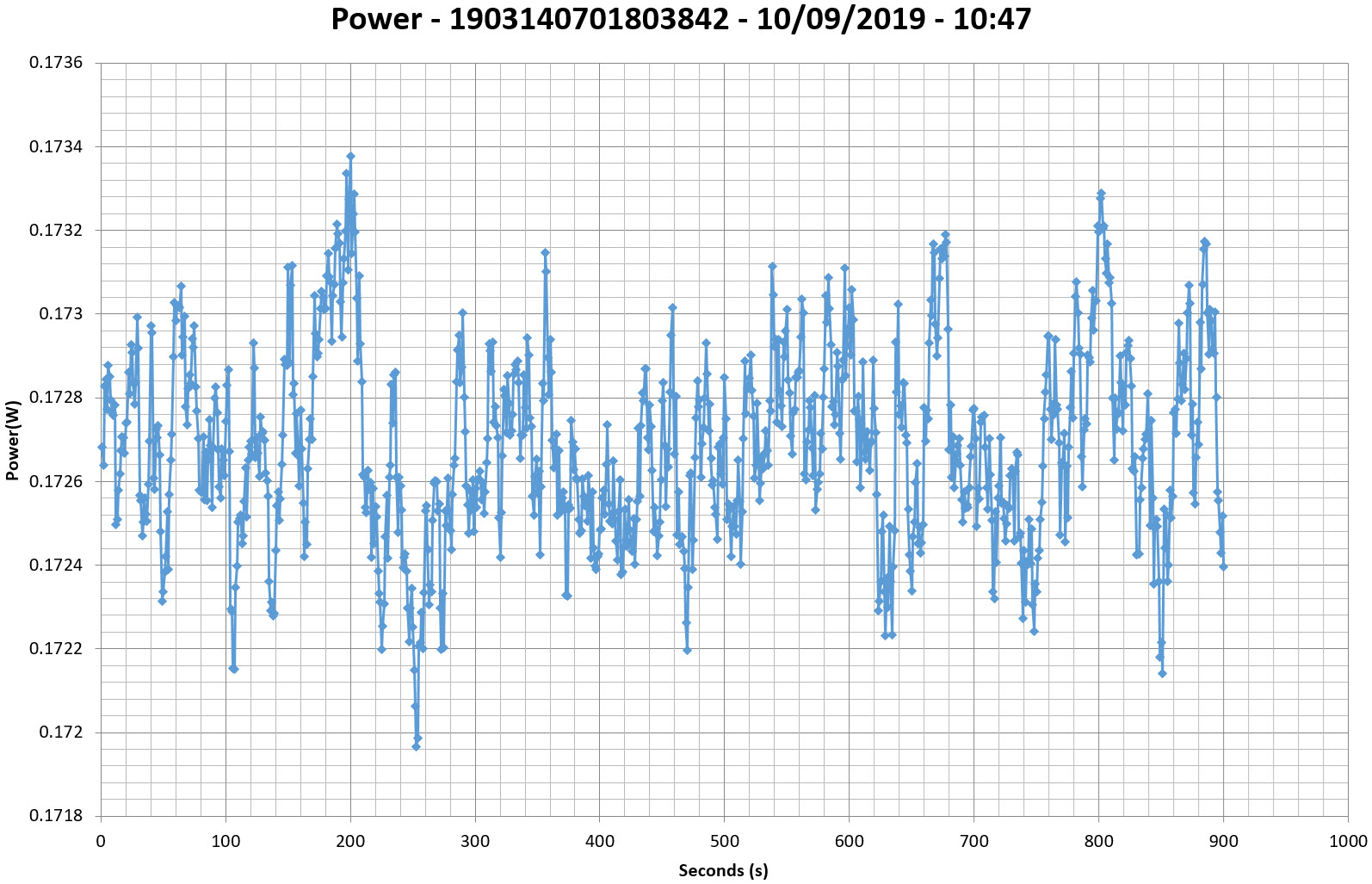

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

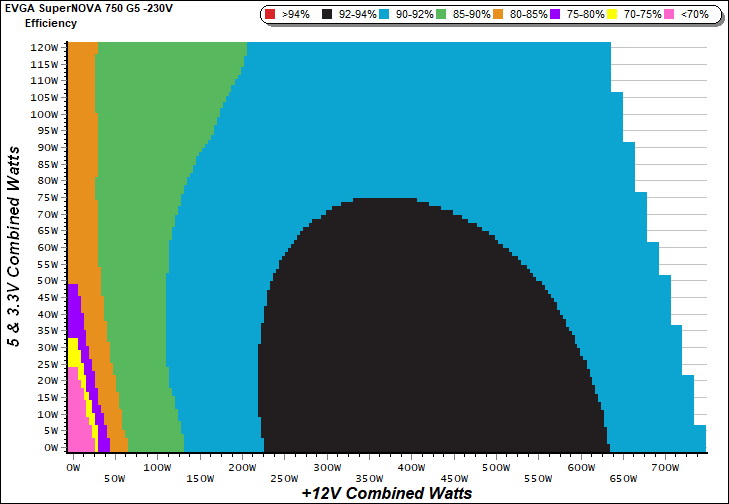

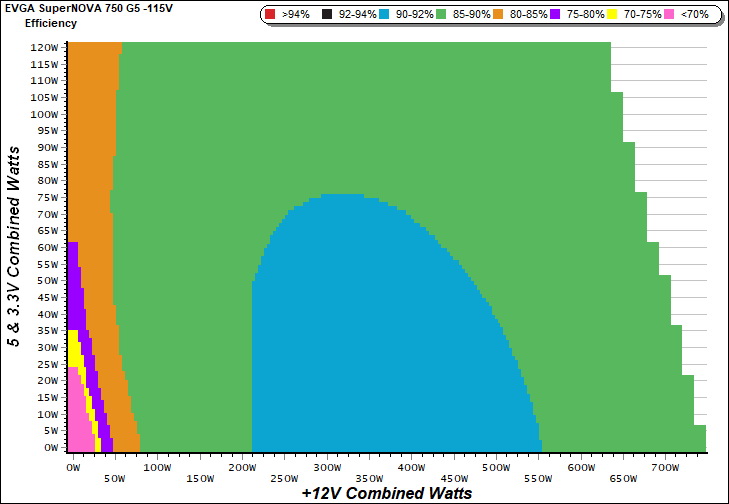

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

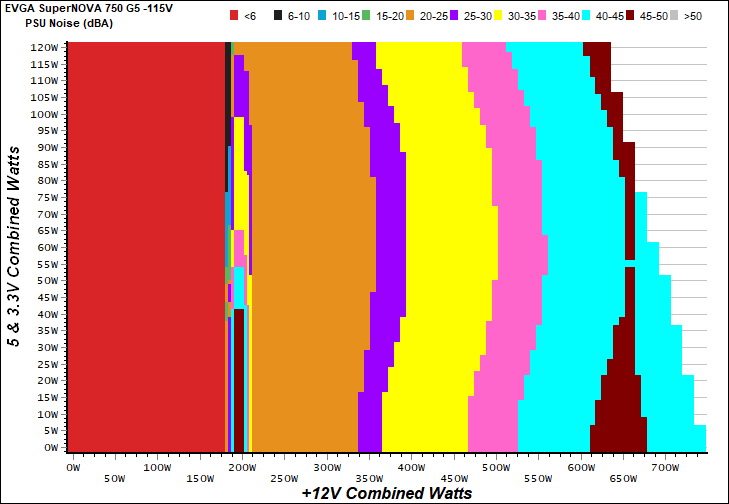

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

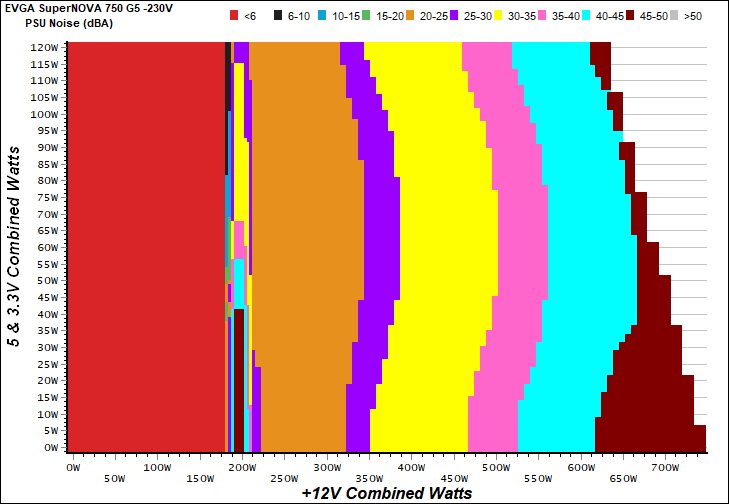

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

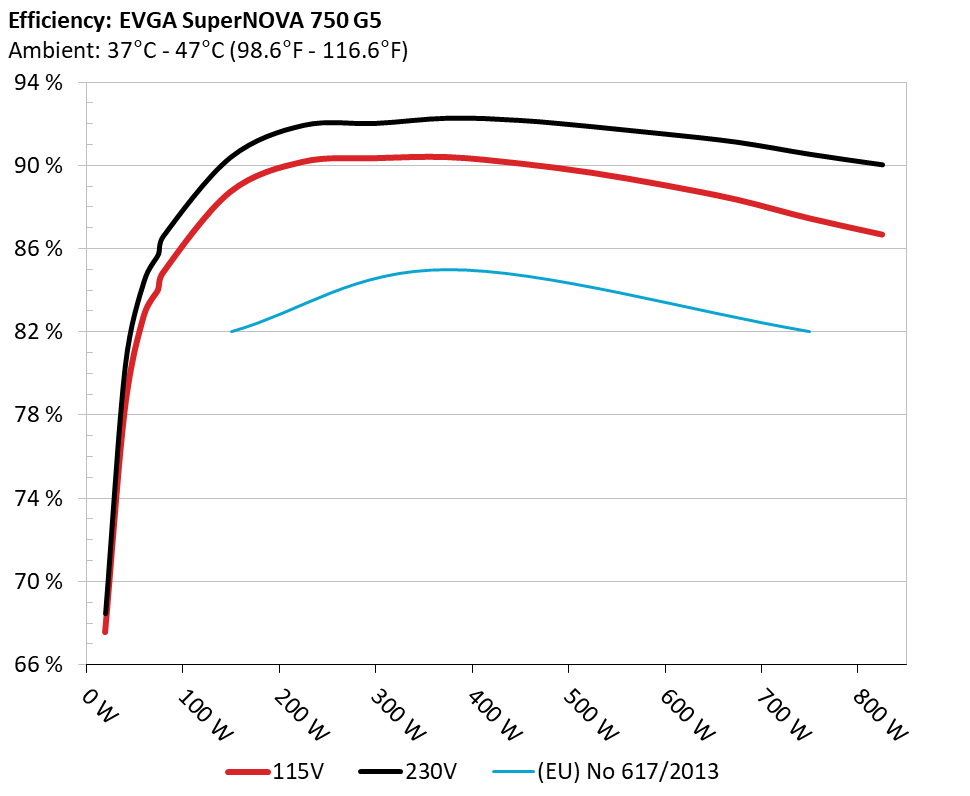

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

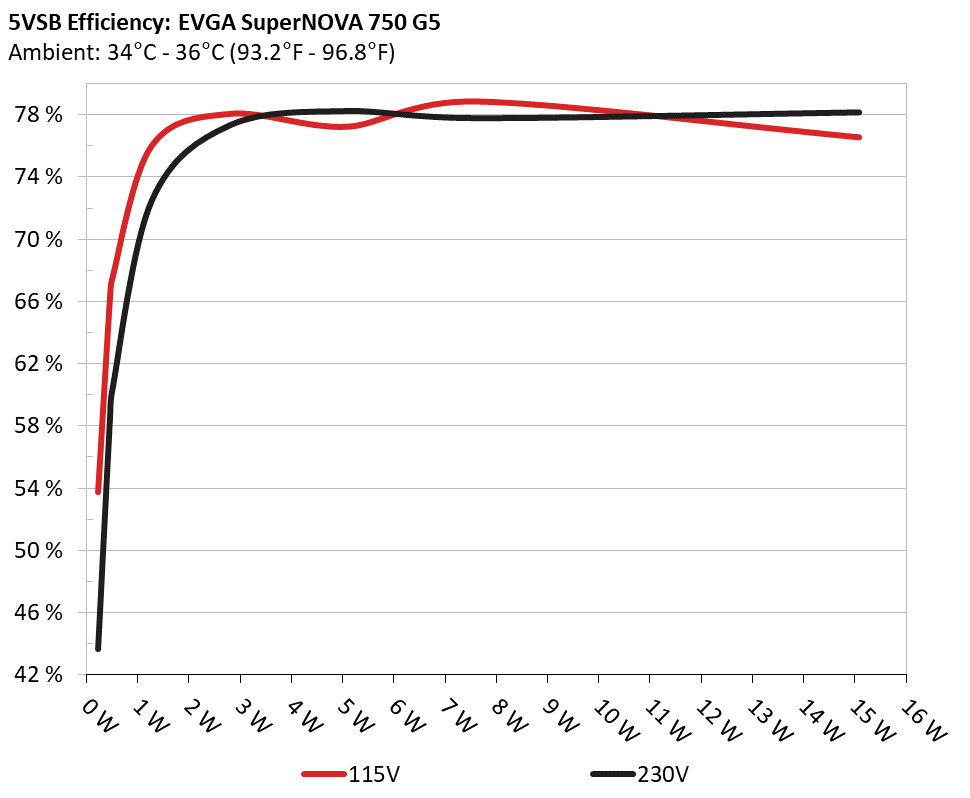

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 53.721% 0.043
5.123V 0.430 115.14V
2 0.090A 0.461 66.141% 0.068
5.122V 0.697 115.14V
3 0.550A 2.809 78.093% 0.273
5.107V 3.597 115.13V
4 1.000A 5.093 77.260% 0.376
5.092V 6.592 115.13V
5 1.500A 7.615 78.887% 0.429
5.076V 9.653 115.14V
6 3.000A 15.077 76.580% 0.503
5.026V 19.688 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 43.667% 0.016
5.123V 0.529 230.36V
2 0.090A 0.461 58.354% 0.024
5.122V 0.790 230.36V
3 0.550A 2.809 77.362% 0.103
5.107V 3.631 230.36V
4 1.000A 5.093 78.270% 0.171
5.091V 6.507 230.35V
5 1.500A 7.613 77.811% 0.233
5.074V 9.784 230.36V
6 3.000A 15.077 78.180% 0.342
5.025V 19.285 230.35V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.384A 2.026A 1.993A 1.018A 74.581 84.032% 0 <6.0 45.19°C 0.966
12.085V 4.936V 3.311V 4.913V 88.753 40.29°C 115.15V
2 9.812A 3.042A 2.990A 1.223A 149.434 88.737% 0 <6.0 46.38°C 0.988
12.080V 4.934V 3.309V 4.908V 168.401 41.08°C 115.15V
3 15.648A 3.548A 3.477A 1.429A 224.971 90.185% 0 <6.0 47.09°C 0.993
12.076V 4.933V 3.307V 4.902V 249.455 41.49°C 115.15V
4 21.418A 4.060A 3.993A 1.636A 299.743 90.356% 1379 37.5 41.78°C 0.997
12.071V 4.927V 3.306V 4.892V 331.737 48.33°C 115.16V
5 26.864A 5.080A 4.994A 1.843A 374.686 90.407% 1481 40.2 42.03°C 0.999
12.067V 4.924V 3.304V 4.886V 414.442 49.27°C 115.16V
6 32.315A 6.097A 5.997A 2.049A 449.630 90.102% 1670 42.6 42.88°C 0.999
12.063V 4.922V 3.302V 4.881V 499.025 50.75°C 115.16V
7 37.800A 7.117A 7.001A 2.257A 524.955 89.649% 1773 46.1 43.23°C 0.999
12.059V 4.920V 3.300V 4.876V 585.570 51.67°C 115.16V
8 43.294A 8.137A 8.008A 2.465A 600.283 89.053% 1882 46.2 43.80°C 0.999
12.054V 4.917V 3.297V 4.870V 674.074 52.45°C 115.16V
9 49.150A 8.648A 8.496A 2.464A 674.816 88.359% 1930 47.9 44.66°C 0.999
12.051V 4.915V 3.296V 4.871V 763.723 53.67°C 115.17V
10 54.808A 9.159A 9.017A 3.095A 750.044 87.460% 1935 48.8 45.89°C 0.999
12.048V 4.914V 3.294V 4.849V 857.587 55.14°C 115.18V
11 61.074A 9.161A 9.020A 3.095A 825.282 86.681% 1937 48.9 46.67°C 0.999
12.044V 4.913V 3.292V 4.848V 952.094 56.52°C 115.17V
CL1 0.155A 14.001A 14.001A 0.000A 117.073 80.557% 0 <6.0 49.25°C 0.984
12.082V 4.933V 3.295V 5.004V 145.329 41.76°C 115.17V
CL2 62.528A 1.004A 1.001A 1.000A 766.544 87.976% 1935 48.8 45.96°C 0.999
12.049V 4.923V 3.299V 4.899V 871.306 55.53°C 115.17V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 4.379A 2.027A 1.991A 1.018A 74.514 85.759% 0 <6.0 44.59°C 0.851
12.084V 4.936V 3.311V 4.913V 86.888 40.16°C 230.33V
2 9.809A 3.041A 2.991A 1.223A 149.387 90.415% 0 <6.0 45.86°C 0.936
12.079V 4.934V 3.309V 4.908V 165.224 41.21°C 230.33V
3 15.644A 3.549A 3.476A 1.428A 224.903 91.951% 0 <6.0 46.72°C 0.965
12.075V 4.932V 3.308V 4.902V 244.591 41.55°C 230.33V
4 21.413A 4.060A 3.993A 1.635A 299.689 92.043% 1576 41.4 41.89°C 0.978
12.071V 4.929V 3.306V 4.893V 325.598 47.58°C 230.33V
5 26.861A 5.078A 4.994A 1.842A 374.644 92.298% 1484 40.2 42.46°C 0.985
12.067V 4.925V 3.304V 4.887V 405.908 48.54°C 230.34V
6 32.316A 6.096A 5.995A 2.049A 449.597 92.188% 1656 42.3 43.22°C 0.989
12.062V 4.922V 3.302V 4.881V 487.695 49.86°C 230.34V
7 37.802A 7.115A 6.999A 2.256A 524.922 91.884% 1828 44.9 43.49°C 0.992
12.058V 4.920V 3.300V 4.877V 571.290 50.62°C 230.34V
8 43.292A 8.135A 8.006A 2.464A 600.255 91.531% 1922 47.8 43.93°C 0.994
12.054V 4.918V 3.298V 4.871V 655.797 51.89°C 230.35V
9 49.147A 8.647A 8.495A 2.463A 674.779 91.139% 1929 47.9 44.86°C 0.994
12.051V 4.916V 3.296V 4.872V 740.386 53.41°C 230.35V
10 54.815A 9.161A 9.018A 3.094A 750.027 90.559% 1929 47.9 45.61°C 0.995
12.046V 4.914V 3.294V 4.849V 828.223 54.57°C 230.36V
11 61.082A 9.164A 9.020A 3.096A 825.263 90.054% 1931 47.9 46.71°C 0.996
12.042V 4.912V 3.292V 4.847V 916.404 56.41°C 230.37V
CL1 0.155A 14.002A 14.000A 0.000A 117.075 82.330% 0 <6.0 48.57°C 0.922
12.081V 4.932V 3.296V 5.004V 142.202 42.19°C 230.37V
CL2 62.531A 1.004A 1.000A 1.000A 766.453 91.049% 1930 47.9 45.44°C 0.995
12.047V 4.923V 3.300V 4.898V 841.800 54.36°C 230.37V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.203A 0.508A 0.480A 0.203A 19.641 67.551% 0 <6.0 0.881
12.088V 4.937V 3.313V 4.934V 29.076 115.16V
2 2.463A 1.012A 0.996A 0.406A 40.065 78.287% 0 <6.0 0.935
12.087V 4.936V 3.312V 4.929V 51.177 115.16V
3 3.651A 1.520A 1.479A 0.609A 59.520 82.740% 0 <6.0 0.955
12.085V 4.935V 3.311V 4.925V 71.936 115.15V
4 4.908A 2.027A 1.992A 0.813A 79.911 84.868% 0 <6.0 0.969
12.085V 4.935V 3.311V 4.920V 94.159 115.15V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.198A 0.507A 0.481A 0.203A 19.579 68.470% 0 <6.0 0.552
12.087V 4.937V 3.314V 4.934V 28.595 230.33V
2 2.457A 1.014A 0.996A 0.406A 39.998 80.379% 0 <6.0 0.721
12.085V 4.935V 3.313V 4.927V 49.762 230.33V
3 3.646A 1.521A 1.479A 0.610A 59.465 84.446% 0 <6.0 0.808
12.084V 4.935V 3.312V 4.922V 70.418 230.33V
4 4.902A 2.029A 1.992A 0.814A 79.847 86.640% 0 <6.0 0.861
12.084V 4.935V 3.311V 4.917V 92.160 230.33V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.4 mV 5.6 mV 12.0 mV 7.1 mV Pass
20% Load 10.0 mV 6.0 mV 12.2 mV 7.1 mV Pass
30% Load 10.4 mV 6.8 mV 12.9 mV 7.7 mV Pass
40% Load 13.7 mV 7.1 mV 14.1 mV 8.1 mV Pass
50% Load 14.4 mV 6.6 mV 15.8 mV 8.4 mV Pass
60% Load 15.7 mV 6.9 mV 16.8 mV 8.8 mV Pass
70% Load 18.0 mV 7.9 mV 19.4 mV 9.7 mV Pass
80% Load 18.3 mV 8.8 mV 22.2 mV 9.9 mV Pass
90% Load 21.5 mV 9.8 mV 25.3 mV 10.7 mV Pass
100% Load 25.4 mV 13.8 mV 35.2 mV 18.8 mV Pass
110% Load 27.1 mV 15.0 mV 42.2 mV 21.2 mV Pass
Crossload 1 8.0 mV 7.5 mV 16.8 mV 9.2 mV Pass
Crossload 2 24.8 mV 11.7 mV 27.8 mV 14.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.1 mV 6.5 mV 11.7 mV 9.5 mV Pass
20% Load 10.5 mV 5.8 mV 12.1 mV 7.8 mV Pass
30% Load 10.8 mV 6.3 mV 13.4 mV 8.3 mV Pass
40% Load 11.5 mV 6.9 mV 14.0 mV 8.2 mV Pass
50% Load 11.3 mV 6.6 mV 15.6 mV 8.7 mV Pass
60% Load 12.4 mV 7.1 mV 17.1 mV 9.8 mV Pass
70% Load 14.2 mV 7.7 mV 19.0 mV 9.9 mV Pass
80% Load 15.1 mV 8.3 mV 21.0 mV 10.2 mV Pass
90% Load 16.5 mV 8.8 mV 22.8 mV 11.4 mV Pass
100% Load 17.3 mV 8.9 mV 22.4 mV 11.7 mV Pass
110% Load 19.0 mV 11.4 mV 30.8 mV 13.7 mV Pass
Crossload 1 16.1 mV 7.3 mV 16.9 mV 8.9 mV Pass
Crossload 2 16.8 mV 9.9 mV 24.0 mV 12.0 mV Pass

The results above are not used in the certification process

EVGA SuperNOVA 750 G5

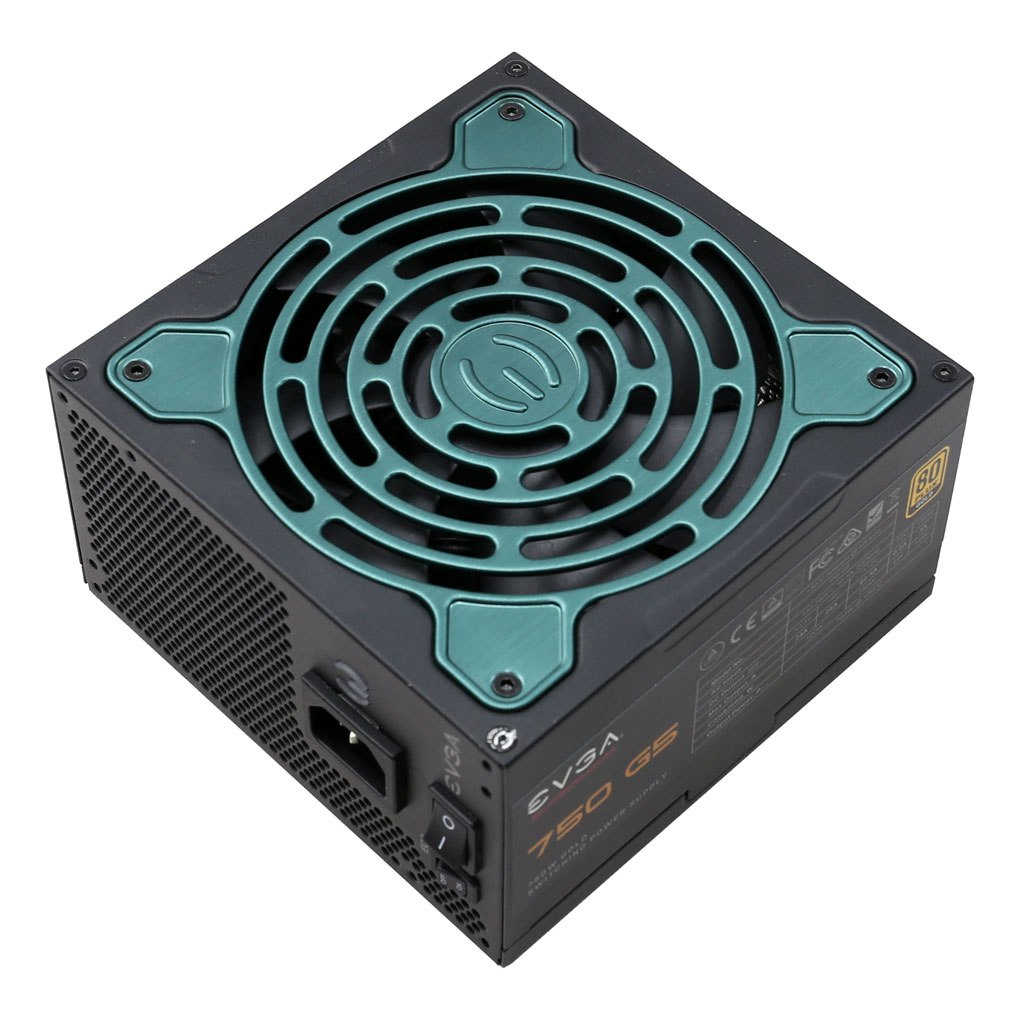

Top side

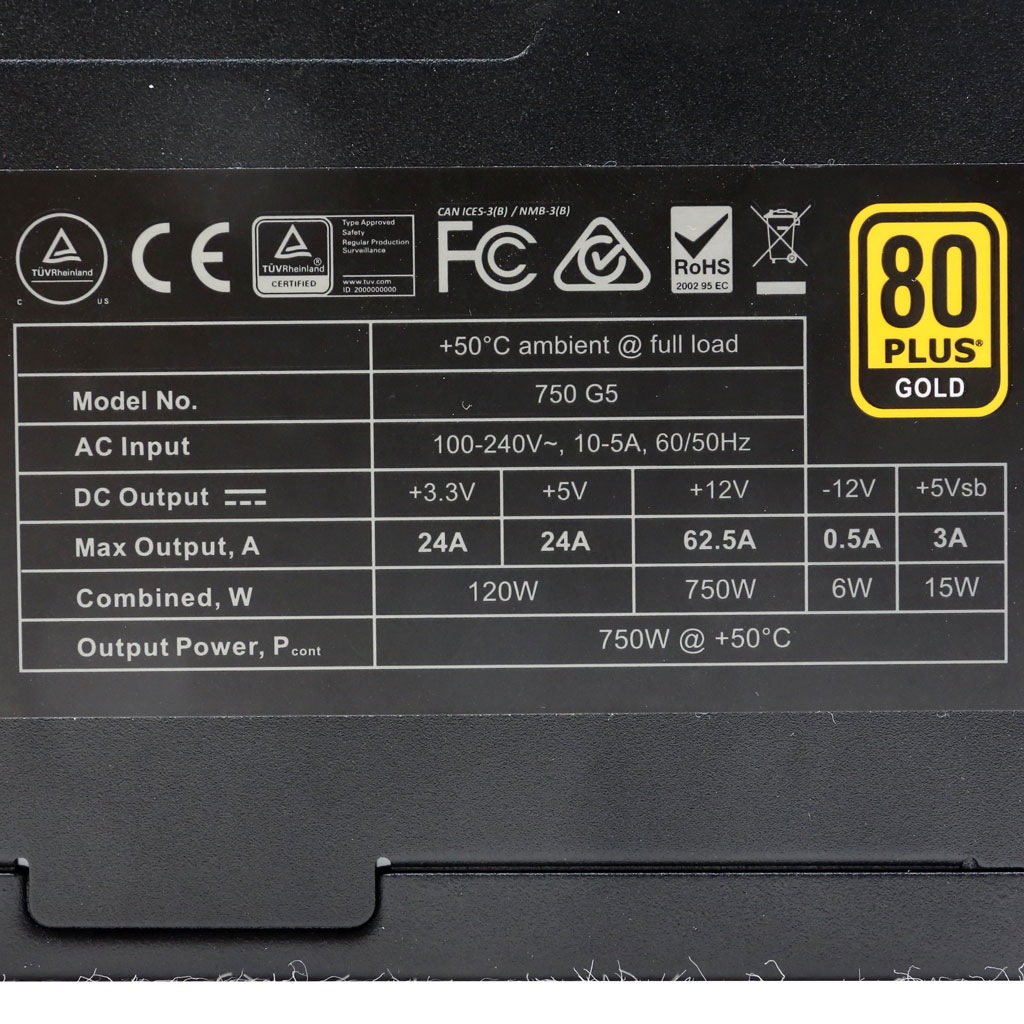

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
