Cybenetics Test - Phanteks AMP 550W

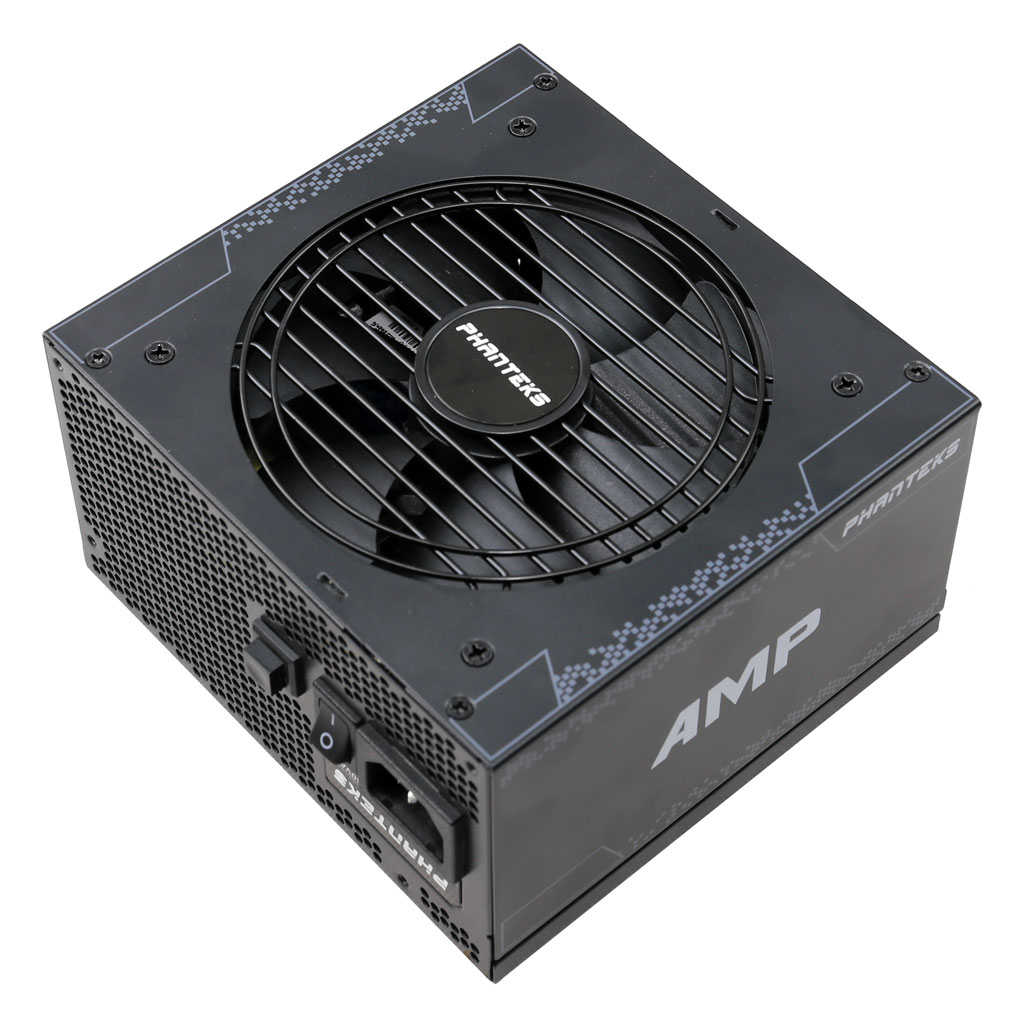

Phanteks AMP 550W

R1906AA252120125

Lab IDPH19550100

Report: 19PS798A
Receipt Date: Aug 26, 2019
Test Date: Aug 27, 2019
Report Date: Aug 28, 2019

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	Phanteks
Hersteller (OEM)	Seasonic
	AMP
	PH-P550G
	R1906AA252120125

(Vrms)	100-240
(Arms)	8-4
(Hz)	50-60
(W)	550
	ATX12V
	120mm Fluid Dynamic Bearing Fan (HA1225H12F-Z)
	✓ (selectable)
	Fully Modular

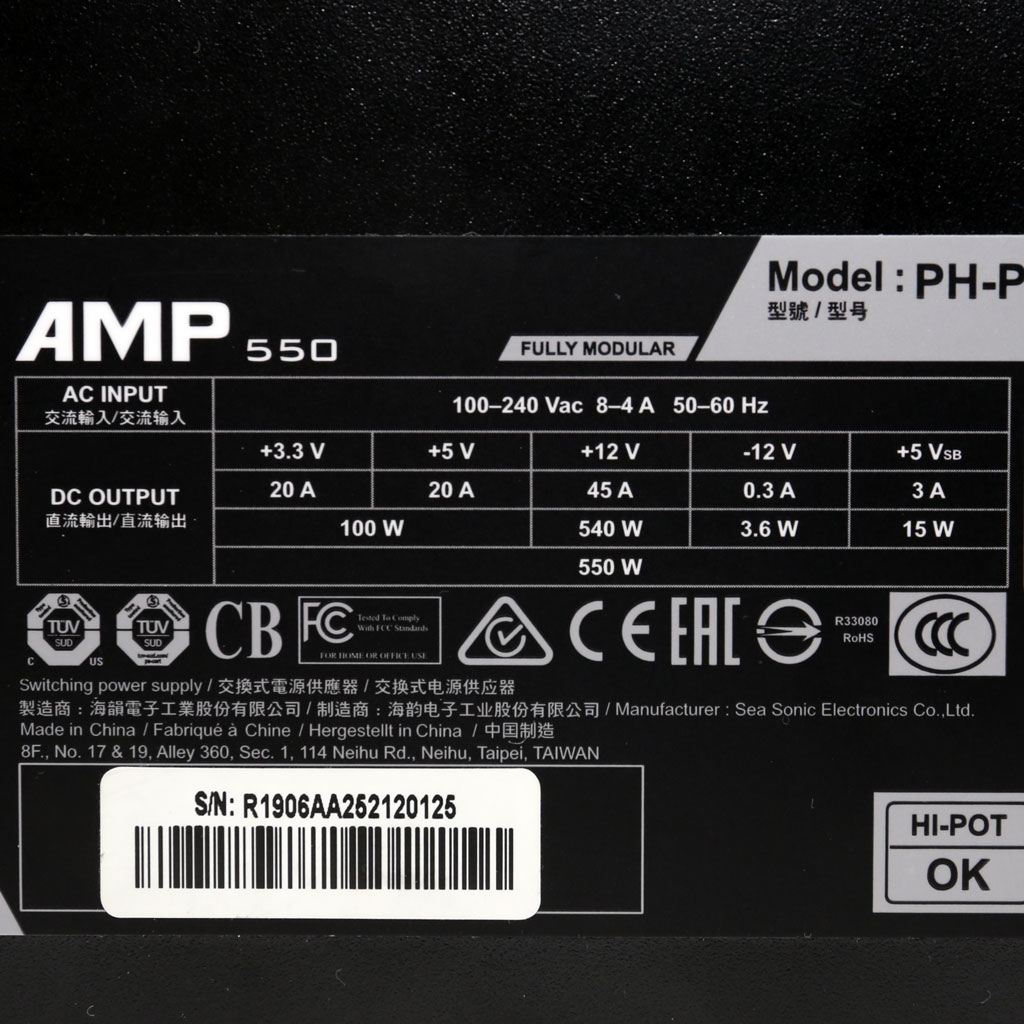

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	20	20	45	3	0.3
Max. Power	Watts	100		540	15	3.6
Total Max. Power (W)		550

Electronic Loads	Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources	Chroma 6530, Keysight AC6804B
Power Analyzers	N4L PPA1530 x2
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Data Loggers	Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer	UNI-T UT372 x2
Digital Multimeter	Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS	CyberPower OLS3000E 3kVA x2
Transformer	3kVA x2
Testing Methodology	Cybenetics PSU Test Protocol

Modular Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (610mm)	1	1	18-22AWG	Yes
4+4 pin EPS12V (650mm)	2	2	18AWG	No
6+2 pin PCIe (750mm)	2	2	18AWG	No
SATA (420mm+150mm+150mm+150mm)	2	8	18AWG	No
SATA (300mm+150mm)	1	2	18AWG	No
4 pin Molex (450mm+120mm+120mm)	1	3	18AWG	No
4 pin Molex to SATA 3.3V Adapter (150mm+150mm)	1	2	18AWG	No
AC Power Cord (1370mm) - C13 coupler	1	1	18AWG	-

Parts Description

General Data
Manufacturer (OEM)	Seasonic
PCB Type	Double Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x Discharge IC
Inrush Protection	NTC Thermistor & Relay
Bridge Rectifier(s)	2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS	2x Champion GPT13N50D (500V, 13A, 0.49Ohm)
APFC Boost Diode	1x NXP BYC8-600 (600V, 8A @ 109°C)
Hold-up Cap(s)	1x Hitachi (400V, 390uF, 2,000h @ 105°C, HU)
Main Switchers	4x Champion GPT10N50AD (500V, 9.7A, 0.7Ohm)
APFC Controller	Champion CM6500UNX
Resonant Controllers	Champion CM6901T6
Topology	Primary side: Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS	2x Nexperia PSMN2R6-40YS (40V, 100A @ 100°C, 5.3mOhm @ 175°C)
5V & 3.3V	DC-DC Converters
Filtering Capacitors	Electrolytics: 6x Nippon Chemi-Con (4-10,000h @ 105°C, KY), 3x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nichicon (2-5,000h @ 105°C, HD), 3x Nichicon (4-10,000h @ 105°C, HE) Polymers: 9x FPCAP, 2x NIC, 4x United Chemi-Con
Supervisor IC	Weltrend WT7527V (OCP, OVP, UVP, SCP, PG)
Fan Model	Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier	1xPFC P10V45SP SBR (45V, 10A)
Standby PWM Controller	Excelliance MOS EM8569

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓

Performance Summary

Wirkungsgrad	GOLD
Lautstärkeklasse	A++
(>1450 load combinations)	88.467%
Average Noise Output (>1450 Load Combinations)	14.31dBA
(>1450 Load Combinations)	0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load	59.362%
	0.0440W
12V Ripple (Full Load)	31.06mV
5V Ripple (Full Load)	24.26mV
3.3V Ripple (Full Load)	15.52mV
5VSB Ripple (Full Load)	8.41mV
12V Load Regulation	0.08%
5V Load Regulation	0.30%
3.3V Load Regulation	0.48%
5VSB Load Regulation	2.23%
Inrush Current	43.656A

Wirkungsgrad	SILVER
Lautstärkeklasse	A++
(>1450 load combinations)	90.688%
Average Noise Output (>1450 Load Combinations)	14.50dBA
(>1450 Load Combinations)	0.925
Efficiency With 10W (≤500W) or 2% (>500W) Load	0.000%
	0.0728W
12V Ripple (Full Load)	0.00mV
5V Ripple (Full Load)	0.00mV
3.3V Ripple (Full Load)	0.00mV
5VSB Ripple (Full Load)	0.00mV
12V Load Regulation	0.00%
5V Load Regulation	0.00%
3.3V Load Regulation	0.00%
5VSB Load Regulation	0.00%
Inrush Current	66.276A
12V Transient Response (150%)	0.00V
5V Transient Response (150%)	V
3.3V Transient Response (150%)	V
5VSB Transient Response (150%)	V
	19.50ms
AC Loss to PWR_OK Hold Up Time	15.20ms
PWR_OK Inactive to DC Loss Delay	4.30ms
PSU Timings: T1 (20% / 100%)	78.0ms	88.0ms
PSU Timings: T3 (20% / 100%)	316.0ms	316.0ms
OPP (0.00°C / 0.00°C)	139.33%	0.00%

Hold-Up Time (ms)	19.5
AC Loss to PWR_OK Hold Up Time (ms)	15.2
PWR_OK Inactive to DC Loss Delay (ms)	4.3

Stromverbrauch im Ruhezustand

Tables

Graphs

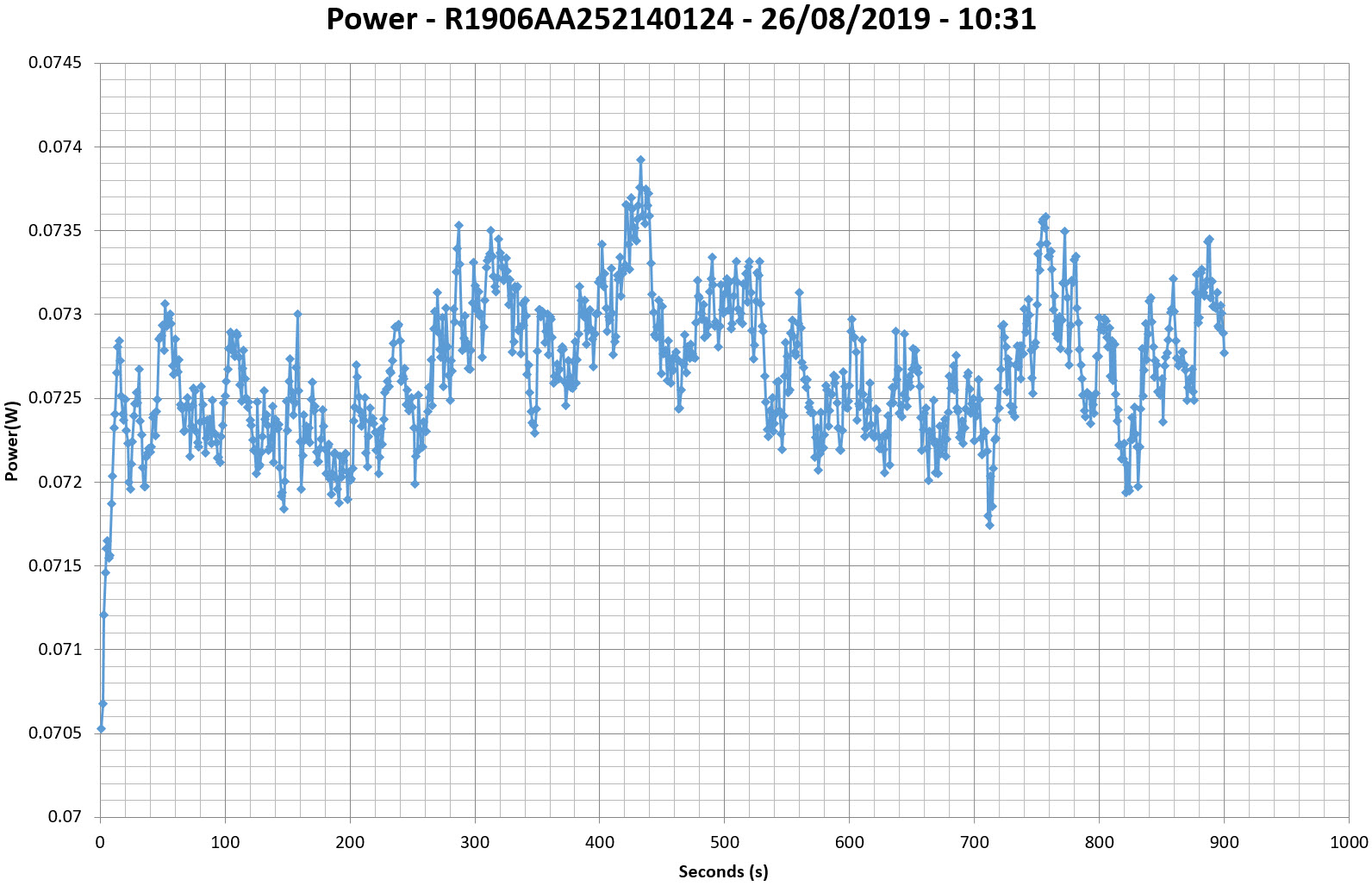

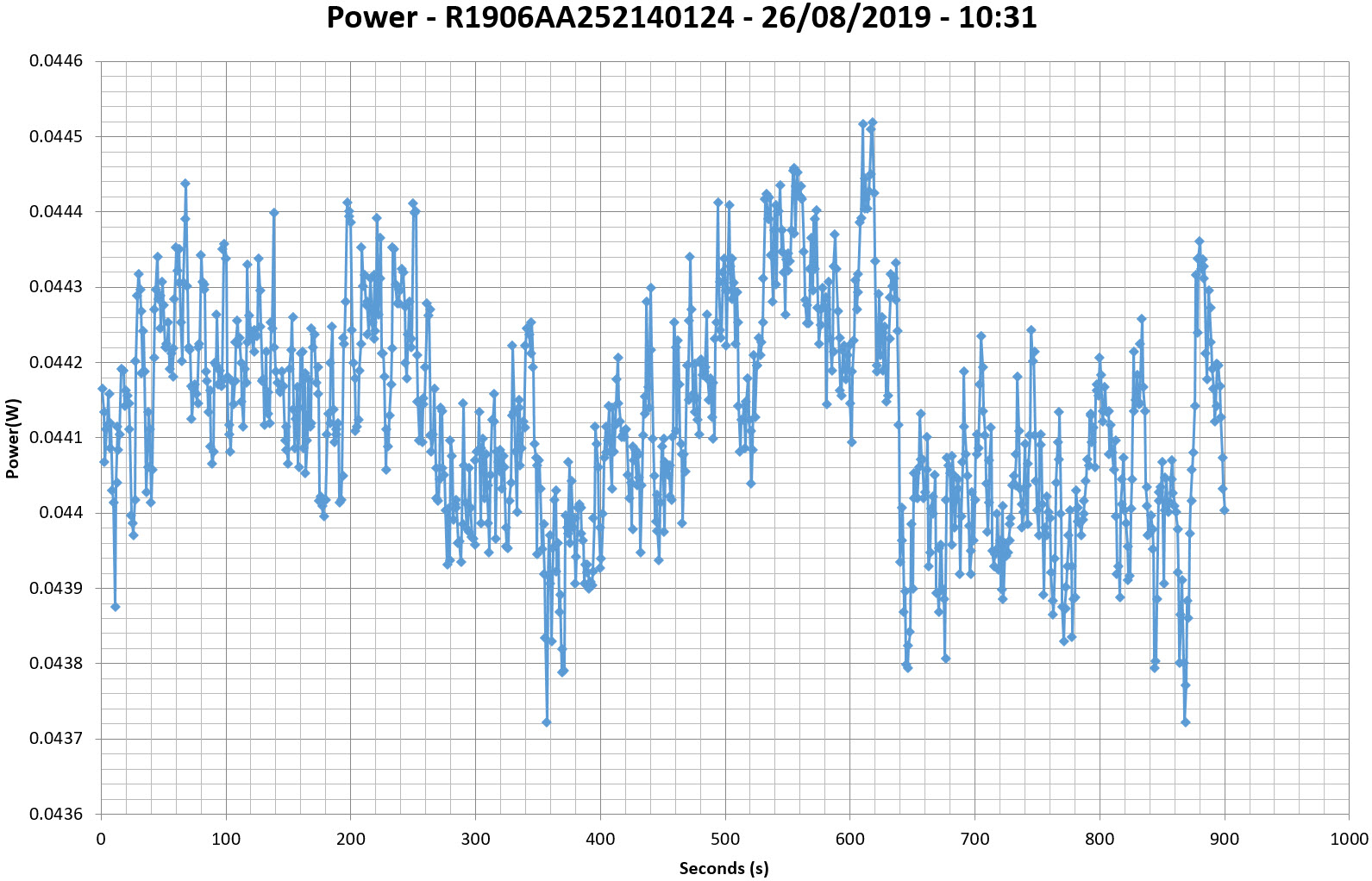

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

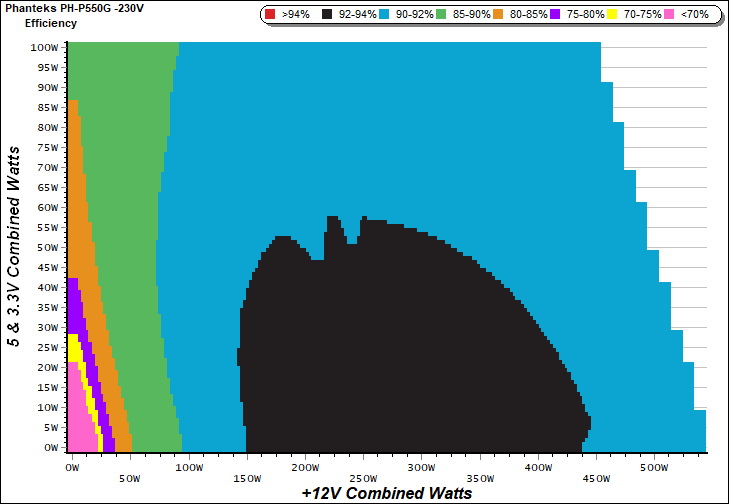

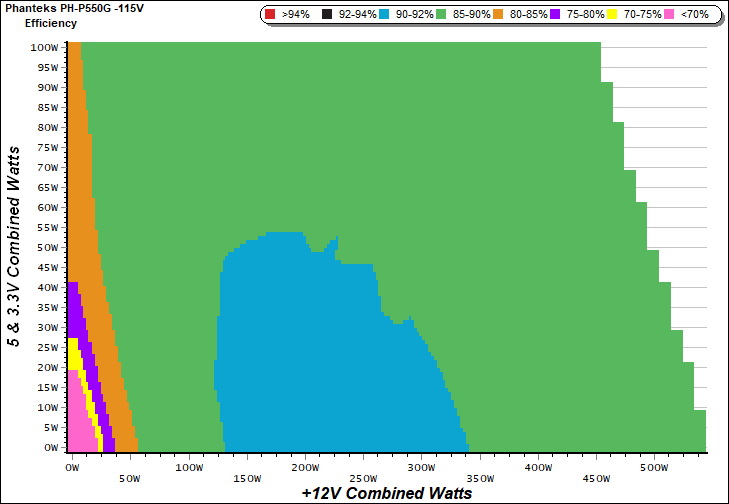

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

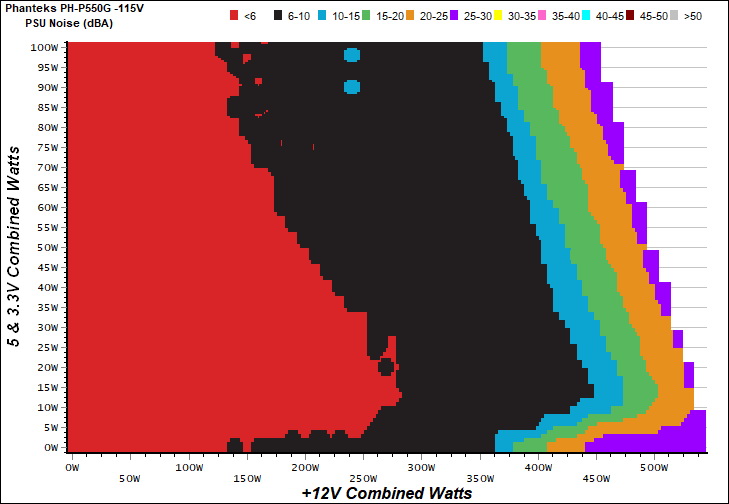

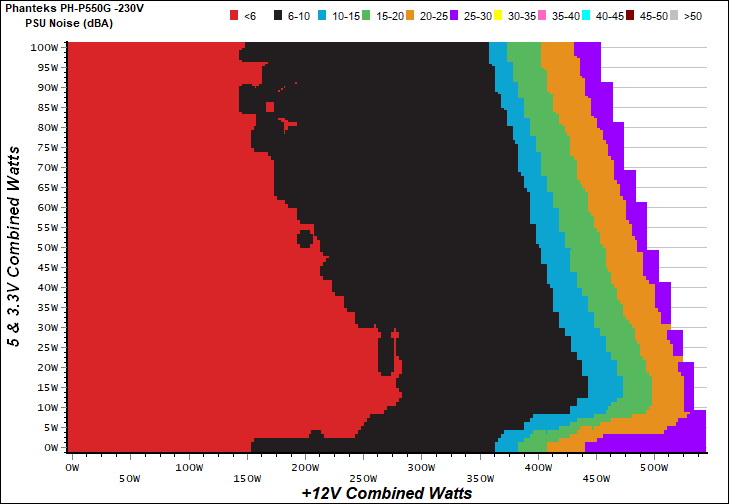

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

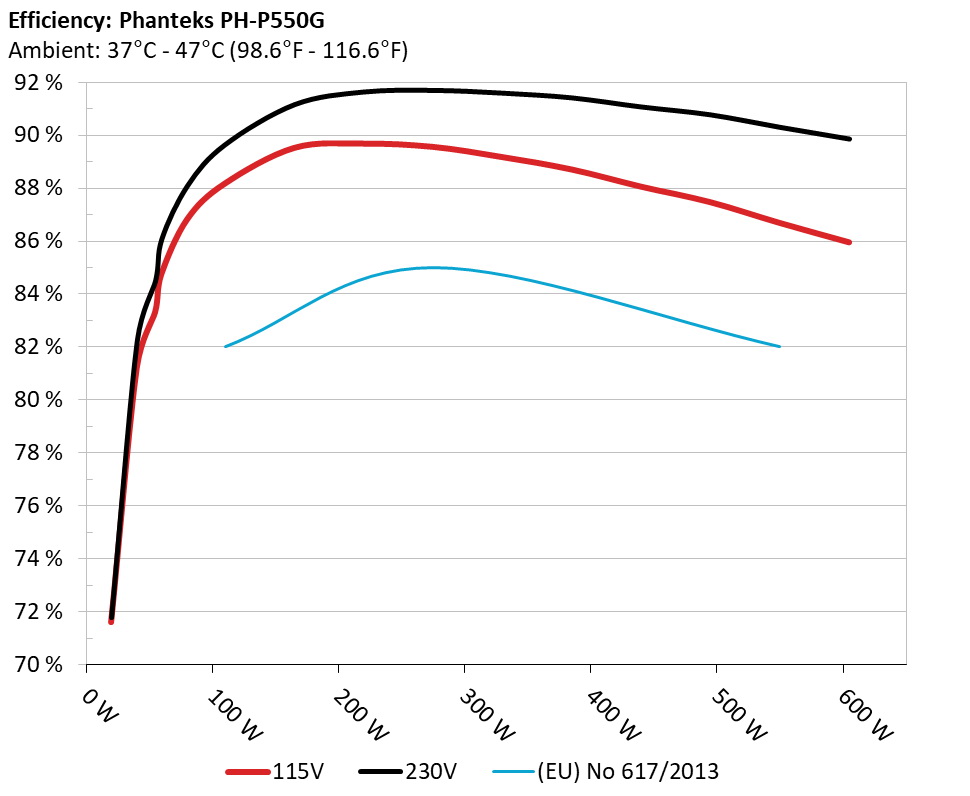

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

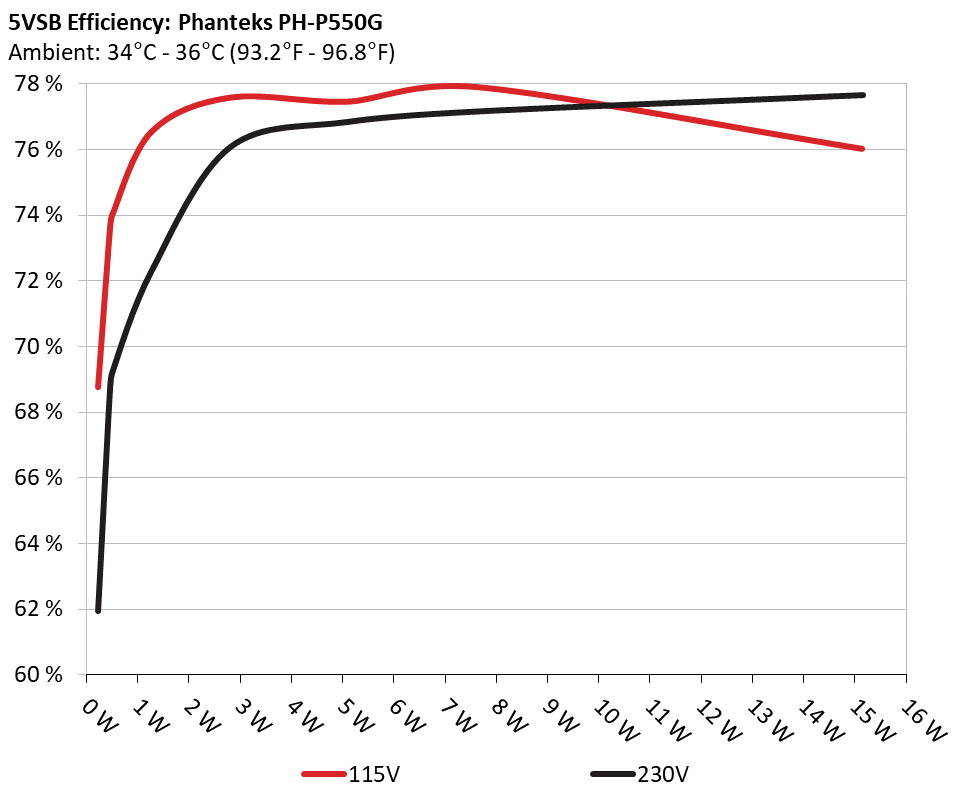

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	68.750%	0.055
1	5.121V	0.336	68.750%	115.13V
2	0.090A	0.462	73.567%	0.100
2	5.120V	0.628	73.567%	115.13V
3	0.550A	2.811	77.588%	0.330
3	5.110V	3.623	77.588%	115.13V
4	1.000A	5.100	77.461%	0.397
4	5.099V	6.584	77.461%	115.13V
5	1.500A	7.634	77.906%	0.432
5	5.088V	9.799	77.906%	115.13V
6	3.000A	15.140	76.023%	0.482
6	5.046V	19.915	76.023%	115.13V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.231	61.930%	0.019
1	5.121V	0.373	61.930%	230.26V
2	0.090A	0.462	68.648%	0.034
2	5.120V	0.673	68.648%	230.26V
3	0.550A	2.811	76.076%	0.161
3	5.109V	3.695	76.076%	230.26V
4	1.000A	5.100	76.842%	0.241
4	5.099V	6.637	76.842%	230.26V
5	1.500A	7.632	77.161%	0.295
5	5.087V	9.891	77.161%	230.26V
6	3.000A	15.160	77.660%	0.368
6	5.053V	19.521	77.660%	230.26V

Supplementary Tests (For Reference)

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	2.722A	2.003A	1.989A	0.982A	54.538	83.328%	0	<6.0	45.81°C	0.917
1	12.097V	4.997V	3.319V	5.092V	65.450	83.328%	0	<6.0	40.54°C	115.12V
2	6.492A	3.004A	2.986A	1.181A	109.449	88.172%	0	<6.0	46.94°C	0.954
2	12.098V	4.994V	3.317V	5.083V	124.131	88.172%	0	<6.0	40.85°C	115.12V
3	10.656A	3.506A	3.469A	1.380A	164.941	89.534%	0	<6.0	47.62°C	0.969
3	12.100V	4.992V	3.315V	5.074V	184.221	89.534%	0	<6.0	41.15°C	115.12V
4	14.753A	4.009A	3.984A	1.580A	219.755	89.694%	0	<6.0	48.64°C	0.978
4	12.102V	4.991V	3.314V	5.065V	245.004	89.694%	0	<6.0	41.89°C	115.12V
5	18.519A	5.011A	4.982A	1.781A	274.649	89.573%	560	8.5	42.67°C	0.983
5	12.103V	4.991V	3.312V	5.055V	306.619	89.573%	560	8.5	49.88°C	115.12V
6	22.286A	6.016A	5.982A	1.983A	329.566	89.190%	571	8.5	43.11°C	0.984
6	12.104V	4.989V	3.310V	5.044V	369.509	89.190%	571	8.5	50.90°C	115.11V
7	26.087A	7.019A	6.982A	2.185A	384.866	88.719%	685	11.0	43.38°C	0.986
7	12.104V	4.987V	3.309V	5.035V	433.804	88.719%	685	11.0	51.57°C	115.11V
8	29.886A	8.027A	7.984A	2.389A	440.169	88.067%	1003	20.8	43.90°C	0.988
8	12.104V	4.986V	3.307V	5.024V	499.812	88.067%	1003	20.8	52.76°C	115.11V
9	34.057A	8.529A	8.473A	2.392A	494.683	87.488%	1340	30.2	45.17°C	0.989
9	12.102V	4.985V	3.305V	5.019V	565.431	87.488%	1340	30.2	54.61°C	115.11V
10	38.033A	9.033A	8.990A	3.000A	549.884	86.702%	1753	33.2	45.31°C	0.989
10	12.099V	4.984V	3.304V	5.000V	634.222	86.702%	1753	33.2	56.05°C	115.11V
11	42.601A	9.033A	8.991A	3.003A	605.107	85.968%	2098	41.1	46.57°C	0.990
11	12.098V	4.984V	3.303V	4.996V	703.877	85.968%	2098	41.1	58.17°C	115.11V
CL1	0.142A	12.002A	12.001A	0.000A	101.248	85.136%	0	<6.0	49.34°C	0.952
CL1	12.107V	4.984V	3.309V	5.100V	118.925	85.136%	0	<6.0	42.48°C	115.12V
CL2	45.005A	1.002A	0.999A	1.000A	557.839	87.464%	1609	33.1	45.54°C	0.989
CL2	12.098V	4.994V	3.311V	5.057V	637.796	87.464%	1609	33.1	55.97°C	115.11V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
1	2.725A	2.002A	1.990A	0.982A	54.569	84.485%	0	<6.0	45.90°C	0.713
1	12.096V	4.997V	3.318V	5.092V	64.590	84.485%	0	<6.0	40.38°C	230.27V
2	6.496A	3.004A	2.987A	1.181A	109.491	89.620%	0	<6.0	46.33°C	0.854
2	12.096V	4.995V	3.317V	5.083V	122.173	89.620%	0	<6.0	40.43°C	230.27V
3	10.661A	3.507A	3.469A	1.380A	164.984	91.143%	0	<6.0	47.51°C	0.907
3	12.098V	4.992V	3.315V	5.073V	181.017	91.143%	0	<6.0	41.39°C	230.27V
4	14.758A	4.009A	3.985A	1.580A	219.802	91.618%	424	6.0	41.87°C	0.933
4	12.101V	4.991V	3.314V	5.064V	239.912	91.618%	424	6.0	48.58°C	230.26V
5	18.524A	5.012A	4.983A	1.781A	274.699	91.678%	563	8.5	42.05°C	0.948
5	12.102V	4.991V	3.312V	5.055V	299.636	91.678%	563	8.5	49.57°C	230.27V
6	22.292A	6.016A	5.982A	1.984A	329.619	91.577%	577	8.6	42.57°C	0.957
6	12.103V	4.989V	3.310V	5.043V	359.936	91.577%	577	8.6	50.47°C	230.27V
7	26.093A	7.021A	6.985A	2.186A	384.930	91.396%	738	12.6	43.23°C	0.964
7	12.103V	4.987V	3.308V	5.035V	421.168	91.396%	738	12.6	51.76°C	230.27V
8	29.895A	8.027A	7.988A	2.390A	440.226	91.052%	1045	22.1	43.85°C	0.969
8	12.102V	4.986V	3.306V	5.023V	483.488	91.052%	1045	22.1	52.74°C	230.27V
9	34.065A	8.529A	8.472A	2.392A	494.742	90.758%	1351	30.2	44.17°C	0.972
9	12.101V	4.985V	3.305V	5.019V	545.122	90.758%	1351	30.2	53.59°C	230.28V
10	38.041A	9.033A	8.989A	3.001A	549.945	90.287%	1746	33.1	45.05°C	0.975
10	12.098V	4.984V	3.304V	5.000V	609.108	90.287%	1746	33.1	54.87°C	230.28V
11	42.613A	9.036A	8.993A	3.003A	605.180	89.844%	2114	42.0	46.94°C	0.978
11	12.096V	4.983V	3.303V	4.996V	673.591	89.844%	2114	42.0	57.52°C	230.27V
CL1	0.149A	12.004A	12.000A	0.000A	101.329	86.363%	0	<6.0	48.80°C	0.848
CL1	12.108V	4.983V	3.309V	5.100V	117.329	86.363%	0	<6.0	41.93°C	230.28V
CL2	45.012A	1.003A	1.002A	1.000A	557.892	90.939%	1883	38.4	45.10°C	0.975
CL2	12.097V	4.993V	3.311V	5.057V	613.479	90.939%	1883	38.4	54.60°C	230.28V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.202A	0.502A	0.483A	0.196A	19.657	71.621%	0	<6.0	0.787
1	12.094V	5.005V	3.324V	5.114V	27.446	71.621%	0	<6.0	115.12V
2	2.461A	1.002A	0.995A	0.392A	40.077	81.248%	0	<6.0	0.887
2	12.094V	4.999V	3.320V	5.108V	49.327	81.248%	0	<6.0	115.13V
3	3.651A	1.500A	1.476A	0.588A	59.555	84.771%	0	<6.0	0.921
3	12.095V	4.998V	3.319V	5.102V	70.254	84.771%	0	<6.0	115.12V
4	4.906A	2.004A	1.989A	0.785A	79.951	86.833%	0	<6.0	0.940
4	12.095V	4.997V	3.318V	5.095V	92.074	86.833%	0	<6.0	115.12V

The results above are not used in the certification process

Test #	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	PF/AC Volts
1	1.204A	0.501A	0.482A	0.196A	19.670	71.786%	0	<6.0	0.489
1	12.092V	5.005V	3.324V	5.114V	27.401	71.786%	0	<6.0	230.28V
2	2.463A	1.001A	0.996A	0.392A	40.098	82.234%	0	<6.0	0.640
2	12.093V	4.999V	3.320V	5.108V	48.761	82.234%	0	<6.0	230.27V
3	3.654A	1.501A	1.475A	0.588A	59.585	86.074%	0	<6.0	0.731
3	12.093V	4.998V	3.319V	5.101V	69.225	86.074%	0	<6.0	230.27V
4	4.909A	2.003A	1.990A	0.785A	79.982	88.081%	0	<6.0	0.800
4	12.094V	4.997V	3.318V	5.095V	90.805	88.081%	0	<6.0	230.27V

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	22.0 mV	21.2 mV	23.1 mV	22.7 mV	Pass
20% Load	30.1 mV	28.6 mV	29.8 mV	31.0 mV	Pass
30% Load	34.2 mV	30.6 mV	32.8 mV	34.5 mV	Pass
40% Load	35.1 mV	31.5 mV	33.5 mV	34.4 mV	Pass
50% Load	35.2 mV	32.0 mV	33.5 mV	34.4 mV	Pass
60% Load	36.2 mV	32.7 mV	34.0 mV	34.5 mV	Pass
70% Load	36.8 mV	33.5 mV	35.3 mV	34.6 mV	Pass
80% Load	37.2 mV	34.1 mV	35.1 mV	34.2 mV	Pass
90% Load	37.6 mV	34.9 mV	36.0 mV	34.9 mV	Pass
100% Load	48.6 mV	38.4 mV	38.1 mV	35.3 mV	Pass
110% Load	49.4 mV	41.6 mV	40.6 mV	37.0 mV	Pass
Crossload 1	32.5 mV	31.1 mV	30.7 mV	30.8 mV	Pass
Crossload 2	47.5 mV	34.9 mV	37.0 mV	34.3 mV	Pass

The results above are not used in the certification process

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	10.6 mV	10.5 mV	5.5 mV	5.1 mV	Pass
20% Load	15.3 mV	11.6 mV	6.8 mV	5.4 mV	Pass
30% Load	18.5 mV	12.3 mV	7.5 mV	5.5 mV	Pass
40% Load	20.6 mV	13.1 mV	8.3 mV	5.9 mV	Pass
50% Load	22.9 mV	14.4 mV	9.2 mV	6.2 mV	Pass
60% Load	24.5 mV	16.1 mV	10.2 mV	6.5 mV	Pass
70% Load	26.2 mV	16.1 mV	11.4 mV	6.7 mV	Pass
80% Load	27.4 mV	18.3 mV	13.0 mV	7.6 mV	Pass
90% Load	29.1 mV	22.8 mV	14.4 mV	7.7 mV	Pass
100% Load	30.0 mV	24.0 mV	15.3 mV	7.9 mV	Pass
110% Load	32.1 mV	24.5 mV	14.9 mV	7.9 mV	Pass
Crossload 1	14.7 mV	18.1 mV	10.1 mV	5.5 mV	Pass
Crossload 2	30.2 mV	15.5 mV	13.6 mV	6.5 mV	Pass

The results above are not used in the certification process

Phanteks AMP 550W

Top side

Power specifications label
