CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

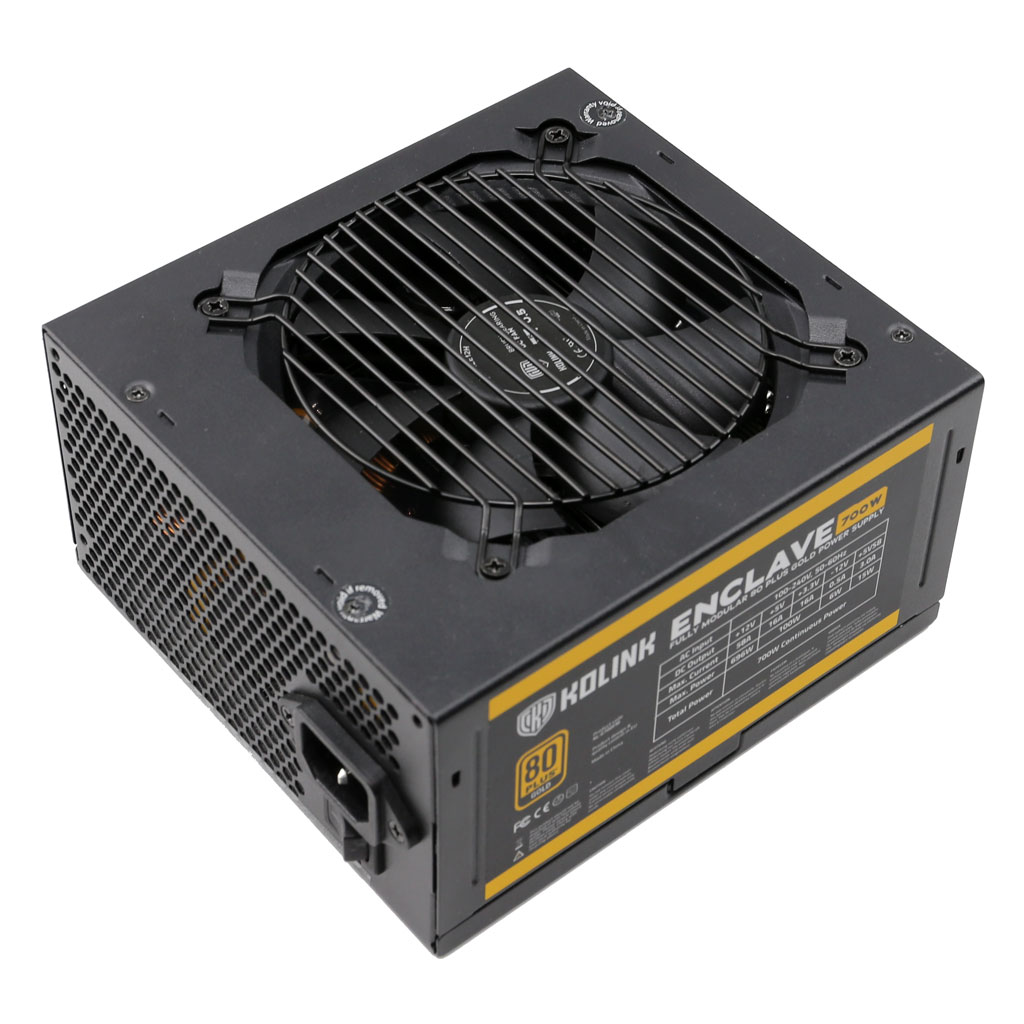

Kolink Enclave 700W
KOL-018-0619000003
Lab IDKL19700092
  • Report:
  • Receipt Date: Jul 31, 2019
  • Test Date: May 8, 2019
  • Report Date: Aug 22, 2019
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Kolink
Hersteller (OEM)Kolink
Enclave
KL-G700FM
KOL-018-0619000003

(Vrms)100-240
(Arms)
(Hz)50-60
(W)700
ATX12V
120mm Rifle Bearing Fan
(EFS-12E12H)
✗
Fully Modular

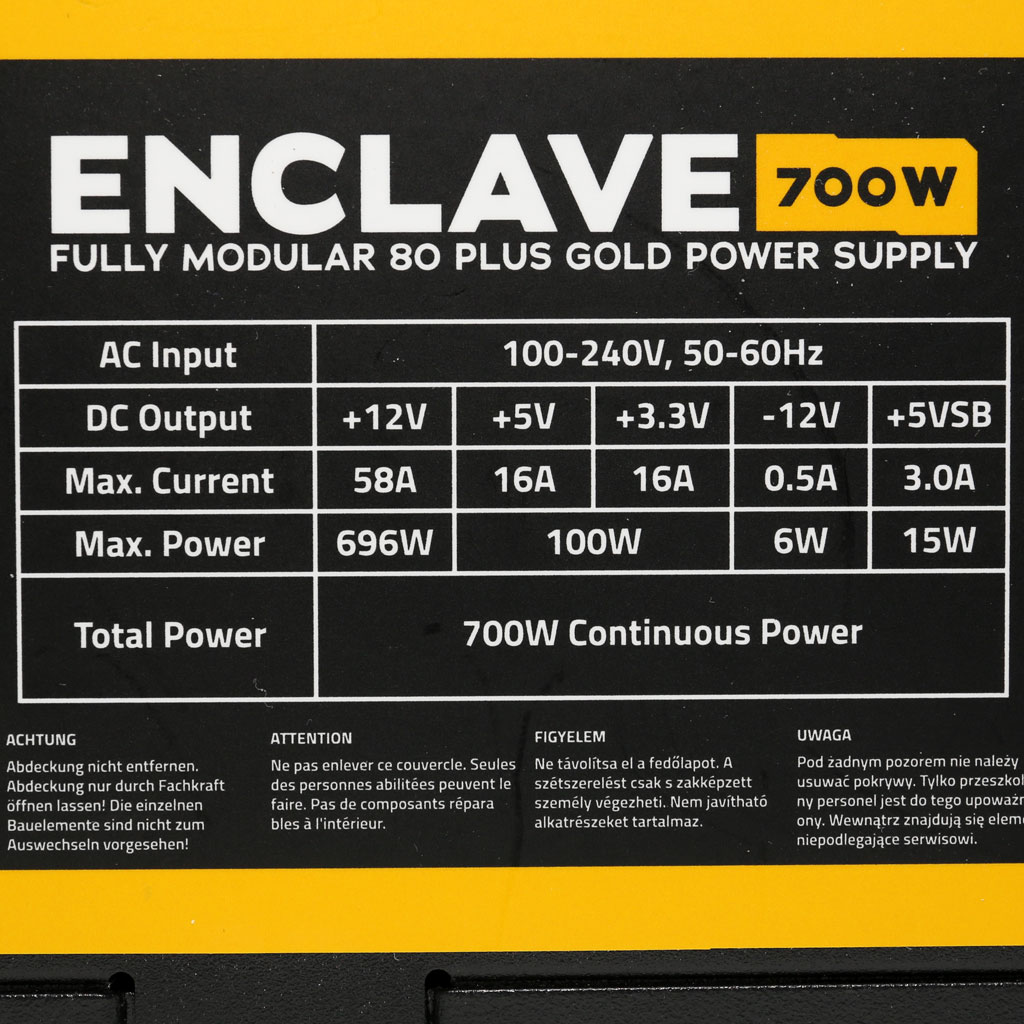

Rail3.3V5V12V5VSB-12V
Max. PowerAmps16165830.5
Watts100696156
Total Max. Power (W)700

Electronic Loads Chroma 63601-5 x4 Chroma 63600-2 x2 63640-80-80 x20 63610-80-20 x2
AC Sources Chroma 6530, Keysight AC6804B
Power Analyzers N4L PPA1530 x2
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Tachometer UNI-T UT372 x2
Digital Multimeter Keysight U1273AX, Fluke 289, Keithley 2015 - THD
UPS CyberPower OLS3000E 3kVA x2
Transformer 3kVA x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (500mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 1 1 18AWG No
6+2 pin PCIe (600mm+100mm) 2 4 18AWG No
SATA (450mm+120mm+120mm) 2 6 20AWG No
SATA (450mm) / 4 pin Molex (+120mm+120mm) 2 2 / 4 20AWG No

Parts Description

General Data
Manufacturer (OEM) Kolink
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x GBU1506 (600V, 15A @ 100°C)
APFC MOSFETS 2x Infineon IPA50R190CE (550V, 15.7A @ 100°C, 0.19Ohm)
APFC Boost Diode 1x Infineon IDH06G65C6 (650V, 6A @ 145°C)
Hold-up Cap(s) 1x Teapo (420V, 560uF, 2,000h @ 105°C, LG)
Main Switchers 4x Great Power GPT13N50D (500V, 13A, 0.49Ohm)
APFC Controller On Semiconductor NCP1654
Resonant Controllers Champion CM6901T6
Topology Primary side: Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 4x Nexperia PSMN1R4-40YLD (40V, 214A @ 100°C, 2.65mOhm @ 175°C)
5V & 3.3V DC-DC Converters:4x Excelliance MOS EMB09N03HR (30V, 35A @ 100°C, 9.5mOhm)
PWM Controllers: ANPEC APW7159
Filtering Capacitors Electrolytics: 7x Teapo (1-3,000h @ 105°C, SC), 3x Teapo (2,000h @ 105°C, SH),1x Asia'x (105°C, TMX)
Polymers: 8x Teapo
Supervisor IC IN1S313I-DAG & UTC393
Fan Model DWPH EFS-12E12H (120mm, 12V, 0.50A, Rifle Bearing Fan)
5VSB Circuit
Rectifier 1x MBR2045CT SBR (45V, 20A)
Standby PWM Controller Infineon ICE2QR4765

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseA
(>1450 load combinations)88.970%
Average Noise Output (>1450 Load Combinations)21.60dBA
(>1450 Load Combinations)0.990
Efficiency With 10W (≤500W) or 2% (>500W) Load58.362%
0.0878W
12V Ripple (Full Load)53.94mV
5V Ripple (Full Load)0.00mV
3.3V Ripple (Full Load)0.00mV
5VSB Ripple (Full Load)20.51mV
12V Load Regulation1.00%
5V Load Regulation0.00%
3.3V Load Regulation0.00%
5VSB Load Regulation3.49%
Inrush Current26.122A
WirkungsgradGOLD
LautstärkeklasseA
(>1450 load combinations)90.939%
Average Noise Output (>1450 Load Combinations)22.06dBA
(>1450 Load Combinations)0.952
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1389W
12V Ripple (Full Load)55.73mV
5V Ripple (Full Load)0.00mV
3.3V Ripple (Full Load)0.00mV
5VSB Ripple (Full Load)16.42mV
12V Load Regulation0.95%
5V Load Regulation0.00%
3.3V Load Regulation0.00%
5VSB Load Regulation3.43%
Inrush Current75.327A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
22.00ms
AC Loss to PWR_OK Hold Up Time18.00ms
PWR_OK Inactive to DC Loss Delay4.00ms
PSU Timings: T1 (20% / 100%)60.0ms60.0ms
PSU Timings: T3 (20% / 100%)128.0ms128.0ms
OPP (0.00°C / 0.00°C)134.19%0.00%

Hold-Up Time (ms)22
AC Loss to PWR_OK Hold Up Time (ms)18
PWR_OK Inactive to DC Loss Delay (ms)4

Stromverbrauch im Ruhezustand

Tables

Graphs

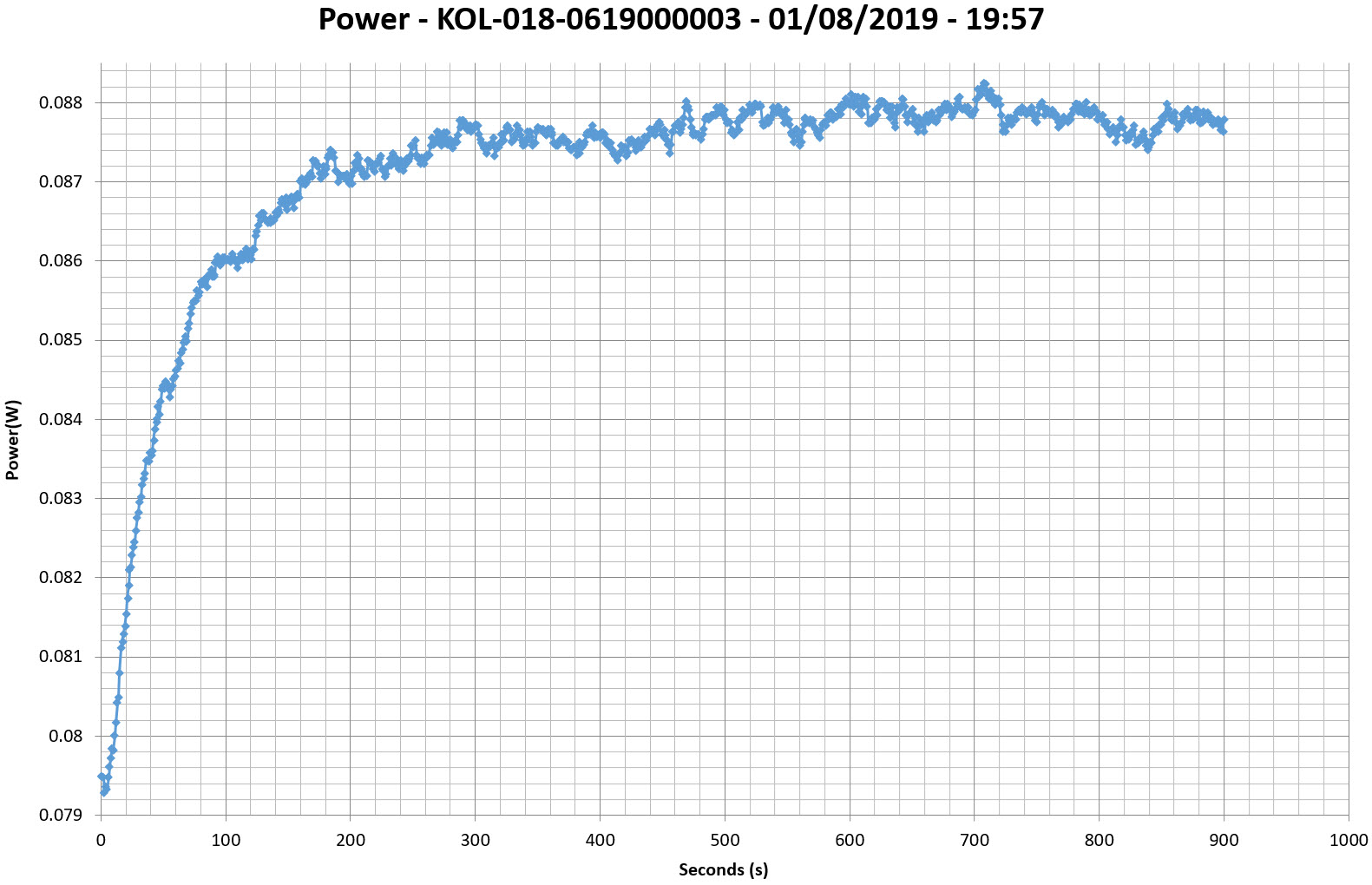

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

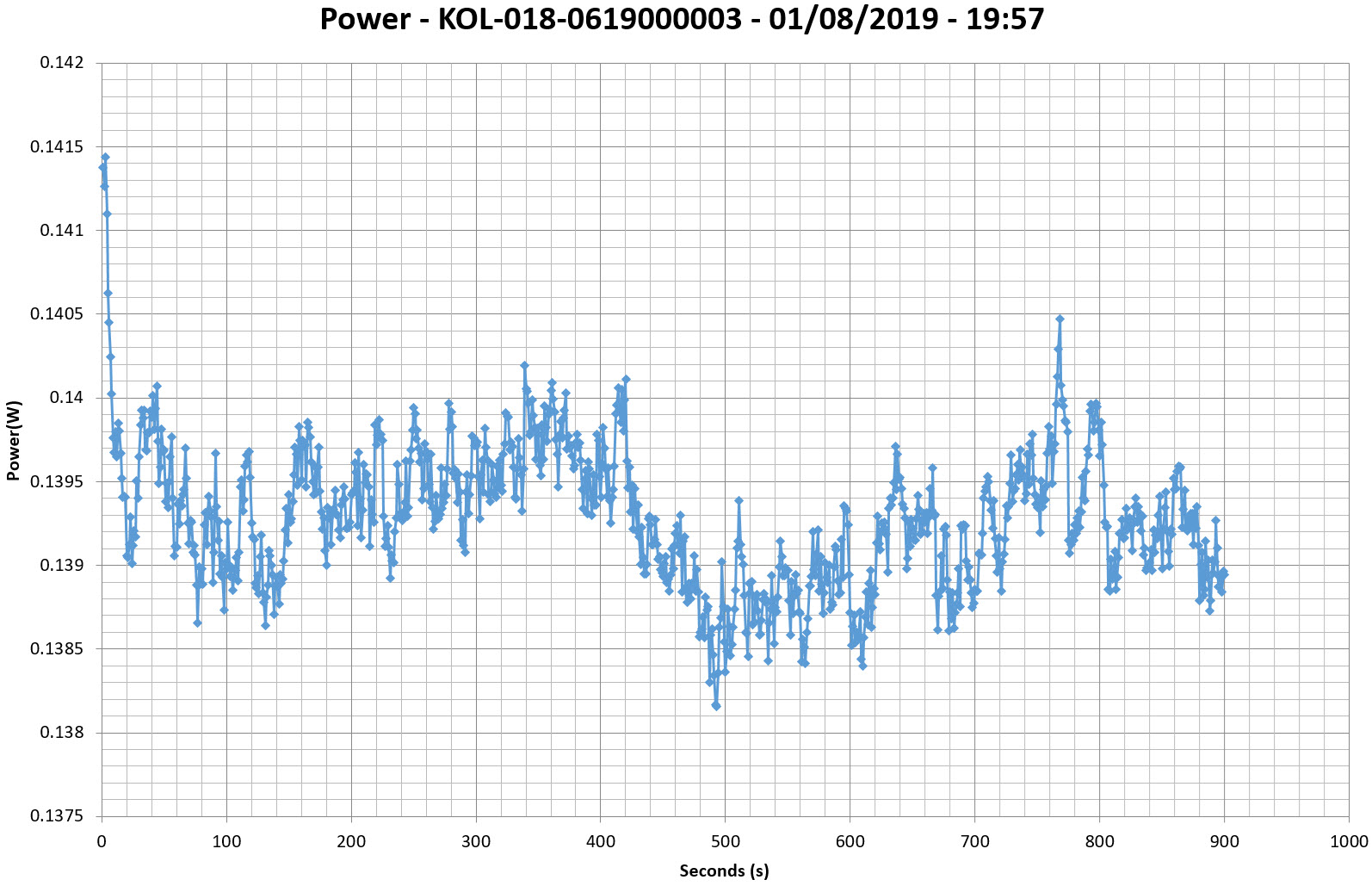

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

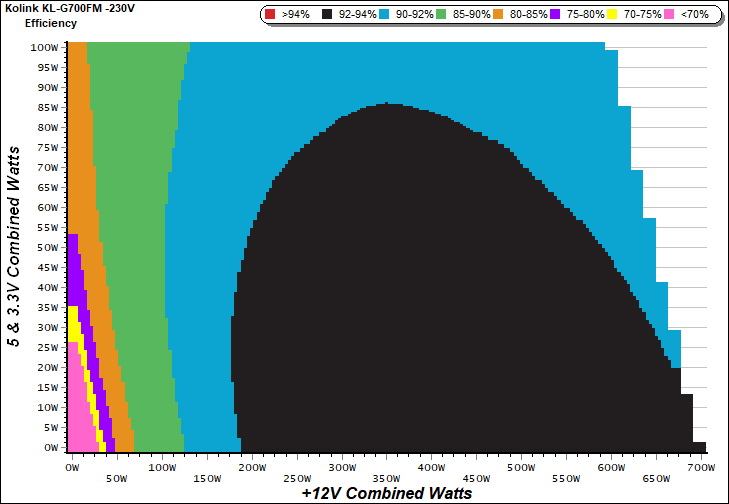

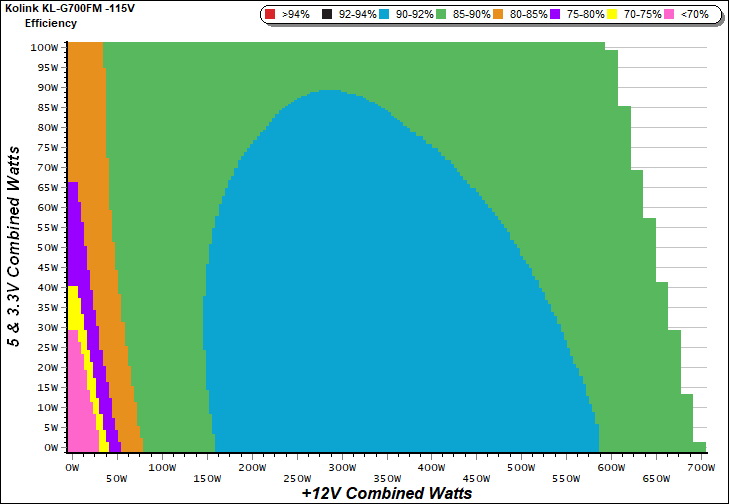

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

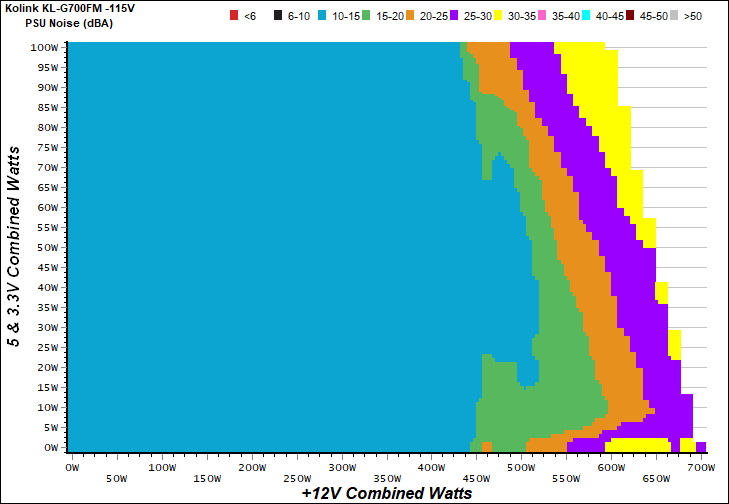

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

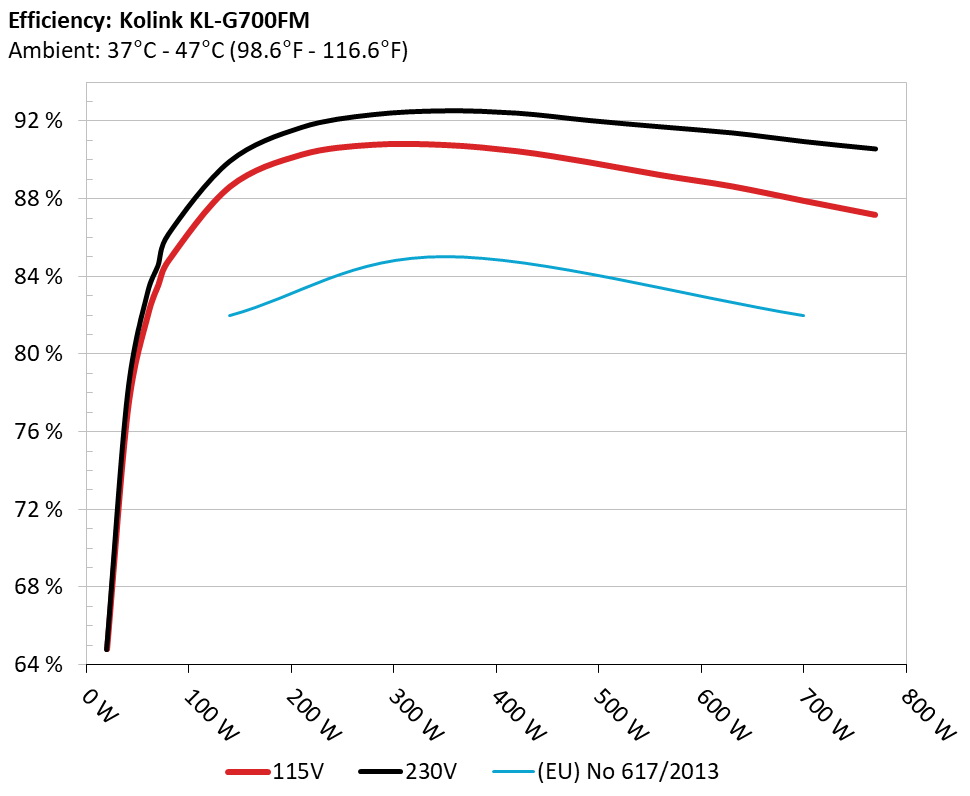

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

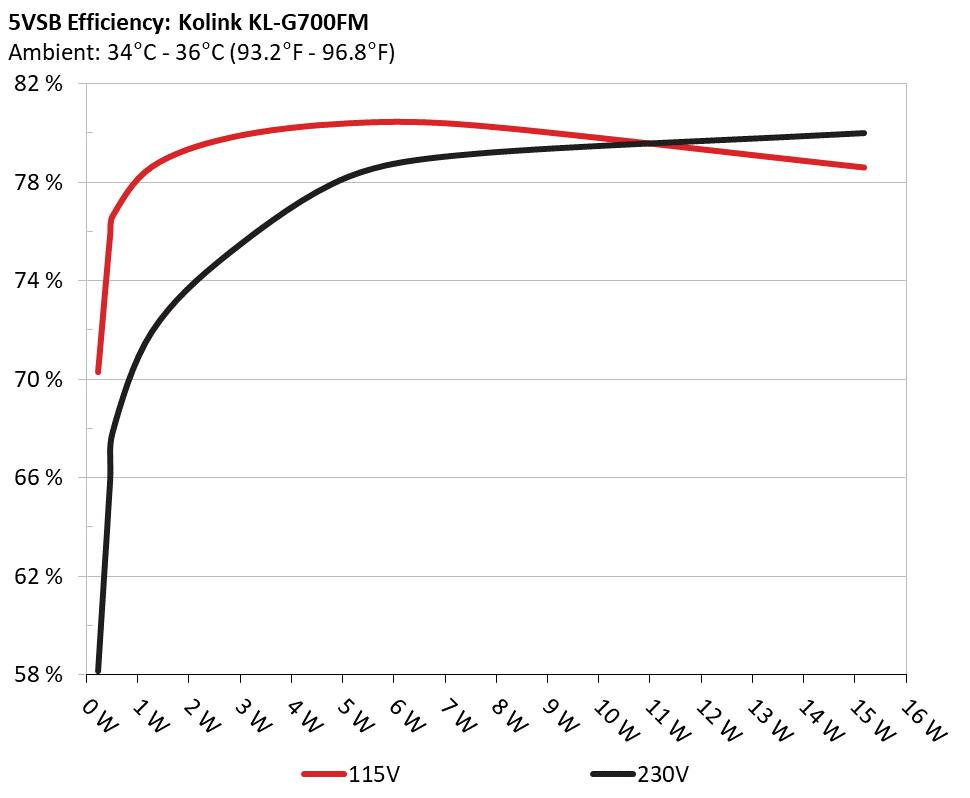

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 70.303% 0.044
5.142V 0.330 115.13V
2 0.090A 0.463 75.777% 0.080
5.141V 0.611 115.13V
3 0.550A 2.821 79.825% 0.308
5.128V 3.534 115.14V
4 1.000A 5.116 80.402% 0.388
5.115V 6.363 115.14V
5 1.500A 7.653 80.304% 0.431
5.101V 9.530 115.14V
6 3.001A 15.180 78.608% 0.486
5.059V 19.311 115.13V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232 58.145% 0.016
5.142V 0.399 230.26V
2 0.090A 0.463 65.767% 0.028
5.141V 0.704 230.26V
3 0.550A 2.821 75.187% 0.136
5.128V 3.752 230.26V
4 1.000A 5.116 78.238% 0.210
5.115V 6.539 230.26V
5 1.500A 7.653 79.183% 0.268
5.101V 9.665 230.25V
6 3.001A 15.180 80.013% 0.360
5.059V 18.972 230.26V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.931A 1.996A 1.942A 0.980A 69.792 83.551% 770 14.7 40.04°C 0.976
12.253V 5.020V 3.400V 5.105V 83.532 43.12°C 115.13V
2 8.904A 2.998A 2.925A 1.179A 139.906 88.618% 772 14.8 40.35°C 0.987
12.240V 5.007V 3.388V 5.090V 157.875 44.16°C 115.13V
3 14.214A 3.504A 3.406A 1.379A 209.829 90.256% 777 14.8 41.21°C 0.986
12.229V 4.996V 3.377V 5.075V 232.482 46.02°C 115.13V
4 19.531A 4.015A 3.922A 1.581A 279.821 90.768% 781 14.9 41.82°C 0.990
12.217V 4.984V 3.366V 5.060V 308.280 47.61°C 115.13V
5 24.533A 5.032A 4.921A 1.784A 349.917 90.757% 786 15.1 42.26°C 0.993
12.204V 4.971V 3.354V 5.044V 385.553 49.09°C 115.13V
6 29.548A 6.054A 5.928A 1.990A 420.047 90.436% 807 15.6 42.85°C 0.995
12.191V 4.958V 3.341V 5.028V 464.468 50.39°C 115.13V
7 34.579A 7.081A 6.943A 2.196A 490.153 89.868% 1382 31.6 43.55°C 0.996
12.176V 4.944V 3.328V 5.011V 545.412 51.75°C 115.12V
8 39.619A 8.118A 7.967A 2.403A 560.274 89.206% 1802 40.0 43.75°C 0.996
12.162V 4.930V 3.314V 4.995V 628.066 52.25°C 115.12V
9 45.062A 8.646A 8.480A 2.408A 629.994 88.627% 1822 39.7 44.65°C 0.997
12.149V 4.918V 3.303V 4.985V 710.836 53.44°C 115.12V
10 50.285A 9.178A 9.028A 3.027A 700.033 87.879% 1831 39.6 45.41°C 0.997
12.137V 4.905V 3.290V 4.957V 796.591 54.63°C 115.12V
11 56.107A 9.197A 9.059A 3.033A 770.037 87.155% 1841 39.8 46.70°C 0.997
12.125V 4.895V 3.280V 4.948V 883.524 56.33°C 115.12V
CL1 0.154A 12.004A 12.000A 0.000A 102.115 82.771% 814 15.8 42.02°C 0.989
12.233V 4.980V 3.371V 5.111V 123.370 49.09°C 115.14V
CL2 58.024A 1.002A 1.001A 1.000A 718.340 88.497% 1832 39.6 45.60°C 0.997
12.151V 4.935V 3.313V 5.029V 811.712 54.47°C 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.932A 1.993A 1.941A 0.980A 69.784 84.540% 766 14.3 40.10°C 0.807
12.253V 5.019V 3.400V 5.105V 82.546 42.91°C 230.28V
2 8.903A 2.998A 2.923A 1.179A 139.895 89.923% 771 14.7 40.73°C 0.908
12.241V 5.007V 3.388V 5.089V 155.572 44.01°C 230.28V
3 14.213A 3.504A 3.405A 1.380A 209.819 91.662% 774 14.8 41.23°C 0.944
12.229V 4.996V 3.377V 5.075V 228.906 45.17°C 230.28V
4 19.529A 4.015A 3.921A 1.581A 279.817 92.324% 778 14.9 41.82°C 0.963
12.218V 4.985V 3.366V 5.060V 303.081 46.52°C 230.28V
5 24.533A 5.031A 4.921A 1.785A 349.918 92.515% 783 15.0 42.03°C 0.974
12.204V 4.971V 3.354V 5.044V 378.230 47.92°C 230.28V
6 29.546A 6.054A 5.924A 1.990A 420.044 92.401% 797 15.5 42.54°C 0.979
12.192V 4.958V 3.342V 5.028V 454.586 49.24°C 230.28V
7 34.577A 7.083A 6.939A 2.196A 490.159 92.024% 1458 33.2 43.14°C 0.983
12.177V 4.944V 3.328V 5.011V 532.644 50.46°C 230.28V
8 39.618A 8.119A 7.967A 2.404A 560.272 91.694% 1739 39.0 43.52°C 0.986
12.162V 4.930V 3.314V 4.995V 611.023 51.74°C 230.28V
9 45.062A 8.645A 8.479A 2.408A 629.985 91.384% 1816 39.7 44.19°C 0.987
12.149V 4.918V 3.303V 4.985V 689.383 52.86°C 230.28V
10 50.279A 9.177A 9.028A 3.027A 700.024 90.936% 1830 39.6 45.41°C 0.987
12.138V 4.906V 3.291V 4.957V 769.798 54.38°C 230.28V
11 56.107A 9.197A 9.056A 3.033A 770.034 90.555% 1841 39.8 46.53°C 0.988
12.125V 4.896V 3.280V 4.947V 850.345 56.42°C 230.27V
CL1 0.153A 12.004A 12.000A 0.000A 102.105 83.900% 818 15.9 42.00°C 0.879
12.233V 4.980V 3.371V 5.110V 121.698 47.66°C 230.28V
CL2 58.023A 1.003A 1.001A 1.000A 718.389 91.647% 1830 39.6 45.01°C 0.987
12.152V 4.934V 3.313V 5.029V 783.861 54.68°C 230.28V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.495A 0.470A 0.195A 19.654 64.779% 764 14.2 0.866
12.263V 5.035V 3.414V 5.136V 30.340 115.13V
2 2.431A 0.996A 0.967A 0.390A 40.105 77.165% 767 14.5 0.941
12.259V 5.028V 3.408V 5.127V 51.973 115.13V
3 3.602A 1.495A 1.441A 0.586A 59.559 82.000% 768 14.5 0.964
12.256V 5.023V 3.403V 5.119V 72.633 115.13V
4 4.848A 1.994A 1.943A 0.783A 80.006 84.820% 767 14.5 0.975
12.251V 5.019V 3.399V 5.110V 94.324 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.496A 0.469A 0.195A 19.652 64.764% 745 13.6 0.567
12.261V 5.035V 3.413V 5.135V 30.344 230.27V
2 2.431A 0.994A 0.969A 0.390A 40.097 77.940% 756 14.0 0.702
12.258V 5.028V 3.407V 5.126V 51.446 230.27V
3 3.602A 1.496A 1.440A 0.586A 59.556 83.149% 761 14.2 0.779
12.255V 5.023V 3.403V 5.118V 71.626 230.28V
4 4.848A 1.994A 1.942A 0.783A 79.999 86.165% 764 14.2 0.829
12.251V 5.018V 3.399V 5.109V 92.844 230.27V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.4 mV 9.0 mV 12.0 mV 15.6 mV Pass
20% Load 15.6 mV 9.2 mV 11.9 mV 14.8 mV Pass
30% Load 16.5 mV 9.6 mV 12.7 mV 15.0 mV Pass
40% Load 18.8 mV 10.1 mV 12.6 mV 14.3 mV Pass
50% Load 22.0 mV 11.1 mV 13.5 mV 15.6 mV Pass
60% Load 23.8 mV 10.9 mV 14.5 mV 15.0 mV Pass
70% Load 27.2 mV 11.9 mV 15.5 mV 16.2 mV Pass
80% Load 29.7 mV 12.8 mV 16.5 mV 16.5 mV Pass
90% Load 33.0 mV 13.6 mV 18.6 mV 16.9 mV Pass
100% Load 53.9 mV 14.7 mV 19.7 mV 20.5 mV Pass
110% Load 59.2 mV 17.6 mV 21.7 mV 19.1 mV Pass
Crossload 1 19.1 mV 10.0 mV 14.0 mV 15.2 mV Pass
Crossload 2 54.7 mV 13.4 mV 18.0 mV 18.9 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.0 mV 8.9 mV 15.8 mV 14.6 mV Pass
20% Load 14.0 mV 8.8 mV 15.5 mV 14.7 mV Pass
30% Load 18.3 mV 9.0 mV 15.8 mV 14.9 mV Pass
40% Load 20.7 mV 10.5 mV 16.9 mV 14.5 mV Pass
50% Load 25.0 mV 9.8 mV 16.5 mV 14.7 mV Pass
60% Load 25.9 mV 10.4 mV 15.2 mV 14.4 mV Pass
70% Load 28.5 mV 10.7 mV 16.5 mV 15.4 mV Pass
80% Load 31.0 mV 11.2 mV 17.3 mV 15.4 mV Pass
90% Load 32.8 mV 12.4 mV 18.1 mV 15.7 mV Pass
100% Load 55.7 mV 14.4 mV 19.1 mV 16.4 mV Pass
110% Load 60.3 mV 15.6 mV 21.4 mV 17.1 mV Pass
Crossload 1 20.4 mV 9.4 mV 16.4 mV 15.2 mV Pass
Crossload 2 54.7 mV 13.4 mV 19.7 mV 15.9 mV Pass

The results above are not used in the certification process

Kolink Enclave 700W

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
