CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
be quiet! Pure Power 10 700W
275S8251000034
Lab IDBQ19700025
  • Report: 20PS680A
  • Receipt Date: Apr 19, 2019
  • Test Date: Apr 25, 2019
  • Report Date: Apr 30, 2019
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

be quiet!
Hersteller (OEM)FSP
Pure Power 10
L10-CM-700
275S8251000034

(Vrms)100-240
(Arms)10-5
(Hz)50-60
(W)700
ATX12V
120mm Rifle Bearing Fan
(BQ QF1-12025-HS)
✗
Fixed cables

Rail3.3V5V12V(1)12V(2)5VSB-12V
Max. PowerAmps2520363030.3
Watts150672153.6
Total Max. Power (W)700

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 18-24AWG No
4+4 pin EPS12V (640mm) 1 1 18AWG No
6+2 pin PCIe (530mm+150mm) 2 4 18AWG No
SATA (510mm+150mm+150mm) 1 3 18AWG No
SATA (510mm+150mm) / 4-pin Molex (+150mm) / FDD (+150mm) 1 2 / 1 / 1 18-24AWG No
SATA (520mm) / 4-pin Molex (+150mm+150mm) 1 1 / 2 18AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseA
(>1450 load combinations)87.694%
Average Noise Output (>1450 Load Combinations)20.82dBA
(>1450 Load Combinations)0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load59.221%
0.1261W
12V Ripple (Full Load)68.66mV
5V Ripple (Full Load)35.65mV
3.3V Ripple (Full Load)57.03mV
5VSB Ripple (Full Load)30.52mV
12V Load Regulation1.00%
5V Load Regulation2.20%
3.3V Load Regulation2.95%
5VSB Load Regulation2.83%
Inrush Current98.705A
WirkungsgradSILVER
LautstärkeklasseA+
(>1450 load combinations)89.059%
Average Noise Output (>1450 Load Combinations)19.73dBA
(>1450 Load Combinations)0.974
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.2031W
12V Ripple (Full Load)59.29mV
5V Ripple (Full Load)33.27mV
3.3V Ripple (Full Load)49.35mV
5VSB Ripple (Full Load)24.28mV
12V Load Regulation0.94%
5V Load Regulation2.14%
3.3V Load Regulation2.64%
5VSB Load Regulation2.83%
Inrush Current103.159A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
28.40ms
AC Loss to PWR_OK Hold Up Time30.40ms
PWR_OK Inactive to DC Loss Delay-2.00ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)117.65%0.00%

Hold-Up Time (ms)28.4
AC Loss to PWR_OK Hold Up Time (ms)30.4
PWR_OK Inactive to DC Loss Delay (ms)-2

Stromverbrauch im Ruhezustand

Tables

Graphs

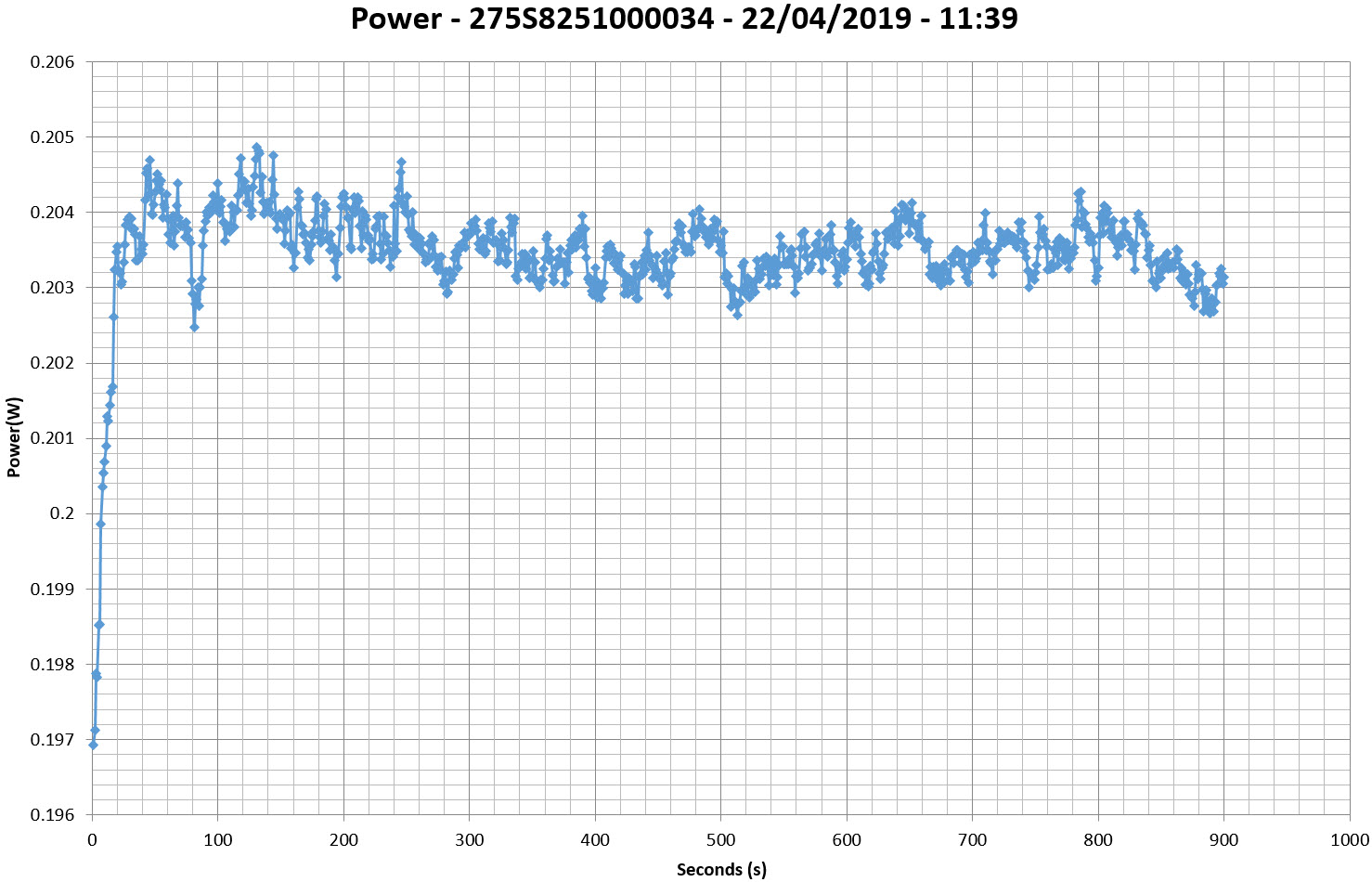

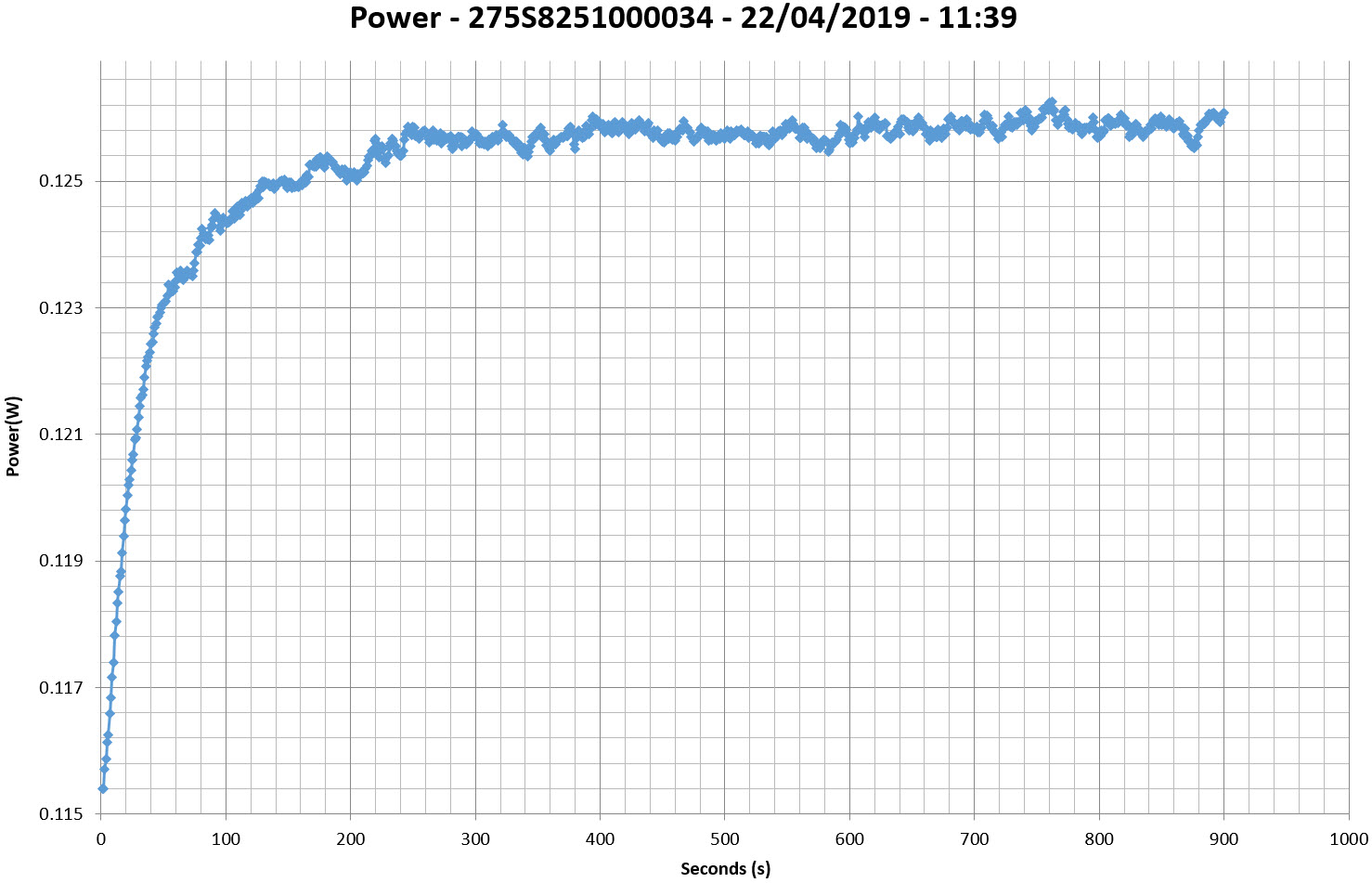

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

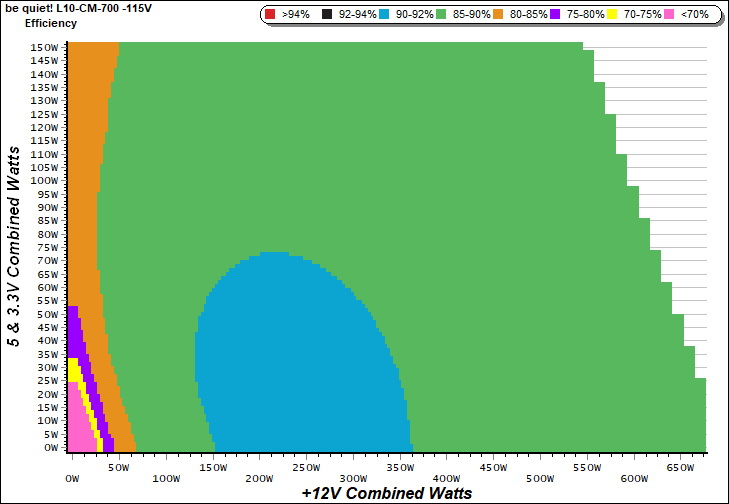

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

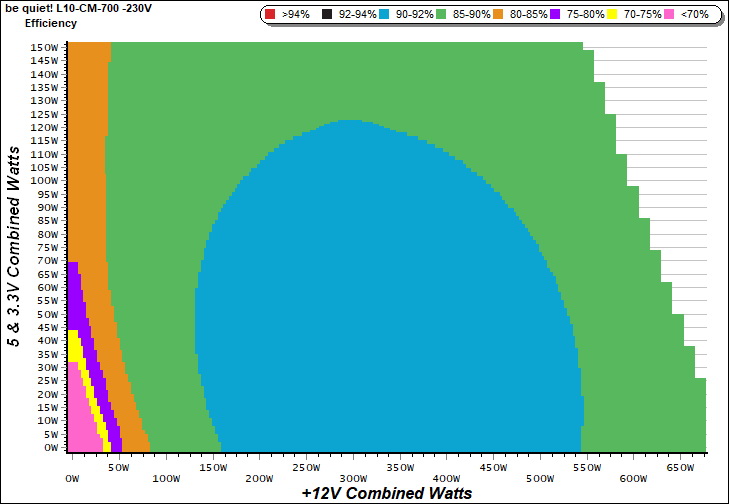

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

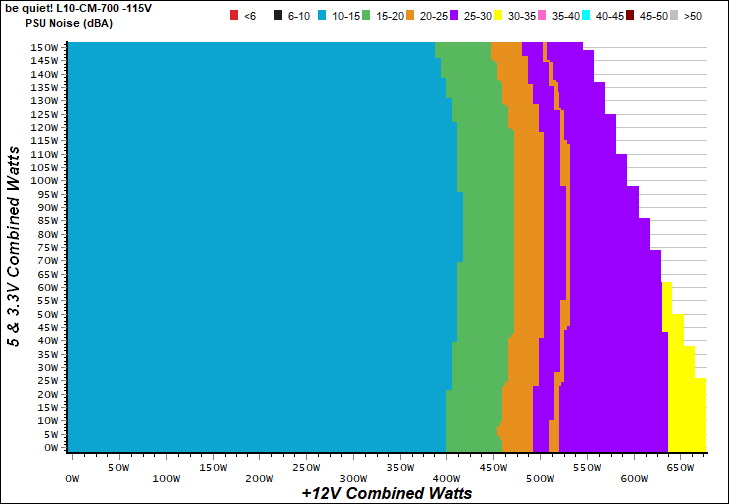

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

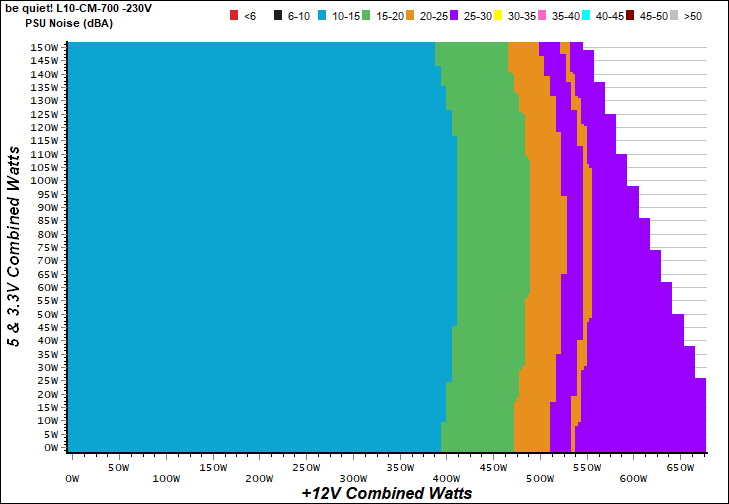

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

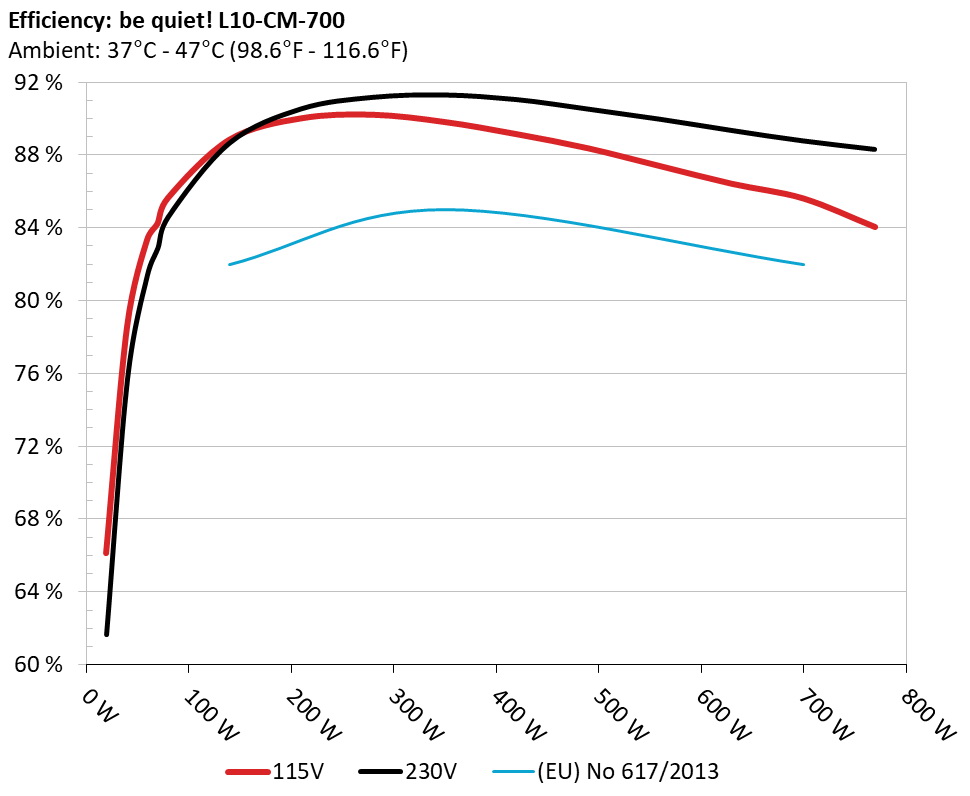

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

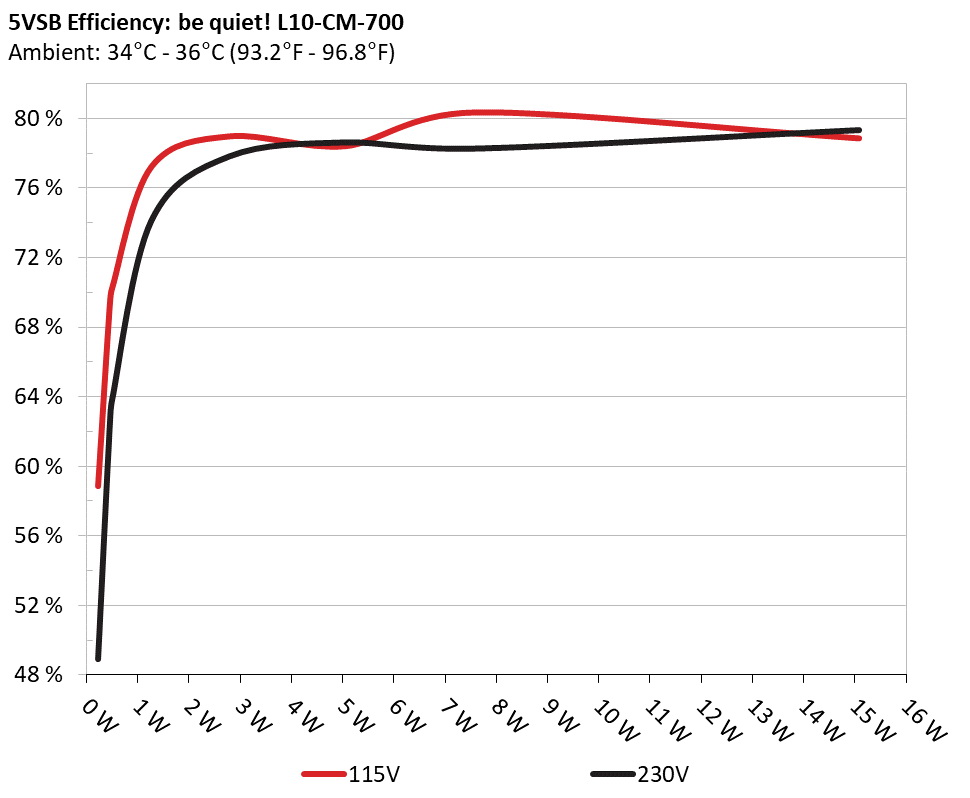

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 58.869% 0.075
5.087V 0.389 115.11V
2 0.090A 0.458 69.289% 0.121
5.086V 0.661 115.11V
3 0.550A 2.792 78.959% 0.328
5.075V 3.536 115.11V
4 1.000A 5.067 78.400% 0.380
5.066V 6.463 115.11V
5 1.500A 7.585 80.333% 0.406
5.056V 9.442 115.11V
6 3.000A 15.075 78.844% 0.451
5.025V 19.120 115.11V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229 48.932% 0.028
5.086V 0.468 230.25V
2 0.090A 0.458 62.398% 0.043
5.085V 0.734 230.25V
3 0.550A 2.792 77.837% 0.174
5.075V 3.587 230.25V
4 1.000A 5.066 78.640% 0.248
5.066V 6.442 230.24V
5 1.500A 7.584 78.282% 0.294
5.055V 9.688 230.24V
6 3.000A 15.074 79.345% 0.354
5.024V 18.998 230.25V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.956A 1.981A 1.945A 0.988A 69.591 84.254% 670 11.0 39.49°C 0.949
12.133V 5.047V 3.390V 5.062V 82.597 42.81°C 115.09V
2 8.977A 2.977A 2.928A 1.188A 139.691 88.868% 671 11.0 40.17°C 0.972
12.121V 5.035V 3.379V 5.049V 157.190 43.93°C 115.10V
3 14.337A 3.482A 3.409A 1.390A 209.601 90.043% 673 11.0 41.43°C 0.984
12.109V 5.026V 3.371V 5.037V 232.779 45.49°C 115.09V
4 19.709A 3.990A 3.926A 1.592A 279.619 90.241% 674 11.0 41.72°C 0.991
12.097V 5.014V 3.361V 5.024V 309.857 46.18°C 115.09V
5 24.762A 4.998A 4.921A 1.796A 349.724 89.844% 676 10.9 42.36°C 0.994
12.084V 5.004V 3.351V 5.011V 389.255 47.82°C 115.09V
6 29.825A 6.012A 5.927A 2.001A 419.826 89.178% 678 10.9 42.64°C 0.997
12.071V 4.991V 3.341V 4.998V 470.775 49.24°C 115.09V
7 34.905A 7.035A 6.940A 2.208A 489.964 88.393% 933 17.0 43.41°C 0.998
12.057V 4.977V 3.328V 4.984V 554.304 50.69°C 115.09V
8 40.000A 8.064A 7.967A 2.415A 560.091 87.420% 1212 24.9 43.91°C 0.998
12.042V 4.961V 3.314V 4.970V 640.691 52.45°C 115.09V
9 45.499A 8.586A 8.476A 2.420A 629.825 86.449% 1454 28.9 44.80°C 0.998
12.029V 4.951V 3.304V 4.960V 728.554 54.09°C 115.09V
10 50.756A 9.107A 9.022A 3.038A 699.730 85.642% 1505 30.2 45.43°C 0.998
12.019V 4.940V 3.292V 4.939V 817.045 55.91°C 115.09V
11 56.644A 9.121A 9.035A 3.043A 769.780 84.073% 1553 31.3 46.98°C 0.998
12.006V 4.935V 3.287V 4.930V 915.610 57.94°C 115.09V
CL1 0.135A 18.004A 18.001A 0.000A 151.058 82.191% 669 11.0 42.32°C 0.978
12.105V 4.959V 3.341V 5.048V 183.788 47.74°C 115.12V
CL2 56.007A 1.001A 1.001A 1.000A 687.180 85.367% 1413 28.2 45.58°C 0.998
12.032V 4.983V 3.317V 4.996V 804.976 55.80°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.955A 1.986A 1.956A 0.988A 69.567 82.890% 668 11.0 39.50°C 0.895
12.130V 5.034V 3.372V 5.061V 83.927 42.71°C 230.22V
2 8.977A 2.986A 2.941A 1.188A 139.673 88.676% 668 11.0 40.24°C 0.946
12.118V 5.023V 3.363V 5.050V 157.509 43.82°C 230.22V
3 14.340A 3.492A 3.427A 1.390A 209.602 90.548% 670 11.0 41.00°C 0.965
12.106V 5.013V 3.354V 5.038V 231.482 45.31°C 230.23V
4 19.712A 3.997A 3.945A 1.592A 279.603 91.185% 671 11.0 41.68°C 0.976
12.094V 5.004V 3.347V 5.026V 306.633 46.41°C 230.23V
5 24.767A 5.007A 4.943A 1.796A 349.714 91.310% 673 11.0 42.35°C 0.982
12.081V 4.994V 3.338V 5.011V 382.996 47.89°C 230.23V
6 29.830A 6.023A 5.950A 2.002A 419.818 91.062% 674 11.0 42.65°C 0.986
12.069V 4.980V 3.328V 4.997V 461.024 49.09°C 230.23V
7 34.921A 7.051A 6.966A 2.209A 490.058 90.537% 938 16.9 43.38°C 0.990
12.054V 4.966V 3.316V 4.982V 541.281 51.12°C 230.27V
8 40.006A 8.077A 7.988A 2.417A 560.179 89.980% 1218 24.8 43.73°C 0.991
12.042V 4.954V 3.306V 4.967V 622.559 52.40°C 230.28V
9 45.500A 8.602A 8.495A 2.421A 629.887 89.365% 1460 28.9 44.63°C 0.992
12.030V 4.943V 3.296V 4.958V 704.851 53.85°C 230.28V
10 50.748A 9.126A 9.039A 3.039A 699.757 88.791% 1510 30.3 45.98°C 0.993
12.021V 4.932V 3.286V 4.937V 788.097 56.39°C 230.27V
11 56.616A 9.136A 9.055A 3.043A 769.668 88.325% 1562 31.4 46.70°C 0.994
12.010V 4.926V 3.280V 4.931V 871.401 57.91°C 230.24V
CL1 0.131A 18.002A 17.999A 0.000A 150.452 82.577% 674 11.0 42.28°C 0.954
12.100V 4.945V 3.325V 5.047V 182.197 47.94°C 230.25V
CL2 55.995A 1.002A 1.000A 1.000A 687.014 88.910% 1415 28.2 45.85°C 0.993
12.032V 4.972V 3.305V 4.995V 772.704 56.52°C 230.24V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.181A 0.494A 0.468A 0.197A 19.432 66.151% 667 11.0 0.890
12.145V 5.055V 3.397V 5.083V 29.375 115.09V
2 2.437A 0.989A 0.969A 0.394A 39.868 78.599% 668 11.0 0.928
12.140V 5.051V 3.392V 5.076V 50.723 115.09V
3 3.621A 1.484A 1.444A 0.592A 59.335 83.354% 669 11.0 0.941
12.136V 5.049V 3.391V 5.070V 71.184 115.09V
4 4.878A 1.979A 1.946A 0.790A 79.762 85.671% 669 11.0 0.954
12.130V 5.049V 3.391V 5.065V 93.103 115.09V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.183A 0.496A 0.472A 0.197A 19.463 61.670% 662 11.0 0.732
12.143V 5.045V 3.380V 5.083V 31.560 230.21V
2 2.437A 0.990A 0.976A 0.394A 39.865 75.694% 664 11.0 0.834
12.138V 5.040V 3.376V 5.077V 52.666 230.21V
3 3.623A 1.488A 1.449A 0.592A 59.348 81.415% 665 11.0 0.879
12.134V 5.038V 3.374V 5.070V 72.896 230.21V
4 4.877A 1.985A 1.957A 0.790A 79.747 84.616% 666 11.0 0.907
12.129V 5.035V 3.372V 5.064V 94.246 230.21V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.6 mV 13.3 mV 14.9 mV 21.8 mV Pass
20% Load 19.0 mV 12.7 mV 15.7 mV 22.2 mV Pass
30% Load 21.9 mV 14.2 mV 17.0 mV 22.0 mV Pass
40% Load 25.0 mV 15.4 mV 18.7 mV 17.1 mV Pass
50% Load 28.4 mV 16.3 mV 22.1 mV 16.9 mV Pass
60% Load 33.5 mV 18.0 mV 26.5 mV 18.0 mV Pass
70% Load 38.1 mV 20.1 mV 28.9 mV 20.7 mV Pass
80% Load 45.9 mV 22.6 mV 33.3 mV 23.2 mV Pass
90% Load 54.5 mV 24.3 mV 37.3 mV 25.5 mV Pass
100% Load 68.7 mV 35.7 mV 57.0 mV 30.5 mV Fail
110% Load 84.6 mV 41.3 mV 61.2 mV 32.8 mV Fail
Crossload 1 28.8 mV 18.7 mV 31.7 mV 20.4 mV Pass
Crossload 2 69.6 mV 36.0 mV 53.3 mV 38.2 mV Fail

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 17.6 mV 13.2 mV 15.6 mV 21.9 mV Pass
20% Load 21.2 mV 17.5 mV 15.8 mV 26.5 mV Pass
30% Load 21.6 mV 13.8 mV 16.7 mV 24.1 mV Pass
40% Load 26.9 mV 16.3 mV 16.8 mV 23.6 mV Pass
50% Load 28.7 mV 17.1 mV 18.1 mV 18.8 mV Pass
60% Load 30.8 mV 20.1 mV 22.2 mV 18.8 mV Pass
70% Load 35.8 mV 23.4 mV 29.7 mV 21.0 mV Pass
80% Load 42.8 mV 23.5 mV 32.3 mV 22.4 mV Pass
90% Load 48.3 mV 25.9 mV 32.8 mV 22.7 mV Pass
100% Load 59.3 mV 33.3 mV 49.4 mV 24.3 mV Pass
110% Load 68.7 mV 38.2 mV 55.0 mV 27.5 mV Fail
Crossload 1 28.2 mV 22.0 mV 30.8 mV 24.3 mV Pass
Crossload 2 62.5 mV 38.1 mV 50.2 mV 36.5 mV Fail

The results above are not used in the certification process

be quiet! Pure Power 10 700W

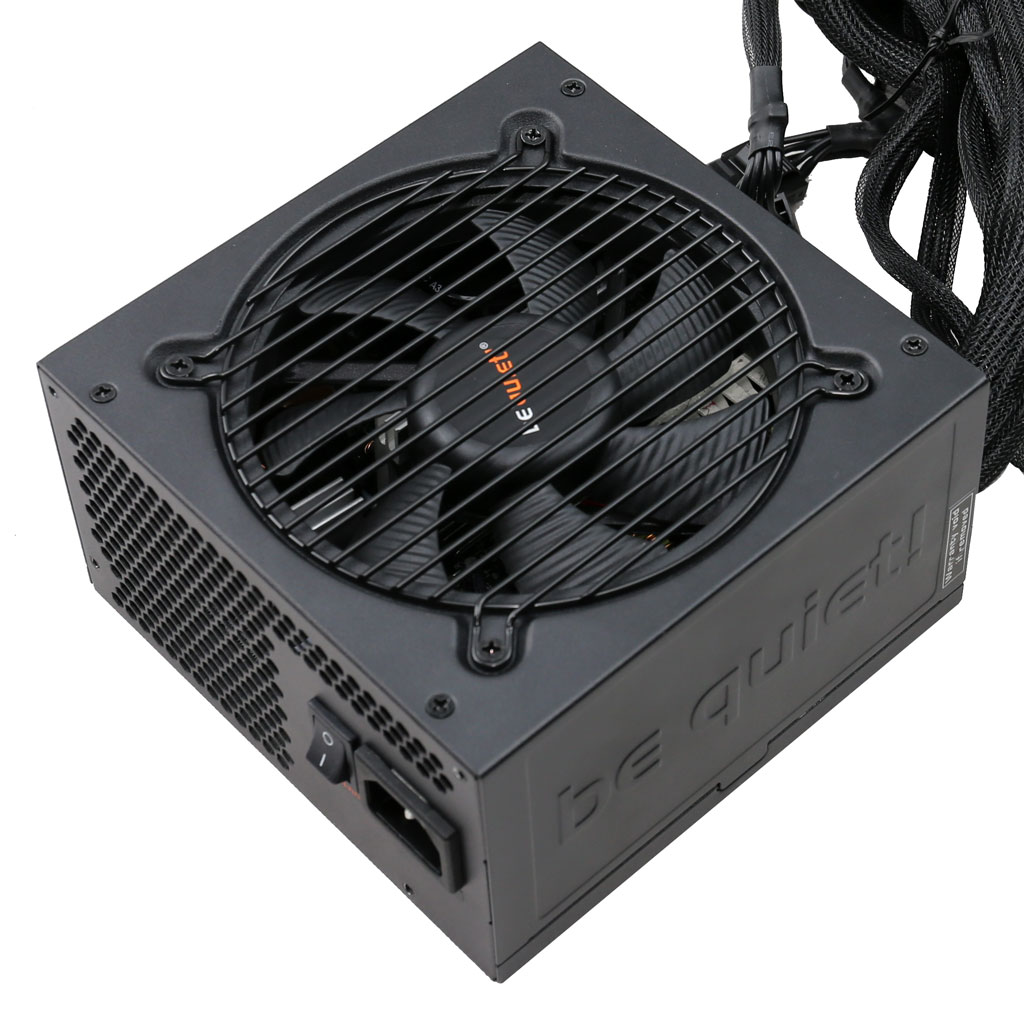

Top side

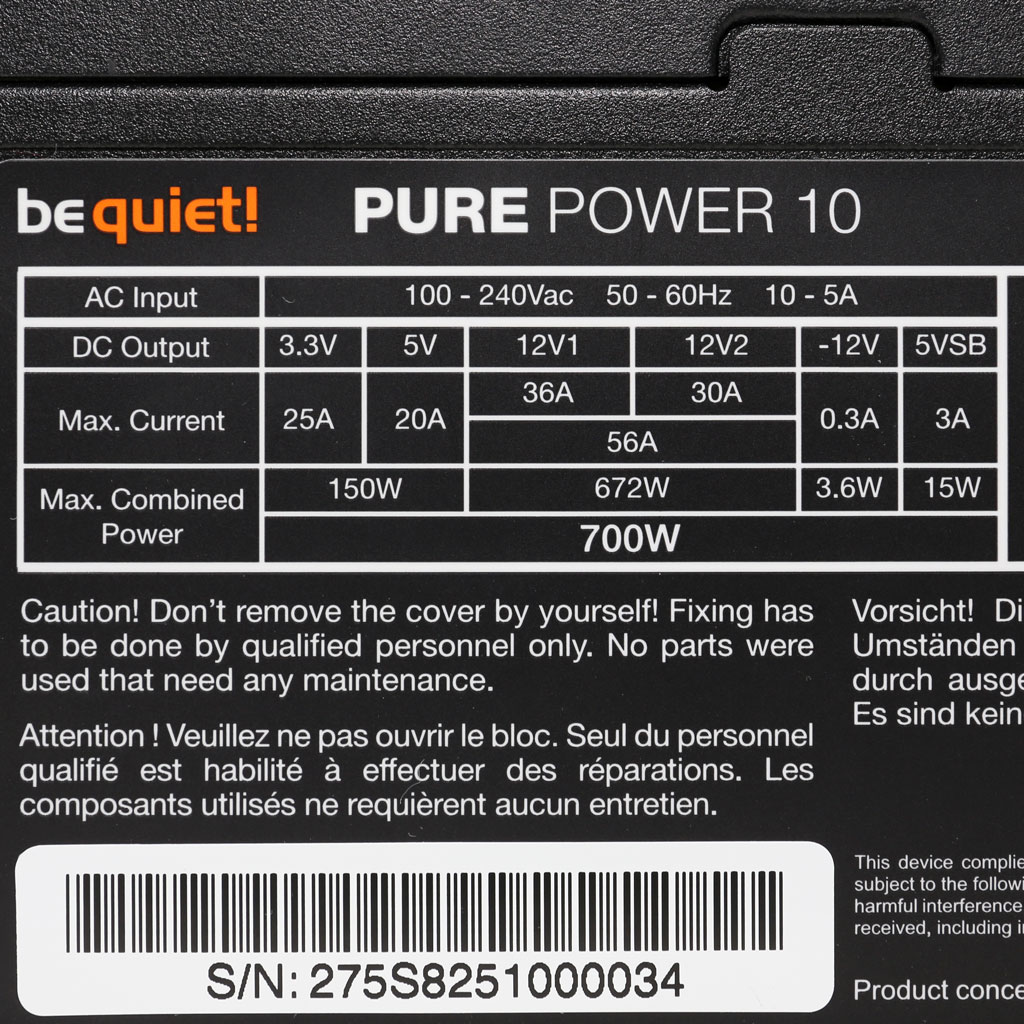

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
