CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SilverStone Strider Platinum 1200W (#2)
DBSTK20PTS18480090
Lab IDSL19120020
  • Report:
  • Receipt Date: Apr 4, 2019
  • Test Date: Apr 16, 2019
  • Report Date: Apr 23, 2019
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

SilverStone
Hersteller (OEM)Enhance Electronics
Strider Platinum
ST1200-PTS
DBSTK20PTS18480090

(Vrms)100-240
(Arms)12-6
(Hz)50-60
(W)1200
ATX12V
120mm Rifle Bearing Fan
(D12SH-12)
✗
Fully Modular

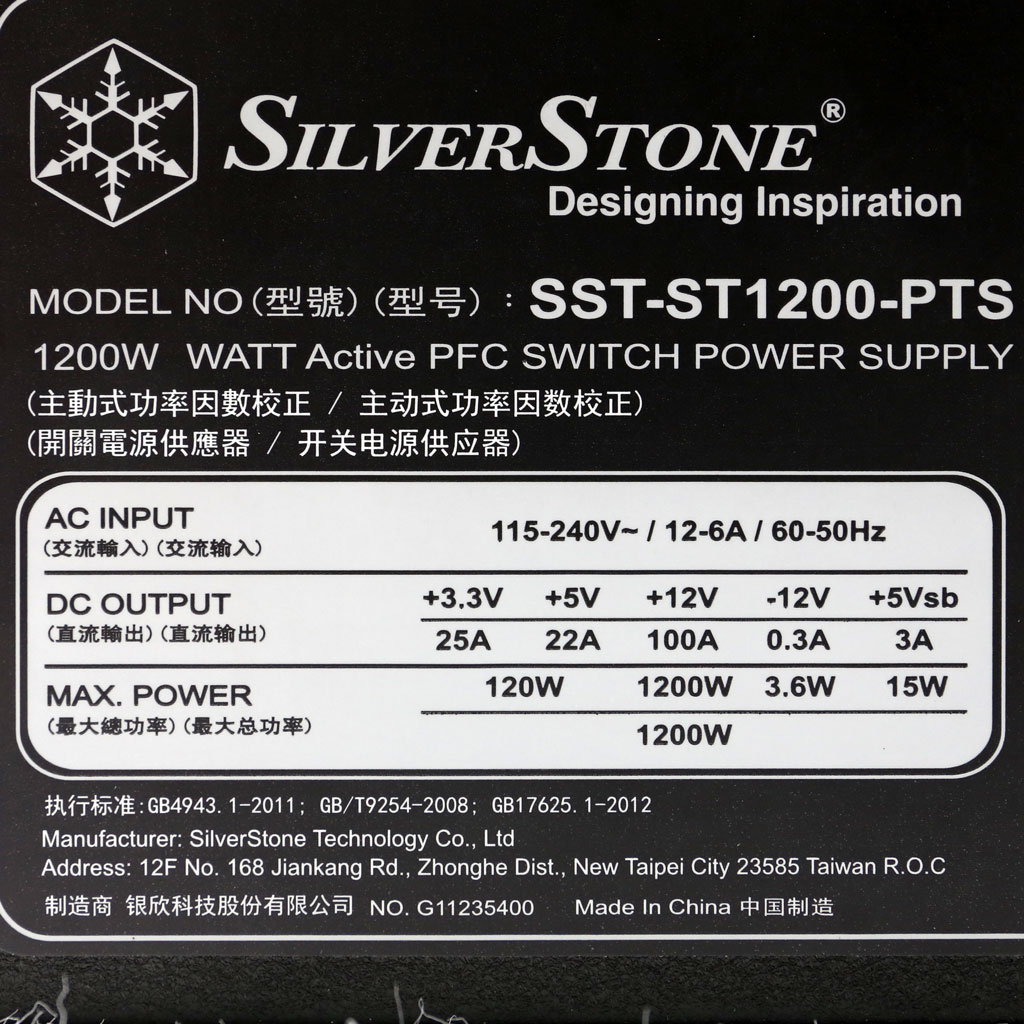

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252210030.3
Watts1201200153.6
Total Max. Power (W)1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (750mm) 1 1 16AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
6+2 pin PCIe (550mm+150mm) 4 8 16-18AWG No
SATA (610mm+140mm+140mm+140mm) 2 8 18AWG No
4 pin Molex (610mm+150mm+150mm) / FDD (+150mm) 2 6 / 2 18-22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) Enhance Electronics
PCB Type Double Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 1x RS2505M-U1 (600V, 25A @ 150°C)
APFC MOSFETS 4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
APFC Boost Diode 2x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s) 2x Nippon Chemi-Con (450V, 560uF, 2000h @ 105°C, KMW)
Main Switchers 4x Infineon IPP50R140CP (550V, 15A @ 100°C, 0.14Ohm)
IC Driver 2x Silicon Labs Si8230BD
APFC Controller ATK AT6101ZS & CM03X Green PFC Controller
Resonant Controllers Champion CM6901T6
Topology Primary side: Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mOhm)
5V & 3.3V DC-DC Converters:4x Infineon BSC018NE2LS (25V, 97A @ 100°C, 1.4mOhm)
PWM Controllers: ANPEC APW7160A
Filtering Capacitors Electrolytics: Nippon Chemi-Con (4-10,000 @ 105°C, KY), Rubycon (3-6,000 @ 105°C, YXG), Rubycon (6-10000 @ 105°C, ZLH), Suncon (105°C)
Polymers: Unicon (UPH)
Supervisor IC SITI PS223 (OCP, OTP, OVP, UVP, SCP, PG)
Fan Model Yate Loon D12SH (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit
Rectifier 1x PFR10V45CT SBR (45V, 10A)
Standby PWM Controller ATK AT6002H

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)90.467%
Average Noise Output (>1450 Load Combinations)33.38dBA
(>1450 Load Combinations)0.994
Efficiency With 10W (≤500W) or 2% (>500W) Load72.255%
0.0701W
12V Ripple (Full Load)53.75mV
5V Ripple (Full Load)18.19mV
3.3V Ripple (Full Load)30.45mV
5VSB Ripple (Full Load)36.01mV
12V Load Regulation1.30%
5V Load Regulation2.23%
3.3V Load Regulation3.60%
5VSB Load Regulation3.70%
Inrush Current20.609A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)92.561%
Average Noise Output (>1450 Load Combinations)33.17dBA
(>1450 Load Combinations)0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1061W
12V Ripple (Full Load)56.98mV
5V Ripple (Full Load)20.48mV
3.3V Ripple (Full Load)60.48mV
5VSB Ripple (Full Load)30.11mV
12V Load Regulation1.75%
5V Load Regulation0.56%
3.3V Load Regulation1.71%
5VSB Load Regulation2.51%
Inrush Current10.035A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
7.50ms
AC Loss to PWR_OK Hold Up Time19.80ms
PWR_OK Inactive to DC Loss Delay-12.30ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)117.28%0.00%

Hold-Up Time (ms)7.5
AC Loss to PWR_OK Hold Up Time (ms)19.8
PWR_OK Inactive to DC Loss Delay (ms)-12.3

Stromverbrauch im Ruhezustand

Tables

Graphs

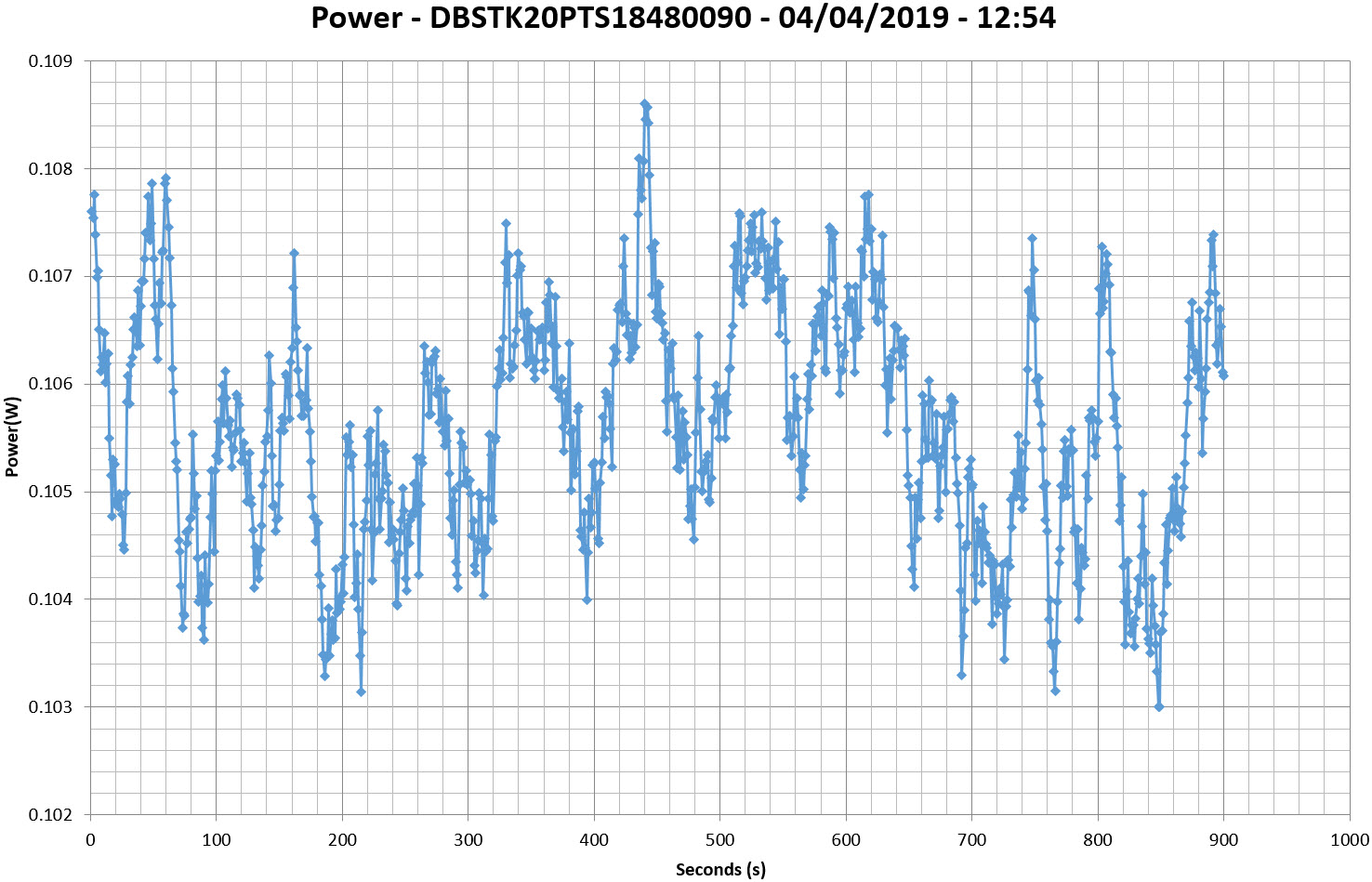

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

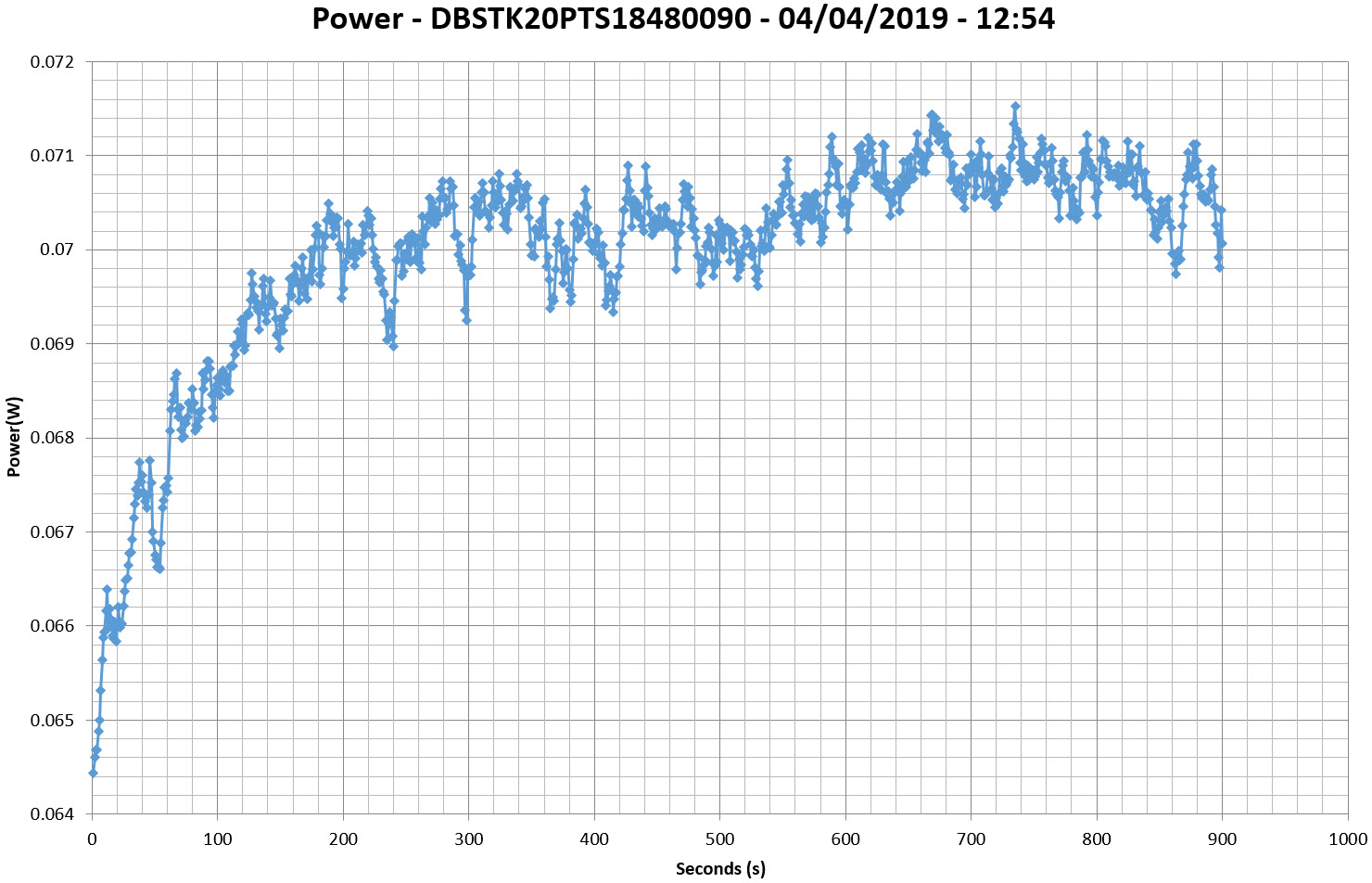

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

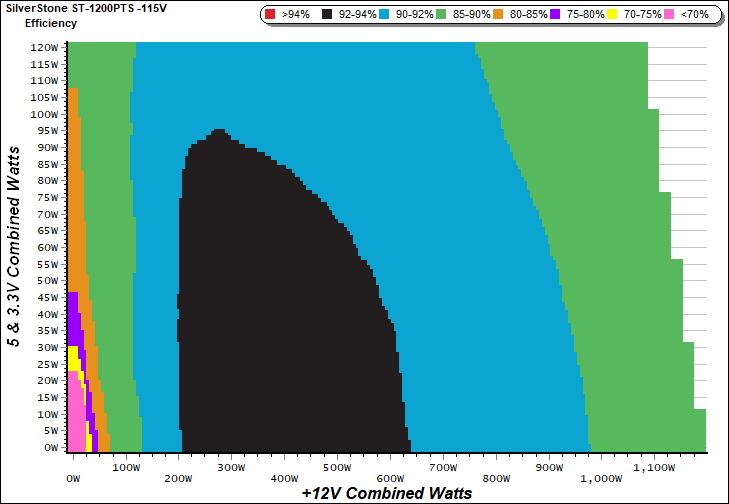

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

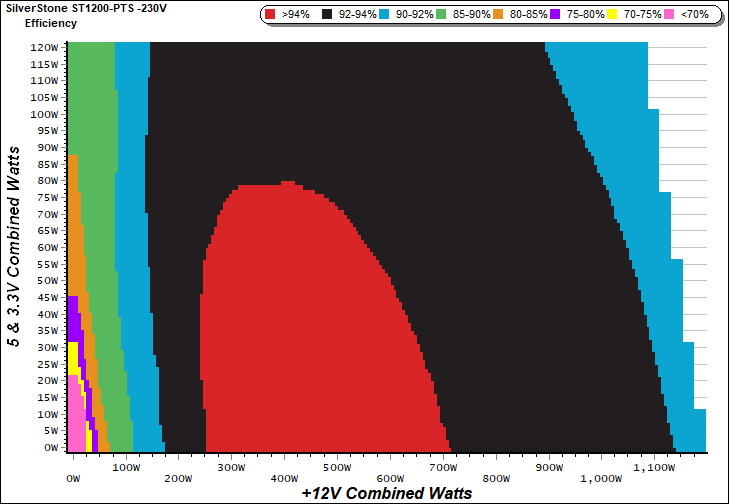

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

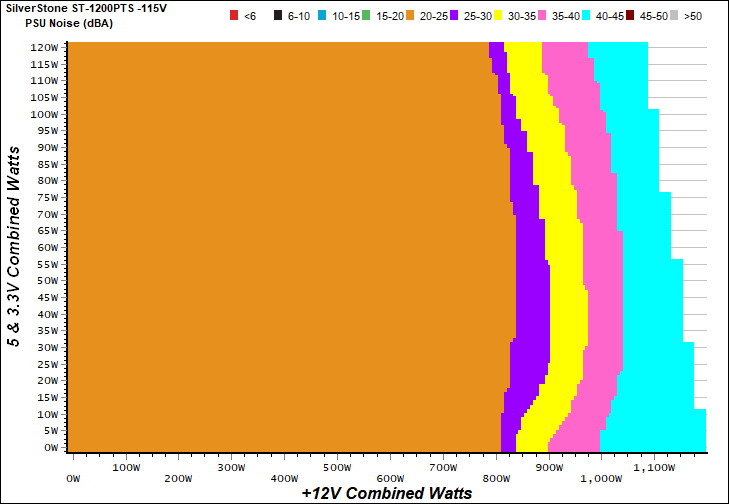

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

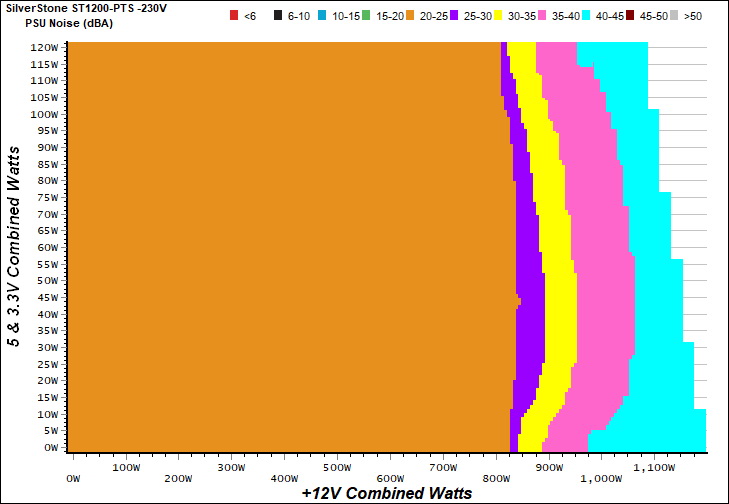

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

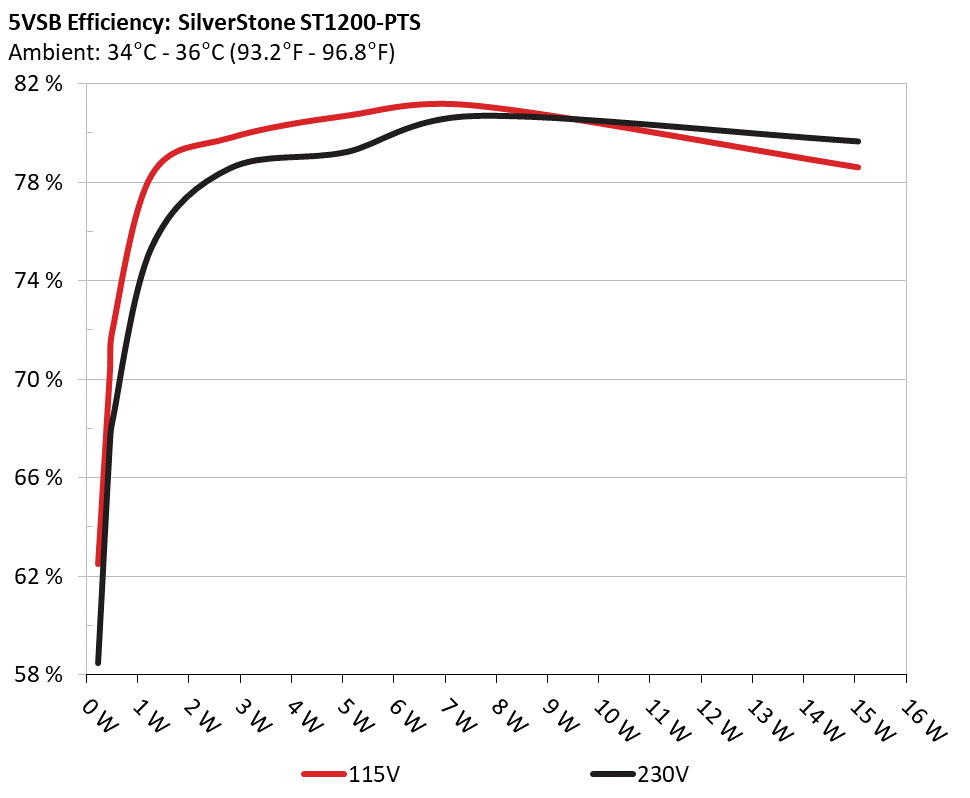

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 62.500% 0.017
5.113V 0.368 115.12V
2 0.090A 0.460 70.296% 0.075
5.106V 0.654 115.12V
3 0.550A 2.804 79.795% 0.154
5.097V 3.514 115.13V
4 1.000A 5.083 80.695% 0.252
5.083V 6.299 115.13V
5 1.500A 7.601 81.103% 0.332
5.067V 9.372 115.12V
6 3.000A 15.058 78.599% 0.469
5.019V 19.158 115.12V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 58.481% 0.006
5.113V 0.395 230.24V
2 0.090A 0.460 67.350% 0.010
5.112V 0.683 230.24V
3 0.550A 2.804 78.587% 0.049
5.097V 3.568 230.24V
4 1.000A 5.083 79.249% 0.087
5.083V 6.414 230.24V
5 1.500A 7.601 80.716% 0.125
5.067V 9.417 230.25V
6 3.001A 15.060 79.678% 0.228
5.019V 18.901 230.24V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.232A 1.998A 1.986A 0.986A 120.132 88.929% 953 21.8 39.24°C 0.979
11.969V 5.009V 3.320V 5.073V 135.088 43.60°C 115.13V
2 17.467A 3.001A 2.994A 1.187A 239.823 91.837% 955 22.0 40.55°C 0.993
11.961V 4.997V 3.307V 5.057V 261.139 45.30°C 115.13V
3 27.067A 3.511A 3.488A 1.389A 359.354 92.863% 959 22.2 41.46°C 0.996
11.946V 4.987V 3.297V 5.042V 386.972 46.75°C 115.13V
4 36.764A 4.023A 4.018A 1.592A 479.785 92.482% 963 22.3 41.94°C 0.998
11.929V 4.977V 3.286V 5.026V 518.790 48.71°C 115.12V
5 46.122A 5.039A 5.040A 1.797A 599.923 92.110% 968 22.4 42.23°C 0.999
11.912V 4.965V 3.273V 5.010V 651.308 49.92°C 115.13V
6 55.506A 6.061A 6.073A 2.004A 720.061 91.531% 997 23.5 42.77°C 0.999
11.895V 4.952V 3.260V 4.993V 786.686 51.50°C 115.12V
7 64.884A 7.089A 7.117A 2.211A 839.808 90.837% 1825 38.0 43.41°C 0.999
11.878V 4.939V 3.246V 4.976V 924.525 53.25°C 115.12V
8 74.355A 8.122A 8.168A 2.421A 960.280 90.048% 2219 43.0 43.95°C 0.999
11.860V 4.927V 3.233V 4.959V 1066.409 54.55°C 115.11V
9 84.199A 8.649A 8.689A 2.426A 1079.613 89.263% 2238 43.4 44.26°C 0.999
11.842V 4.917V 3.222V 4.949V 1209.480 55.29°C 115.11V
10 93.912A 9.176A 9.251A 3.051A 1200.049 88.313% 2243 43.5 45.71°C 0.999
11.823V 4.906V 3.211V 4.918V 1358.865 57.74°C 115.10V
11 104.210A 9.191A 9.275A 3.057A 1320.026 87.231% 2241 43.4 46.95°C 0.999
11.806V 4.898V 3.202V 4.909V 1513.248 59.85°C 115.09V
CL1 0.153A 14.004A 13.999A 0.000A 116.957 84.744% 1236 28.4 42.17°C 0.982
11.971V 4.957V 3.265V 5.092V 138.012 49.66°C 115.14V
CL2 100.012A 1.003A 0.999A 1.000A 1196.247 88.670% 2238 43.4 45.58°C 0.999
11.829V 4.944V 3.252V 4.997V 1349.099 57.69°C 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.229A 1.999A 1.987A 0.986A 120.095 89.644% 954 21.9 39.46°C 0.832
11.968V 5.008V 3.320V 5.073V 133.969 43.57°C 230.27V
2 17.464A 3.003A 2.993A 1.187A 239.796 93.270% 956 22.0 40.20°C 0.945
11.961V 4.997V 3.308V 5.057V 257.098 44.87°C 230.27V
3 27.064A 3.511A 3.489A 1.389A 359.295 94.353% 957 22.1 41.01°C 0.972
11.945V 4.987V 3.297V 5.042V 380.798 46.33°C 230.27V
4 36.762A 4.020A 4.015A 1.592A 479.704 94.312% 959 22.2 41.55°C 0.984
11.928V 4.977V 3.287V 5.026V 508.633 47.56°C 230.27V
5 46.118A 5.037A 5.039A 1.797A 599.867 94.132% 964 22.3 42.28°C 0.989
11.912V 4.965V 3.274V 5.010V 637.260 48.77°C 230.27V
6 55.501A 6.059A 6.072A 2.003A 719.996 93.734% 980 22.6 42.86°C 0.993
11.895V 4.953V 3.261V 4.993V 768.123 50.75°C 230.26V
7 64.877A 7.087A 7.114A 2.211A 839.726 93.264% 1622 35.0 43.32°C 0.994
11.878V 4.941V 3.247V 4.976V 900.374 51.65°C 230.27V
8 74.350A 8.120A 8.165A 2.420A 960.215 92.628% 2200 42.7 43.90°C 0.996
11.860V 4.928V 3.234V 4.960V 1036.641 53.13°C 230.27V
9 84.194A 8.646A 8.689A 2.425A 1079.555 92.120% 2241 43.4 44.20°C 0.996
11.842V 4.918V 3.223V 4.950V 1171.898 54.76°C 230.28V
10 93.899A 9.174A 9.252A 3.050A 1199.990 91.526% 2245 43.5 45.61°C 0.997
11.824V 4.907V 3.211V 4.919V 1311.088 57.04°C 230.27V
11 104.199A 9.187A 9.272A 3.056A 1319.988 90.925% 2246 43.5 46.64°C 0.998
11.807V 4.899V 3.203V 4.910V 1451.738 59.07°C 230.26V
CL1 0.147A 14.004A 13.999A 0.000A 116.898 86.234% 1073 24.6 42.43°C 0.837
11.971V 4.958V 3.265V 5.092V 135.559 48.82°C 230.27V
CL2 100.010A 1.001A 1.000A 1.000A 1196.217 91.934% 2246 43.5 45.50°C 0.997
11.829V 4.945V 3.252V 4.997V 1301.165 57.31°C 230.24V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.206A 0.498A 0.479A 0.196A 19.545 68.500% 937 21.4 0.734
11.980V 5.020V 3.334V 5.107V 28.533 115.12V
2 2.175A 0.997A 0.990A 0.392A 36.353 77.561% 941 21.5 0.888
11.979V 5.018V 3.331V 5.099V 46.870 115.12V
3 3.682A 1.496A 1.473A 0.590A 59.500 83.661% 940 21.5 0.933
11.976V 5.014V 3.327V 5.090V 71.120 115.12V
4 4.954A 1.996A 1.985A 0.787A 79.917 85.927% 951 21.7 0.961
11.974V 5.011V 3.323V 5.082V 93.006 115.13V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.210A 0.495A 0.480A 0.196A 19.585 69.648% 947 21.6 0.318
11.982V 5.021V 3.334V 5.106V 28.120 230.27V
2 2.481A 0.996A 0.990A 0.392A 40.012 79.340% 948 21.6 0.516
11.979V 5.018V 3.330V 5.098V 50.431 230.27V
3 3.683A 1.495A 1.474A 0.590A 59.510 83.968% 950 21.7 0.637
11.976V 5.014V 3.327V 5.090V 70.872 230.27V
4 4.952A 1.996A 1.986A 0.787A 79.891 86.501% 952 21.8 0.732
11.973V 5.011V 3.323V 5.082V 92.359 230.27V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.7 mV 10.3 mV 24.7 mV 15.5 mV Pass
20% Load 14.0 mV 12.0 mV 29.5 mV 25.2 mV Pass
30% Load 18.4 mV 12.6 mV 29.8 mV 18.5 mV Pass
40% Load 22.2 mV 13.0 mV 31.8 mV 20.3 mV Pass
50% Load 27.1 mV 14.4 mV 33.8 mV 20.8 mV Pass
60% Load 32.1 mV 14.7 mV 36.3 mV 24.0 mV Pass
70% Load 39.8 mV 18.6 mV 44.5 mV 24.5 mV Pass
80% Load 45.4 mV 19.4 mV 47.8 mV 26.6 mV Pass
90% Load 52.1 mV 17.5 mV 41.7 mV 31.5 mV Pass
100% Load 53.8 mV 18.2 mV 30.5 mV 36.0 mV Pass
110% Load 67.0 mV 21.5 mV 61.3 mV 37.5 mV Fail
Crossload 1 8.8 mV 13.4 mV 27.4 mV 37.0 mV Pass
Crossload 2 60.9 mV 17.9 mV 33.4 mV 34.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.5 mV 9.9 mV 25.7 mV 15.2 mV Pass
20% Load 12.6 mV 11.1 mV 30.1 mV 17.3 mV Pass
30% Load 16.4 mV 12.6 mV 32.7 mV 17.8 mV Pass
40% Load 22.5 mV 12.9 mV 33.9 mV 18.7 mV Pass
50% Load 26.1 mV 13.5 mV 32.6 mV 19.5 mV Pass
60% Load 30.5 mV 14.9 mV 33.4 mV 20.9 mV Pass
70% Load 35.8 mV 24.5 mV 48.6 mV 21.8 mV Pass
80% Load 42.7 mV 19.4 mV 47.9 mV 25.0 mV Pass
90% Load 48.6 mV 18.0 mV 39.2 mV 25.1 mV Pass
100% Load 57.0 mV 20.5 mV 60.5 mV 30.1 mV Fail
110% Load 62.7 mV 21.4 mV 65.5 mV 30.9 mV Fail
Crossload 1 8.5 mV 13.8 mV 25.8 mV 35.0 mV Pass
Crossload 2 57.5 mV 16.7 mV 32.1 mV 28.1 mV Pass

The results above are not used in the certification process

SilverStone Strider Platinum 1200W (#2)

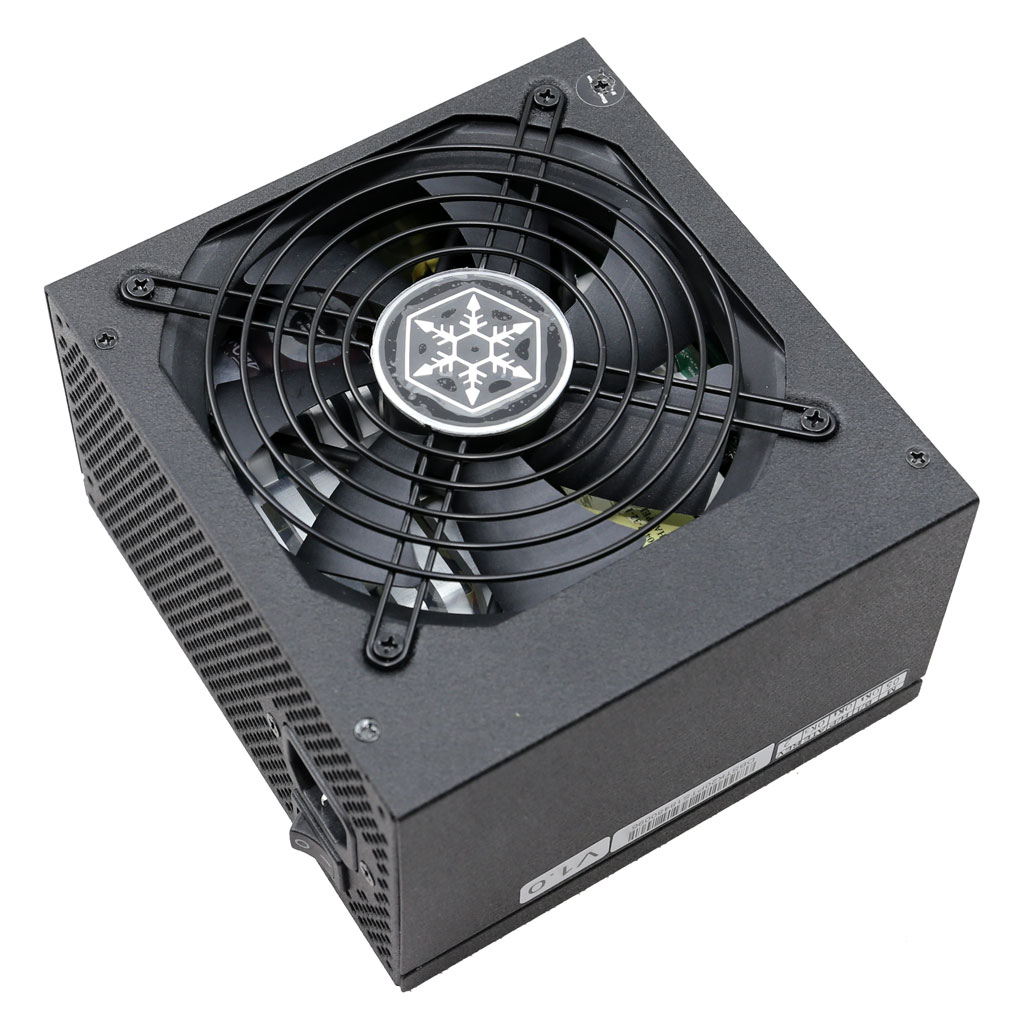

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
