Asus ROG-THOR-1200P (#3)
J9YEKG000046NEJ
Lab ID503
  • Report:
  • Receipt Date: Oct 3, 2018
  • Test Date: Oct 14, 2018
  • Report Date: Oct 17, 2018
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Asus
製造商 (OEM)Seasonic
Rog Thor Platinum
RTSS01-1200P1
J9YEKG000046NEJ
RTSS01-1200P1

(Vrms)100-240
(Arms)15-7.5
(Hz)50-60
(W)1200
ATX12V
135mm Double Ball Bearing Fan
(PLA13525B12M)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1251200153.6
Total Max. Power (W)1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-20AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (680mm) 4 4 18AWG No
6+2 pin PCIe (680mm+70mm) 2 4 18AWG Yes
SATA (350mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (400mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex to 2xSATA (150mm) 1 2 18AWG No
4 pin Molex (350mm+120mm) 1 2 18AWG No
4 pin Molex (450mm+120mm+120mm) 1 3 18AWG No
FDD Adapter (+105mm) 1 1 22AWG No
RGB Cable (800mm) 1 1 22AWG No
RGB Sinc Cable (800mm) 1 1 24AWG No
AC Power Cord Type (1380mm) 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model Prime Ultra Platinum
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x Shindengen LL25XB60C (600V, 25A @ 105°C)
APFC MOSFETS 2x Infineon IPP60R099CP (650V, 19A @ 100°C, 0.099 Ohm)
APFC Boost Diode 1x STMicroelectronics STPSC10H065D (650V, 10A @ 135°C)
Hold-up Cap(s) Hitachi (400V, 1x 820uF & 1x 470uF, 2000h @ 105°C, HU)
Main Switchers 4x Infineon IPP50R199CP
(550V, 11A @ 100°C, 0.199 Ohm)
Drivers For Main Switchers 2x Silicon Labs Si8230BD
APFC Controller ON Semiconductor NPC1654
Current Sensor IC Allegro ACS725T
Switching Controller Champion CM69016X
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 8x Nexperia PSMN1R0-40YLD (40V, 200A @ 100°C, 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (105°C, W), Chemi-Con (4,000-10,000h @ 105°C, KY, KYB), 1x Rubycon (5VSB circuit, 105°C, YXD)
Polymers: FPCAP, Nippon Chemi-Con
Micro Controller Microchip ATmega8A
Flash Memory Microchip SST26VF016B
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG ) & AS393M
Fan Model Power Logic PLA13525B12M (135mm, 12V, 0.40A, 2000 RPM, 111.1 CFM, 41.6 dB[A], Double Ball Bearing)
5VSB Circuit
Buck Converter Leadtrend LD7750R
Rectifiers STMicroelectronics STU6N65K3 (650V, 3A @ 100°C, 1.3Ohm)
-12V Circuit
Buck Converter Lite-On LSP5523 (3A max output current )

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)20.4
AC Loss to PWR_OK Hold Up Time (ms)18.8
PWR_OK Inactive to DC Loss Delay (ms)1.6

待機電源消耗

Graphs

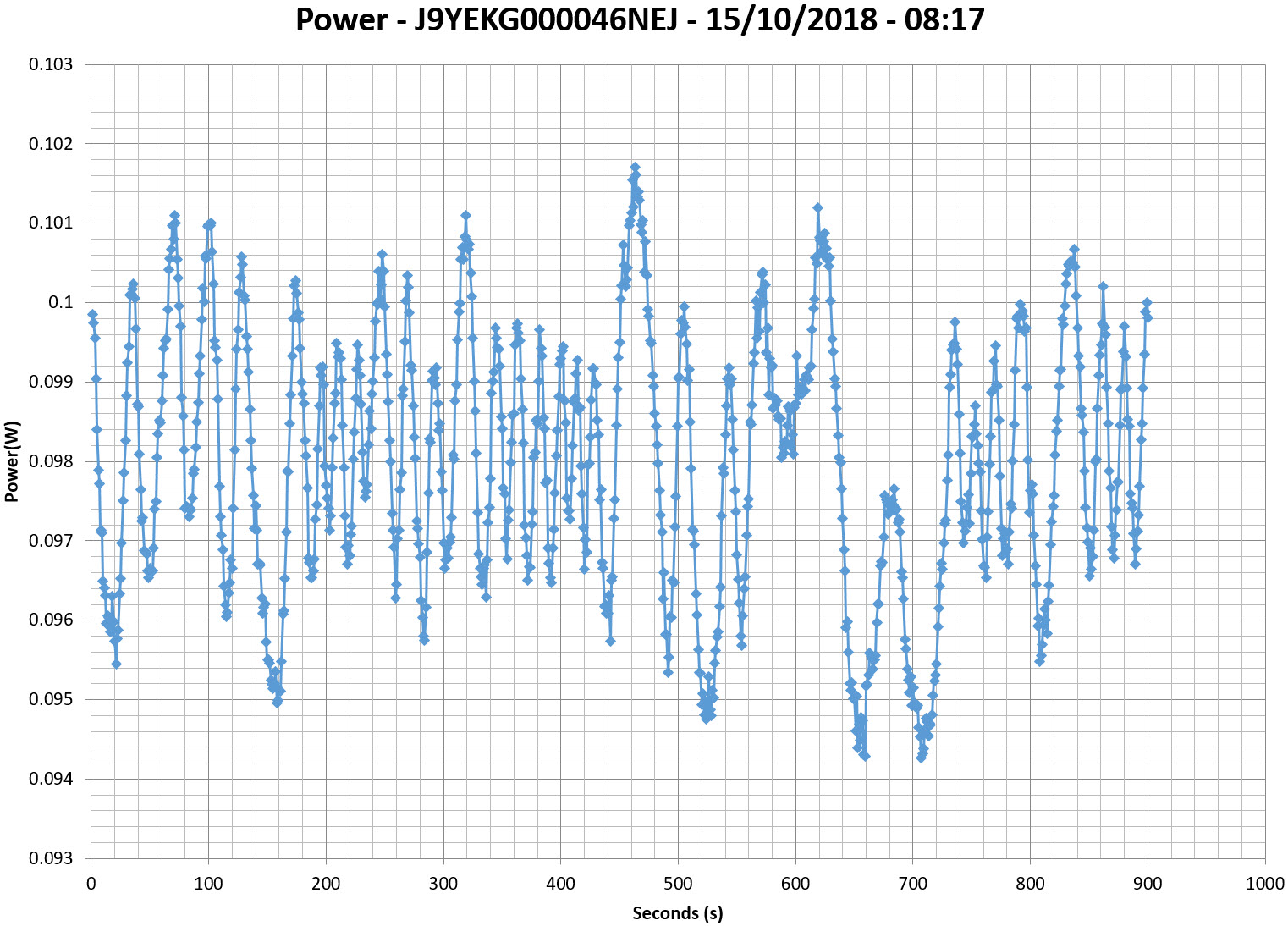

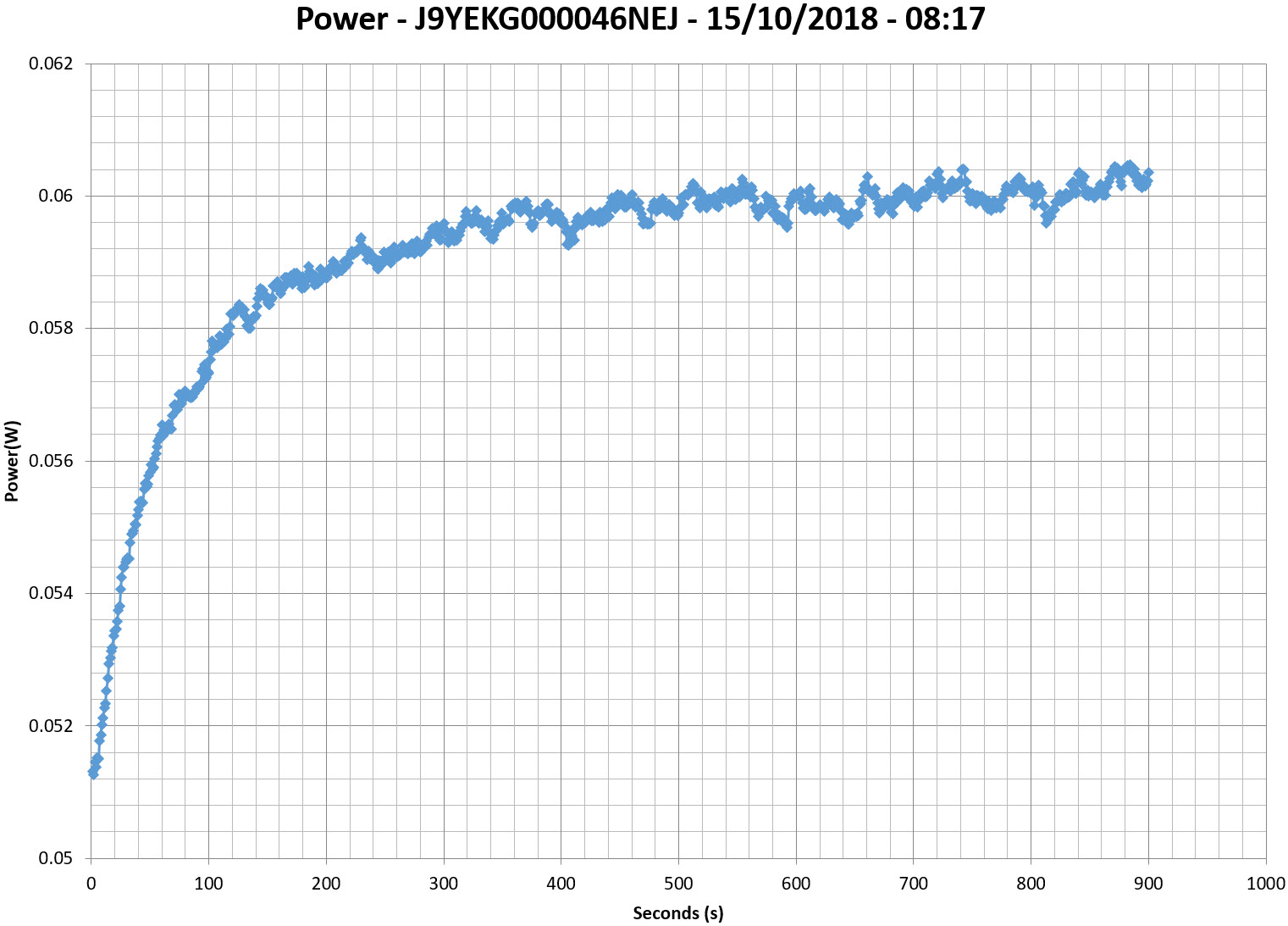

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

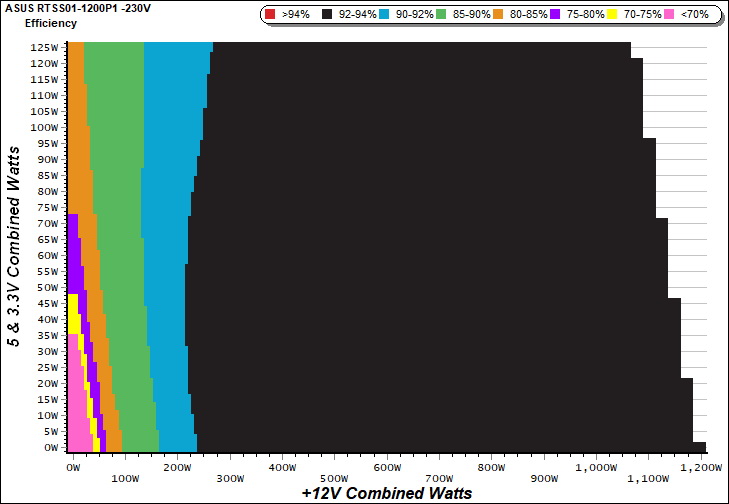

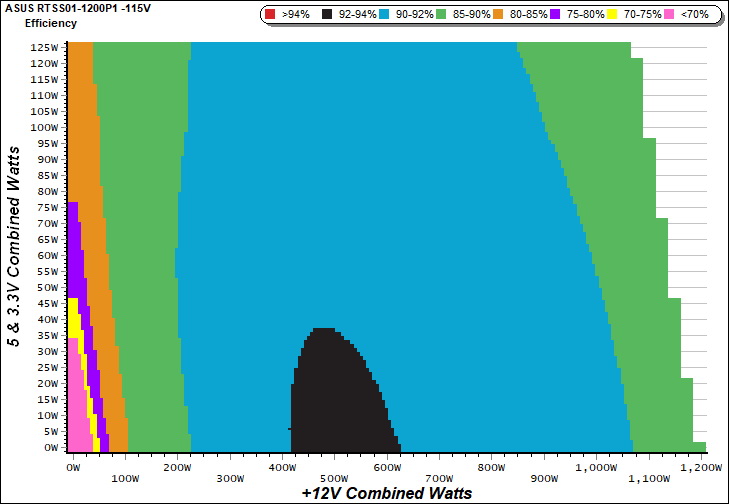

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

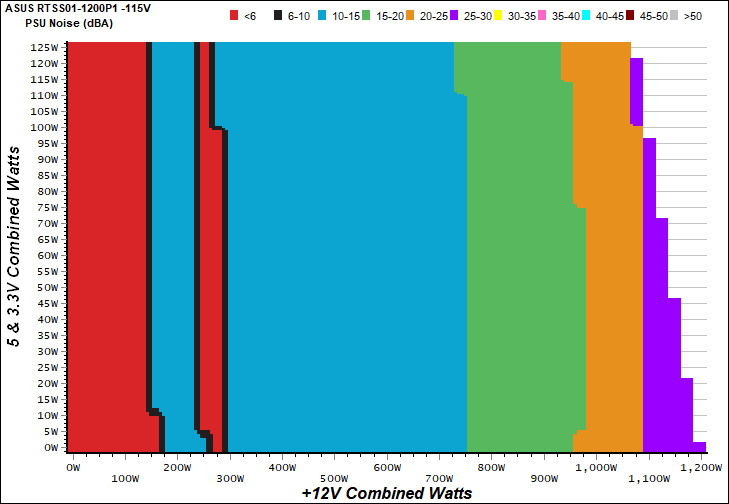

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

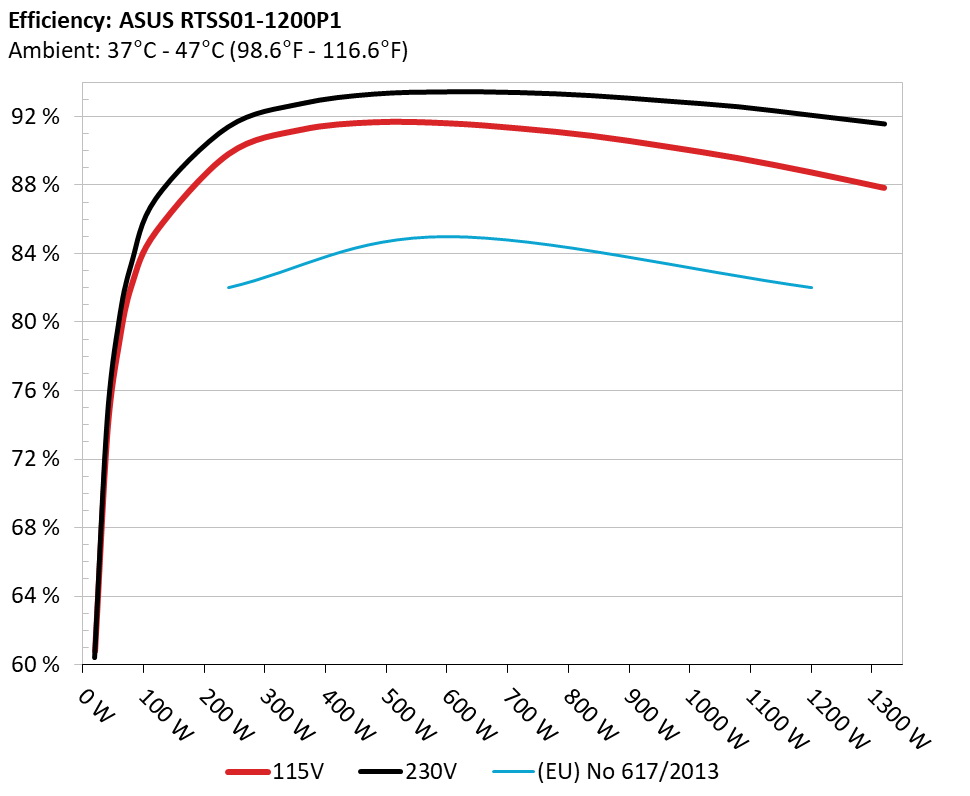

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

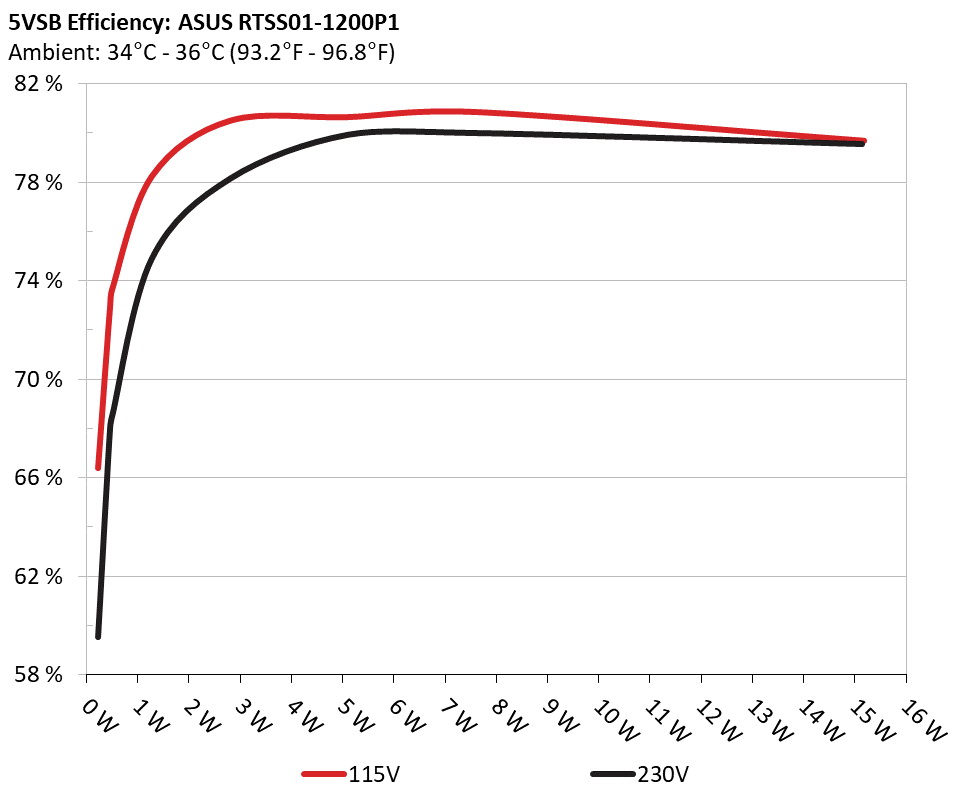

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 66.379% 0.034
5.127V 0.348 115.05V
2 0.090A 0.462 72.871% 0.061
5.126V 0.634 115.05V
3 0.550A 2.814 80.515% 0.262
5.115V 3.495 115.05V
4 1.000A 5.104 80.657% 0.359
5.104V 6.328 115.05V
5 1.500A 7.638 80.860% 0.414
5.092V 9.446 115.05V
6 3.000A 15.171 79.696% 0.484
5.057V 19.036 115.05V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231 59.536% 0.012
5.126V 0.388 230.21V
2 0.090A 0.462 67.941% 0.021
5.125V 0.680 230.20V
3 0.550A 2.813 78.161% 0.105
5.114V 3.599 230.19V
4 1.000A 5.103 79.934% 0.172
5.103V 6.384 230.20V
5 1.500A 7.635 80.006% 0.231
5.089V 9.543 230.20V
6 3.000A 15.146 79.561% 0.337
5.049V 19.037 230.19V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.056A 2.008A 1.985A 0.982A 120.059 85.305% 570 11.2 40.14°C 0.960
12.223V 4.979V 3.321V 5.092V 140.741 44.56°C 115.05V
2 17.091A 3.012A 2.982A 1.181A 239.741 89.842% 572 11.3 40.61°C 0.977
12.220V 4.978V 3.319V 5.079V 266.848 45.62°C 115.05V
3 26.451A 3.520A 3.466A 1.382A 359.246 91.254% 576 11.5 41.23°C 0.985
12.220V 4.976V 3.317V 5.067V 393.679 47.47°C 115.04V
4 35.883A 4.021A 3.978A 1.583A 479.653 91.693% 578 11.6 41.68°C 0.990
12.219V 4.975V 3.316V 5.055V 523.108 48.56°C 115.04V
5 44.956A 5.030A 4.978A 1.785A 599.789 91.635% 615 12.9 42.20°C 0.993
12.218V 4.974V 3.314V 5.042V 654.538 50.37°C 115.04V
6 54.025A 6.033A 5.977A 1.989A 719.926 91.327% 695 15.9 42.91°C 0.995
12.219V 4.972V 3.312V 5.029V 788.297 51.91°C 115.03V
7 63.071A 7.042A 6.977A 2.193A 839.654 90.894% 787 19.1 43.22°C 0.995
12.217V 4.972V 3.311V 5.017V 923.771 53.05°C 115.03V
8 72.179A 8.050A 7.978A 2.399A 960.157 90.276% 870 23.0 43.89°C 0.996
12.216V 4.971V 3.309V 5.003V 1063.585 54.32°C 115.03V
9 81.619A 8.554A 8.467A 2.403A 1079.486 89.594% 970 26.0 44.41°C 0.996
12.215V 4.969V 3.307V 4.996V 1204.870 55.29°C 115.02V
10 90.897A 9.058A 8.985A 3.017A 1199.915 88.767% 1520 39.8 45.90°C 0.996
12.214V 4.968V 3.305V 4.973V 1351.760 57.57°C 115.02V
11 100.740A 9.062A 8.989A 3.021A 1319.960 87.861% 1860 46.4 46.59°C 0.996
12.212V 4.968V 3.304V 4.966V 1502.330 59.17°C 115.01V
CL1 0.146A 15.002A 14.999A 0.000A 126.173 82.849% 785 19.1 42.54°C 0.966
12.236V 4.974V 3.318V 5.105V 152.293 50.26°C 115.05V
CL2 100.009A 1.002A 1.000A 1.000A 1234.522 88.837% 1550 40.0 45.87°C 0.996
12.211V 4.969V 3.305V 5.029V 1389.651 56.83°C 115.02V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.057A 2.009A 1.988A 0.982A 120.086 87.176% 567 11.1 40.28°C 0.850
12.223V 4.979V 3.321V 5.092V 137.752 43.82°C 230.19V
2 17.090A 3.013A 2.982A 1.182A 239.770 91.378% 572 11.3 40.66°C 0.927
12.222V 4.977V 3.319V 5.079V 262.395 44.42°C 230.19V
3 26.454A 3.518A 3.466A 1.382A 359.274 92.726% 576 11.5 41.21°C 0.955
12.220V 4.976V 3.317V 5.067V 387.456 45.23°C 230.19V
4 35.889A 4.021A 3.981A 1.583A 479.700 93.293% 578 11.6 41.58°C 0.971
12.218V 4.975V 3.316V 5.055V 514.185 46.01°C 230.20V
5 44.959A 5.028A 4.979A 1.785A 599.820 93.418% 615 12.9 42.18°C 0.978
12.218V 4.974V 3.314V 5.042V 642.079 47.55°C 230.20V
6 54.035A 6.035A 5.978A 1.989A 719.958 93.377% 688 15.8 42.67°C 0.983
12.217V 4.973V 3.312V 5.029V 771.022 48.39°C 230.19V
7 63.079A 7.043A 6.980A 2.193A 839.687 93.198% 785 19.1 43.24°C 0.985
12.216V 4.971V 3.310V 5.016V 900.971 49.37°C 230.19V
8 72.194A 8.050A 7.978A 2.399A 960.179 92.886% 863 22.6 43.63°C 0.986
12.214V 4.970V 3.308V 5.003V 1033.720 50.26°C 230.20V
9 81.620A 8.556A 8.466A 2.403A 1079.502 92.551% 975 26.0 44.37°C 0.987
12.215V 4.969V 3.307V 4.995V 1166.390 51.37°C 230.19V
10 90.913A 9.060A 8.987A 3.017A 1199.954 92.052% 1475 39.3 45.61°C 0.988
12.212V 4.969V 3.305V 4.973V 1303.561 53.34°C 230.19V
11 100.758A 9.061A 8.992A 3.021A 1319.981 91.547% 1860 46.4 46.98°C 0.989
12.210V 4.968V 3.304V 4.966V 1441.854 55.51°C 230.20V
CL1 0.146A 15.004A 14.998A 0.000A 126.194 84.704% 764 18.8 42.58°C 0.861
12.234V 4.975V 3.318V 5.105V 148.982 48.72°C 230.21V
CL2 100.006A 1.003A 1.001A 1.000A 1234.397 92.248% 1500 39.6 45.30°C 0.988
12.210V 4.970V 3.305V 5.030V 1338.123 53.67°C 230.20V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.185A 0.502A 0.480A 0.196A 19.583 60.811% 0 <6.0 0.816
12.220V 4.984V 3.326V 5.119V 32.203 115.06V
2 2.425A 1.002A 0.993A 0.391A 39.940 73.598% 0 <6.0 0.889
12.228V 4.979V 3.322V 5.111V 54.268 115.05V
3 3.603A 1.507A 1.473A 0.588A 59.461 78.873% 0 <6.0 0.918
12.230V 4.978V 3.322V 5.105V 75.388 115.05V
4 4.845A 2.011A 1.985A 0.785A 79.851 82.182% 567 11.1 0.943
12.228V 4.978V 3.321V 5.099V 97.164 115.05V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.185A 0.502A 0.479A 0.195A 19.571 60.388% 0 <6.0 0.530
12.216V 4.986V 3.326V 5.119V 32.409 230.19V
2 2.429A 1.005A 0.992A 0.391A 39.984 74.163% 0 <6.0 0.666
12.220V 4.981V 3.323V 5.112V 53.914 230.21V
3 3.604A 1.506A 1.474A 0.588A 59.442 79.991% 0 <6.0 0.737
12.221V 4.980V 3.322V 5.106V 74.311 230.20V
4 4.849A 2.009A 1.986A 0.785A 79.871 83.359% 567 11.1 0.788
12.223V 4.979V 3.321V 5.100V 95.816 230.20V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.3 mV 4.4 mV 12.4 mV 7.3 mV Pass
20% Load 14.9 mV 4.6 mV 14.3 mV 8.4 mV Pass
30% Load 8.7 mV 4.7 mV 14.8 mV 9.1 mV Pass
40% Load 8.7 mV 4.9 mV 15.7 mV 8.7 mV Pass
50% Load 10.2 mV 6.1 mV 16.6 mV 10.6 mV Pass
60% Load 11.0 mV 6.3 mV 17.5 mV 11.6 mV Pass
70% Load 12.3 mV 6.5 mV 18.4 mV 13.6 mV Pass
80% Load 13.7 mV 7.8 mV 22.1 mV 15.2 mV Pass
90% Load 16.3 mV 8.3 mV 21.9 mV 16.9 mV Pass
100% Load 20.9 mV 8.9 mV 23.2 mV 18.6 mV Pass
110% Load 21.5 mV 9.5 mV 22.5 mV 20.9 mV Pass
Crossload 1 13.7 mV 7.7 mV 22.1 mV 7.7 mV Pass
Crossload 2 21.5 mV 6.5 mV 13.8 mV 17.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.7 mV 4.6 mV 12.5 mV 6.7 mV Pass
20% Load 15.0 mV 4.7 mV 14.1 mV 7.7 mV Pass
30% Load 9.4 mV 4.7 mV 14.7 mV 8.1 mV Pass
40% Load 8.6 mV 4.8 mV 15.6 mV 9.2 mV Pass
50% Load 9.4 mV 5.6 mV 17.0 mV 10.2 mV Pass
60% Load 10.6 mV 6.6 mV 17.5 mV 11.3 mV Pass
70% Load 12.7 mV 6.4 mV 18.3 mV 14.2 mV Pass
80% Load 13.6 mV 7.9 mV 22.1 mV 15.5 mV Pass
90% Load 18.2 mV 8.3 mV 21.9 mV 16.8 mV Pass
100% Load 21.4 mV 8.6 mV 23.3 mV 19.2 mV Pass
110% Load 23.0 mV 9.0 mV 22.9 mV 20.0 mV Pass
Crossload 1 16.2 mV 8.1 mV 22.5 mV 7.1 mV Pass
Crossload 2 21.6 mV 5.9 mV 13.2 mV 16.8 mV Pass

The results above are not used in the certification process

Asus ROG-THOR-1200P (#3)

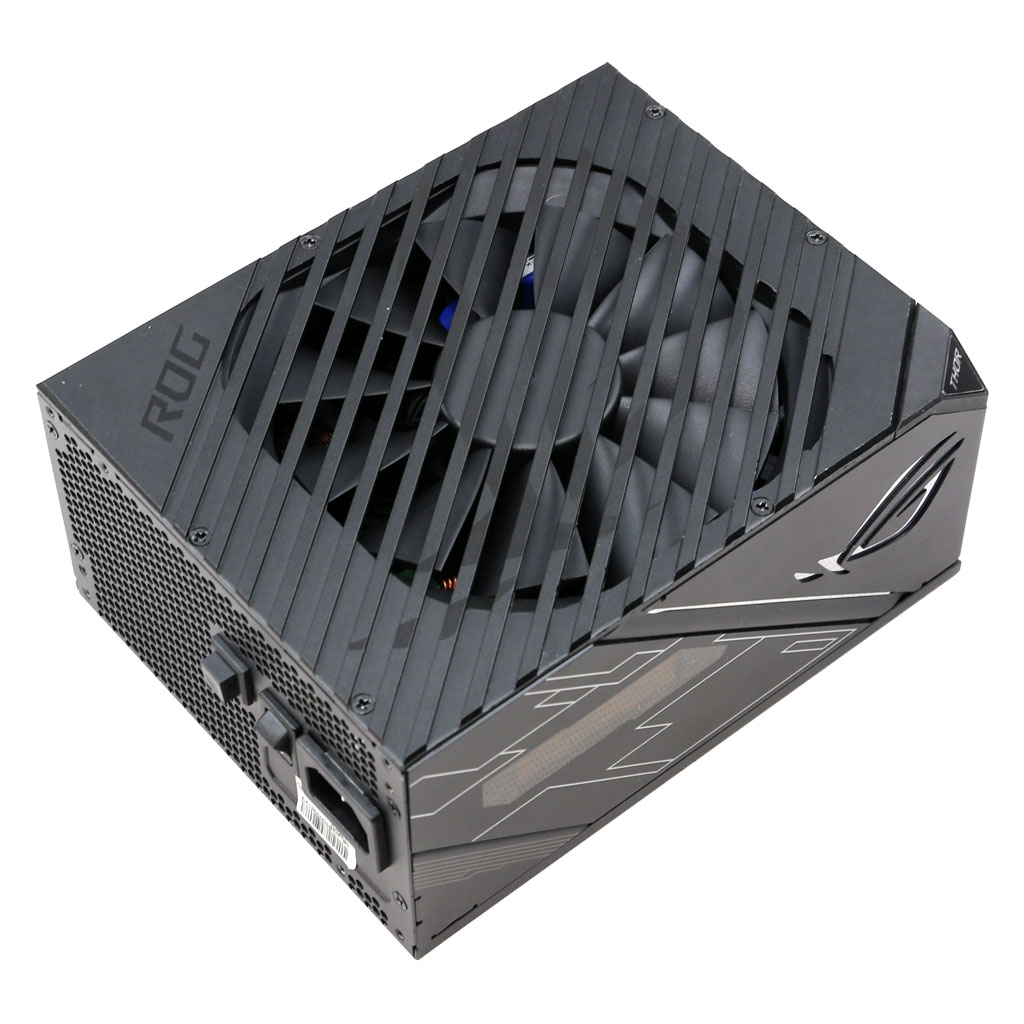

Top side

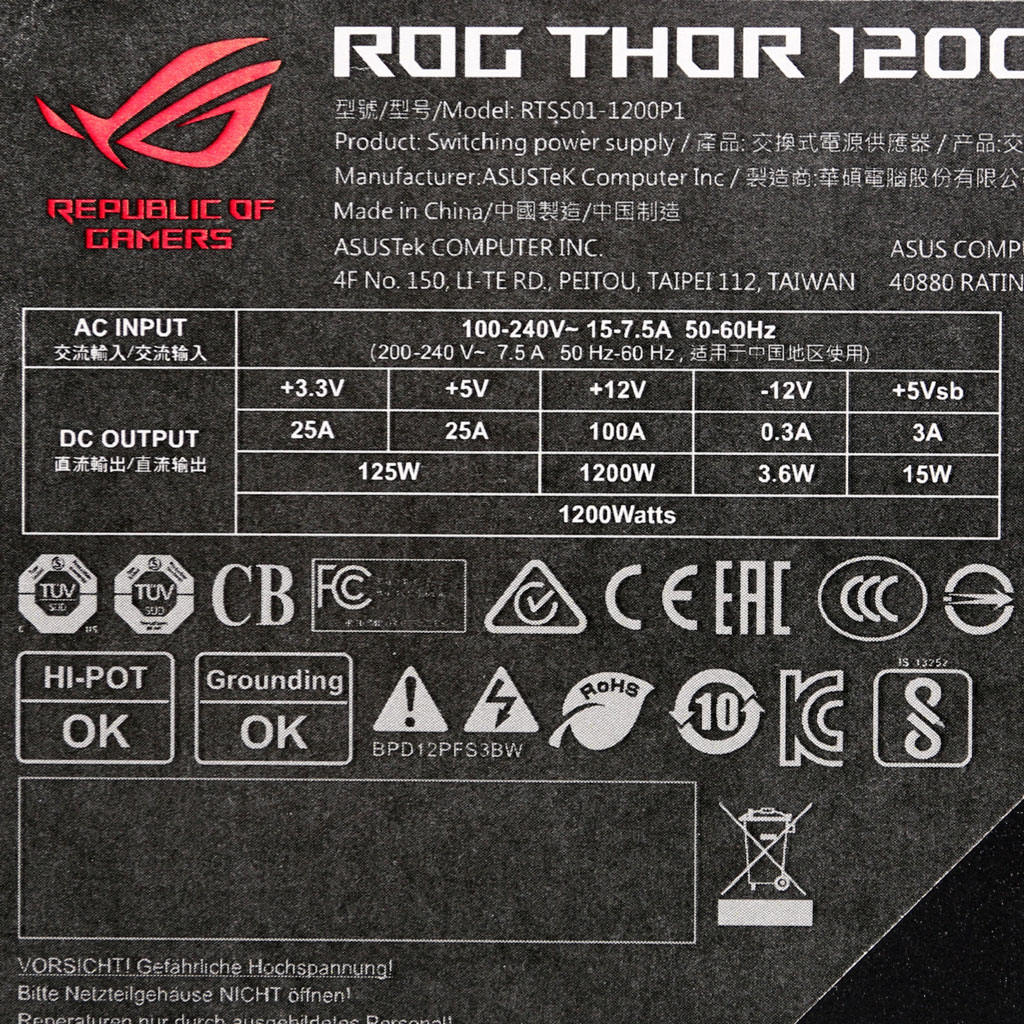

Power specifications label
