Mistel Vision 650W (#2)
MP18060100320
Lab ID494
  • Report:
  • Receipt Date: Jul 28, 2018
  • Test Date: Aug 8, 2018
  • Report Date: Aug 10, 2018
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Mistel
製造商 (OEM)Shang Hung
Vision
MX650FL
MP18060100320

(Vrms)100-240
(Arms)7.5
(Hz)50-60
(W)650
ATX12V
Fanless
✗
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 54.1 3 0.3
Watts 100 649.2 15 3.6
Total Max. Power (W) 650

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (700mm) 1 1 18-22AWG No
4+4 pin EPS12V (750mm) 1 1 18AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (400mm+120mm+120mm+120mm) 2 8 18AWG No
4-pin Molex (400mm+120mm+120mm) / FDD (+100mm) 1 3 / 1 18-22AWG No
RGB Cable (+400mm) 1 1 24AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Shang Hung (Taiwan)
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV (10D561K)
Bridge Rectifier(s) 2x GBJ2506 (600V, 25A @ 100°C)
Inrush Current Protection NTC Thermistor & Relay
APFC Mosfets 2x Infineon IPA60R099P6 (650V, 24A @ 100°C, 0.099Ω @ 25°C)
APFC Boost Diode 1x G3S06510A (650V, 10A @ 150°C)
Hold-up Cap(s) 1x  Nippon Chemi-Con (450V, 560uF, 105°C, KMW series, 2000h @ 105°C).
Main Switchers 4x Wuxi NCE Power Semiconductor NCE65T180F (650V, 13.2A @ 100°C, 0.180Ω @ 25°C)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V 4x Excelliance MOS EMP16N04HS (40V, 100A @ 100°C, 1.6mΩ)
5V & 3.3V DC-DC Converters: Unknown number of FETs
PWM Controllers: 1x UP3861
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000h @ 105 °C, KZE series), Chemi-Con (4-10,000h @ 105°C, KY series)
Polymers: FPCAP, Chemi-Con
Supervisor IC WT7527V (OVP, UVP, OCP, SCP, PG )
5VSB Circuit
Rectifying Diode 1045 DGAL
Standby PWM Controller Excelliance EM8569

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

Hold-Up Time (ms)24.5
AC Loss to PWR_OK Hold Up Time (ms)20.5
PWR_OK Inactive to DC Loss Delay (ms)4

待機電源消耗

Graphs

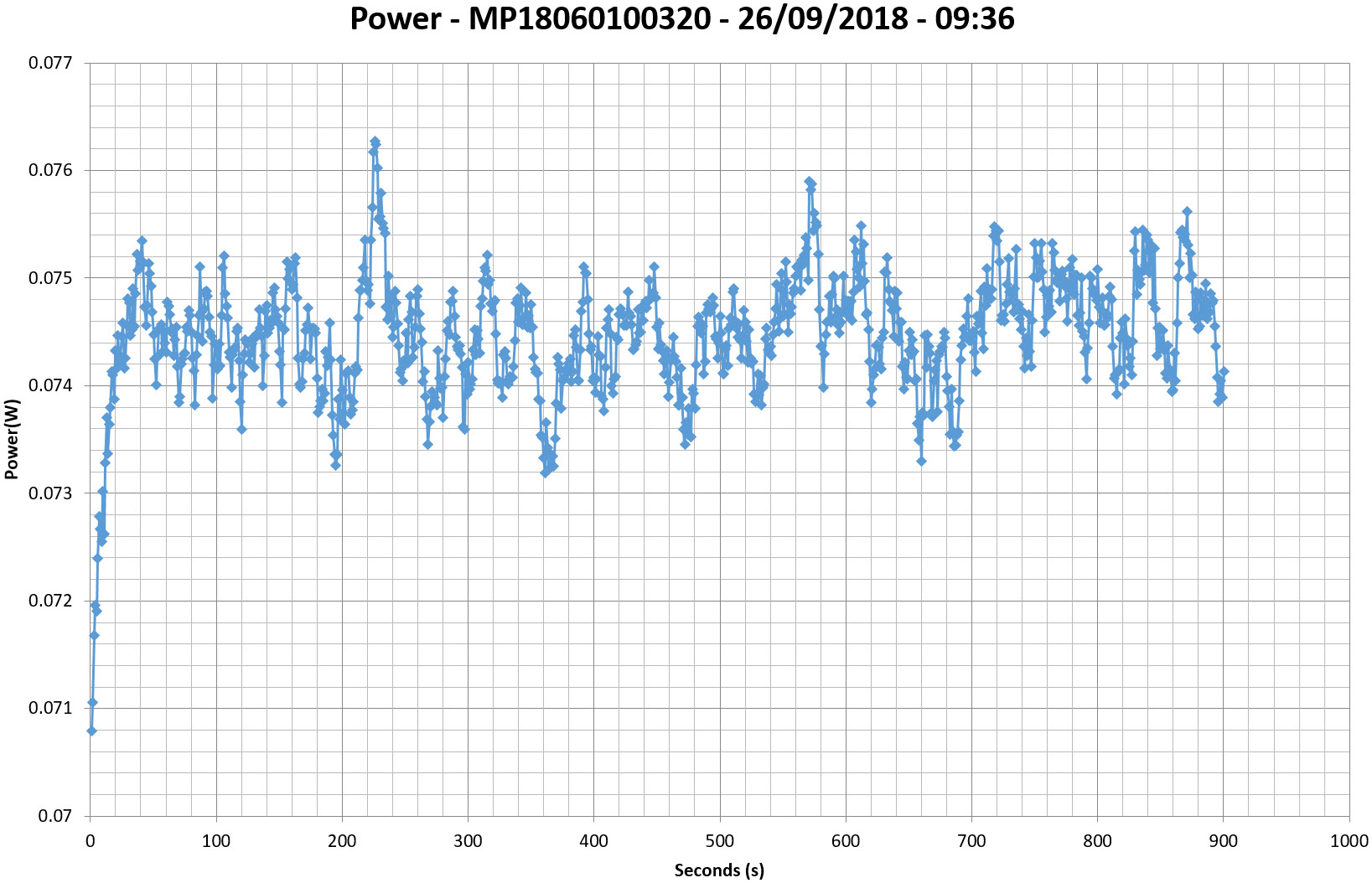

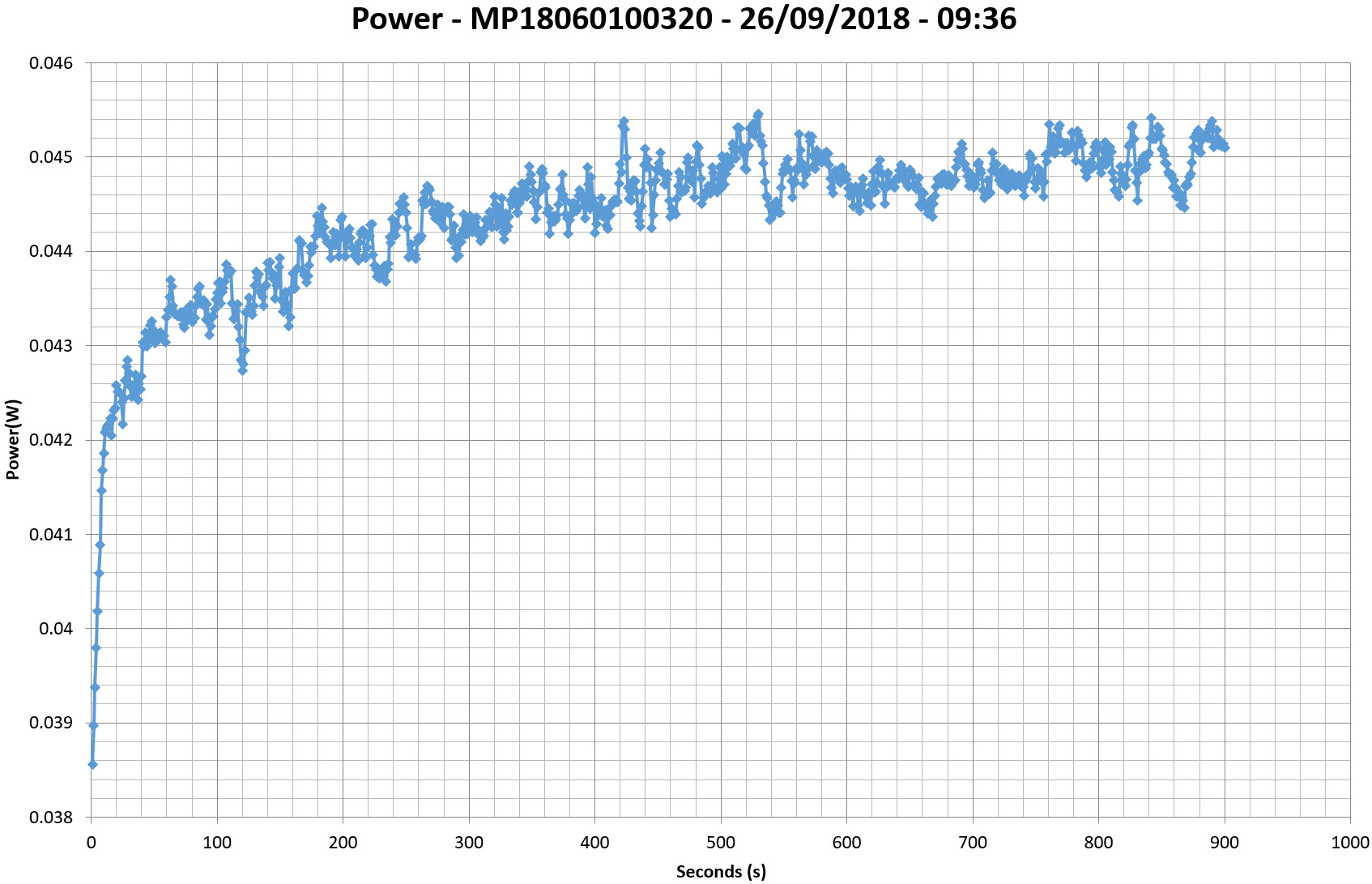

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

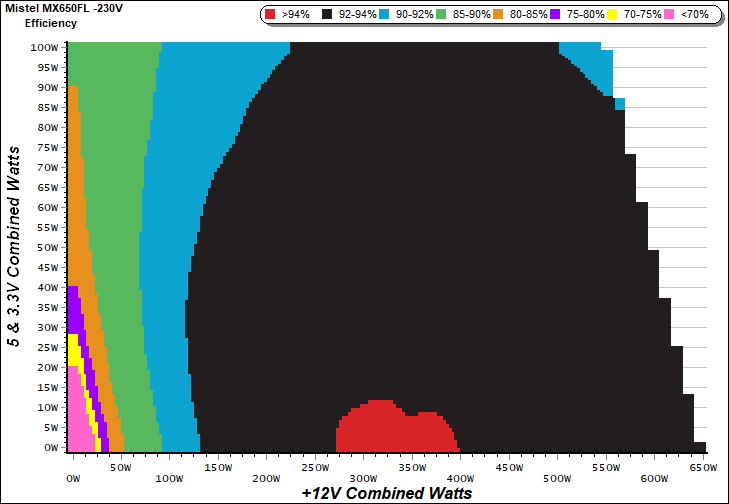

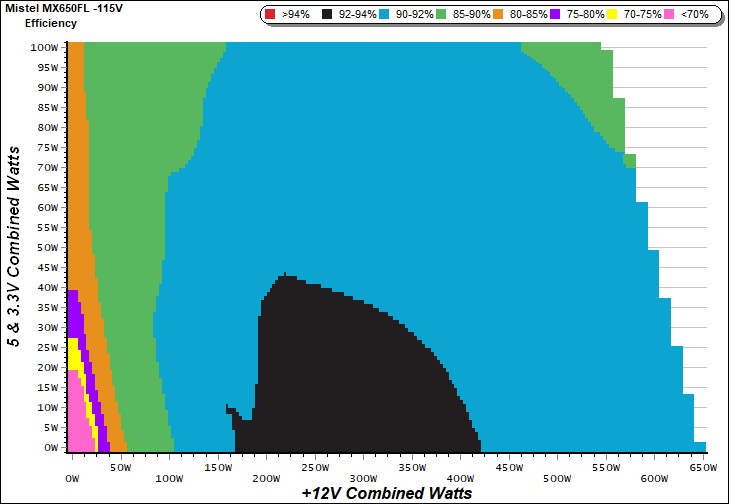

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Indicative Performance

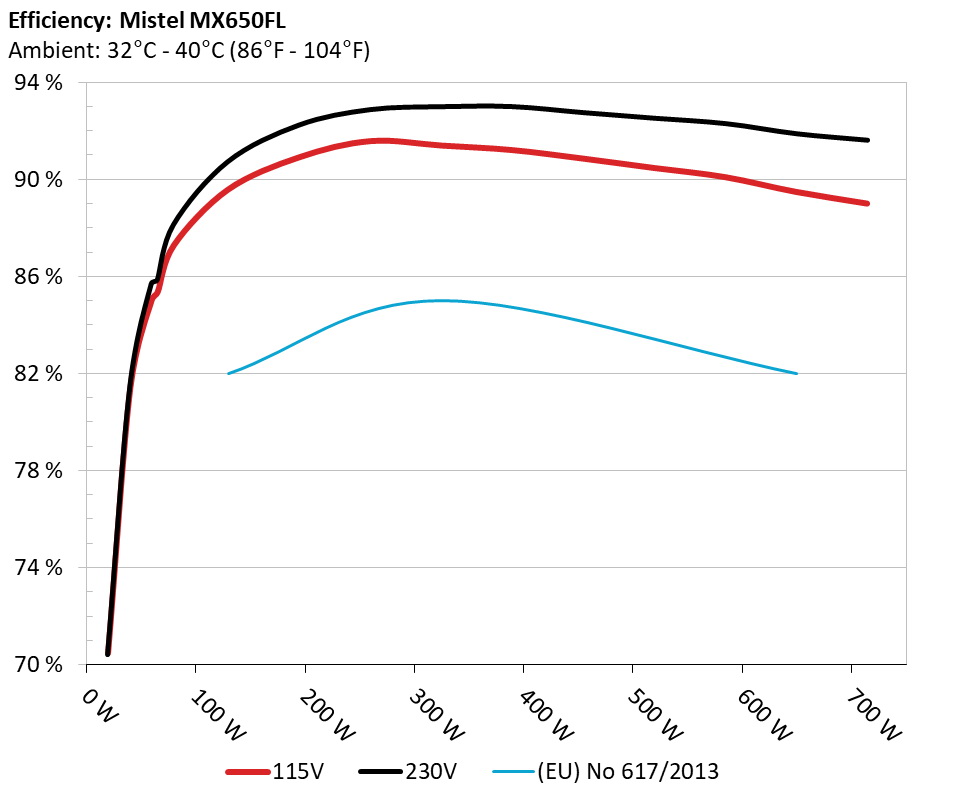

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

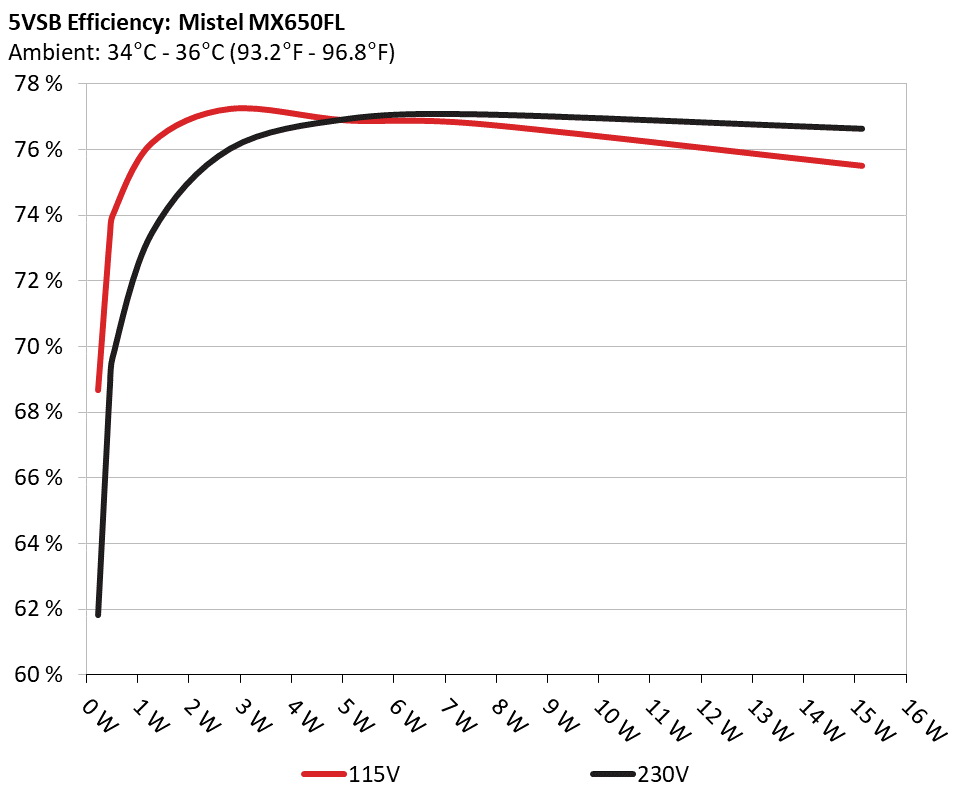

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 68.657% 0.055
5.118V 0.335 115.09V
2 0.090A 0.461 73.408% 0.099
5.117V 0.628 115.09V
3 0.550A 2.808 77.249% 0.335
5.105V 3.635 115.10V
4 1.000A 5.095 76.894% 0.406
5.095V 6.626 115.10V
5 1.500A 7.625 76.795% 0.443
5.083V 9.929 115.10V
6 3.000A 15.134 75.511% 0.491
5.044V 20.042 115.09V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 61.828% 0.019
5.118V 0.372 230.24V
2 0.090A 0.461 68.806% 0.033
5.117V 0.670 230.24V
3 0.550A 2.808 76.015% 0.159
5.106V 3.694 230.22V
4 1.000A 5.096 76.921% 0.240
5.095V 6.625 230.22V
5 1.500A 7.625 77.059% 0.296
5.083V 9.895 230.23V
6 3.000A 15.142 76.622% 0.375
5.047V 19.762 230.23V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Temps (In/Out) PF/AC Volts
1 3.588A 1.990A 1.981A 0.983A 64.858 85.335% 44.69°C 0.952
12.056V 5.027V 3.330V 5.086V 76.004 34.94°C 115.12V
2 8.168A 2.987A 2.974A 1.183A 129.379 89.572% 44.85°C 0.980
12.056V 5.024V 3.328V 5.072V 144.441 34.41°C 115.12V
3 13.148A 3.486A 3.456A 1.384A 194.512 90.905% 45.72°C 0.987
12.056V 5.021V 3.326V 5.059V 213.972 35.13°C 115.13V
4 18.125A 3.988A 3.968A 1.586A 259.738 91.572% 46.67°C 0.993
12.057V 5.017V 3.325V 5.046V 283.645 35.72°C 115.13V
5 22.765A 4.989A 4.966A 1.789A 325.030 91.389% 47.83°C 0.990
12.059V 5.013V 3.322V 5.031V 355.654 36.51°C 115.13V
6 27.336A 5.993A 5.966A 1.994A 389.546 91.203% 49.12°C 0.991
12.062V 5.008V 3.319V 5.017V 427.122 37.35°C 115.13V
7 31.976A 6.998A 6.964A 2.199A 454.863 90.849% 50.25°C 0.993
12.064V 5.003V 3.316V 5.003V 500.679 37.94°C 115.13V
8 36.611A 8.006A 7.967A 2.406A 520.151 90.461% 51.09°C 0.994
12.066V 4.997V 3.313V 4.988V 575.002 38.26°C 115.13V
9 41.640A 8.514A 8.459A 2.410A 585.022 90.084% 52.13°C 0.995
12.068V 4.993V 3.310V 4.980V 649.420 38.89°C 115.13V
10 46.411A 9.022A 8.981A 3.027A 649.844 89.476% 53.38°C 0.996
12.069V 4.989V 3.307V 4.955V 726.274 39.02°C 115.13V
11 51.772A 9.028A 8.985A 3.032A 714.691 88.998% 55.45°C 0.997
12.072V 4.985V 3.305V 4.947V 803.040 40.36°C 115.13V
CL1 0.143A 11.999A 12.001A 0.000A 101.445 84.456% 48.31°C 0.972
12.074V 4.999V 3.311V 5.085V 120.116 36.69°C 115.12V
CL2 54.180A 1.001A 0.998A 1.000A 667.500 90.196% 53.45°C 0.996
12.074V 4.997V 3.314V 5.021V 740.054 39.77°C 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.583A 1.989A 1.979A 0.983A 64.792 85.852% 0000 <6.0 44.46°C 0.778
12.058V 5.027V 3.330V 5.086V 75.469 35.12°C 230.29V
2 8.162A 2.984A 2.973A 1.183A 129.303 90.734% 0000 <6.0 45.47°C 0.888
12.058V 5.023V 3.329V 5.072V 142.508 35.81°C 230.29V
3 13.138A 3.486A 3.453A 1.384A 194.424 92.249% 0000 <6.0 46.40°C 0.928
12.059V 5.021V 3.327V 5.059V 210.759 36.42°C 230.29V
4 18.114A 3.987A 3.967A 1.585A 259.646 92.888% 0000 <6.0 47.22°C 0.948
12.060V 5.017V 3.325V 5.046V 279.525 36.96°C 230.29V
5 22.756A 4.988A 4.966A 1.789A 324.941 93.008% 0000 <6.0 48.52°C 0.961
12.060V 5.013V 3.322V 5.032V 349.369 37.23°C 230.29V
6 27.330A 5.990A 5.964A 1.993A 389.460 93.010% 0000 <6.0 49.48°C 0.968
12.062V 5.009V 3.320V 5.018V 418.728 37.86°C 230.29V
7 31.967A 6.996A 6.964A 2.199A 454.790 92.764% 0000 <6.0 50.53°C 0.973
12.065V 5.004V 3.317V 5.003V 490.263 38.28°C 230.30V
8 36.603A 8.005A 7.966A 2.406A 520.092 92.532% 0000 <6.0 51.33°C 0.978
12.067V 4.998V 3.313V 4.989V 562.070 38.73°C 230.30V
9 41.633A 8.513A 8.458A 2.410A 585.013 92.310% 0000 <6.0 52.29°C 0.980
12.070V 4.993V 3.310V 4.980V 633.750 39.30°C 230.30V
10 46.402A 9.022A 8.982A 3.028A 649.836 91.892% 0000 <6.0 53.10°C 0.983
12.071V 4.989V 3.307V 4.955V 707.176 39.78°C 230.30V
11 51.767A 9.026A 8.985A 3.033A 714.680 91.626% 0000 <6.0 54.08°C 0.985
12.073V 4.985V 3.305V 4.948V 779.998 40.38°C 230.30V
CL1 0.143A 12.000A 12.000A 0.000A 101.434 85.061% 0000 <6.0 48.51°C 0.863
12.076V 4.999V 3.310V 5.084V 119.249 36.57°C 230.29V
CL2 54.179A 1.001A 1.000A 1.000A 667.602 92.724% 0000 <6.0 53.16°C 0.983
12.076V 4.997V 3.314V 5.021V 719.990 39.60°C 230.30V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 1.197A 0.498A 0.479A 0.196A 19.530 70.460% 0.838
12.054V 5.027V 3.330V 5.113V 27.718 115.11V
2 2.459A 0.995A 0.988A 0.392A 39.935 81.427% 0.918
12.054V 5.028V 3.331V 5.105V 49.044 115.12V
3 3.653A 1.491A 1.471A 0.589A 59.432 85.009% 0.947
12.055V 5.027V 3.330V 5.097V 69.913 115.12V
4 4.917A 1.990A 1.982A 0.786A 79.878 87.286% 0.965
12.055V 5.027V 3.330V 5.089V 91.513 115.12V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.197A 0.497A 0.479A 0.196A 19.528 70.414% 0000 <6.0 0.544
12.059V 5.025V 3.330V 5.113V 27.733 230.29V
2 2.456A 0.995A 0.990A 0.392A 39.916 81.485% 0000 <6.0 0.674
12.058V 5.028V 3.331V 5.105V 48.986 230.29V
3 3.649A 1.492A 1.468A 5.097A 59.393 85.696% 0000 <6.0 0.762
12.058V 5.027V 3.331V 5.097V 69.307 230.29V
4 4.912A 1.988A 1.980A 0.786A 79.814 88.149% 0000 <6.0 0.812
12.058V 5.026V 3.330V 5.089V 90.544 230.29V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.4 mV 5.8 mV 9.6 mV 8.5 mV Pass
20% Load 13.8 mV 6.1 mV 10.8 mV 9.0 mV Pass
30% Load 15.9 mV 6.6 mV 11.4 mV 9.6 mV Pass
40% Load 18.2 mV 6.7 mV 12.2 mV 9.9 mV Pass
50% Load 16.3 mV 7.4 mV 14.6 mV 10.0 mV Pass
60% Load 14.3 mV 8.0 mV 15.2 mV 10.5 mV Pass
70% Load 14.2 mV 8.2 mV 16.2 mV 11.5 mV Pass
80% Load 14.8 mV 9.5 mV 20.3 mV 13.2 mV Pass
90% Load 14.9 mV 9.1 mV 21.2 mV 13.1 mV Pass
100% Load 25.4 mV 10.7 mV 20.9 mV 13.5 mV Pass
110% Load 25.9 mV 10.5 mV 22.8 mV 14.2 mV Pass
Crossload 1 17.2 mV 7.4 mV 19.7 mV 10.1 mV Pass
Crossload 2 24.8 mV 9.7 mV 14.6 mV 13.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.9 mV 6.1 mV 9.9 mV 8.5 mV Pass
20% Load 14.3 mV 6.0 mV 10.7 mV 8.8 mV Pass
30% Load 16.0 mV 6.8 mV 11.5 mV 9.1 mV Pass
40% Load 17.9 mV 6.7 mV 12.3 mV 9.6 mV Pass
50% Load 16.7 mV 7.8 mV 13.3 mV 10.3 mV Pass
60% Load 13.3 mV 8.3 mV 14.3 mV 10.9 mV Pass
70% Load 13.7 mV 9.0 mV 15.5 mV 11.2 mV Pass
80% Load 14.7 mV 8.8 mV 19.1 mV 12.0 mV Pass
90% Load 14.3 mV 8.9 mV 19.1 mV 12.2 mV Pass
100% Load 25.2 mV 10.0 mV 21.0 mV 13.4 mV Pass
110% Load 25.7 mV 10.5 mV 21.8 mV 13.6 mV Pass
Crossload 1 16.4 mV 7.0 mV 19.5 mV 10.1 mV Pass
Crossload 2 25.7 mV 9.3 mV 14.0 mV 12.1 mV Pass

The results above are not used in the certification process

Mistel Vision 650W (#2)

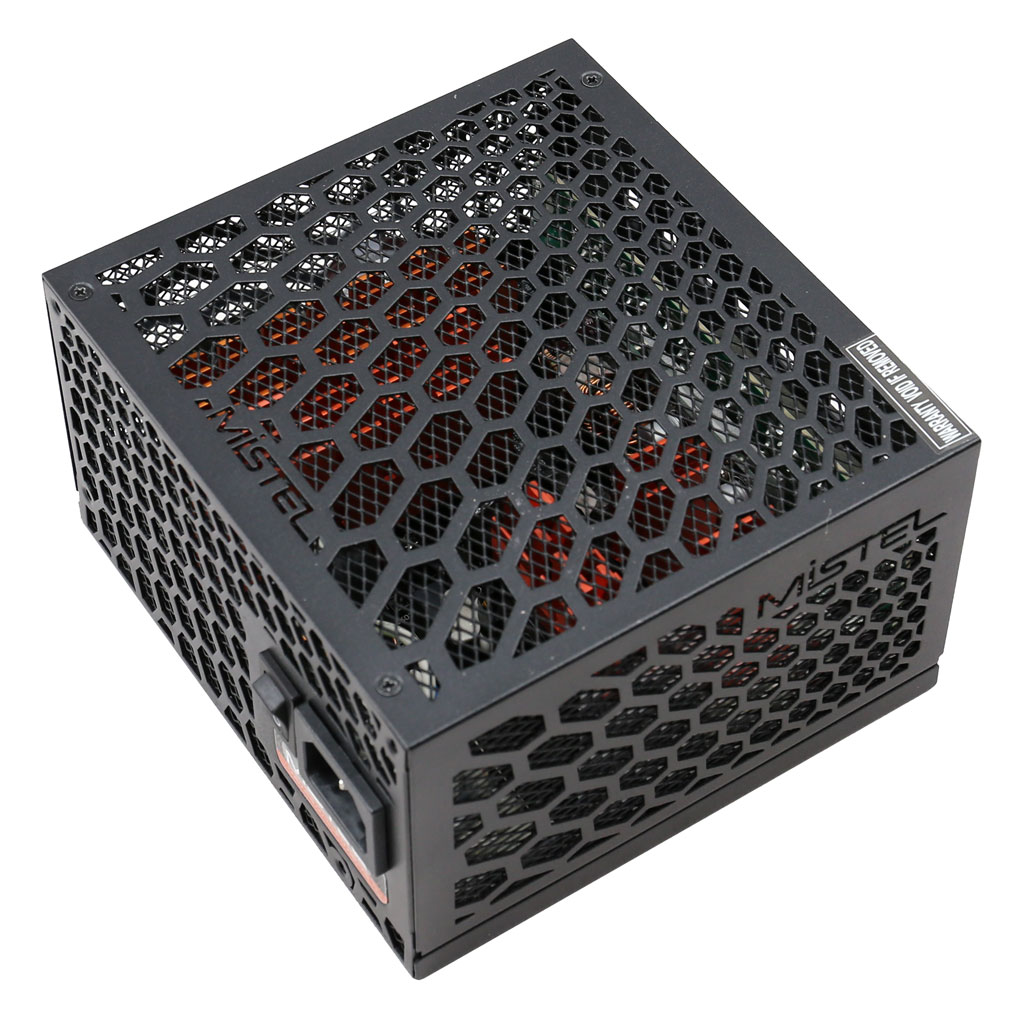

Top side

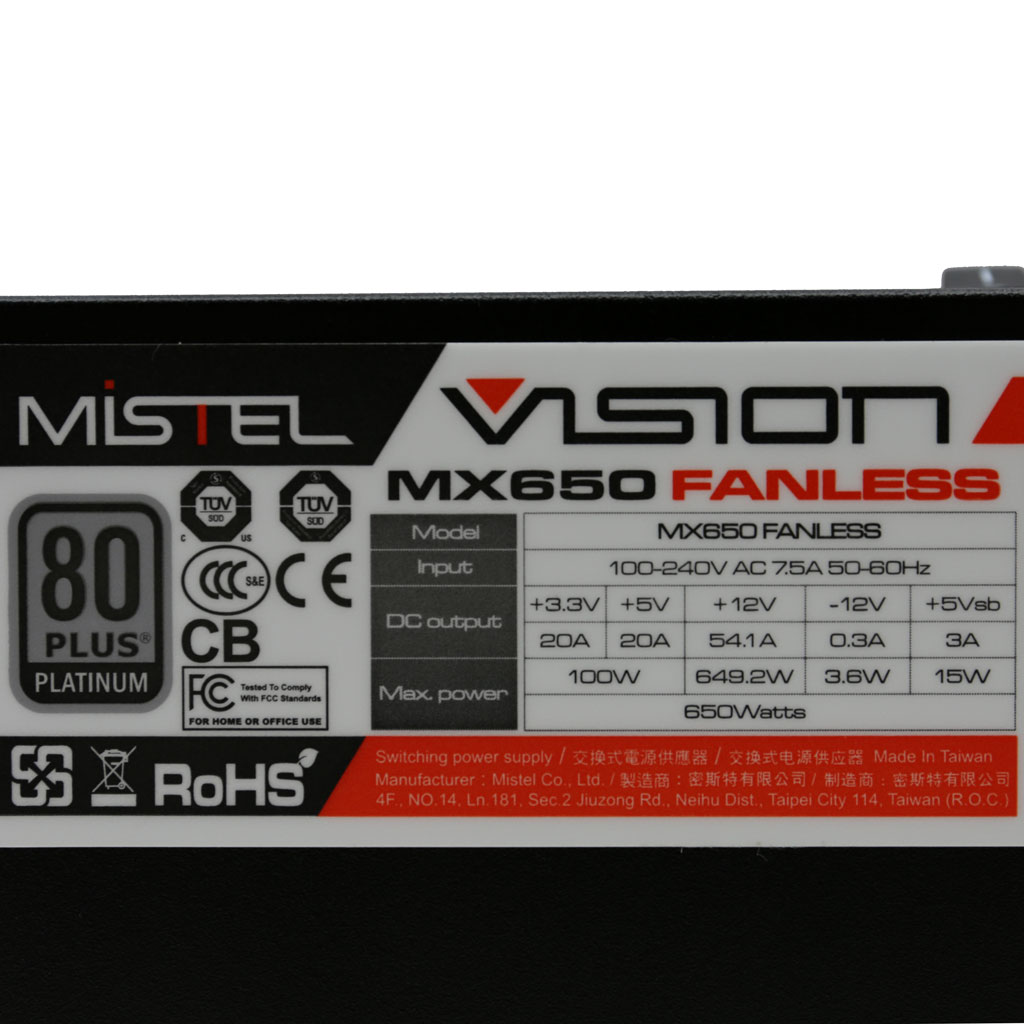

Power specifications label
