CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Mistel Vision 650W
Serial NumberMP18060100277
Lab ID484
  • Report:
  • Receipt Date: Sep 23, 2018
  • Test Date: Sep 26, 2018
  • Report Date: Sep 28, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMistel
Manufacturer (OEM)Shang Hung
SeriesVision
Model NumberMX650FL
Serial NumberMP18060100277
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.5
Rated Frequency (Hz)50-60
Rated Power (W)650
TypeATX12V
CoolingFanless
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 54.1 3 0.3
Watts 100 649.2 15 3.6
Total Max. Power (W) 650

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x4
Chroma 63600-2 x2
63640-80-80 x20
63610-80-20 x2
AC Sources Chroma 6530, Chroma 61604, Keysight AC6804B
Power Analyzers N4L PPA1530 x2, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (700mm) 1 1 18-22AWG No
4+4 pin EPS12V (750mm) 1 1 18AWG No
6+2 pin PCIe (600mm+120mm) 2 4 18AWG No
SATA (400mm+120mm+120mm+120mm) 2 8 18AWG No
4-pin Molex (400mm+120mm+120mm) / FDD (+100mm) 1 3 / 1 18-22AWG No
RGB Cable (+400mm) 1 1 24AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Shang Hung (Taiwan)
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV (10D561K)
Bridge Rectifier(s) 2x GBJ2506 (600V, 25A @ 100°C)
Inrush Current Protection NTC Thermistor & Relay
APFC Mosfets 2x Infineon IPA60R099P6 (650V, 24A @ 100°C, 0.099Ω @ 25°C)
APFC Boost Diode 1x G3S06510A (650V, 10A @ 150°C)
Hold-up Cap(s) 1x  Nippon Chemi-Con (450V, 560uF, 105°C, KMW series, 2000h @ 105°C).
Main Switchers 4x Wuxi NCE Power Semiconductor NCE65T180F (650V, 13.2A @ 100°C, 0.180Ω @ 25°C)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V 4x Excelliance MOS EMP16N04HS (40V, 100A @ 100°C, 1.6mΩ)
5V & 3.3V DC-DC Converters: Unknown number of FETs
PWM Controllers: 1x UP3861
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000h @ 105 °C, KZE series), Chemi-Con (4-10,000h @ 105°C, KY series)
Polymers: FPCAP, Chemi-Con
Supervisor IC WT7527V (OVP, UVP, OCP, SCP, PG )
5VSB Circuit
Rectifying Diode 1045 DGAL
Standby PWM Controller Excelliance EM8569

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)18.4
AC Loss to PWR_OK Hold Up Time (ms)16.7
PWR_OK Inactive to DC Loss Delay (ms)1.7

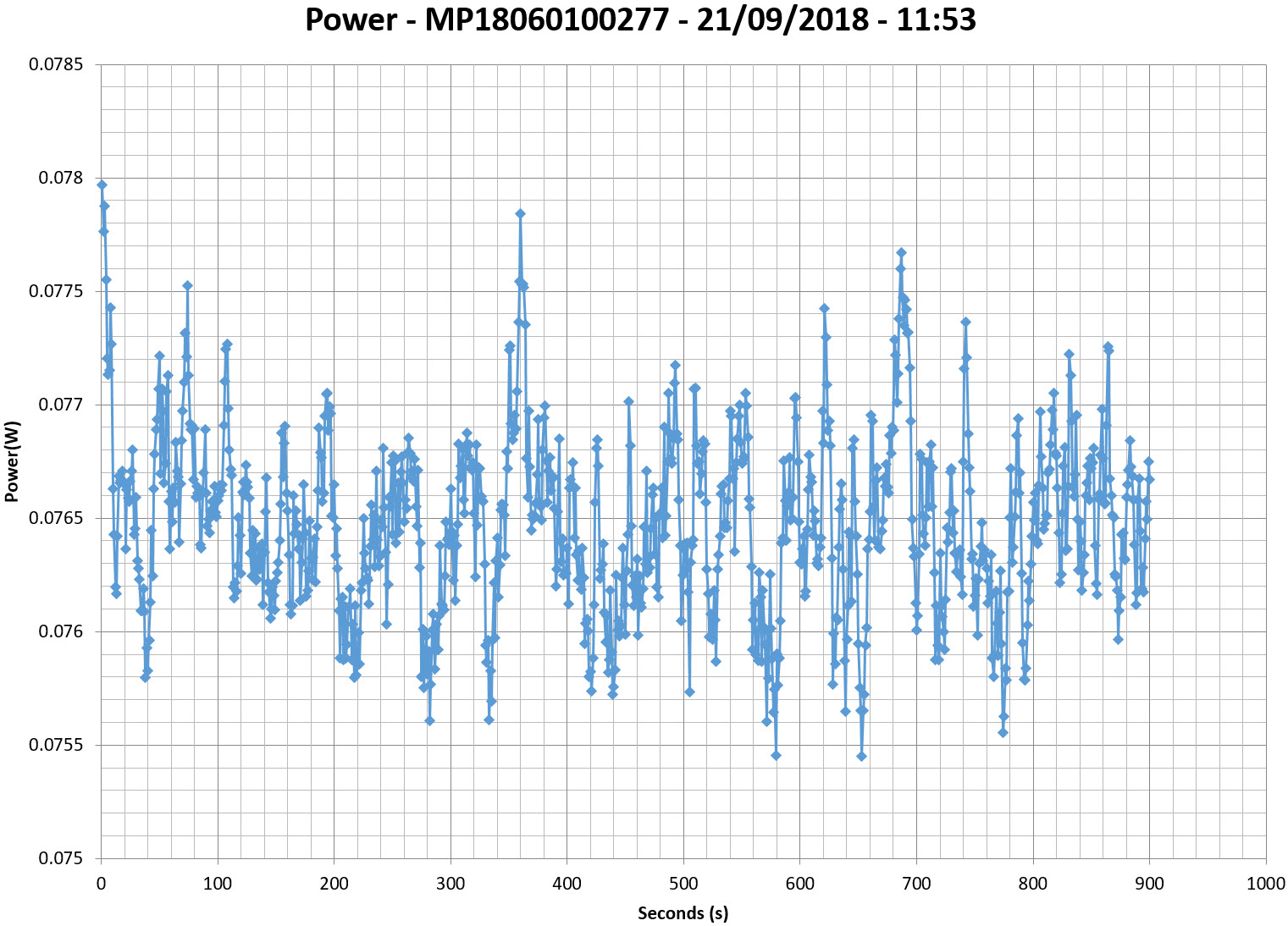

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

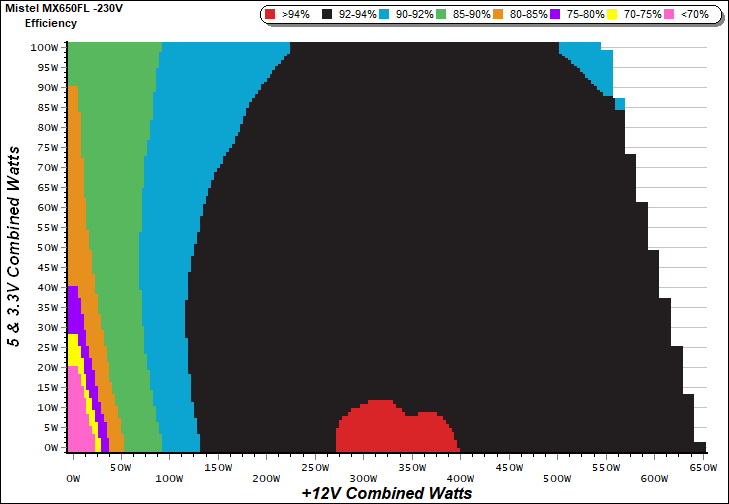

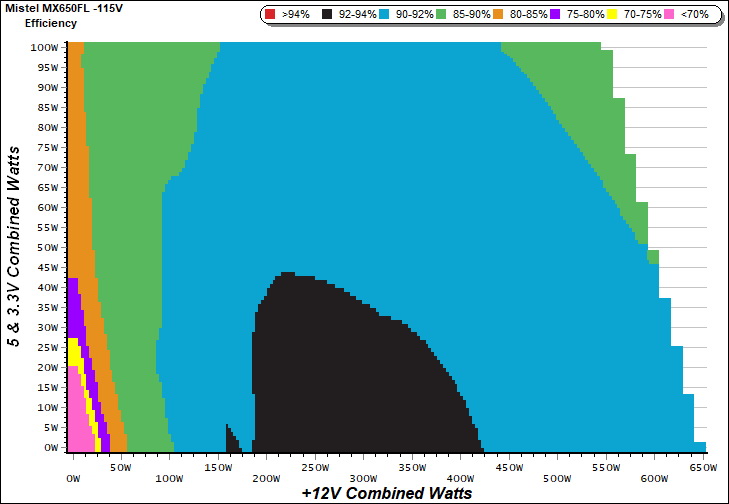

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

Noise Graph

Indicative Performance

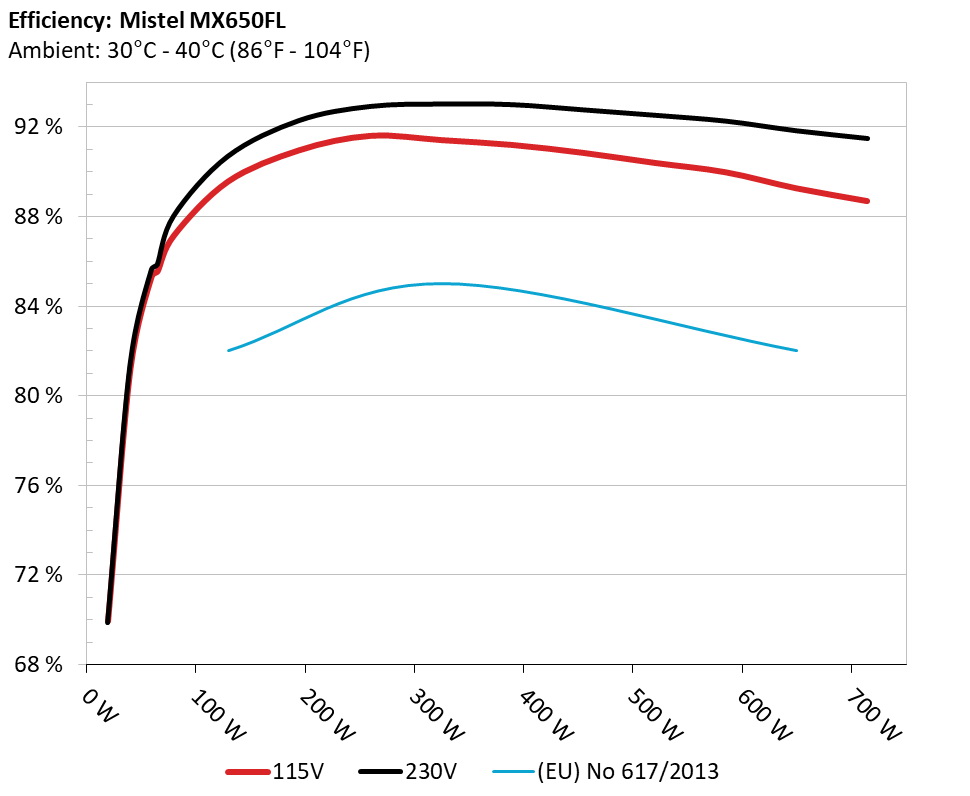

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 68.657% 0.055
5.108V 0.335 115.10V
2 0.090A 0.460 73.600% 0.099
5.106V 0.625 115.10V
3 0.550A 2.803 77.645% 0.334
5.096V 3.610 115.10V
4 1.000A 5.086 77.483% 0.406
5.085V 6.564 115.10V
5 1.500A 7.610 77.455% 0.442
5.073V 9.825 115.10V
6 3.000A 15.098 75.938% 0.490
5.032V 19.882 115.10V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.230 61.828% 0.019
5.108V 0.372 230.27V
2 0.090A 0.460 68.862% 0.033
5.107V 0.668 230.27V
3 0.550A 2.803 76.480% 0.159
5.095V 3.665 230.27V
4 1.000A 5.086 77.412% 0.240
5.085V 6.570 230.27V
5 1.500A 7.610 77.756% 0.297
5.073V 9.787 230.27V
6 3.000A 15.109 77.000% 0.377
5.036V 19.622 230.27V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.556A 1.988A 1.978A 0.985A 64.792 85.569% 0000 <6.0 43.78°C 0.962
12.151V 5.026V 3.331V 5.078V 75.719 34.20°C 115.11V
2 8.096A 2.986A 2.972A 1.185A 129.268 89.581% 0000 <6.0 44.58°C 0.983
12.151V 5.023V 3.329V 5.064V 144.303 34.52°C 115.11V
3 13.034A 3.486A 3.453A 1.386A 194.379 90.980% 0000 <6.0 45.61°C 0.989
12.152V 5.020V 3.328V 5.050V 213.650 35.15°C 115.11V
4 17.972A 3.985A 3.968A 1.589A 259.608 91.626% 0000 <6.0 46.63°C 0.993
12.153V 5.017V 3.326V 5.037V 283.335 35.45°C 115.11V
5 22.563A 4.989A 4.964A 1.792A 324.940 91.435% 0000 <6.0 47.81°C 0.991
12.163V 5.013V 3.323V 5.023V 355.377 36.34°C 115.12V
6 27.111A 5.990A 5.959A 1.997A 389.437 91.221% 0000 <6.0 48.99°C 0.992
12.159V 5.009V 3.321V 5.008V 426.917 36.85°C 115.11V
7 31.705A 6.996A 6.959A 2.203A 454.764 90.867% 0000 <6.0 50.35°C 0.993
12.164V 5.004V 3.319V 4.993V 500.474 37.32°C 115.11V
8 36.297A 8.003A 7.963A 2.411A 520.068 90.418% 0000 <6.0 51.97°C 0.995
12.168V 4.998V 3.316V 4.978V 575.180 38.23°C 115.11V
9 41.275A 8.513A 8.452A 2.416A 584.994 90.000% 0000 <6.0 53.56°C 0.996
12.174V 4.993V 3.313V 4.969V 649.996 38.72°C 115.11V
10 45.986A 9.022A 8.975A 3.035A 649.851 89.284% 0000 <6.0 55.60°C 0.996
12.181V 4.987V 3.309V 4.944V 727.846 39.18°C 115.11V
11 51.269A 9.034A 8.981A 3.040A 714.670 88.714% 0000 <6.0 58.78°C 0.997
12.190V 4.982V 3.306V 4.935V 805.593 39.90°C 115.12V
CL1 0.139A 12.000A 12.000A 0.000A 101.379 84.496% 0000 <6.0 48.64°C 0.979
12.186V 4.995V 3.312V 5.074V 119.981 36.50°C 115.11V
CL2 54.188A 1.002A 0.996A 1.000A 673.915 89.793% 0000 <6.0 55.48°C 0.997
12.191V 4.990V 3.313V 5.009V 750.524 39.58°C 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.568A 1.990A 1.980A 0.985A 64.940 85.867% 0000 <6.0 42.04°C 0.794
12.147V 5.027V 3.331V 5.077V 75.629 32.37°C 230.34V
2 8.110A 2.988A 2.973A 1.185A 129.429 90.704% 0000 <6.0 42.73°C 0.898
12.148V 5.024V 3.329V 5.063V 142.694 32.70°C 230.34V
3 13.049A 3.487A 3.453A 1.387A 194.549 92.301% 0000 <6.0 43.57°C 0.937
12.150V 5.021V 3.328V 5.050V 210.776 33.23°C 230.34V
4 17.987A 3.988A 3.968A 1.589A 259.790 92.934% 0000 <6.0 44.87°C 0.955
12.152V 5.018V 3.326V 5.036V 279.543 34.03°C 230.35V
5 22.591A 4.989A 4.962A 1.793A 325.104 93.039% 0000 <6.0 46.27°C 0.966
12.155V 5.014V 3.324V 5.021V 349.429 35.11°C 230.35V
6 27.136A 5.990A 5.962A 1.998A 389.598 93.012% 0000 <6.0 48.21°C 0.972
12.153V 5.010V 3.321V 5.007V 418.869 36.64°C 230.37V
7 31.731A 6.995A 6.962A 2.204A 454.936 92.779% 0000 <6.0 49.42°C 0.977
12.159V 5.005V 3.319V 4.992V 490.344 37.43°C 230.37V
8 36.315A 8.003A 7.962A 2.412A 520.223 92.539% 0000 <6.0 50.61°C 0.980
12.166V 4.999V 3.316V 4.977V 562.164 38.13°C 230.36V
9 41.290A 8.513A 8.454A 2.416A 585.148 92.276% 0000 <6.0 52.27°C 0.983
12.173V 4.994V 3.313V 4.968V 634.125 39.12°C 230.36V
10 45.998A 9.025A 8.976A 3.036A 649.973 91.845% 0000 <6.0 54.07°C 0.985
12.180V 4.987V 3.309V 4.943V 707.683 39.41°C 230.35V
11 51.291A 9.033A 8.982A 3.041A 714.793 91.501% 0000 <6.0 55.73°C 0.987
12.187V 4.983V 3.306V 4.934V 781.184 40.14°C 230.35V
CL1 0.148A 12.000A 12.000A 0.000A 101.476 85.107% 0000 <6.0 47.46°C 0.877
12.186V 4.994V 3.312V 5.074V 119.234 35.86°C 230.34V
CL2 54.192A 1.002A 1.000A 1.000A 673.921 92.594% 0000 <6.0 54.16°C 0.986
12.190V 4.989V 3.312V 5.009V 727.821 39.06°C 230.34V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.182A 0.498A 0.480A 0.196A 19.465 69.953% 0000 <6.0 0.859
12.155V 5.021V 3.328V 5.104V 27.826 115.11V
2 2.435A 0.994A 0.988A 0.393A 39.881 81.204% 0000 <6.0 0.934
12.153V 5.025V 3.331V 5.096V 49.112 115.12V
3 3.621A 1.493A 1.468A 0.590A 59.400 85.355% 0000 <6.0 0.953
12.152V 5.026V 3.332V 5.089V 69.592 115.11V
4 4.870A 1.991A 1.980A 0.787A 79.774 87.173% 0000 <6.0 0.970
12.151V 5.025V 3.331V 5.081V 91.512 115.11V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.188A 0.498A 0.481A 0.196A 19.528 69.883% 0000 <6.0 0.571
12.142V 5.023V 3.328V 5.105V 27.944 230.33V
2 2.449A 0.996A 0.988A 0.393A 40.041 81.401% 0000 <6.0 0.701
12.144V 5.027V 3.331V 5.097V 49.190 230.33V
3 3.632A 1.493A 1.470A 0.590A 59.514 85.635% 0000 <6.0 0.776
12.145V 5.027V 3.331V 5.089V 69.497 230.33V
4 4.883A 1.990A 1.981A 0.787A 79.907 88.043% 0000 <6.0 0.829
12.146V 5.026V 3.331V 5.081V 90.759 230.33V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.5 mV 7.1 mV 11.2 mV 8.7 mV Pass
20% Load 11.9 mV 7.1 mV 11.6 mV 8.9 mV Pass
30% Load 13.8 mV 8.0 mV 12.4 mV 9.4 mV Pass
40% Load 16.4 mV 8.6 mV 13.1 mV 10.7 mV Pass
50% Load 17.5 mV 9.3 mV 14.5 mV 10.4 mV Pass
60% Load 15.1 mV 10.2 mV 15.4 mV 11.1 mV Pass
70% Load 14.2 mV 11.0 mV 17.3 mV 11.7 mV Pass
80% Load 14.8 mV 11.8 mV 20.8 mV 13.1 mV Pass
90% Load 15.4 mV 11.9 mV 22.6 mV 13.9 mV Pass
100% Load 23.3 mV 12.2 mV 23.0 mV 13.7 mV Pass
110% Load 25.1 mV 13.3 mV 23.5 mV 14.5 mV Pass
Crossload 1 15.1 mV 8.8 mV 20.7 mV 9.7 mV Pass
Crossload 2 25.8 mV 11.6 mV 15.7 mV 13.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.2 mV 6.8 mV 10.7 mV 8.3 mV Pass
20% Load 11.6 mV 7.5 mV 11.6 mV 8.9 mV Pass
30% Load 14.3 mV 7.5 mV 12.2 mV 9.4 mV Pass
40% Load 16.3 mV 8.1 mV 12.9 mV 9.5 mV Pass
50% Load 18.6 mV 9.5 mV 14.9 mV 10.1 mV Pass
60% Load 16.7 mV 9.6 mV 14.9 mV 11.0 mV Pass
70% Load 15.1 mV 10.6 mV 16.3 mV 11.4 mV Pass
80% Load 15.2 mV 11.1 mV 20.3 mV 12.5 mV Pass
90% Load 15.7 mV 12.2 mV 21.6 mV 12.9 mV Pass
100% Load 23.8 mV 13.9 mV 22.5 mV 13.8 mV Pass
110% Load 25.6 mV 13.4 mV 24.4 mV 15.1 mV Pass
Crossload 1 14.7 mV 9.1 mV 20.1 mV 9.6 mV Pass
Crossload 2 24.2 mV 12.3 mV 16.2 mV 13.2 mV Pass

The results above are not used in the certification process

Mistel Vision 650W

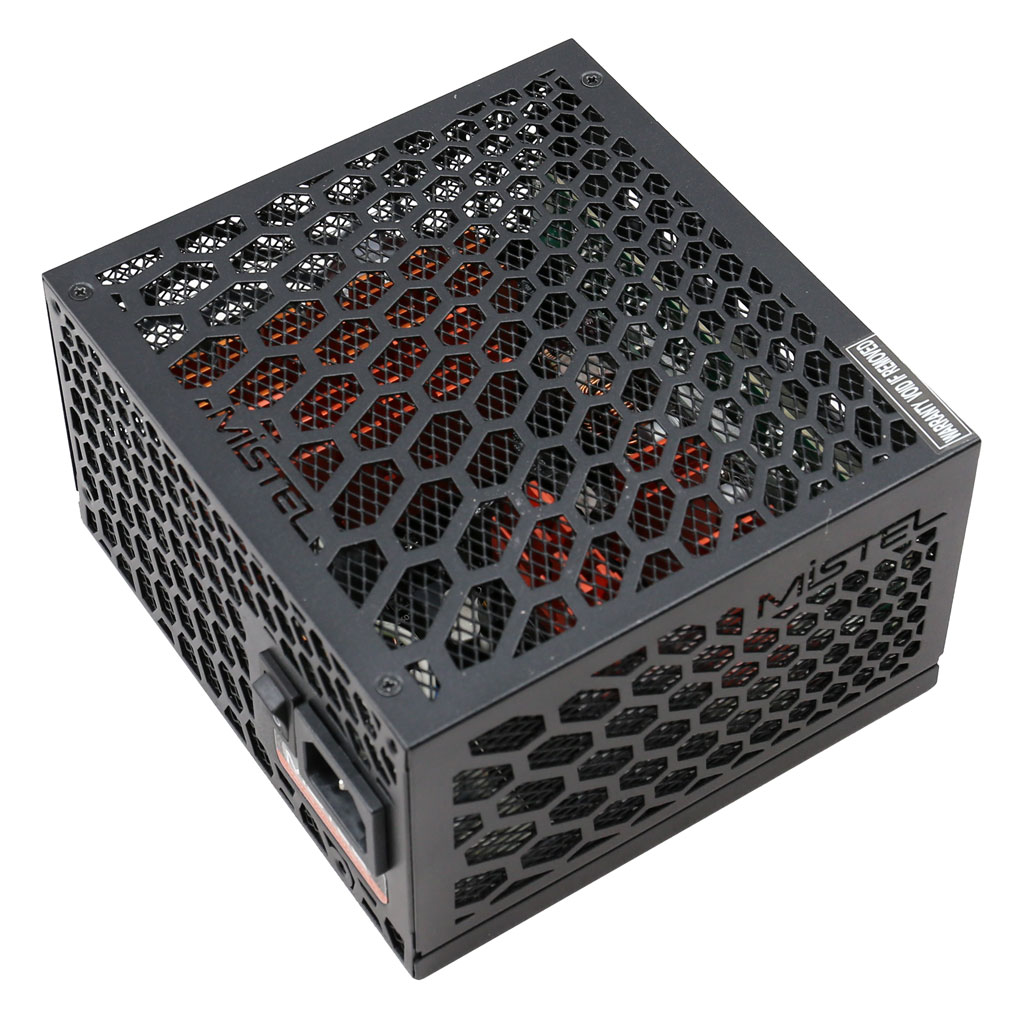

Top side

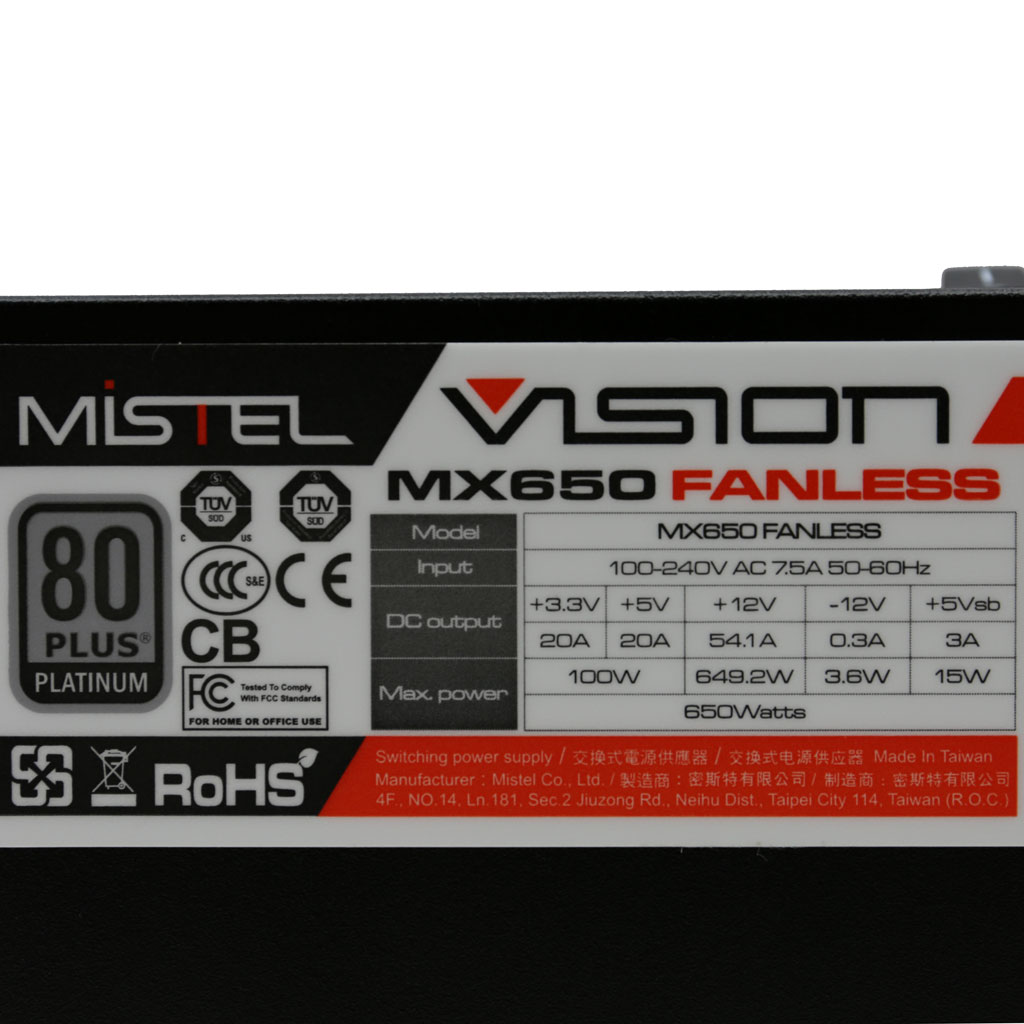

Power specifications label
