CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology AURUM PT 1000W PT-1000FM
S4290000111
Lab ID339
  • Report:
  • Receipt Date: Mar 22, 2018
  • Test Date: Mar 27, 2018
  • Report Date: Mar 29, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

FSP Technology
Hersteller (OEM)FSP
AURUM PT
PT-1000FM
S4290000111

(Vrms)100-240
(Arms)14-8
(Hz)50-60
(W)1000
ATX12V
135mm Hydro Dynamic Bearing Fan
(PLA13525S12M)
✗
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 83 3 0.8
Watts 160 996 15 9.6
Total Max. Power (W) 1000

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 18-22AWG Yes
6+2 pin PCIe (700mm) 2 2 18-20AWG Yes
6+2 pin PCIe (700mm+150mm) 2 4 18-20AWG Yes
SATA (550mm+100mm+100mm) 3 12 18-20AWG No
4 pin Molex (550mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Relay
Bridge Rectifier(s) 2x LL25XB60 (600V, 25A @ 113°C)
APFC Mosfets 3x STMicroelectronics STF24NM60N (650V, 11A @ 100°C, 0.19Ω )
APFC Boost Diode 1x CREE C3D08060A (600V, 8A @ 152°C)
Hold-up Cap(s) 2x Nippon Chemi-Con (420V, 470uF each, 2000h & 105°C, KMQ)
Main Switchers 4x Infineon IPP60R190C6
(650V, 12.8A @ 100°C, 0.19Ω)
APFC Controller Infineon ICE3PCS01
Switching Controller Champion CM6901
Topology Primary side: Full-Bridge & LLC Resonant Converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V Mosfets 8x Infineon BSC014N04LS (40V, 100A @ 100°C, 1.4mΩ)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0901NS
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Nippon Chemi-Con (105°C, KY, KZE), Rubycon (105°C, YXG)
Polymers: Nippon Chemi-Con
Supervisor IC SITI PS223 (OVP, UVP, OCP, SCP, OTP )
Fan Model Power Logic PLA13525S12M (12 V, 0.40 A, 111.1 CFM, 41.6 dBA, Hydro Dynamic Bearing)
5VSB Circuit
Rectifier 1x AUIRFR1018E
Standby PWM Controller TinySwitch-III TNY279PN
-12V Circuit
PWM Controller APW7174

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
ErP Lot 3/6 2010: ✓
ErP Lot 3/6 2013: ✓
ErP Lot 3/6 2014, CEC: Partially
✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseA-
(>1450 load combinations)90.386%
Average Noise Output (>1450 Load Combinations)27.89dBA
(>1450 Load Combinations)0.995
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0549W
12V Ripple (Full Load)23.70mV
5V Ripple (Full Load)7.71mV
3.3V Ripple (Full Load)17.46mV
5VSB Ripple (Full Load)28.43mV
12V Load Regulation0.56%
5V Load Regulation1.29%
3.3V Load Regulation2.14%
5VSB Load Regulation2.04%
Inrush Current35.843A
WirkungsgradPLATINUM
LautstärkeklasseA-
(>1450 load combinations)92.323%
Average Noise Output (>1450 Load Combinations)27.83dBA
(>1450 Load Combinations)0.971
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0873W
12V Ripple (Full Load)21.85mV
5V Ripple (Full Load)6.97mV
3.3V Ripple (Full Load)14.46mV
5VSB Ripple (Full Load)26.10mV
12V Load Regulation0.52%
5V Load Regulation1.29%
3.3V Load Regulation2.14%
5VSB Load Regulation2.06%
Inrush Current53.405A
19.90ms
AC Loss to PWR_OK Hold Up Time12.80ms
PWR_OK Inactive to DC Loss Delay7.10ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time (ms)19.9
AC Loss to PWR_OK Hold Up Time (ms)12.8
PWR_OK Inactive to DC Loss Delay (ms)7.1

Stromverbrauch im Ruhezustand

Tables

Graphs

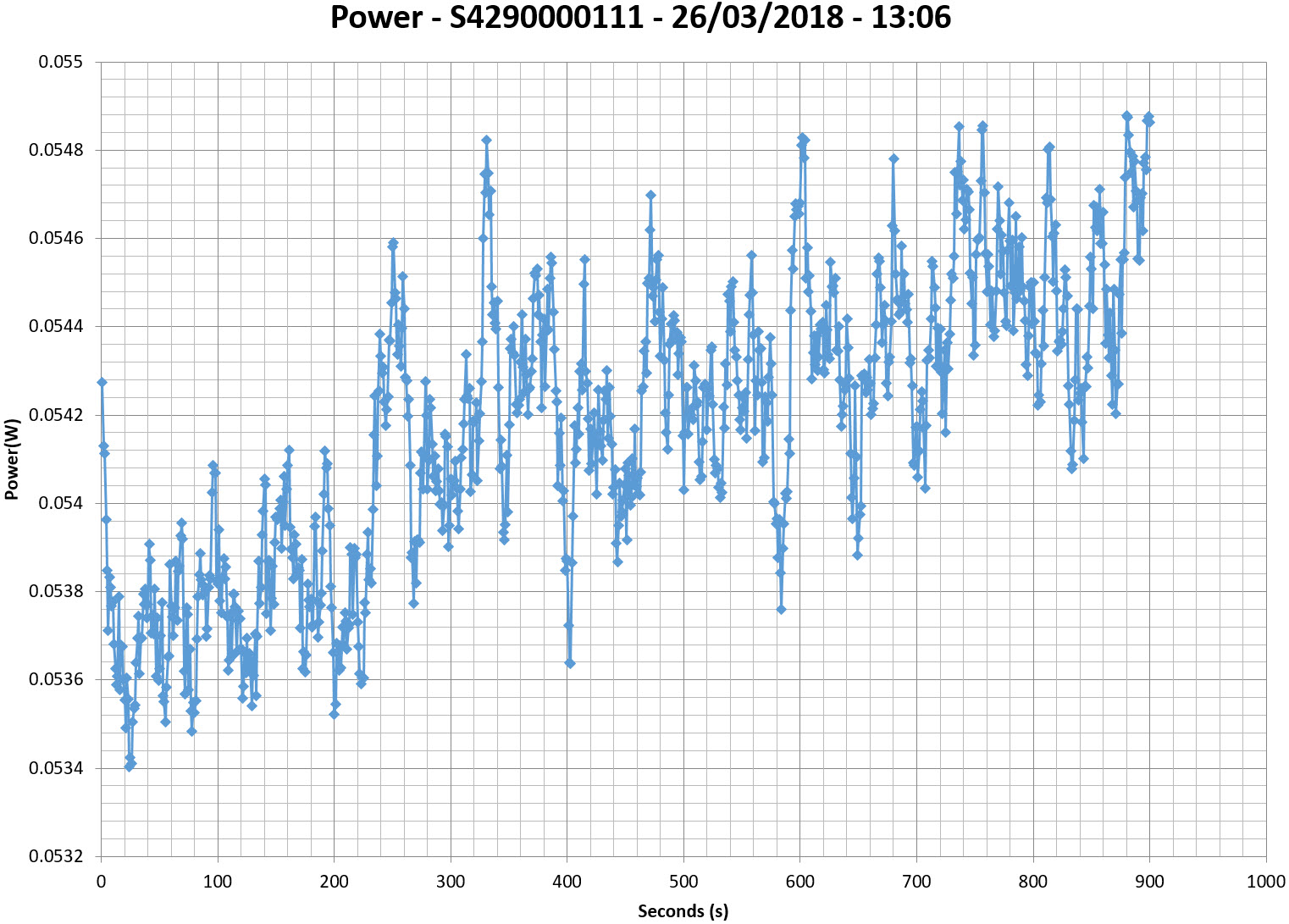

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

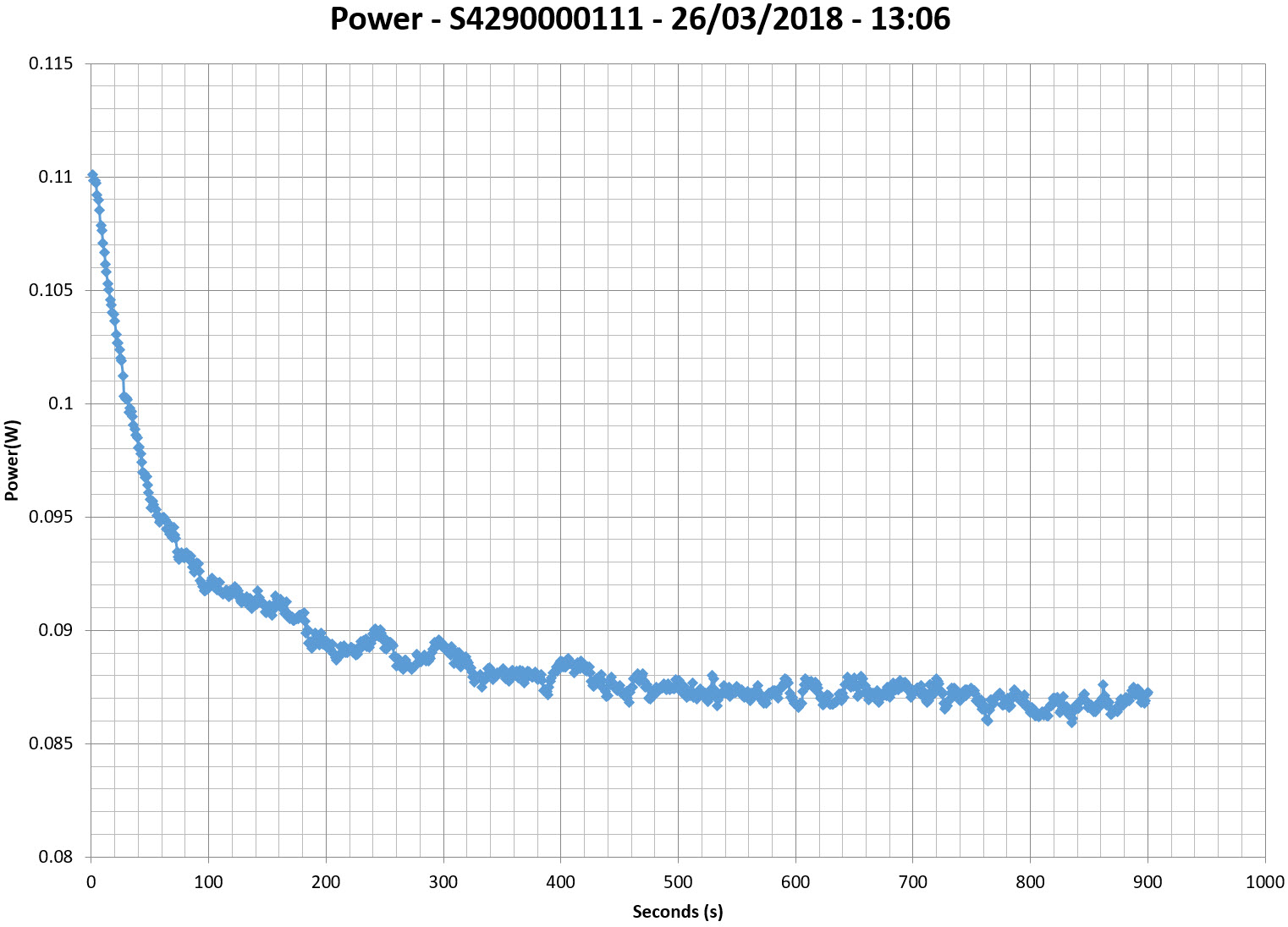

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

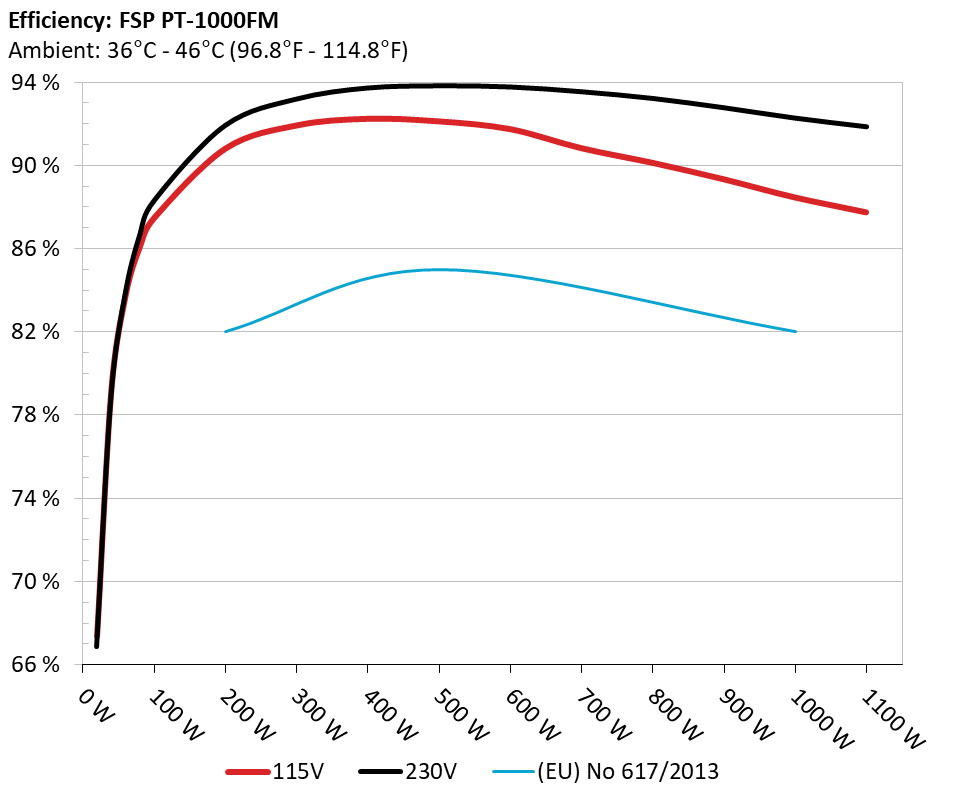

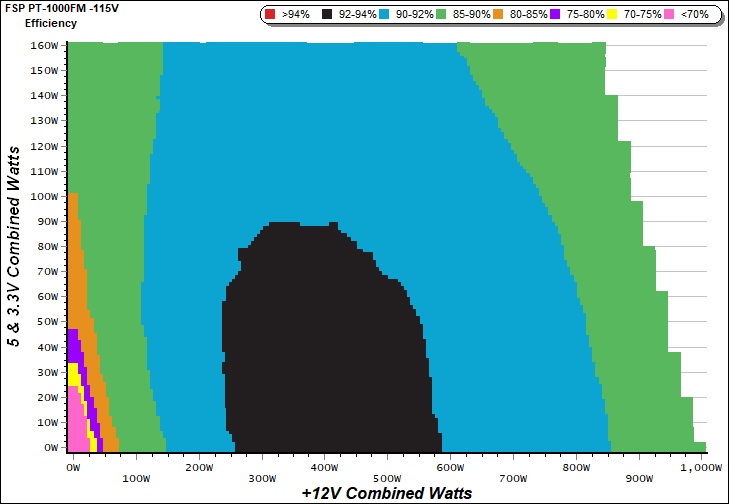

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

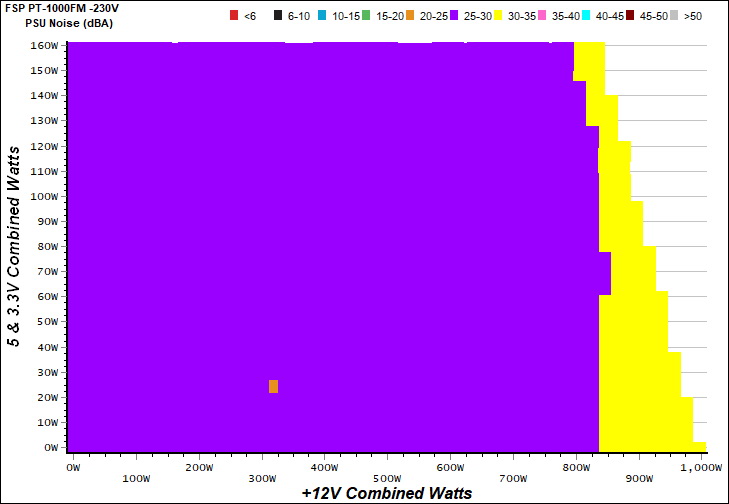

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

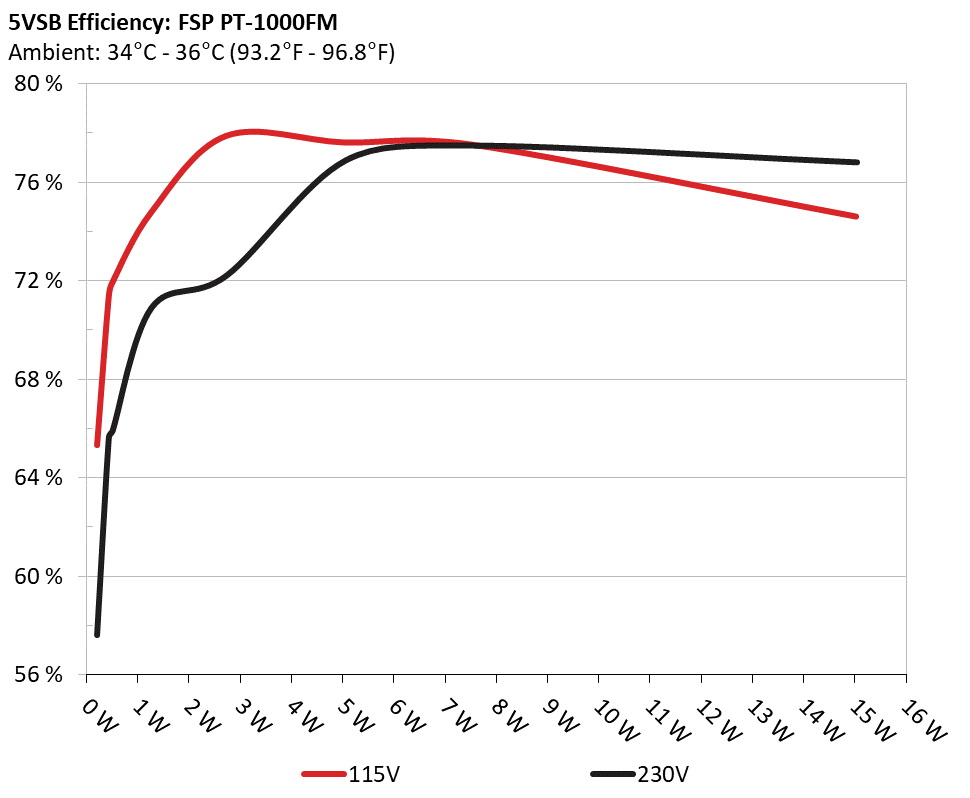

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.213 65.337% 0.028
5.063V 0.326 115.10V
2 0.087A 0.442 71.405% 0.052
5.061V 0.619 115.10V
3 0.542A 2.740 77.907% 0.239
5.052V 3.517 115.09V
4 1.002A 5.056 77.629% 0.348
5.044V 6.513 115.08V
5 1.502A 7.562 77.535% 0.412
5.035V 9.753 115.07V
6 3.001A 15.030 74.624% 0.490
5.008V 20.141 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.212 57.609% 0.009
5.063V 0.368 230.25V
2 0.087A 0.441 65.625% 0.017
5.062V 0.672 230.25V
3 0.542A 2.741 72.208% 0.093
5.053V 3.796 230.25V
4 1.002A 5.056 76.874% 0.150
5.045V 6.577 230.25V
5 1.502A 7.562 77.480% 0.205
5.036V 9.760 230.25V
6 3.002A 15.033 76.801% 0.314
5.008V 19.574 230.25V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.499A 1.930A 1.958A 0.991A 99.783 87.485% 775 26.5 38.12°C 0.979
12.033V 5.180V 3.365V 5.040V 114.057 42.20°C 115.17V
2 14.037A 2.899A 2.946A 1.191A 199.691 90.826% 775 26.5 38.29°C 0.994
12.026V 5.173V 3.358V 5.031V 219.862 43.10°C 115.07V
3 21.949A 3.383A 3.459A 1.391A 299.859 91.945% 775 26.5 38.55°C 0.996
12.019V 5.167V 3.350V 5.023V 326.127 43.94°C 115.14V
4 29.840A 3.870A 3.943A 1.595A 399.621 92.263% 775 26.5 39.02°C 0.997
12.013V 5.161V 3.344V 5.013V 433.131 44.86°C 115.10V
5 37.410A 4.851A 4.942A 1.796A 499.579 92.139% 775 26.5 39.65°C 0.998
12.005V 5.153V 3.336V 5.004V 542.200 45.70°C 115.08V
6 44.988A 5.834A 5.945A 2.001A 599.568 91.767% 775 26.5 40.56°C 0.998
11.998V 5.145V 3.329V 4.995V 653.362 47.49°C 115.07V
7 52.562A 6.810A 6.953A 2.205A 699.346 90.849% 775 26.5 41.39°C 0.999
11.991V 5.138V 3.321V 4.986V 769.789 48.64°C 115.12V
8 60.169A 7.799A 7.964A 2.411A 799.459 90.143% 775 26.5 42.26°C 0.999
11.984V 5.130V 3.313V 4.977V 886.876 50.47°C 115.13V
9 68.206A 8.298A 8.496A 2.411A 899.505 89.352% 1160 33.3 43.17°C 0.999
11.977V 5.124V 3.307V 4.972V 1006.695 51.85°C 115.07V
10 75.989A 8.792A 9.003A 3.026A 999.196 88.478% 1595 40.1 44.60°C 0.999
11.969V 5.118V 3.298V 4.955V 1129.311 54.19°C 115.07V
11 84.392A 8.804A 9.019A 3.029A 1099.176 87.764% 1720 41.5 45.96°C 0.999
11.962V 5.110V 3.293V 4.949V 1252.417 56.42°C 115.09V
CL1 0.101A 19.026A 18.999A 0.005A 162.871 86.292% 805 27.0 42.34°C 0.994
12.022V 5.158V 3.342V 5.049V 188.744 50.85°C 115.09V
CL2 82.937A 1.001A 1.002A 1.002A 1006.546 88.958% 1485 38.5 44.42°C 0.999
11.974V 5.128V 3.310V 4.998V 1131.482 54.52°C 115.06V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 6.509A 1.928A 1.959A 0.992A 99.862 88.277% 775 26.5 37.39°C 0.855
12.027V 5.180V 3.365V 5.040V 113.124 41.36°C 230.42V
2 14.032A 2.901A 2.946A 1.192A 199.684 91.904% 775 26.5 37.87°C 0.945
12.029V 5.173V 3.357V 5.031V 217.274 42.18°C 230.44V
3 21.945A 3.382A 3.461A 1.391A 299.857 93.181% 775 26.5 38.93°C 0.971
12.021V 5.167V 3.350V 5.023V 321.801 43.59°C 230.43V
4 29.842A 3.868A 3.945A 1.596A 399.674 93.712% 775 26.5 39.40°C 0.984
12.014V 5.160V 3.344V 5.013V 426.494 44.52°C 230.18V
5 37.409A 4.851A 4.942A 1.796A 499.641 93.816% 775 26.5 40.11°C 0.989
12.007V 5.153V 3.336V 5.004V 532.578 46.06°C 230.33V
6 44.988A 5.835A 5.945A 2.001A 599.663 93.761% 775 26.5 41.95°C 0.993
12.000V 5.145V 3.329V 4.995V 639.564 48.43°C 230.14V
7 52.576A 6.810A 6.954A 2.206A 699.567 93.531% 775 26.5 42.26°C 0.994
11.992V 5.138V 3.320V 4.986V 747.951 49.08°C 230.32V
8 60.163A 7.797A 7.968A 2.411A 799.447 93.209% 775 26.5 43.03°C 0.995
11.985V 5.130V 3.313V 4.976V 857.692 50.29°C 230.13V
9 68.188A 8.296A 8.500A 2.411A 899.353 92.763% 1200 33.6 44.58°C 0.995
11.978V 5.124V 3.306V 4.972V 969.518 52.81°C 230.14V
10 75.990A 8.793A 9.004A 3.025A 999.212 92.263% 1560 39.9 45.44°C 0.995
11.969V 5.118V 3.298V 4.955V 1082.999 53.92°C 230.15V
11 84.392A 8.803A 9.021A 3.029A 1099.169 91.850% 1875 44.8 46.61°C 0.996
11.962V 5.109V 3.293V 4.949V 1196.701 55.74°C 230.18V
CL1 0.102A 19.025A 19.001A 0.005A 162.884 87.215% 805 27.0 41.72°C 0.932
12.022V 5.158V 3.342V 5.049V 186.761 48.65°C 230.24V
CL2 82.940A 1.003A 1.001A 1.002A 1006.588 92.627% 1485 38.5 43.15°C 0.996
11.974V 5.127V 3.310V 4.998V 1086.707 51.78°C 230.18V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.217A 0.480A 0.470A 0.196A 19.718 67.361% 775 26.5 0.834
12.039V 5.187V 3.372V 5.058V 29.272 115.13V
2 2.453A 0.959A 0.978A 0.396A 39.797 79.226% 775 26.5 0.924
12.037V 5.185V 3.370V 5.054V 50.232 115.14V
3 3.694A 1.446A 1.483A 0.592A 59.935 83.795% 775 26.5 0.954
12.035V 5.183V 3.368V 5.049V 71.526 115.10V
4 4.923A 1.927A 1.959A 0.791A 79.814 86.109% 775 26.5 0.968
12.034V 5.182V 3.367V 5.044V 92.690 115.34V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.211A 0.479A 0.474A 0.196A 19.725 66.869% 775 26.5 0.445
12.098V 5.187V 3.371V 5.059V 29.498 230.12V
2 2.452A 0.957A 0.977A 0.396A 39.812 78.892% 775 26.5 0.621
12.054V 5.185V 3.369V 5.054V 50.464 230.23V
3 3.696A 1.444A 1.484A 0.591A 59.936 83.835% 775 26.5 0.738
12.032V 5.183V 3.368V 5.049V 71.493 230.23V
4 4.927A 1.927A 1.959A 0.791A 79.839 86.616% 775 26.5 0.809
12.029V 5.182V 3.367V 5.044V 92.176 230.23V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 14.2 mV 4.6 mV 12.4 mV 14.9 mV Pass
20% Load 18.0 mV 4.7 mV 12.5 mV 16.7 mV Pass
30% Load 18.9 mV 5.1 mV 12.7 mV 18.2 mV Pass
40% Load 19.5 mV 4.9 mV 12.6 mV 19.5 mV Pass
50% Load 19.8 mV 5.8 mV 12.9 mV 20.4 mV Pass
60% Load 20.6 mV 10.3 mV 15.6 mV 20.6 mV Pass
70% Load 17.0 mV 6.4 mV 13.0 mV 21.3 mV Pass
80% Load 18.1 mV 6.4 mV 13.8 mV 24.4 mV Pass
90% Load 19.5 mV 6.4 mV 12.7 mV 25.1 mV Pass
100% Load 23.7 mV 7.7 mV 17.5 mV 28.4 mV Pass
110% Load 25.0 mV 7.6 mV 17.2 mV 30.8 mV Pass
Crossload 1 18.8 mV 5.0 mV 14.5 mV 11.8 mV Pass
Crossload 2 23.3 mV 6.0 mV 16.3 mV 25.2 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 5.4 mV 4.0 mV 10.9 mV 16.1 mV Pass
20% Load 31.8 mV 5.6 mV 11.6 mV 18.2 mV Pass
30% Load 24.7 mV 5.8 mV 12.1 mV 21.2 mV Pass
40% Load 17.0 mV 5.8 mV 13.3 mV 22.4 mV Pass
50% Load 15.4 mV 6.9 mV 12.6 mV 21.5 mV Pass
60% Load 15.9 mV 6.6 mV 11.8 mV 21.1 mV Pass
70% Load 17.2 mV 5.9 mV 12.4 mV 21.3 mV Pass
80% Load 18.2 mV 6.1 mV 12.7 mV 24.3 mV Pass
90% Load 19.8 mV 6.4 mV 14.5 mV 24.3 mV Pass
100% Load 21.9 mV 7.0 mV 14.5 mV 26.1 mV Pass
110% Load 23.8 mV 6.7 mV 13.5 mV 27.1 mV Pass
Crossload 1 32.8 mV 5.0 mV 12.5 mV 11.6 mV Pass
Crossload 2 21.8 mV 6.8 mV 12.7 mV 21.3 mV Pass

The results above are not used in the certification process

FSP Technology AURUM PT 1000W PT-1000FM

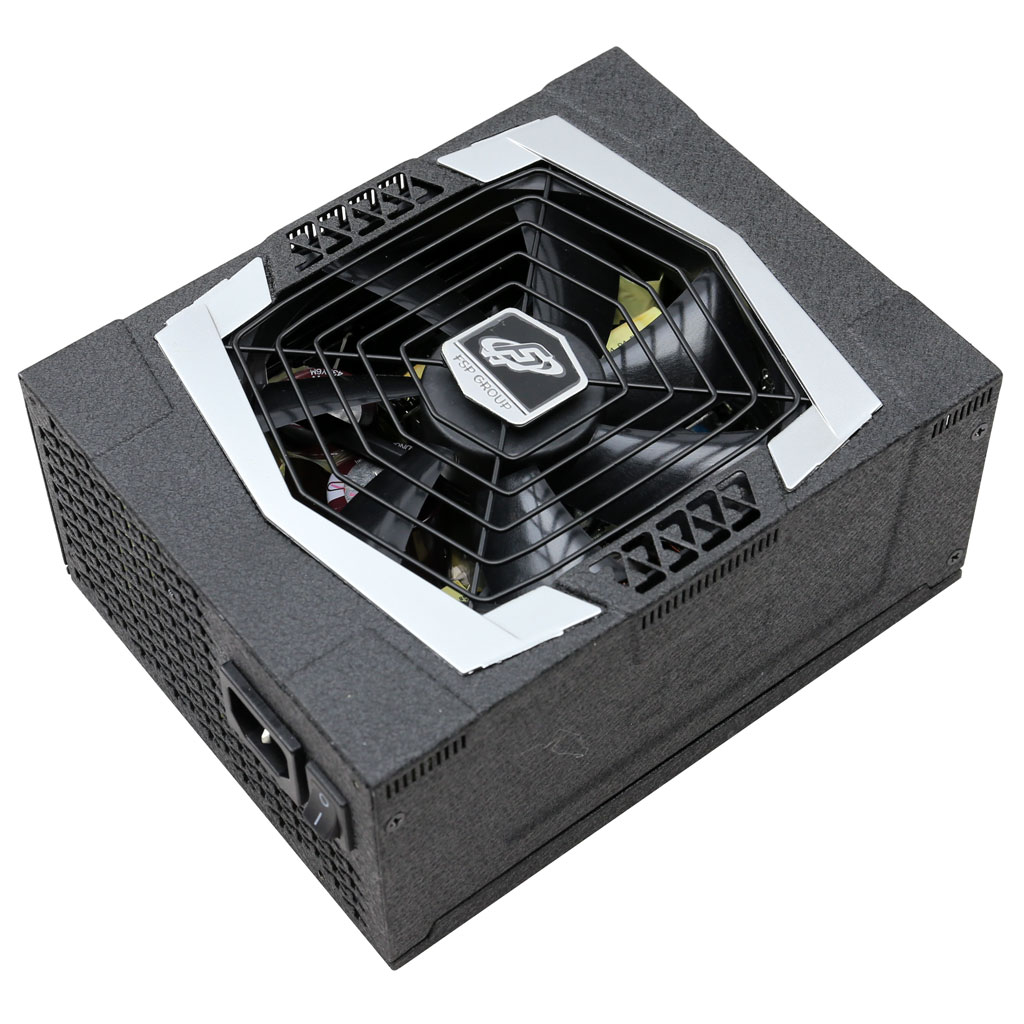

Top side

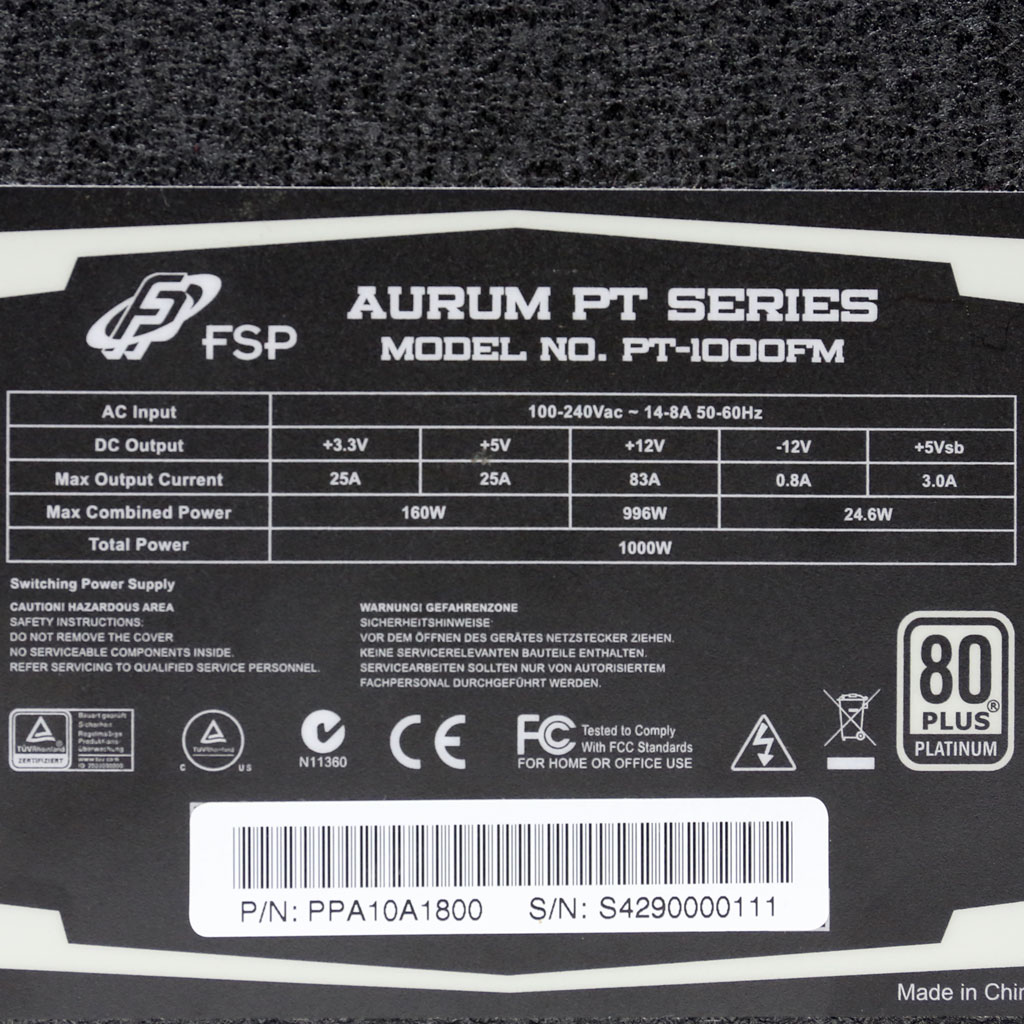

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
