CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology AURUM PT 1200W PT-1200FM
S4290000157
Lab ID300
  • Report:
  • Receipt Date: Feb 15, 2018
  • Test Date: Feb 26, 2018
  • Report Date: Feb 28, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

FSP Technology
Hersteller (OEM)FSP
AURUM PT
PT-1200FM
S4290000157

(Vrms)100-240
(Arms)15-9
(Hz)50-60
(W)1200
ATX12V
135mm Hydro Dynamic Bearing Fan
(PLA13525S12M)
✗
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 25 25 100 3 0.8
Watts 160 1200 15 9.6
Total Max. Power (W) 1200

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-24AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (500mm+100mm) 4 8 18AWG No
SATA (550mm+150mm+150mm) 3 9 18AWG No
SATA (550mm+50mm+50mm+50mm) 1 4 18AWG No
4 pin Molex (550mm+150mm+150mm) 2 6 18AWG No
FDD Adapter (+100mm) 1 1 22AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)89.557%
Average Noise Output (>1450 Load Combinations)32.61dBA
(>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0539W
12V Ripple (Full Load)38.39mV
5V Ripple (Full Load)7.80mV
3.3V Ripple (Full Load)10.56mV
5VSB Ripple (Full Load)22.79mV
12V Load Regulation0.58%
5V Load Regulation1.70%
3.3V Load Regulation2.61%
5VSB Load Regulation2.30%
Inrush Current49.283A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)91.998%
Average Noise Output (>1450 Load Combinations)31.19dBA
(>1450 Load Combinations)0.966
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0855W
12V Ripple (Full Load)35.48mV
5V Ripple (Full Load)6.95mV
3.3V Ripple (Full Load)12.34mV
5VSB Ripple (Full Load)18.47mV
12V Load Regulation0.62%
5V Load Regulation1.68%
3.3V Load Regulation2.55%
5VSB Load Regulation2.39%
Inrush Current48.029A
12.80ms
AC Loss to PWR_OK Hold Up Time10.70ms
PWR_OK Inactive to DC Loss Delay2.10ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time (ms)12.8
AC Loss to PWR_OK Hold Up Time (ms)10.7
PWR_OK Inactive to DC Loss Delay (ms)2.1

Stromverbrauch im Ruhezustand

Tables

Graphs

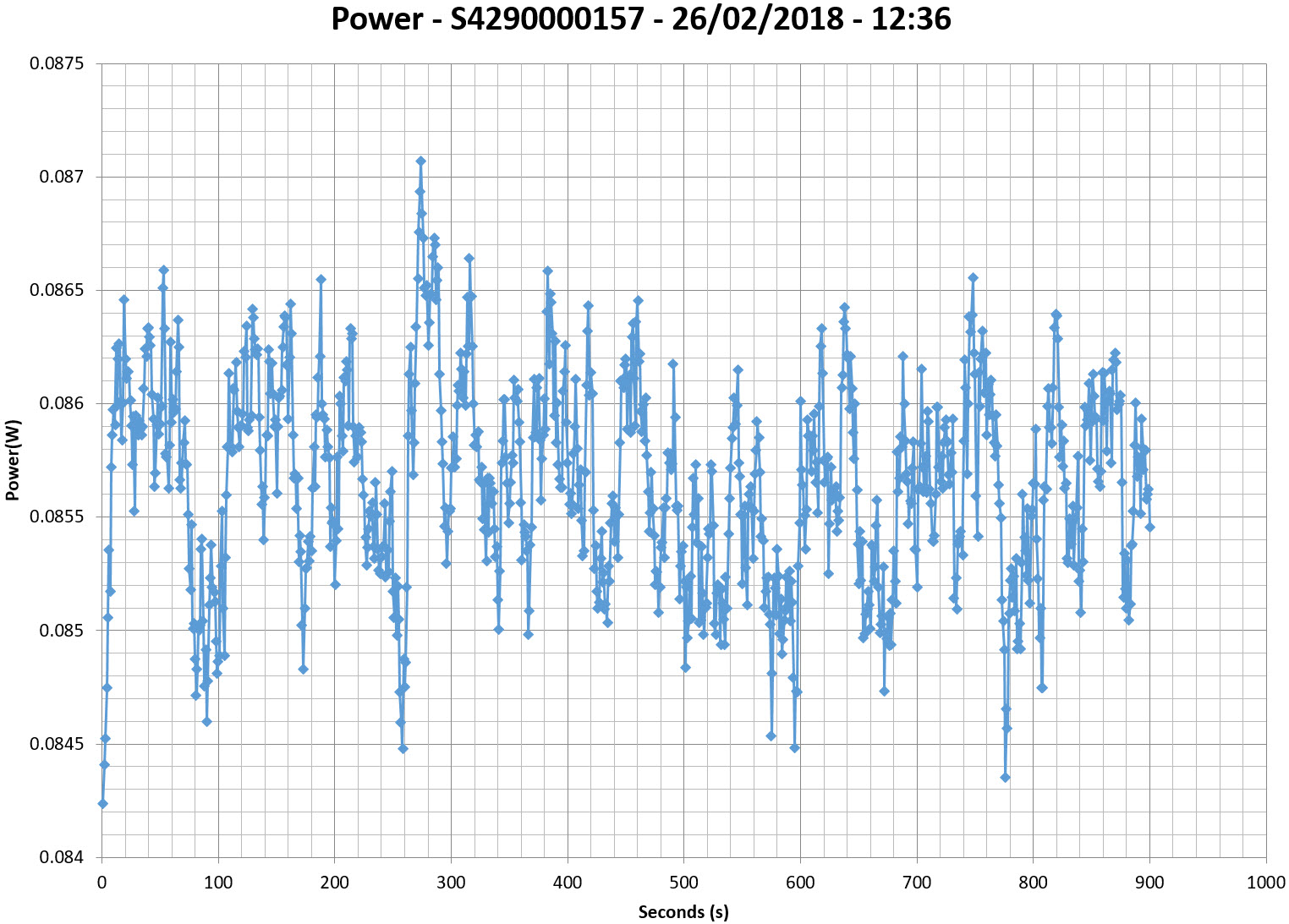

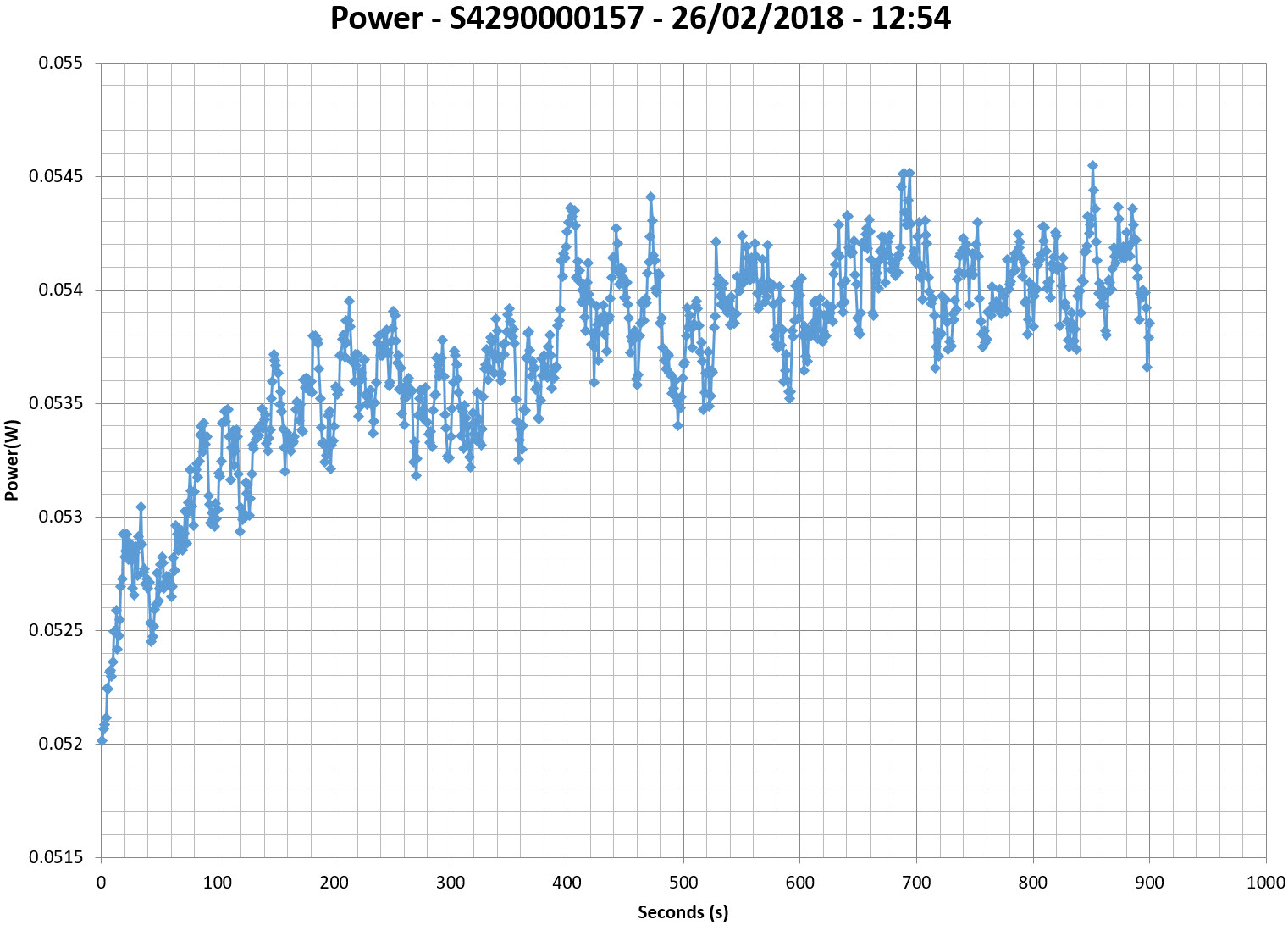

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

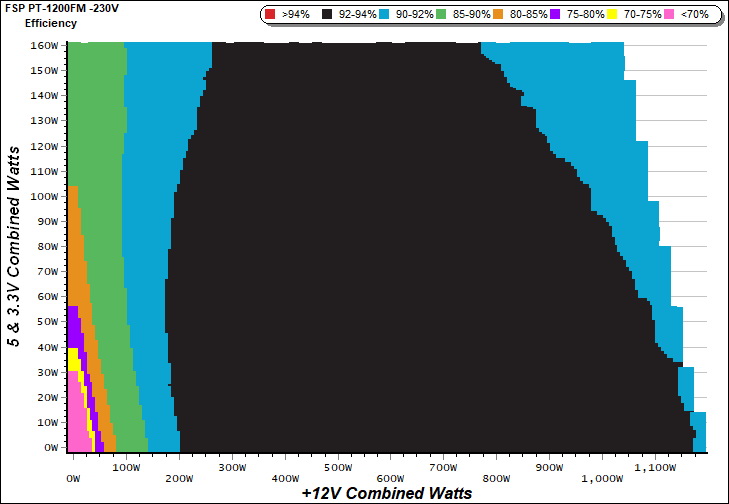

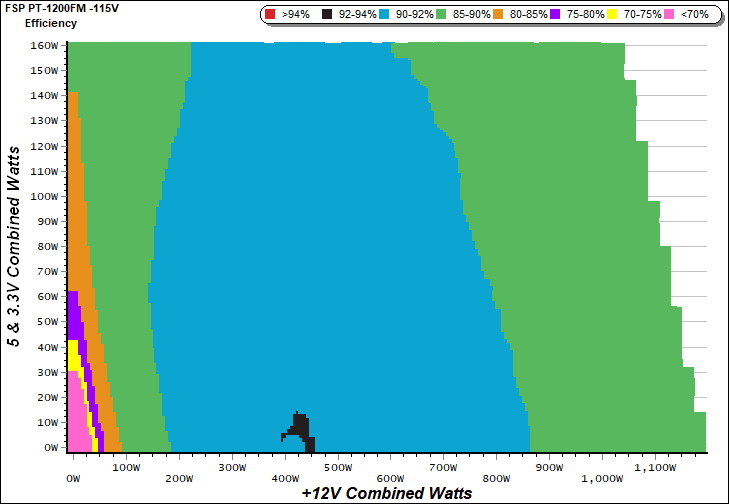

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

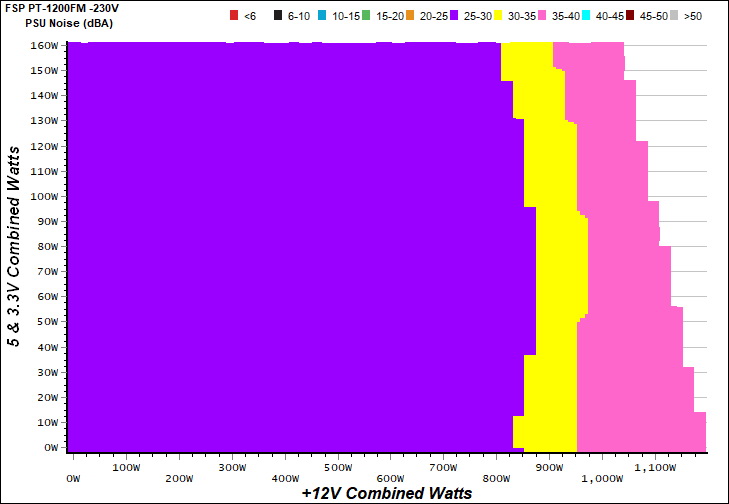

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

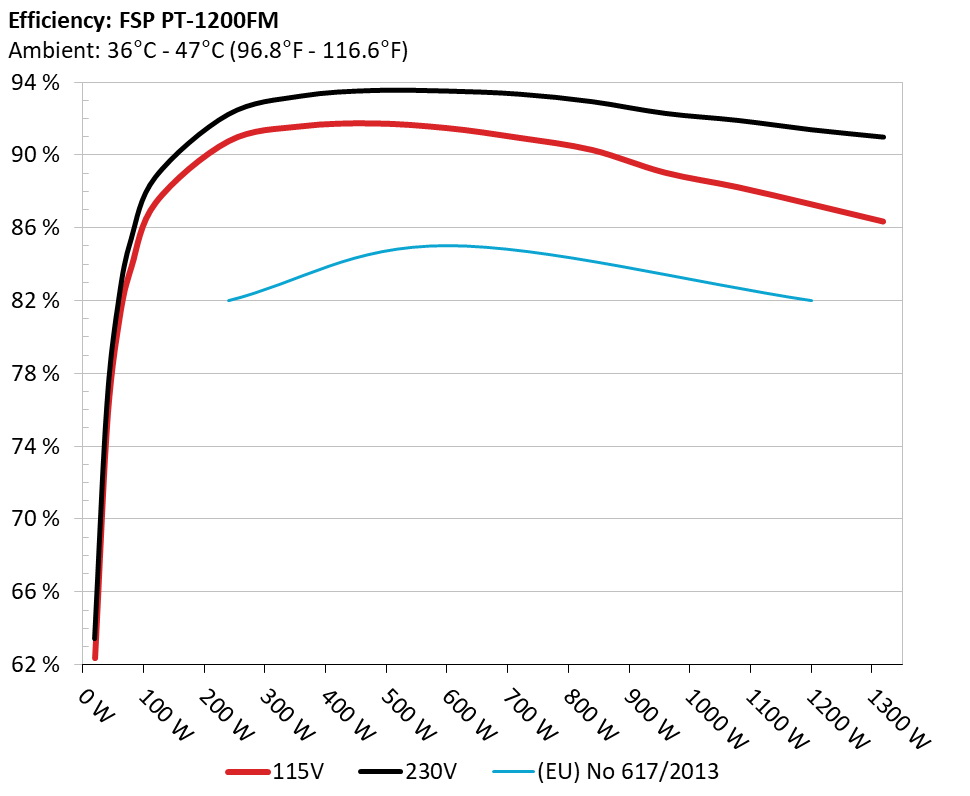

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

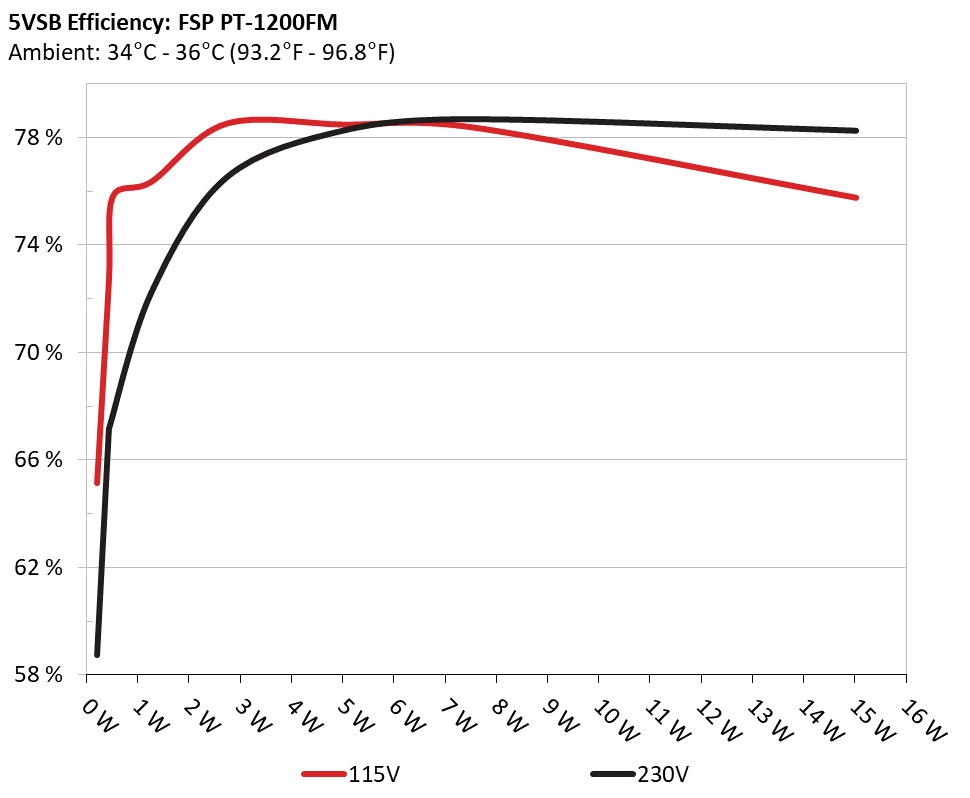

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.211 65.123% 0.028
5.057V 0.324 115.08V
2 0.087A 0.441 72.652% 0.052
5.056V 0.607 115.08V
3 0.542A 2.737 78.514% 0.237
5.048V 3.486 115.08V
4 1.002A 5.050 78.477% 0.336
5.039V 6.435 115.08V
5 1.502A 7.555 78.371% 0.395
5.030V 9.640 115.08V
6 3.001A 15.016 75.754% 0.473
5.003V 19.822 115.07V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.212 58.726% 0.009
5.057V 0.361 230.22V
2 0.087A 0.442 66.970% 0.017
5.056V 0.660 230.22V
3 0.542A 2.737 76.517% 0.088
5.047V 3.577 230.22V
4 1.002A 5.050 78.282% 0.150
5.039V 6.451 230.22V
5 1.502A 7.555 78.690% 0.205
5.030V 9.601 230.22V
6 3.001A 15.019 78.261% 0.313
5.004V 19.191 230.21V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.063A 1.930A 1.959A 0.991A 119.810 87.393% 775 26.5 39.09°C 0.980
12.183V 5.180V 3.366V 5.032V 137.093 43.69°C 115.08V
2 17.147A 2.905A 2.948A 1.191A 239.661 90.759% 775 26.5 39.79°C 0.994
12.175V 5.171V 3.356V 5.022V 264.064 44.64°C 115.12V
3 26.599A 3.383A 3.463A 1.396A 359.738 91.578% 775 26.5 40.82°C 0.994
12.169V 5.163V 3.348V 5.010V 392.823 46.30°C 115.08V
4 36.037A 3.873A 3.949A 1.598A 479.460 91.736% 775 26.5 41.63°C 0.995
12.163V 5.155V 3.339V 5.001V 522.652 47.59°C 115.06V
5 45.159A 4.855A 4.950A 1.801A 599.268 91.483% 775 26.5 44.04°C 0.995
12.155V 5.146V 3.331V 4.991V 655.061 50.26°C 115.08V
6 54.286A 5.839A 5.959A 2.006A 719.297 90.943% 805 27.0 45.09°C 0.995
12.149V 5.137V 3.321V 4.981V 790.929 51.55°C 115.08V
7 63.416A 6.823A 6.975A 2.211A 839.131 90.278% 1255 34.6 45.41°C 0.994
12.143V 5.127V 3.312V 4.970V 929.494 52.81°C 115.11V
8 72.583A 7.820A 7.993A 2.416A 959.113 89.036% 1630 39.9 45.01°C 0.994
12.134V 5.118V 3.301V 4.960V 1077.217 53.14°C 115.08V
9 82.166A 8.323A 8.532A 2.421A 1078.946 88.237% 1875 44.8 45.93°C 0.993
12.126V 5.108V 3.293V 4.953V 1222.780 54.55°C 115.09V
10 91.540A 8.826A 9.043A 3.037A 1198.777 87.308% 2000 45.6 46.48°C 0.993
12.116V 5.098V 3.284V 4.935V 1373.050 55.35°C 115.08V
11 101.489A 8.840A 9.068A 3.041A 1318.723 86.353% 2000 45.6 46.88°C 0.992
12.110V 5.091V 3.275V 4.929V 1527.125 56.46°C 115.08V
CL1 0.099A 19.028A 19.001A 0.005A 162.840 84.788% 935 27.4 42.79°C 0.988
12.179V 5.156V 3.342V 5.041V 192.055 48.36°C 115.11V
CL2 99.961A 1.002A 1.002A 1.002A 1224.539 87.606% 1990 45.6 45.67°C 0.993
12.116V 5.110V 3.295V 4.979V 1397.773 54.61°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 8.061A 1.931A 1.958A 0.990A 119.784 88.775% 775 26.5 38.21°C 0.852
12.183V 5.180V 3.367V 5.033V 134.930 41.56°C 230.18V
2 17.145A 2.905A 2.946A 1.191A 239.638 92.213% 775 26.5 38.40°C 0.939
12.175V 5.172V 3.357V 5.024V 259.875 42.17°C 230.24V
3 26.597A 3.388A 3.463A 1.395A 359.710 93.220% 775 26.5 38.94°C 0.965
12.168V 5.163V 3.348V 5.012V 385.874 43.07°C 230.26V
4 36.034A 3.874A 3.951A 1.599A 479.363 93.527% 775 26.5 39.53°C 0.977
12.161V 5.155V 3.340V 4.995V 512.540 44.06°C 230.22V
5 45.165A 4.854A 4.950A 1.800A 599.347 93.494% 775 26.5 40.36°C 0.981
12.153V 5.146V 3.332V 4.991V 641.053 45.34°C 230.22V
6 54.294A 5.843A 5.958A 2.032A 719.278 93.325% 775 26.5 41.63°C 0.984
12.146V 5.137V 3.321V 4.932V 770.726 47.04°C 230.23V
7 63.434A 6.826A 6.974A 2.210A 839.104 92.911% 1220 33.7 43.01°C 0.984
12.139V 5.127V 3.312V 4.970V 903.126 48.80°C 230.23V
8 72.591A 7.823A 7.995A 2.426A 958.968 92.270% 1595 40.1 43.88°C 0.985
12.130V 5.118V 3.302V 4.947V 1039.309 49.84°C 230.28V
9 82.202A 8.325A 8.531A 2.430A 1079.076 91.884% 1875 44.8 45.45°C 0.984
12.122V 5.108V 3.293V 4.941V 1174.395 52.30°C 230.29V
10 91.548A 8.829A 9.043A 3.036A 1198.703 91.378% 2000 45.6 46.36°C 0.983
12.114V 5.098V 3.284V 4.935V 1311.813 53.67°C 230.28V
11 101.500A 8.843A 9.065A 3.045A 1318.550 90.969% 2000 45.6 47.16°C 0.982
12.107V 5.091V 3.275V 4.920V 1449.450 54.88°C 230.29V
CL1 0.099A 19.024A 19.002A 0.005A 162.824 86.682% 1065 30.5 43.43°C 0.906
12.176V 5.156V 3.342V 5.041V 187.841 46.54°C 230.33V
CL2 99.946A 1.003A 1.003A 1.002A 1224.464 91.817% 1855 44.6 46.48°C 0.983
12.117V 5.110V 3.294V 4.978V 1333.593 50.12°C 230.26V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.201A 0.480A 0.470A 0.196A 19.703 62.377% 775 26.5 0.848
12.187V 5.188V 3.373V 5.051V 31.587 115.08V
2 2.423A 0.954A 0.977A 0.396A 39.770 75.295% 775 26.5 0.924
12.187V 5.186V 3.372V 5.047V 52.819 115.08V
3 3.645A 1.445A 1.482A 0.594A 59.898 81.030% 775 26.5 0.951
12.186V 5.184V 3.370V 5.042V 73.921 115.08V
4 4.860A 1.924A 1.957A 0.791A 79.766 83.869% 775 26.5 0.966
12.185V 5.183V 3.368V 5.036V 95.108 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.199A 0.482A 0.471A 0.195A 19.688 63.459% 775 26.5 0.407
12.188V 5.188V 3.374V 5.052V 31.025 230.15V
2 2.421A 0.959A 0.977A 0.406A 39.760 76.264% 775 26.5 0.573
12.188V 5.187V 3.373V 4.884V 52.135 230.16V
3 3.646A 1.447A 1.480A 0.591A 59.906 82.174% 775 26.5 0.688
12.187V 5.185V 3.370V 5.043V 72.901 230.17V
4 4.858A 1.926A 1.955A 0.791A 79.755 85.359% 775 26.5 0.763
12.186V 5.183V 3.369V 5.039V 93.435 230.17V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 19.7 mV 4.1 mV 6.8 mV 11.1 mV Pass
20% Load 25.4 mV 4.6 mV 7.2 mV 12.0 mV Pass
30% Load 29.1 mV 5.2 mV 8.1 mV 11.8 mV Pass
40% Load 32.6 mV 4.9 mV 8.9 mV 15.2 mV Pass
50% Load 32.6 mV 5.1 mV 8.0 mV 13.0 mV Pass
60% Load 33.0 mV 5.1 mV 8.3 mV 14.6 mV Pass
70% Load 34.8 mV 6.6 mV 15.1 mV 15.1 mV Pass
80% Load 29.4 mV 7.1 mV 12.1 mV 18.5 mV Pass
90% Load 31.3 mV 7.1 mV 12.5 mV 20.8 mV Pass
100% Load 38.4 mV 7.8 mV 10.6 mV 22.8 mV Pass
110% Load 40.8 mV 8.0 mV 10.8 mV 24.6 mV Pass
Crossload 1 21.7 mV 4.5 mV 7.3 mV 11.3 mV Pass
Crossload 2 38.8 mV 7.4 mV 8.9 mV 20.8 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 18.5 mV 4.5 mV 6.7 mV 10.6 mV Pass
20% Load 22.5 mV 4.4 mV 7.0 mV 11.8 mV Pass
30% Load 27.3 mV 4.8 mV 7.7 mV 10.8 mV Pass
40% Load 29.9 mV 5.0 mV 8.5 mV 13.9 mV Pass
50% Load 30.7 mV 5.1 mV 8.1 mV 11.4 mV Pass
60% Load 29.4 mV 5.0 mV 10.5 mV 12.7 mV Pass
70% Load 30.3 mV 5.9 mV 13.8 mV 12.8 mV Pass
80% Load 29.0 mV 5.9 mV 11.3 mV 14.4 mV Pass
90% Load 31.3 mV 6.4 mV 9.9 mV 48.1 mV Pass
100% Load 35.5 mV 7.0 mV 12.3 mV 18.5 mV Pass
110% Load 37.7 mV 6.7 mV 13.3 mV 18.4 mV Pass
Crossload 1 19.8 mV 4.0 mV 8.5 mV 11.8 mV Pass
Crossload 2 35.7 mV 6.7 mV 11.5 mV 13.3 mV Pass

The results above are not used in the certification process

FSP Technology AURUM PT 1200W PT-1200FM

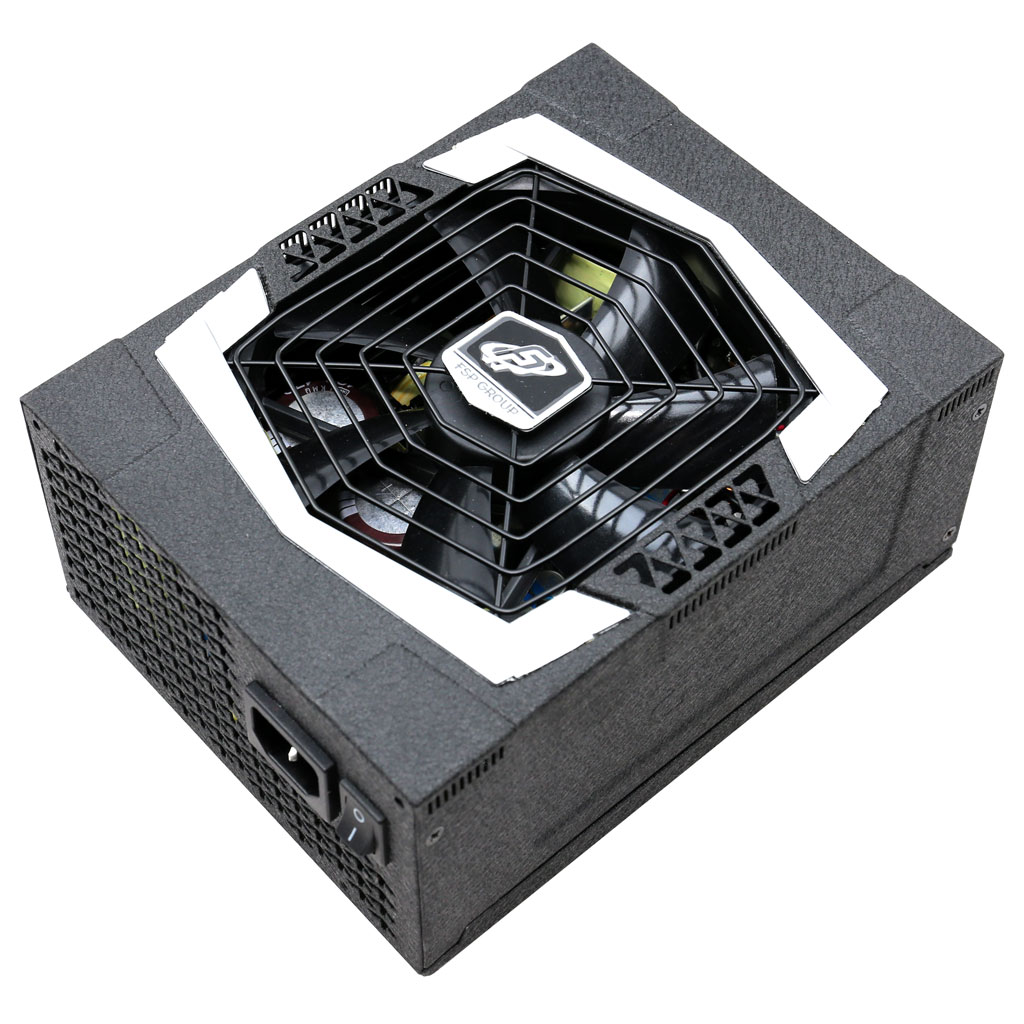

Top side

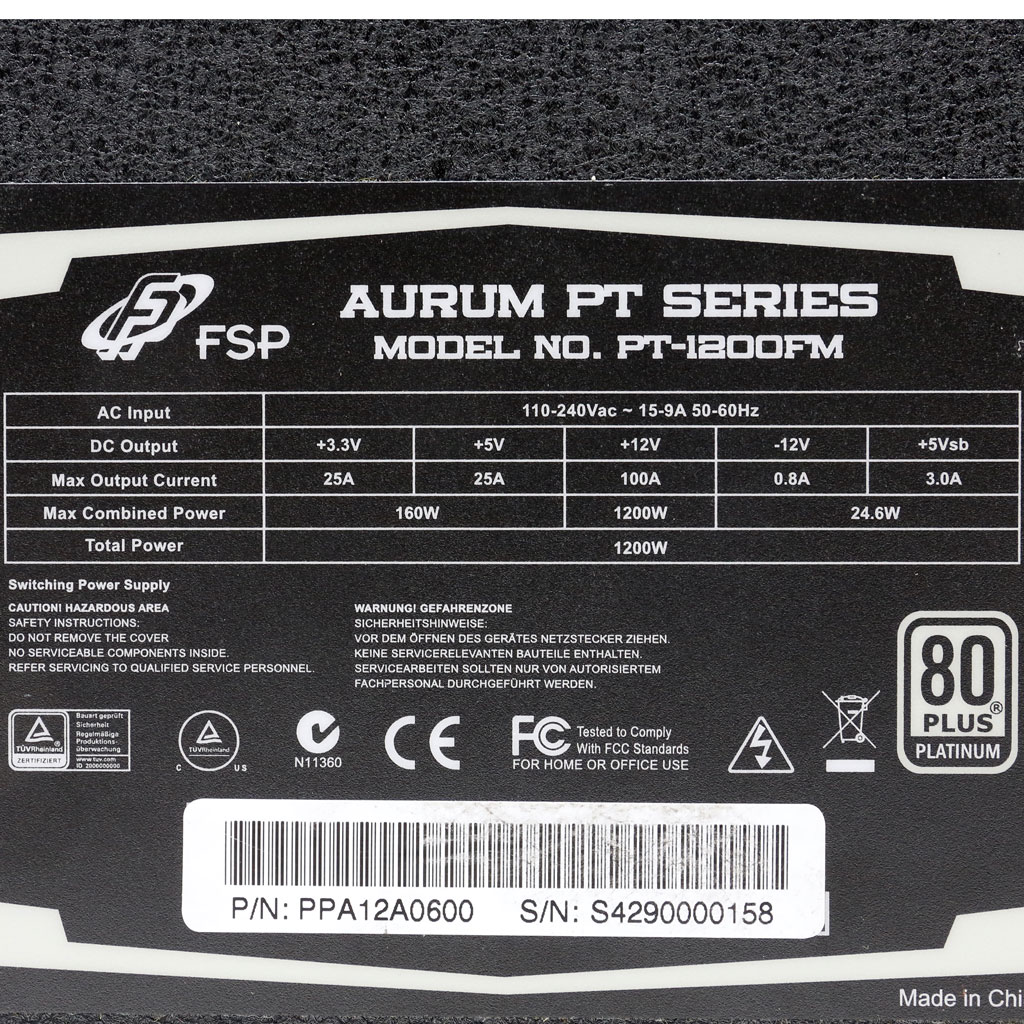

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
