ErP Lot 6 2010: ✓
ErP Lot 6 2013: Partially
ErP Lot 3 2014: ✓
✓
Performance Summary 115V
效率評比
TITANIUM
噪音評比
Standard+
(>1450 load combinations)
91.041%
Average Noise Output (>1450 Load Combinations)
38.22dBA
(>1450 Load Combinations)
0.986
Efficiency With 10W (≤500W) or 2% (>500W) Load
0.000%
0.0913W
12V Ripple (Full Load)
31.77mV
5V Ripple (Full Load)
43.75mV
3.3V Ripple (Full Load)
44.78mV
5VSB Ripple (Full Load)
36.38mV
12V Load Regulation
0.35%
5V Load Regulation
1.49%
3.3V Load Regulation
2.01%
5VSB Load Regulation
2.21%
Inrush Current
30.412A
Hold-Up Time (ms)
12.8
AC Loss to PWR_OK Hold Up Time (ms)
13.5
PWR_OK Inactive to DC Loss Delay (ms)
-0.7
待機電源消耗
Tables 115V
Graphs 115V

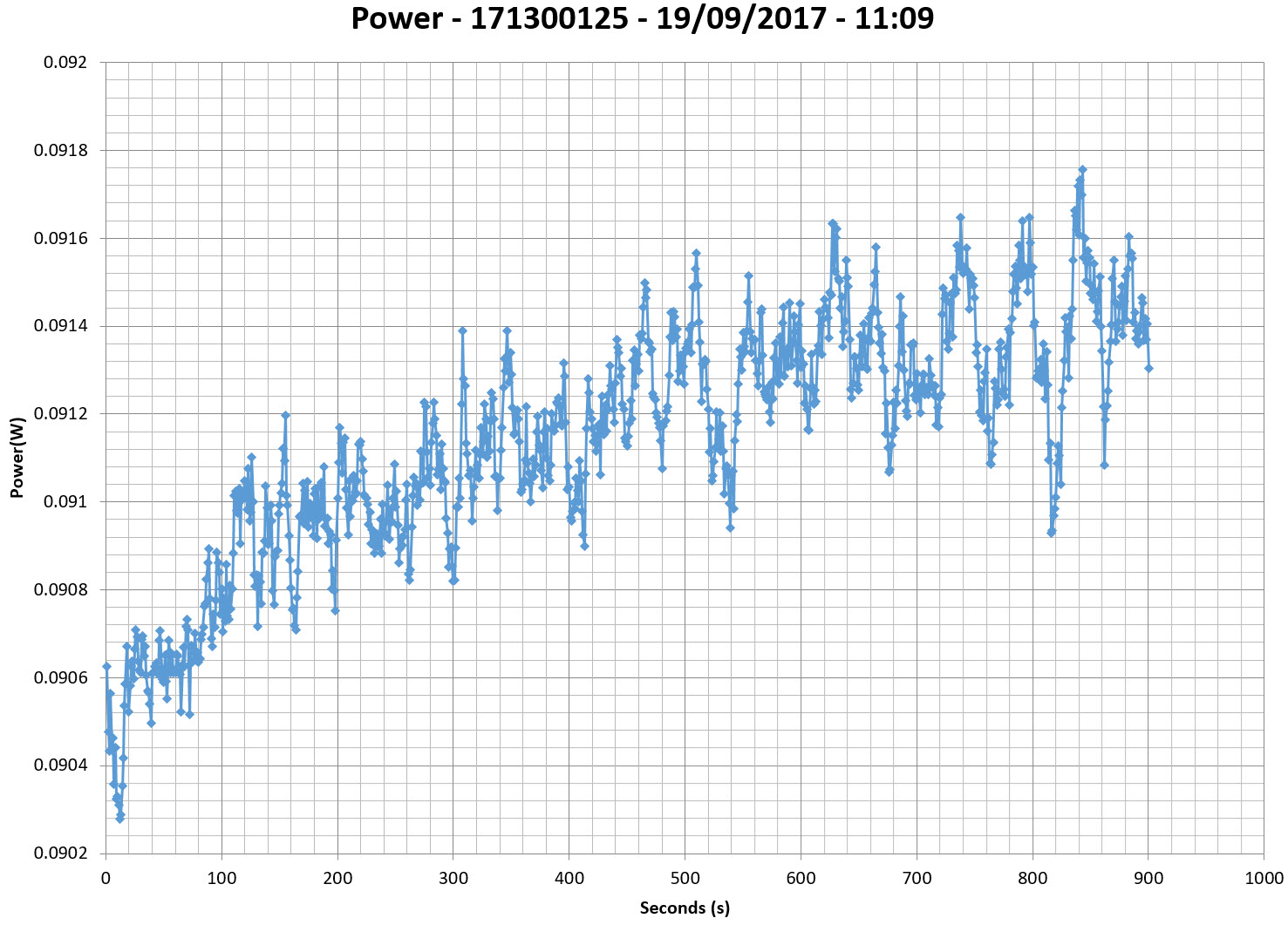

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.
115V

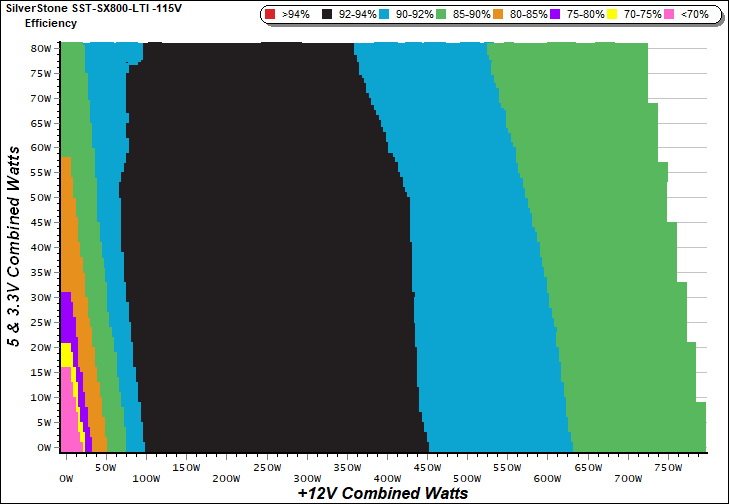

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.
115V

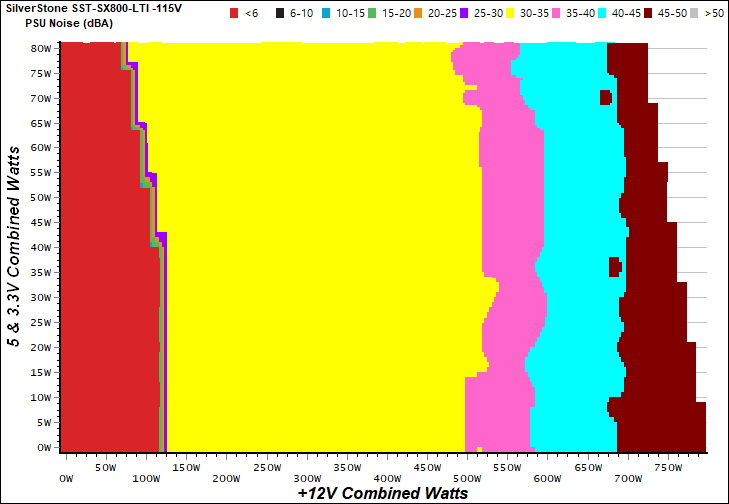

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.
Indicative Performance

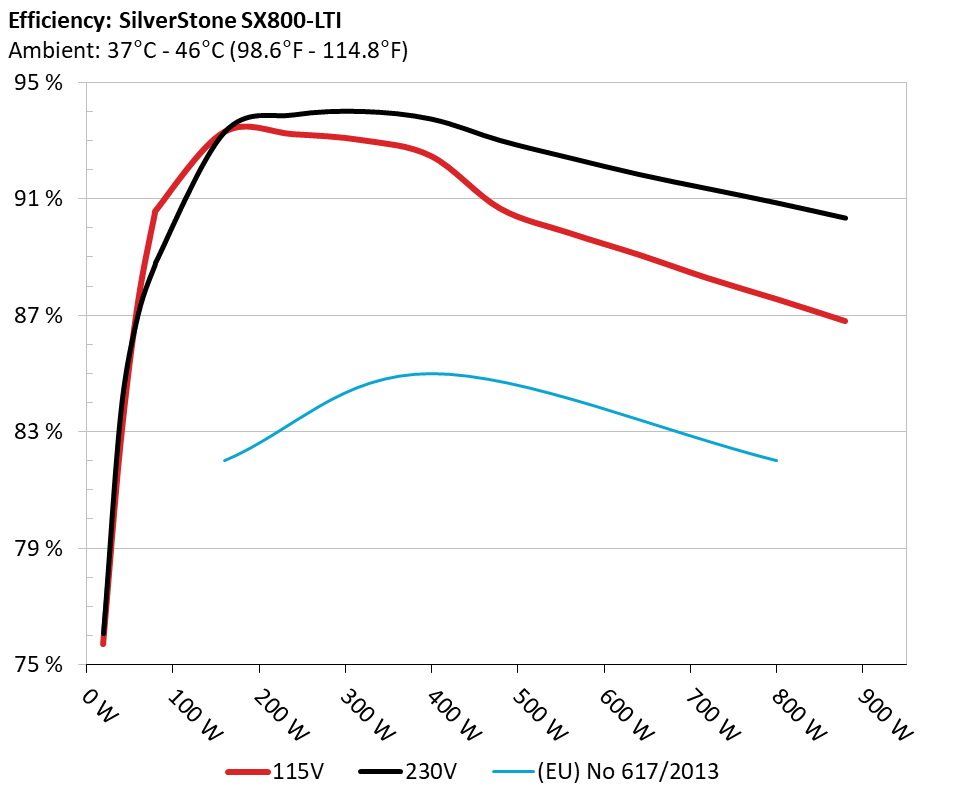

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

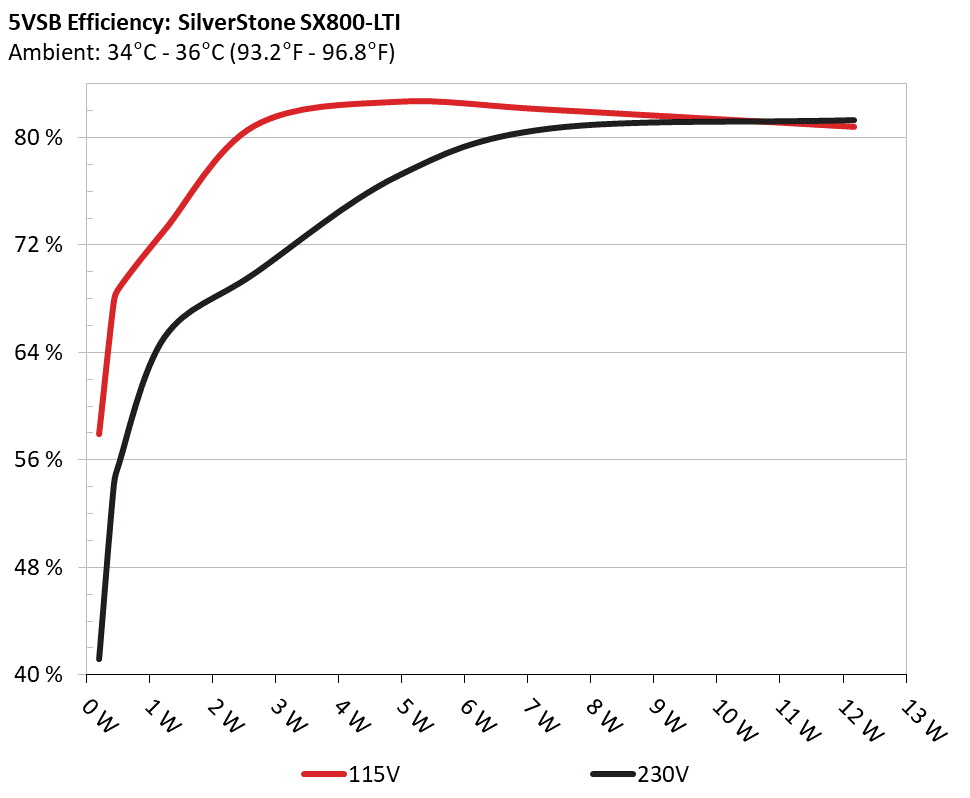

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.
115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.042A
0.205
57.910%
0.029
4.938V
0.354
115.16V
2
0.087A
0.429
67.453%
0.052
4.937V
0.636
115.16V
3
0.542A
2.668
80.848%
0.225
4.923V
3.300
115.16V
4
1.002A
4.919
82.631%
0.324
4.910V
5.953
115.16V
5
1.501A
7.350
82.040%
0.385
4.896V
8.959
115.16V
6
2.501A
12.171
80.774%
0.442
4.867V
15.068
115.16V
Supplementary Tests (For Reference)
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
1
4.822A
1.955A
1.982A
0.980A
79.741
90.530%
0
<6.0
42.05°C
0.959
12.068V
5.106V
3.321V
5.087V
88.082
38.61°C
115.19V
2
10.676A
2.940A
2.985A
1.181A
159.655
93.304%
0
<6.0
42.61°C
0.980
12.062V
5.099V
3.315V
5.076V
171.113
38.80°C
115.19V
3
16.900A
3.440A
3.504A
1.380A
239.850
93.231%
0
<6.0
42.93°C
0.987
12.058V
5.087V
3.306V
5.062V
257.265
39.11°C
115.19V
4
23.111A
3.935A
3.998A
1.580A
319.715
93.023%
955
30.3
40.08°C
0.989
12.053V
5.079V
3.299V
5.052V
343.693
45.07°C
115.18V
5
28.980A
4.932A
5.006A
1.784A
399.669
92.477%
990
30.6
40.86°C
0.991
12.049V
5.071V
3.293V
5.041V
432.181
47.46°C
115.19V
6
34.851A
5.925A
6.023A
1.985A
479.601
90.676%
1780
42.0
41.63°C
0.992
12.046V
5.064V
3.287V
5.030V
528.920
50.94°C
115.19V
7
40.731A
6.928A
7.045A
2.190A
559.596
89.835%
2080
46.2
42.68°C
0.994
12.042V
5.056V
3.278V
5.019V
622.917
53.02°C
115.19V
8
46.625A
7.925A
8.069A
2.395A
639.529
89.093%
2170
47.5
43.19°C
0.995
12.035V
5.049V
3.271V
5.006V
717.819
54.39°C
115.20V
9
52.954A
8.439A
8.603A
2.399A
719.617
88.286%
2220
47.6
43.85°C
0.996
12.029V
5.042V
3.265V
5.000V
815.096
56.93°C
115.21V
10
59.222A
8.941A
9.112A
2.500A
799.409
87.563%
2230
47.6
45.60°C
0.996
12.026V
5.036V
3.259V
4.993V
912.953
61.71°C
115.21V
11
65.896A
8.952A
9.127A
2.505A
879.344
86.806%
2230
47.6
46.16°C
0.997
12.021V
5.030V
3.253V
4.986V
1013.003
62.98°C
115.22V
CL1
0.098A
10.013A
10.005A
0.004A
85.316
88.365%
0
<6.0
51.19°C
0.960
12.078V
5.091V
3.312V
5.107V
96.549
44.86°C
115.21V
CL2
65.774A
1.003A
1.002A
1.002A
804.710
88.052%
2220
47.6
44.67°C
0.996
12.031V
5.051V
3.269V
5.031V
913.907
58.29°C
115.22V
The results above are not used in the certification process
115V
Test #
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
PF/AC Volts
1
1.208A
0.483A
0.480A
0.196A
19.638
75.697%
0
<6.0
0.864
12.062V
5.113V
3.328V
5.106V
25.943
115.19V
2
2.447A
0.970A
0.987A
0.391A
39.749
82.575%
0
<6.0
0.929
12.061V
5.112V
3.326V
5.102V
48.137
115.19V
3
3.682A
1.460A
1.502A
0.585A
59.835
87.414%
0
<6.0
0.941
12.059V
5.109V
3.324V
5.097V
68.450
115.19V
4
4.904A
1.954A
1.981A
0.785A
79.734
90.573%
0
<6.0
0.960
12.067V
5.106V
3.323V
5.092V
88.033
115.19V
The results above are not used in the certification process
115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
26.5 mV
14.3 mV
22.7 mV
11.8 mV
Pass
20% Load
15.1 mV
15.6 mV
23.6 mV
12.7 mV
Pass
30% Load
17.8 mV
20.7 mV
28.0 mV
18.8 mV
Pass
40% Load
15.9 mV
20.6 mV
29.7 mV
16.5 mV
Pass
50% Load
18.2 mV
23.3 mV
32.0 mV
19.9 mV
Pass
60% Load
18.5 mV
28.1 mV
33.2 mV
21.1 mV
Pass
70% Load
24.4 mV
31.8 mV
37.8 mV
26.1 mV
Pass
80% Load
21.4 mV
33.2 mV
37.3 mV
23.7 mV
Pass
90% Load
27.3 mV
43.0 mV
43.2 mV
31.0 mV
Pass
100% Load
31.8 mV
43.8 mV
44.8 mV
36.4 mV
Pass
110% Load
31.1 mV
47.6 mV
55.1 mV
39.6 mV
Fail
Crossload 1
20.8 mV
12.6 mV
21.0 mV
11.5 mV
Pass
Crossload 2
30.4 mV
40.0 mV
43.1 mV
31.3 mV
Pass
The results above are not used in the certification process
