Forgeon Reactor 1200W
Serial Number-
Lab IDFR12002768
  • Report: 25PS2768A
  • Receipt Date: Mar 7, 2025
  • Test Date: Mar 17, 2025
  • Report Date: Mar 19, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandForgeon
Manufacturer (OEM)Kinpower
SeriesReactor
Model Number
Serial Number-
DUT Notes

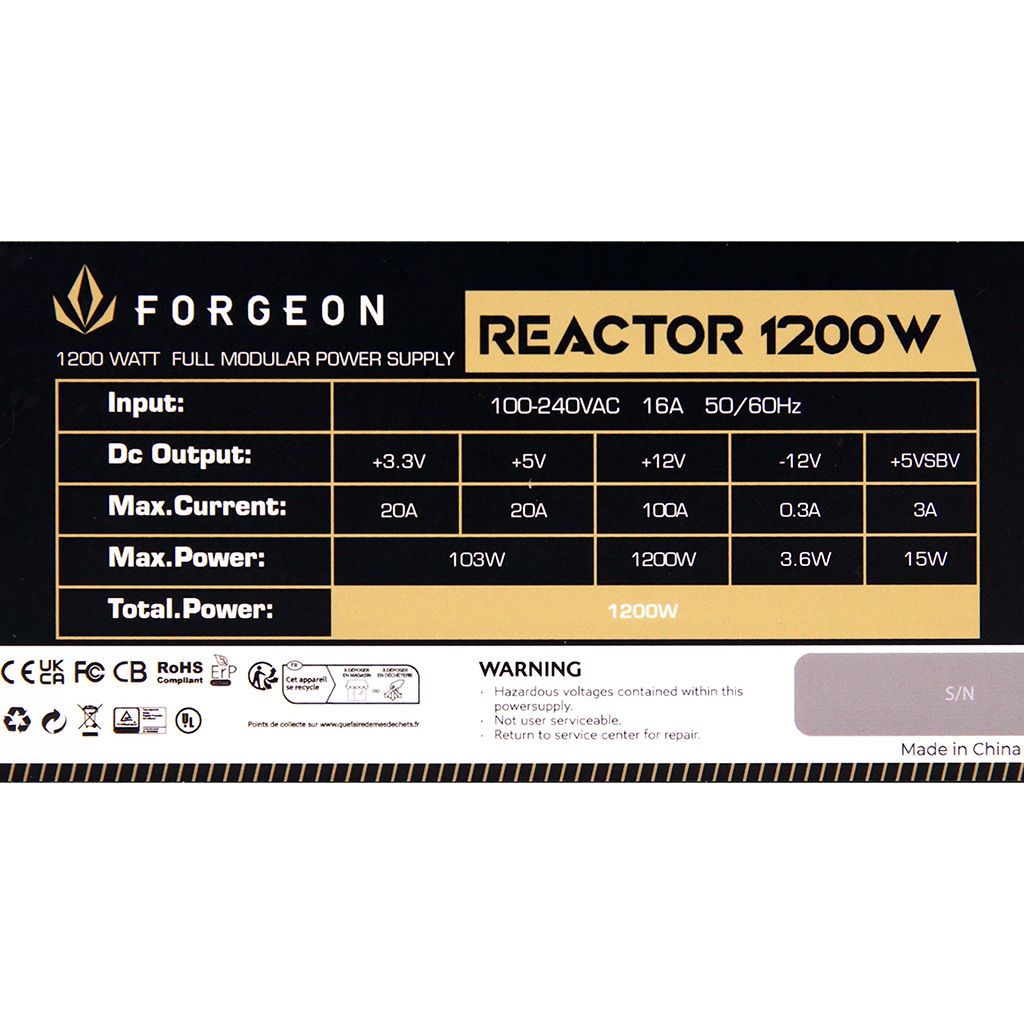

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)16
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan (HA1425L12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1031200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (590mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (605mm) (600W) 1 1 16-24AWG No
SATA (450mm+155mm+155mm) 3 9 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Parts Description

General Data
Manufacturer (OEM) Kinpower
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 20D15 (20 Ohm @ 25°C) & Relay
Bridge Rectifier(s)

2x GBUL2506 (600V, 25A @ 125°C)
APFC MOSFETs

2x Oriental Semiconductor OSG65R038HTZF (650V, 50.6A @ 100°C, Rds(on): 0.038Ohm)
APFC Boost Diode

1x Global Power Technology G3S06520A (650V, 56.5A @ 135°C)
Bulk Cap(s)

2x Nippon Chemi-con (400V, 560uF each or 1,120uF combined, 2,000h @ 105°C, KMR)
Main Switchers

2x Fuxin Semiconductor FXN65S60TF
APFC Controller

1x Champion CM6502UHHX

Resonant Controller

Champion CM6901X
Topology

Primary side: APFC, Half-Bridge & LLC Resonant converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Alkaidsemi AKG40N013G (40V, 110A @ 100°C, Rds(on): 1.3mOhm)
5V & 3.3V DC-DC Converters: 4x Excelliance EMB06N03R (20V, 45A @ 100°C, Rds(on): 6mOhm) PWM Controller(s): 2x Aplustek AT8853ZSPC
Filtering Capacitors

Electrolytic: 5x TK (@105°C, SZ) Polymer: 33x Chengx
Supervisor IC IN1S4291-SCG
Fan Model Hong Hua HA1425L12F-Z (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

1x Dongke Semiconductor DK5V45R10S (45V, 10A)
Standby PWM Controller

FuXin Semiconductor FXI8252S

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)20.9
AC Loss to PWR_OK Hold Up Time (ms)18.1
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.03 V 115.01 V 113.85 V 115.09 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.032 W -0.013 W N/A 0.068 W N/A N/A
Apparent Power: 3.908 W 3.807 W N/A 4.008 W N/A N/A
Power Factor: 0.010 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.89 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.28 % 2.00 % PASS
Real Power: 0.081 W 0.044 W N/A 0.123 W N/A N/A
Apparent Power: 13.081 W 12.929 W N/A 13.234 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A

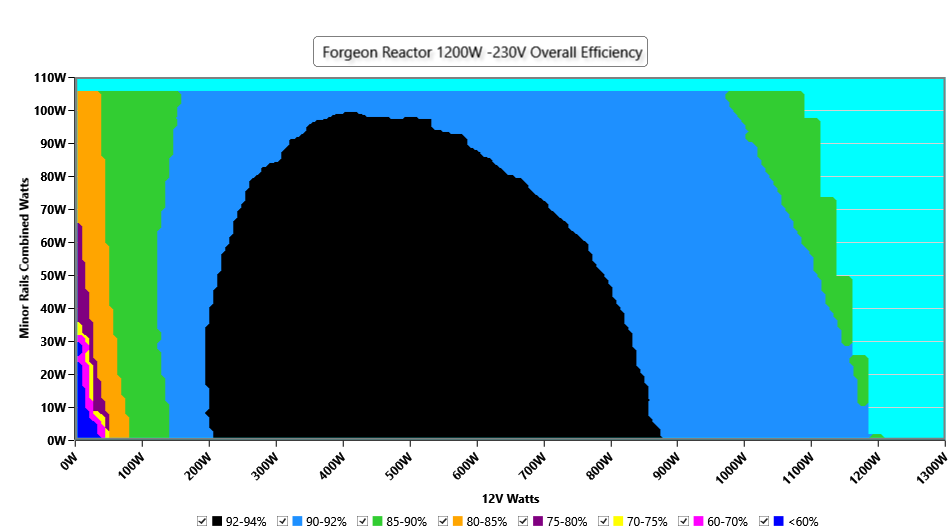

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

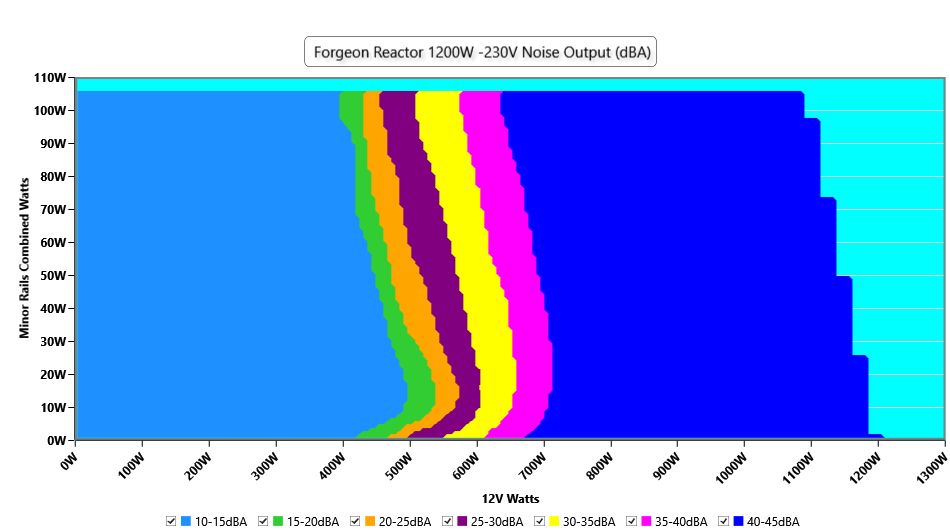

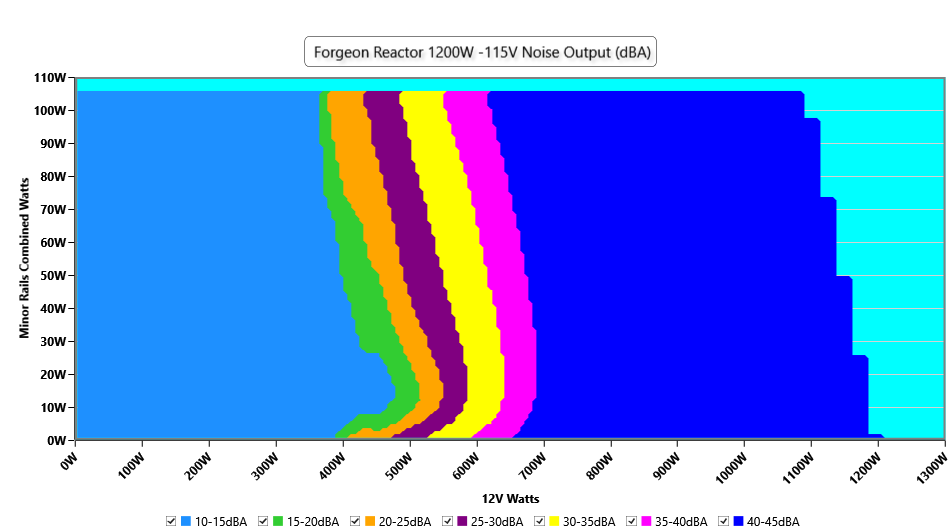

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 69.47% 0.076
5.148V 0.334W 114.95V
2 0.09A 0.463W 74.059% 0.137
5.147V 0.625W 114.95V
3 0.55A 2.827W 83.487% 0.41
5.139V 3.386W 114.95V
4 1A 5.133W 83.267% 0.487
5.131V 6.164W 114.95V
5 1.5A 7.686W 82.84% 0.524
5.123V 9.278W 114.96V
6 3.001A 15.291W 81.091% 0.558
5.096V 18.856W 114.95V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 61.927% 0.028
5.148V 0.375W 230.07V
2 0.09A 0.463W 70.276% 0.049
5.147V 0.659W 230.06V
3 0.55A 2.827W 81.074% 0.217
5.139V 3.487W 230.06V
4 1A 5.133W 82.047% 0.315
5.131V 6.255W 230.07V
5 1.5A 7.686W 82.774% 0.377
5.123V 9.286W 230.07V
6 3A 15.292W 82.818% 0.452
5.097V 18.466W 230.07V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.090A 1.974A 1.983A 0.976A 120.045 87.296% 452 11.1 40.24°C 0.964
12.167V 5.068V 3.329V 5.122V 137.514 44.82°C 114.9V
20% 17.190A 2.962A 2.978A 1.174A 240.023 90.638% 452 11.1 40.99°C 0.969
12.164V 5.066V 3.325V 5.111V 264.818 46.87°C 114.86V
30% 26.618A 3.457A 3.477A 1.373A 359.59 91.31% 644 21.2 41.42°C 0.98
12.154V 5.064V 3.322V 5.099V 393.449 46.71°C 114.74V
40% 36.129A 3.952A 3.976A 1.573A 479.97 91.117% 1063 35.1 41.65°C 0.987
12.144V 5.062V 3.32V 5.088V 526.762 45.42°C 114.8V
50% 45.263A 4.942A 4.974A 1.774A 599.736 90.537% 1434 42.3 42.24°C 0.99
12.134V 5.061V 3.318V 5.076V 662.42 44.81°C 114.77V
60% 54.476A 5.934A 5.976A 1.975A 720.284 89.83% 1445 42.4 42.94°C 0.992
12.124V 5.058V 3.314V 5.064V 801.832 46.71°C 114.74V
70% 63.635A 6.927A 6.981A 2.178A 840.007 88.879% 1445 42.4 43.07°C 0.993
12.114V 5.055V 3.31V 5.051V 945.116 47.97°C 114.71V
80% 72.879A 7.922A 7.991A 2.283A 960.024 87.494% 1447 42.5 44.53°C 0.994
12.104V 5.051V 3.304V 5.038V 1097.249 50.77°C 114.68V
90% 82.468A 8.423A 8.486A 2.389A 1079.858 86.379% 1449 42.5 45.34°C 0.995
12.094V 5.048V 3.3V 5.025V 1250.142 53.7°C 114.66V
100% 91.888A 8.923A 9.012A 2.999A 1199.902 84.952% 1449 42.5 45.04°C 0.995
12.082V 5.045V 3.296V 5.003V 1412.453 56.68°C 114.63V
110% 101.271A 9.922A 10.121A 3.007A 1320.529 83.292% 1450 42.6 46.27°C 0.995
12.068V 5.041V 3.29V 4.99V 1585.438 60.9°C 114.6V
CL1 0.117A 12.278A 12.372A 0A 104.338 79.649% 1335 40.4 40.03°C 0.967
12.163V 5.051V 3.306V 5.124V 130.996 46.82°C 114.9V
CL2 0.116A 19.855A 0A 0A 101.414 78.634% 839 28.5 42.75°C 0.966
12.165V 5.037V 3.322V 5.133V 128.969 48.48°C 114.9V
CL3 0.115A 0A 20.128A 0A 67.408 71.719% 550 16.7 42.03°C 0.946
12.165V 5.057V 3.279V 5.132V 93.991 49.75°C 114.91V
CL4 99.271A 0A 0A 0.003A 1200.384 85.754% 1450 42.6 44°C 0.995
12.091V 5.056V 3.31V 5.072V 1399.799 53.3°C 114.63V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.088A 1.973A 1.982A 0.976A 120.013 88.335% 452 11.1 40.21°C 0.915
12.168V 5.069V 3.329V 5.122V 135.856 44.24°C 230.07V
20% 17.185A 2.962A 2.977A 1.174A 239.983 92.213% 452 11.1 40.73°C 0.945
12.166V 5.066V 3.325V 5.111V 260.27 45.79°C 230.05V
30% 26.605A 3.456A 3.476A 1.373A 359.446 93.133% 627 20 41.11°C 0.959
12.155V 5.064V 3.323V 5.1V 385.952 45.03°C 230.04V
40% 36.117A 3.951A 3.975A 1.573A 479.83 93.146% 1044 34.5 41.87°C 0.965
12.145V 5.063V 3.321V 5.088V 515.143 44.23°C 230.02V
50% 45.251A 4.941A 4.973A 1.773A 599.598 92.806% 1434 42.3 42.28°C 0.972
12.134V 5.061V 3.318V 5.076V 646.076 43.87°C 230.01V
60% 54.464A 5.932A 5.973A 1.975A 720.141 92.455% 1444 42.4 42.77°C 0.975
12.124V 5.059V 3.315V 5.064V 778.907 44.54°C 229.99V
70% 63.622A 6.924A 6.977A 2.178A 839.855 91.873% 1445 42.4 43.3°C 0.977
12.114V 5.056V 3.311V 5.052V 914.142 45.98°C 229.98V
80% 72.868A 7.917A 7.984A 2.282A 959.864 91.234% 1448 42.5 43.72°C 0.979
12.104V 5.053V 3.307V 5.04V 1052.098 47.54°C 229.96V
90% 82.460A 8.418A 8.479A 2.387A 1079.708 90.512% 1449 42.5 44.74°C 0.981
12.093V 5.05V 3.302V 5.028V 1192.893 49.65°C 229.94V
100% 91.884A 8.919A 9.007A 2.997A 1199.782 89.565% 1450 42.6 45.49°C 0.983
12.081V 5.046V 3.298V 5.005V 1339.56 52.09°C 229.92V
110% 101.270A 9.919A 10.117A 3.006A 1320.419 88.379% 1452 42.6 46.98°C 0.985
12.068V 5.042V 3.292V 4.992V 1494.038 55.28°C 229.9V
CL1 0.116A 12.27A 12.357A 0A 104.325 81.266% 1044 34.5 40.04°C 0.911
12.162V 5.054V 3.31V 5.129V 128.355 45.74°C 230.05V
CL2 0.115A 19.844A 0A 0A 101.409 79.786% 726 24.5 41.5°C 0.91
12.165V 5.04V 3.322V 5.134V 127.101 47.28°C 230.05V
CL3 0.115A 0A 20.128A 0A 67.403 72.986% 477 12.9 40.73°C 0.879
12.165V 5.056V 3.279V 5.133V 92.348 48.94°C 230.05V
CL4 99.269A 0A 0A 0.003A 1200.291 90.269% 1453 42.6 45.8°C 0.983
12.091V 5.056V 3.306V 5.074V 1329.696 50.71°C 229.91V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.493A 0.495A 0.194A 20.02 56.082% 450 10.7 36.88°C 0.904
12.180V 5.072V 3.334V 5.143V 35.703 44.91°C 114.92V
40W 2.686A 0.69A 0.693A 0.292A 40.015 77.041% 451 10.7 37.5°C 0.919
12.173V 5.071V 3.333V 5.14V 51.939 43.11°C 114.92V
60W 4.152A 0.888A 0.892A 0.39A 60.013 81.361% 450 11.1 38.43°C 0.937
12.172V 5.071V 3.332V 5.137V 73.76 43.16°C 114.92V
80W 5.616A 1.085A 1.09A 0.487A 79.99 83.888% 451 10.7 39.6°C 0.947
12.171V 5.07V 3.331V 5.134V 95.354 44.03°C 114.91V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.220A 0.493A 0.495A 0.194A 20.001 56.182% 445 11.1 36.28°C 0.744
12.176V 5.076V 3.334V 5.144V 35.604 40.48°C 230.11V
40W 2.686A 0.69A 0.693A 0.292A 40.004 77.905% 447 11.1 37.69°C 0.814
12.175V 5.072V 3.332V 5.14V 51.346 41.57°C 230.09V
60W 4.151A 0.887A 0.892A 0.389A 60 82.654% 447 11.1 38.65°C 0.855
12.172V 5.073V 3.33V 5.138V 72.591 40.46°C 230.1V
80W 5.614A 1.085A 1.09A 0.487A 79.953 85.044% 447 11.1 39.55°C 0.88
12.172V 5.072V 3.329V 5.135V 94.019 41.44°C 230.09V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load14.70mV8.52mV7.38mV7.64mVPass
20% Load10.96mV9.28mV8.24mV7.80mVPass
30% Load10.28mV10.35mV8.70mV9.17mVPass
40% Load9.67mV11.22mV9.36mV13.81mVPass
50% Load10.64mV7.45mV5.65mV15.74mVPass
60% Load11.29mV7.65mV5.65mV17.27mVPass
70% Load11.76mV11.94mV13.83mV19.36mVPass
80% Load13.89mV14.18mV18.72mV23.69mVPass
90% Load16.13mV15.92mV19.58mV24.66mVPass
100% Load22.60mV17.10mV20.34mV32.43mVPass
110% Load30.53mV18.82mV20.59mV37.31mVPass
Crossload110.72mV16.52mV21.92mV7.37mVPass
Crossload29.41mV10.41mV21.06mV6.57mVPass
Crossload38.95mV16.93mV15.51mV6.37mVPass
Crossload421.96mV9.46mV6.55mV20.88mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.86mV8.57mV7.22mV6.98mVPass
20% Load11.46mV8.52mV7.17mV7.54mVPass
30% Load11.04mV11.68mV9.71mV9.53mVPass
40% Load10.43mV11.63mV9.56mV13.04mVPass
50% Load10.68mV7.86mV5.29mV14.32mVPass
60% Load11.86mV7.80mV5.70mV17.37mVPass
70% Load12.77mV14.59mV15.05mV19.10mVPass
80% Load13.74mV14.49mV18.46mV24.40mVPass
90% Load15.78mV15.81mV18.67mV24.61mVPass
100% Load19.43mV16.12mV20.11mV32.26mVPass
110% Load22.73mV18.14mV19.11mV34.90mVPass
Crossload110.74mV17.01mV21.54mV7.14mVPass
Crossload210.07mV10.66mV21.11mV6.67mVPass
Crossload310.99mV18.36mV15.82mV6.62mVPass
Crossload418.96mV9.29mV5.82mV20.60mVPass

The results above are not used in the certification process

Forgeon Reactor 1200W

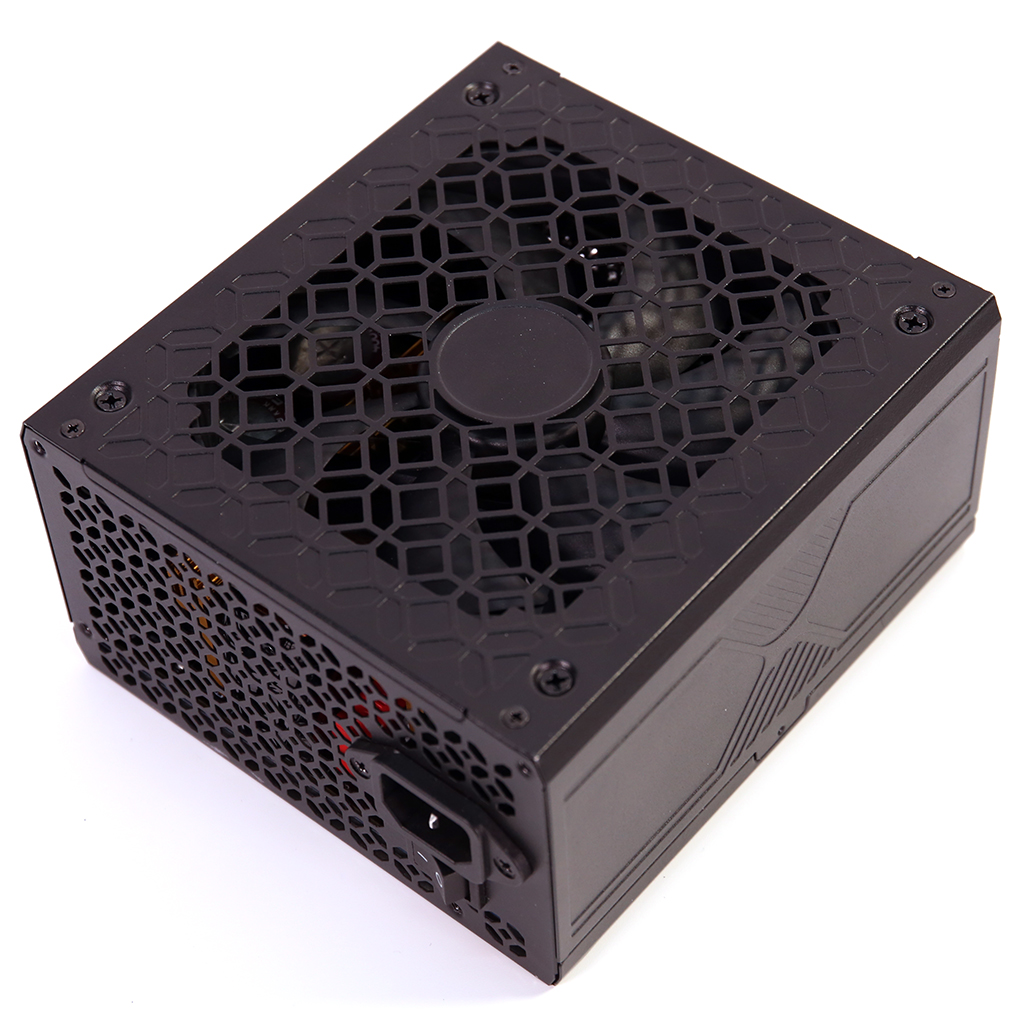

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
