CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Gamer Storm PF600X
Serial Number-
Lab IDGA60002731
  • Report: 25PS2731A
  • Receipt Date: Jan 23, 2025
  • Test Date: Feb 3, 2025
  • Report Date: Feb 5, 2025
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGamer Storm
Manufacturer (OEM)CE-Link
SeriesPFX
Model NumberPF600X-HD
Serial Number-
DUT Notes

DUT Specifications

Rated Voltage (Vrms)200-240
Rated Current (Arms)5
Rated Frequency (Hz)50-60
Rated Power (W)600
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps16165030.3
Watts100600153.6
Total Max. Power (W)600

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18-22AWG No
4+4 pin EPS12V (610mm+150mm) 1 2 18AWG No
6+2 pin PCIe (510mm+150mm) 2 4 18AWG No
SATA (455mm+155mm+155mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No

Parts Description

General Data
Manufacturer (OEM) CE LINK
PCB Type Single-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor M72 1.3D15 (1.3 ohm)
Bridge Rectifier(s)

1x GBU608 (800V, 6A @ 100°C)
APFC MOSFETs

1x Lonten LND18N50 (500V, 13.5A @ 100°C, Rds(on): 0.28Ohm)
APFC Boost Diode

1x Good-Ark MUR860F (600V, 8A @ 105°C)
Bulk Cap(s)

1x Teapo (420V, 390uF, 6-10,000h @ 105°C, TC)
Main Switchers

2x Lonten LND16N50 (500V, 11A @ 100°C, Rds(on): 0.36Ohm)
PFC/PWM Controller

Champion CM6800UX
Topology

Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 3x HB043N06GC
5V & 3.3V DC-DC Converters: 4x SLD3090T PWM Controller(s): 2x Anpec APW7164
Filtering Capacitors

Electrolytic: 13x Teapo (1-3,000h @ 105°C, SC) 1x Toshincon (@105°C, UCE) Polymer: 2x
Supervisor IC UTC8313
Fan Model Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

1x Chongqing Pingwei PS1045L (45V, 10A) SBR
Standby PWM Controller

Esthome EST.2915HP

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 230V

Efficiency RatingSILVER
Noise RatingA
Average Efficiency (>1450 load combinations)87.389%
Average Noise Output (>1450 Load Combinations)23.46dBA
Average PF (>1450 Load Combinations)0.964
Efficiency With 10W (≤500W) or 2% (>500W) Load61.001%
Standby Power Consumption0.1565W
12V Ripple (Full Load)24.47mV
5V Ripple (Full Load)17.36mV
3.3V Ripple (Full Load)16.26mV
5VSB Ripple (Full Load)10.95mV
12V Load Regulation0.30%
5V Load Regulation2.70%
3.3V Load Regulation3.77%
5VSB Load Regulation5.17%
Inrush Current187.500A
12V Transient Response (150%)11.61V
5V Transient Response (150%)4.910V
3.3V Transient Response (150%)3.203V
5VSB Transient Response (150%)4.963V
Hold-Up Time & Power Ok Signal12.40ms
AC Loss to PWR_OK Hold Up Time10.40ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)72.0ms69.0ms
PSU Timings: T3 (20% / 100%)114.0ms112.0ms
12V OCP (30.1°C / 44.0°C)66.39A (132.78%), 12.029V *High Ripple (166.37mV), Stopped66.40A (132.80%), 11.888V *High Ripple (176.47mV), Stopped
5V OCP (30.1°C / 44.0°C)25.3A (158.13%), 5.025V25.4A (158.75%), 5.027V
3.3V OCP (30.1°C / 44.0°C)25A (156.25%), 3.34V24.9A (155.63%), 3.343V
5VSB OCP (30.1°C / 44.0°C)5.4A (180.00%), 4.944V5.3A (176.67%), 4.946V
OPP (29.50°C / 40.85°C)128.76%128.77%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)12.4
AC Loss to PWR_OK Hold Up Time (ms)10.4
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.88 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.157 W 0.113 W N/A 0.215 W N/A N/A
Apparent Power: 16.121 W 15.903 W N/A 16.342 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A

Graphs 230V

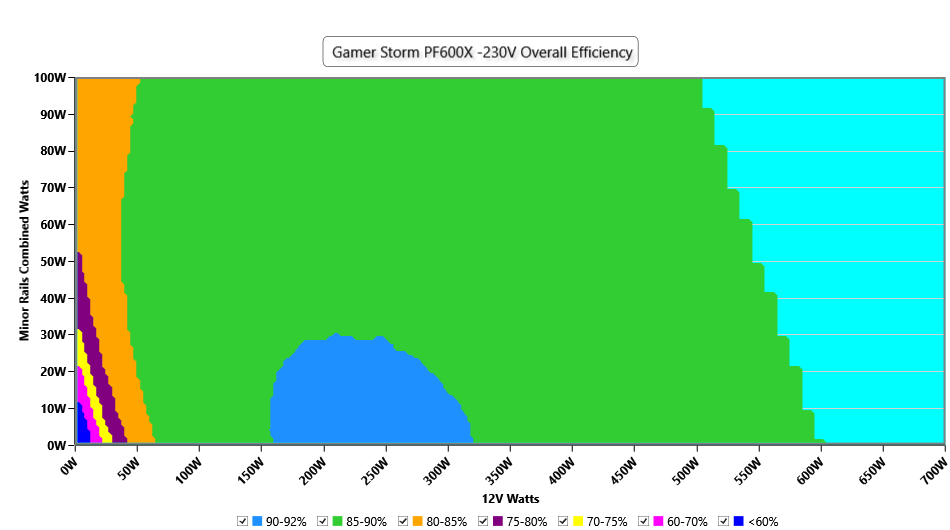

Efficiency Graph

230V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

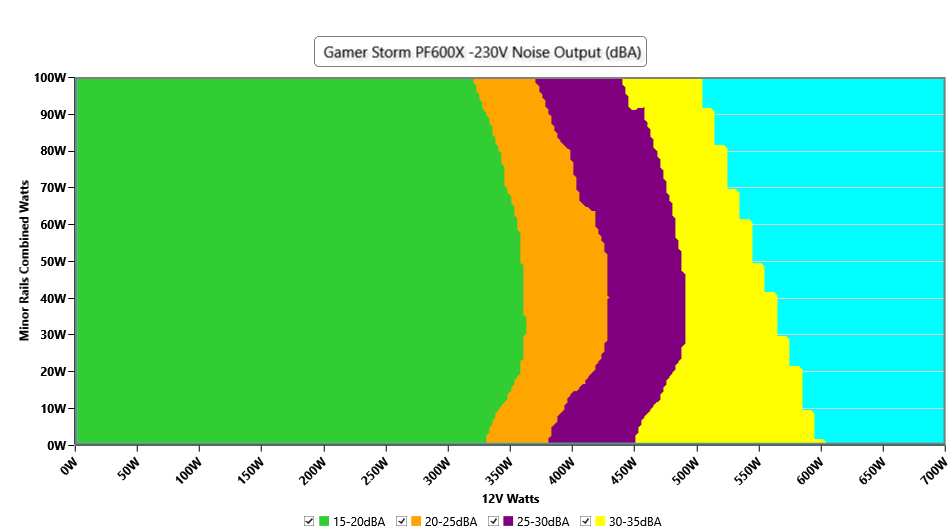

Noise Graph

230V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

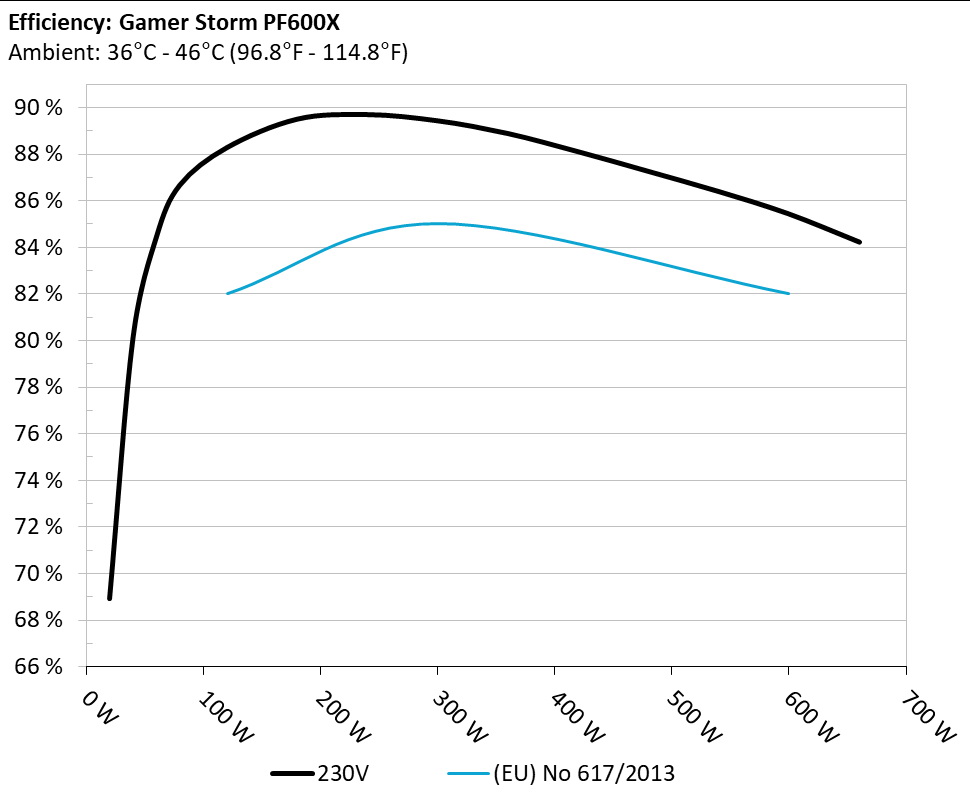

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

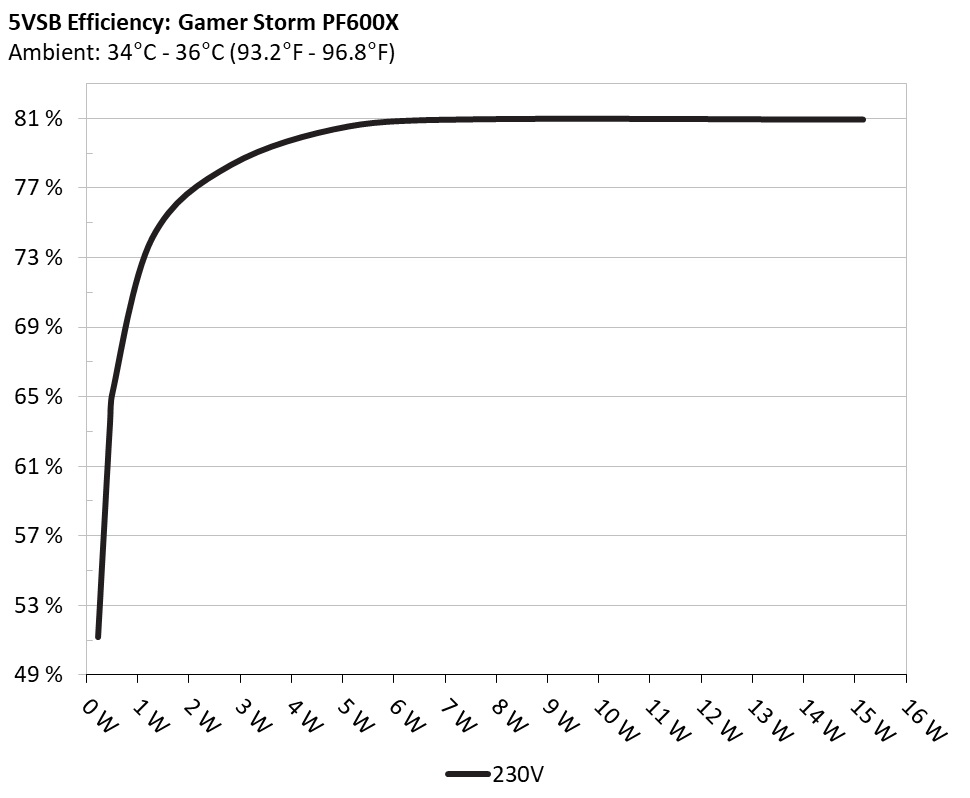

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 51.199% 0.026
5.159V 0.454W 229.92V
2 0.09A 0.464W 63.487% 0.041
5.157V 0.732W 229.92V
3 0.55A 2.827W 78.357% 0.175
5.14V 3.608W 229.92V
4 1A 5.124W 80.569% 0.25
5.124V 6.361W 229.9V
5 1.5A 7.659W 80.977% 0.294
5.106V 9.458W 229.89V
6 3A 15.151W 80.958% 0.359
5.051V 18.718W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.176A 1.965A 1.958A 0.979A 60 83.516% 760 16.8 40.04°C 0.88
12.093V 5.088V 3.37V 5.109V 71.843 39.6°C 229.88V
20% 7.365A 2.956A 2.948A 1.179A 119.931 88.288% 764 16.9 40.8°C 0.939
12.089V 5.074V 3.358V 5.087V 135.838 40.56°C 229.87V
30% 11.908A 3.456A 3.451A 1.382A 179.971 89.514% 768 17.2 41.22°C 0.959
12.086V 5.063V 3.347V 5.067V 201.054 41.67°C 229.86V
40% 16.455A 3.959A 3.957A 1.586A 240.013 89.709% 773 17.5 41.55°C 0.969
12.082V 5.051V 3.336V 5.046V 267.548 42.98°C 229.85V
50% 20.653A 4.963A 4.965A 1.792A 299.968 89.444% 888 21 42.2°C 0.974
12.079V 5.038V 3.324V 5.023V 335.371 44.62°C 229.84V
60% 24.860A 5.973A 5.981A 2A 360.006 88.895% 1155 28.8 42.62°C 0.977
12.075V 5.023V 3.311V 5V 404.979 45.41°C 229.83V
70% 29.026A 6.989A 7.006A 2.211A 419.487 88.121% 1398 34.2 43.06°C 0.977
12.072V 5.008V 3.298V 4.976V 476.035 46.03°C 229.82V
80% 33.278A 8.008A 8.038A 2.32A 479.475 87.274% 1603 37.9 43.76°C 0.981
12.068V 4.994V 3.284V 4.956V 549.388 47.29°C 229.8V
90% 37.863A 8.53A 8.556A 2.431A 539.269 86.415% 1772 40.3 44.13°C 0.986
12.064V 4.982V 3.273V 4.937V 624.045 47.42°C 229.79V
100% 42.256A 9.056A 9.111A 3.063A 599.293 85.449% 1950 44 45.21°C 0.986
12.059V 4.968V 3.26V 4.897V 701.346 48.97°C 229.78V
110% 46.585A 10.093A 10.258A 3.075A 659.923 84.233% 2014 43.6 46.43°C 0.986
12.056V 4.953V 3.246V 4.879V 783.452 51.42°C 229.77V
CL1 0.115A 11.942A 11.898A 0A 101.286 81.564% 763 16.9 40.85°C 0.934
12.093V 5.04V 3.337V 5.109V 124.181 44.94°C 229.87V
CL2 0.114A 15.814A 0A 0A 81.376 80.32% 758 16.8 40.01°C 0.918
12.095V 5.058V 3.347V 5.129V 101.315 43.78°C 229.88V
CL3 0.114A 0A 15.697A 0A 54.191 75.331% 760 16.8 41.2°C 0.88
12.095V 5.075V 3.364V 5.127V 71.938 43.1°C 229.88V
CL4 49.745A 0.001A 0A 0.001A 599.951 86.637% 1897 43.2 45.84°C 0.986
12.060V 5.016V 3.294V 5.041V 692.498 48.48°C 229.79V

The results above are not used in the certification process

Light Load Tests 230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.49A 0.488A 0.194A 20.008 68.926% 751 16.8 36.4°C 0.713
12.095V 5.102V 3.383V 5.15V 29.027 37.94°C 229.89V
40W 2.704A 0.687A 0.684A 0.292A 40.003 80.125% 755 16.8 37.16°C 0.824
12.093V 5.097V 3.378V 5.142V 49.926 37.6°C 229.88V
60W 4.179A 0.883A 0.88A 0.39A 60 84.46% 756 16.8 38.05°C 0.879
12.092V 5.093V 3.374V 5.134V 71.039 37.84°C 229.88V
80W 5.650A 1.081A 1.077A 0.488A 79.947 86.681% 760 16.8 39.18°C 0.908
12.091V 5.089V 3.37V 5.126V 92.23 39.02°C 229.88V

The results above are not used in the certification process

Ripple Measurements 230V

Test12V5V3.3V5VSBPass/Fail
10% Load14.89mV16.45mV16.17mV13.45mVPass
20% Load16.83mV18.39mV15.81mV14.99mVPass
30% Load18.98mV18.75mV18.21mV14.27mVPass
40% Load20.11mV20.74mV19.18mV14.53mVPass
50% Load23.18mV22.28mV20.31mV16.83mVPass
60% Load26.50mV24.57mV21.18mV16.01mVPass
70% Load30.03mV25.75mV25.07mV17.90mVPass
80% Load33.41mV28.30mV27.52mV18.98mVPass
90% Load38.06mV30.20mV28.08mV21.79mVPass
100% Load24.47mV17.36mV16.26mV10.95mVPass
110% Load29.05mV19.42mV19.04mV12.44mVPass
Crossload110.00mV11.24mV12.01mV7.35mVPass
Crossload216.22mV22.79mV17.75mV15.65mVPass
Crossload314.22mV18.90mV23.02mV14.89mVPass
Crossload427.40mV18.14mV17.25mV11.92mVPass

The results above are not used in the certification process

Gamer Storm PF600X

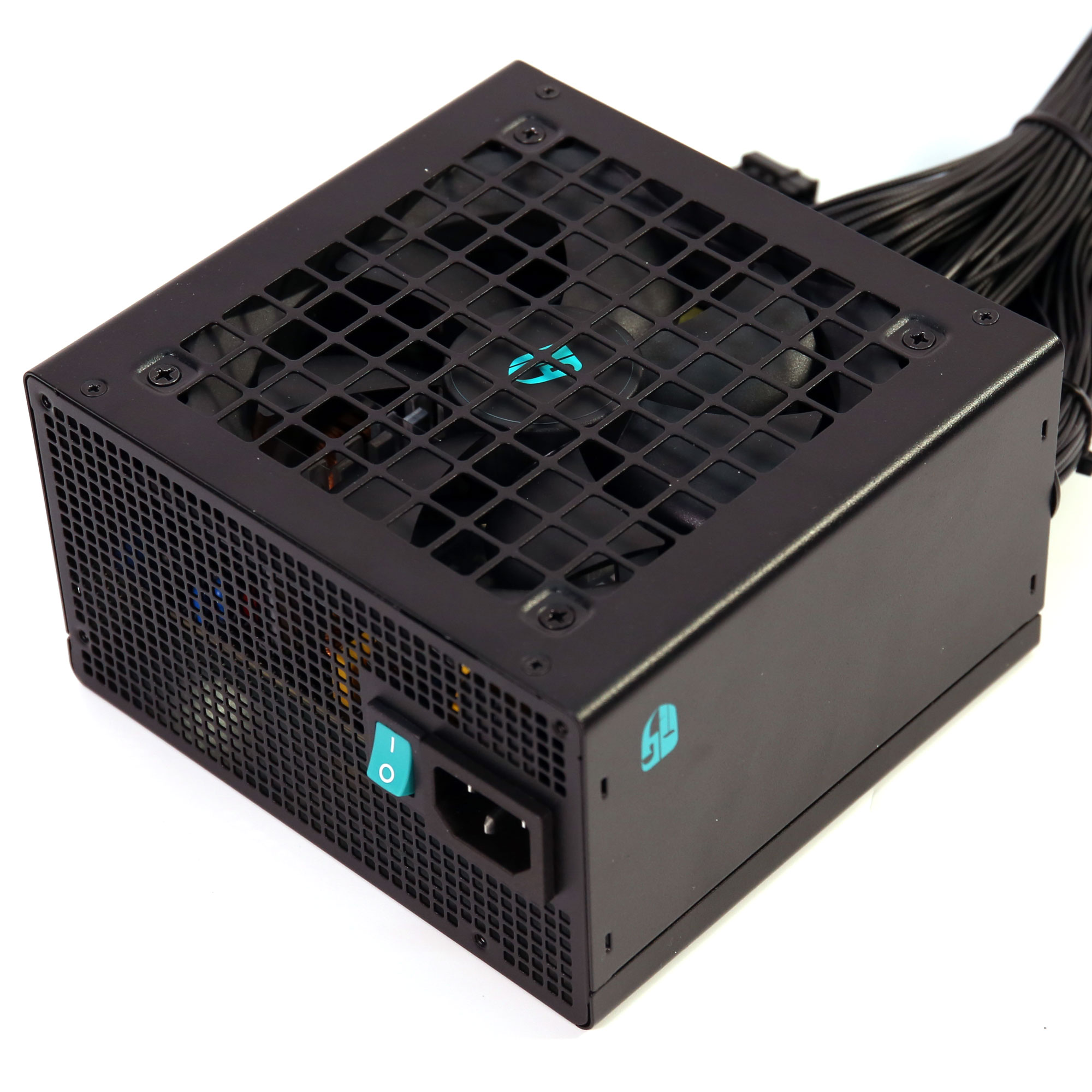

Top side

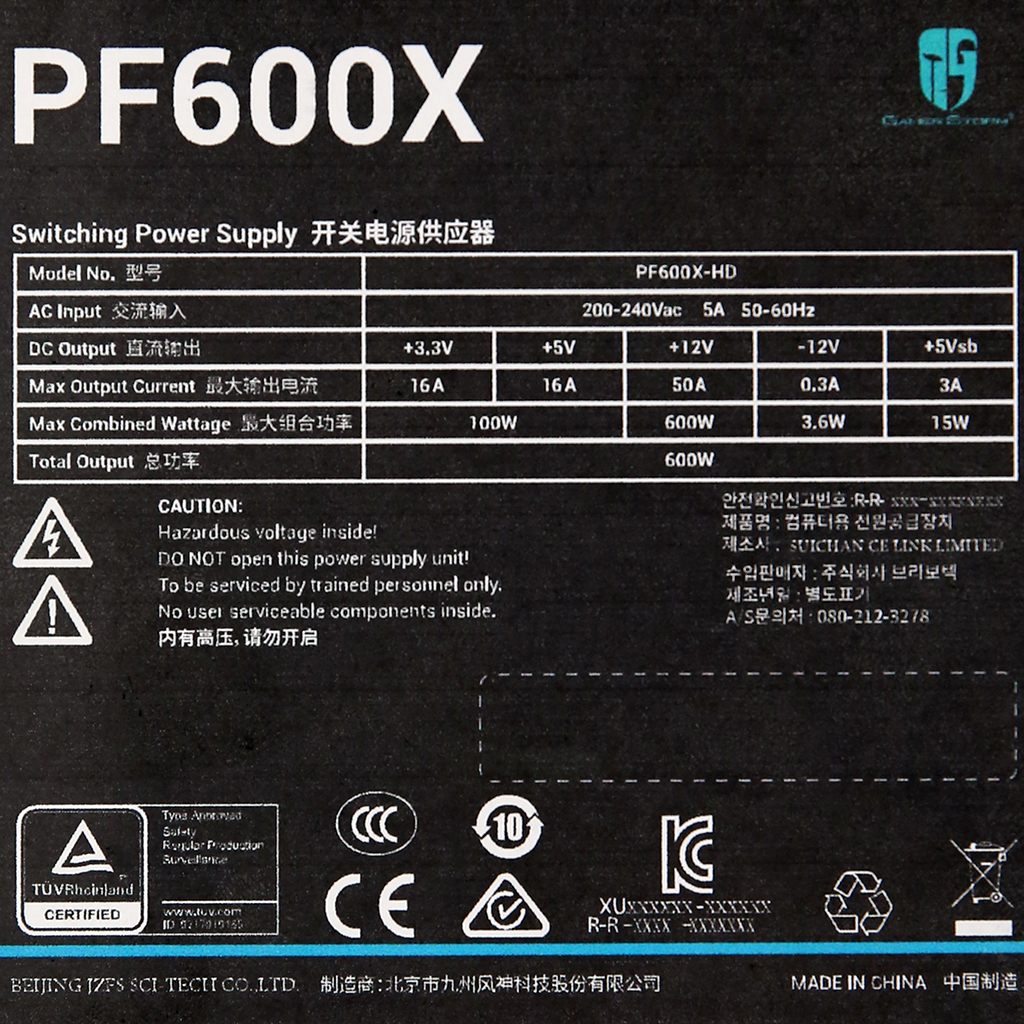

Power specifications label
