Cybenetics Test - Gamer Storm PF700X

Gamer Storm PF700X

-

Lab IDGA70002728

Report: 25PS2728A
Receipt Date: Jan 23, 2025
Test Date: Jan 30, 2025
Report Date: Feb 5, 2025

	115V	230V
Wirkungsgrad

115V	230V
		Lautstärkeklasse

Aristeidis Bitziopoulos, Laboratory General Manager

General Information

	Gamer Storm
Hersteller (OEM)	CE-Link
	PFX
	PF700X-HD
	-

(Vrms)	200-240
(Arms)	5
(Hz)	50-60
(W)	700
	ATX12V
	120mm Fluid Dynamic Bearing Fan (HA1225M12F-Z)
	✗
	Fixed cables

Rail		3.3V	5V	12V	5VSB	-12V
Max. Power	Amps	18	18	58.3	3	0.3
Max. Power	Watts	110		699.6	15	3.6
Total Max. Power (W)		700

Electronic Loads	Chroma 63601-5 x2 Chroma 63600-2 63640-80-80 x10 63610-80-20
AC Sources	Chroma 6530, APM SP300VAC4000W-P
Power Analyzers	RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes	Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer	Bruel & Kjaer 2270 G4
Microphone	Bruel & Kjaer Type 4955-A
Temperature Logger	Picoscope TC-08
Tachometer	UNI-T UT372
Multimeters	Keysight 34465A, Keithley 2015 - THD
UPS	FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer	4kVA
Testing Methodology	Cybenetics PSU Test Protocol

Captive Cables
Description	Cable Count	Connector Count (Total)	Gauge	In Cable Capacitors
ATX connector 20+4 pin (560mm)	1	1	18-22AWG	No
4+4 pin EPS12V (610mm+150mm)	1	2	18AWG	No
6+2 pin PCIe (510mm+150mm)	2	4	18AWG	No
SATA (460mm+150mm+150mm) / 4-pin Molex (+150mm)	2	6 / 2	18AWG	No

Parts Description

General Data
Manufacturer (OEM)	CE LINK
PCB Type	Single-Sided
Primary Side
Transient Filter	4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection	1x NTC Thermistor M72 1.3D15 (1.3 ohm)
Bridge Rectifier(s)	1x GBU608 (800V, 6A @ 100°C)
APFC MOSFETs	1x Lonten LND20N50W (500V, 12.5A @ 100°C, Rds(on): 0.29Ohm)
APFC Boost Diode	1x Good-Ark MUR860F (600V, 8A @ 105°C)
Bulk Cap(s)	1x Teapo (420V, 470uF, 6-10,000h @ 105°C, TC)
Main Switchers	2x Lonten LND18N50 (500V, 13.5A @ 100°C, Rds(on): 0.28Ohm)
PFC/PWM Controller	Champion CM6800UX
Topology	Primary side: APFC, Double Forward Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs	3x HB043N06GC
5V & 3.3V	DC-DC Converters: 4x SLD3090T PWM Controller(s): 2x Anpec APW7164
Filtering Capacitors	Electrolytic: 13x Teapo (1-3,000h @ 105°C, SC) 1x Toshincon (@105°C, UCE) Polymer: 2x
Supervisor IC	IN1S3151-SAG
Fan Model	Hong Hua HA1225M12F-Z (120mm, 12V, 0.45A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier	1x Chongqing Pingwei PS1045L (45V, 10A) SBR
Standby PWM Controller	Esthome EST.2915HP

Test Results

Temperature & Compliance Info

(°C /°F)	30-32 / 86-89.6
	✓
	✓
ALPM (Alternative Low Power Mode) compatible	✓

Performance Summary 230V

Wirkungsgrad	SILVER
Lautstärkeklasse	A-
(>1450 load combinations)	87.479%
Average Noise Output (>1450 Load Combinations)	26.39dBA
(>1450 Load Combinations)	0.967
Efficiency With 10W (≤500W) or 2% (>500W) Load	61.529%
	0.1587W
12V Ripple (Full Load)	72.37mV
5V Ripple (Full Load)	34.52mV
3.3V Ripple (Full Load)	28.99mV
5VSB Ripple (Full Load)	24.94mV
12V Load Regulation	0.36%
5V Load Regulation	2.55%
3.3V Load Regulation	3.72%
5VSB Load Regulation	4.44%
Inrush Current	231.700A
12V Transient Response (150%)	11.62V
5V Transient Response (150%)	4.929V
3.3V Transient Response (150%)	3.194V
5VSB Transient Response (150%)	4.973V
	13.40ms
AC Loss to PWR_OK Hold Up Time	12.10ms
PWR_OK Inactive to DC Loss Delay	1.30ms
PSU Timings: T1 (20% / 100%)	44.0ms	43.0ms
PSU Timings: T3 (20% / 100%)	126.0ms	125.0ms
12V OCP (28.4°C / 41.7°C)	77.20A (132.42%), 11.498V *High Ripple (175.43mV), Voltage Drop (11.266V@77.6A), Stopped	76.80A (131.73%), 11.412V *High Ripple(185.25mV), Voltage Drop (11.15V@77.2A), Stopped
5V OCP (28.4°C / 41.7°C)	27A (150.00%), 5.022V	25.6A (142.22%), 5.015V
3.3V OCP (28.4°C / 41.7°C)	28.5A (158.33%), 3.304V	28.1A (156.11%), 3.304V
5VSB OCP (28.4°C / 41.7°C)	5.5A (183.33%), 4.986V	5.3A (176.67%), 4.988V
OPP (29.27°C / 42.41°C)	127.23%	124.24%

Hold-Up Time (ms)	13.4
AC Loss to PWR_OK Hold Up Time (ms)	12.1
PWR_OK Inactive to DC Loss Delay (ms)	1.3

Stromverbrauch im Ruhezustand

Tables 230V

Detailed Results
	Average	Min	Limit Min	Max	Limit Max	Result
Mains Voltage RMS:	231.00 V	230.88 V	227.70 V	231.07 V	232.30 V	PASS
Mains Frequency:	50.00 Hz	49.99 Hz	49.50 Hz	50.01 Hz	50.50 Hz	PASS
Mains Voltage CF:	1.417	1.416	1.340	1.419	1.490	PASS
Mains Voltage THD:	0.17 %	0.14 %	N/A	0.29 %	2.00 %	PASS
Real Power:	0.159 W	0.120 W	N/A	0.212 W	N/A	N/A
Apparent Power:	16.358 W	16.154 W	N/A	16.602 W	N/A	N/A
Power Factor:	0.011	N/A	N/A	N/A	N/A	N/A

Graphs 230V

230V

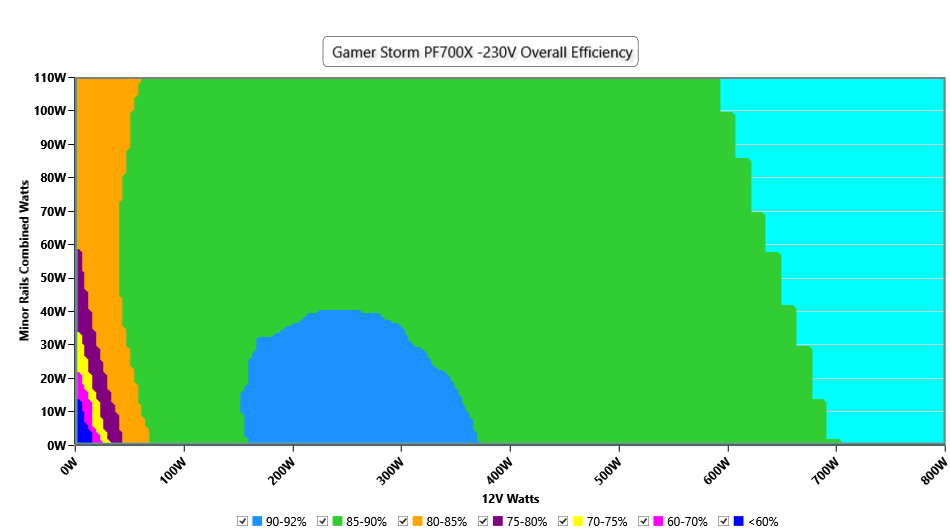

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

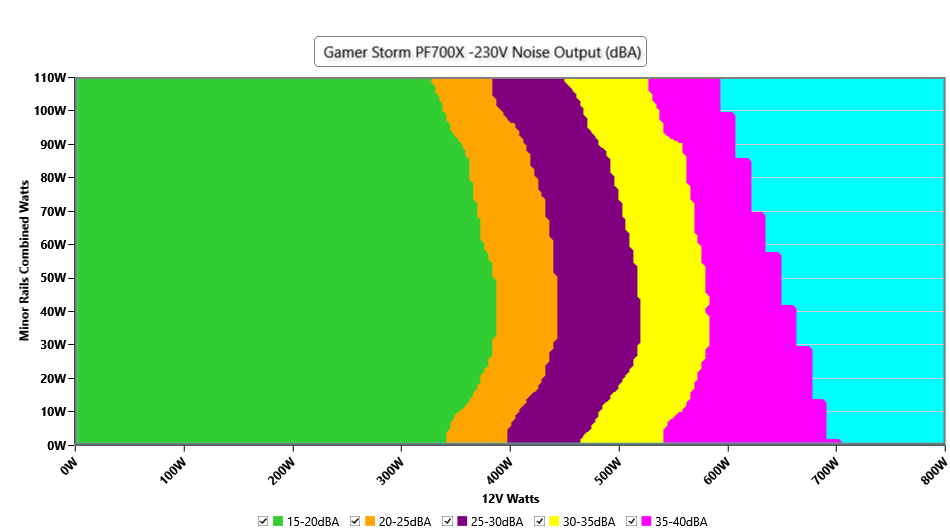

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

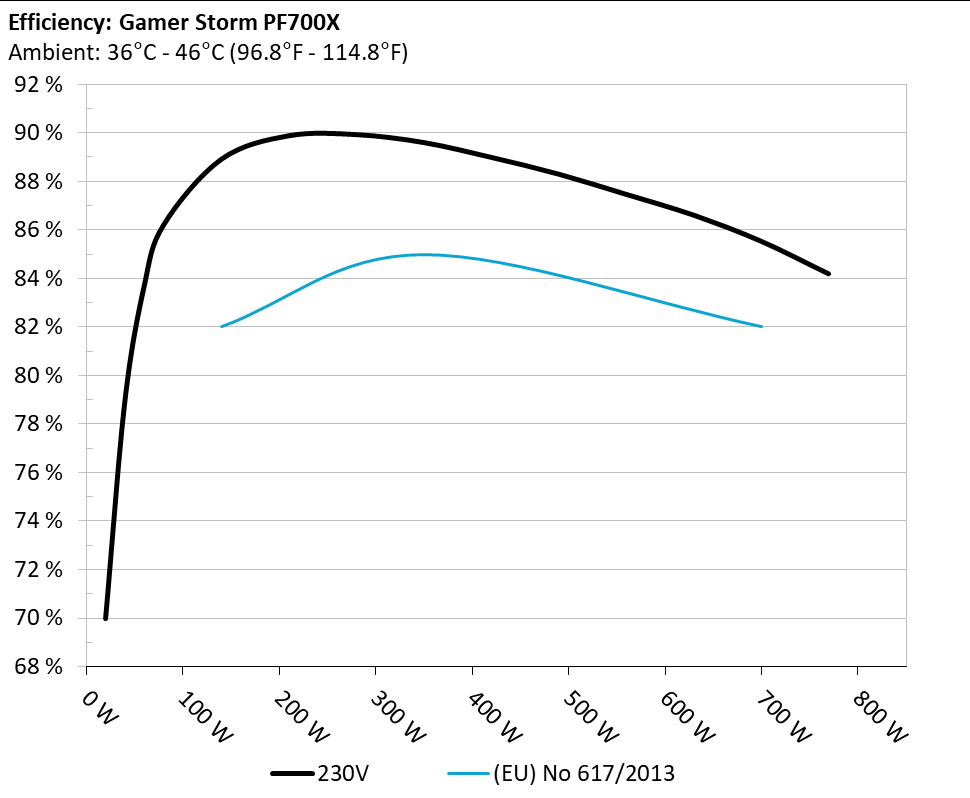

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

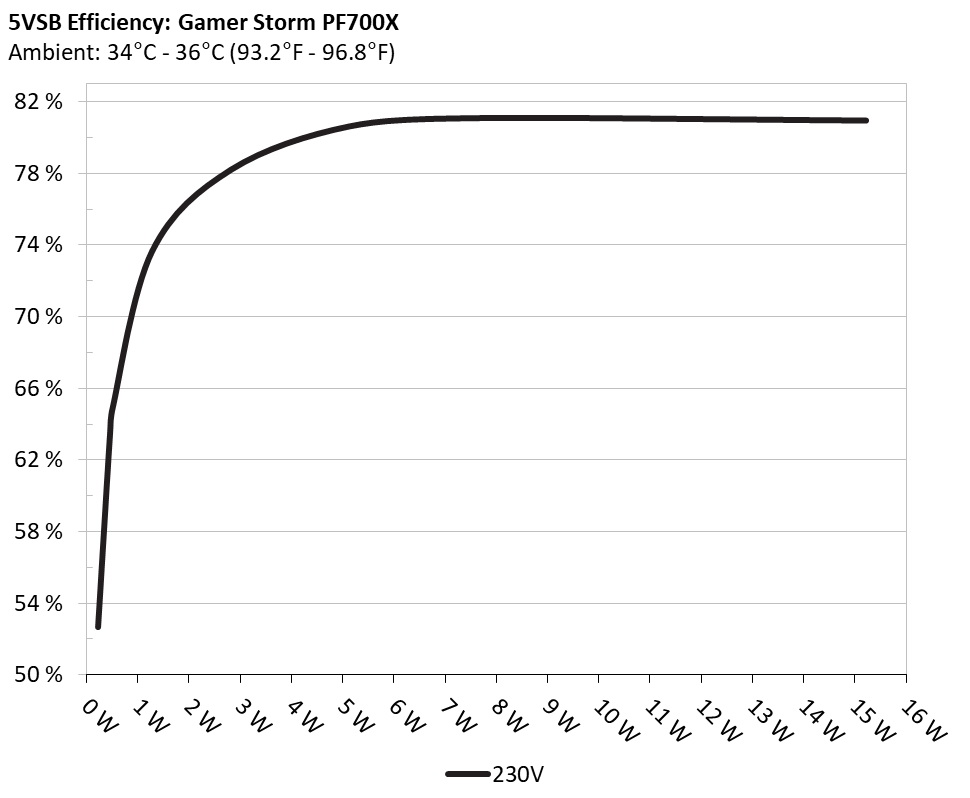

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test #	5VSB	DC/AC (Watts)	Efficiency	PF/AC Volts
1	0.045A	0.232W	52.671%	0.025
1	5.157V	0.443W	52.671%	229.89V
2	0.09A	0.464W	63.432%	0.041
2	5.156V	0.733W	63.432%	229.89V
3	0.55A	2.828W	78.222%	0.174
3	5.142V	3.617W	78.222%	229.88V
4	1A	5.129W	80.635%	0.243
4	5.129V	6.361W	80.635%	229.88V
5	1.5A	7.673W	81.098%	0.291
5	5.115V	9.462W	81.098%	229.89V
6	3A	15.211W	80.962%	0.357
6	5.071V	18.789W	80.962%	229.88V

Supplementary Tests (For Reference)

230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
10%	3.990A	1.965A	1.966A	0.977A	70.007	84.46%	773	17.5	40.54°C	0.894
10%	12.131V	5.09V	3.358V	5.116V	82.887	84.46%	773	17.5	42.57°C	229.88V
20%	8.992A	2.955A	2.959A	1.177A	139.949	88.917%	777	17.6	40.78°C	0.947
20%	12.127V	5.076V	3.346V	5.097V	157.391	88.917%	777	17.6	43.4°C	229.87V
30%	14.348A	3.455A	3.463A	1.379A	209.995	89.886%	779	17.6	41.41°C	0.964
30%	12.123V	5.065V	3.335V	5.078V	233.625	89.886%	779	17.6	44.2°C	229.86V
40%	19.709A	3.958A	3.971A	1.581A	280.045	89.933%	916	21.8	41.82°C	0.972
40%	12.118V	5.054V	3.325V	5.06V	311.394	89.933%	916	21.8	45.79°C	229.84V
50%	24.723A	4.96A	4.982A	1.786A	350.008	89.605%	1177	29.6	42.42°C	0.977
50%	12.114V	5.041V	3.312V	5.04V	390.615	89.605%	1177	29.6	46.36°C	229.83V
60%	29.731A	5.968A	6.003A	1.993A	419.831	88.997%	1416	34.6	42.62°C	0.979
60%	12.110V	5.027V	3.299V	5.019V	471.74	88.997%	1416	34.6	47.26°C	229.82V
70%	34.765A	6.982A	7.031A	2.201A	489.943	88.303%	1644	38.5	43.01°C	0.982
70%	12.105V	5.014V	3.286V	4.999V	554.839	88.303%	1644	38.5	48.36°C	229.8V
80%	39.804A	7.999A	8.066A	2.309A	559.533	87.474%	1787	40.5	43.53°C	0.984
80%	12.100V	5V	3.273V	4.98V	639.658	87.474%	1787	40.5	48.84°C	229.79V
90%	45.244A	8.52A	8.585A	2.418A	629.752	86.614%	1981	43.5	44.56°C	0.986
90%	12.096V	4.987V	3.261V	4.963V	727.08	86.614%	1981	43.5	51.63°C	229.77V
100%	50.425A	9.046A	9.142A	3.042A	699.374	85.547%	2004	43.6	45.71°C	0.987
100%	12.091V	4.974V	3.249V	4.931V	817.538	85.547%	2004	43.6	54.39°C	229.76V
110%	55.543A	10.086A	10.296A	3.053A	769.576	84.2%	2008	43.6	46.02°C	0.987
110%	12.086V	4.956V	3.234V	4.914V	913.985	84.2%	2008	43.6	57.64°C	229.74V
CL1	0.116A	13.155A	13.201A	0A	111.295	80.531%	838	19.8	40.3°C	0.939
CL1	12.128V	5.031V	3.311V	5.113V	138.205	80.531%	838	19.8	45.43°C	229.87V
CL2	0.114A	17.845A	0A	0A	91.381	79.782%	768	17.2	41.19°C	0.926
CL2	12.131V	5.043V	3.334V	5.13V	114.538	79.782%	768	17.2	45.25°C	229.87V
CL3	0.114A	0A	17.838A	0A	60.796	74.701%	770	17.4	40.54°C	0.892
CL3	12.131V	5.066V	3.33V	5.128V	81.388	74.701%	770	17.4	44.31°C	229.87V
CL4	57.878A	0A	0A	0.001A	699.966	86.645%	2002	43.6	45.62°C	0.987
CL4	12.094V	5.018V	3.289V	5.045V	807.863	86.645%	2002	43.6	52.06°C	229.76V

The results above are not used in the certification process

230V

Test	12V	5V	3.3V	5VSB	DC/AC (Watts)	Efficiency	Fan Speed (RPM)	PSU Noise (dB[A])	Temps (In/Out)	PF/AC Volts
20W	1.224A	0.49A	0.49A	0.194A	20.01	69.996%	763	16.9	36.2°C	0.704
20W	12.134V	5.101V	3.37V	5.15V	28.586	69.996%	763	16.9	37.13°C	229.88V
40W	2.695A	0.687A	0.686A	0.292A	40.005	78.955%	766	17.1	37.13°C	0.823
40W	12.132V	5.098V	3.367V	5.143V	50.668	78.955%	766	17.1	38.36°C	229.88V
60W	4.166A	0.883A	0.883A	0.389A	60.003	83.695%	769	17.3	38.08°C	0.875
60W	12.131V	5.095V	3.363V	5.137V	71.691	83.695%	769	17.3	39.47°C	229.88V
80W	5.632A	1.08A	1.08A	0.487A	79.954	86.199%	772	17.5	39.19°C	0.907
80W	12.130V	5.092V	3.36V	5.13V	92.755	86.199%	772	17.5	40.68°C	229.88V

The results above are not used in the certification process

230V

Test	12V	5V	3.3V	5VSB	Pass/Fail
10% Load	16.53mV	15.02mV	13.56mV	12.89mV	Pass
20% Load	19.85mV	17.42mV	14.07mV	12.38mV	Pass
30% Load	23.84mV	17.42mV	13.97mV	14.02mV	Pass
40% Load	26.19mV	16.66mV	14.79mV	15.14mV	Pass
50% Load	29.88mV	19.00mV	17.39mV	13.66mV	Pass
60% Load	35.81mV	21.81mV	17.49mV	16.47mV	Pass
70% Load	40.06mV	24.32mV	18.21mV	17.44mV	Pass
80% Load	46.14mV	26.46mV	20.87mV	18.16mV	Pass
90% Load	53.97mV	29.73mV	22.71mV	19.54mV	Pass
100% Load	72.37mV	34.52mV	28.99mV	24.94mV	Pass
110% Load	81.80mV	36.68mV	30.90mV	25.80mV	Pass
Crossload1	21.42mV	23.60mV	24.23mV	15.94mV	Pass
Crossload2	18.42mV	21.82mV	15.30mV	15.55mV	Pass
Crossload3	18.21mV	20.03mV	22.10mV	15.04mV	Pass
Crossload4	77.17mV	33.36mV	24.61mV	24.89mV	Pass

The results above are not used in the certification process

Gamer Storm PF700X

Top side

Power specifications label
