CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
GREEN MEDEL GP1300B-EDGE
Serial Number
Lab IDGE13002668
  • Report: 24PS2668A
  • Receipt Date: Nov 21, 2024
  • Test Date: Dec 4, 2024
  • Report Date: Dec 5, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

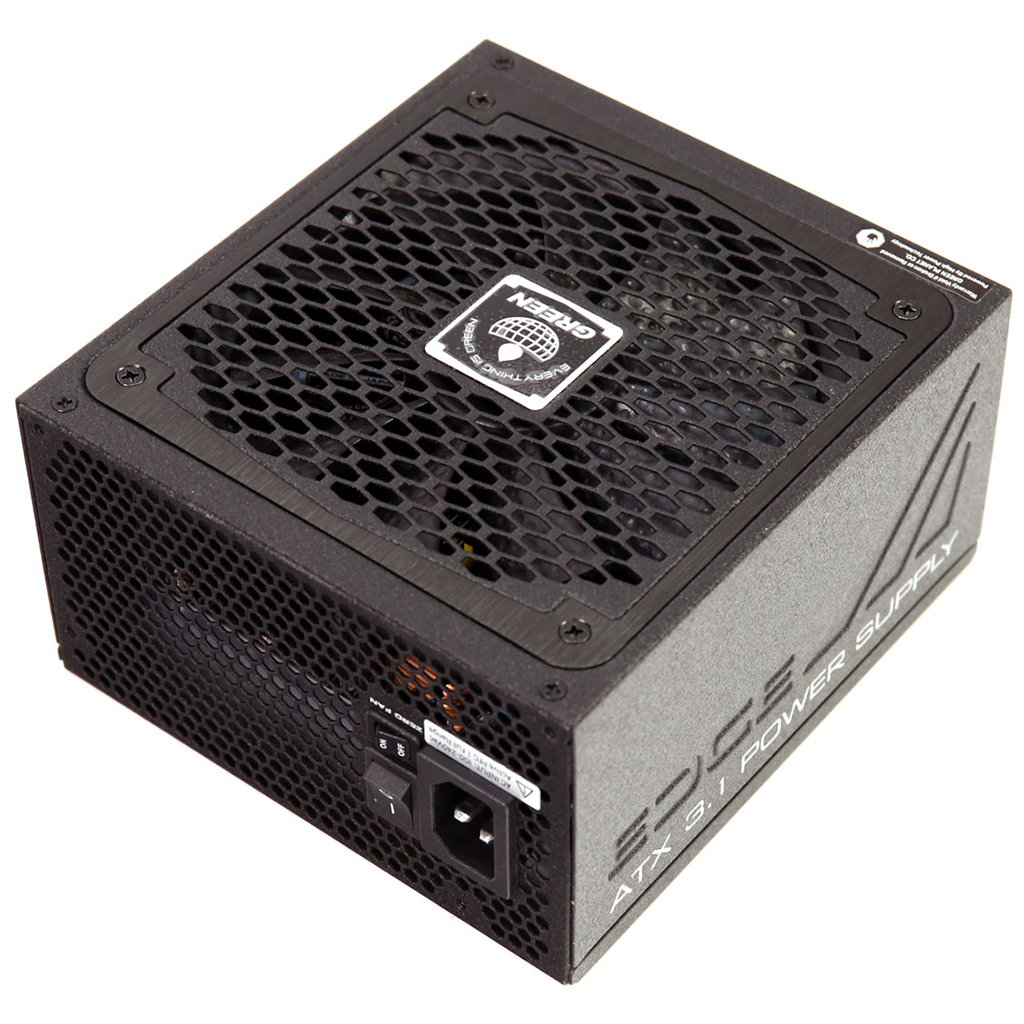

General Information

DUT Information

BrandGREEN MEDEL
Manufacturer (OEM)High Power
SeriesEDGE
Model Number
Serial Number
DUT Notes

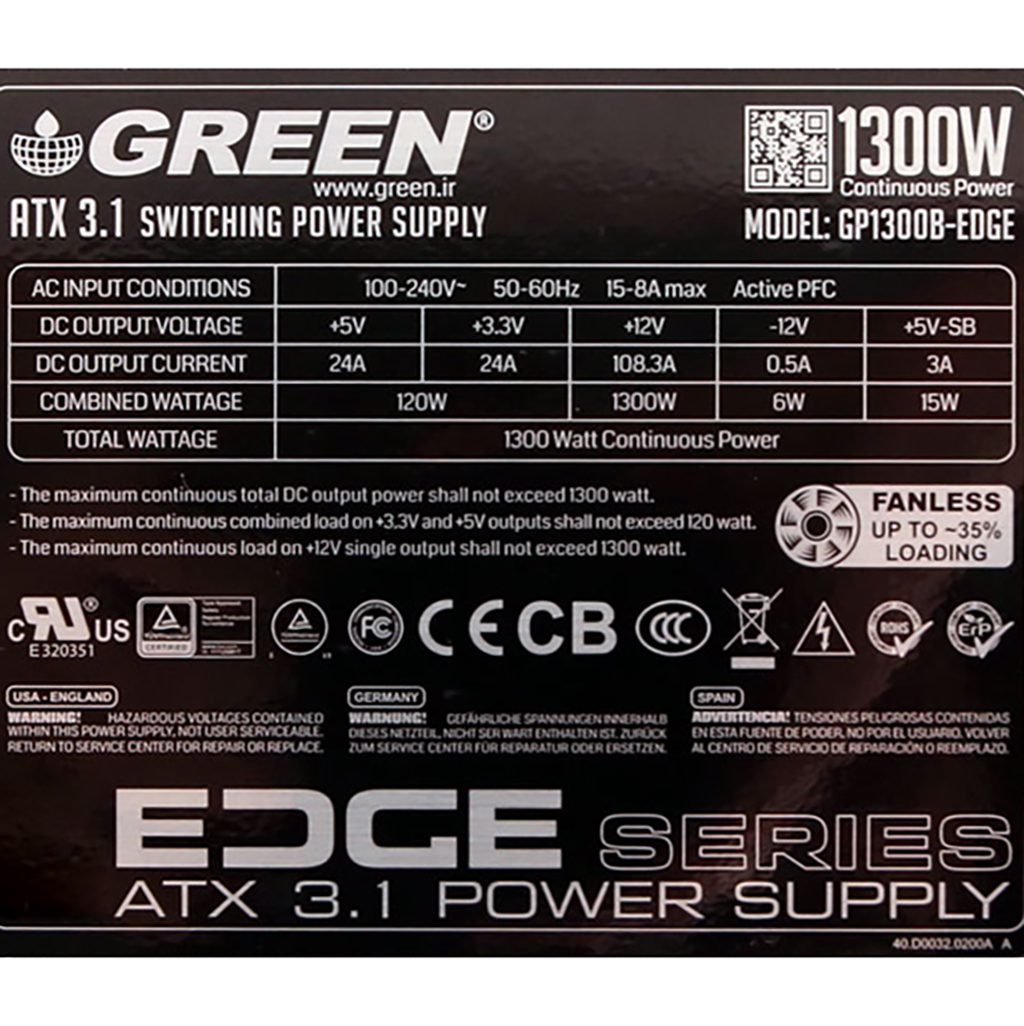

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan (RL4Z S1352512EH)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2424108.330.5
Watts1201300156
Total Max. Power (W)1300

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
4+4 pin EPS12V (700mm+150mm) 1 2 16-18AWG No
6+2 pin PCIe (700mm) 2 2 16AWG No
6+2 pin PCIe (700mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (550mm+150mm+150mm) 4 12 18AWG No
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 16AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)29.6
AC Loss to PWR_OK Hold Up Time (ms)22.5
PWR_OK Inactive to DC Loss Delay (ms)7.1

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.03 V 115.01 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.070 W -0.003 W N/A 0.127 W N/A N/A
Apparent Power: 11.077 W 10.527 W N/A 11.656 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.90 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.156 W 0.088 W N/A 0.311 W N/A N/A
Apparent Power: 36.355 W 35.288 W N/A 37.509 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

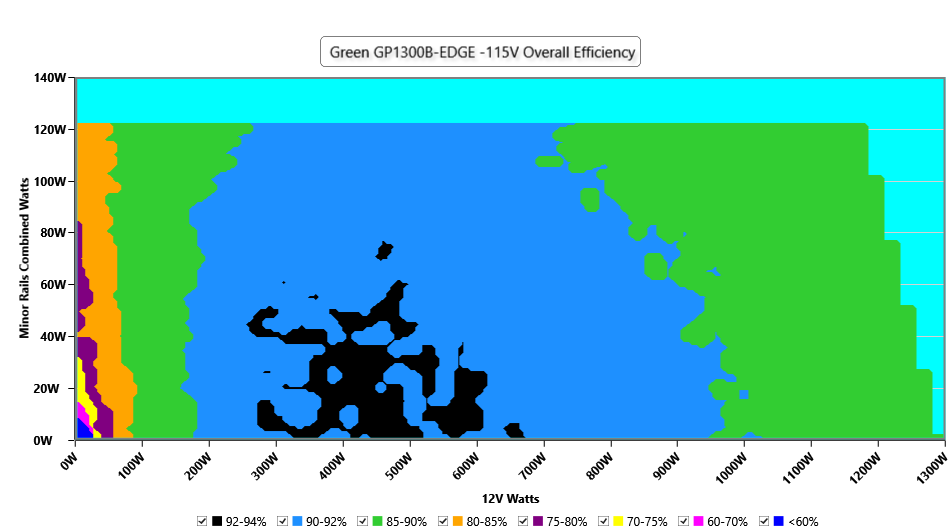

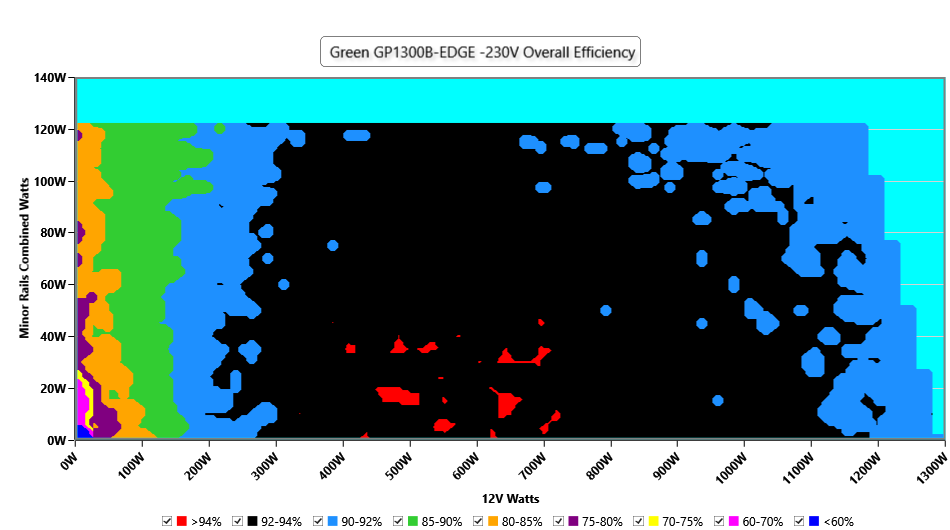

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

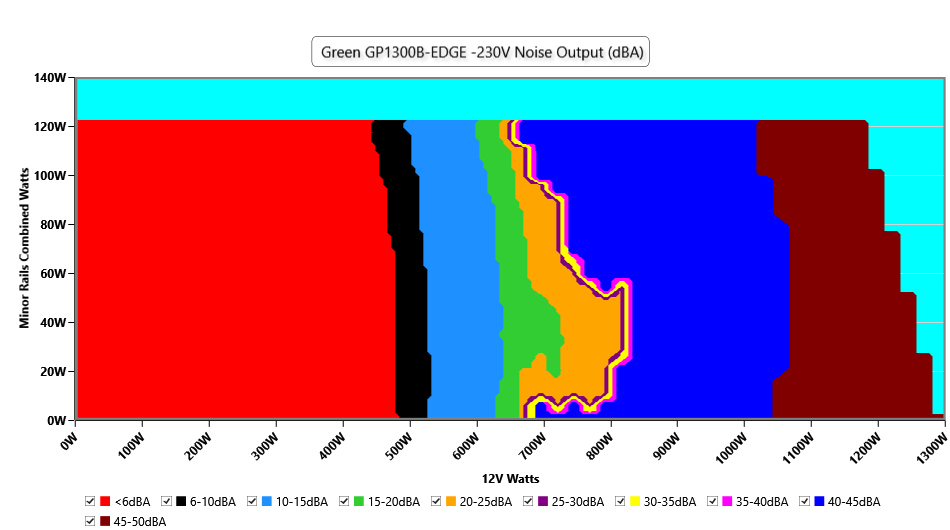

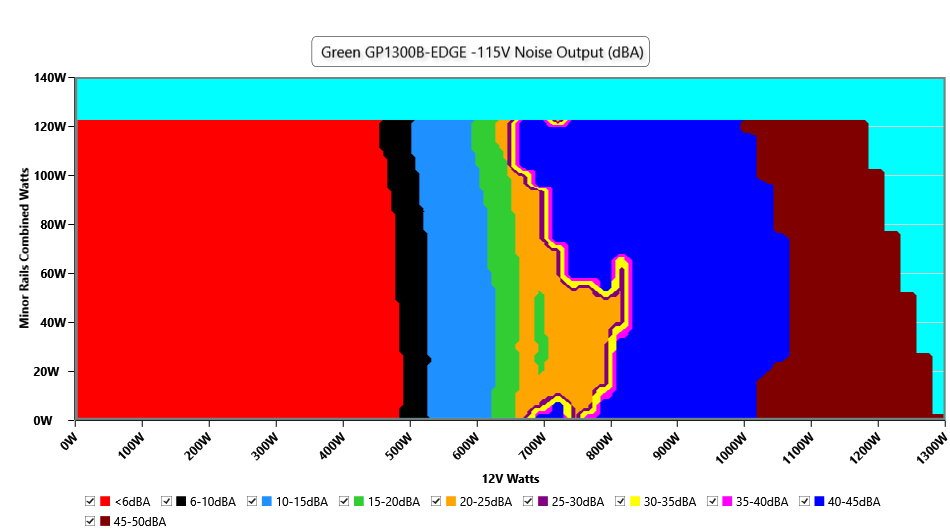

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

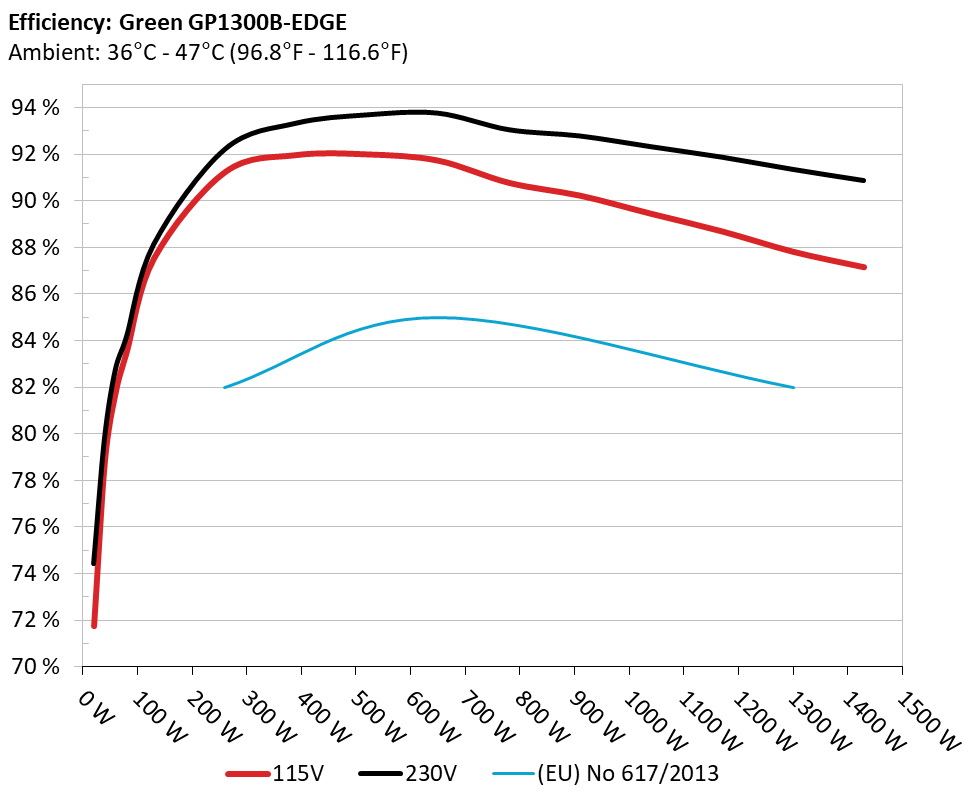

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

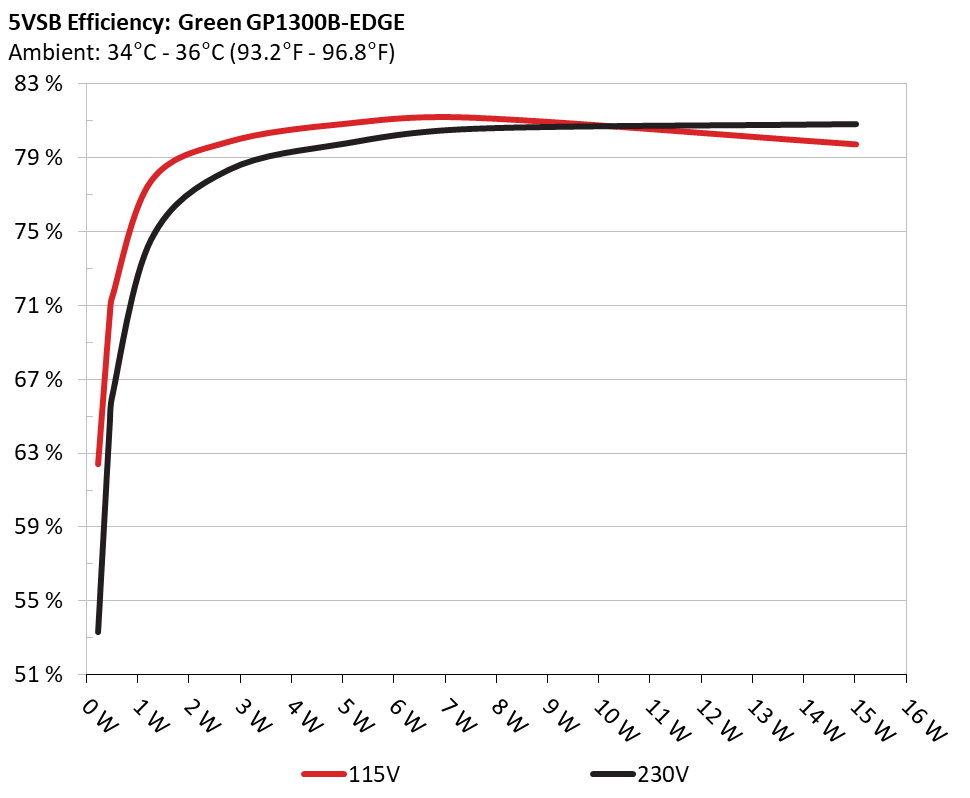

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 62.436% 0.035
5.055V 0.368W 114.85V
2 0.09A 0.455W 70.517% 0.061
5.054V 0.645W 114.84V
3 0.55A 2.776W 79.887% 0.26
5.046V 3.475W 114.84V
4 1A 5.039W 80.857% 0.358
5.039V 6.232W 114.83V
5 1.5A 7.547W 81.187% 0.405
5.03V 9.296W 114.84V
6 3A 15.015W 79.746% 0.481
5.004V 18.829W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 53.308% 0.012
5.055V 0.428W 229.86V
2 0.09A 0.455W 64.583% 0.02
5.054V 0.705W 229.86V
3 0.55A 2.776W 78.359% 0.097
5.046V 3.543W 229.84V
4 1A 5.039W 79.781% 0.161
5.038V 6.315W 229.84V
5 1.5A 7.546W 80.584% 0.206
5.03V 9.364W 229.83V
6 3.001A 15.015W 80.836% 0.316
5.004V 18.575W 229.83V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.001A 1.984A 1.975A 0.995A 130.009 87.55% 0 <6.0 46.54°C 0.983
12.043V 5.041V 3.342V 5.028V 148.498 40.48°C 114.79V
20% 19.025A 2.977A 2.964A 1.197A 259.975 91.245% 0 <6.0 46.05°C 0.993
12.041V 5.038V 3.34V 5.015V 284.923 40.52°C 114.76V
30% 29.385A 3.475A 3.46A 1.399A 389.646 91.975% 419 <6.0 41.49°C 0.995
12.033V 5.035V 3.338V 5.004V 423.659 45.94°C 114.72V
40% 39.809A 3.976A 3.959A 1.603A 519.604 92.007% 567 14.5 41.81°C 0.996
12.017V 5.031V 3.335V 4.993V 564.883 45.94°C 114.67V
50% 49.895A 4.973A 4.953A 1.807A 649.75 91.739% 647 20.3 42.22°C 0.997
12.010V 5.027V 3.332V 4.981V 708.272 46.17°C 114.63V
60% 60.006A 5.973A 5.949A 2A 779.815 90.782% 1282 40.4 42.64°C 0.997
12.000V 5.023V 3.329V 4.968V 858.997 44.48°C 114.57V
70% 70.117A 6.973A 6.946A 2.22A 909.953 90.233% 1416 40.2 43.31°C 0.998
11.992V 5.02V 3.326V 4.955V 1008.423 45.42°C 114.52V
80% 80.224A 7.973A 7.942A 2.327A 1039.547 89.458% 1770 47.6 43.82°C 0.998
11.987V 5.016V 3.324V 4.944V 1162.2 46.43°C 114.47V
90% 90.743A 8.475A 8.428A 2.433A 1169.78 88.698% 1959 49.9 44.19°C 0.998
11.982V 5.014V 3.322V 4.933V 1318.772 47.86°C 114.42V
100% 101.006A 8.977A 8.944A 3.054A 1299.405 87.827% 2103 51.3 45.99°C 0.998
11.976V 5.012V 3.32V 4.912V 1479.582 49.83°C 114.37V
110% 111.212A 9.981A 10.035A 3.06A 1429.545 87.162% 2104 51.3 46.85°C 0.998
11.970V 5.009V 3.318V 4.903V 1640.14 48.89°C 114.32V
CL1 0.117A 14.392A 14.327A 0A 121.299 82.04% 423 <6.0 42°C 0.983
12.035V 5.017V 3.329V 5.043V 147.857 47.28°C 114.78V
CL2 0.115A 23.931A 0A 0A 121.26 80.2% 422 <6.0 39.88°C 0.983
12.036V 5.009V 3.34V 5.045V 151.206 44.72°C 114.79V
CL3 0.115A 0A 23.791A 0A 80.581 74.23% 409 <6.0 41.91°C 0.971
12.038V 5.04V 3.329V 5.045V 108.549 45.75°C 114.81V
CL4 108.492A 0A 0A 0.001A 1299.956 88.445% 2029 50.7 46.65°C 0.998
11.982V 5.033V 3.333V 4.968V 1469.707 48.45°C 114.38V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.002A 1.984A 1.975A 0.995A 130.005 88.141% 0 <6.0 45.7°C 0.893
12.042V 5.041V 3.342V 5.028V 147.601 40.11°C 229.81V
20% 19.029A 2.978A 2.964A 1.197A 259.971 92.217% 0 <6.0 47.04°C 0.957
12.038V 5.038V 3.34V 5.015V 281.917 40.88°C 229.79V
30% 29.384A 3.475A 3.46A 1.399A 389.63 93.337% 0 <6.0 46.29°C 0.974
12.033V 5.036V 3.338V 5.003V 417.41 41.21°C 229.77V
40% 39.801A 3.975A 3.958A 1.603A 519.589 93.7% 563 14.3 41.69°C 0.986
12.019V 5.032V 3.335V 4.993V 554.525 44.94°C 229.75V
50% 49.894A 4.973A 4.953A 1.807A 649.737 93.775% 648 20.3 42.16°C 0.99
12.010V 5.027V 3.332V 4.981V 692.887 44.4°C 229.73V
60% 60.006A 5.973A 5.949A 2A 779.8 93.063% 1272 40.4 42.59°C 0.993
12.000V 5.023V 3.329V 4.968V 837.795 44.04°C 229.71V
70% 70.121A 6.973A 6.946A 2.22A 909.943 92.794% 1402 40.1 43.11°C 0.994
11.992V 5.02V 3.326V 4.955V 980.648 44.48°C 229.68V
80% 80.234A 7.973A 7.943A 2.326A 1039.545 92.335% 1762 47.5 43.63°C 0.997
11.985V 5.016V 3.324V 4.944V 1125.903 44.82°C 229.66V
90% 90.760A 8.476A 8.429A 2.433A 1169.795 91.886% 1938 49.4 44.4°C 0.997
11.980V 5.014V 3.322V 4.932V 1273.122 45.61°C 229.64V
100% 101.031A 8.979A 8.946A 3.054A 1299.429 91.361% 2097 51.3 45.46°C 0.997
11.974V 5.011V 3.32V 4.912V 1422.187 46.78°C 229.61V
110% 111.232A 9.984A 10.037A 3.061A 1429.635 90.882% 2108 51.3 46.95°C 0.998
11.969V 5.008V 3.317V 4.902V 1573.104 48.44°C 229.6V
CL1 0.117A 14.393A 14.328A 0A 121.306 82.312% 425 <6.0 42.25°C 0.895
12.035V 5.016V 3.329V 5.042V 147.388 46.29°C 229.81V
CL2 0.115A 23.934A 0A 0A 121.264 80.552% 423 <6.0 40.72°C 0.898
12.036V 5.009V 3.34V 5.045V 150.561 44.86°C 229.81V
CL3 0.115A 0A 23.791A 0A 80.582 74.777% 409 <6.0 41.3°C 0.839
12.036V 5.04V 3.329V 5.045V 107.777 44.54°C 229.82V
CL4 108.500A 0A 0A 0.001A 1299.958 92.017% 1998 50.5 44.77°C 0.998
11.981V 5.033V 3.333V 4.968V 1412.788 46.12°C 229.62V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.242A 0.496A 0.494A 0.198A 20.016 71.753% 0 <6.0 38.96°C 0.807
11.966V 5.043V 3.344V 5.051V 27.902 36.04°C 114.83V
40W 2.734A 0.694A 0.691A 0.297A 40.008 78.871% 0 <6.0 41.75°C 0.919
11.958V 5.043V 3.344V 5.047V 50.78 37.53°C 114.83V
60W 4.233A 0.892A 0.888A 0.397A 60.006 81.831% 0 <6.0 43.05°C 0.95
11.939V 5.043V 3.344V 5.044V 73.279 38.23°C 114.82V
80W 5.738A 1.091A 1.086A 0.496A 79.956 83.535% 0 <6.0 44.02°C 0.968
11.907V 5.043V 3.343V 5.04V 95.712 39.04°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.242A 0.496A 0.493A 0.198A 20.002 74.426% 0 <6.0 41.16°C 0.405
11.966V 5.043V 3.343V 5.051V 27.093 36.09°C 229.83V
40W 2.734A 0.694A 0.691A 0.297A 40.002 79.818% 0 <6.0 42.73°C 0.6
11.955V 5.042V 3.343V 5.048V 50.115 37.29°C 229.83V
60W 4.232A 0.892A 0.888A 0.397A 60.002 82.775% 0 <6.0 43.43°C 0.729
11.940V 5.042V 3.343V 5.044V 72.638 38.02°C 229.83V
80W 5.740A 1.091A 1.086A 0.496A 79.949 84.151% 0 <6.0 45.21°C 0.808
11.901V 5.042V 3.342V 5.041V 95.039 39.27°C 229.83V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load18.92mV17.25mV17.75mV17.80mVPass
20% Load20.20mV17.81mV17.75mV17.75mVPass
30% Load21.28mV17.76mV17.91mV18.06mVPass
40% Load22.04mV17.81mV19.24mV18.42mVPass
50% Load21.79mV18.12mV17.08mV19.24mVPass
60% Load24.19mV18.78mV19.09mV19.55mVPass
70% Load24.60mV18.63mV19.39mV20.16mVPass
80% Load25.52mV20.07mV18.21mV21.50mVPass
90% Load28.44mV19.61mV19.60mV22.06mVPass
100% Load36.04mV21.67mV20.13mV27.11mVPass
110% Load38.75mV22.50mV20.65mV27.05mVPass
Crossload124.91mV22.51mV22.59mV20.54mVPass
Crossload221.28mV28.84mV18.42mV19.91mVPass
Crossload318.82mV17.55mV21.14mV17.76mVPass
Crossload437.73mV19.53mV19.38mV23.39mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load19.38mV19.09mV17.39mV17.24mVPass
20% Load20.87mV18.27mV19.44mV17.55mVPass
30% Load20.56mV17.76mV17.80mV18.01mVPass
40% Load20.97mV18.32mV17.75mV18.16mVPass
50% Load22.40mV18.12mV17.49mV19.04mVPass
60% Load24.60mV19.45mV19.08mV19.81mVPass
70% Load26.60mV19.09mV18.98mV20.73mVPass
80% Load27.92mV20.99mV19.91mV22.22mVPass
90% Load28.13mV20.89mV19.34mV22.47mVPass
100% Load36.60mV21.48mV20.71mV26.08mVPass
110% Load38.02mV21.78mV20.92mV27.81mVPass
Crossload124.40mV21.67mV19.72mV20.12mVPass
Crossload221.69mV29.15mV18.37mV19.19mVPass
Crossload320.61mV18.78mV20.98mV18.27mVPass
Crossload437.08mV19.50mV19.49mV22.83mVPass

The results above are not used in the certification process

GREEN MEDEL GP1300B-EDGE

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
