CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
ASRock Phantom Gaming PG-1300G (ATX v3.1)
Serial NumberS4311030004
Lab IDAR13002621
  • Report: 24PS2621A
  • Receipt Date: Oct 4, 2024
  • Test Date: Oct 25, 2024
  • Report Date: Oct 30, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandASRock
Manufacturer (OEM)FSP
SeriesPhantom Gaming
Model Number9PA13A1300
Serial NumberS4311030004
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)8-15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling135mm Hydro Dynamic Bearing Fan (PLA13525S12M)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525108.330.3
Watts1301300153.6
Total Max. Power (W)1300

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (675mm) 4 4 16-18AWG No
6+2 pin PCIe (675mm+75mm) 2 4 16-18AWG No
12+4 pin PCIe (710mm) (600W) 1 1 16-24AWG No

SATA (450mm+100mm+100mm)

 3 9 18AWG No
4-pin Molex (450mm+100mm+100mm) 1 3 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.2
AC Loss to PWR_OK Hold Up Time (ms)22.2
PWR_OK Inactive to DC Loss Delay (ms)2

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.03 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.075 W 0.053 W N/A 0.109 W N/A N/A
Apparent Power: 10.077 W 9.969 W N/A 10.177 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.02 V 230.92 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.25 % 2.00 % PASS
Real Power: 0.128 W 0.080 W N/A 0.230 W N/A N/A
Apparent Power: 34.271 W 33.986 W N/A 34.598 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

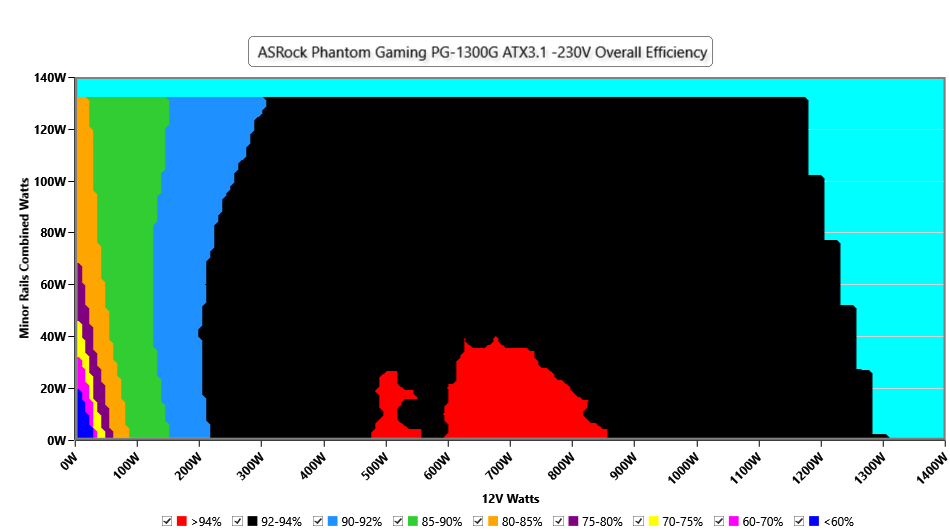

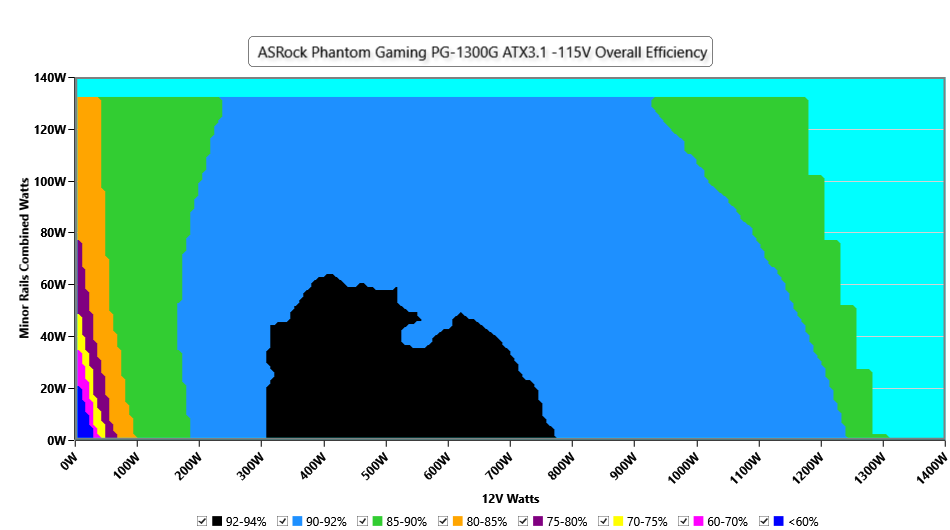

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

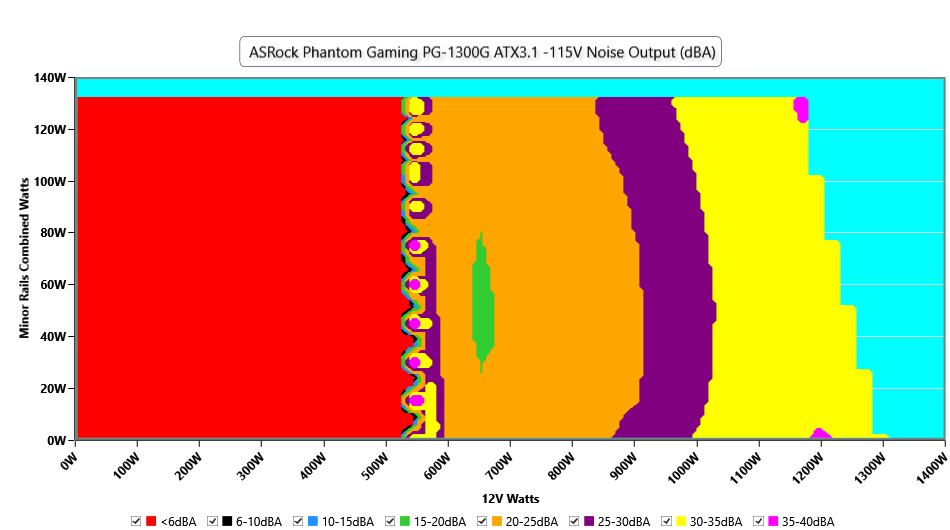

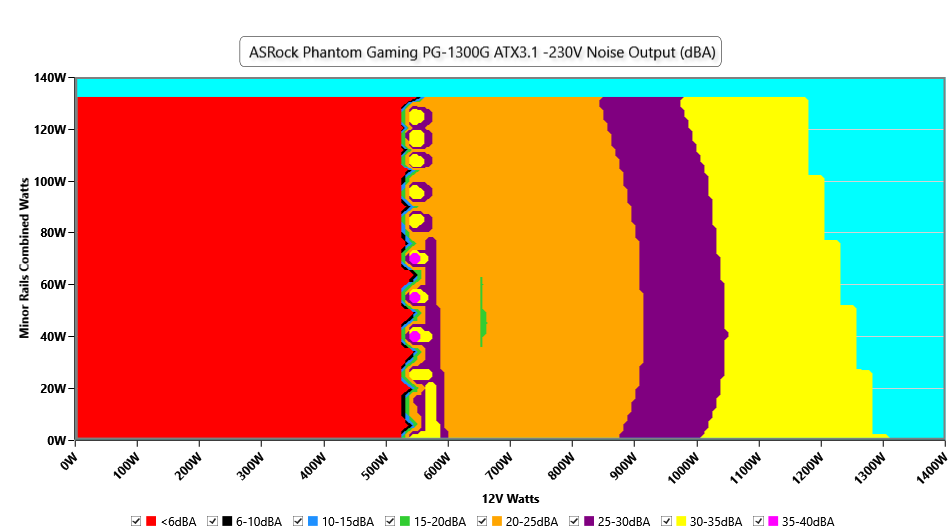

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

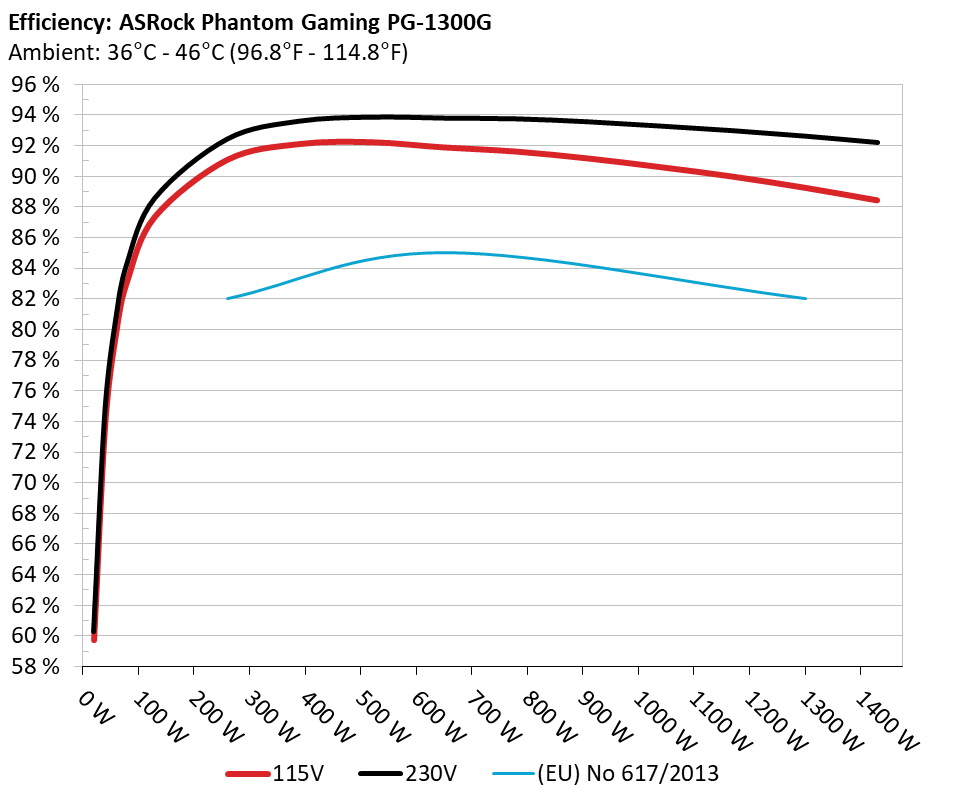

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

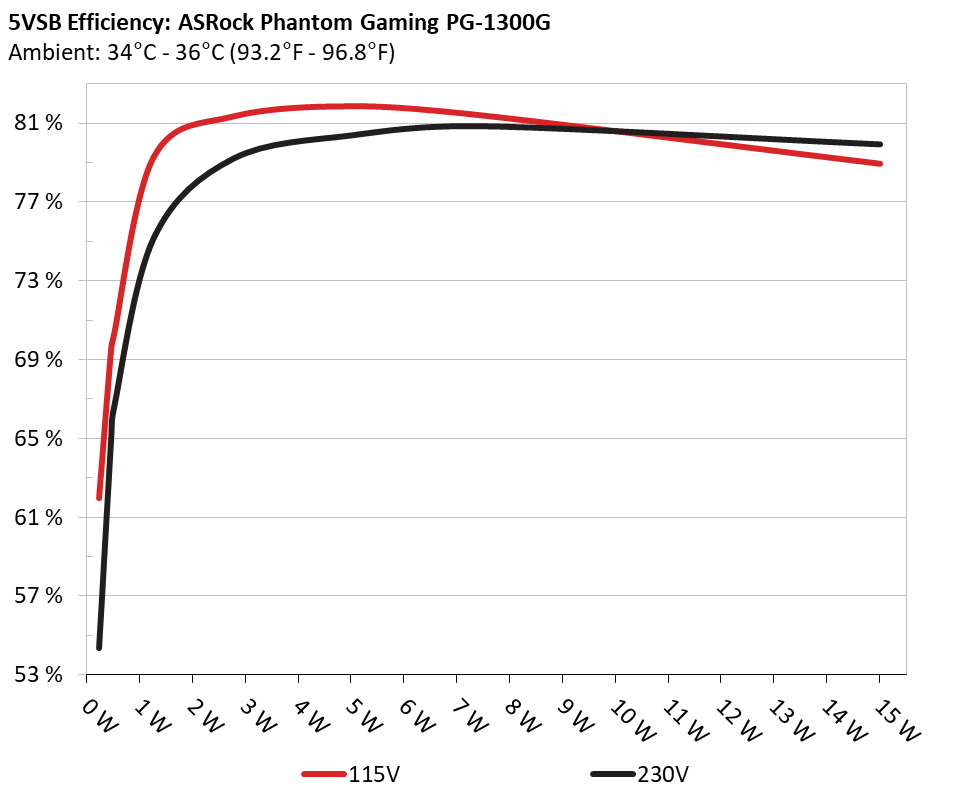

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 61.973% 0.036
5.05V 0.367W 114.88V
2 0.09A 0.455W 69.537% 0.064
5.049V 0.654W 114.88V
3 0.55A 2.773W 81.351% 0.263
5.042V 3.409W 114.87V
4 1A 5.035W 81.867% 0.346
5.035V 6.15W 114.87V
5 1.5A 7.542W 81.379% 0.408
5.027V 9.268W 114.87V
6 3.001A 15.012W 78.946% 0.488
5.003V 19.015W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 54.334% 0.012
5.05V 0.418W 229.94V
2 0.09A 0.455W 64.929% 0.02
5.049V 0.701W 229.94V
3 0.55A 2.773W 79.223% 0.098
5.042V 3.501W 229.94V
4 1A 5.036W 80.413% 0.165
5.035V 6.263W 229.94V
5 1.5A 7.542W 80.863% 0.203
5.027V 9.327W 229.94V
6 3.001A 15.012W 79.945% 0.317
5.003V 18.779W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.946A 1.976A 1.978A 0.995A 130.015 87.369% 0 <6.0 51.53°C 0.987
12.118V 5.062V 3.337V 5.028V 148.809 40.21°C 114.83V
20% 18.916A 2.966A 2.97A 1.196A 259.987 91.062% 0 <6.0 53.44°C 0.995
12.110V 5.059V 3.333V 5.017V 285.503 40.83°C 114.79V
30% 29.219A 3.462A 3.469A 1.398A 389.697 92.087% 0 <6.0 54.59°C 0.997
12.103V 5.056V 3.33V 5.006V 423.182 41.21°C 114.75V
40% 39.550A 3.958A 3.968A 1.602A 519.658 92.204% 0 <6.0 57.29°C 0.997
12.097V 5.054V 3.327V 4.996V 563.601 41.98°C 114.7V
50% 49.585A 4.952A 4.968A 1.806A 649.797 91.867% 957 24.6 42.15°C 0.997
12.086V 5.049V 3.322V 4.985V 707.326 54.47°C 114.65V
60% 59.637A 5.948A 5.971A 2A 779.857 91.6% 1003 26.5 42.69°C 0.997
12.075V 5.045V 3.316V 4.975V 851.38 56.34°C 114.61V
70% 69.698A 6.945A 6.975A 2.217A 909.98 91.146% 1127 29.3 43.28°C 0.997
12.065V 5.041V 3.312V 4.963V 998.37 58.03°C 114.56V
80% 79.772A 7.941A 7.98A 2.322A 1039.571 90.586% 1277 33.8 43.68°C 0.997
12.056V 5.038V 3.308V 4.954V 1147.614 60.16°C 114.51V
90% 90.253A 8.442A 8.474A 2.427A 1169.797 89.964% 1434 36.3 44.23°C 0.996
12.047V 5.035V 3.304V 4.945V 1300.303 62.04°C 114.46V
100% 100.487A 8.944A 8.999A 3.045A 1299.395 89.242% 1593 39.1 45.09°C 0.996
12.038V 5.032V 3.3V 4.928V 1456.033 65.09°C 114.4V
110% 110.669A 9.945A 10.102A 3.05A 1429.586 88.421% 1762 40.8 46.31°C 0.996
12.029V 5.028V 3.296V 4.92V 1616.789 68.18°C 114.35V
CL1 0.116A 15.542A 15.482A 0A 131.308 82.325% 0 <6.0 51.67°C 0.99
12.120V 5.038V 3.333V 5.036V 159.5 42.85°C 114.83V
CL2 0.114A 24.856A 0A 0A 126.263 80.221% 0 <6.0 52.03°C 0.99
12.122V 5.024V 3.346V 5.041V 157.38 40.29°C 114.84V
CL3 0.114A 0A 24.78A 0A 83.885 74.966% 0 <6.0 53.29°C 0.98
12.118V 5.064V 3.329V 5.037V 111.893 40.12°C 114.85V
CL4 107.928A 0A 0A 0A 1299.937 89.885% 1589 39.1 45.38°C 0.996
12.044V 5.051V 3.31V 4.983V 1446.229 69.17°C 114.41V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.946A 1.976A 1.978A 0.994A 129.987 88.59% 0 <6.0 50.7°C 0.907
12.116V 5.062V 3.337V 5.028V 146.728 40.01°C 229.93V
20% 18.916A 2.965A 2.97A 1.196A 259.944 92.441% 0 <6.0 51.88°C 0.965
12.109V 5.059V 3.333V 5.018V 281.199 40.84°C 229.91V
30% 29.211A 3.461A 3.468A 1.398A 389.551 93.611% 0 <6.0 52.86°C 0.981
12.102V 5.057V 3.33V 5.008V 416.139 41.25°C 229.89V
40% 39.544A 3.957A 3.967A 1.601A 519.516 93.875% 0 <6.0 54.72°C 0.988
12.096V 5.054V 3.327V 4.998V 553.411 41.96°C 229.87V
50% 49.573A 4.951A 4.967A 1.805A 649.654 93.813% 883 23.3 42.25°C 0.99
12.086V 5.05V 3.322V 4.987V 692.5 52.86°C 229.85V
60% 59.623A 5.946A 5.969A 2A 779.726 93.763% 961 25 42.61°C 0.99
12.076V 5.046V 3.317V 4.977V 831.593 53.37°C 229.83V
70% 69.682A 6.942A 6.973A 2.215A 909.873 93.57% 1078 29 43.09°C 0.989
12.066V 5.042V 3.313V 4.966V 972.405 53.89°C 229.81V
80% 79.754A 7.938A 7.977A 2.32A 1039.458 93.294% 1243 31.6 43.84°C 0.989
12.057V 5.039V 3.309V 4.957V 1114.171 54.81°C 229.79V
90% 90.236A 8.439A 8.47A 2.425A 1169.707 92.991% 1414 35.6 44.44°C 0.989
12.048V 5.036V 3.305V 4.948V 1257.864 56.22°C 229.77V
100% 100.461A 8.94A 8.994A 3.042A 1299.34 92.638% 1576 38.6 45.14°C 0.989
12.041V 5.033V 3.302V 4.931V 1402.609 57.07°C 229.74V
110% 110.647A 9.941A 10.097A 3.047A 1429.543 92.219% 1727 39.9 46.29°C 0.988
12.031V 5.03V 3.298V 4.923V 1550.171 58.21°C 229.72V
CL1 0.115A 15.536A 15.486A 0A 131.292 83.506% 0 <6.0 53.86°C 0.917
12.119V 5.04V 3.332V 5.037V 157.224 40.81°C 229.94V
CL2 0.114A 24.842A 0A 0A 126.258 81.271% 0 <6.0 54.03°C 0.916
12.124V 5.026V 3.346V 5.042V 155.354 40.19°C 229.93V
CL3 0.114A 0A 24.769A 0A 83.881 75.557% 0 <6.0 54.36°C 0.864
12.119V 5.065V 3.331V 5.038V 111.027 40.71°C 229.94V
CL4 107.899A 0A 0A 0A 1299.899 93.116% 1600 39 45.6°C 0.989
12.047V 5.052V 3.312V 4.985V 1395.992 56.74°C 229.74V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.494A 0.494A 0.198A 20.01 59.755% 0 <6.0 45.78°C 0.877
12.123V 5.065V 3.34V 5.047V 33.487 36.15°C 114.87V
40W 2.697A 0.691A 0.692A 0.297A 40.008 73.776% 0 <6.0 47.57°C 0.939
12.123V 5.064V 3.339V 5.044V 54.23 37.23°C 114.86V
60W 4.168A 0.889A 0.889A 0.397A 60.007 79.841% 0 <6.0 48.92°C 0.962
12.122V 5.064V 3.339V 5.041V 75.157 38.08°C 114.85V
80W 5.637A 1.086A 1.087A 0.496A 79.96 83.179% 0 <6.0 50.27°C 0.971
12.121V 5.064V 3.339V 5.039V 96.131 39.36°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.494A 0.494A 0.198A 20.004 60.277% 0 <6.0 42.44°C 0.498
12.116V 5.063V 3.337V 5.047V 33.19 36.25°C 229.95V
40W 2.698A 0.691A 0.692A 0.297A 40.005 74.504% 0 <6.0 46°C 0.67
12.116V 5.063V 3.337V 5.044V 53.698 37.13°C 229.94V
60W 4.170A 0.889A 0.89A 0.397A 60.002 80.732% 0 <6.0 48.34°C 0.772
12.117V 5.063V 3.337V 5.041V 74.322 38.88°C 229.94V
80W 5.638A 1.086A 1.088A 0.496A 79.943 84.326% 0 <6.0 48.78°C 0.83
12.117V 5.063V 3.337V 5.039V 94.803 39.13°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 11.3 mV 11.6 mV 11.5 mV 9.3 mV Pass
20% Load 12.8 mV 11.1 mV 11.1 mV 9.2 mV Pass
30% Load 14.9 mV 12.0 mV 11.9 mV 10.3 mV Pass
40% Load 19.9 mV 12.8 mV 12.0 mV 11.6 mV Pass
50% Load 16.5 mV 14.5 mV 12.8 mV 12.5 mV Pass
60% Load 15.9 mV 13.8 mV 11.4 mV 12.7 mV Pass
70% Load 15.8 mV 12.7 mV 12.1 mV 14.0 mV Pass
80% Load 15.8 mV 14.5 mV 12.3 mV 15.7 mV Pass
90% Load 16.6 mV 13.3 mV 11.5 mV 15.6 mV Pass
100% Load 24.8 mV 16.3 mV 14.4 mV 18.1 mV Pass
110% Load 25.6 mV 19.2 mV 15.5 mV 21.8 mV Pass
Crossload 1 14.4 mV 11.2 mV 13.0 mV 16.6 mV Pass
Crossload 2 12.2 mV 19.6 mV 11.2 mV 10.2 mV Pass
Crossload 3 11.1 mV 12.4 mV 13.5 mV 17.1 mV Pass
Crossload 4 25.5 mV 14.4 mV 14.0 mV 26.1 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 10.9 mV 10.8 mV 10.8 mV 8.6 mV Pass
20% Load 12.4 mV 11.1 mV 11.9 mV 9.4 mV Pass
30% Load 14.5 mV 11.6 mV 11.1 mV 9.4 mV Pass
40% Load 21.0 mV 12.5 mV 11.6 mV 11.2 mV Pass
50% Load 20.9 mV 12.9 mV 11.8 mV 11.9 mV Pass
60% Load 17.5 mV 13.3 mV 12.0 mV 13.2 mV Pass
70% Load 19.0 mV 14.4 mV 12.5 mV 13.6 mV Pass
80% Load 20.6 mV 14.5 mV 13.7 mV 14.3 mV Pass
90% Load 19.7 mV 14.3 mV 12.6 mV 14.7 mV Pass
100% Load 29.0 mV 20.4 mV 20.7 mV 19.2 mV Pass
110% Load 30.3 mV 22.4 mV 21.8 mV 20.0 mV Pass
Crossload 1 18.0 mV 16.7 mV 17.6 mV 19.0 mV Pass
Crossload 2 13.6 mV 17.5 mV 11.9 mV 15.9 mV Pass
Crossload 3 12.4 mV 12.9 mV 14.7 mV 17.1 mV Pass
Crossload 4 30.3 mV 22.7 mV 21.2 mV 25.0 mV Pass

The results above are not used in the certification process

ASRock Phantom Gaming PG-1300G (ATX v3.1)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
