CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Enhance Electronics ATX-6285
Serial Number
Lab IDEE85002619
  • Report: 24PS2619A
  • Receipt Date: Oct 10, 2024
  • Test Date: Oct 22, 2024
  • Report Date: Oct 23, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEnhance Electronics
Manufacturer (OEM)Enhance Electronic
Series
Model NumberATX-6285
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5.0
Rated Frequency (Hz)60-50
Rated Power (W)850
TypeATX12V
Cooling120mm Rifle Bearing Fan (D12SH-12)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222270.82.50.3
Watts120849.612.53.6
Total Max. Power (W)850

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (575mm) 1 1 18-22AWG No
4+4 pin EPS12V (875mm) 2 2 18AWG No
6+2 pin PCIe (580mm) 3 3 18AWG No
12+4 pin PCIe (730mm) (450W) 1 1 16-24AWG No
SATA (585mm+145mm+145mm+145mm) 2 8 18AWG No
SATA (585mm) / 4-pin Molex (+150mm) 1 1 / 1 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16.8
AC Loss to PWR_OK Hold Up Time (ms)15.2
PWR_OK Inactive to DC Loss Delay (ms)1.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.96 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.059 W 0.010 W N/A 0.104 W N/A N/A
Apparent Power: 15.151 W 15.081 W N/A 15.227 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.92 V 227.70 V 231.06 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.24 % 2.00 % PASS
Real Power: 0.123 W 0.083 W N/A 0.190 W N/A N/A
Apparent Power: 51.881 W 51.589 W N/A 52.192 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

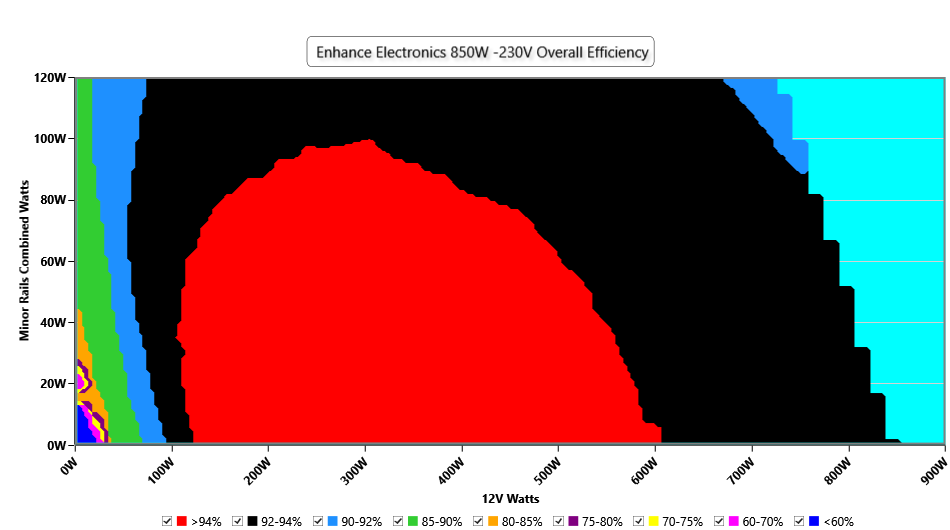

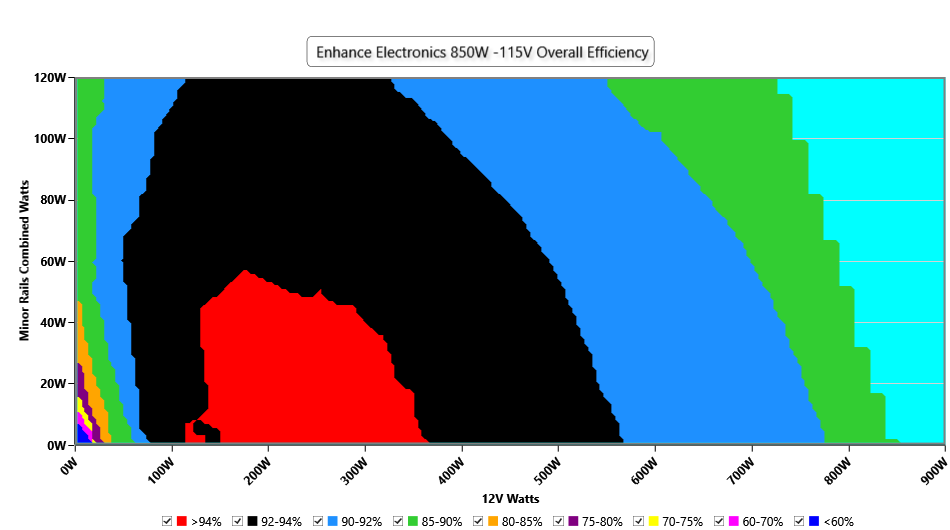

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

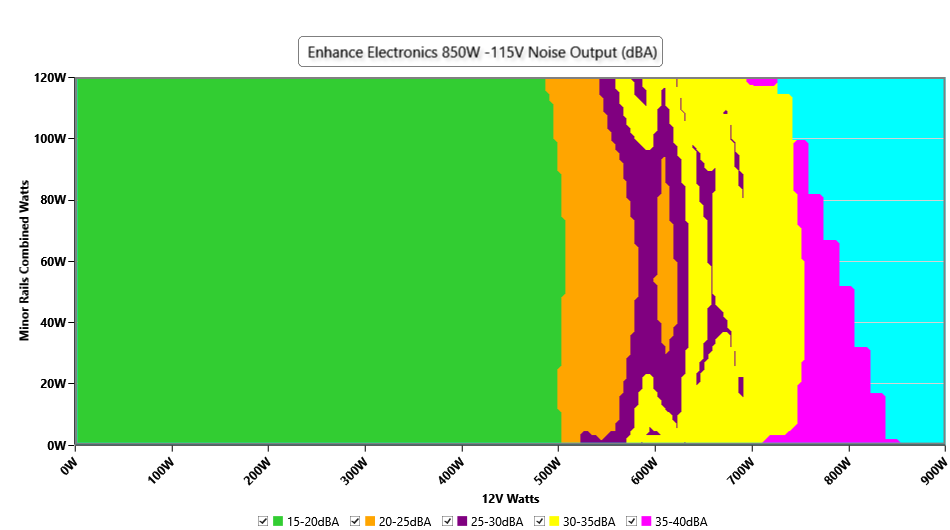

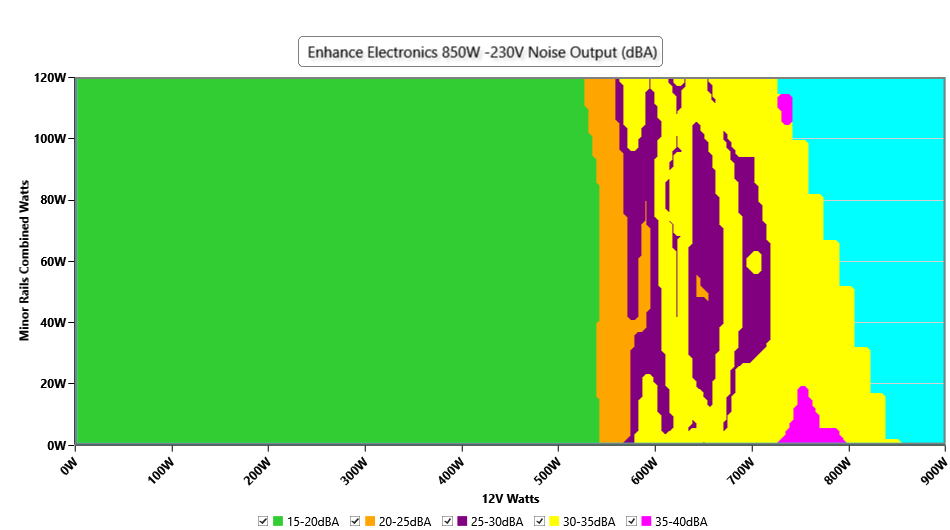

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

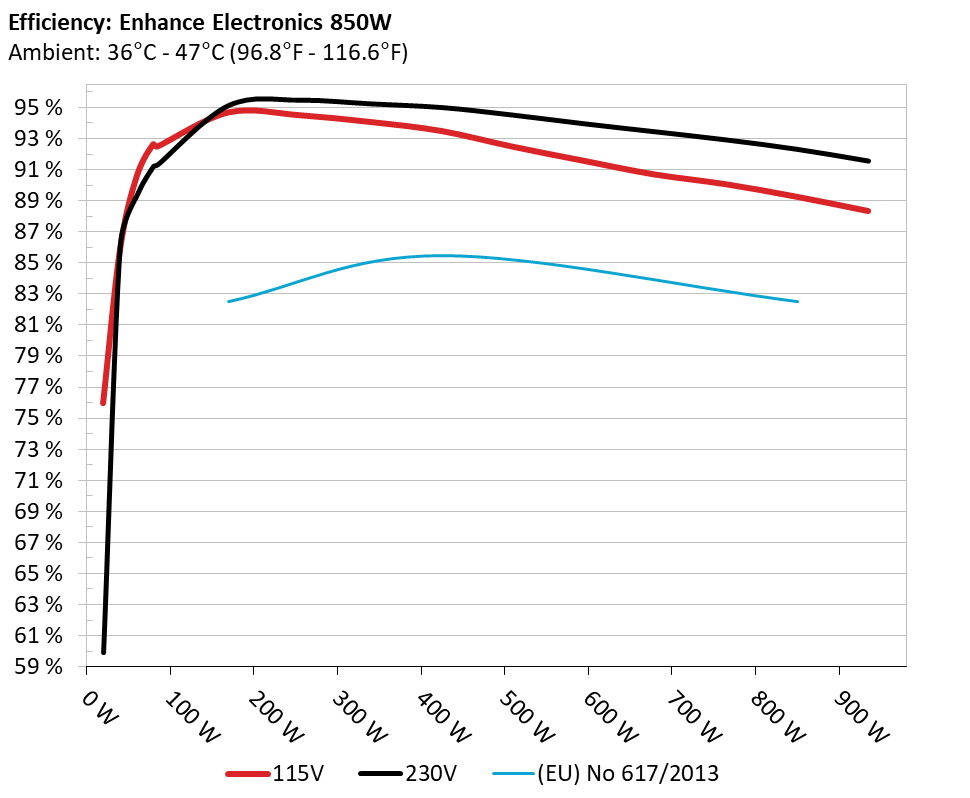

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

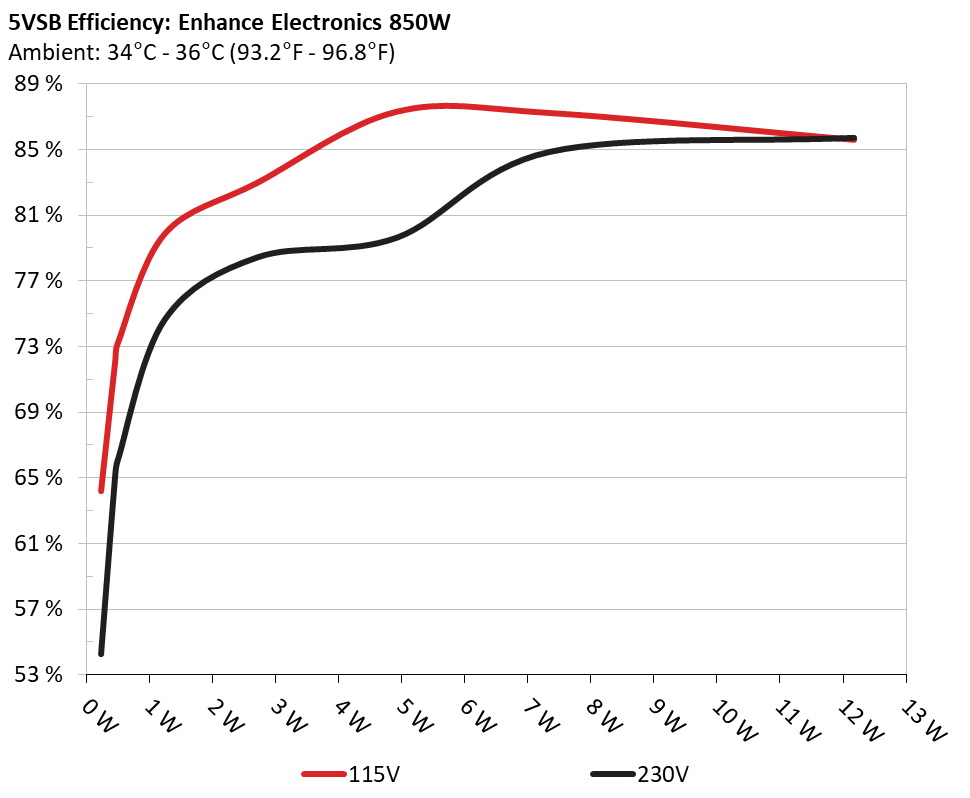

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 64.197% 0.023
4.94V 0.347W 114.88V
2 0.09A 0.444W 72.024% 0.04
4.936V 0.617W 114.89V
3 0.55A 2.708W 82.981% 0.186
4.923V 3.263W 114.89V
4 1A 4.912W 87.295% 0.261
4.911V 5.629W 114.88V
5 1.5A 7.347W 87.218% 0.318
4.897V 8.424W 114.88V
6 2.501A 12.175W 85.585% 0.377
4.869V 14.226W 114.88V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 54.246% 0.008
4.941V 0.411W 229.94V
2 0.09A 0.444W 65.031% 0.013
4.938V 0.686W 229.94V
3 0.55A 2.708W 78.428% 0.065
4.925V 3.457W 229.94V
4 1A 4.912W 79.612% 0.112
4.912V 6.17W 229.94V
5 1.5A 7.348W 84.851% 0.15
4.899V 8.663W 229.94V
6 2.5A 12.176W 85.705% 0.218
4.871V 14.21W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.234A 1.992A 1.982A 1.001A 85.006 92.004% 782 18.3 40.05°C 0.967
12.113V 5.021V 3.33V 4.996V 92.394 40.82°C 114.84V
20% 11.487A 2.99A 2.978A 1.203A 169.934 94.199% 787 18.2 40.7°C 0.984
12.103V 5.017V 3.325V 4.989V 180.4 42.19°C 114.82V
30% 18.104A 3.491A 3.48A 1.406A 254.948 94.018% 1904 44.1 41.18°C 0.988
12.091V 5.013V 3.32V 4.979V 271.17 44.57°C 114.79V
40% 24.740A 3.993A 3.983A 1.61A 340.053 93.579% 1545 37.2 41.69°C 0.99
12.079V 5.01V 3.314V 4.97V 363.382 43.55°C 114.76V
50% 31.017A 4.994A 4.986A 1.813A 424.868 92.999% 2009 45.2 42.2°C 0.988
12.070V 5.006V 3.309V 4.963V 456.853 45.38°C 114.73V
60% 37.296A 5.999A 5.995A 2A 509.315 91.996% 2280 47.7 42.94°C 0.99
12.055V 5.002V 3.303V 4.955V 553.625 46.78°C 114.7V
70% 43.651A 7.005A 7.007A 2.224A 594.745 91.084% 2278 47.8 43.24°C 0.993
12.042V 4.998V 3.297V 4.946V 652.968 47.95°C 114.67V
80% 50.025A 8.011A 8.022A 2.328A 679.587 90.204% 2276 47.7 43.82°C 0.994
12.028V 4.993V 3.291V 4.941V 753.388 48.51°C 114.64V
90% 56.785A 8.516A 8.519A 2.432A 765.013 89.572% 2273 47.6 44.04°C 0.994
12.019V 4.991V 3.287V 4.936V 854.08 49.48°C 114.6V
100% 63.507A 9.022A 9.05A 2.536A 849.687 88.766% 2275 47.6 45.12°C 0.995
12.007V 4.988V 3.282V 4.93V 957.221 51.73°C 114.57V
110% 69.983A 10.032A 10.164A 2.536A 935.056 87.846% 2276 47.7 46.57°C 0.996
11.993V 4.984V 3.276V 4.929V 1064.434 54.37°C 114.54V
CL1 0.116A 14.445A 14.399A 0A 121.296 87.386% 1804 42.5 40.68°C 0.977
12.089V 4.998V 3.313V 5.055V 138.806 44.89°C 114.82V
CL2 0.114A 22.022A 0A 0A 111.326 86.878% 1294 32.2 40.36°C 0.975
12.101V 4.992V 3.328V 5.081V 128.142 43.3°C 114.83V
CL3 0.114A 0A 21.932A 0A 73.98 82.685% 1138 29 40.22°C 0.966
12.100V 5.021V 3.31V 5.018V 89.475 42.96°C 114.84V
CL4 70.654A 0.007A 0.007A 0.004A 849.591 89.403% 2295 47.9 45.09°C 0.995
12.024V 5.005V 3.296V 4.994V 950.293 51.06°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.236A 1.992A 1.982A 1.001A 85.007 90.833% 785 18 40.28°C 0.815
12.110V 5.02V 3.33V 4.995V 93.586 42.34°C 229.93V
20% 11.492A 2.991A 2.978A 1.203A 169.951 94.651% 787 18.2 40.8°C 0.915
12.100V 5.016V 3.324V 4.987V 179.559 42.35°C 229.91V
30% 18.106A 3.492A 3.48A 1.406A 254.962 94.988% 1609 38.2 41.08°C 0.947
12.090V 5.013V 3.319V 4.979V 268.411 43.52°C 229.9V
40% 24.741A 3.994A 3.983A 1.61A 340.059 94.749% 1568 37.8 41.75°C 0.962
12.079V 5.009V 3.314V 4.969V 358.906 43.71°C 229.88V
50% 31.025A 4.996A 4.988A 1.814A 424.936 94.511% 1675 39 42.05°C 0.969
12.069V 5.005V 3.308V 4.961V 449.615 43.97°C 229.87V
60% 37.293A 6A 5.997A 2A 509.377 94.029% 2133 45.4 42.91°C 0.974
12.057V 5.001V 3.302V 4.954V 541.721 45.55°C 229.86V
70% 43.644A 7.006A 7.009A 2.225A 594.777 93.47% 2249 47.2 43.18°C 0.977
12.044V 4.997V 3.296V 4.945V 636.33 46.86°C 229.84V
80% 50.013A 8.012A 8.023A 2.328A 679.593 92.954% 2269 47.6 43.62°C 0.979
12.031V 4.993V 3.291V 4.94V 731.109 48.41°C 229.83V
90% 56.788A 8.518A 8.522A 2.432A 765.008 92.429% 2271 47.6 44.8°C 0.981
12.018V 4.99V 3.285V 4.934V 827.673 50.45°C 229.82V
100% 63.521A 9.025A 9.054A 2.537A 849.706 91.826% 2272 47.6 45.34°C 0.983
12.004V 4.986V 3.28V 4.928V 925.351 53.49°C 229.8V
110% 70.025A 10.036A 10.172A 2.538A 935.1 91.069% 2268 47.6 46.24°C 0.984
11.986V 4.982V 3.274V 4.926V 1026.802 55.33°C 229.79V
CL1 0.116A 14.448A 14.404A 0A 121.305 87.481% 1674 39 40.9°C 0.885
12.085V 4.997V 3.311V 5.055V 138.667 44.36°C 229.92V
CL2 0.116A 22.025A 0A 0A 111.335 86.379% 1419 34.5 40.22°C 0.875
12.098V 4.992V 3.327V 5.082V 128.891 42.95°C 229.92V
CL3 0.115A 0A 21.938A 0A 73.986 81.26% 1271 31.9 40.1°C 0.809
12.097V 5.02V 3.309V 5.016V 91.05 42.94°C 229.93V
CL4 70.673A 0.007A 0.007A 0.004A 849.632 92.402% 2292 47.8 45.81°C 0.983
12.021V 5.003V 3.294V 4.992V 919.496 51.53°C 229.8V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.498A 0.495A 0.199A 19.995 75.474% 773 17.5 36.43°C 0.832
12.128V 5.025V 3.336V 5.021V 26.495 36.63°C 114.86V
40W 2.696A 0.697A 0.693A 0.299A 39.994 85.282% 775 17.5 37.19°C 0.925
12.124V 5.024V 3.334V 5.017V 46.893 37.76°C 114.85V
60W 4.169A 0.896A 0.891A 0.399A 59.998 90.055% 777 17.9 38.55°C 0.945
12.120V 5.023V 3.333V 5.013V 66.624 38.78°C 114.85V
80W 5.638A 1.095A 1.09A 0.499A 79.946 92.146% 779 18 39.13°C 0.964
12.116V 5.022V 3.332V 5.01V 86.761 40.23°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.498A 0.495A 0.199A 19.999 59.418% 773 17.5 36.12°C 0.382
12.127V 5.025V 3.336V 5.021V 25.418 36.52°C 229.95V
40W 2.696A 0.697A 0.693A 0.299A 40 85.628% 774 17.5 37.19°C 0.614
12.123V 5.024V 3.335V 5.017V 46.713 38.02°C 229.94V
60W 4.170A 0.896A 0.891A 0.399A 60.001 88.855% 777 17.9 38.18°C 0.729
12.118V 5.023V 3.333V 5.013V 67.526 39.91°C 229.93V
80W 5.640A 1.095A 1.089A 0.499A 79.95 90.728% 779 18 39.34°C 0.8
12.114V 5.022V 3.332V 5.01V 88.118 40.89°C 229.93V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.4 mV 11.0 mV 7.0 mV 8.5 mV Pass
20% Load 12.0 mV 14.7 mV 8.2 mV 12.5 mV Pass
30% Load 15.8 mV 17.4 mV 10.6 mV 14.3 mV Pass
40% Load 21.8 mV 20.6 mV 10.0 mV 18.4 mV Pass
50% Load 28.9 mV 22.2 mV 11.7 mV 19.3 mV Pass
60% Load 32.9 mV 23.7 mV 12.3 mV 22.5 mV Pass
70% Load 37.2 mV 25.6 mV 14.0 mV 25.3 mV Pass
80% Load 41.7 mV 28.0 mV 22.0 mV 28.3 mV Pass
90% Load 43.2 mV 32.5 mV 22.9 mV 30.9 mV Pass
100% Load 52.2 mV 35.9 mV 25.1 mV 35.7 mV Pass
110% Load 58.9 mV 37.8 mV 27.2 mV 39.1 mV Pass
Crossload 1 18.2 mV 18.1 mV 20.3 mV 13.4 mV Pass
Crossload 2 10.9 mV 15.5 mV 7.2 mV 12.2 mV Pass
Crossload 3 10.5 mV 11.3 mV 24.4 mV 8.6 mV Pass
Crossload 4 51.8 mV 33.9 mV 16.5 mV 33.9 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 22.4 mV 13.8 mV 7.8 mV 10.0 mV Pass
20% Load 12.5 mV 16.3 mV 8.1 mV 11.8 mV Pass
30% Load 16.2 mV 19.2 mV 9.1 mV 15.1 mV Pass
40% Load 20.0 mV 21.7 mV 9.8 mV 17.6 mV Pass
50% Load 24.7 mV 23.8 mV 11.3 mV 20.1 mV Pass
60% Load 29.1 mV 26.2 mV 18.1 mV 22.5 mV Pass
70% Load 35.3 mV 34.8 mV 15.2 mV 31.5 mV Pass
80% Load 37.1 mV 30.1 mV 21.2 mV 27.9 mV Pass
90% Load 41.4 mV 31.0 mV 21.9 mV 29.8 mV Pass
100% Load 51.6 mV 34.6 mV 21.3 mV 34.5 mV Pass
110% Load 56.6 mV 37.6 mV 24.2 mV 37.4 mV Pass
Crossload 1 17.9 mV 18.3 mV 19.8 mV 13.5 mV Pass
Crossload 2 11.2 mV 15.5 mV 6.6 mV 11.3 mV Pass
Crossload 3 12.8 mV 12.3 mV 22.6 mV 9.4 mV Pass
Crossload 4 51.3 mV 33.4 mV 14.4 mV 32.4 mV Pass

The results above are not used in the certification process

Enhance Electronics ATX-6285

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
