Super Flower Zillion 750W
序号
Lab IDSF75002605
  • Report: 24PS2605A
  • Receipt Date: Oct 3, 2024
  • Test Date: Oct 11, 2024
  • Report Date: Oct 11, 2024
115V230V
效率等级
115V230V
噪音等级
Aristeidis Bitziopoulos, Lab Director

General Information

被测品资讯

品牌名称Super Flower
制造商 (OEM)Super Flower
系列名称Zillion
型号SF-750Z12DB(D)
序号
被测品纪录Hold up time lower than 17ms.

被测品规格

额定电压 (Vrms)200-240
额定电流 (Arms)6
额定频率 (Hz)50-60
额定功率 (W)750
类别ATX12V
散热120mm Sleeve Bearing Fan (ZFH122512H)
半被动运转✗
线材设计Fixed cables

电源规范

组3.3V5V12V5VSB-12V
最大功率安培181862.530.3
瓦100750153.6
最大总功率 (W)750

测试设备

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA

线材与接头

直出线材
描述 线材数量 总连接器数量 Gauge In Cable Capacitors
ATX 接头 20+4 pin (510mm) 1 1 18AWG 否
8 pin EPS 12V 接头 (590mm) / 4+4 pin EPS 12V 接头 (+140mm) 2 2 / 2 18AWG 否
6+2pin PCIe接头 (520mm+140mm) 2 4 18AWG 否
SATA接头 (470mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG 否
模组化线材
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG 否

Test Results

Temperature & Compliance Info

温度范围 (°C /°F)30-32 / 86-89.6
符合ErP Lot3/6规范✓
符合(EU) No 617/2013规范✓

Performance Summary 230V

平均效率88.040%
平均效率 VSB79.161%
待机功率耗损 (W)0.1170
PF平均值0.942
平均噪音输出38.47 dB(A)
效率等级 (ETA)SILVER
噪音等级 (LAMBDA)Standard+

保持时间 & PG信号

Hold-Up Time (ms)15.9
AC Loss to PWR_OK Hold Up Time (ms)13.7
PWR_OK Inactive to DC Loss Delay (ms)2.2

待机电源

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.37 V 230.32 V 227.70 V 230.40 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.415 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.117 W 0.094 W N/A 0.151 W N/A N/A
Apparent Power: 23.239 W 23.205 W N/A 23.263 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs 230V

转换效率图表

230V

资讯

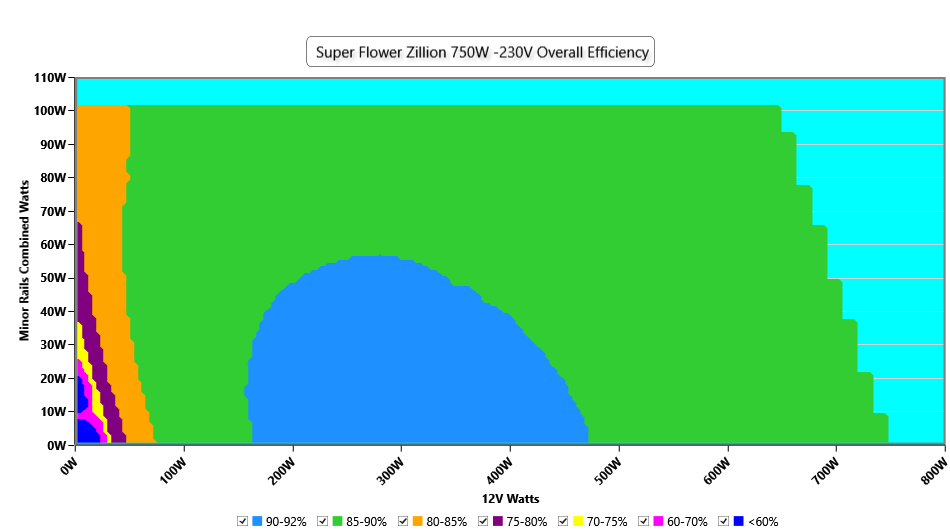

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

噪音值图表

230V

资讯

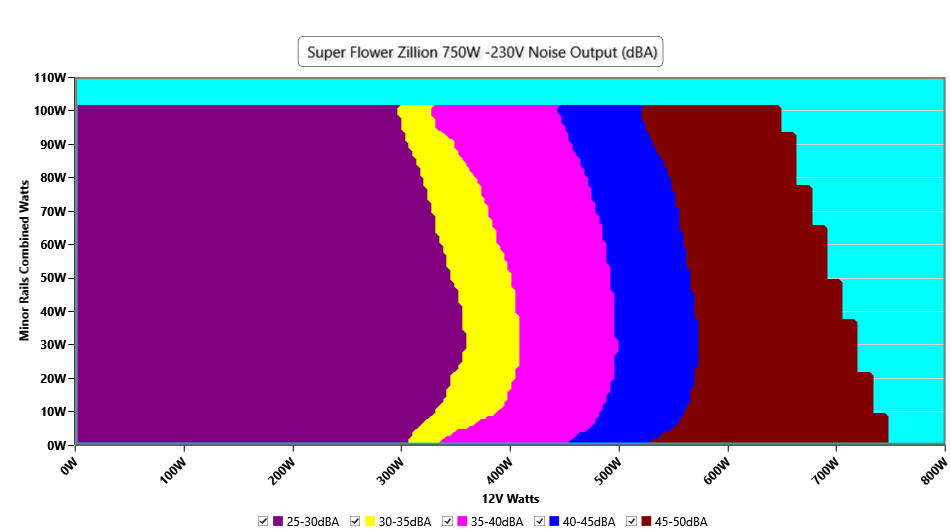

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

高环温电源转换效率

资讯

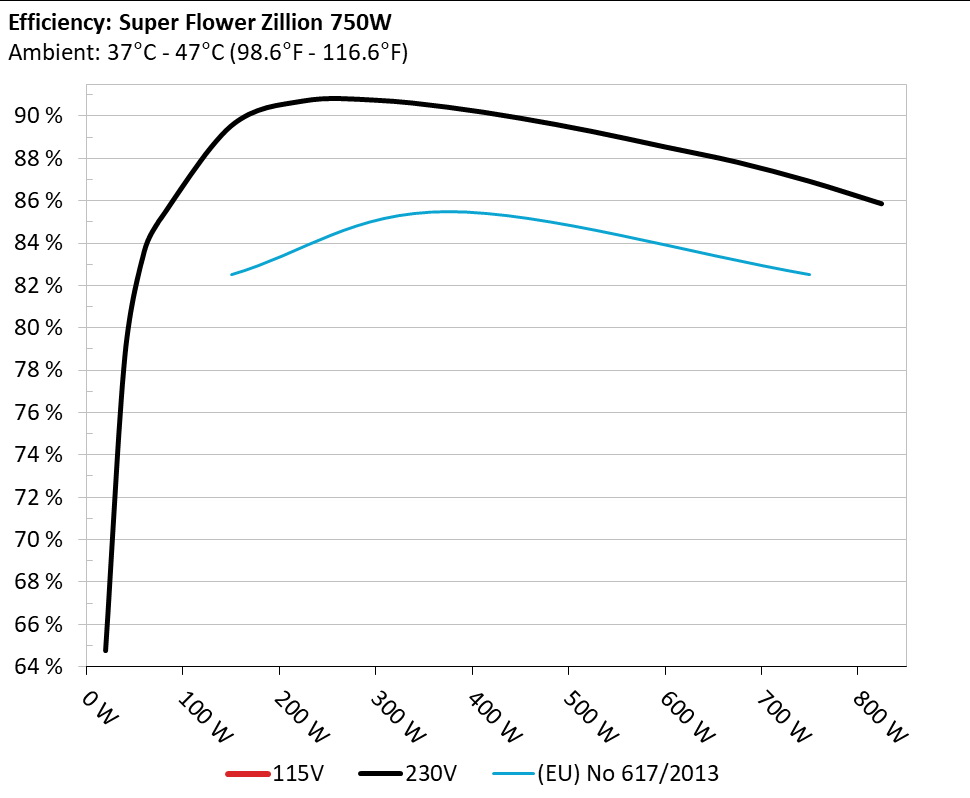

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5Vsb转换效率

资讯

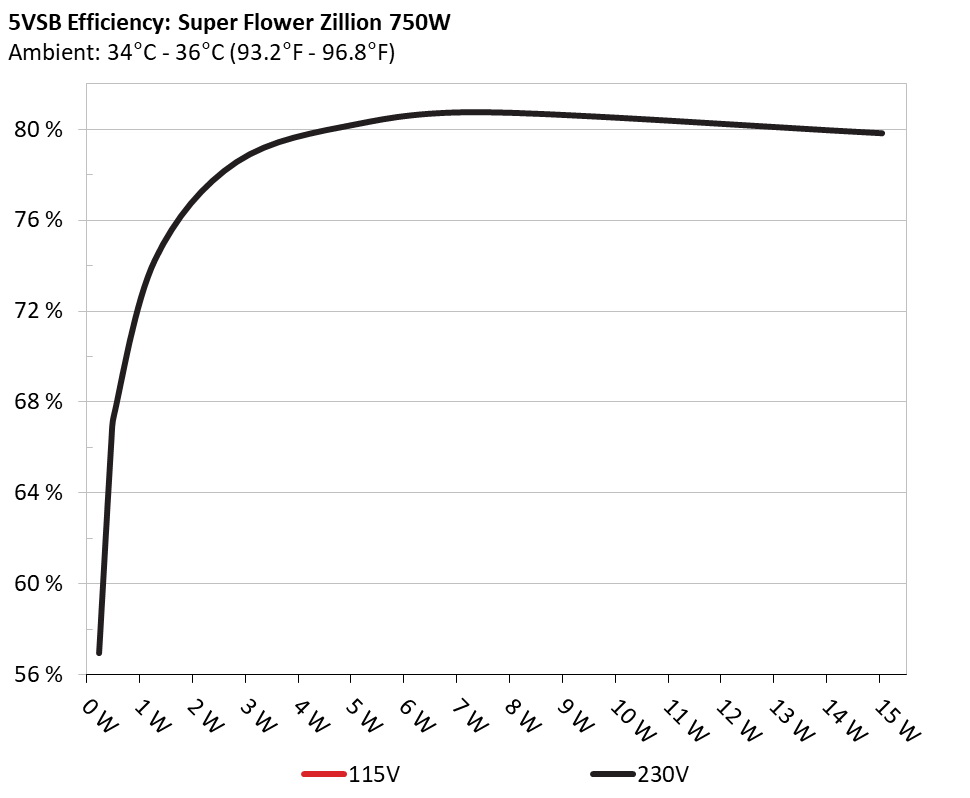

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 230V

测试 # 5VSB DC/AC (瓦) 效率 PF/AC 电压
1 0.045A 0.233W 56.949% 0.018
5.18V 0.41W 230.41V
2 0.09A 0.466W 66.308% 0.03
5.178V 0.704W 230.4V
3 0.55A 2.836W 78.567% 0.138
5.153V 3.61W 230.42V
4 1A 5.131W 80.243% 0.208
5.129V 6.395W 230.42V
5 1.501A 7.655W 80.753% 0.254
5.102V 9.48W 230.42V
6 3.001A 15.051W 79.832% 0.326
5.016V 18.854W 230.42V

Supplementary Tests (For Reference)

10-110%负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
10% 4.396A 2.014A 1.982A 0.977A 75.01 84.525% 1000 26 40.22°C 0.789
12.149V 4.967V 3.331V 5.119V 88.744 42.5°C 230.41V
20% 9.812A 3.028A 2.984A 1.177A 149.977 89.026% 1002 26.2 40.78°C 0.902
12.134V 4.955V 3.318V 5.098V 168.464 43.55°C 230.4V
30% 15.587A 3.54A 3.493A 1.379A 224.986 90.215% 1012 26.3 41.04°C 0.94
12.120V 4.945V 3.307V 5.078V 249.387 44.36°C 230.39V
40% 21.382A 4.055A 4.006A 1.582A 300.079 90.251% 1458 37.6 41.74°C 0.957
12.106V 4.934V 3.296V 5.057V 332.496 45.34°C 230.38V
50% 26.810A 5.082A 5.028A 1.788A 374.694 89.923% 1768 40.6 42.49°C 0.965
12.092V 4.921V 3.282V 5.035V 416.681 46.32°C 230.37V
60% 32.278A 6.114A 6.059A 1.995A 449.62 89.406% 1963 46 42.64°C 0.973
12.076V 4.908V 3.268V 5.013V 502.899 46.9°C 230.36V
70% 37.758A 7.153A 7.1A 2.205A 524.524 88.776% 2128 46.7 43.21°C 0.976
12.061V 4.895V 3.254V 4.99V 590.843 47.86°C 230.35V
80% 43.324A 8.196A 8.147A 2.313A 599.733 88.05% 2200 46.3 43.94°C 0.979
12.045V 4.881V 3.24V 4.973V 681.128 49.37°C 230.35V
90% 49.241A 8.729A 8.673A 2.421A 674.752 87.327% 2201 46.3 44.55°C 0.982
12.027V 4.869V 3.228V 4.957V 772.675 51.5°C 230.34V
100% 54.986A 9.266A 9.236A 3.057A 749.973 86.423% 2199 46.3 45.32°C 0.985
12.008V 4.857V 3.216V 4.907V 867.799 52.9°C 230.32V
110% 60.620A 10.327A 10.402A 3.065A 825.002 85.361% 2197 46.2 46.16°C 0.987
11.988V 4.842V 3.201V 4.895V 966.489 55.67°C 230.31V
CL1 0.116A 12.249A 12.077A 0A 101.306 80.223% 1565 39.3 41.36°C 0.864
12.116V 4.915V 3.287V 5.154V 126.281 46.15°C 230.39V
CL2 0.115A 18.284A 0A 0A 91.402 79.784% 1040 26.5 40.95°C 0.843
12.136V 4.922V 3.317V 5.165V 114.561 43.41°C 230.39V
CL3 0.115A 0A 18.036A 0A 60.794 73.989% 997 26 40.6°C 0.77
12.133V 4.946V 3.293V 5.159V 82.165 43.77°C 230.4V
CL4 62.276A 0A 0.001A 0A 749.804 87.385% 2222 47.2 45.62°C 0.984
12.040V 4.907V 3.26V 5.105V 858.059 51.77°C 230.35V

The results above are not used in the certification process

20-80瓦负载测试 230V

测试 12V 5V 3.3V 5VSB DC/AC (瓦) 效率 风扇转速 (RPM) 电源供应器噪音 (dB[A]) 温度(输入/输出) PF/AC 电压
20W 1.222A 0.502A 0.493A 0.193A 20.009 64.251% 996 26 36.45°C 0.516
12.165V 4.983V 3.345V 5.171V 30.063 38.51°C 230.4V
40W 2.689A 0.703A 0.691A 0.291A 40.007 78.167% 998 26 37.53°C 0.647
12.160V 4.979V 3.342V 5.163V 51.182 39.57°C 230.41V
60W 4.157A 0.905A 0.89A 0.388A 60.007 83.091% 999 26 38.23°C 0.733
12.156V 4.976V 3.338V 5.156V 72.218 40.24°C 230.42V
80W 5.624A 1.107A 1.089A 0.486A 79.982 85.745% 1000 26 39.35°C 0.799
12.152V 4.972V 3.335V 5.148V 93.279 41.61°C 230.42V

The results above are not used in the certification process

纹波测量 230V

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.7 mV 6.2 mV 6.8 mV 5.9 mV Pass
20% Load 11.0 mV 6.5 mV 7.9 mV 6.0 mV Pass
30% Load 10.4 mV 6.7 mV 8.4 mV 6.3 mV Pass
40% Load 10.6 mV 7.0 mV 8.9 mV 6.2 mV Pass
50% Load 13.2 mV 7.7 mV 9.2 mV 7.0 mV Pass
60% Load 17.3 mV 8.3 mV 11.0 mV 7.1 mV Pass
70% Load 22.7 mV 9.1 mV 13.0 mV 7.3 mV Pass
80% Load 30.3 mV 12.9 mV 22.2 mV 8.7 mV Pass
90% Load 37.3 mV 14.3 mV 25.9 mV 9.2 mV Pass
100% Load 59.3 mV 16.9 mV 30.5 mV 11.8 mV Pass
110% Load 66.4 mV 18.6 mV 34.2 mV 12.5 mV Pass
Crossload 1 13.0 mV 9.0 mV 20.2 mV 15.5 mV Pass
Crossload 2 13.6 mV 9.6 mV 6.7 mV 14.2 mV Pass
Crossload 3 10.8 mV 7.9 mV 25.3 mV 13.5 mV Pass
Crossload 4 56.5 mV 10.7 mV 17.4 mV 17.8 mV Pass

The results above are not used in the certification process

Super Flower Zillion 750W

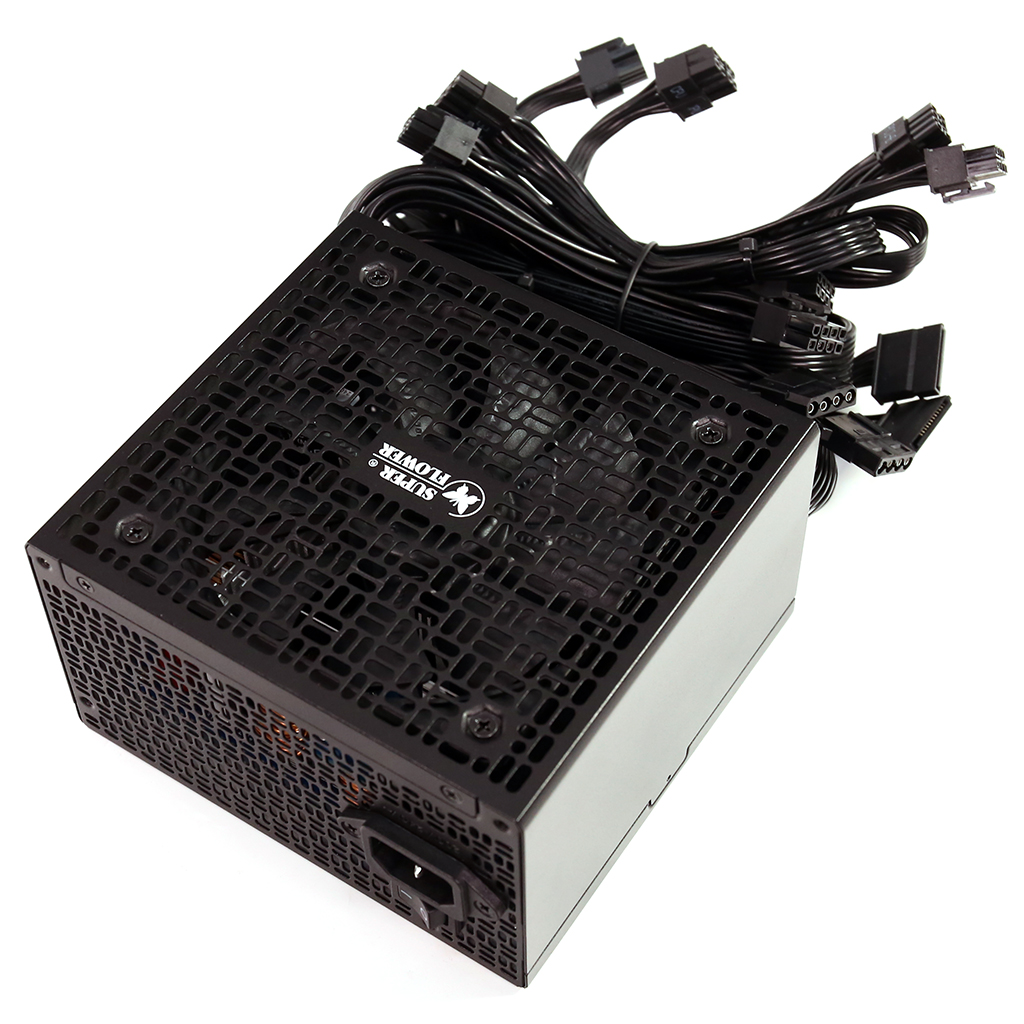

Top side

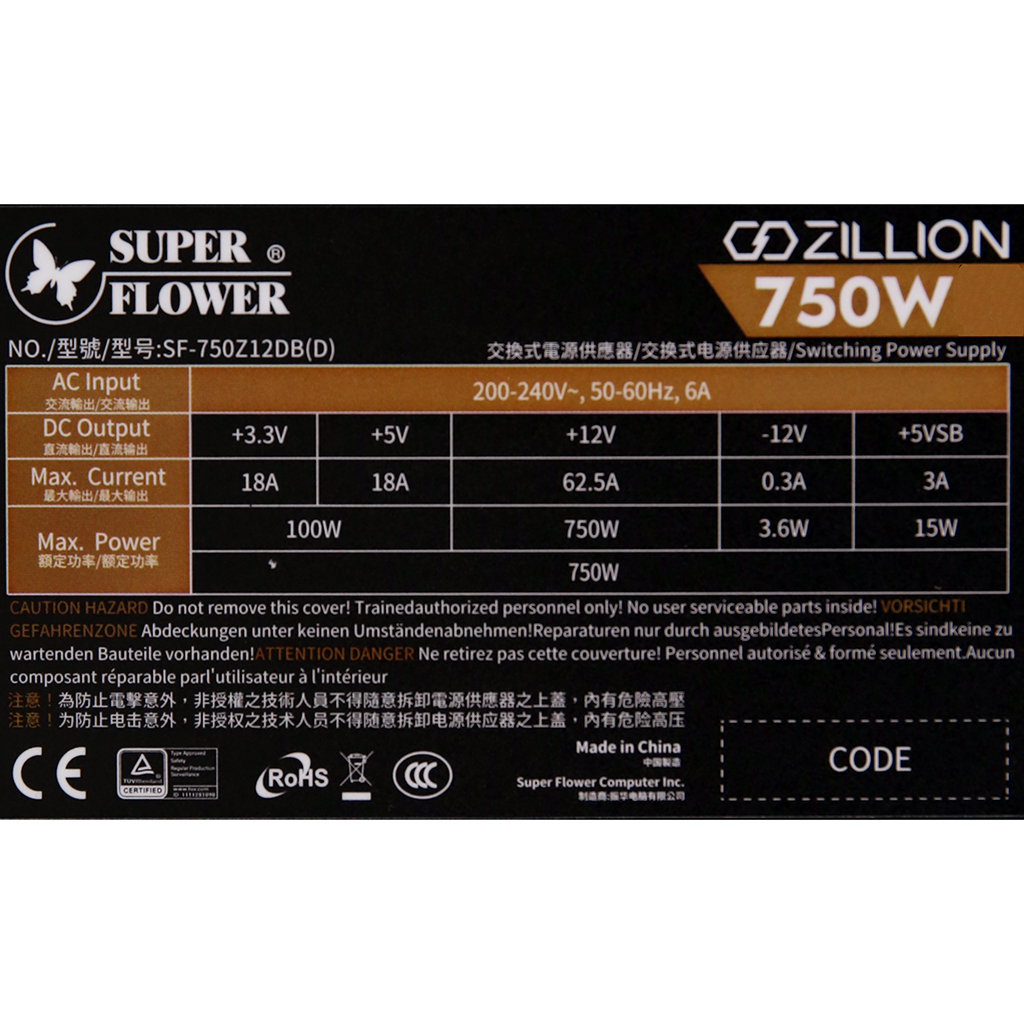

Power specifications label
