CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Cougar GEX PRO 850
12BD07GXP8500003
Lab IDCG85002581
  • Report: 24PS2581A
  • Receipt Date: Sep 16, 2024
  • Test Date: Sep 25, 2024
  • Report Date: Sep 26, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Cougar
製造商 (OEM)XHY
GEX PRO
CGR GEXP-850
12BD07GXP8500003

(Vrms)100-240
(Arms)50-60
(Hz)6-12
(W)850
ATX12V
120mm Hydraulic Bearing Fan (DF1202512FDMN)
✗
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts100849.6153.6
Total Max. Power (W)850

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (615mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 1 1 18AWG No
8 pin EPS12V (700mm) 1 1 18AWG No
6+2 pin PCIe (750mm) 3 3 18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (410mm+120mm+120mm+120mm) 2 8 18AWG No
4-pin Molex (410mm+120mm+120mm) 1 3 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

效率評比GOLD
噪音評比A+
(>1450 load combinations)88.750%
Average Noise Output (>1450 Load Combinations)18.98dBA
(>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load65.880%
0.0431W
12V Ripple (Full Load)33.59mV
5V Ripple (Full Load)15.60mV
3.3V Ripple (Full Load)17.86mV
5VSB Ripple (Full Load)18.46mV
12V Load Regulation0.76%
5V Load Regulation0.54%
3.3V Load Regulation0.58%
5VSB Load Regulation2.60%
Inrush Current204.600A
效率評比PLATINUM
噪音評比A+
(>1450 load combinations)90.975%
Average Noise Output (>1450 Load Combinations)19.52dBA
(>1450 Load Combinations)0.957
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.1145W
12V Ripple (Full Load)33.36mV
5V Ripple (Full Load)15.56mV
3.3V Ripple (Full Load)17.39mV
5VSB Ripple (Full Load)19.24mV
12V Load Regulation0.65%
5V Load Regulation0.54%
3.3V Load Regulation0.61%
5VSB Load Regulation2.62%
Inrush Current203.100A
12V Transient Response (200%)11.15V
5V Transient Response (200%)4.932V
3.3V Transient Response (200%)3.182V
5VSB Transient Response (200%)4.921V
26.40ms
AC Loss to PWR_OK Hold Up Time23.30ms
PWR_OK Inactive to DC Loss Delay3.10ms
PSU Timings: T1 (20% / 100%)47.0ms47.0ms
PSU Timings: T3 (20% / 100%)120.0ms122.0ms
12V OCP (28.9°C / 41.9°C)80.00A (112.99%), 11.967V80.00A (112.99%), 11.970V
5V OCP (28.9°C / 41.9°C)24.0A (120.00%), 4.992V23.8A (119.00%), 4.977V
3.3V OCP (28.9°C / 41.9°C)24.4A (122.00%), 3.277V23.7A (118.50%), 3.275V
5VSB OCP (28.9°C / 41.9°C)4.4A (146.67%), 5.01V4.4A (146.67%), 5.003V
OPP (29.95°C / 43.30°C)123.84%119.14%

Hold-Up Time (ms)26.4
AC Loss to PWR_OK Hold Up Time (ms)23.3
PWR_OK Inactive to DC Loss Delay (ms)3.1

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.20 % 2.00 % PASS
Real Power: 0.043 W -0.005 W N/A 0.086 W N/A N/A
Apparent Power: 6.693 W 6.314 W N/A 7.010 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.90 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.27 % 2.00 % PASS
Real Power: 0.114 W 0.071 W N/A 0.173 W N/A N/A
Apparent Power: 21.096 W 20.619 W N/A 21.590 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A

Graphs

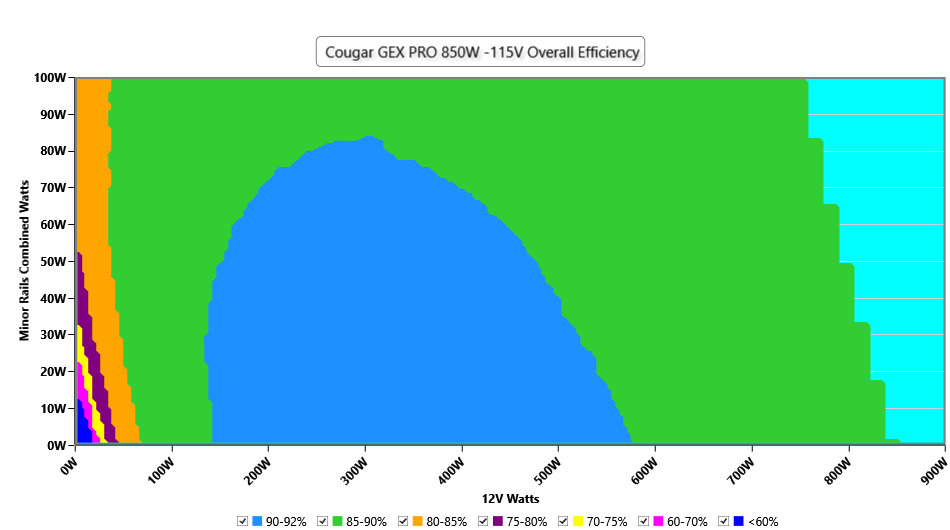

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

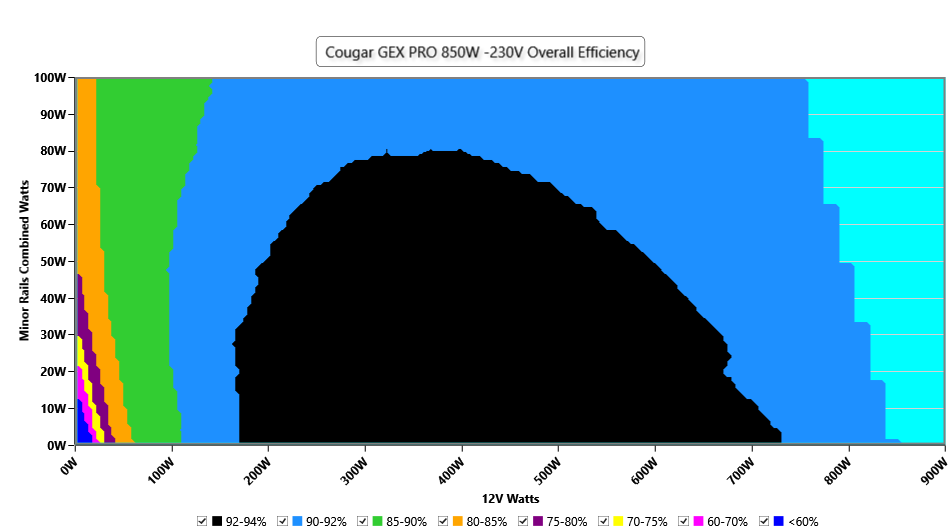

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

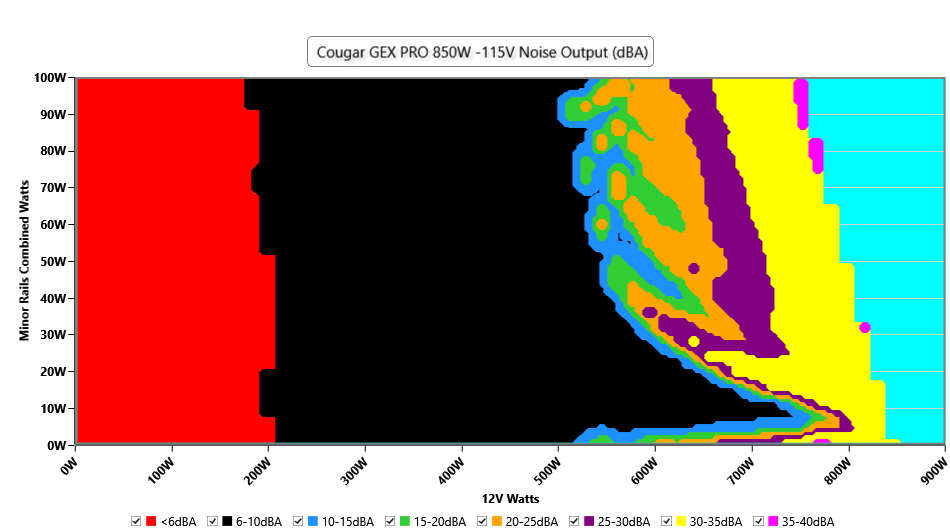

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

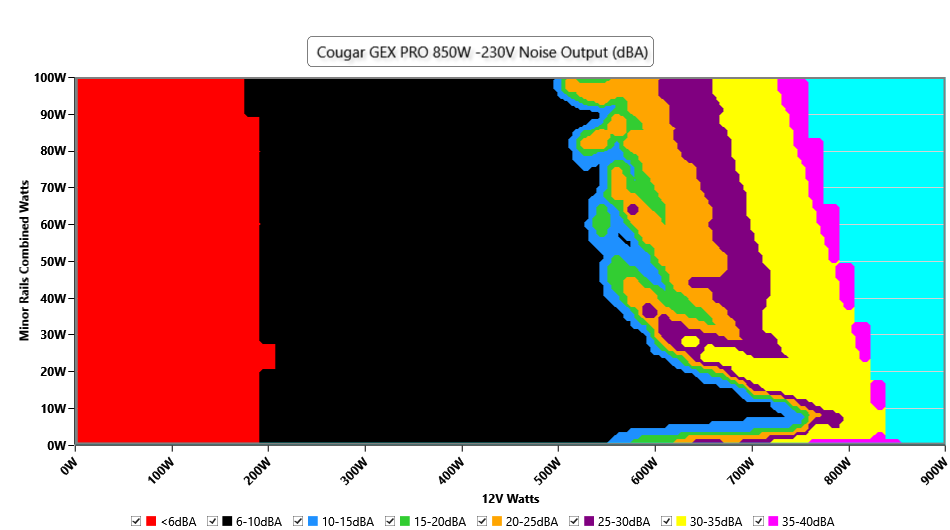

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

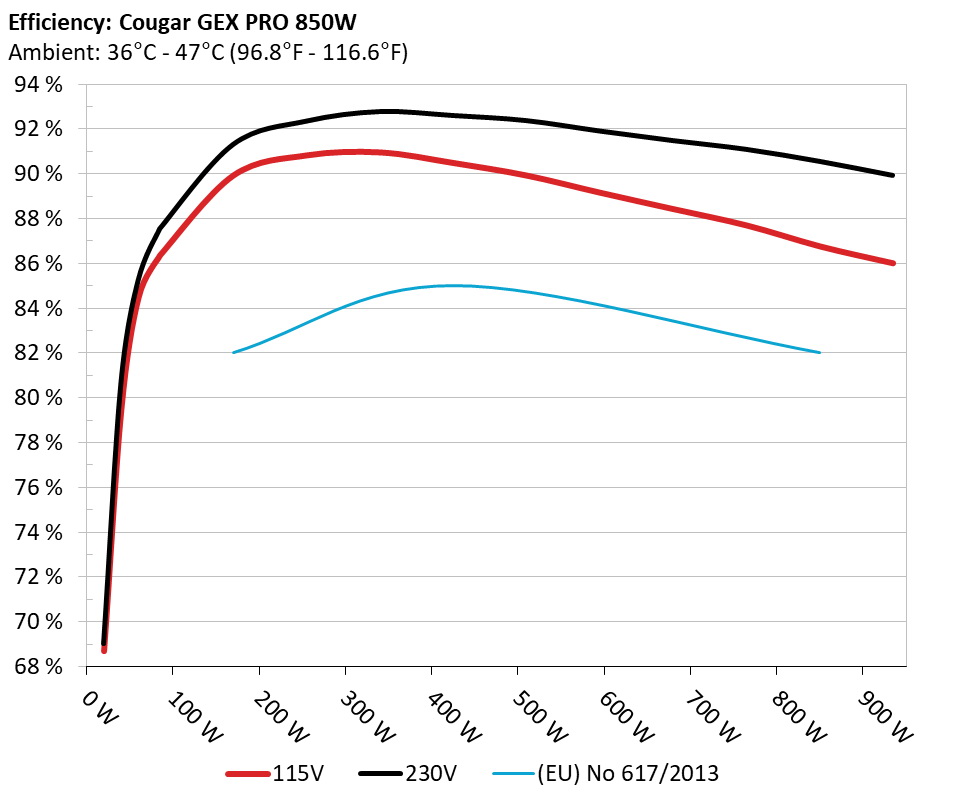

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

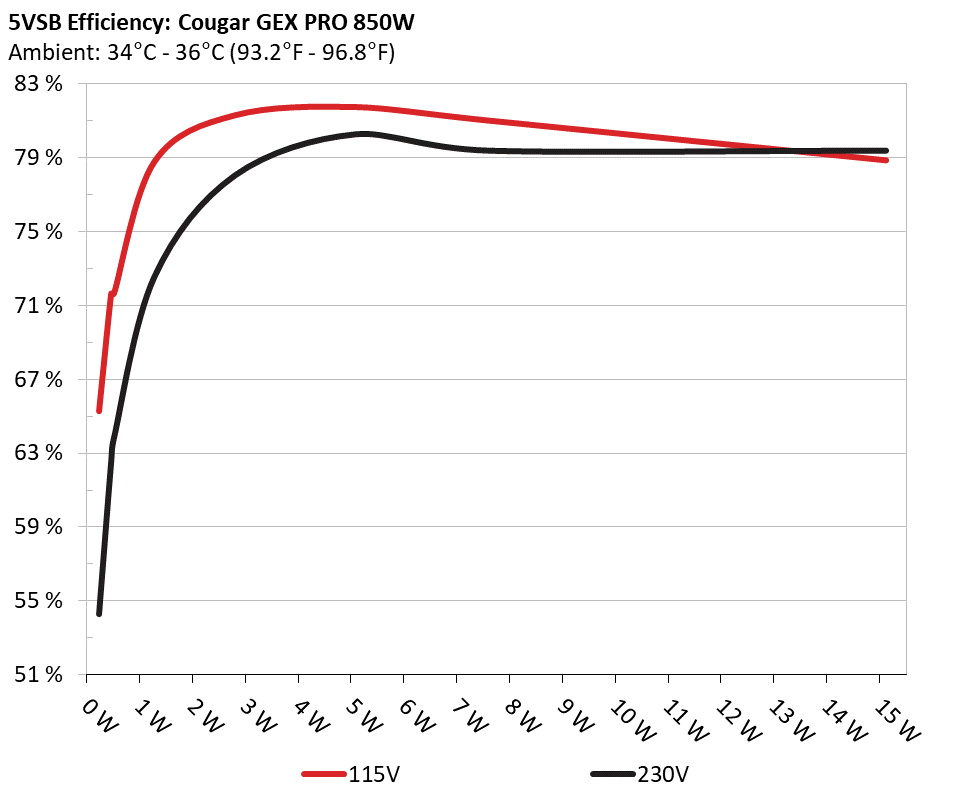

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 65.291% 0.056
5.103V 0.353W 114.91V
2 0.09A 0.459W 71.641% 0.098
5.102V 0.641W 114.91V
3 0.55A 2.801W 81.275% 0.328
5.093V 3.447W 114.92V
4 1A 5.084W 81.723% 0.404
5.084V 6.221W 114.91V
5 1.5A 7.611W 80.99% 0.439
5.073V 9.397W 114.91V
6 3A 15.122W 78.844% 0.494
5.04V 19.179W 114.91V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 54.298% 0.02
5.104V 0.425W 229.88V
2 0.09A 0.46W 62.595% 0.034
5.103V 0.737W 229.88V
3 0.55A 2.802W 78.023% 0.151
5.095V 3.59W 229.91V
4 1A 5.085W 80.248% 0.231
5.085V 6.338W 229.89V
5 1.5A 7.612W 79.363% 0.295
5.074V 9.591W 229.89V
6 3A 15.125W 79.363% 0.38
5.042V 19.057W 229.88V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.298A 1.99A 2.001A 0.986A 85.002 86.385% 435 6.8 40.02°C 0.967
11.969V 5.025V 3.299V 5.073V 98.398 45.29°C 114.89V
20% 11.618A 2.987A 3.003A 1.186A 169.945 89.942% 438 6.8 40.51°C 0.975
11.968V 5.022V 3.297V 5.061V 188.95 47.67°C 114.86V
30% 18.293A 3.486A 3.505A 1.386A 254.959 90.838% 441 6.8 41.07°C 0.982
11.967V 5.02V 3.295V 5.05V 280.678 51.55°C 114.83V
40% 24.975A 3.986A 4.008A 1.588A 340.061 90.971% 446 6.6 41.5°C 0.987
11.966V 5.018V 3.294V 5.039V 373.813 56.01°C 114.8V
50% 31.289A 4.986A 5.014A 1.791A 424.918 90.498% 454 7 42.01°C 0.99
11.966V 5.015V 3.291V 5.027V 469.533 62.59°C 114.77V
60% 37.578A 5.988A 6.022A 1.995A 509.47 89.941% 466 6.6 42.91°C 0.992
11.966V 5.011V 3.289V 5.014V 566.449 68.33°C 114.73V
70% 43.932A 6.99A 7.03A 2.199A 594.773 89.172% 951 21.8 43.22°C 0.993
11.965V 5.008V 3.287V 5.002V 666.996 65.94°C 114.7V
80% 50.287A 7.989A 8.038A 2.303A 679.557 88.44% 1348 32.8 43.61°C 0.994
11.964V 5.006V 3.285V 4.994V 768.386 63.38°C 114.68V
90% 57.043A 8.492A 8.529A 2.407A 764.952 87.708% 1659 38.6 44.96°C 0.995
11.964V 5.004V 3.283V 4.986V 872.159 63.71°C 114.64V
100% 63.531A 8.995A 9.051A 3.021A 849.761 86.771% 1704 39.5 45.9°C 0.995
11.964V 5.002V 3.282V 4.966V 979.319 66.95°C 114.6V
110% 69.884A 10.006A 10.155A 3.025A 934.293 86.02% 1710 39.6 46.46°C 0.996
11.963V 4.996V 3.279V 4.959V 1086.177 66.49°C 114.57V
CL1 0.116A 12.041A 12.089A 0A 101.286 82.08% 468 7 40.31°C 0.978
11.970V 4.999V 3.284V 5.08V 123.402 59.62°C 114.88V
CL2 0.116A 20.041A 0A 0A 101.336 80.016% 464 6.6 40.75°C 0.977
11.970V 4.987V 3.286V 5.083V 126.643 56.43°C 114.88V
CL3 0.115A 0A 20.113A 0A 67.395 74.378% 460 6.8 40.48°C 0.962
11.973V 5.012V 3.282V 5.082V 90.613 54.08°C 114.9V
CL4 70.992A 0A 0A 0A 849.505 87.757% 1698 39.4 45.73°C 0.995
11.966V 5.019V 3.294V 5.038V 968.024 65.44°C 114.61V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.298A 1.99A 2.001A 0.986A 85.005 87.569% 443 6.6 40.04°C 0.847
11.969V 5.025V 3.299V 5.072V 97.072 43.9°C 229.87V
20% 11.619A 2.987A 3.003A 1.186A 169.948 91.331% 445 6.5 40.83°C 0.932
11.967V 5.022V 3.297V 5.061V 186.083 45.76°C 229.86V
30% 18.293A 3.486A 3.505A 1.386A 254.955 92.377% 449 6.1 41.01°C 0.957
11.967V 5.02V 3.295V 5.05V 275.993 48.05°C 229.85V
40% 24.974A 3.986A 4.008A 1.588A 340.05 92.802% 454 7 41.52°C 0.968
11.967V 5.018V 3.294V 5.039V 366.423 50.96°C 229.83V
50% 31.287A 4.985A 5.014A 1.791A 424.888 92.627% 460 6.8 42.5°C 0.975
11.966V 5.015V 3.291V 5.027V 458.71 55.03°C 229.82V
60% 37.576A 5.987A 6.022A 1.994A 509.43 92.401% 468 7 42.89°C 0.98
11.966V 5.012V 3.289V 5.015V 551.323 59.17°C 229.8V
70% 43.929A 6.989A 7.03A 2.199A 594.733 91.934% 943 21.5 43.33°C 0.982
11.965V 5.009V 3.287V 5.003V 646.912 59.11°C 229.79V
80% 50.287A 7.988A 8.038A 2.303A 679.548 91.508% 1329 32.1 43.55°C 0.984
11.964V 5.006V 3.285V 4.995V 742.608 57.16°C 229.77V
90% 57.045A 8.49A 8.529A 2.407A 764.955 91.114% 1640 38.2 44.7°C 0.986
11.963V 5.005V 3.283V 4.986V 839.559 57.11°C 229.76V
100% 63.535A 8.994A 9.051A 3.021A 849.768 90.577% 1704 39.5 45.6°C 0.987
11.963V 5.003V 3.281V 4.966V 938.171 59.36°C 229.74V
110% 69.890A 10A 10.155A 3.025A 934.36 89.951% 1718 39.7 46.63°C 0.989
11.963V 4.999V 3.279V 4.958V 1038.736 62.91°C 229.73V
CL1 0.117A 12.039A 12.088A 0A 101.294 83.318% 470 7.4 41.37°C 0.882
11.970V 5V 3.284V 5.08V 121.577 55.46°C 229.87V
CL2 0.116A 20.042A 0A 0A 101.34 81.216% 466 6.6 41.51°C 0.885
11.970V 4.987V 3.285V 5.083V 124.78 53.8°C 229.87V
CL3 0.116A 0A 20.116A 0A 67.397 75.579% 461 6.8 41.75°C 0.828
11.971V 5.011V 3.282V 5.082V 89.174 52.83°C 229.88V
CL4 70.995A 0A 0A 0A 849.52 91.357% 1699 39.4 45.78°C 0.987
11.966V 5.019V 3.294V 5.038V 929.892 58.52°C 229.74V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.232A 0.497A 0.5A 0.196A 20.002 68.695% 436 6.6 36.96°C 0.858
12.054V 5.029V 3.301V 5.095V 29.116 43.66°C 114.91V
40W 2.722A 0.696A 0.7A 0.295A 40 79.5% 434 7.2 37.54°C 0.931
12.008V 5.028V 3.301V 5.092V 50.315 43.45°C 114.9V
60W 4.222A 0.895A 0.9A 0.393A 59.998 84.497% 433 7.5 38.23°C 0.952
11.967V 5.028V 3.301V 5.088V 71.008 43.77°C 114.9V
80W 5.708A 1.094A 1.1A 0.492A 79.943 86.394% 434 7.2 39.36°C 0.962
11.969V 5.027V 3.3V 5.084V 92.534 44.53°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.234A 0.497A 0.5A 0.196A 20.003 69.026% 434 7.2 36.34°C 0.553
12.040V 5.03V 3.301V 5.096V 28.978 40.31°C 229.89V
40W 2.724A 0.696A 0.7A 0.295A 40.001 80.661% 435 6.8 37.21°C 0.692
11.998V 5.029V 3.301V 5.092V 49.594 40.84°C 229.88V
60W 4.224A 0.895A 0.9A 0.393A 60.001 85.262% 436 6.6 38.23°C 0.775
11.965V 5.028V 3.301V 5.088V 70.374 41.72°C 229.88V
80W 5.708A 1.094A 1.1A 0.492A 79.949 87.674% 438 6.8 39.16°C 0.833
11.968V 5.027V 3.3V 5.084V 91.191 42.46°C 229.88V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load26.74mV12.31mV14.89mV15.24mVPass
20% Load29.51mV12.67mV16.11mV15.65mVPass
30% Load22.19mV12.31mV14.99mV15.09mVPass
40% Load21.22mV12.21mV14.43mV15.34mVPass
50% Load20.70mV14.26mV16.98mV16.22mVPass
60% Load18.86mV15.07mV17.29mV16.68mVPass
70% Load18.91mV14.00mV17.50mV16.42mVPass
80% Load19.73mV14.66mV16.57mV16.63mVPass
90% Load20.14mV14.26mV15.96mV17.75mVPass
100% Load33.59mV15.60mV17.86mV18.46mVPass
110% Load33.98mV16.22mV18.40mV19.50mVPass
Crossload141.06mV17.68mV17.65mV15.92mVPass
Crossload230.32mV22.12mV16.98mV15.24mVPass
Crossload326.00mV15.99mV18.01mV15.19mVPass
Crossload430.86mV12.64mV16.98mV18.17mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load27.64mV11.60mV14.84mV14.37mVPass
20% Load28.53mV12.36mV14.78mV15.19mVPass
30% Load22.60mV11.90mV14.89mV15.24mVPass
40% Load21.22mV12.57mV13.91mV15.09mVPass
50% Load22.03mV13.64mV16.52mV15.70mVPass
60% Load18.86mV14.51mV17.04mV16.62mVPass
70% Load19.73mV15.07mV17.65mV16.63mVPass
80% Load19.48mV13.03mV15.09mV16.78mVPass
90% Load20.80mV15.02mV17.03mV16.93mVPass
100% Load33.36mV15.56mV17.39mV19.24mVPass
110% Load35.85mV15.61mV17.97mV19.70mVPass
Crossload140.67mV16.39mV16.74mV16.40mVPass
Crossload230.68mV21.61mV15.70mV15.55mVPass
Crossload328.31mV14.30mV17.65mV15.45mVPass
Crossload431.47mV12.66mV18.48mV19.65mVPass

The results above are not used in the certification process

Cougar GEX PRO 850

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
