Super Flower Leadex III 1300W (ATXv3.1)
Serial NumberS240899011
Lab IDSF13002569
  • Report: 24PS2569A
  • Receipt Date: Sep 5, 2024
  • Test Date: Sep 13, 2024
  • Report Date: Sep 13, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex III
Model NumberSF-1300F14GE
Serial NumberS240899011
DUT NotesBroke in 5VSB OCP testing.

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan (ZFF142512D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020108.330.5
Watts1001299.6156
Total Max. Power (W)1300

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (595mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm) 4 4 16AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (555mm+130mm+130mm+130mm) 2 8 18AWG No
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) Super Flower
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-0512 (5 ohm) & Relay
Bridge Rectifier(s)

2x GBU25M (1000V, 25A @ 60°C)
APFC MOSFETs

3x Sanrise SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm) & 1x Sync Power SPN5003 FET (for reducing the no-load consumption)
APFC Boost Diode

1x STMicroelectronics STTH12R06D (600V, 12A @ 125°C)
Bulk Cap(s)

1x Nippon Chemi-con (450V, 790uF, 2,000h @ 105°C, KHE)
Main Switchers

4x Sanrise SRC60R140B (600V, 11.2A @ 125°C, Rds(on): 140mOhm)

Resonant Controller

STMicroelectronics STMZ6L331
APFC Controller

Infineon ICE3PCS02G
Topology

Primary side: APFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x Sanrise SRT04N016L (40V, 77A @ 125°C, Rds(on): 1.6mOhm)
5V & 3.3V DC-DC Converters: 4x Alpha & Omega AON6516 (30V,25A @ 100°C, Rds(on): 5mOhm) PWM Controller(s): 2x Anpec APW7073
Filtering Capacitors

Electrolytic: 32x CapXon (2-5,000h @105°C, KF) 5x Chengx (2,000h @105°C, KM) Polymer: 11x CapXon,
Supervisor IC JTC113 & LM324ADG
Fan Controller STMicroelectronics ST69345
Fan Model ZIC ZFF142512D (140mm, 12V, 0.65A, Fluid Dynamic Bearing Fan)
5VSB
Rectifier

Vishay B240A (40V, 2A) & 1x PFC PFR20L60CT SBR (60V, 20A)
Standby PWM Controller

Axelite AX3111

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.8
AC Loss to PWR_OK Hold Up Time (ms)20.5
PWR_OK Inactive to DC Loss Delay (ms)3.3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.08 % N/A 0.21 % 2.00 % PASS
Real Power: 0.135 W 0.112 W N/A 0.158 W N/A N/A
Apparent Power: 10.714 W 10.196 W N/A 11.239 W N/A N/A
Power Factor: 0.012 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.04 V 230.93 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.27 % 2.00 % PASS
Real Power: 0.182 W 0.140 W N/A 0.231 W N/A N/A
Apparent Power: 34.048 W 33.438 W N/A 34.666 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

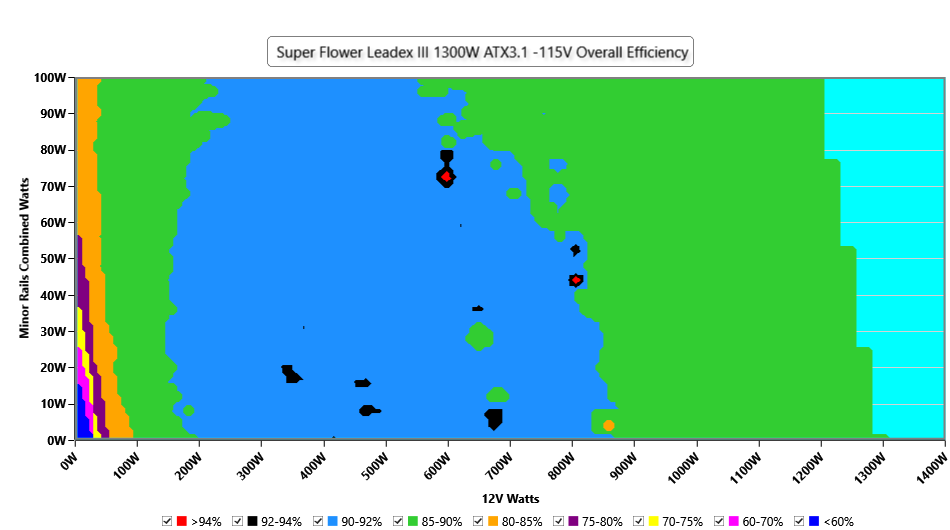

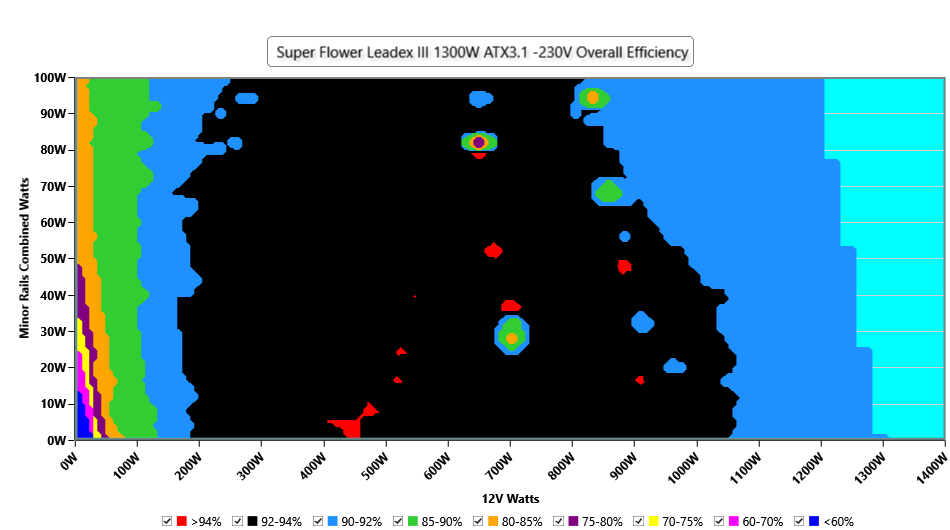

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

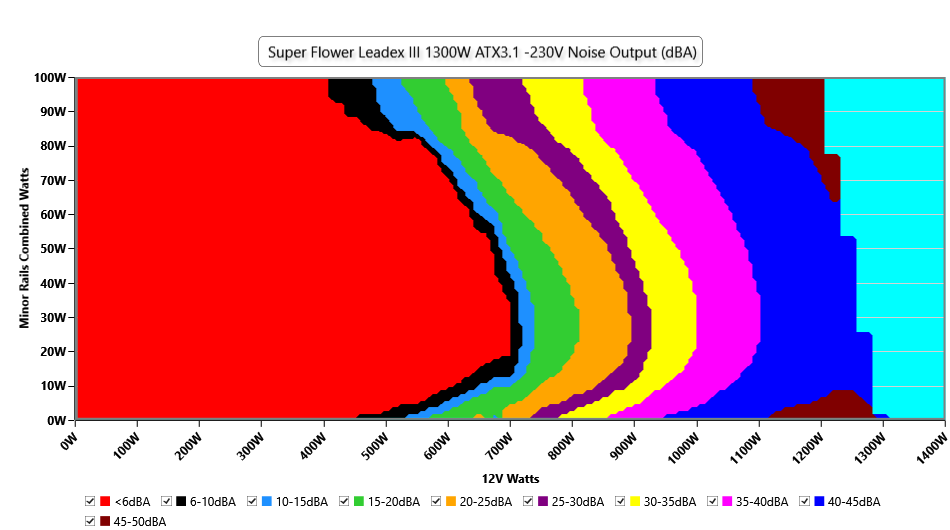

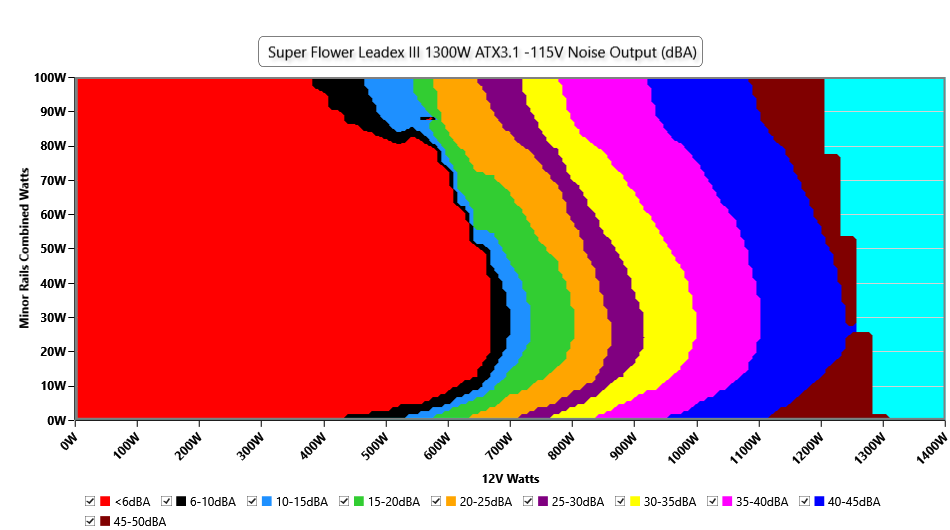

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

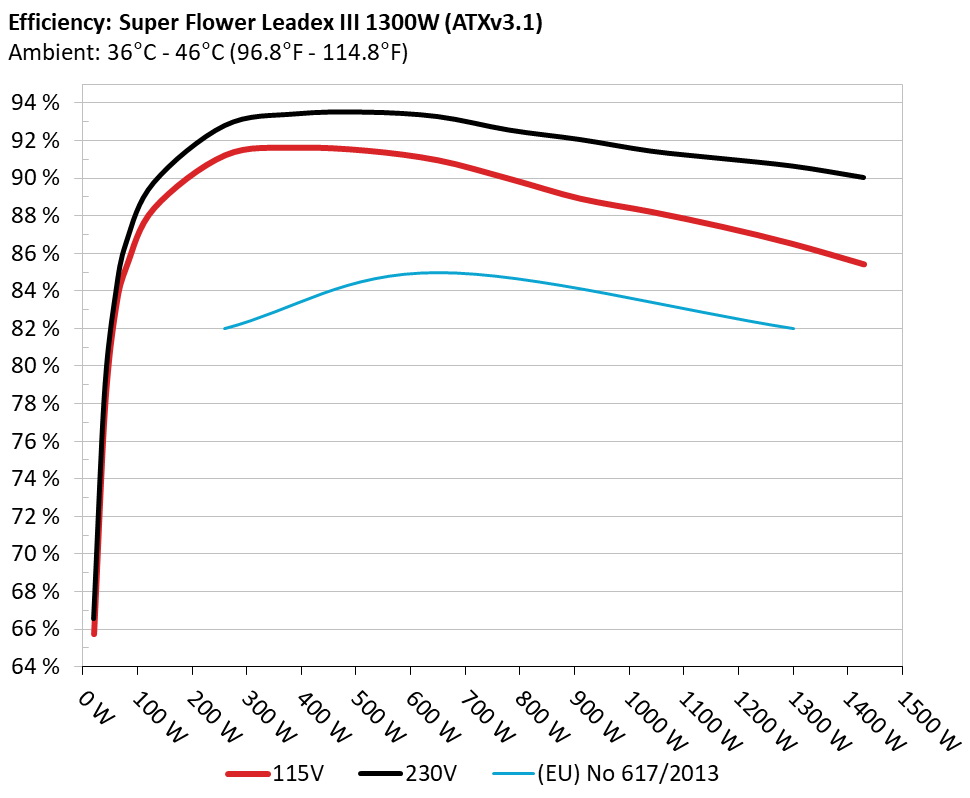

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

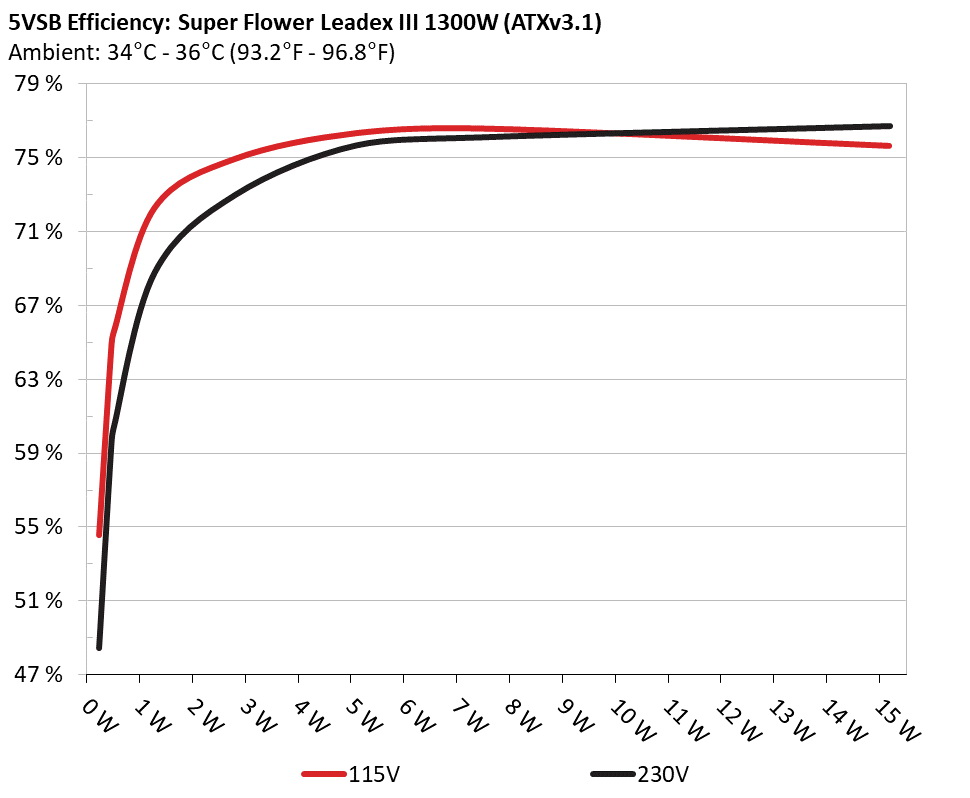

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 54.59% 0.042
5.116V 0.421W 114.91V
2 0.09A 0.461W 64.734% 0.07
5.116V 0.712W 114.92V
3 0.55A 2.81W 74.926% 0.282
5.109V 3.751W 114.92V
4 1A 5.101W 76.309% 0.368
5.101V 6.685W 114.91V
5 1.5A 7.639W 76.546% 0.422
5.092V 9.979W 114.91V
6 3A 15.186W 75.621% 0.486
5.062V 20.082W 114.91V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 48.431% 0.014
5.116V 0.476W 229.89V
2 0.09A 0.461W 59.407% 0.023
5.116V 0.777W 229.88V
3 0.55A 2.81W 72.995% 0.109
5.109V 3.85W 229.88V
4 1A 5.1W 75.673% 0.178
5.1V 6.739W 229.88V
5 1.5A 7.639W 76.123% 0.229
5.092V 10.036W 229.88V
6 3A 15.189W 76.715% 0.337
5.063V 19.797W 229.88V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.951A 1.985A 1.981A 0.983A 129.996 88.411% 0 <6.0 45.16°C 0.976
12.110V 5.038V 3.332V 5.088V 147.04 40.14°C 114.86V
20% 18.926A 2.977A 2.97A 1.182A 259.954 91.227% 0 <6.0 47.41°C 0.982
12.103V 5.038V 3.333V 5.075V 284.949 40.65°C 114.82V
30% 29.228A 3.472A 3.465A 1.383A 389.59 91.623% 369 <6.0 41.09°C 0.989
12.096V 5.04V 3.334V 5.062V 425.181 64.96°C 114.77V
40% 39.569A 3.968A 3.96A 1.584A 519.564 91.464% 484 7.5 41.79°C 0.992
12.089V 5.04V 3.334V 5.05V 568.051 67.87°C 114.73V
50% 49.592A 4.96A 4.949A 1.787A 649.732 90.955% 678 19.6 42.42°C 0.993
12.083V 5.041V 3.334V 5.037V 714.335 65.16°C 114.68V
60% 59.622A 5.953A 5.939A 1.991A 779.888 89.974% 1084 34.7 42.82°C 0.994
12.077V 5.041V 3.335V 5.025V 866.803 59.97°C 114.63V
70% 69.656A 6.945A 6.927A 2.195A 909.99 88.916% 1516 44.3 43.48°C 0.995
12.072V 5.041V 3.335V 5.012V 1023.418 58.86°C 114.58V
80% 79.694A 7.933A 7.914A 2.3A 1039.561 88.218% 1691 46.5 43.98°C 0.995
12.067V 5.041V 3.336V 5V 1178.424 60.21°C 114.52V
90% 90.137A 8.427A 8.391A 2.405A 1169.762 87.421% 1826 47.9 44.28°C 0.995
12.062V 5.043V 3.337V 4.989V 1338.061 62.12°C 114.47V
100% 100.333A 8.922A 8.9A 3.02A 1299.402 86.508% 2004 50.9 45.85°C 0.995
12.057V 5.043V 3.337V 4.968V 1502.086 64.58°C 114.41V
110% 110.462A 9.91A 9.978A 3.026A 1429.608 85.422% 2004 50.9 46.45°C 0.995
12.052V 5.044V 3.337V 4.957V 1673.59 69.16°C 114.35V
CL1 0.116A 11.941A 11.897A 0A 101.3 81.851% 663 19.1 41.68°C 0.981
12.118V 5.04V 3.337V 5.1V 123.782 50.42°C 114.85V
CL2 0.115A 19.821A 0A 0A 101.354 81.334% 459 <6.0 40.79°C 0.981
12.118V 5.043V 3.331V 5.1V 124.629 51.93°C 114.86V
CL3 0.114A 0A 19.724A 0A 67.398 75.565% 633 17.5 41°C 0.948
12.118V 5.039V 3.347V 5.103V 89.188 48.82°C 114.88V
CL4 107.869A 0A 0A 0.001A 1299.952 87.246% 1869 48.6 45.52°C 0.995
12.051V 5.041V 3.334V 5.031V 1489.978 64.64°C 114.42V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.952A 1.984A 1.981A 0.983A 130.007 89.761% 0 <6.0 49.5°C 0.874
12.111V 5.039V 3.332V 5.088V 144.844 40.24°C 229.87V
20% 18.926A 2.976A 2.971A 1.182A 259.968 92.798% 0 <6.0 50.35°C 0.943
12.103V 5.04V 3.332V 5.075V 280.155 40.59°C 229.84V
30% 29.233A 3.472A 3.466A 1.383A 389.627 93.415% 372 <6.0 41.14°C 0.969
12.095V 5.041V 3.332V 5.062V 417.103 50.23°C 229.82V
40% 39.578A 3.968A 3.961A 1.584A 519.592 93.503% 489 8.1 41.82°C 0.975
12.087V 5.041V 3.332V 5.05V 555.715 52.62°C 229.8V
50% 49.598A 4.96A 4.952A 1.787A 649.728 93.273% 702 20.9 42.08°C 0.979
12.081V 5.041V 3.332V 5.038V 696.576 53.86°C 229.78V
60% 59.627A 5.952A 5.943A 1.99A 779.854 92.559% 1116 35.8 42.85°C 0.981
12.075V 5.041V 3.332V 5.026V 842.553 53.98°C 229.76V
70% 69.668A 6.944A 6.935A 2.194A 909.931 92.053% 1444 43 43.35°C 0.984
12.070V 5.041V 3.332V 5.013V 988.542 53.74°C 229.73V
80% 79.706A 7.933A 7.924A 2.299A 1039.536 91.438% 1664 46.2 43.99°C 0.987
12.065V 5.041V 3.332V 5.002V 1136.872 55.04°C 229.71V
90% 90.156A 8.428A 8.404A 2.405A 1169.749 91.038% 1810 47.7 44.98°C 0.988
12.059V 5.042V 3.332V 4.991V 1284.91 56.76°C 229.68V
100% 100.351A 8.923A 8.917A 3.018A 1299.358 90.641% 1921 49.6 45.26°C 0.99
12.054V 5.042V 3.331V 4.971V 1433.61 57.93°C 229.66V
110% 110.482A 9.913A 9.998A 3.024A 1429.531 90.034% 2013 50.9 46.07°C 0.99
12.049V 5.043V 3.331V 4.961V 1587.755 59.19°C 229.64V
CL1 0.116A 11.941A 11.926A 0A 101.295 82.88% 0 <6.0 41.37°C 0.838
12.118V 5.04V 3.329V 5.1V 122.238 52.03°C 229.87V
CL2 0.114A 19.822A 0A 0A 101.352 82.302% 382 <6.0 40.01°C 0.84
12.118V 5.043V 3.331V 5.1V 123.151 50.86°C 229.87V
CL3 0.114A 0A 19.82A 0A 67.396 76.203% 735 22.3 41.91°C 0.771
12.118V 5.039V 3.33V 5.103V 88.429 49.63°C 229.87V
CL4 107.892A 0A 0A 0.001A 1299.924 91.214% 1804 48 45.85°C 0.989
12.048V 5.04V 3.334V 5.032V 1425.172 56.27°C 229.67V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.497A 0.496A 0.196A 20.004 65.762% 0 <6.0 37.57°C 0.811
12.113V 5.034V 3.33V 5.111V 30.423 36.14°C 114.9V
40W 2.699A 0.695A 0.694A 0.294A 40.001 77.764% 0 <6.0 38.91°C 0.891
12.112V 5.034V 3.331V 5.108V 51.439 37.03°C 114.89V
60W 4.172A 0.894A 0.891A 0.392A 60 83.127% 0 <6.0 39.51°C 0.937
12.112V 5.035V 3.331V 5.105V 72.18 38.21°C 114.89V
80W 5.640A 1.092A 1.09A 0.49A 79.946 85.346% 0 <6.0 42.16°C 0.953
12.112V 5.036V 3.332V 5.101V 93.682 39.03°C 114.88V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.226A 0.496A 0.495A 0.196A 19.999 66.587% 0 <6.0 43.53°C 0.497
12.115V 5.036V 3.331V 5.111V 30.034 36.53°C 229.89V
40W 2.698A 0.695A 0.693A 0.294A 39.998 78.615% 0 <6.0 44.63°C 0.627
12.114V 5.037V 3.331V 5.108V 50.88 37.23°C 229.88V
60W 4.172A 0.893A 0.891A 0.392A 59.999 83.801% 0 <6.0 47.02°C 0.718
12.114V 5.037V 3.332V 5.105V 71.589 38.37°C 229.88V
80W 5.640A 1.092A 1.089A 0.49A 79.951 86.6% 0 <6.0 47.89°C 0.78
12.113V 5.038V 3.332V 5.101V 92.31 39.03°C 229.88V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load16.32mV14.61mV14.17mV13.61mVPass
20% Load14.94mV14.56mV13.56mV13.66mVPass
30% Load16.57mV15.99mV14.73mV13.86mVPass
40% Load18.06mV17.22mV16.37mV15.40mVPass
50% Load18.01mV16.60mV15.86mV14.63mVPass
60% Load19.08mV18.24mV17.60mV15.04mVPass
70% Load20.36mV18.70mV18.41mV16.37mVPass
80% Load21.23mV19.57mV18.93mV19.64mVPass
90% Load21.28mV19.31mV18.98mV21.74mVPass
100% Load26.96mV22.01mV21.07mV23.90mVPass
110% Load28.61mV22.45mV21.88mV27.95mVPass
Crossload142.13mV17.57mV16.40mV24.21mVPass
Crossload243.53mV18.80mV15.14mV22.25mVPass
Crossload341.80mV16.35mV16.63mV21.38mVPass
Crossload425.48mV20.19mV20.32mV26.85mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.99mV14.56mV13.45mV13.10mVPass
20% Load14.12mV14.05mV13.46mV13.14mVPass
30% Load15.81mV15.58mV14.58mV13.71mVPass
40% Load16.11mV15.17mV15.14mV14.07mVPass
50% Load17.45mV15.84mV16.57mV14.32mVPass
60% Load18.21mV17.37mV17.03mV15.34mVPass
70% Load19.95mV17.42mV17.24mV15.34mVPass
80% Load20.31mV19.36mV18.62mV16.16mVPass
90% Load21.85mV20.64mV19.08mV17.03mVPass
100% Load25.88mV22.27mV21.00mV21.47mVPass
110% Load27.08mV23.20mV22.32mV20.52mVPass
Crossload140.65mV17.71mV16.19mV25.96mVPass
Crossload242.21mV19.36mV16.27mV22.05mVPass
Crossload343.38mV16.14mV17.29mV21.79mVPass
Crossload425.01mV20.41mV18.76mV26.88mVPass

The results above are not used in the certification process

Super Flower Leadex III 1300W (ATXv3.1)

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
