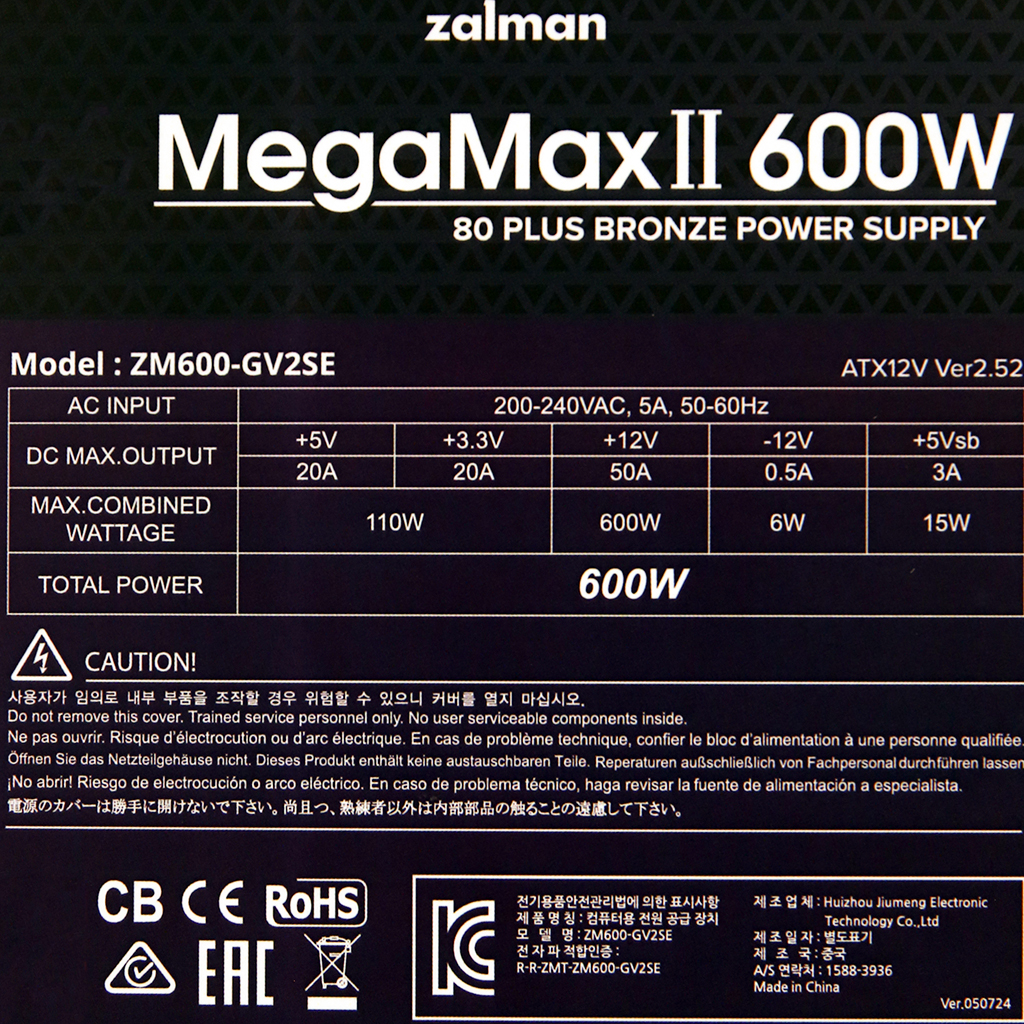

63.00A (126.00%), 11.553V* *Stopped, high ripple (140.66mV), low voltage (11.194V)
61.80A (123.60%), 12.052V
5V OCP (27.2°C / 43.7°C)
25.4A (127.00%), 4.999V, high ripple (60.95mV)
24A (120.00%), 4.986V
3.3V OCP (27.2°C / 43.7°C)
25.7A (128.50%), 3.288V
24.3A (121.50%), 3.28V
5VSB OCP (27.2°C / 43.7°C)
3.9A (130.00%), 5.051V
3.8A (126.67%), 5.051V
OPP (27.14°C / 43.70°C)
123.50%
121.09%
Hold-Up Time (ms)
13.3
AC Loss to PWR_OK Hold Up Time (ms)
11.5
PWR_OK Inactive to DC Loss Delay (ms)
1.8
待機電源消耗
Tables 230V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
229.97 V
229.89 V
227.70 V
230.02 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.99 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.417
1.415
1.340
1.419
1.490
PASS
Mains Voltage THD:
0.13 %
0.09 %
N/A
0.18 %
2.00 %
PASS
Real Power:
0.118 W
0.091 W
N/A
0.166 W
N/A
N/A
Apparent Power:
23.422 W
23.388 W
N/A
23.461 W
N/A
N/A
Power Factor:
0.005
N/A
N/A
N/A
N/A
N/A
Graphs 230V
230V

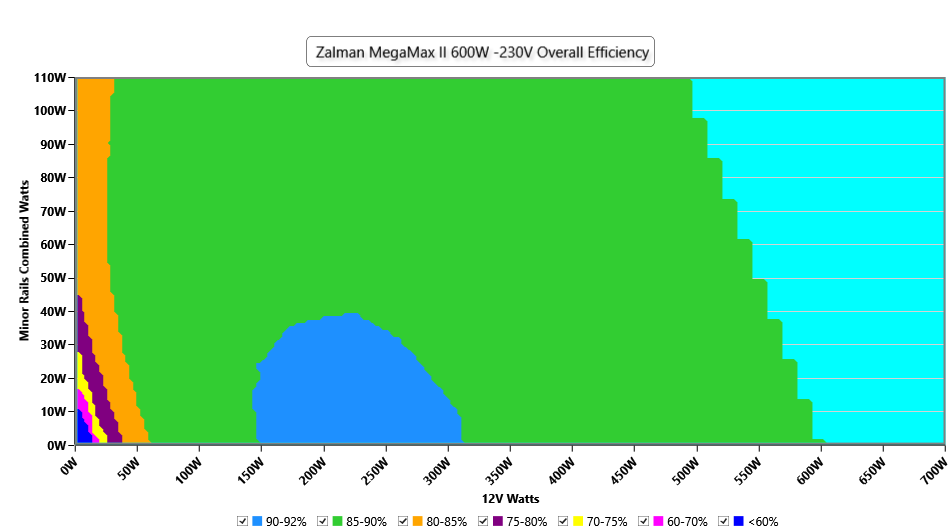

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

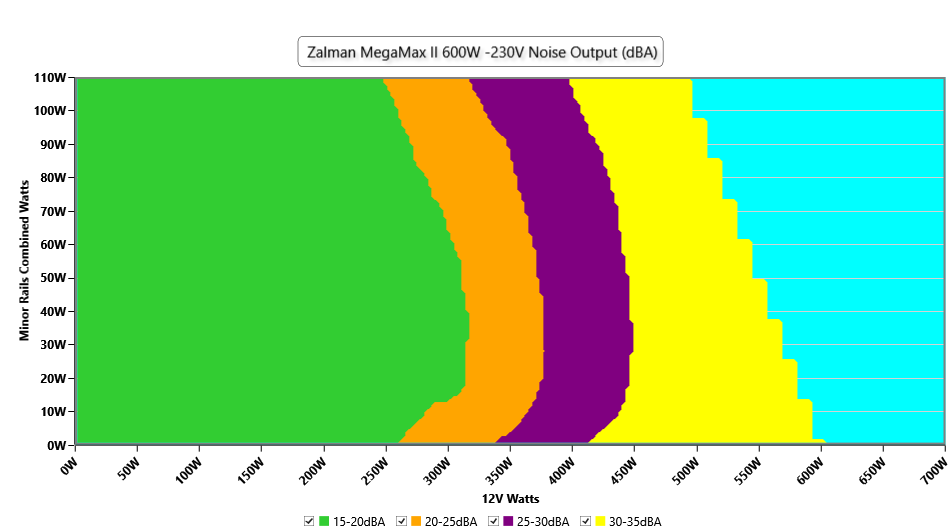

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

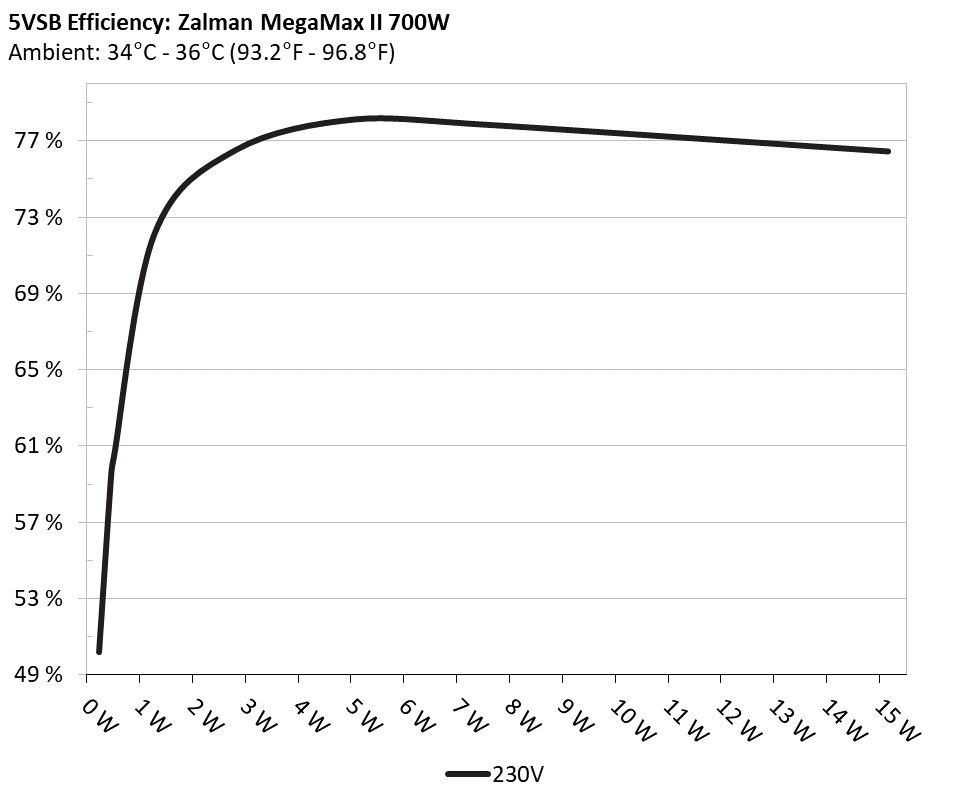

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.231W
53.3%
0.018
5.132V
0.434W
229.94V
2
0.09A
0.462W
60.959%
0.032
5.131V
0.758W
229.94V
3
0.55A
2.816W
76.346%
0.142
5.121V
3.688W
229.94V
4
1A
5.112W
77.877%
0.22
5.112V
6.564W
229.94V
5
1.5A
7.653W
77.466%
0.253
5.102V
9.879W
229.94V
6
3A
15.213W
76.458%
0.349
5.071V
19.897W
229.94V
Supplementary Tests (For Reference)
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
3.130A
1.944A
1.967A
0.98A
59.999
84.044%
770
15.9
40.45°C
0.853
12.270V
5.145V
3.355V
5.103V
71.391
42.81°C
229.93V
20%
7.267A
2.925A
2.961A
1.179A
119.926
88.513%
772
15.6
40.77°C
0.937
12.251V
5.128V
3.343V
5.09V
135.489
44.89°C
229.92V
30%
11.766A
3.422A
3.466A
1.379A
179.964
89.648%
776
15.9
41.32°C
0.961
12.231V
5.115V
3.333V
5.077V
200.744
46.87°C
229.91V
40%
16.279A
3.921A
3.974A
1.58A
240.005
89.692%
827
17.5
41.77°C
0.972
12.211V
5.102V
3.322V
5.064V
267.59
48.82°C
229.9V
50%
20.459A
4.917A
4.985A
1.783A
299.958
89.47%
1059
25.5
42.08°C
0.979
12.192V
5.085V
3.31V
5.049V
335.262
49.32°C
229.89V
60%
24.660A
5.92A
6.004A
1.986A
359.995
88.946%
1214
28.7
42.63°C
0.983
12.173V
5.069V
3.298V
5.034V
404.733
49.71°C
229.88V
70%
28.826A
6.931A
7.032A
2.191A
419.447
88.245%
1371
32.7
43.26°C
0.986
12.153V
5.051V
3.285V
5.02V
475.323
51.88°C
229.87V
80%
33.096A
7.948A
8.068A
2.297A
479.439
87.433%
1482
34.6
43.83°C
0.987
12.133V
5.033V
3.272V
5.007V
548.352
53.26°C
229.86V
90%
37.709A
8.467A
8.586A
2.402A
539.236
86.586%
1601
37.1
44.54°C
0.988
12.113V
5.019V
3.261V
4.995V
622.778
56.01°C
229.85V
100%
42.144A
8.992A
9.142A
3.017A
599.256
85.535%
1679
38.9
45.09°C
0.989
12.091V
5.004V
3.248V
4.973V
700.605
58.41°C
229.84V
110%
46.426A
10.015A
10.278A
3.024A
657.937
84.227%
1537
35.6
46.81°C
0.987
12.050V
4.98V
3.227V
4.961V
778.805
61.93°C
229.83V
CL1
0.113A
13.202A
13.281A
0A
111.286
82.192%
875
19.2
41.93°C
0.937
12.241V
5.014V
3.29V
5.093V
135.399
49.61°C
229.93V
CL2
0.113A
19.957A
0A
0A
101.37
81.635%
781
16
41.44°C
0.929
12.254V
5.01V
3.314V
5.107V
124.174
48.06°C
229.92V
CL3
0.113A
0A
20.034A
0A
67.38
76.251%
768
16
40.64°C
0.888
12.249V
5.077V
3.294V
5.1V
88.366
46.01°C
229.93V
CL4
49.591A
0A
0A
0A
599.935
86.176%
1662
38.4
45.92°C
0.99
12.098V
5.097V
3.289V
5.055V
696.186
57.37°C
229.84V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.208A
0.484A
0.49A
0.195A
19.996
74.011%
758
16.4
36.73°C
0.61
12.286V
5.168V
3.369V
5.127V
27.017
37.26°C
229.94V
40W
2.662A
0.678A
0.686A
0.293A
39.997
81.019%
763
16.3
37.61°C
0.768
12.278V
5.163V
3.365V
5.123V
49.366
38.66°C
229.93V
60W
4.118A
0.873A
0.883A
0.391A
59.997
85.117%
765
16.1
38.23°C
0.85
12.271V
5.157V
3.361V
5.118V
70.492
40°C
229.93V
80W
5.569A
1.068A
1.081A
0.489A
79.937
87.187%
767
16
39.33°C
0.892
12.265V
5.153V
3.358V
5.113V
91.685
41.33°C
229.93V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
14.64mV
18.34mV
17.33mV
9.91mV
Pass
20% Load
15.78mV
19.01mV
17.63mV
10.84mV
Pass
30% Load
17.32mV
18.29mV
18.72mV
10.68mV
Pass
40% Load
19.44mV
18.19mV
18.10mV
10.68mV
Pass
50% Load
21.91mV
19.83mV
19.86mV
11.62mV
Pass
60% Load
23.04mV
18.81mV
19.39mV
11.51mV
Pass
70% Load
25.57mV
21.43mV
20.73mV
13.78mV
Pass
80% Load
27.53mV
24.88mV
22.65mV
13.73mV
Pass
90% Load
33.92mV
24.88mV
24.88mV
15.38mV
Pass
100% Load
43.10mV
26.92mV
29.68mV
20.07mV
Pass
110% Load
49.62mV
29.75mV
31.36mV
19.92mV
Pass
Crossload1
15.26mV
29.86mV
29.89mV
10.67mV
Pass
Crossload2
17.07mV
43.48mV
20.79mV
10.27mV
Pass
Crossload3
14.90mV
17.67mV
38.37mV
10.27mV
Pass
Crossload4
44.85mV
21.05mV
23.13mV
14.51mV
Pass
The results above are not used in the certification process
