76.40A (130.98%), 11.520V* *Stopped, high ripple (142.6mV), low voltage (11.11V)
74.40A (127.55%), 12.072V
5V OCP (26.6°C / 44.9°C)
25.1A (125.50%), 4.984V, high ripple (61.41mV)
24A (120.00%), 4.972V, high ripple (56.67mV)
3.3V OCP (26.6°C / 44.9°C)
25.2A (126.00%), 3.305V
24.2A (121.00%), 3.3V
5VSB OCP (26.6°C / 44.9°C)
3.9A (130.00%), 5.035V
3.9A (130.00%), 5.03V
OPP (30.58°C / 42.94°C)
126.72%
119.85%
Hold-Up Time (ms)
13.8
AC Loss to PWR_OK Hold Up Time (ms)
12.7
PWR_OK Inactive to DC Loss Delay (ms)
1.1
Stromverbrauch im Ruhezustand
Tables 230V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
231.06 V
230.94 V
227.70 V
231.13 V
232.30 V
PASS
Mains Frequency:
50.00 Hz
49.99 Hz
49.50 Hz
50.01 Hz
50.50 Hz
PASS
Mains Voltage CF:
1.417
1.417
1.340
1.419
1.490
PASS
Mains Voltage THD:
0.17 %
0.15 %
N/A
0.28 %
2.00 %
PASS
Real Power:
0.145 W
0.105 W
N/A
0.208 W
N/A
N/A
Apparent Power:
21.680 W
21.314 W
N/A
22.052 W
N/A
N/A
Power Factor:
0.006
N/A
N/A
N/A
N/A
N/A
Graphs 230V
230V

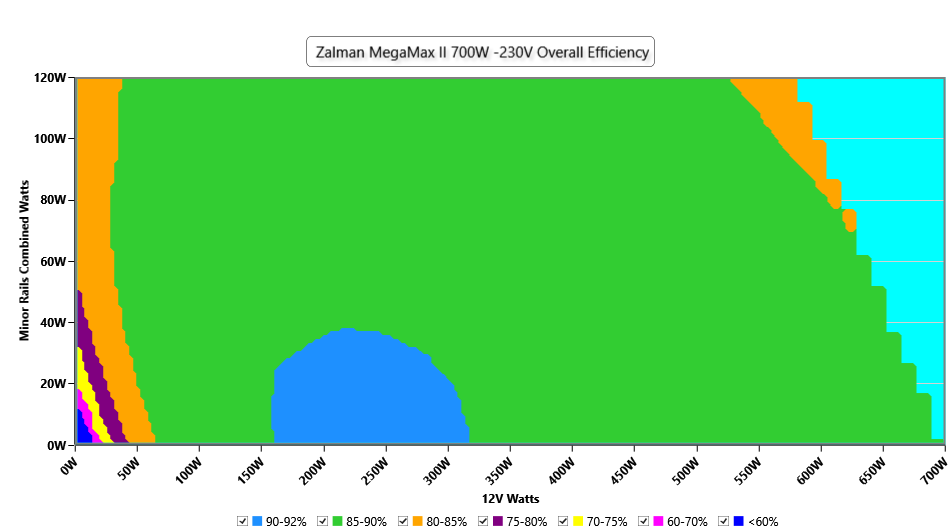

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
230V

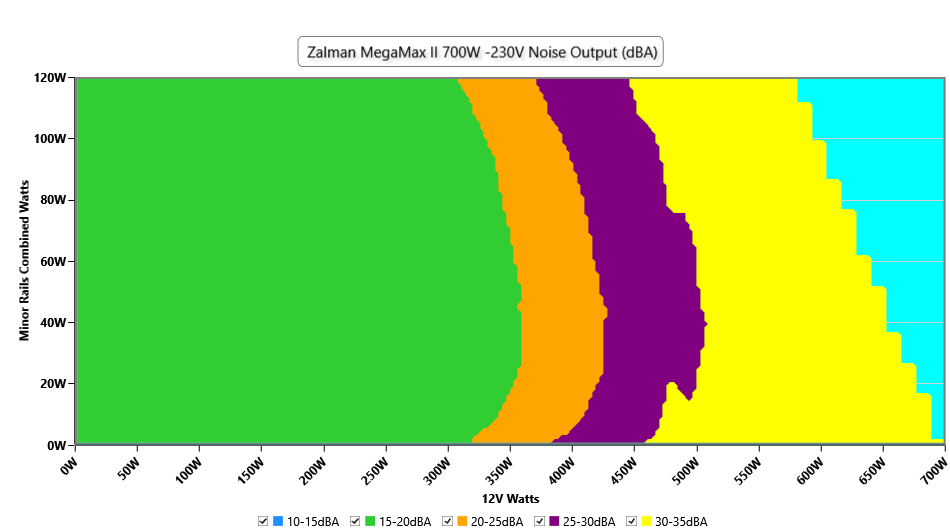

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

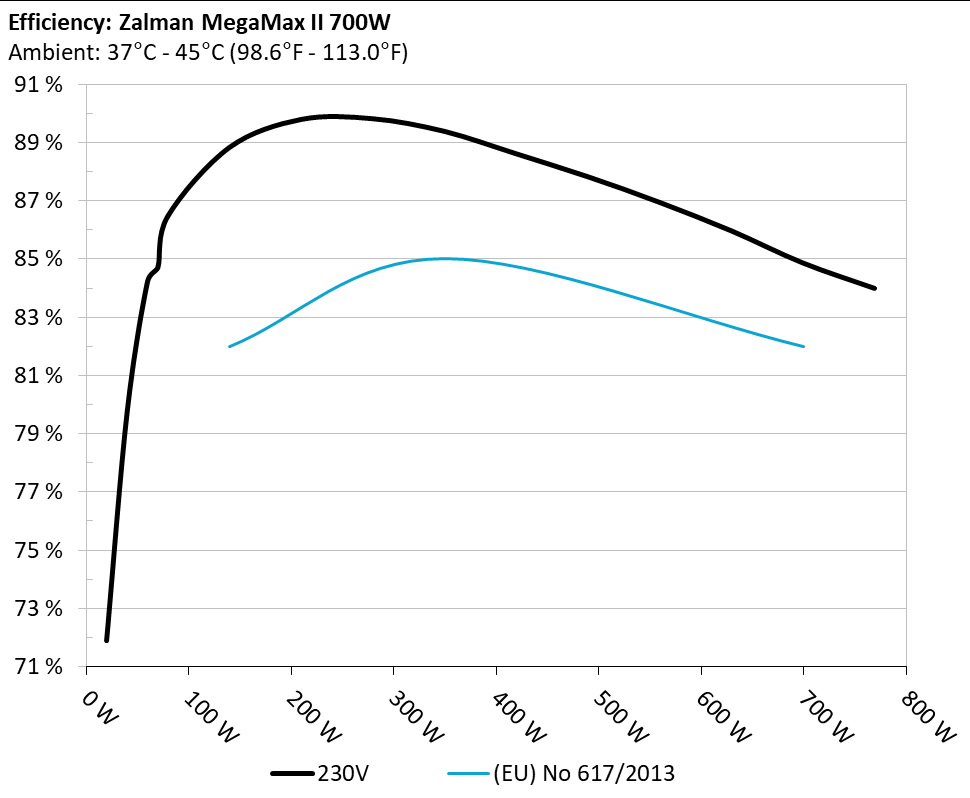

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

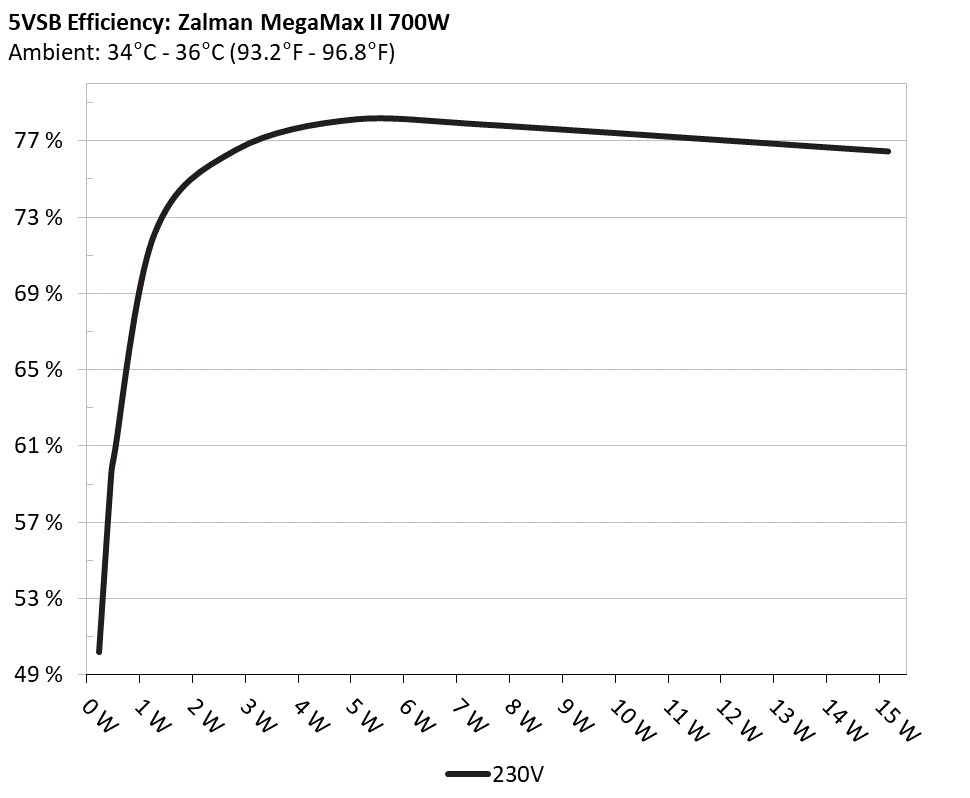

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
230V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.23W
50.218%
0.019
5.115V
0.458W
229.94V
2
0.09A
0.46W
59.567%
0.033
5.114V
0.773W
229.94V
3
0.55A
2.808W
76.511%
0.141
5.104V
3.67W
229.94V
4
1A
5.096W
78.135%
0.218
5.095V
6.522W
229.93V
5
1.5A
7.628W
77.837%
0.253
5.085V
9.799W
229.94V
6
3A
15.164W
76.452%
0.348
5.055V
19.836W
229.94V
Supplementary Tests (For Reference)
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
3.956A
1.953A
1.961A
0.983A
70
84.712%
779
15.9
40.06°C
0.875
12.236V
5.122V
3.366V
5.085V
82.634
42.42°C
229.93V
20%
8.926A
2.938A
2.951A
1.183A
139.932
88.842%
780
16
40.66°C
0.941
12.214V
5.106V
3.354V
5.071V
157.506
44.31°C
229.92V
30%
14.266A
3.436A
3.454A
1.384A
209.971
89.805%
782
16
41.3°C
0.961
12.191V
5.094V
3.344V
5.057V
233.808
46.3°C
229.9V
40%
19.627A
3.936A
3.96A
1.586A
280.017
89.829%
792
17.5
41.61°C
0.971
12.168V
5.082V
3.333V
5.044V
311.724
48.85°C
229.89V
50%
24.661A
4.937A
4.969A
1.79A
349.972
89.392%
1016
23.5
42.38°C
0.977
12.144V
5.065V
3.321V
5.03V
391.5
50.8°C
229.88V
60%
29.700A
5.943A
5.986A
1.994A
419.739
88.623%
1233
28.9
42.78°C
0.982
12.119V
5.049V
3.308V
5.015V
473.624
50.96°C
229.87V
70%
34.790A
6.956A
7.011A
2.201A
489.865
87.833%
1378
32.8
43.07°C
0.984
12.094V
5.033V
3.295V
4.998V
557.722
51.48°C
229.86V
80%
39.900A
7.974A
8.043A
2.306A
559.471
86.956%
1516
35.2
43.93°C
0.986
12.070V
5.016V
3.282V
4.986V
643.391
53.64°C
229.84V
90%
45.439A
8.496A
8.562A
2.414A
629.7
85.976%
1626
37.1
44.57°C
0.988
12.043V
5.002V
3.27V
4.971V
732.411
55.86°C
229.83V
100%
50.738A
9.021A
9.116A
3.031A
699.319
84.874%
1702
39.2
45.07°C
0.99
12.016V
4.988V
3.258V
4.948V
823.946
58.58°C
229.82V
110%
55.949A
10.049A
10.264A
3.037A
769.505
83.998%
1679
38.9
44.71°C
0.991
11.997V
4.975V
3.244V
4.94V
916.11
57.44°C
229.81V
CL1
0.113A
14.454A
14.458A
0A
121.285
82.531%
789
16.9
40.04°C
0.937
12.209V
4.995V
3.299V
5.074V
146.958
47.93°C
229.92V
CL2
0.113A
19.945A
0A
0A
101.356
81.801%
785
16.1
40.1°C
0.923
12.225V
5.012V
3.331V
5.088V
123.907
46.64°C
229.92V
CL3
0.113A
0A
19.936A
0A
67.377
76.129%
780
16
40.16°C
0.885
12.222V
5.056V
3.31V
5.083V
88.503
46.13°C
229.93V
CL4
58.228A
0A
0A
0A
699.911
85.09%
1675
38.7
45.14°C
0.99
12.021V
5.062V
3.297V
5.033V
822.57
57.02°C
229.82V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.212A
0.486A
0.488A
0.196A
19.997
71.889%
771
15.6
36.65°C
0.639
12.255V
5.141V
3.38V
5.109V
27.819
37.58°C
229.93V
40W
2.668A
0.681A
0.684A
0.294A
39.997
79.726%
773
15.8
37.87°C
0.78
12.249V
5.137V
3.376V
5.105V
50.169
39.05°C
229.93V
60W
4.128A
0.877A
0.88A
0.392A
59.997
84.239%
774
15.8
38.4°C
0.851
12.242V
5.133V
3.373V
5.1V
71.221
39.71°C
229.93V
80W
5.583A
1.072A
1.077A
0.492A
79.937
86.491%
780
16
39.26°C
0.892
12.235V
5.129V
3.37V
5.08V
92.422
41.46°C
229.93V
The results above are not used in the certification process
230V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
13.30mV
18.85mV
16.96mV
10.48mV
Pass
20% Load
15.16mV
18.65mV
18.20mV
10.22mV
Pass
30% Load
18.46mV
18.70mV
17.94mV
10.53mV
Pass
40% Load
19.64mV
19.89mV
18.62mV
10.84mV
Pass
50% Load
22.12mV
19.47mV
19.34mV
11.20mV
Pass
60% Load
25.78mV
20.76mV
19.70mV
12.70mV
Pass
70% Load
29.49mV
22.36mV
20.68mV
13.16mV
Pass
80% Load
36.66mV
24.78mV
23.89mV
14.25mV
Pass
90% Load
45.88mV
27.92mV
23.37mV
14.66mV
Pass
100% Load
54.19mV
30.30mV
26.41mV
19.36mV
Pass
110% Load
62.61mV
34.12mV
29.72mV
18.89mV
Pass
Crossload1
18.38mV
32.77mV
31.14mV
10.58mV
Pass
Crossload2
17.84mV
45.90mV
17.94mV
9.75mV
Pass
Crossload3
15.11mV
18.75mV
39.35mV
10.84mV
Pass
Crossload4
59.93mV
22.95mV
20.77mV
13.59mV
Pass
The results above are not used in the certification process
Zalman GV2SE 700W
Top side

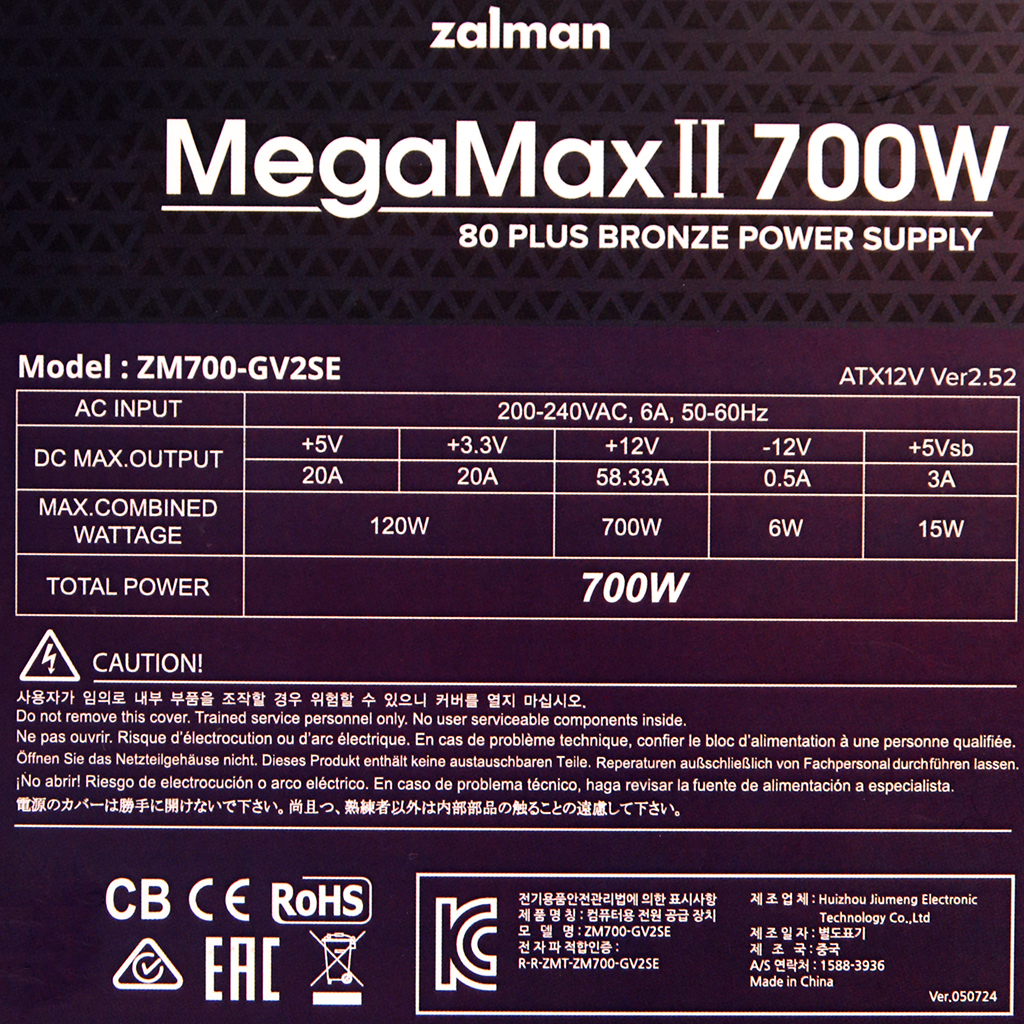

Power specifications label
