CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

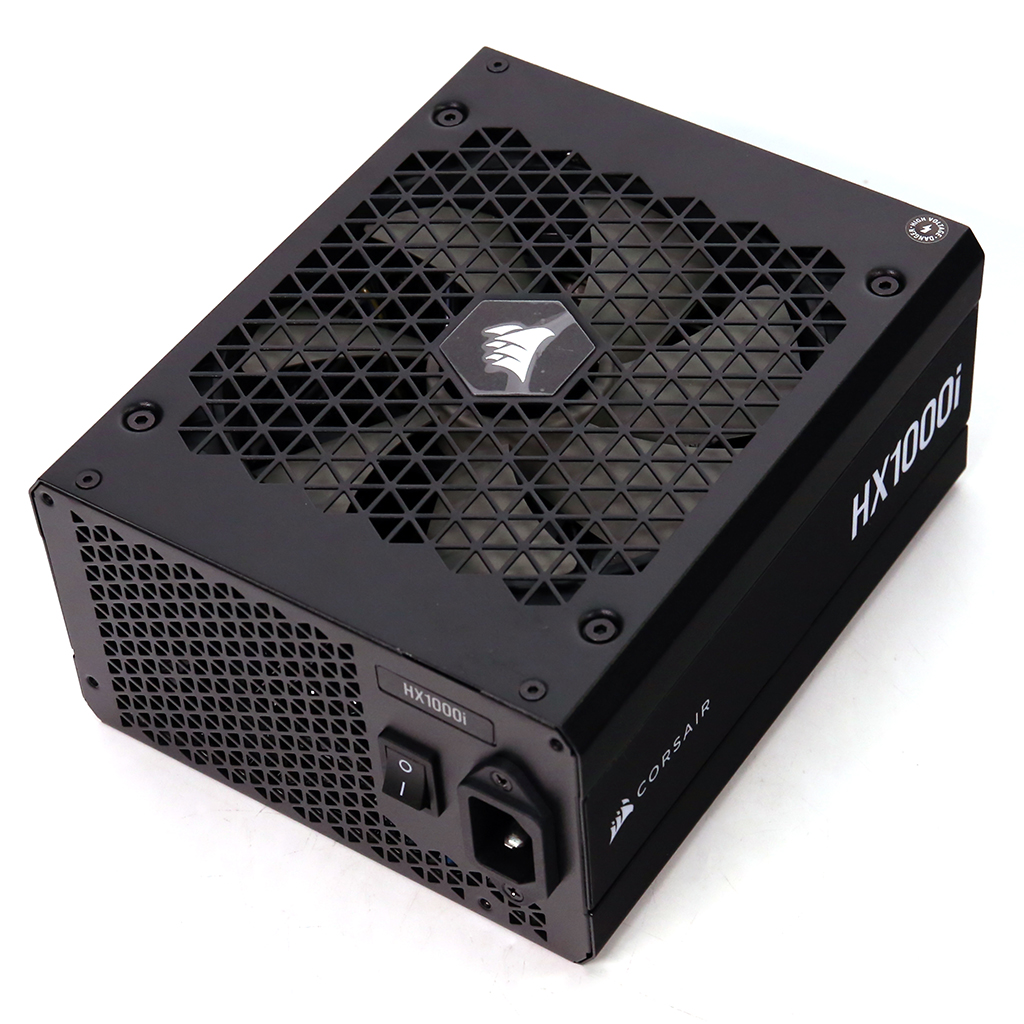

Corsair HX1000i (ATX v3.1)
23107103000056841411
Lab IDCR10002513
  • Report: 24PS2513A
  • Receipt Date: Jul 4, 2024
  • Test Date: Jul 22, 2024
  • Report Date: Jul 24, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Lab Director

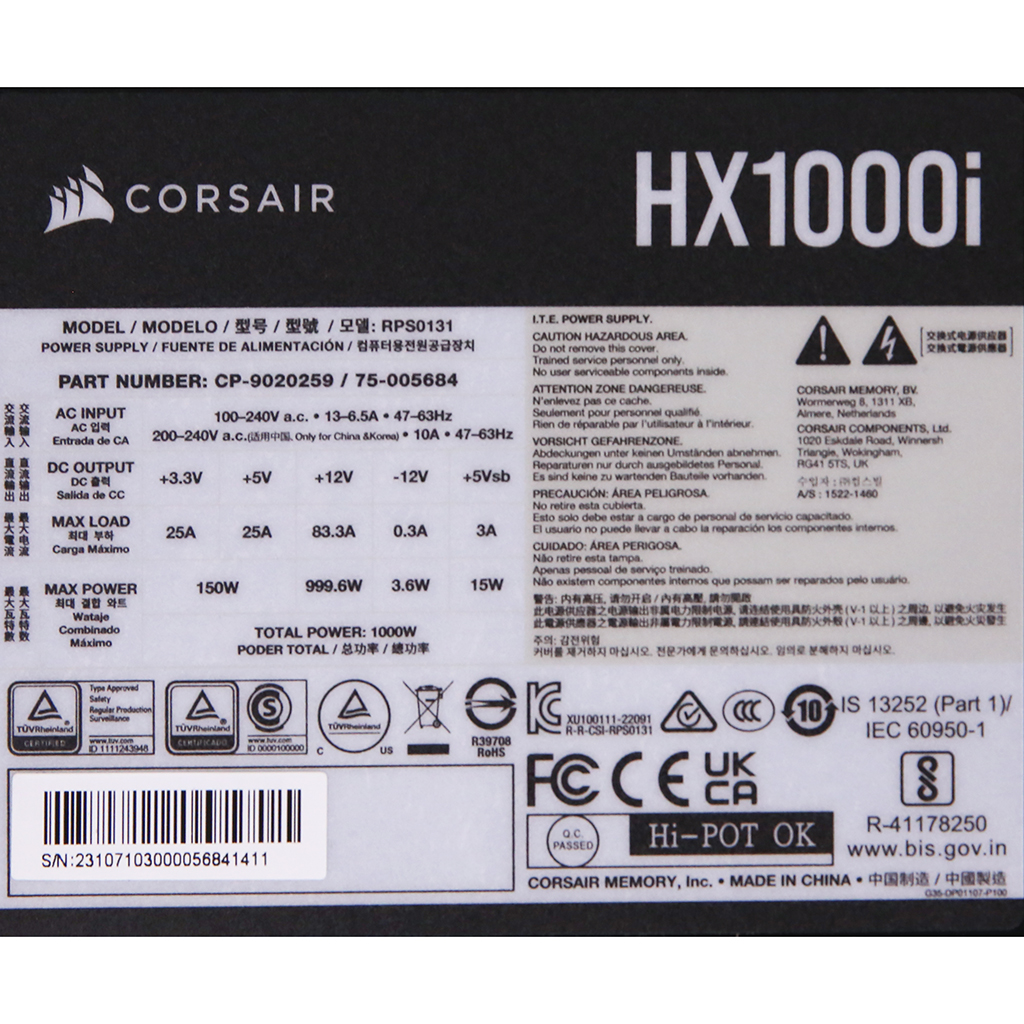

General Information

Corsair
製造商 (OEM)Channel Well Technology
HXi
RPS0131
23107103000056841411

(Vrms)100-240
(Arms)13-6.5
(Hz)47-63
(W)1000
ATX12V
140mm Fluid Dynamic Bearing Fan
(NR140P)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252583.330.3
Watts150999.6153.6
Total Max. Power (W)1000

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (610mm) 1 1 16-18AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (675mm+110mm) 2 4 16-18AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-18AWG No
SATA (455mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex (450mm+100mm+100mm+100mm) 2 8 18AWG No
USB Type C to Motherboard Header Cable (520mm) 1 1 24-28AWG No
AC Power Cord (1390mm) - C13 coupler 1 1 16AWG -

Parts Description

General Data
Manufacturer (OEM) CWT
PCB Type Double-Sided
Primary Side
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV, 1x CM02X (Discharge IC)
Inrush Protection 1x NTC Thermistor SCK20-150 (15 Ohm) & Relay
Bridge Rectifier(s)

2x LL25XB60 (600V, 25A @ 113°C)
APFC MOSFETs

2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
APFC Boost Diode

2x Infineon IDH08G65C6 (650V, 8A @ 145°C)
Bulk Cap(s)

1x Nippon Chemi-Con (420V, 470uF, 2,000h @ 105°C, KMZ) & 1x Nippon Chemi-Con (420V, 560uF, 2,000h @ 105°C, KMR)
Main Switchers

2x Infineon IPW60R099P6 (600V, 24A @ 100°C, Rds(on): 0.099Ohm)
Digital Controllers 2x Texas Instruments UCD3138A
MCU Microchip PIC32MM0064GPM036
Topology

Primary side: Semi-Digital, Interleaved PFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 10x Infineon BSC014N04LS (40V, 125A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 6x UBIQ QM3054M6 (30V, 61A @ 100°C, Rds(on): 4.8mOhm) PWM Controller(s): uPI-Semi uP3861P
Filtering Capacitors

Electrolytic: 1x Nichicon (2-5,000h @ 105°C, HD), 2x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 4x Nippon Chemi-Con (4-10,000h @ 105°C, W), 6x Rubycon (4-10,000h @ 105°C, ZLH), 2x Rubycon (4-10,000h @ 105°C, YXJ), 1x Rubycon (2-10,000h @ 105°C, YXF) Polymer: 20x United Chemi-Con, 20x FPCAP, 1x Rubycon (YXF)
Supervisor IC Weltrend WT7502R (OVP, UVP, SCP, PG)
Driver IC 2x Texas Instruments UCC27324-Q1
Fan Controller Microchip PIC32MM0064GPM036
Fan Model Corsair NR140P (140mm, 12V, 0.22A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier

1x Silan SVF4N65RD (650V, 2.5A @ 100°C, Rds(on): 2.7 Ohm) FET & 1x PS1045L SBR (45V, 10A)
Standby PWM Controller On Bright OB5282CP

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time (ms)22.7
AC Loss to PWR_OK Hold Up Time (ms)17.7
PWR_OK Inactive to DC Loss Delay (ms)5

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.04 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.10 % N/A 0.17 % 2.00 % PASS
Real Power: 0.018 W 0.014 W N/A 0.021 W N/A N/A
Apparent Power: 10.381 W 10.144 W N/A 10.622 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.05 V 230.94 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.27 % 2.00 % PASS
Real Power: 0.085 W 0.071 W N/A 0.116 W N/A N/A
Apparent Power: 34.955 W 34.515 W N/A 35.428 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

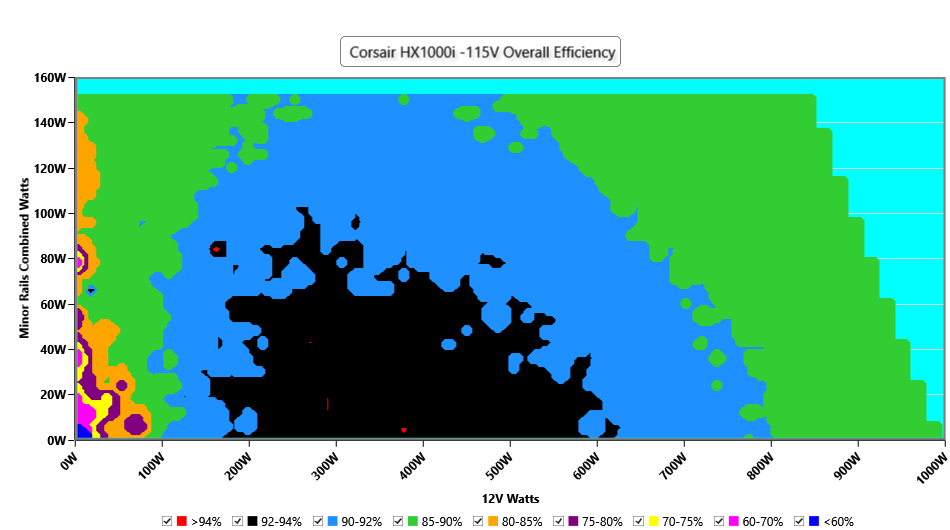

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

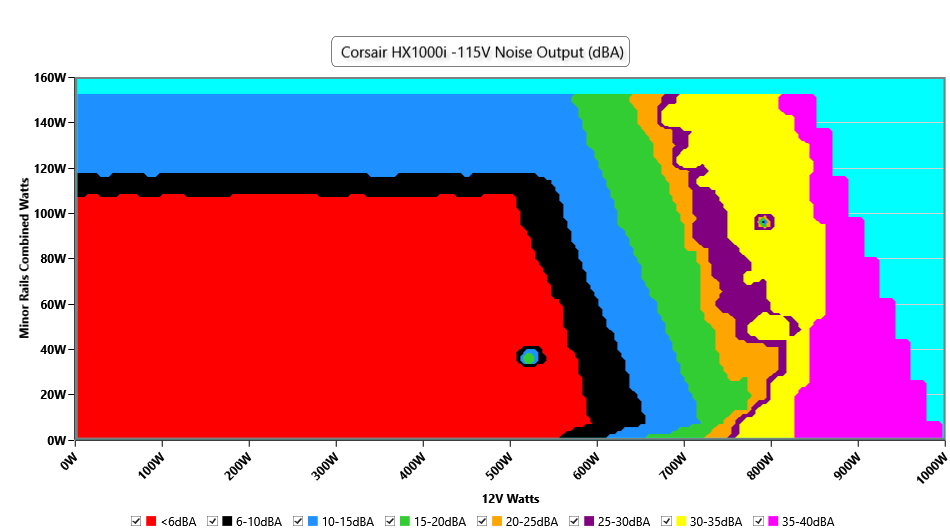

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

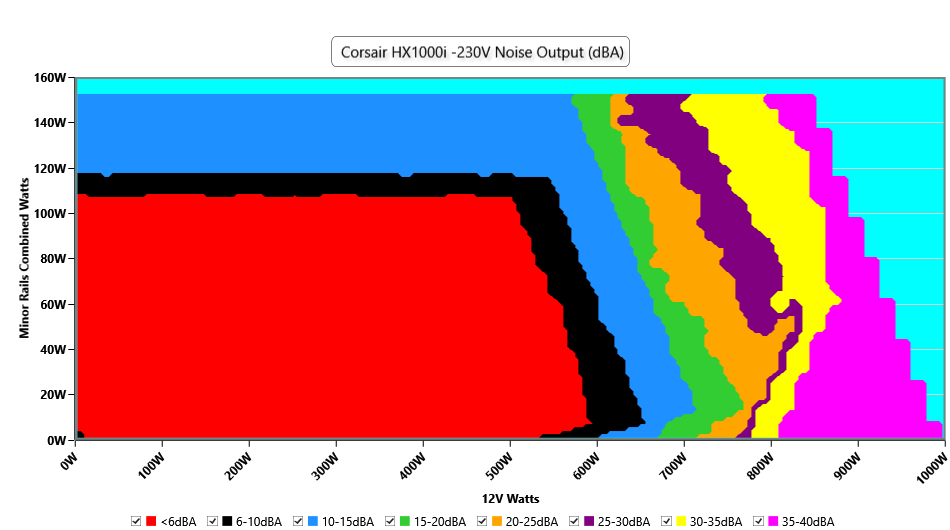

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

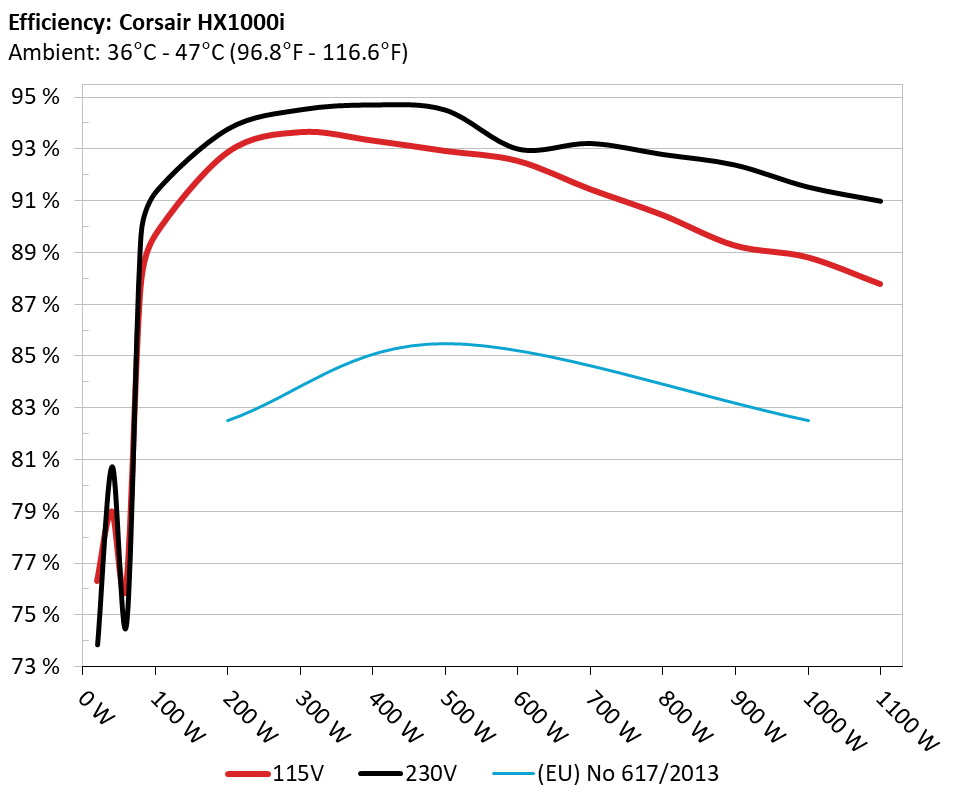

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

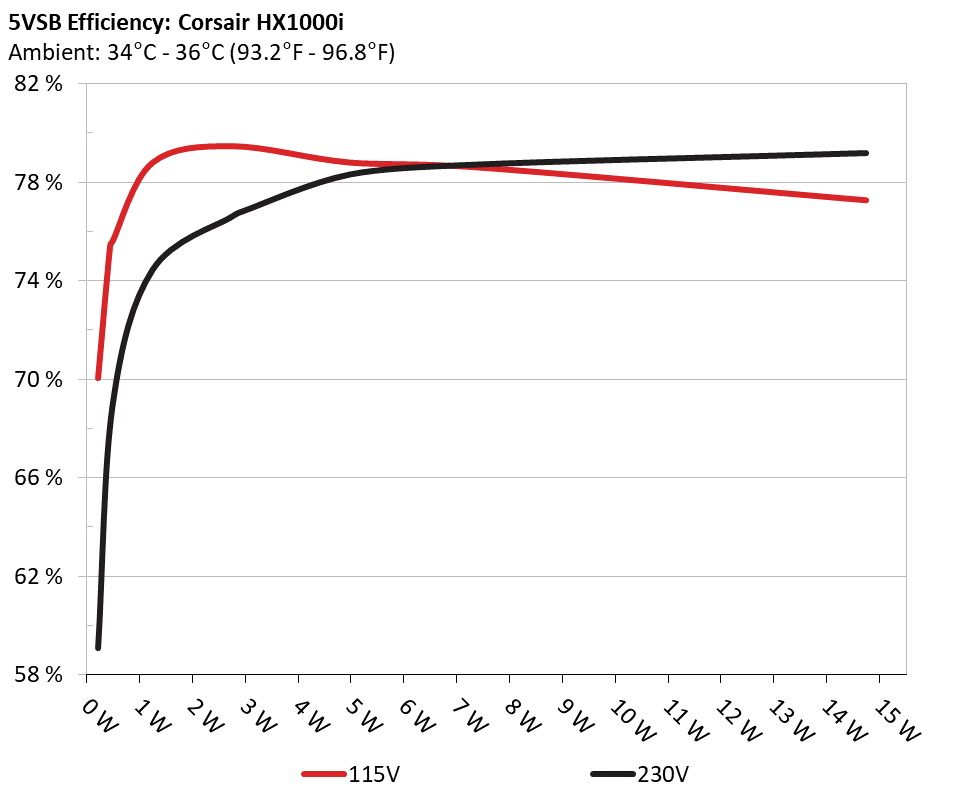

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 70.039% 0.031
5.018V 0.323W 114.83V
2 0.09A 0.452W 75.386% 0.057
5.017V 0.597W 114.83V
3 0.55A 2.751W 79.448% 0.273
5.001V 3.463W 114.84V
4 1A 4.985W 78.784% 0.393
4.985V 6.327W 114.85V
5 1.5A 7.452W 78.58% 0.465
4.968V 9.483W 114.83V
6 3A 14.744W 77.255% 0.536
4.915V 19.085W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.226W 59.078% 0.011
5.019V 0.383W 229.86V
2 0.6A 3W 76.868% 0.107
5V 3.904W 229.87V
3 0.55A 2.751W 76.615% 0.099
5.001V 3.591W 229.85V
4 1A 4.986W 78.334% 0.166
4.986V 6.365W 229.84V
5 1.5A 7.452W 78.745% 0.23
4.968V 9.463W 229.84V
6 3A 14.746W 79.203% 0.336
4.915V 18.619W 229.82V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.428A 1.972A 2A 0.989A 99.978 89.156% 0 <6.0 47.03°C 0.96
12.194V 5.069V 3.299V 5.058V 112.21 40.06°C 114.8V
20% 13.871A 2.959A 3.002A 1.187A 199.925 92.361% 0 <6.0 47.65°C 0.987
12.186V 5.068V 3.297V 5.055V 216.557 40.52°C 114.78V
30% 21.672A 3.453A 3.504A 1.386A 299.962 93.139% 0 <6.0 47.99°C 0.994
12.177V 5.067V 3.296V 5.05V 322.097 41.23°C 114.74V
40% 29.437A 3.947A 4.007A 1.586A 399.458 92.817% 0 <6.0 51.36°C 0.994
12.170V 5.067V 3.294V 5.046V 430.25 41.8°C 114.7V
50% 36.891A 4.934A 5.013A 1.785A 499.199 92.416% 0 <6.0 53°C 0.995
12.163V 5.067V 3.292V 5.043V 539.771 42.01°C 114.67V
60% 44.510A 5.924A 6.018A 1.985A 599.735 92.029% 440 <6.0 42.68°C 0.997
12.131V 5.064V 3.29V 5.037V 652.013 58.32°C 114.66V
70% 51.932A 6.915A 7.026A 2.186A 699.471 90.944% 636 12.7 43.41°C 0.998
12.138V 5.062V 3.288V 5.033V 769.092 59.25°C 114.63V
80% 59.503A 7.906A 8.032A 2.287A 799.496 89.945% 1267 36.3 43.8°C 0.998
12.127V 5.059V 3.286V 5.029V 889.992 54.32°C 114.58V
90% 67.408A 8.402A 8.524A 2.388A 899.321 88.767% 1562 41.1 44.49°C 0.999
12.118V 5.058V 3.285V 5.025V 1013.35 57.78°C 114.53V
100% 75.122A 8.899A 9.046A 2.992A 999.292 88.316% 1589 42.4 45.62°C 0.999
12.109V 5.056V 3.283V 5.013V 1132.6 58.05°C 114.5V
110% 82.780A 9.892A 10.149A 2.993A 1099.914 87.281% 1867 46.2 46°C 0.998
12.100V 5.054V 3.281V 5.012V 1259.7 59.02°C 114.47V
CL1 0.114A 17.852A 18.184A 0A 151.275 84.311% 616 11.6 41.58°C 0.981
12.185V 5.057V 3.277V 5.114V 179.351 58.29°C 114.79V
CL2 0.113A 24.68A 0A 0A 126.231 84.065% 766 19.5 42.09°C 0.975
12.190V 5.059V 3.284V 5.126V 151.763 52.06°C 114.8V
CL3 0.113A 0A 25.161A 0A 83.881 76.831% 941 26.3 41.19°C 0.956
12.189V 5.067V 3.279V 5.078V 109.172 48.55°C 114.81V
CL4 82.547A 0A 0A 0A 999.85 88.908% 1383 38.3 44.69°C 0.999
12.112V 5.063V 3.291V 5.04V 1124.555 65.23°C 114.51V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.426A 1.973A 1.999A 0.989A 99.978 90.808% 0 <6.0 46.76°C 0.791
12.198V 5.066V 3.301V 5.055V 110.074 40.06°C 229.85V
20% 13.867A 2.961A 3.001A 1.188A 199.925 93.261% 0 <6.0 46.61°C 0.914
12.188V 5.065V 3.299V 5.051V 214.335 40.74°C 229.82V
30% 21.668A 3.456A 3.503A 1.387A 299.964 94.001% 0 <6.0 48.14°C 0.943
12.180V 5.064V 3.297V 5.046V 319.113 41.14°C 229.8V
40% 29.434A 3.95A 4.006A 1.587A 399.45 94.188% 0 <6.0 49.16°C 0.94
12.171V 5.063V 3.295V 5.041V 424.75 41.62°C 229.78V
50% 36.889A 4.939A 5.011A 1.787A 499.196 93.994% 0 <6.0 50.34°C 0.944
12.164V 5.062V 3.293V 5.038V 531.35 42.43°C 229.8V
60% 44.532A 5.928A 6.018A 1.987A 599.743 92.486% 433 <6.0 42.74°C 0.974
12.125V 5.061V 3.29V 5.035V 647.943 52.52°C 229.71V
70% 51.947A 6.917A 7.025A 2.186A 699.469 92.7% 631 12.2 43.03°C 0.985
12.134V 5.06V 3.288V 5.031V 754.663 56.56°C 229.73V
80% 59.509A 7.905A 8.033A 2.287A 799.498 92.276% 1205 34.2 43.79°C 0.987
12.126V 5.059V 3.286V 5.029V 866.357 56.95°C 229.71V
90% 67.415A 8.403A 8.524A 2.388A 899.305 91.868% 1348 37.4 44.63°C 0.989
12.117V 5.057V 3.284V 5.025V 978.909 57.41°C 229.69V
100% 75.132A 8.9A 9.047A 2.993A 999.314 91.02% 1562 41.1 45.75°C 0.99
12.107V 5.056V 3.283V 5.012V 1097.959 59.01°C 229.67V
110% 82.793A 9.893A 10.151A 2.993A 1099.931 90.473% 1797 44.5 46.64°C 0.991
12.098V 5.054V 3.28V 5.011V 1215.77 59.59°C 229.66V
CL1 0.114A 17.852A 18.19A 0A 151.277 85.321% 616 11.6 42.46°C 0.896
12.185V 5.057V 3.276V 5.114V 177.27 55.56°C 229.81V
CL2 0.113A 24.682A 0A 0A 126.233 84.002% 767 19.5 42.97°C 0.837
12.190V 5.059V 3.284V 5.127V 150.893 50.81°C 229.83V
CL3 0.113A 0A 25.165A 0A 83.881 77.876% 942 26.3 41.92°C 0.787
12.189V 5.067V 3.278V 5.077V 107.712 48.02°C 229.83V
CL4 82.567A 0A 0A 0A 999.95 91.298% 1453 40 44.99°C 0.99
12.111V 5.062V 3.291V 5.039V 1095.48 57.16°C 229.7V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.493A 0.5A 0.197A 19.992 75.827% 0 <6.0 42.13°C 0.625
12.201V 5.067V 3.3V 5.066V 26.602 36.38°C 114.83V
40W 2.680A 0.691A 0.7A 0.296A 39.994 78.51% 0 <6.0 44.53°C 0.894
12.199V 5.068V 3.3V 5.065V 51.063 37.03°C 114.83V
60W 4.142A 0.887A 0.899A 0.395A 59.994 75.642% 0 <6.0 44.3°C 0.939
12.199V 5.07V 3.301V 5.065V 80.02 38.12°C 114.8V
80W 5.600A 1.085A 1.099A 0.494A 79.927 87.166% 0 <6.0 45.17°C 0.904
12.195V 5.07V 3.301V 5.064V 91.075 39.14°C 114.81V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.493A 0.5A 0.198A 19.991 73.338% 0 <6.0 41.12°C 0.456
12.204V 5.065V 3.301V 5.064V 27.318 37.44°C 229.85V
40W 2.678A 0.691A 0.7A 0.296A 39.994 80.214% 0 <6.0 41.49°C 0.616
12.206V 5.066V 3.301V 5.064V 49.639 37.26°C 229.84V
60W 4.140A 0.888A 0.899A 0.395A 59.994 74.143% 0 <6.0 44.68°C 0.687
12.204V 5.067V 3.303V 5.063V 72.258 38.91°C 229.83V
80W 5.598A 1.085A 1.099A 0.494A 79.927 89.186% 0 <6.0 44.78°C 0.749
12.200V 5.067V 3.302V 5.062V 89.602 39.14°C 229.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 15.6 mV 8.5 mV 9.2 mV 5.1 mV Pass
20% Load 16.1 mV 9.9 mV 10.3 mV 6.0 mV Pass
30% Load 17.0 mV 11.6 mV 10.9 mV 6.3 mV Pass
40% Load 19.4 mV 8.5 mV 8.3 mV 5.3 mV Pass
50% Load 18.8 mV 8.6 mV 8.6 mV 5.3 mV Pass
60% Load 17.1 mV 9.5 mV 9.9 mV 6.0 mV Pass
70% Load 16.8 mV 8.9 mV 10.2 mV 6.0 mV Pass
80% Load 16.9 mV 8.7 mV 10.1 mV 6.9 mV Pass
90% Load 19.1 mV 9.8 mV 11.0 mV 7.2 mV Pass
100% Load 29.0 mV 12.7 mV 13.2 mV 10.2 mV Pass
110% Load 30.2 mV 11.9 mV 13.9 mV 9.5 mV Pass
Crossload 1 25.0 mV 15.6 mV 14.1 mV 7.2 mV Pass
Crossload 2 16.6 mV 18.2 mV 9.6 mV 6.5 mV Pass
Crossload 3 20.0 mV 11.2 mV 13.2 mV 7.4 mV Pass
Crossload 4 29.9 mV 13.0 mV 13.3 mV 7.7 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 12.6 mV 8.7 mV 8.5 mV 5.6 mV Pass
20% Load 12.3 mV 8.3 mV 8.2 mV 4.9 mV Pass
30% Load 15.5 mV 10.1 mV 9.6 mV 6.0 mV Pass
40% Load 19.4 mV 9.3 mV 9.1 mV 5.7 mV Pass
50% Load 22.9 mV 10.1 mV 10.1 mV 6.1 mV Pass
60% Load 19.7 mV 11.2 mV 10.9 mV 6.8 mV Pass
70% Load 20.2 mV 12.7 mV 14.8 mV 8.8 mV Pass
80% Load 21.4 mV 12.4 mV 12.7 mV 8.4 mV Pass
90% Load 21.7 mV 12.9 mV 12.8 mV 8.2 mV Pass
100% Load 27.7 mV 13.9 mV 15.2 mV 10.5 mV Pass
110% Load 30.2 mV 15.7 mV 14.3 mV 10.5 mV Pass
Crossload 1 26.3 mV 15.6 mV 13.9 mV 7.1 mV Pass
Crossload 2 15.6 mV 14.2 mV 9.4 mV 5.1 mV Pass
Crossload 3 17.7 mV 10.9 mV 12.9 mV 7.4 mV Pass
Crossload 4 29.8 mV 13.2 mV 13.9 mV 9.1 mV Pass

The results above are not used in the certification process

Corsair HX1000i (ATX v3.1)

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
