CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PCYES Aether 750W
Lab IDPY75002498
  • Report: 24PS2498A
  • Receipt Date: Jun 25, 2024
  • Test Date: Jul 4, 2024
  • Report Date: Jul 8, 2024
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Lab Director

General Information

PCYES
Hersteller (OEM)Kinpower
Aether
750WFMG
Not Properly Configured OCP @ 3.3V

(Vrms)100-240
(Arms)15
(Hz)50-60
(W)750
ATX12V
120mm Rifle Bearing
(EFS-14E12H)
✗
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts103750153.6
Total Max. Power (W)750

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (595mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+155mm+155mm) 3 9 18AWG No
4-pin Molex (450mm+150mm+150mm) 1 3 18AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

89.760%
70.811
5VSB82.184%
(W)0.0441
0.986
Durchschnittlicher Schallpegel32.93 dB(A)
Wirkungsgrad (ETA)PLATINUM
Lautstärkeklasse (LAMBDA)Standard++
91.576%
5VSB80.854%
(W)0.1048
0.957
Durchschnittlicher Schallpegel33.35 dB(A)
Wirkungsgrad (ETA)PLATINUM
Lautstärkeklasse (LAMBDA)Standard++

Hold-Up Time (ms)20.5
AC Loss to PWR_OK Hold Up Time (ms)17.8
PWR_OK Inactive to DC Loss Delay (ms)2.7

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.12 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.044 W 0.006 W N/A 0.067 W N/A N/A
Apparent Power: 8.179 W 7.828 W N/A 8.544 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.04 V 230.93 V 227.70 V 231.10 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.28 % 2.00 % PASS
Real Power: 0.105 W 0.089 W N/A 0.138 W N/A N/A
Apparent Power: 26.747 W 26.247 W N/A 27.274 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

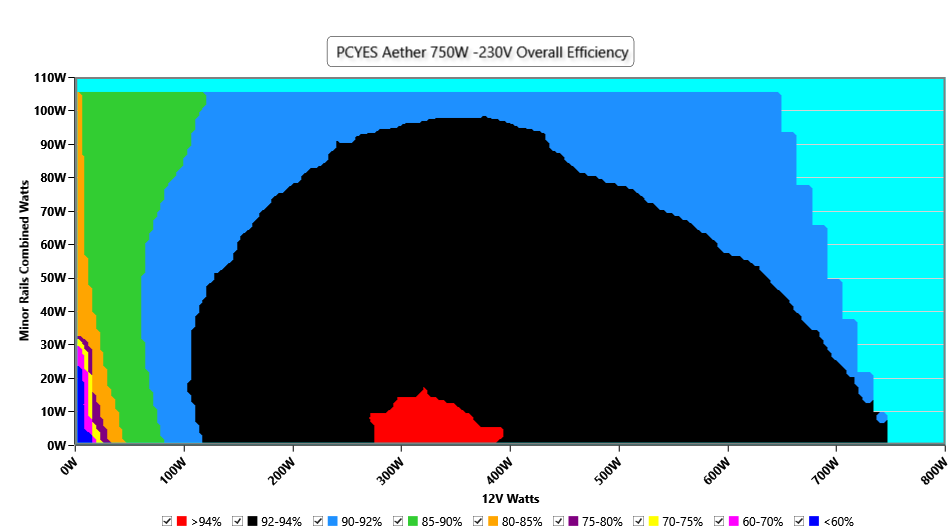

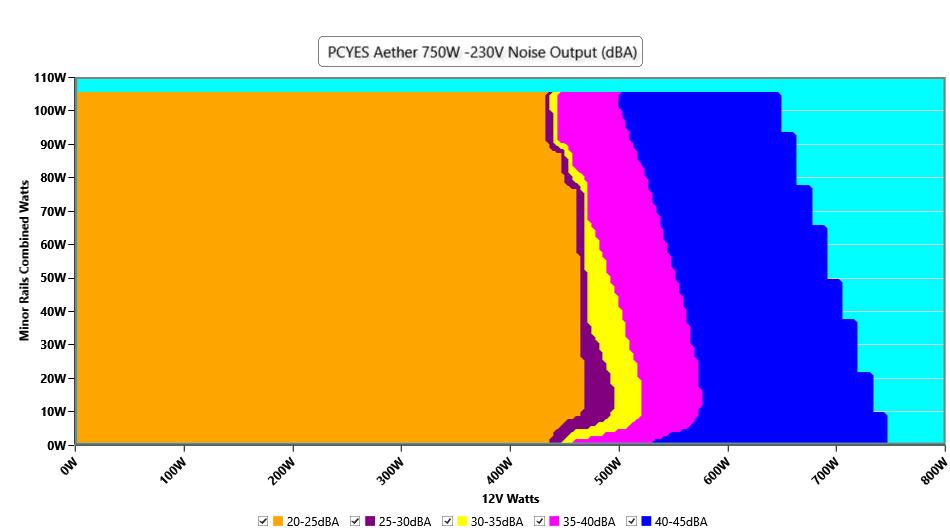

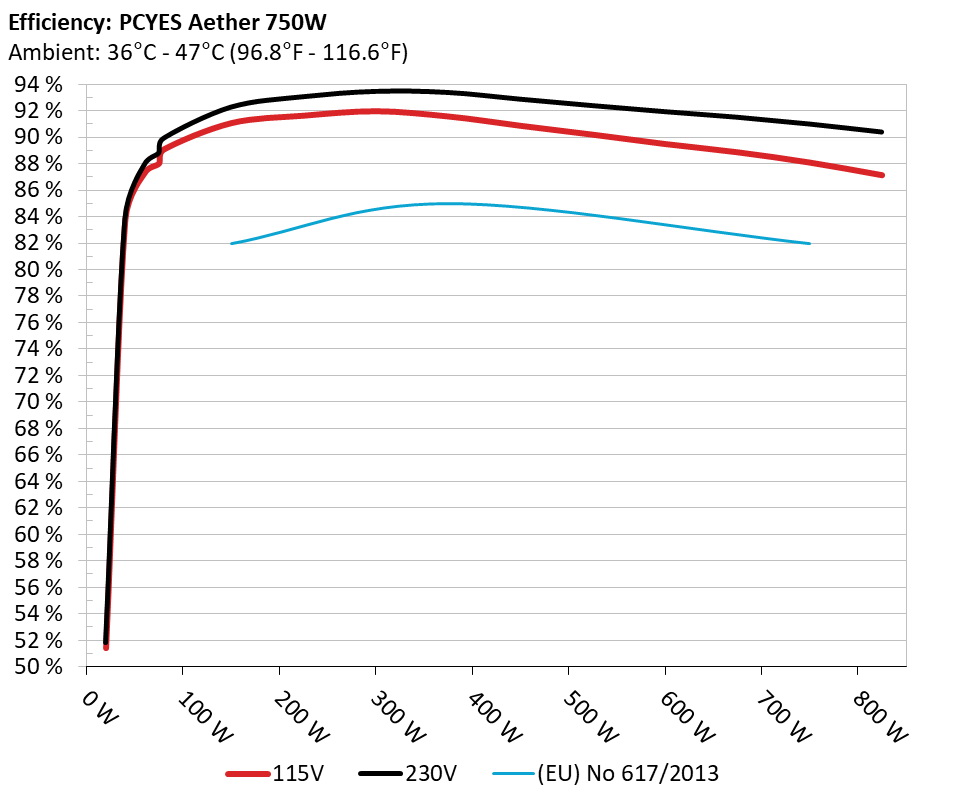

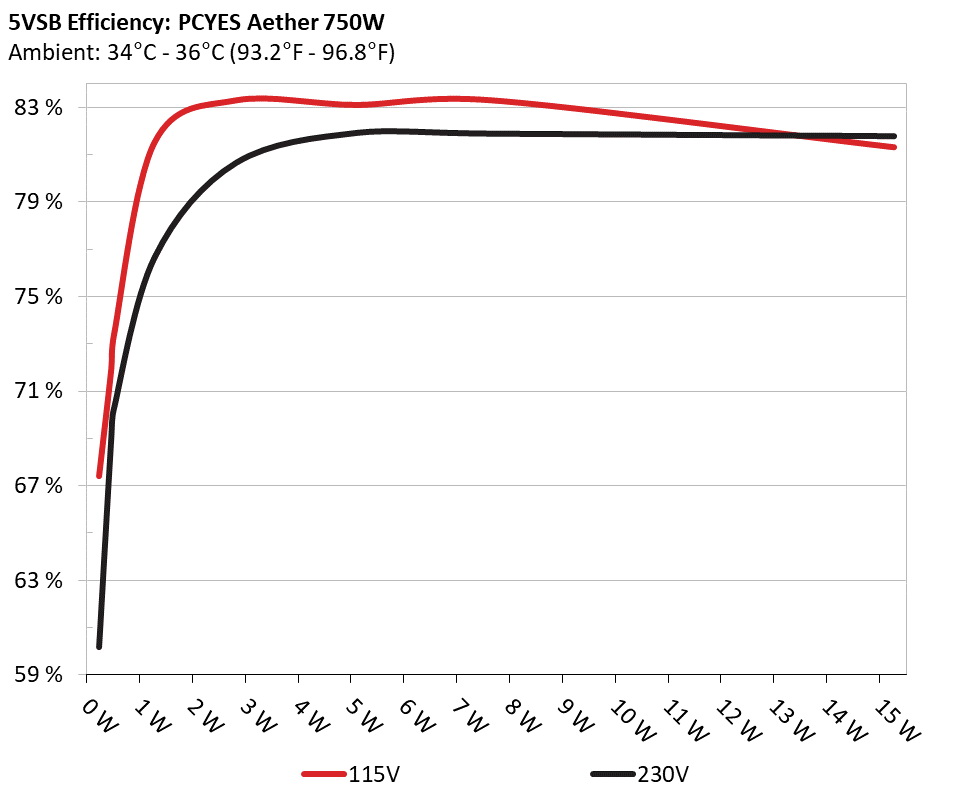

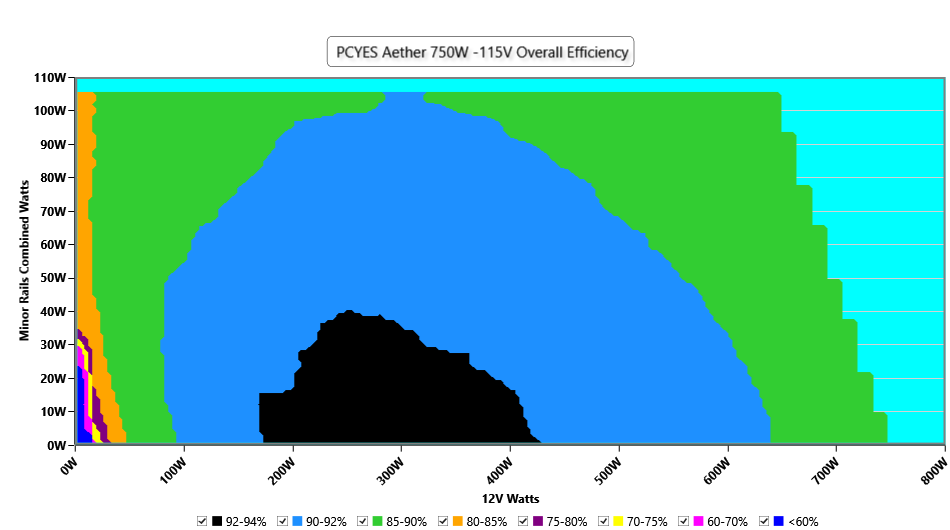

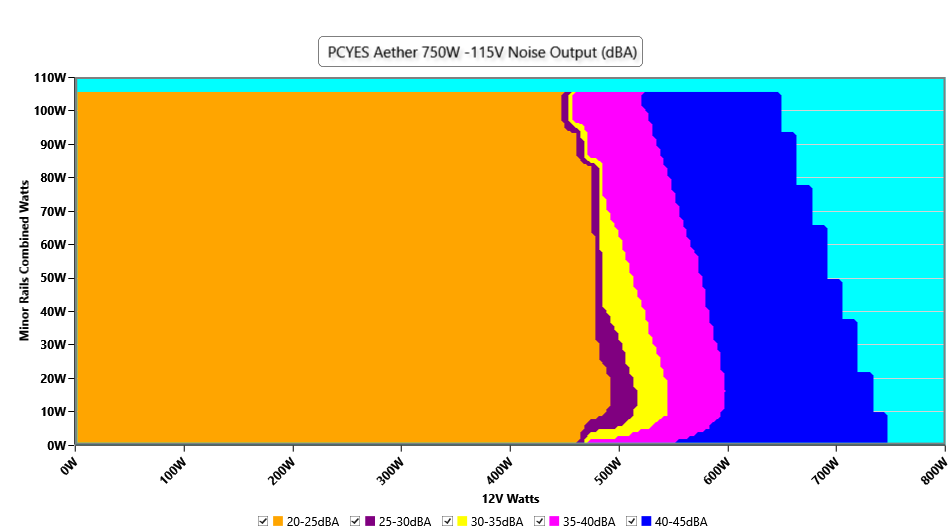

Graphs

Indicative Performance

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 67.396% 0.109
5.136V 0.343W 115.16V
2 0.09A 0.462W 71.952% 0.184
5.135V 0.642W 115.16V
3 0.55A 2.821W 83.32% 0.407
5.128V 3.386W 115.16V
4 1A 5.122W 83.123% 0.46
5.121V 6.162W 115.16V
5 1.5A 7.671W 83.32% 0.482
5.113V 9.207W 115.16V
6 3A 15.268W 81.332% 0.515
5.089V 18.773W 115.15V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 60.181% 0.035
5.137V 0.384W 230.36V
2 0.09A 0.462W 69.041% 0.059
5.136V 0.669W 230.37V
3 0.55A 2.821W 80.637% 0.236
5.128V 3.499W 230.36V
4 1A 5.122W 81.909% 0.318
5.121V 6.253W 230.36V
5 1.5A 7.671W 81.873% 0.366
5.113V 9.369W 230.35V
6 3A 15.269W 81.764% 0.419
5.089V 18.675W 230.35V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.360A 1.969A 1.978A 0.978A 75.003 88.022% 889 23.1 40.18°C 0.964
12.246V 5.08V 3.337V 5.114V 85.209 41.45°C 115.12V
20% 9.729A 2.955A 2.971A 1.176A 149.955 91.071% 891 23.1 40.65°C 0.979
12.237V 5.078V 3.332V 5.103V 164.657 42.52°C 115.11V
30% 15.445A 3.449A 3.471A 1.375A 224.961 91.633% 894 23.1 41.15°C 0.983
12.231V 5.075V 3.328V 5.092V 245.501 44.82°C 115.08V
40% 21.176A 3.944A 3.971A 1.575A 300.049 91.965% 897 23.1 41.89°C 0.988
12.223V 5.073V 3.324V 5.082V 326.263 46.52°C 115.06V
50% 26.531A 4.932A 4.971A 1.775A 374.617 91.577% 901 23.2 42.04°C 0.99
12.216V 5.07V 3.319V 5.07V 409.071 49.43°C 115.04V
60% 31.922A 5.921A 5.973A 1.977A 449.541 90.872% 1443 38.9 42.7°C 0.991
12.209V 5.068V 3.315V 5.059V 494.698 50.42°C 115.03V
70% 37.325A 6.91A 6.977A 2.18A 524.461 90.203% 1662 41.9 43.14°C 0.991
12.199V 5.067V 3.311V 5.047V 581.424 51.2°C 114.99V
80% 42.803A 7.9A 7.984A 2.284A 599.677 89.492% 1827 45.1 43.79°C 0.991
12.190V 5.064V 3.306V 5.036V 670.096 53.17°C 114.97V
90% 48.612A 8.397A 8.478A 2.388A 674.696 88.871% 1825 45.1 44.33°C 0.992
12.182V 5.062V 3.302V 5.027V 759.19 55.58°C 114.95V
100% 54.227A 8.896A 9.005A 2.995A 749.915 88.093% 1828 45.1 45.88°C 0.993
12.175V 5.059V 3.298V 5.009V 851.273 59.25°C 114.92V
110% 59.715A 9.892A 10.117A 3.001A 824.939 87.139% 1827 45.1 46.66°C 0.994
12.169V 5.055V 3.291V 5V 946.698 63.29°C 114.9V
CL1 0.114A 12.243A 12.367A 0.001A 104.304 83.38% 893 23.1 40.42°C 0.973
12.239V 5.064V 3.307V 5.113V 125.097 52.61°C 115.1V
CL2 0.114A 19.789A 0A 0.001A 101.4 82.024% 897 23.1 40.25°C 0.973
12.241V 5.053V 3.324V 5.121V 123.623 49.16°C 115.11V
CL3 0.114A 0A 20.093A 0A 67.391 76.153% 892 23.1 41.55°C 0.965
12.238V 5.056V 3.284V 5.116V 88.493 47.69°C 115.12V
CL4 61.524A 0A 0A 0.007A 749.728 89.106% 1841 45.2 45.39°C 0.994
12.185V 5.063V 3.309V 5.068V 841.392 55.74°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.360A 1.969A 1.977A 0.978A 75.004 88.815% 892 23.1 40.43°C 0.873
12.246V 5.08V 3.339V 5.114V 84.45 41.54°C 230.35V
20% 9.729A 2.954A 2.969A 1.176A 149.956 92.275% 894 23.1 40.63°C 0.929
12.237V 5.078V 3.335V 5.103V 162.51 42.16°C 230.34V
30% 15.446A 3.449A 3.468A 1.375A 224.96 93.064% 897 23.1 41.12°C 0.949
12.230V 5.076V 3.331V 5.092V 241.723 43.69°C 230.33V
40% 21.178A 3.943A 3.968A 1.575A 300.047 93.465% 899 23.1 41.89°C 0.961
12.222V 5.074V 3.327V 5.082V 321.026 45.12°C 230.32V
50% 26.532A 4.931A 4.968A 1.775A 374.624 93.385% 901 23.2 42.37°C 0.968
12.216V 5.071V 3.322V 5.07V 401.163 47.07°C 230.31V
60% 31.924A 5.92A 5.969A 1.977A 449.552 92.879% 1418 37.8 42.69°C 0.973
12.208V 5.07V 3.318V 5.059V 484.02 48.21°C 230.3V
70% 37.328A 6.908A 6.973A 2.18A 524.48 92.391% 1681 42.2 43.39°C 0.976
12.199V 5.068V 3.313V 5.047V 567.672 49.25°C 230.29V
80% 42.808A 7.898A 7.979A 2.284A 599.7 91.934% 1824 45.1 43.98°C 0.979
12.189V 5.065V 3.308V 5.036V 652.32 50.31°C 230.28V
90% 48.617A 8.396A 8.473A 2.388A 674.729 91.515% 1822 45.1 44.86°C 0.981
12.181V 5.063V 3.304V 5.027V 737.283 52.34°C 230.26V
100% 54.232A 8.895A 9.001A 2.995A 749.956 91.001% 1822 45.1 45.02°C 0.982
12.174V 5.06V 3.299V 5.009V 824.117 54.9°C 230.24V
110% 59.723A 9.891A 10.111A 3.001A 824.976 90.395% 1823 45.1 46.86°C 0.983
12.167V 5.056V 3.293V 4.999V 912.632 57.74°C 230.23V
CL1 0.115A 12.237A 12.36A 0.001A 104.309 84.405% 893 23.1 40.99°C 0.91
12.239V 5.067V 3.309V 5.113V 123.583 50.79°C 230.33V
CL2 0.114A 19.771A 0A 0.001A 101.401 83.036% 896 23.1 40.22°C 0.909
12.241V 5.058V 3.326V 5.121V 122.122 48.14°C 230.33V
CL3 0.114A 0A 20.079A 0A 67.392 76.875% 891 23.1 40.16°C 0.876
12.238V 5.056V 3.287V 5.116V 87.665 46.57°C 230.33V
CL4 61.530A 0A 0A 0.007A 749.715 92.02% 1842 45.2 45.97°C 0.981
12.184V 5.063V 3.311V 5.068V 814.732 51.67°C 230.24V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.492A 0.493A 0.195A 20.002 51.412% 885 22.9 36.33°C 0.928
12.245V 5.087V 3.344V 5.128V 38.909 39.93°C 115.13V
40W 2.668A 0.689A 0.691A 0.293A 40 83.793% 885 22.9 37.36°C 0.94
12.250V 5.083V 3.342V 5.129V 47.739 39.05°C 115.13V
60W 4.126A 0.886A 0.889A 0.39A 60 87.299% 887 23.1 38.97°C 0.953
12.247V 5.081V 3.34V 5.125V 68.727 39.81°C 115.12V
80W 5.580A 1.083A 1.087A 0.488A 79.958 89.079% 887 23.1 39.21°C 0.964
12.246V 5.081V 3.339V 5.122V 89.76 40.52°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.212A 0.492A 0.493A 0.195A 20.001 51.816% 890 23.1 36.64°C 0.771
12.250V 5.085V 3.344V 5.129V 38.608 42.24°C 230.37V
40W 2.668A 0.689A 0.691A 0.293A 40 83.838% 890 23.1 37.5°C 0.799
12.252V 5.083V 3.344V 5.129V 47.71 39.69°C 230.36V
60W 4.126A 0.886A 0.889A 0.39A 60 87.913% 890 23.1 38.2°C 0.847
12.249V 5.082V 3.342V 5.125V 68.251 39.84°C 230.36V
80W 5.580A 1.083A 1.086A 0.488A 79.956 89.913% 891 23.1 39.46°C 0.878
12.246V 5.081V 3.341V 5.122V 88.928 40.39°C 230.35V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.08mV8.77mV5.34mV11.82mVPass
20% Load13.80mV11.22mV7.27mV14.57mVPass
30% Load13.23mV11.94mV7.63mV16.81mVPass
40% Load13.13mV13.42mV8.39mV18.65mVPass
50% Load15.22mV15.15mV9.87mV21.81mVPass
60% Load16.54mV18.01mV10.53mV25.17mVPass
70% Load18.42mV21.98mV11.80mV28.22mVPass
80% Load19.69mV21.88mV16.99mV32.91mVPass
90% Load19.59mV23.11mV17.55mV36.78mVPass
100% Load28.87mV26.94mV19.88mV46.25mVPass
110% Load30.10mV27.43mV21.04mV50.41mVPass
Crossload120.78mV20.07mV19.88mV13.29mVPass
Crossload213.35mV13.52mV15.82mV11.11mVPass
Crossload314.16mV21.99mV16.83mV10.04mVPass
Crossload428.86mV19.85mV11.59mV38.97mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load16.15mV8.87mV5.65mV11.82mVPass
20% Load15.08mV10.25mV6.31mV15.28mVPass
30% Load12.72mV11.12mV6.87mV16.35mVPass
40% Load13.33mV12.29mV8.19mV18.03mVPass
50% Load14.19mV13.98mV8.85mV21.30mVPass
60% Load15.42mV17.04mV10.48mV24.81mVPass
70% Load17.10mV19.33mV11.70mV27.30mVPass
80% Load17.96mV19.69mV16.73mV33.11mVPass
90% Load20.76mV20.76mV17.85mV36.53mVPass
100% Load29.64mV24.09mV19.93mV45.60mVPass
110% Load31.06mV26.57mV21.49mV48.96mVPass
Crossload121.55mV19.86mV19.97mV12.72mVPass
Crossload214.87mV13.01mV14.95mV11.36mVPass
Crossload315.18mV21.58mV16.48mV9.73mVPass
Crossload427.77mV19.14mV11.66mV38.78mVPass

The results above are not used in the certification process

PCYES Aether 750W

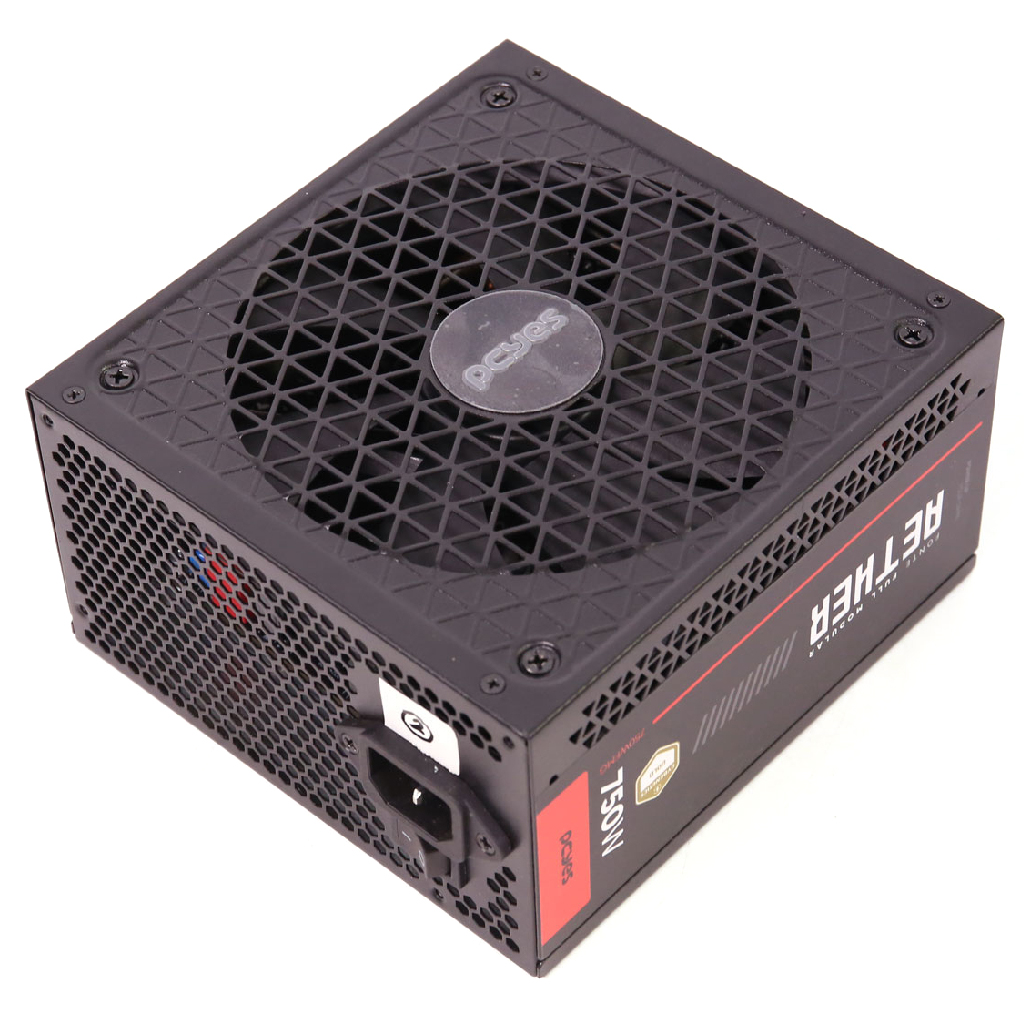

Top side

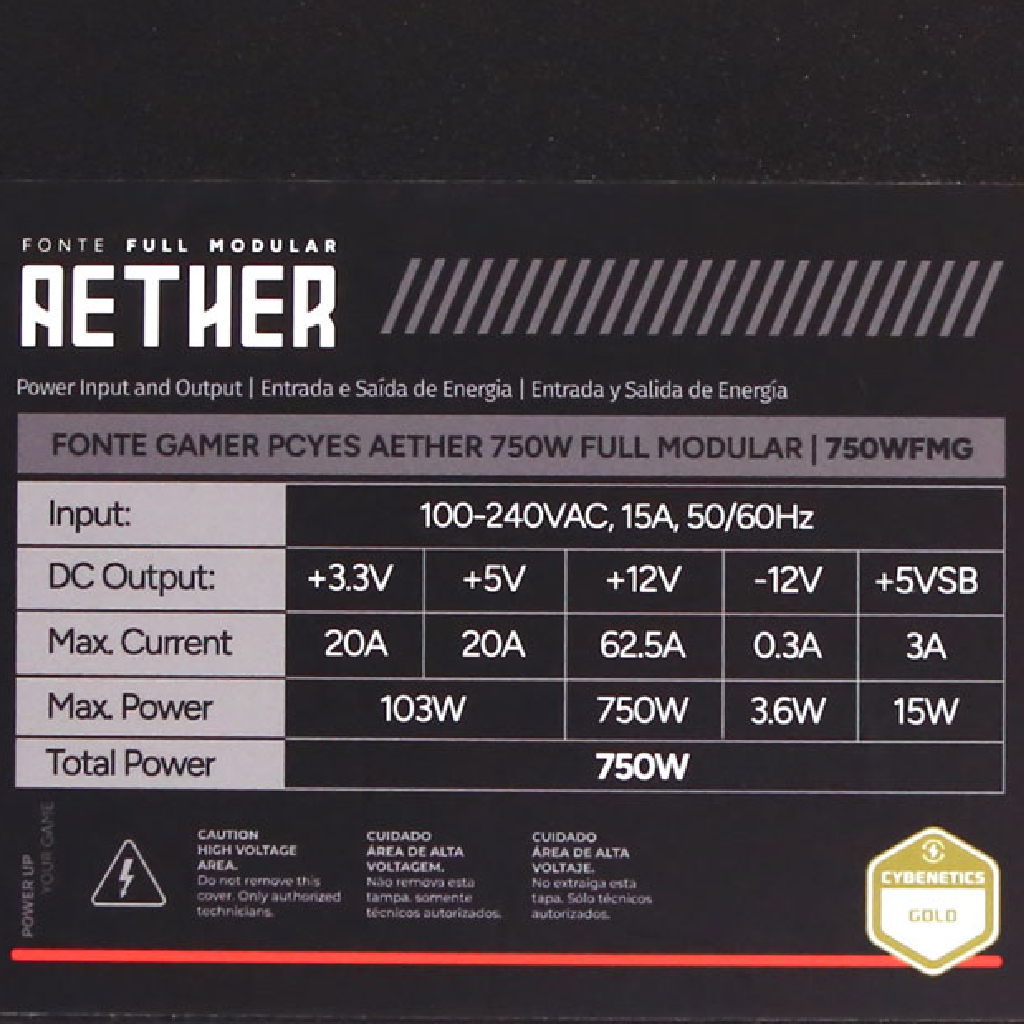

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
