Cooler Master X Silent Max Platinum 1300
Serial NumberMPSD001AFAPBEU1241300002
Lab IDCM13002493
  • Report: 24PS2493A
  • Receipt Date: May 29, 2024
  • Test Date: Jun 27, 2024
  • Report Date: Jun 28, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandCooler Master
Manufacturer (OEM)Cooler Master
SeriesX Silent
Model NumberMPS-D001-AFAP
Serial NumberMPSD001AFAPBEU1241300002
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)7.1-15
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling120mm Loop Dynamic Bearing Fan
(FA12025L12LPZ)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2020108.330
Watts1201299.6150
Total Max. Power (W)1300

Test Equipment

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 24 pin (650mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 1 1 16AWG No
8 pin EPS12V (650mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 4 4 16-18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-28AWG No
SATA (500mm+140mm+140mm+140mm) 3 12 18AWG No
4-pin Molex (500mm+120mm+120mm+120mm) 1 4 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 15AWG -

Parts Description

General Data
Manufacturer (OEM) Cooler Master
Platform MPS-D001-AFAP
PCB Type Double-Sided (Four-layer board)
Primary Side
Transient Filter 2x Y caps, 1x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK20100 (10 Ohm @25°C) & Relay
Rectifier MOSFETs

4x Infineon IPT60R040S7 (600V, 13A @ 140°C, Rds(on): 0.040Ohm)
APFC MOSFETs

2x Infineon IMW65R072M1H (650V, 18A @ 100°C, Rds(on): 0.094Ohm)
APFC Driver

Infineon 2EDN7524F
APFC Boost Diode

1x Infineon IDH10G65C6 (650V, 10A @ 140°C)
Bulk Cap(s)

2x Rubycon (450V, 600uF each or 1200uF combined, 2000h @ 105°C, MXE)
Main Switchers

4x Infineon IPP60R080P7 (650V, 23A @ 100°C, Rds(on): 0.080Ohm)
Driver ICs

2x Infineon 2ED21814S06J (650V, 31A @ 25°C, Rds(on): 0.07Ohm)
APFC Controller

Infineon ICE3PCS01G
Resonant Controller

Infineon ICE2HS01G
Primary Side MCU

NXP MC9S08SH8CWJ
Topology

Primary side: Bridgeless PFC, Full-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 12x Infineon ISC010N04NM6 (40V, 201A @ 100°C, Rds(on): 1.0mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon ISC011N03L5S (30V, 100A @ 100°C, Rds(on): 1.1mOhm) PWM Controller(s): 1x
Filtering Capacitors

Electrolytic: 2x Rubycon (6-10,000 @ 105°C, ZLH), Polymer: 47x Nippon Chemi-Con
Supervisor IC Weltrend WT7502R
Fan Mobius 120 FA12025L12LPZ (120mm, 12V, 0.25A, Loop Dynamic Bearing Fan)
Secondary Side MCU Silicon Labs C8051F380-GQ
5VSB
TVS Diode

1x SMBJ150A
Low Side Rectifier

DK DK5V45R05M (45V, Rds(on): 5mOh)
Standby PWM Controller Infineon ICE5QR1680BG

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)25.9
AC Loss to PWR_OK Hold Up Time (ms)20.9
PWR_OK Inactive to DC Loss Delay (ms)5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.17 % 2.00 % PASS
Real Power: 0.070 W 0.006 W N/A 0.114 W N/A N/A
Apparent Power: 15.247 W 14.943 W N/A 15.560 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.92 V 227.70 V 231.08 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.25 % 2.00 % PASS
Real Power: 0.174 W 0.126 W N/A 0.236 W N/A N/A
Apparent Power: 51.395 W 50.662 W N/A 52.167 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

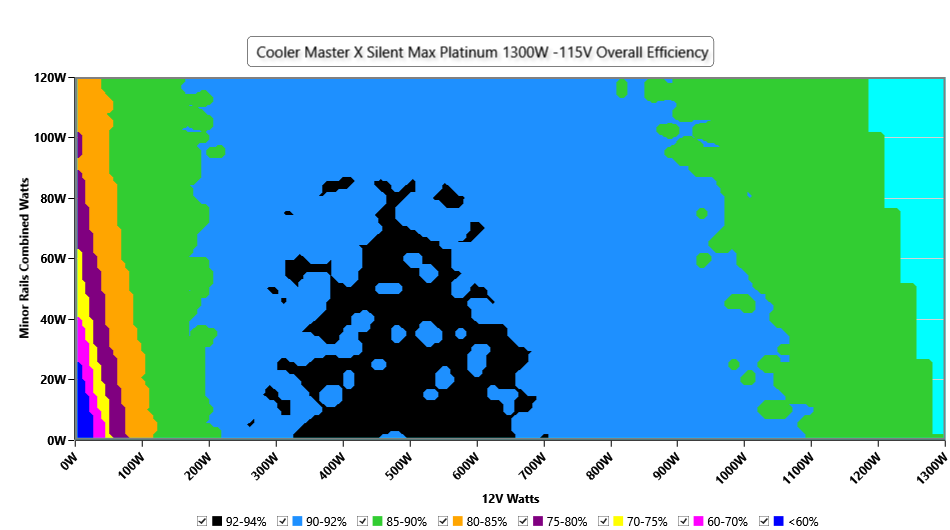

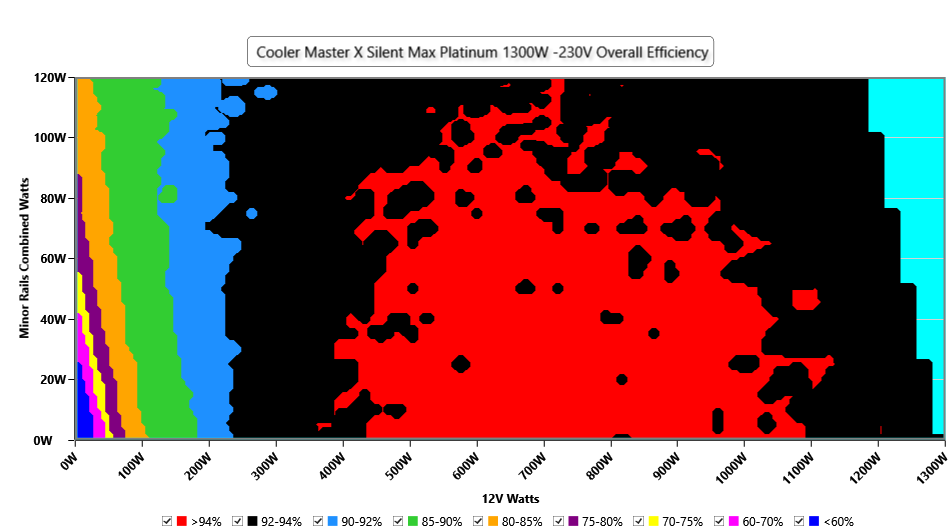

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

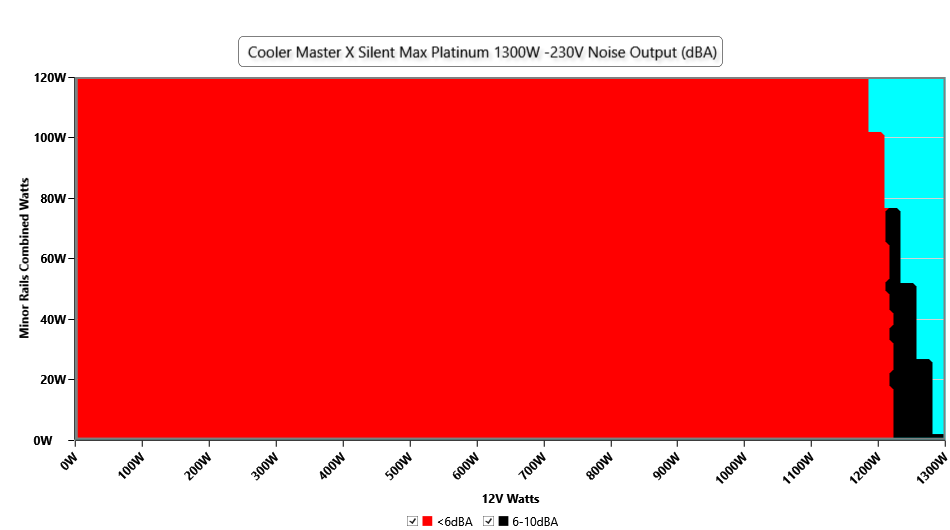

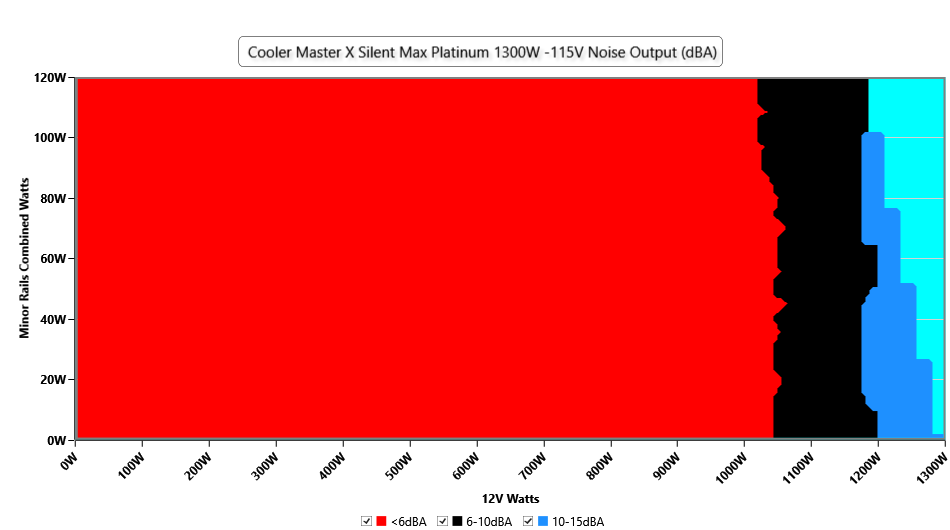

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

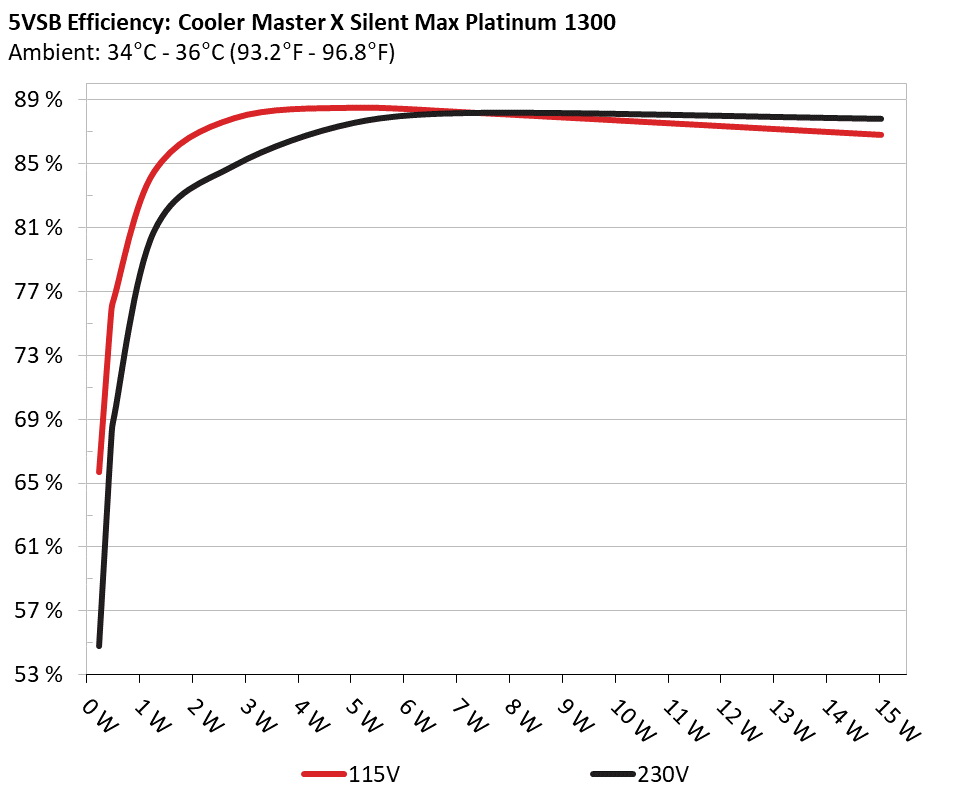

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 65.706% 0.024
5.076V 0.347W 115.14V
2 0.09A 0.457W 75.718% 0.041
5.075V 0.604W 115.15V
3 0.55A 2.786W 87.863% 0.197
5.064V 3.171W 115.14V
4 1A 5.054W 88.516% 0.306
5.053V 5.71W 115.14V
5 1.5A 7.563W 88.162% 0.387
5.041V 8.579W 115.14V
6 3A 15.017W 86.817% 0.495
5.005V 17.297W 115.14V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 54.814% 0.009
5.076V 0.417W 230.36V
2 0.09A 0.457W 67.683% 0.014
5.074V 0.676W 230.36V
3 0.55A 2.785W 84.872% 0.067
5.064V 3.282W 230.36V
4 1A 5.054W 87.546% 0.114
5.053V 5.774W 230.36V
5 1.5A 7.563W 88.173% 0.163
5.041V 8.577W 230.36V
6 3A 15.017W 87.792% 0.278
5.005V 17.106W 230.35V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.029A 1.983A 1.959A 0.991A 130.012 86.078% 0 <6.0 47.23°C 0.981
12.007V 5.045V 3.369V 5.047V 151.048 40.47°C 115.11V
20% 19.087A 2.978A 2.946A 1.192A 259.975 90.871% 0 <6.0 47.76°C 0.993
12.002V 5.038V 3.361V 5.033V 286.072 40.85°C 115.07V
30% 29.480A 3.478A 3.444A 1.395A 389.714 92.087% 0 <6.0 49.1°C 0.995
11.996V 5.033V 3.354V 5.02V 423.222 41.4°C 115.03V
40% 39.901A 3.979A 3.945A 1.598A 519.683 92.293% 0 <6.0 50.31°C 0.996
11.992V 5.027V 3.346V 5.008V 563.082 41.65°C 115V
50% 49.998A 4.98A 4.943A 1.802A 649.822 92.086% 0 <6.0 53.18°C 0.997
11.987V 5.021V 3.338V 4.994V 705.594 42.46°C 114.96V
60% 60.108A 5.984A 5.946A 2A 779.932 91.608% 462 <6.0 42.61°C 0.997
11.981V 5.015V 3.33V 4.981V 851.419 54.4°C 114.91V
70% 70.248A 6.993A 6.957A 2.215A 910.064 90.859% 530 <6.0 43.19°C 0.997
11.972V 5.007V 3.321V 4.967V 1001.627 55.66°C 114.87V
80% 80.387A 8.002A 7.97A 2.321A 1039.671 90.071% 677 7.5 43.72°C 0.998
11.964V 4.999V 3.312V 4.955V 1154.191 56.85°C 114.84V
90% 90.942A 8.514A 8.474A 2.428A 1169.94 89.356% 812 12.9 44.71°C 0.997
11.957V 4.992V 3.303V 4.943V 1309.243 58.49°C 114.79V
100% 101.245A 9.027A 9.012A 3.051A 1299.573 88.606% 890 15.7 45.39°C 0.997
11.950V 4.985V 3.295V 4.917V 1466.88 60.18°C 114.73V
110% 111.486A 10.044A 10.132A 3.059A 1429.785 87.791% 1029 20.5 46.44°C 0.997
11.943V 4.978V 3.286V 4.904V 1628.505 62.02°C 114.69V
CL1 0.117A 14.358A 14.21A 0A 121.297 82.937% 524 <6.0 40.66°C 0.978
12.005V 5.028V 3.356V 5.063V 146.282 54.58°C 115.1V
CL2 0.116A 19.875A 0A 0A 101.394 81.267% 456 <6.0 40.41°C 0.973
12.012V 5.031V 3.375V 5.071V 124.727 51.89°C 115.1V
CL3 0.116A 0A 19.651A 0A 67.385 75.396% 455 <6.0 41.24°C 0.959
12.008V 5.051V 3.358V 5.067V 89.374 49.96°C 115.11V
CL4 108.702A 0A 0A 0A 1299.992 89.025% 677 7.5 45.89°C 0.997
11.959V 5.008V 3.313V 5.002V 1460.197 58.49°C 114.74V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.028A 1.982A 1.959A 0.991A 130.004 87.321% 0 <6.0 46.77°C 0.903
12.008V 5.046V 3.37V 5.047V 148.872 40.15°C 230.35V
20% 19.086A 2.977A 2.945A 1.192A 259.967 92.225% 0 <6.0 47.91°C 0.965
12.002V 5.039V 3.361V 5.033V 281.91 40.84°C 230.33V
30% 29.477A 3.478A 3.444A 1.395A 389.684 93.637% 0 <6.0 48.83°C 0.98
11.996V 5.033V 3.354V 5.02V 416.151 41.28°C 230.31V
40% 39.900A 3.979A 3.945A 1.598A 519.664 94.207% 0 <6.0 50.03°C 0.988
11.991V 5.027V 3.346V 5.007V 551.604 41.83°C 230.29V
50% 50.001A 4.98A 4.943A 1.803A 649.811 94.392% 0 <6.0 51.33°C 0.991
11.986V 5.021V 3.338V 4.993V 688.431 42.45°C 230.28V
60% 60.110A 5.984A 5.946A 2A 779.919 94.367% 0 <6.0 52.11°C 0.994
11.980V 5.014V 3.33V 4.98V 826.453 42.65°C 230.26V
70% 70.243A 6.991A 6.955A 2.216A 910.091 94.177% 463 <6.0 43.36°C 0.994
11.973V 5.008V 3.322V 4.965V 966.311 50.8°C 230.24V
80% 80.377A 8A 7.968A 2.322A 1039.678 93.93% 462 <6.0 43.82°C 0.996
11.966V 5V 3.313V 4.953V 1106.791 51.19°C 230.22V
90% 90.930A 8.511A 8.471A 2.428A 1169.927 93.633% 600 <6.0 44.5°C 0.996
11.959V 4.994V 3.305V 4.942V 1249.539 51.71°C 230.2V
100% 101.233A 9.024A 9.01A 3.051A 1299.568 93.291% 742 10.8 45.54°C 0.997
11.951V 4.987V 3.296V 4.917V 1392.977 52.39°C 230.18V
110% 111.488A 10.043A 10.132A 3.058A 1429.836 92.849% 953 17.6 46.65°C 0.997
11.943V 4.978V 3.286V 4.906V 1539.956 53.35°C 230.17V
CL1 0.117A 14.356A 14.209A 0A 121.295 84.14% 0 <6.0 47.52°C 0.897
12.004V 5.029V 3.357V 5.064V 144.157 40.24°C 230.33V
CL2 0.116A 19.87A 0A 0A 101.394 82.39% 0 <6.0 49.86°C 0.872
12.012V 5.033V 3.375V 5.071V 123.077 40.6°C 230.33V
CL3 0.116A 0A 19.643A 0A 67.386 76.582% 0 <6.0 50.16°C 0.801
12.010V 5.053V 3.36V 5.066V 87.993 40.06°C 230.34V
CL4 108.693A 0A 0A 0A 1300.026 93.605% 531 <6.0 45.04°C 0.997
11.960V 5.01V 3.314V 4.999V 1388.839 51.95°C 230.17V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.495A 0.489A 0.197A 19.999 54.817% 0 <6.0 41.41°C 0.878
12.005V 5.051V 3.377V 5.073V 36.483 36.41°C 115.15V
40W 2.722A 0.693A 0.684A 0.296A 39.997 70.153% 0 <6.0 42.71°C 0.927
12.006V 5.051V 3.376V 5.069V 57.023 37.36°C 115.14V
60W 4.208A 0.891A 0.88A 0.395A 59.996 76.915% 0 <6.0 43.9°C 0.953
12.007V 5.051V 3.375V 5.066V 77.994 38.08°C 115.12V
80W 5.690A 1.089A 1.076A 0.494A 79.957 80.796% 0 <6.0 46.02°C 0.966
12.008V 5.05V 3.375V 5.062V 98.96 39.42°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.236A 0.495A 0.488A 0.197A 19.998 55.454% 0 <6.0 43.67°C 0.546
12.006V 5.052V 3.377V 5.073V 36.068 36.93°C 230.35V
40W 2.722A 0.693A 0.684A 0.296A 39.996 70.518% 0 <6.0 42.56°C 0.692
12.007V 5.051V 3.376V 5.069V 56.745 37.21°C 230.35V
60W 4.208A 0.891A 0.88A 0.395A 59.995 78.061% 0 <6.0 45.79°C 0.769
12.008V 5.051V 3.375V 5.066V 76.854 38.56°C 230.35V
80W 5.689A 1.089A 1.076A 0.494A 79.95 82.292% 0 <6.0 45.56°C 0.824
12.008V 5.05V 3.374V 5.062V 97.154 39.34°C 230.35V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.55mV11.02mV6.41mV5.15mVPass
20% Load9.31mV11.37mV6.56mV5.71mVPass
30% Load10.18mV12.04mV6.97mV5.86mVPass
40% Load12.04mV11.58mV6.92mV6.47mVPass
50% Load15.16mV11.68mV7.63mV7.54mVPass
60% Load17.37mV11.73mV7.78mV10.55mVPass
70% Load20.42mV12.85mV8.69mV12.38mVPass
80% Load22.51mV13.16mV10.12mV12.28mVPass
90% Load24.29mV13.93mV11.24mV14.06mVPass
100% Load36.71mV15.78mV11.03mV16.46mVPass
110% Load40.95mV16.35mV12.79mV16.74mVPass
Crossload112.64mV16.87mV12.33mV22.61mVPass
Crossload28.60mV14.33mV6.00mV16.15mVPass
Crossload38.14mV9.64mV11.85mV16.66mVPass
Crossload436.89mV12.67mV7.85mV34.66mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.14mV10.61mV6.05mV5.15mVPass
20% Load8.65mV11.88mV6.86mV5.81mVPass
30% Load10.23mV11.73mV6.71mV5.70mVPass
40% Load10.57mV11.63mV6.76mV6.16mVPass
50% Load13.47mV12.75mV7.12mV6.01mVPass
60% Load15.66mV12.24mV7.48mV7.79mVPass
70% Load16.88mV13.01mV7.47mV8.61mVPass
80% Load19.81mV13.87mV10.43mV10.80mVPass
90% Load22.10mV14.08mV10.22mV9.88mVPass
100% Load33.07mV16.79mV11.94mV15.21mVPass
110% Load38.30mV19.68mV12.21mV13.41mVPass
Crossload111.24mV16.44mV10.78mV22.82mVPass
Crossload28.34mV14.28mV6.26mV15.84mVPass
Crossload38.09mV10.31mV12.77mV15.79mVPass
Crossload433.37mV12.03mV7.46mV28.07mVPass

The results above are not used in the certification process

Cooler Master X Silent Max Platinum 1300

Top side

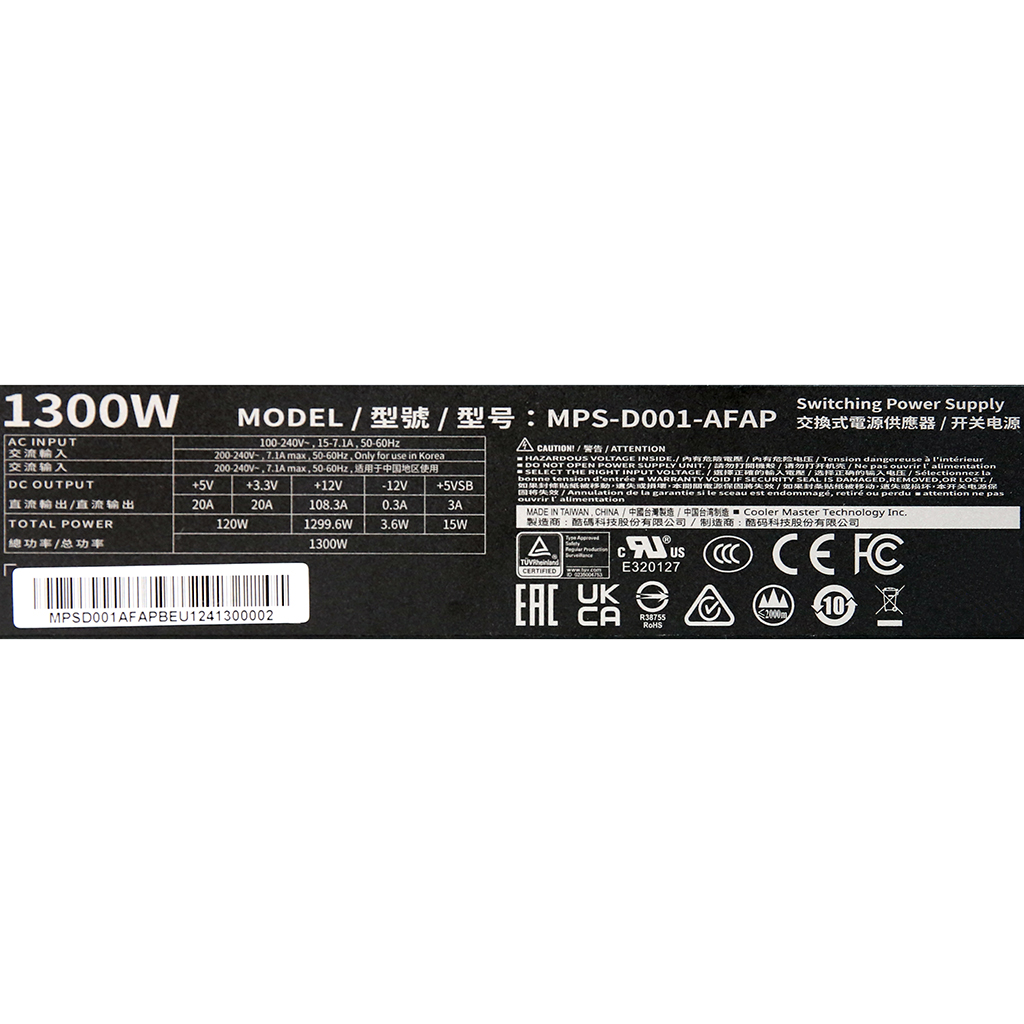

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
