CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
FSP Technology VITA GM 1000W
S4021000112
Lab IDFS10002467
  • Report: 24PS2467A
  • Receipt Date: Jun 5, 2024
  • Test Date: May 21, 2024
  • Report Date: Jun 10, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

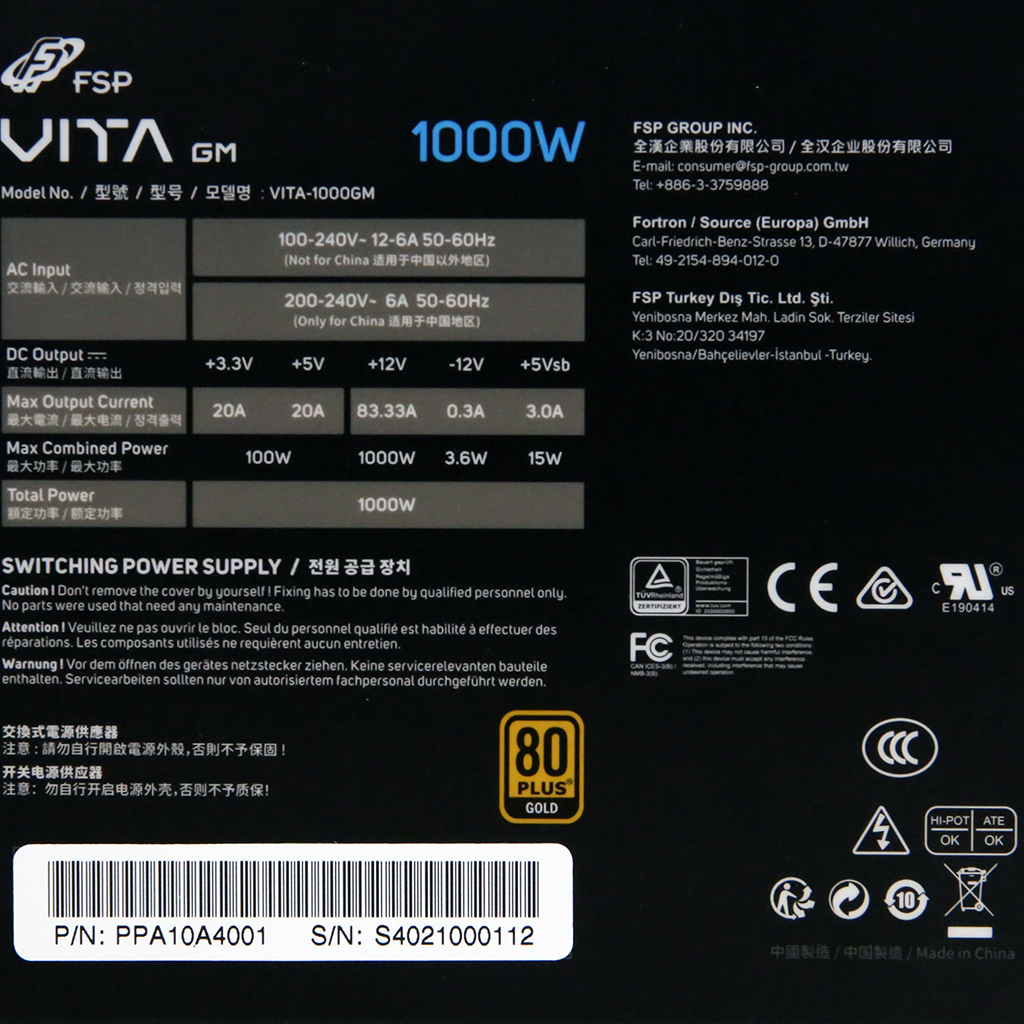

General Information

FSP Technology
製造商 (OEM)FSP
VITA GM
VITA-1000GM
S4021000112

(Vrms)100-240
(Arms)6-12
(Hz)50-60
(W)1000
ATX12V
120mm Rifle Bearing Fan
(D12SH-12)
✗
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202083.3330.3
Watts1001000153.6
Total Max. Power (W)1000

Electronic Loads

Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 1 4 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+155mm+100mm) 2 4 / 4 18-20AWG No
AC Power Cord (1350mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data
Manufacturer (OEM) FSP
PCB Type Double Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor SCK-056 (5 Ohm) & Relay
Bridge Rectifier(s)

2x GBU2508 (600V, 25A @ 100°C)
APFC MOSFETs

2x GP36S60YERD

APFC Boost Diode

1x Toshiba TRS8E65F (650V, 8A, @ 175°C)
Bulk Cap(s)

1x Nippon Chemi-con (450V, 680uF, 3,000h @ 105°C, KHS)
Main Switchers

2x Toshiba TK25A60X5 (600V, 25A, @ 150°C, Rds(on): 0.14Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VPA
Topology

Primary side: APFC, Half-Bridge & LLC converter Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Toshiba TPH1R204PL (40V, 150A @ 25°C, Rds(on): 1.24mOhm)
5V & 3.3V DC-DC Converters: 4x XSEMI XP3R303GMT-L (30V, 25A @ 70°C, Rds(on): 3.3mOhm) PWM Controller(s): UPI uP3861P
Filtering Capacitors

Electrolytic: 4x Nippon Chemi-Con (105°C, W) 2x Nippon Chemi-Con (1-5,000h @ 105°C, KZE), 2x Nippon Chemi-Con (5-6,000h @ 105°C, ZKH), Polymer: 4x Nippon Chemi-Con, 2x Apaq, 26x
Supervisor IC IN1T703I-SDG
Fan Model Yate Loon D12SH-12 (120mm, 12V, 0.30A, Rifle Bearing Fan)
5VSB Circuit
TVS Diode 1x SMAJ58AC
High Side Rectifier US1MGR (1000V, 1A)
Standby PWM Controller Grenery GR9230UK

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

效率評比PLATINUM
噪音評比A-
(>1450 load combinations)90.095%
Average Noise Output (>1450 Load Combinations)25.17dBA
(>1450 Load Combinations)0.977
Efficiency With 10W (≤500W) or 2% (>500W) Load71.809%
0.0504W
12V Ripple (Full Load)22.89mV
5V Ripple (Full Load)16.21mV
3.3V Ripple (Full Load)21.38mV
5VSB Ripple (Full Load)24.84mV
12V Load Regulation0.63%
5V Load Regulation1.60%
3.3V Load Regulation2.34%
5VSB Load Regulation2.68%
Inrush Current37.700A
效率評比PLATINUM
噪音評比A-
(>1450 load combinations)92.244%
Average Noise Output (>1450 Load Combinations)25.03dBA
(>1450 Load Combinations)0.936
Efficiency With 10W (≤500W) or 2% (>500W) Load73.655%
0.1479W
12V Ripple (Full Load)15.76mV
5V Ripple (Full Load)18.75mV
3.3V Ripple (Full Load)20.26mV
5VSB Ripple (Full Load)21.23mV
12V Load Regulation0.64%
5V Load Regulation1.60%
3.3V Load Regulation2.37%
5VSB Load Regulation2.70%
Inrush Current58.200A
12V Transient Response (200%)11.48V
5V Transient Response (200%)4.952V
3.3V Transient Response (200%)3.148V
5VSB Transient Response (200%)4.914V
16.60ms
AC Loss to PWR_OK Hold Up Time13.20ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)44.0ms47.0ms
PSU Timings: T3 (20% / 100%)112.0ms112.0ms
12V OCP (26.6°C / 41.6°C)90.80A (108.96%), 12.073V86.60A (103.92%), 12.095V
5V OCP (26.6°C / 41.6°C)26.1A (130.50%), 5.046V24.5A (122.50%), 5.048V
3.3V OCP (26.6°C / 41.6°C)26.1A (130.50%), 3.327V24A (120.00%), 3.337V
5VSB OCP (26.6°C / 41.6°C)4.2A (140.00%), 4.976V4.2A (140.00%), 4.979V
OPP (28.42°C / 42.74°C)115.10%112.70%

Hold-Up Time (ms)16.6
AC Loss to PWR_OK Hold Up Time (ms)13.2
PWR_OK Inactive to DC Loss Delay (ms)3.4

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.08 V 115.04 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.050 W 0.005 W N/A 0.093 W N/A N/A
Apparent Power: 12.827 W 12.769 W N/A 12.897 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.89 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.15 % N/A 0.26 % 2.00 % PASS
Real Power: 0.148 W 0.102 W N/A 0.224 W N/A N/A
Apparent Power: 43.948 W 43.658 W N/A 44.265 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

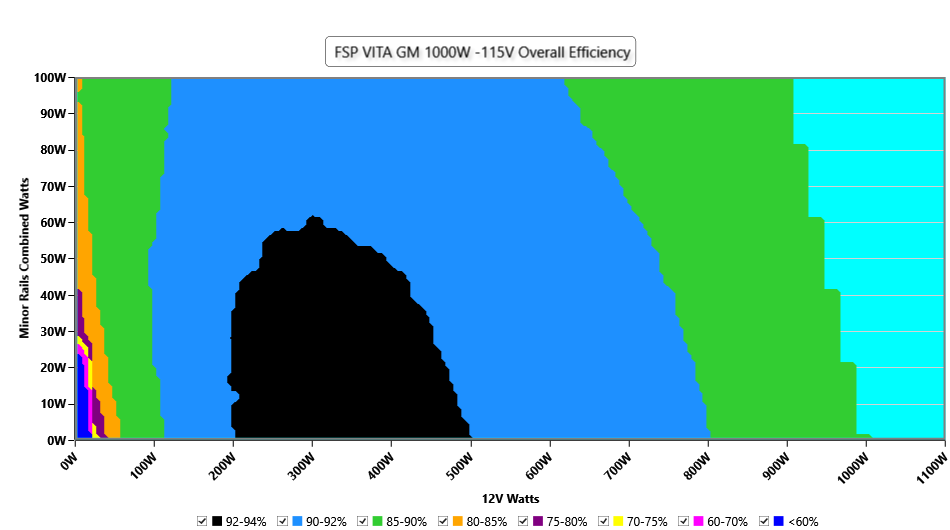

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

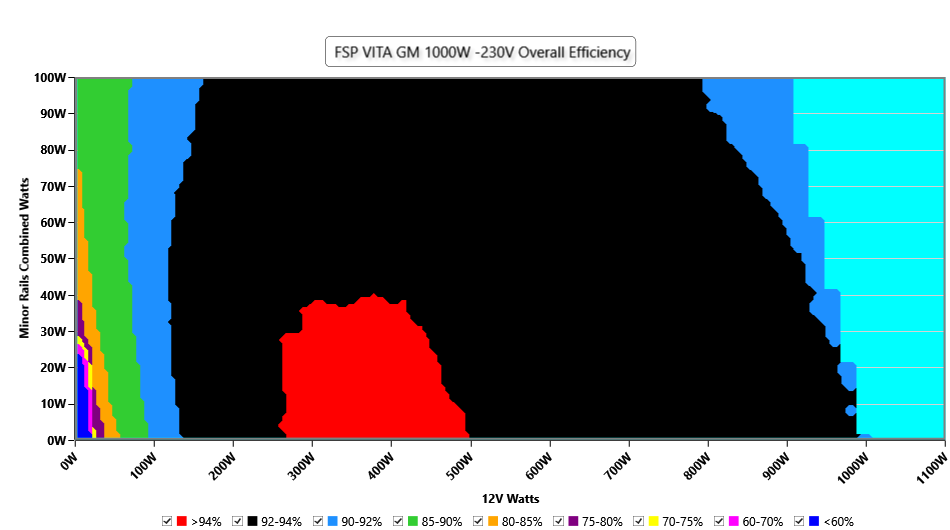

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

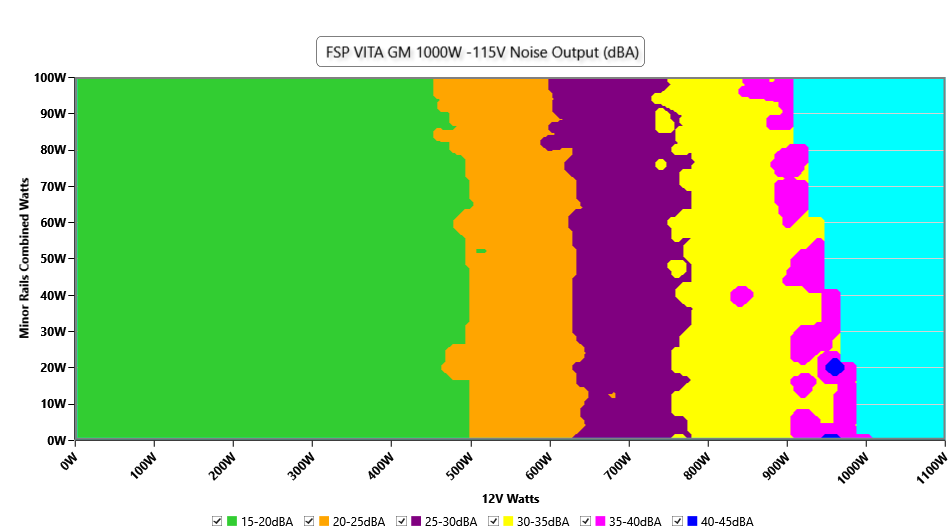

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

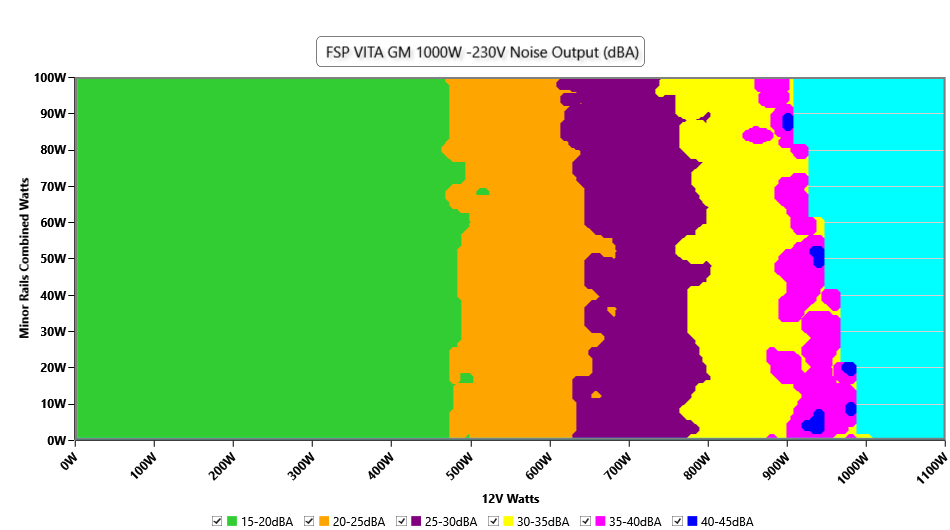

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

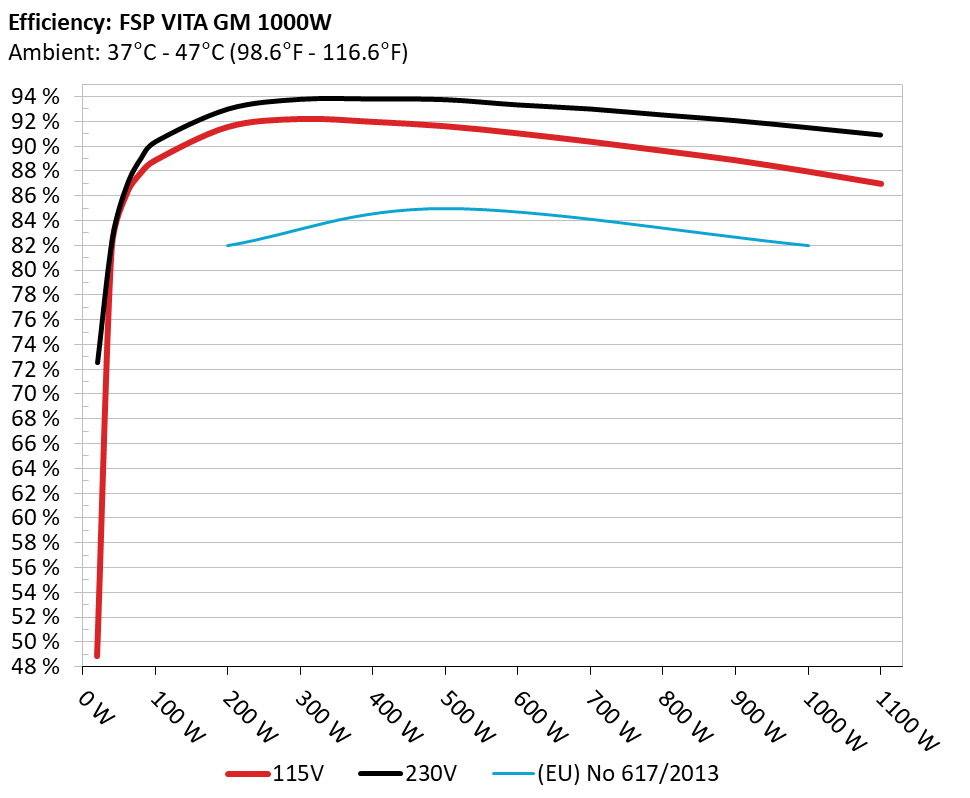

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

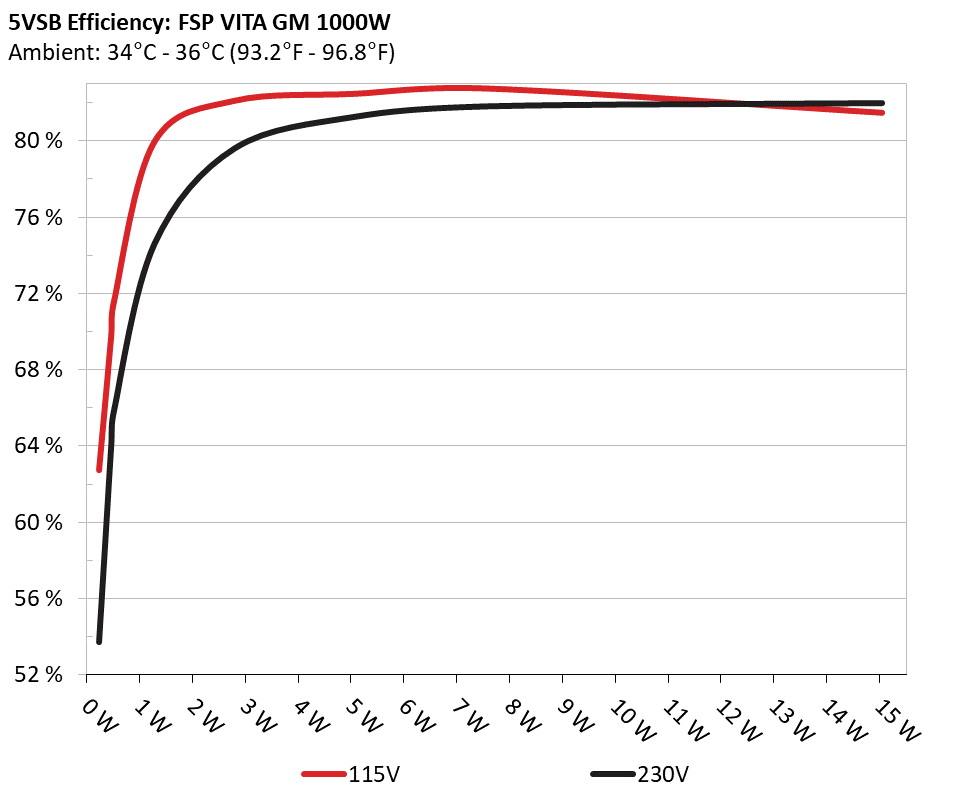

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 62.731% 0.028
5.093V 0.365W 114.93V
2 0.09A 0.458W 69.772% 0.05
5.092V 0.656W 114.93V
3 0.55A 2.794W 82.109% 0.221
5.079V 3.403W 114.91V
4 1A 5.068W 82.475% 0.321
5.067V 6.144W 114.91V
5 1.5A 7.582W 82.751% 0.377
5.054V 9.162W 114.91V
6 3A 15.039W 81.481% 0.46
5.013V 18.457W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 53.695% 0.01
5.095V 0.431W 229.88V
2 0.09A 0.458W 63.977% 0.016
5.092V 0.722W 229.89V
3 0.55A 2.793W 79.595% 0.077
5.079V 3.51W 229.88V
4 1A 5.067W 81.252% 0.13
5.067V 6.236W 229.88V
5 1.5A 7.581W 81.801% 0.182
5.054V 9.269W 229.88V
6 3A 15.039W 81.97% 0.291
5.013V 18.348W 229.88V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.458A 1.966A 1.965A 0.987A 99.998 88.886% 741 16.6 40.22°C 0.97
12.140V 5.087V 3.358V 5.065V 112.501 40.79°C 114.87V
20% 13.934A 2.954A 2.955A 1.187A 199.949 91.584% 744 16.7 40.53°C 0.975
12.132V 5.078V 3.35V 5.054V 218.324 42.36°C 114.84V
30% 21.770A 3.451A 3.455A 1.388A 300.006 92.226% 746 16.8 41.16°C 0.972
12.125V 5.071V 3.344V 5.043V 325.293 44.34°C 114.82V
40% 29.572A 3.95A 3.957A 1.59A 399.565 92.002% 812 18.4 41.65°C 0.976
12.118V 5.064V 3.336V 5.033V 434.301 47.3°C 114.79V
50% 37.057A 4.945A 4.958A 1.793A 499.285 91.647% 904 21.4 42.06°C 0.979
12.111V 5.056V 3.328V 5.021V 544.79 49.59°C 114.74V
60% 44.617A 5.945A 5.964A 1.996A 599.818 91.068% 1152 29 42.81°C 0.981
12.103V 5.047V 3.32V 5.01V 658.641 51.42°C 114.7V
70% 52.124A 6.948A 6.976A 2.201A 699.555 90.394% 1178 29.1 43.42°C 0.983
12.095V 5.038V 3.312V 4.998V 773.899 53.76°C 114.67V
80% 59.706A 7.952A 7.993A 2.305A 799.559 89.657% 1310 32.1 43.97°C 0.986
12.087V 5.029V 3.303V 4.989V 891.794 56.5°C 114.63V
90% 67.635A 8.462A 8.495A 2.409A 899.373 88.895% 1520 36.3 44.09°C 0.987
12.078V 5.022V 3.296V 4.981V 1011.75 58.16°C 114.59V
100% 75.376A 8.973A 9.03A 3.026A 999.366 87.985% 1906 42.4 45.09°C 0.987
12.069V 5.014V 3.289V 4.957V 1135.845 58.66°C 114.55V
110% 83.070A 9.988A 10.148A 3.03A 1099.976 86.997% 2307 47.9 46.6°C 0.988
12.058V 5.005V 3.282V 4.95V 1264.39 59.53°C 114.51V
CL1 0.116A 11.901A 11.905A 0A 101.302 84.947% 914 21.6 42.28°C 0.973
12.147V 5.058V 3.335V 5.093V 119.253 52.1°C 114.87V
CL2 0.115A 19.768A 0A 0A 101.358 83.532% 878 20.3 41°C 0.972
12.147V 5.057V 3.339V 5.094V 121.341 48.55°C 114.88V
CL3 0.114A 0A 19.782A 0A 67.401 78.944% 794 17.9 39.78°C 0.962
12.145V 5.066V 3.337V 5.093V 85.381 45.96°C 114.89V
CL4 82.854A 0A 0A 0.001A 1000.022 88.611% 1842 42.1 45.05°C 0.987
12.070V 5.039V 3.309V 5.045V 1128.562 57.91°C 114.55V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.458A 1.966A 1.966A 0.987A 100 89.994% 745 16.7 40.33°C 0.834
12.141V 5.087V 3.357V 5.066V 111.119 40.55°C 229.87V
20% 13.934A 2.954A 2.956A 1.187A 199.951 93.023% 747 16.8 40.86°C 0.915
12.132V 5.078V 3.349V 5.055V 214.947 41.67°C 229.85V
30% 21.769A 3.451A 3.456A 1.388A 300.005 93.809% 748 16.8 41.1°C 0.939
12.125V 5.071V 3.342V 5.044V 319.79 42.77°C 229.85V
40% 29.574A 3.95A 3.958A 1.59A 399.563 93.835% 780 17 41.55°C 0.95
12.117V 5.064V 3.335V 5.033V 425.817 44.33°C 229.83V
50% 37.085A 4.945A 4.957A 1.794A 499.205 93.779% 739 16.6 42.36°C 0.953
12.099V 5.056V 3.329V 5.017V 532.316 40.32°C 229.83V
60% 44.620A 5.944A 5.968A 1.996A 599.803 93.356% 1022 24.6 42.54°C 0.961
12.102V 5.047V 3.318V 5.01V 642.488 49.17°C 229.79V
70% 52.130A 6.948A 6.979A 2.201A 699.514 93.026% 1191 29.2 43.15°C 0.964
12.093V 5.038V 3.311V 4.997V 751.955 50.74°C 229.77V
80% 59.709A 7.953A 7.996A 2.305A 799.554 92.541% 1290 31.3 43.76°C 0.966
12.086V 5.029V 3.302V 4.989V 863.962 53.7°C 229.75V
90% 67.635A 8.463A 8.499A 2.409A 899.336 92.089% 1736 40.4 44.65°C 0.969
12.078V 5.021V 3.294V 4.98V 976.586 55.58°C 229.74V
100% 75.380A 8.974A 9.035A 3.026A 999.342 91.52% 1921 43 45.01°C 0.971
12.068V 5.014V 3.287V 4.957V 1091.955 56.84°C 229.71V
110% 83.069A 9.989A 10.156A 3.03A 1099.966 90.924% 1973 44.4 46.85°C 0.973
12.058V 5.005V 3.279V 4.95V 1209.735 56.89°C 229.69V
CL1 0.116A 11.902A 11.914A 0A 101.298 86.007% 912 21.6 41.73°C 0.847
12.147V 5.057V 3.332V 5.093V 117.778 49.96°C 229.87V
CL2 0.114A 19.769A 0A 0A 101.353 84.565% 852 20.2 40.55°C 0.849
12.146V 5.056V 3.337V 5.093V 119.846 47.18°C 229.87V
CL3 0.114A 0A 19.799A 0A 67.398 79.931% 791 17.6 40.03°C 0.78
12.145V 5.066V 3.334V 5.093V 84.321 45.2°C 229.87V
CL4 82.842A 0A 0A 0.001A 999.937 92.123% 1555 37 44.47°C 0.971
12.070V 5.039V 3.307V 5.045V 1085.44 55.62°C 229.72V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.223A 0.491A 0.49A 0.197A 19.998 48.864% 725 15.9 36.4°C 0.909
12.140V 5.094V 3.366V 5.09V 40.928 39.58°C 114.89V
40W 2.692A 0.687A 0.687A 0.295A 39.998 81.736% 729 16 37.6°C 0.933
12.144V 5.092V 3.364V 5.087V 48.936 39.33°C 114.9V
60W 4.162A 0.884A 0.883A 0.393A 59.998 86.081% 733 16.2 38°C 0.954
12.143V 5.091V 3.363V 5.083V 69.698 38.97°C 114.89V
80W 5.626A 1.08A 1.08A 0.492A 79.945 87.853% 735 16.4 39.27°C 0.96
12.141V 5.09V 3.362V 5.08V 90.996 39.8°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.491A 0.49A 0.196A 20.004 72.516% 734 16.4 36.51°C 0.445
12.138V 5.094V 3.365V 5.091V 27.585 38.6°C 229.89V
40W 2.692A 0.687A 0.687A 0.295A 40.002 82.364% 735 16.4 37.22°C 0.629
12.145V 5.092V 3.364V 5.087V 48.569 39°C 229.88V
60W 4.162A 0.884A 0.883A 0.393A 60 86.771% 738 16.5 38.21°C 0.735
12.143V 5.091V 3.362V 5.084V 69.149 39.99°C 229.88V
80W 5.626A 1.08A 1.08A 0.492A 79.948 89.038% 738 16.5 39.67°C 0.792
12.141V 5.09V 3.361V 5.08V 89.79 40.63°C 229.88V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.15mV12.46mV13.05mV13.25mVPass
20% Load14.43mV11.34mV11.92mV13.86mVPass
30% Load12.74mV21.10mV20.46mV15.91mVPass
40% Load11.10mV18.90mV16.52mV13.81mVPass
50% Load12.59mV12.87mV13.30mV16.37mVPass
60% Load12.38mV11.96mV14.27mV16.37mVPass
70% Load13.40mV13.08mV15.24mV17.39mVPass
80% Load13.35mV15.07mV16.83mV19.13mVPass
90% Load12.74mV11.70mV13.81mV17.04mVPass
100% Load22.89mV16.21mV21.38mV24.84mVPass
110% Load24.02mV18.11mV21.58mV26.43mVPass
Crossload122.04mV15.27mV15.47mV10.86mVPass
Crossload215.55mV16.86mV13.20mV10.54mVPass
Crossload313.86mV9.91mV13.50mV10.33mVPass
Crossload422.75mV17.06mV19.51mV20.34mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.38mV13.03mV13.50mV12.38mVPass
20% Load14.46mV10.52mV11.05mV14.17mVPass
30% Load10.54mV17.52mV12.58mV12.58mVPass
40% Load13.05mV23.19mV18.16mV15.65mVPass
50% Load12.64mV13.28mV13.66mV16.68mVPass
60% Load13.20mV12.57mV15.19mV17.49mVPass
70% Load14.58mV13.64mV16.62mV18.05mVPass
80% Load12.43mV12.21mV14.99mV15.86mVPass
90% Load15.25mV16.04mV19.49mV20.00mVPass
100% Load15.76mV18.75mV20.26mV21.23mVPass
110% Load14.53mV16.91mV21.79mV19.49mVPass
Crossload115.74mV13.69mV13.97mV11.15mVPass
Crossload215.69mV17.06mV13.05mV10.33mVPass
Crossload313.40mV10.53mV13.15mV11.00mVPass
Crossload411.60mV13.74mV16.73mV14.94mVPass

The results above are not used in the certification process

FSP Technology VITA GM 1000W

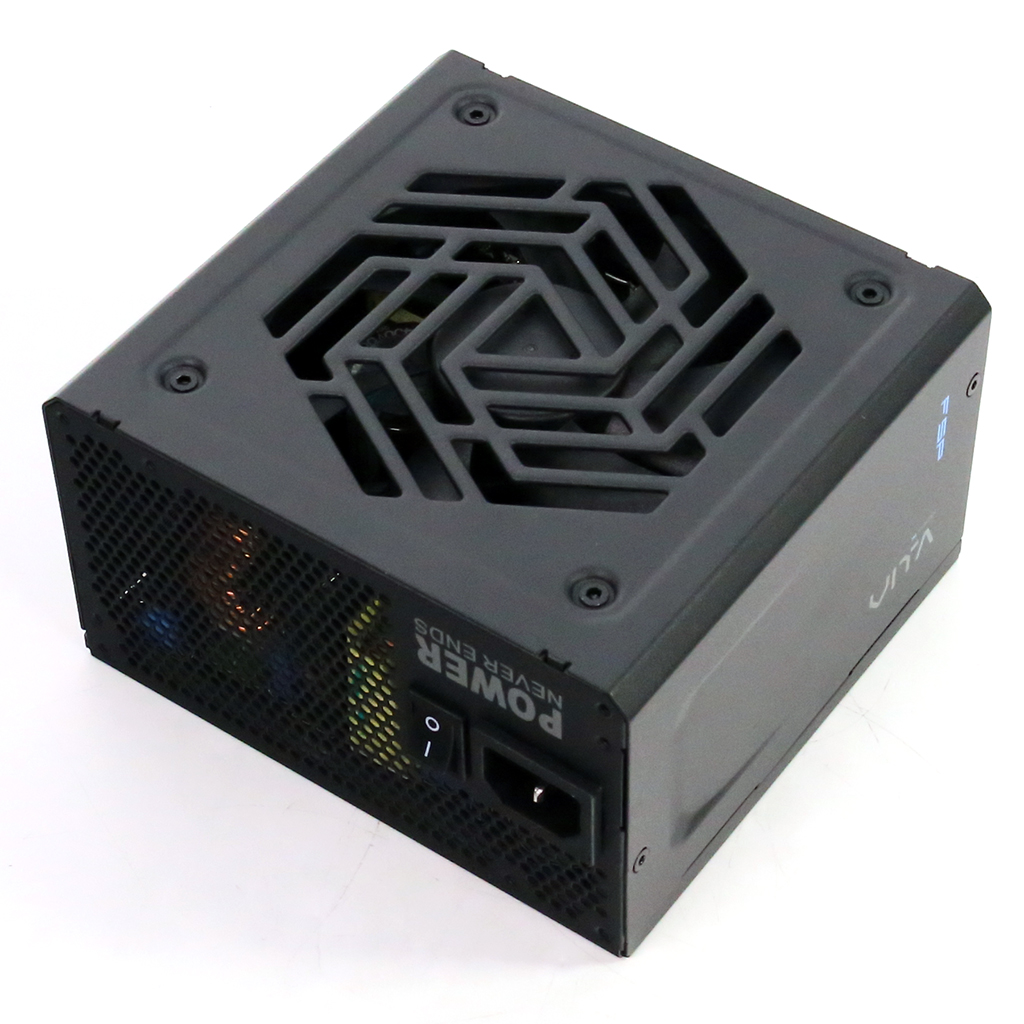

Top side
Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
