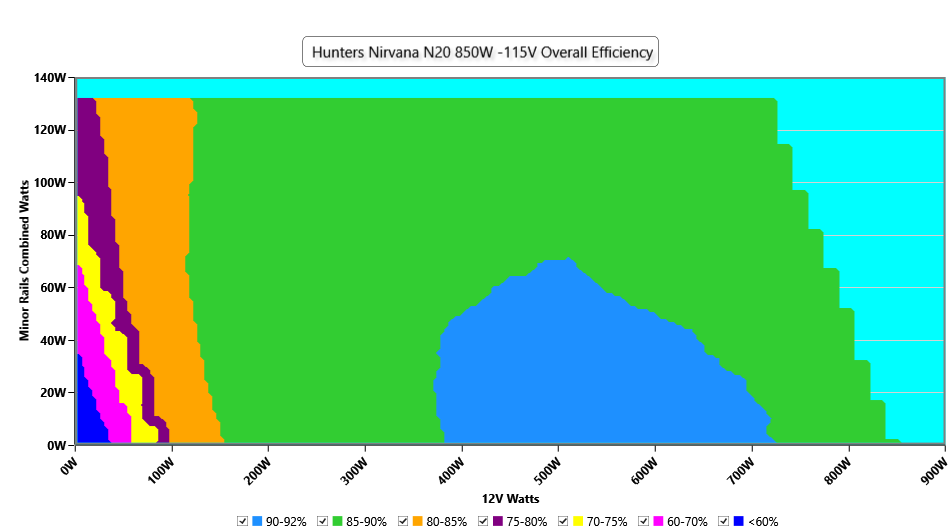

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
噪音值图表
115V
资讯

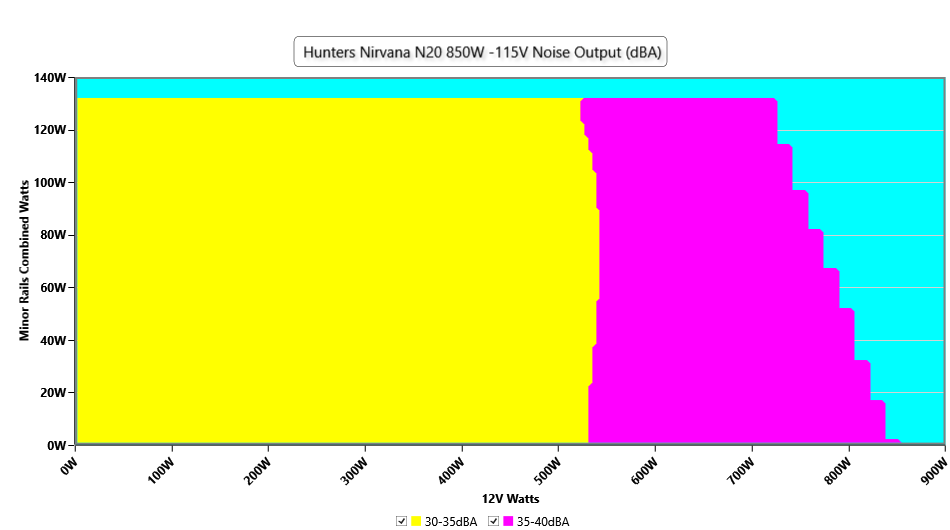

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
高环温电源转换效率
资讯

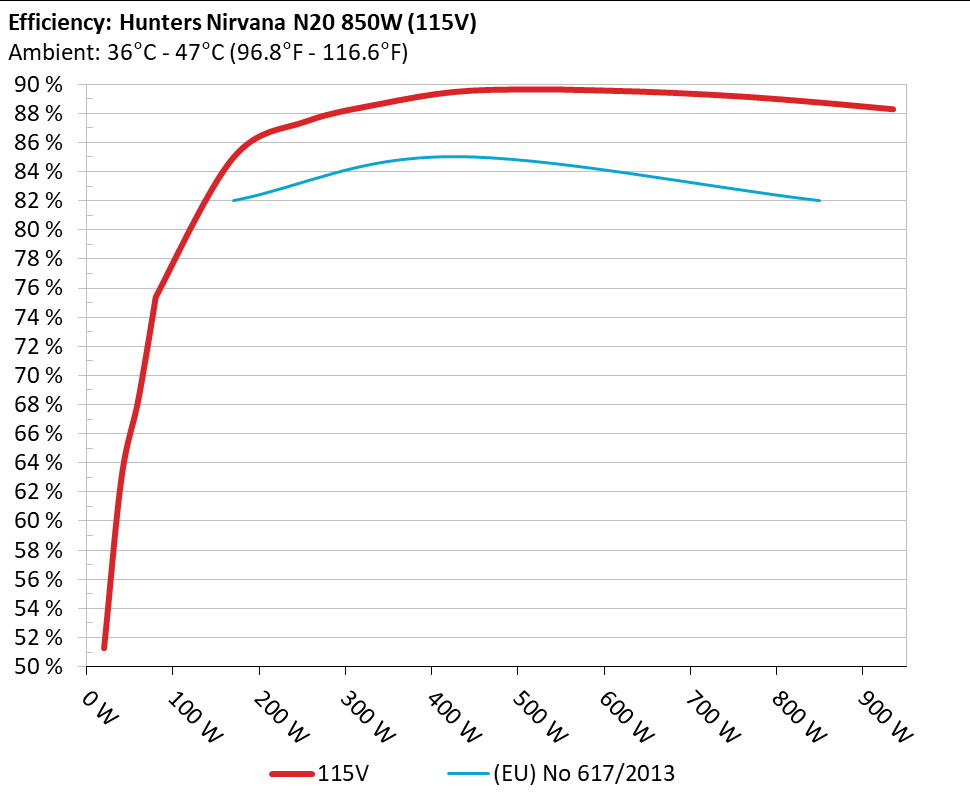

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5Vsb转换效率
资讯

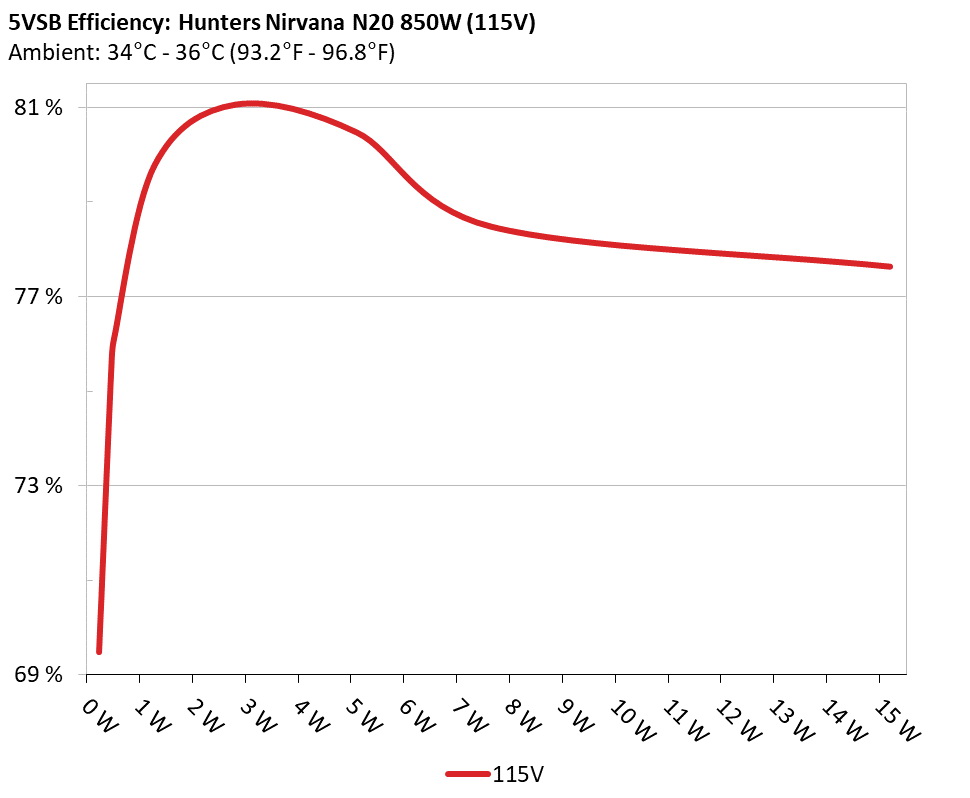

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC) 115V
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.045A
0.231W
69.492%
0.033
5.124V
0.333W
114.86V
2
0.09A
0.461W
75.465%
0.06
5.123V
0.611W
114.86V
3
0.55A
2.813W
81.064%
0.261
5.114V
3.47W
114.86V
4
1A
5.105W
80.475%
0.343
5.105V
6.343W
114.86V
5
1.5A
7.643W
78.486%
0.4
5.095V
9.738W
114.86V
6
3A
15.192W
77.639%
0.47
5.064V
19.567W
114.86V
Supplementary Tests (For Reference)
10-110%负载测试 115V
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
10%
5.242A
1.978A
1.958A
0.981A
85.002
74.72%
1389
39.3
40.12°C
0.898
12.097V
5.056V
3.371V
5.098V
113.758
46.77°C
114.83V
20%
11.504A
2.968A
2.939A
1.179A
169.936
84.963%
1464
41.1
40.76°C
0.943
12.086V
5.054V
3.368V
5.089V
200.017
46.58°C
114.81V
30%
18.117A
3.463A
3.431A
1.378A
254.944
87.451%
1549
42.9
41.06°C
0.96
12.081V
5.054V
3.366V
5.08V
291.533
46.44°C
114.77V
40%
24.743A
3.959A
3.924A
1.578A
340.029
88.637%
1625
44.2
41.58°C
0.97
12.077V
5.053V
3.364V
5.071V
383.619
47.11°C
114.75V
50%
30.979A
4.948A
4.908A
1.778A
424.841
89.454%
1623
44.1
42.31°C
0.977
12.084V
5.053V
3.362V
5.061V
474.928
48.29°C
114.72V
60%
37.217A
5.938A
5.893A
1.98A
509.391
89.632%
1687
48.8
42.78°C
0.982
12.080V
5.053V
3.36V
5.052V
568.312
50.21°C
114.69V
70%
43.529A
6.928A
6.88A
2.182A
594.692
89.559%
1729
49
43.42°C
0.985
12.074V
5.053V
3.358V
5.042V
664.019
50.89°C
114.67V
80%
49.851A
7.916A
7.867A
2.285A
679.516
89.393%
1829
48.5
43.83°C
0.988
12.068V
5.053V
3.355V
5.034V
760.155
53.19°C
114.63V
90%
56.565A
8.411A
8.348A
2.388A
764.94
89.118%
1894
50.6
44.46°C
0.989
12.065V
5.053V
3.354V
5.025V
858.346
54.21°C
114.61V
100%
63.026A
8.907A
8.861A
2.996A
849.759
88.729%
1965
52.9
45.5°C
0.991
12.060V
5.052V
3.352V
5.007V
957.702
55.16°C
114.57V
110%
69.363A
9.897A
9.942A
3A
934.317
88.269%
2035
49.9
46.14°C
0.992
12.053V
5.052V
3.349V
5.001V
1058.478
56.59°C
114.54V
CL1
0.116A
15.46A
15.34A
0A
131.296
77.778%
1549
42.9
40.64°C
0.935
12.084V
5.065V
3.364V
5.108V
168.805
47.18°C
114.82V
CL2
0.115A
24.606A
0A
0A
126.262
76.53%
1525
42.6
41.45°C
0.934
12.089V
5.075V
3.374V
5.113V
164.984
46.42°C
114.82V
CL3
0.114A
0A
24.527A
0A
83.882
68.76%
1424
39.5
40.9°C
0.908
12.089V
5.055V
3.363V
5.109V
121.991
45.74°C
114.82V
CL4
70.423A
0A
0A
0A
849.561
89.582%
1854
50.1
45.1°C
0.99
12.064V
5.047V
3.357V
5.075V
948.357
55.38°C
114.59V
The results above are not used in the certification process
20-80瓦负载测试 115V
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
20W
1.228A
0.495A
0.489A
0.195A
19.998
51.287%
1198
34.8
36.08°C
0.803
12.094V
5.053V
3.372V
5.118V
39.004
42.84°C
114.86V
40W
2.702A
0.693A
0.685A
0.293A
39.998
62.912%
1199
34.8
37.06°C
0.844
12.095V
5.054V
3.372V
5.114V
63.581
44.03°C
114.85V
60W
4.178A
0.89A
0.881A
0.391A
59.998
68.441%
1199
34.8
38.04°C
0.872
12.095V
5.054V
3.371V
5.112V
87.665
44.82°C
114.84V
80W
5.649A
1.088A
1.077A
0.489A
79.941
75.399%
1345
38.5
39.93°C
0.887
12.094V
5.055V
3.371V
5.109V
106.028
47.21°C
114.83V
The results above are not used in the certification process
纹波测量 115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
10.9 mV
10.6 mV
11.4 mV
10.2 mV
Pass
20% Load
24.4 mV
11.7 mV
13.2 mV
10.0 mV
Pass
30% Load
27.7 mV
11.8 mV
12.3 mV
13.8 mV
Pass
40% Load
35.3 mV
12.2 mV
12.6 mV
14.6 mV
Pass
50% Load
24.9 mV
11.9 mV
12.5 mV
13.9 mV
Pass
60% Load
18.1 mV
11.8 mV
13.0 mV
14.8 mV
Pass
70% Load
17.6 mV
13.1 mV
14.2 mV
15.8 mV
Pass
80% Load
18.4 mV
13.5 mV
14.6 mV
19.3 mV
Pass
90% Load
17.8 mV
13.8 mV
14.2 mV
15.9 mV
Pass
100% Load
25.6 mV
15.2 mV
17.8 mV
16.8 mV
Pass
110% Load
26.1 mV
16.9 mV
18.1 mV
18.4 mV
Pass
Crossload 1
26.5 mV
14.7 mV
17.3 mV
7.9 mV
Pass
Crossload 2
18.7 mV
23.9 mV
12.9 mV
7.6 mV
Pass
Crossload 3
14.0 mV
11.5 mV
18.3 mV
6.8 mV
Pass
Crossload 4
24.6 mV
14.5 mV
16.7 mV
10.0 mV
Pass
The results above are not used in the certification process
