CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Lian Li EDGE 1300
Lab IDLL13002454
  • Report: 24PS2454A
  • Receipt Date: May 17, 2024
  • Test Date: May 24, 2024
  • Report Date: May 24, 2024
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Lian Li
Hersteller (OEM)Helly Technology
EDGE
EG1300

(Vrms)100-240
(Arms)15-7.5
(Hz)50-60
(W)1300
ATX12V
120mm Fluid Dynamic Bearing Fan
(HA1225M12F-Z)
✓
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010830.3
Watts1201296153.6
Total Max. Power (W)1300

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (495mm) 1 1 16-22AWG No
4+4 pin EPS12V (550mm) 1 1 16AWG No
8 pin EPS12V (550mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 4 4 16AWG No
12+4 pin PCIe (720mm) (600W) 1 1 16-26AWG No
2x SATA (400mm+125mm) 1 4 18AWG No
SATA (305mm+15mm+15mm+15mm) 1 4 18AWG No
SATA (405mm+150mm+150mm+150mm) 2 8 18AWG No
SATA (455mm+150mm) /4-pin Molex (+150mm+150mm) 1 2 / 2 18AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)89.595%
Average Noise Output (>1450 Load Combinations)34.21dBA
(>1450 Load Combinations)0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load73.670%
0.0129W
12V Ripple (Full Load)30.93mV
5V Ripple (Full Load)23.36mV
3.3V Ripple (Full Load)17.02mV
5VSB Ripple (Full Load)22.34mV
12V Load Regulation0.42%
5V Load Regulation0.74%
3.3V Load Regulation1.02%
5VSB Load Regulation2.40%
Inrush Current31.230A
WirkungsgradPLATINUM
LautstärkeklasseStandard++
(>1450 load combinations)91.835%
Average Noise Output (>1450 Load Combinations)33.79dBA
(>1450 Load Combinations)0.970
Efficiency With 10W (≤500W) or 2% (>500W) Load72.947%
0.1009W
12V Ripple (Full Load)31.13mV
5V Ripple (Full Load)21.54mV
3.3V Ripple (Full Load)16.33mV
5VSB Ripple (Full Load)20.54mV
12V Load Regulation0.44%
5V Load Regulation0.76%
3.3V Load Regulation1.02%
5VSB Load Regulation2.44%
Inrush Current54.690A
12V Transient Response (200%)11.38V
5V Transient Response (200%)4.869V
3.3V Transient Response (200%)3.171V
5VSB Transient Response (200%)4.876V
23.90ms
AC Loss to PWR_OK Hold Up Time21.30ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)59.0ms59.0ms
PSU Timings: T3 (20% / 100%)121.0ms123.0ms
OPP (28.82°C / 42.61°C)136.24%127.16%

Hold-Up Time (ms)23.9
AC Loss to PWR_OK Hold Up Time (ms)21.3
PWR_OK Inactive to DC Loss Delay (ms)2.6

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.07 V 115.03 V 113.85 V 115.11 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.18 % 2.00 % PASS
Real Power: 0.013 W 0.008 W N/A 0.017 W N/A N/A
Apparent Power: 7.026 W 6.928 W N/A 7.112 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.00 V 230.89 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.28 % 2.00 % PASS
Real Power: 0.101 W 0.085 W N/A 0.243 W N/A N/A
Apparent Power: 23.263 W 23.068 W N/A 23.464 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

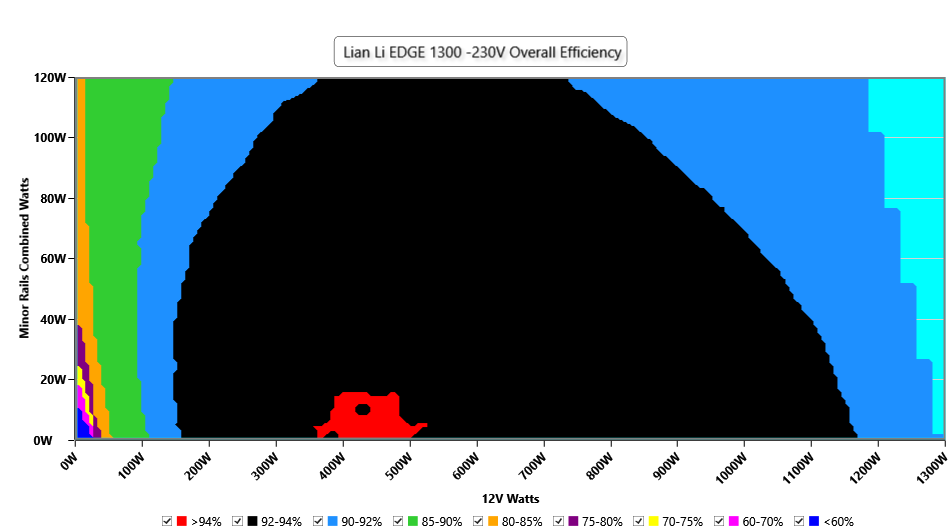

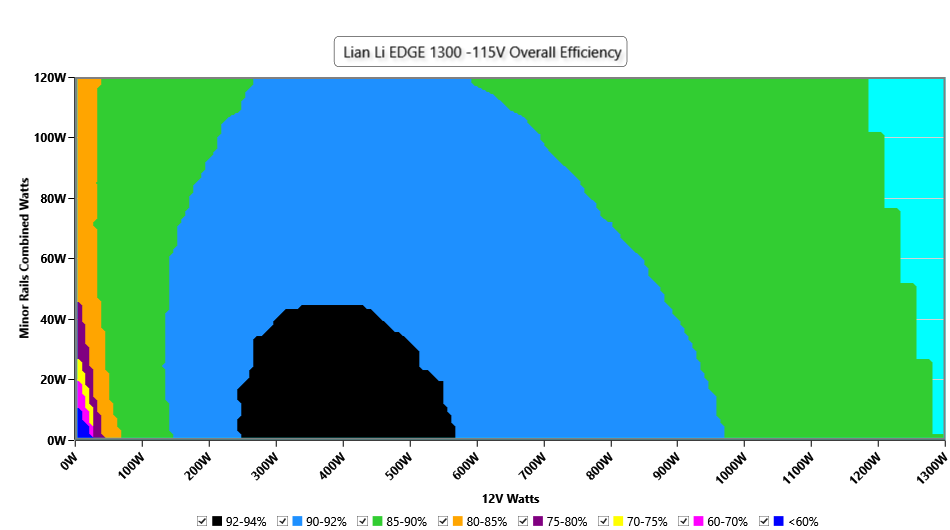

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

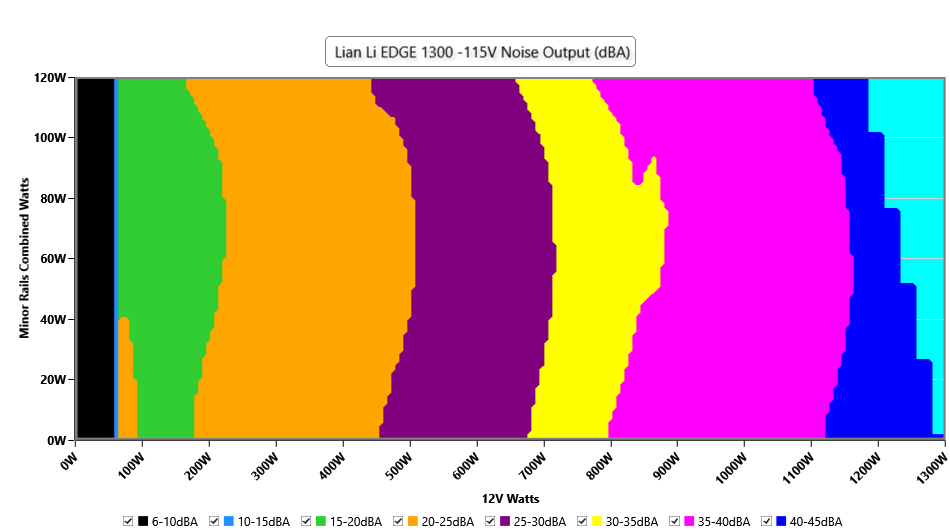

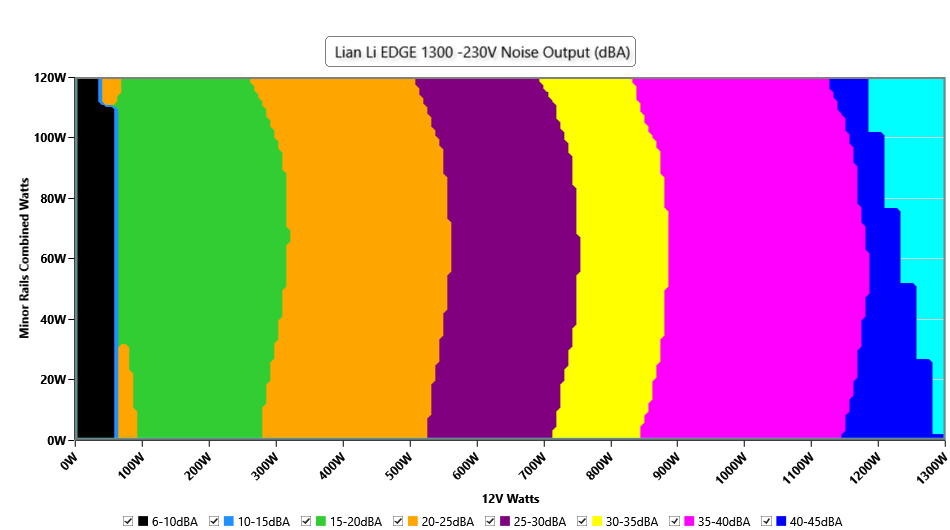

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

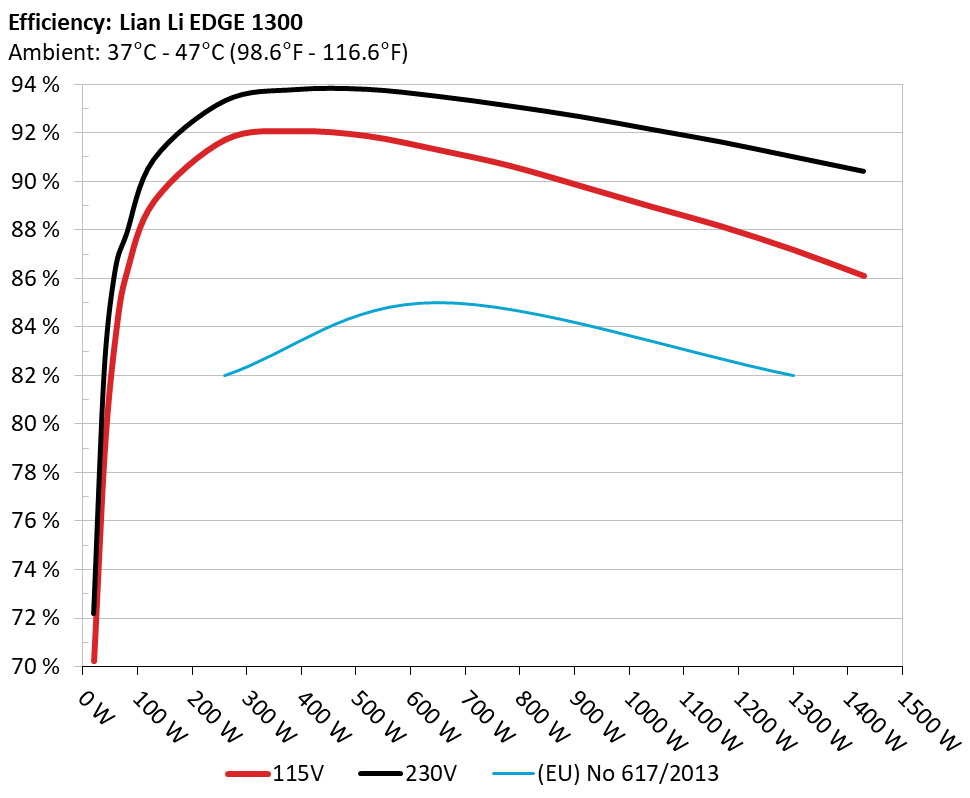

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

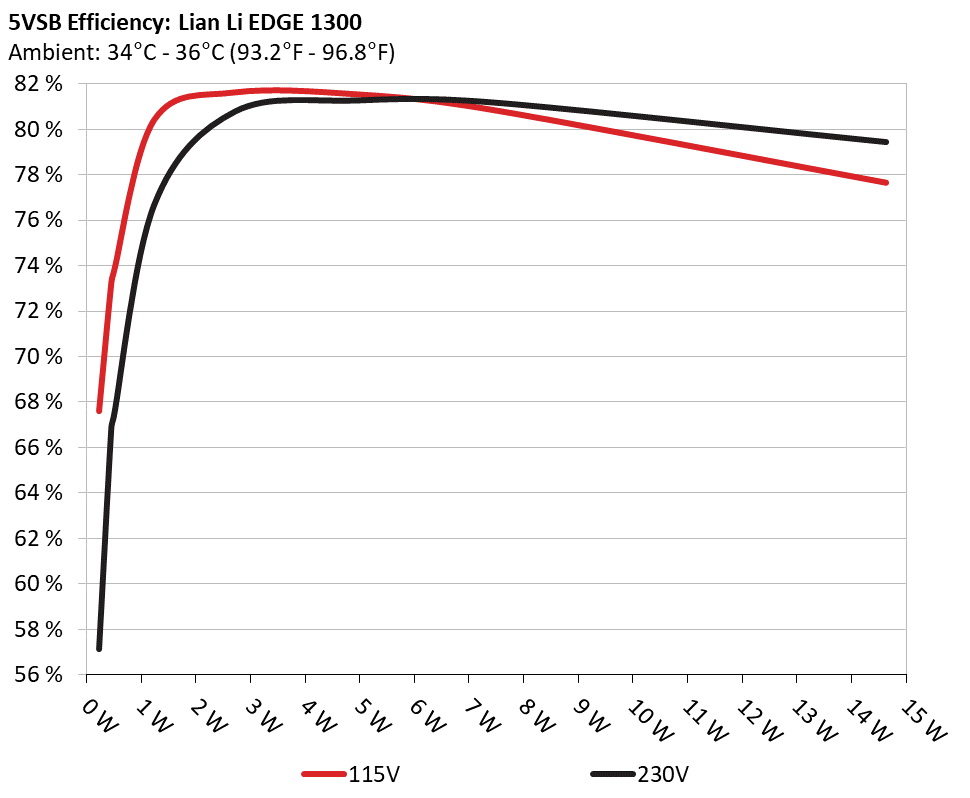

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.223W 67.617% 0.045
4.942V 0.33W 114.94V
2 0.09A 0.445W 73.227% 0.081
4.941V 0.608W 114.94V
3 0.55A 2.712W 81.616% 0.335
4.931V 3.323W 114.91V
4 1A 4.921W 81.536% 0.45
4.921V 6.035W 114.91V
5 1.5A 7.366W 80.87% 0.513
4.91V 9.108W 114.91V
6 3A 14.63W 77.65% 0.58
4.877V 18.84W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 57.128% 0.016
4.942V 0.389W 229.88V
2 0.09A 0.445W 66.819% 0.027
4.941V 0.666W 229.88V
3 0.55A 2.712W 80.801% 0.127
4.931V 3.356W 229.88V
4 1A 4.921W 81.282% 0.212
4.921V 6.054W 229.88V
5 1.5A 7.366W 81.21% 0.284
4.91V 9.07W 229.88V
6 3A 14.63W 79.453% 0.391
4.877V 18.413W 229.88V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.868A 1.988A 1.957A 1.001A 129.992 89.171% 1129 23.7 40.18°C 0.969
12.223V 5.029V 3.372V 4.997V 145.789 44.39°C 114.89V
20% 18.748A 2.985A 2.939A 1.202A 259.951 91.703% 1205 25.7 40.91°C 0.981
12.217V 5.025V 3.369V 4.991V 283.47 45.43°C 114.82V
30% 28.955A 3.485A 3.432A 1.405A 389.579 92.058% 1298 27.9 41.12°C 0.988
12.210V 5.022V 3.366V 4.981V 423.195 46.2°C 114.79V
40% 39.195A 3.985A 3.925A 1.61A 519.531 91.86% 1415 30.4 41.71°C 0.992
12.204V 5.019V 3.363V 4.971V 565.569 47.27°C 114.74V
50% 49.118A 4.985A 4.911A 1.813A 649.691 91.288% 1727 36.3 42.27°C 0.994
12.199V 5.016V 3.36V 4.965V 711.674 48.34°C 114.69V
60% 59.050A 5.986A 5.9A 2A 779.737 90.641% 1870 38.5 42.78°C 0.995
12.194V 5.012V 3.356V 4.959V 860.243 49.38°C 114.64V
70% 68.985A 6.989A 6.891A 2.221A 909.914 89.805% 2010 40.5 43.25°C 0.996
12.189V 5.009V 3.353V 4.952V 1013.213 50.32°C 114.59V
80% 78.933A 7.991A 7.883A 2.322A 1039.529 88.954% 2164 42.1 43.77°C 0.997
12.183V 5.004V 3.349V 4.951V 1168.612 51.87°C 114.54V
90% 89.277A 8.495A 8.367A 2.426A 1169.777 88.128% 2174 42.2 44.58°C 0.997
12.178V 5.002V 3.346V 4.946V 1327.371 53.65°C 114.48V
100% 99.360A 9A 8.883A 3.053A 1299.371 87.176% 2184 42.3 45.59°C 0.997
12.174V 4.999V 3.344V 4.913V 1490.522 55.68°C 114.44V
110% 109.378A 10.007A 9.971A 3.051A 1429.581 86.096% 2189 42.4 47.21°C 0.996
12.172V 4.996V 3.34V 4.917V 1660.439 58.12°C 114.37V
CL1 0.113A 14.437A 14.24A 0A 121.291 81.619% 1708 36.1 40.91°C 0.97
12.229V 5V 3.35V 5.156V 148.614 48.62°C 114.86V
CL2 0.113A 22.002A 0A 0A 111.294 80.443% 1410 30.3 40.39°C 0.966
12.230V 4.996V 3.369V 5.228V 138.353 46.33°C 114.86V
CL3 0.113A 0A 21.684A 0A 73.996 74.264% 1427 31.1 41.39°C 0.954
12.230V 5.027V 3.349V 5.036V 99.639 45.31°C 114.88V
CL4 106.795A 0A 0A 0A 1299.951 87.99% 2184 42.3 44.76°C 0.997
12.172V 5.023V 3.364V 4.999V 1477.387 54.79°C 114.44V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.870A 1.989A 1.957A 1.001A 130.015 90.891% 1123 23.6 40.15°C 0.923
12.222V 5.028V 3.372V 4.996V 143.041 44.35°C 229.87V
20% 18.750A 2.986A 2.939A 1.203A 259.985 93.303% 1197 25.6 40.55°C 0.957
12.218V 5.024V 3.369V 4.989V 278.644 45.11°C 229.85V
30% 28.960A 3.486A 3.432A 1.406A 389.712 93.769% 1308 28.1 41.2°C 0.97
12.212V 5.021V 3.366V 4.98V 415.614 46.28°C 229.82V
40% 39.195A 3.986A 3.925A 1.61A 519.66 93.78% 1443 31.3 41.8°C 0.976
12.207V 5.019V 3.364V 4.97V 554.129 47.43°C 229.8V
50% 49.118A 4.986A 4.911A 1.814A 649.813 93.492% 1749 36.7 42.23°C 0.98
12.201V 5.015V 3.36V 4.963V 695.047 48.27°C 229.78V
60% 59.049A 5.988A 5.899A 2.001A 779.876 93.1% 1885 38.7 42.95°C 0.983
12.196V 5.012V 3.357V 4.958V 837.678 49.48°C 229.75V
70% 68.989A 6.991A 6.89A 2.222A 910.031 92.659% 2022 40.6 43.27°C 0.986
12.189V 5.008V 3.354V 4.951V 982.138 50.27°C 229.73V
80% 78.946A 7.993A 7.881A 2.324A 1039.639 92.137% 2158 42.0 43.82°C 0.987
12.182V 5.004V 3.35V 4.95V 1128.363 51.86°C 229.71V
90% 89.296A 8.497A 8.365A 2.43A 1169.865 91.609% 2180 42.3 44.1°C 0.988
12.177V 5.001V 3.348V 4.939V 1277.021 53.26°C 229.68V
100% 99.391A 9.001A 8.879A 3.055A 1299.449 91.009% 2183 42.3 45.69°C 0.989
12.171V 4.999V 3.345V 4.911V 1427.8 55.74°C 229.65V
110% 109.429A 10.009A 9.967A 3.053A 1429.627 90.403% 2189 42.4 46.88°C 0.99
12.166V 4.995V 3.342V 4.914V 1581.403 57.78°C 229.63V
CL1 0.115A 14.435A 14.237A 0A 121.307 82.689% 1766 37.0 40.57°C 0.926
12.228V 5.001V 3.351V 5.158V 146.702 48.64°C 229.86V
CL2 0.113A 22.005A 0A 0A 111.3 81.969% 1380 29.7 40.07°C 0.919
12.224V 4.995V 3.368V 5.228V 135.784 45.02°C 229.87V
CL3 0.113A 0A 21.68A 0A 73.997 75.766% 1385 29.8 40.1°C 0.886
12.224V 5.027V 3.349V 5.035V 97.664 44.29°C 229.87V
CL4 106.844A 0A 0A 0A 1299.957 91.652% 2186 42.4 44.94°C 0.989
12.166V 5.022V 3.363V 4.998V 1418.355 54.57°C 229.66V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.214A 0.496A 0.488A 0.199A 19.996 70.224% 0 <6.0 39.68°C 0.892
12.222V 5.036V 3.378V 5.031V 28.471 36.59°C 114.9V
40W 2.674A 0.695A 0.684A 0.298A 39.995 78.998% 1034 21.1 37.2°C 0.925
12.225V 5.036V 3.378V 5.027V 50.63 40.46°C 114.9V
60W 4.133A 0.894A 0.879A 0.398A 59.994 83.695% 1057 21.9 38.37°C 0.941
12.225V 5.035V 3.377V 5.023V 71.647 42.02°C 114.89V
80W 5.588A 1.093A 1.075A 0.498A 79.936 86.22% 1102 23.1 39.55°C 0.949
12.225V 5.033V 3.376V 5.018V 92.721 43.51°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.496A 0.488A 0.199A 20 72.191% 0 <6.0 39.58°C 0.612
12.221V 5.037V 3.379V 5.031V 27.704 36.51°C 229.92V
40W 2.674A 0.695A 0.684A 0.298A 40 82.398% 0 <6.0 41.19°C 0.771
12.221V 5.036V 3.378V 5.027V 48.543 37.89°C 229.9V
60W 4.134A 0.894A 0.879A 0.398A 60.001 86.405% 1077 22.2 38.74°C 0.84
12.222V 5.036V 3.378V 5.024V 69.448 42.24°C 229.88V
80W 5.588A 1.093A 1.075A 0.498A 79.952 87.802% 1109 23.3 39.27°C 0.876
12.225V 5.033V 3.376V 5.018V 91.056 42.93°C 229.88V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.56mV9.86mV8.55mV11.26mVPass
20% Load16.01mV11.65mV9.52mV12.69mVPass
30% Load17.29mV11.70mV10.03mV12.68mVPass
40% Load16.37mV11.65mV9.72mV13.50mVPass
50% Load16.42mV10.42mV9.00mV11.51mVPass
60% Load18.47mV14.30mV10.79mV14.84mVPass
70% Load18.72mV16.50mV10.44mV17.80mVPass
80% Load19.08mV17.93mV13.04mV17.80mVPass
90% Load20.41mV20.08mV14.94mV20.20mVPass
100% Load30.93mV23.36mV17.02mV22.34mVPass
110% Load31.56mV25.39mV17.88mV23.31mVPass
Crossload122.76mV12.83mV10.97mV14.13mVPass
Crossload216.11mV17.62mV9.97mV13.45mVPass
Crossload314.58mV12.52mV11.76mV13.66mVPass
Crossload430.42mV21.77mV16.33mV23.15mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load15.40mV11.09mV9.87mV13.55mVPass
20% Load17.24mV11.29mV11.00mV13.76mVPass
30% Load15.70mV10.88mV10.28mV12.63mVPass
40% Load38.83mV20.84mV20.00mV26.50mVPass
50% Load17.29mV12.82mV10.79mV13.76mVPass
60% Load16.68mV12.72mV9.77mV14.12mVPass
70% Load17.65mV17.32mV12.02mV16.16mVPass
80% Load18.47mV18.24mV13.20mV17.91mVPass
90% Load18.93mV18.85mV14.22mV18.62mVPass
100% Load31.13mV21.54mV16.33mV20.54mVPass
110% Load32.67mV23.97mV17.20mV22.96mVPass
Crossload123.36mV12.79mV10.71mV11.75mVPass
Crossload214.99mV16.35mV8.59mV10.95mVPass
Crossload315.85mV11.34mV11.36mV11.51mVPass
Crossload430.47mV21.32mV15.83mV21.09mVPass

The results above are not used in the certification process

Lian Li EDGE 1300

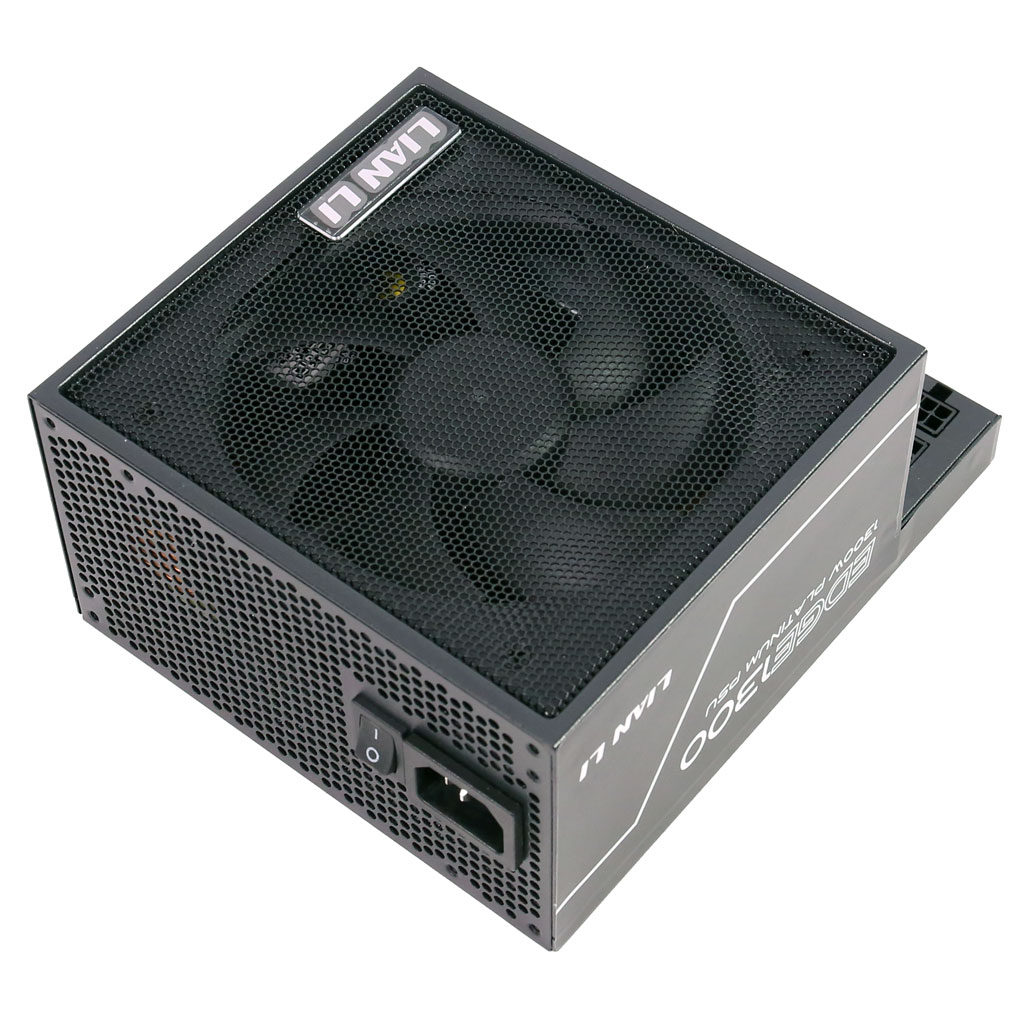

Top side

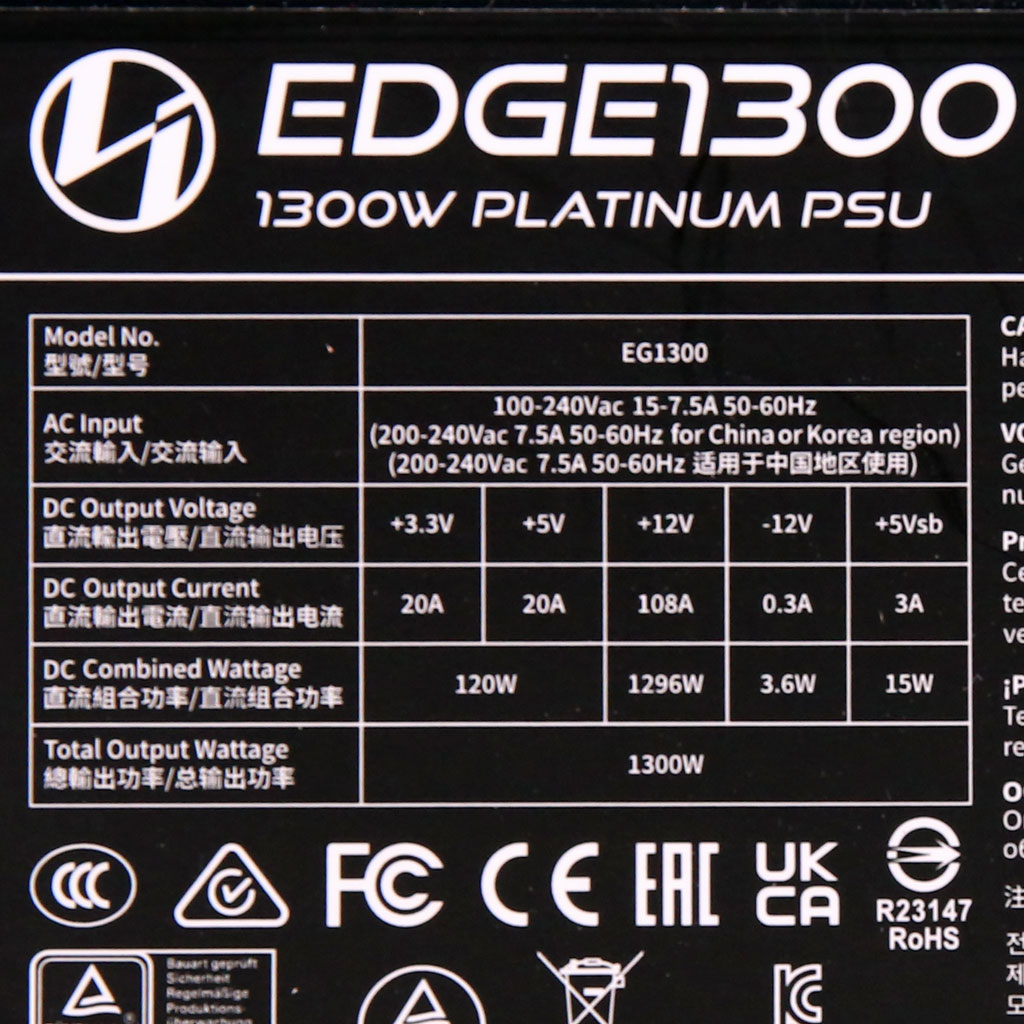

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
