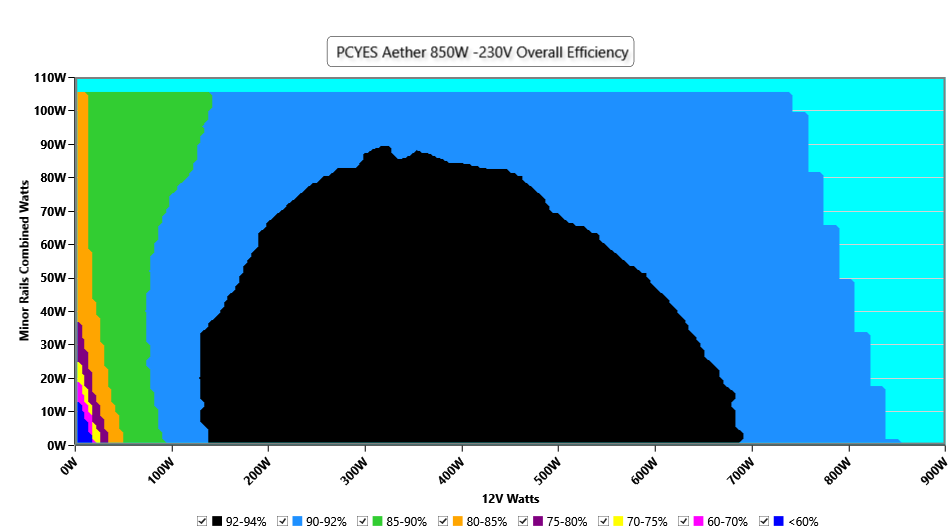

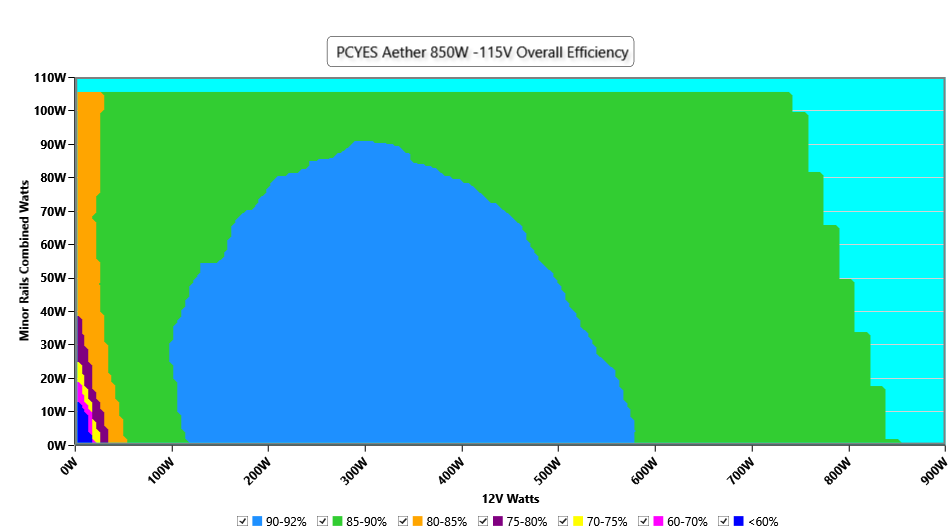

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
资讯
This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
噪音值图表
资讯

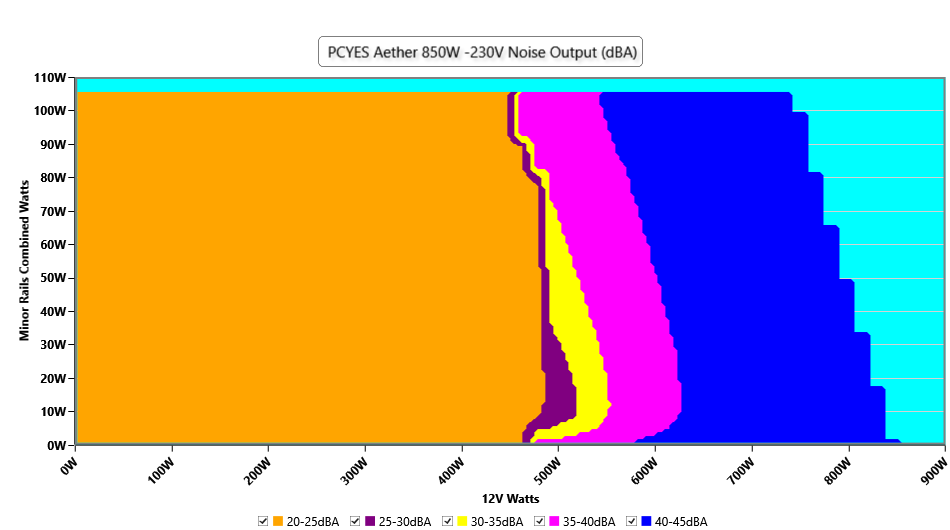

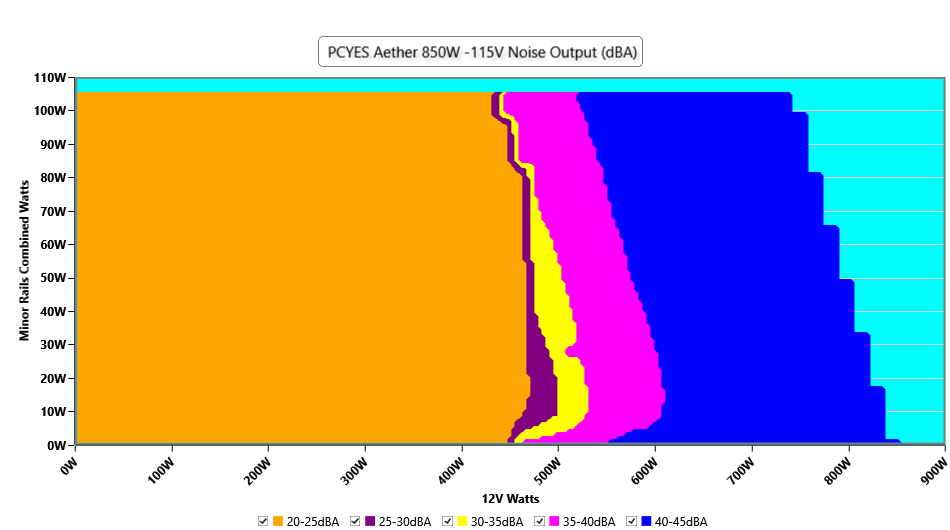

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
资讯
The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance
高环温电源转换效率
资讯

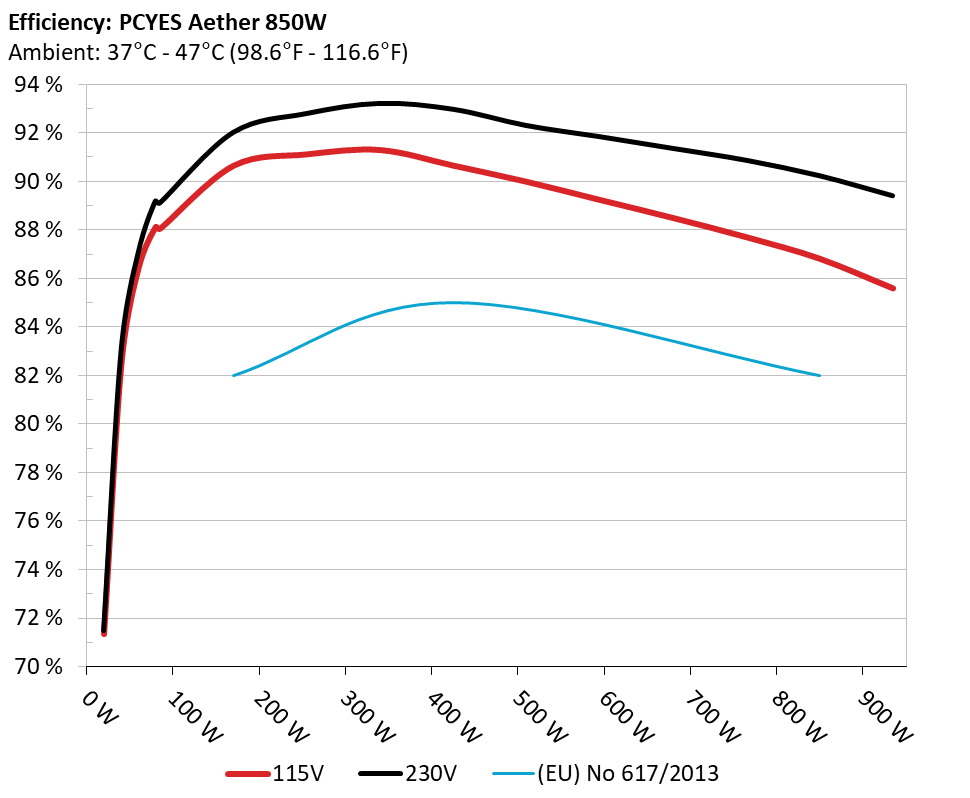

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used
5Vsb转换效率
资讯

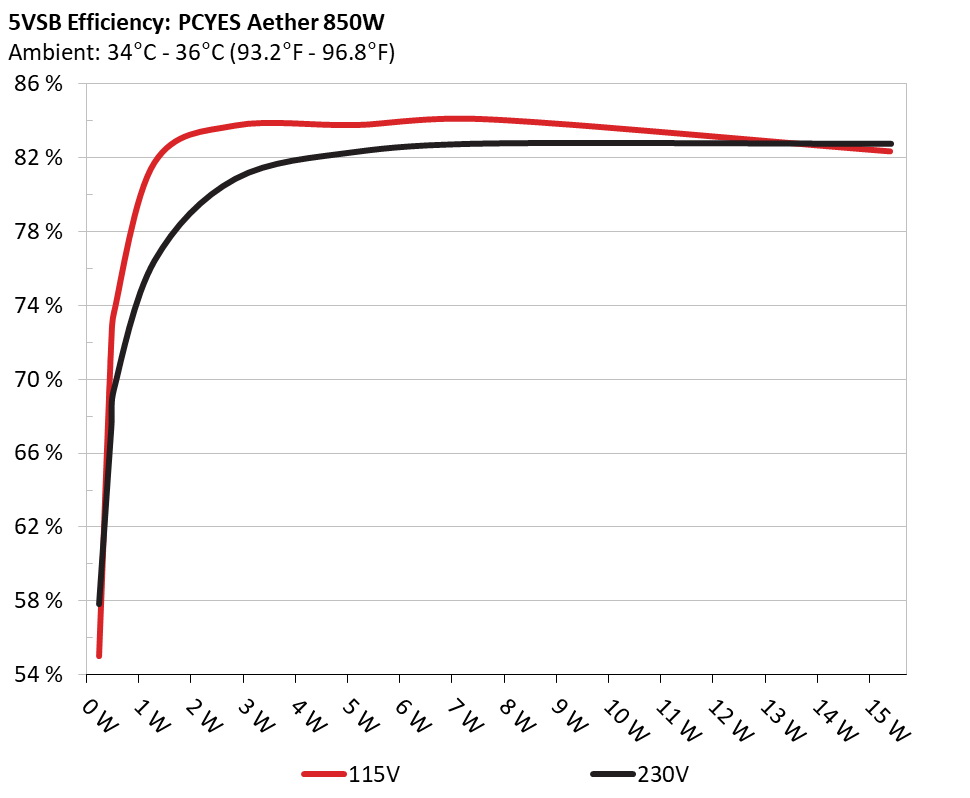

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
输入电压 时的5Vsb 效率 (ErP Lot3/6 & CEC)
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.045A
0.233W
55%
0.032
5.177V
0.259W
114.91V
2
0.09A
0.466W
72.027%
0.078
5.176V
0.647W
114.91V
3
0.55A
2.843W
83.764%
0.292
5.169V
3.394W
114.91V
4
1A
5.163W
83.789%
0.364
5.163V
6.162W
114.91V
5
1.5A
7.734W
84.094%
0.413
5.156V
9.197W
114.91V
6
3A
15.401W
82.363%
0.471
5.134V
18.698W
114.9V
测试 #
5VSB
DC/AC (瓦)
效率
PF/AC 电压
1
0.045A
0.233W
57.843%
0.015
5.177V
0.405W
229.88V
2
0.09A
0.466W
67.358%
0.025
5.176V
0.693W
229.88V
3
0.55A
2.843W
80.862%
0.119
5.17V
3.513W
229.88V
4
1A
5.163W
82.324%
0.193
5.163V
6.271W
229.87V
5
1.5A
7.735W
82.775%
0.234
5.156V
9.345W
229.87V
6
3A
15.402W
82.756%
0.338
5.134V
18.61W
229.87V
Supplementary Tests (For Reference)
10-110%负载测试
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
10%
5.192A
1.947A
1.953A
0.97A
84.999
88.068%
900
23.2
40.05°C
0.921
12.211V
5.135V
3.379V
5.157V
96.508
44.32°C
114.88V
20%
11.395A
2.923A
2.933A
1.166A
169.936
90.661%
902
23.2
40.53°C
0.95
12.202V
5.132V
3.375V
5.146V
187.424
45.15°C
114.86V
30%
17.952A
3.412A
3.425A
1.363A
254.94
91.133%
904
23.2
41.34°C
0.966
12.193V
5.129V
3.372V
5.136V
279.749
46.34°C
114.83V
40%
24.524A
3.901A
3.919A
1.561A
340.023
91.312%
906
23.2
41.65°C
0.977
12.185V
5.127V
3.368V
5.125V
372.359
47.2°C
114.79V
50%
30.740A
4.88A
4.904A
1.76A
424.803
90.668%
1278
35.8
42.16°C
0.982
12.176V
5.123V
3.365V
5.114V
468.523
48.18°C
114.77V
60%
36.947A
5.859A
5.889A
1.96A
509.322
90.007%
1527
39.6
42.62°C
0.985
12.166V
5.121V
3.362V
5.102V
565.875
49.14°C
114.74V
70%
43.233A
6.84A
6.878A
2.16A
594.621
89.254%
1737
42.7
43.38°C
0.988
12.155V
5.117V
3.359V
5.091V
666.214
50.41°C
114.71V
80%
49.530A
7.821A
7.872A
2.263A
679.478
88.509%
1745
42.7
43.79°C
0.99
12.146V
5.113V
3.353V
5.08V
767.64
51.82°C
114.69V
90%
56.232A
8.316A
8.36A
2.367A
764.932
87.713%
1743
42.7
44.21°C
0.992
12.136V
5.11V
3.349V
5.07V
872.053
53.29°C
114.64V
100%
62.676A
8.81A
8.876A
2.969A
849.742
86.825%
1741
42.7
45.88°C
0.993
12.127V
5.107V
3.346V
5.052V
978.677
55.89°C
114.61V
110%
69.007A
9.8A
9.971A
2.975A
934.36
85.606%
1743
42.7
46.67°C
0.994
12.116V
5.101V
3.34V
5.042V
1091.473
57.54°C
114.56V
CL1
0.115A
12.144A
12.236A
0.001A
104.301
81.903%
896
23.1
42.42°C
0.934
12.206V
5.105V
3.343V
5.159V
127.352
52.63°C
114.88V
CL2
0.113A
19.67A
0A
0.001A
101.364
80.913%
900
23.2
41.03°C
0.934
12.207V
5.082V
3.359V
5.164V
125.279
50.15°C
114.87V
CL3
0.113A
0A
19.847A
0A
67.398
75.463%
900
23.2
42.4°C
0.918
12.207V
5.111V
3.326V
5.163V
89.314
50.9°C
114.89V
CL4
70.011A
0A
0A
0.008A
849.545
87.797%
1759
43.0
44.63°C
0.993
12.135V
5.123V
3.36V
5.105V
967.634
55.93°C
114.62V
The results above are not used in the certification process
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
10%
5.192A
1.947A
1.953A
0.97A
84.999
89.096%
900
23.2
40.23°C
0.812
12.210V
5.136V
3.379V
5.157V
95.365
44.48°C
229.86V
20%
11.396A
2.923A
2.933A
1.166A
169.937
92.002%
902
23.2
40.57°C
0.895
12.201V
5.133V
3.375V
5.146V
184.674
45.07°C
229.87V
30%
17.954A
3.411A
3.425A
1.363A
254.944
92.782%
904
23.2
41.01°C
0.926
12.192V
5.13V
3.372V
5.135V
274.779
46.08°C
229.85V
40%
24.529A
3.901A
3.918A
1.561A
340.04
93.202%
906
23.2
41.67°C
0.943
12.184V
5.127V
3.369V
5.125V
364.843
47.17°C
229.83V
50%
30.751A
4.88A
4.904A
1.76A
424.871
92.959%
1300
35.8
42.34°C
0.954
12.174V
5.124V
3.365V
5.113V
457.05
48.4°C
229.82V
60%
36.957A
5.858A
5.89A
1.96A
509.384
92.292%
1542
40.1
42.86°C
0.961
12.165V
5.121V
3.362V
5.102V
551.913
49.45°C
229.81V
70%
43.241A
6.839A
6.879A
2.161A
594.668
91.832%
1737
42.7
43.48°C
0.966
12.154V
5.118V
3.358V
5.09V
647.546
50.49°C
229.78V
80%
49.535A
7.82A
7.872A
2.264A
679.5
91.347%
1743
42.7
43.84°C
0.971
12.145V
5.114V
3.354V
5.08V
743.875
51.85°C
229.76V
90%
56.233A
8.313A
8.356A
2.367A
764.917
90.856%
1742
42.7
44.36°C
0.974
12.136V
5.111V
3.351V
5.07V
841.902
53.39°C
229.76V
100%
62.677A
8.807A
8.872A
2.969A
849.724
90.218%
1741
42.7
45.84°C
0.976
12.126V
5.109V
3.348V
5.053V
941.86
55.85°C
229.74V
110%
69.002A
9.795A
9.966A
2.974A
934.301
89.395%
1739
42.7
46.81°C
0.978
12.116V
5.104V
3.342V
5.043V
1045.124
57.69°C
229.73V
CL1
1.968A
12.144A
12.237A
0.485A
129.406
85.55%
895
23.1
42.39°C
0.876
12.202V
5.105V
3.342V
5.15V
151.266
53.05°C
229.87V
CL2
1.966A
18.989A
0.983A
0.485A
126.481
84.742%
898
23.1
41.07°C
0.875
12.204V
5.091V
3.358V
5.154V
149.257
49.2°C
229.87V
CL3
1.966A
0.977A
18.347A
0.485A
92.508
81.701%
898
23.1
40.91°C
0.841
12.203V
5.117V
3.325V
5.155V
113.218
46.97°C
229.88V
CL4
69.159A
0.976A
0.982A
0.49A
849.863
91.104%
1756
42.9
44.49°C
0.976
12.133V
5.124V
3.361V
5.098V
932.86
53.42°C
229.75V
The results above are not used in the certification process
20-80瓦负载测试
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
20W
1.216A
0.486A
0.487A
0.193A
19.998
71.347%
895
23.1
36.56°C
0.818
12.204V
5.144V
3.389V
5.174V
28.029
39.66°C
114.89V
40W
2.676A
0.681A
0.682A
0.29A
39.997
82.477%
897
23.1
37.14°C
0.881
12.213V
5.142V
3.387V
5.171V
48.493
40.5°C
114.89V
60W
4.138A
0.875A
0.877A
0.387A
59.995
86.45%
897
23.1
38.17°C
0.904
12.212V
5.14V
3.384V
5.168V
69.403
41.82°C
114.89V
80W
5.594A
1.07A
1.073A
0.484A
79.938
88.14%
900
23.2
39.1°C
0.918
12.211V
5.138V
3.382V
5.165V
90.681
43.06°C
114.89V
The results above are not used in the certification process
测试
12V
5V
3.3V
5VSB
DC/AC (瓦)
效率
风扇转速 (RPM)
电源供应器噪音 (dB[A])
温度(输入/输出)
PF/AC 电压
20W
1.216A
0.486A
0.487A
0.193A
20
71.471%
896
23.1
36.65°C
0.508
12.205V
5.143V
3.388V
5.174V
27.981
39.75°C
229.88V
40W
2.676A
0.681A
0.682A
0.29A
39.998
82.93%
897
23.1
37.2°C
0.662
12.213V
5.141V
3.385V
5.171V
48.228
40.52°C
229.88V
60W
4.138A
0.875A
0.878A
0.387A
59.995
87.044%
897
23.1
38.25°C
0.751
12.212V
5.14V
3.384V
5.168V
68.926
41.83°C
229.88V
80W
5.594A
1.07A
1.073A
0.484A
79.934
89.176%
898
23.1
39.45°C
0.802
12.210V
5.139V
3.382V
5.165V
89.639
43.19°C
229.88V
The results above are not used in the certification process
纹波测量
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
12.8 mV
9.1 mV
9.2 mV
13.9 mV
Pass
20% Load
13.1 mV
8.9 mV
8.5 mV
16.3 mV
Pass
30% Load
15.2 mV
10.3 mV
9.5 mV
20.7 mV
Pass
40% Load
15.6 mV
10.5 mV
9.0 mV
21.8 mV
Pass
50% Load
17.3 mV
10.9 mV
10.3 mV
25.9 mV
Pass
60% Load
19.8 mV
11.6 mV
11.9 mV
30.2 mV
Pass
70% Load
21.9 mV
12.7 mV
12.8 mV
35.5 mV
Pass
80% Load
19.8 mV
12.5 mV
13.9 mV
37.0 mV
Pass
90% Load
21.1 mV
12.7 mV
15.2 mV
40.2 mV
Pass
100% Load
32.4 mV
16.2 mV
20.0 mV
50.9 mV
Fail
110% Load
33.7 mV
18.0 mV
19.6 mV
56.3 mV
Fail
Crossload 1
22.2 mV
18.8 mV
21.9 mV
17.1 mV
Pass
Crossload 2
14.6 mV
16.6 mV
15.7 mV
14.0 mV
Pass
Crossload 3
14.1 mV
19.7 mV
18.5 mV
12.9 mV
Pass
Crossload 4
31.3 mV
14.4 mV
11.3 mV
45.1 mV
Pass
The results above are not used in the certification process
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
10.4 mV
7.8 mV
7.2 mV
11.7 mV
Pass
20% Load
11.8 mV
8.8 mV
8.8 mV
15.8 mV
Pass
30% Load
14.3 mV
11.1 mV
10.0 mV
20.2 mV
Pass
40% Load
16.2 mV
10.9 mV
10.1 mV
22.5 mV
Pass
50% Load
17.5 mV
11.7 mV
10.9 mV
26.6 mV
Pass
60% Load
16.6 mV
10.2 mV
10.5 mV
29.6 mV
Pass
70% Load
17.4 mV
11.5 mV
11.5 mV
33.5 mV
Pass
80% Load
20.5 mV
12.8 mV
15.1 mV
37.9 mV
Pass
90% Load
22.5 mV
15.2 mV
17.6 mV
42.8 mV
Pass
100% Load
31.8 mV
17.3 mV
18.5 mV
49.3 mV
Pass
110% Load
33.7 mV
18.2 mV
19.6 mV
53.4 mV
Fail
Crossload 1
22.3 mV
18.2 mV
22.2 mV
18.8 mV
Pass
Crossload 2
14.9 mV
16.6 mV
24.9 mV
16.2 mV
Pass
Crossload 3
13.2 mV
17.9 mV
15.9 mV
14.4 mV
Pass
Crossload 4
30.4 mV
14.0 mV
11.5 mV
46.0 mV
Pass
The results above are not used in the certification process
