CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

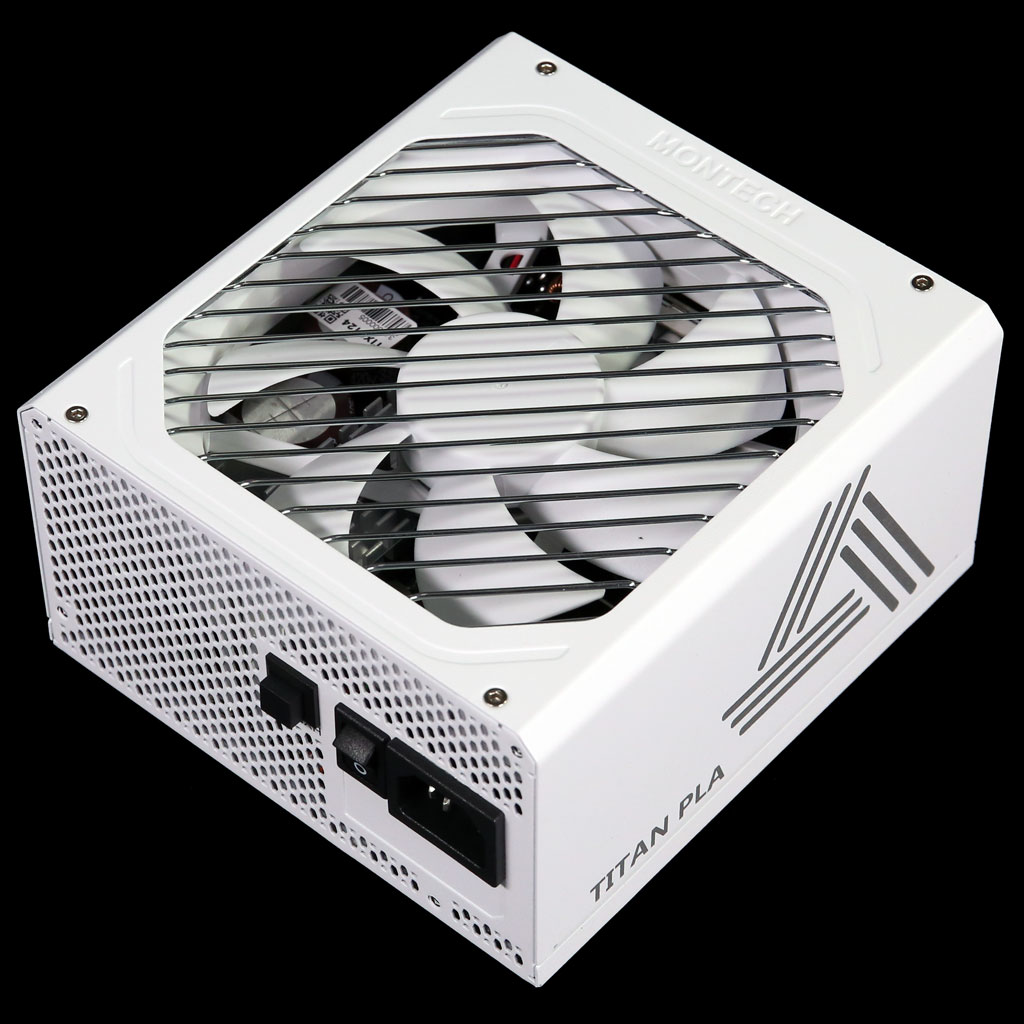

Montech Titan PLA 850W White
Serial Number
Lab IDMT85002426
  • Report: 24PS2426A
  • Receipt Date: Apr 9, 2024
  • Test Date: Apr 24, 2024
  • Report Date: Apr 26, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMontech
Manufacturer (OEM)Seasonic
SeriesTitan PLA White
Model NumberTIX0124
Serial Number
DUT Notes

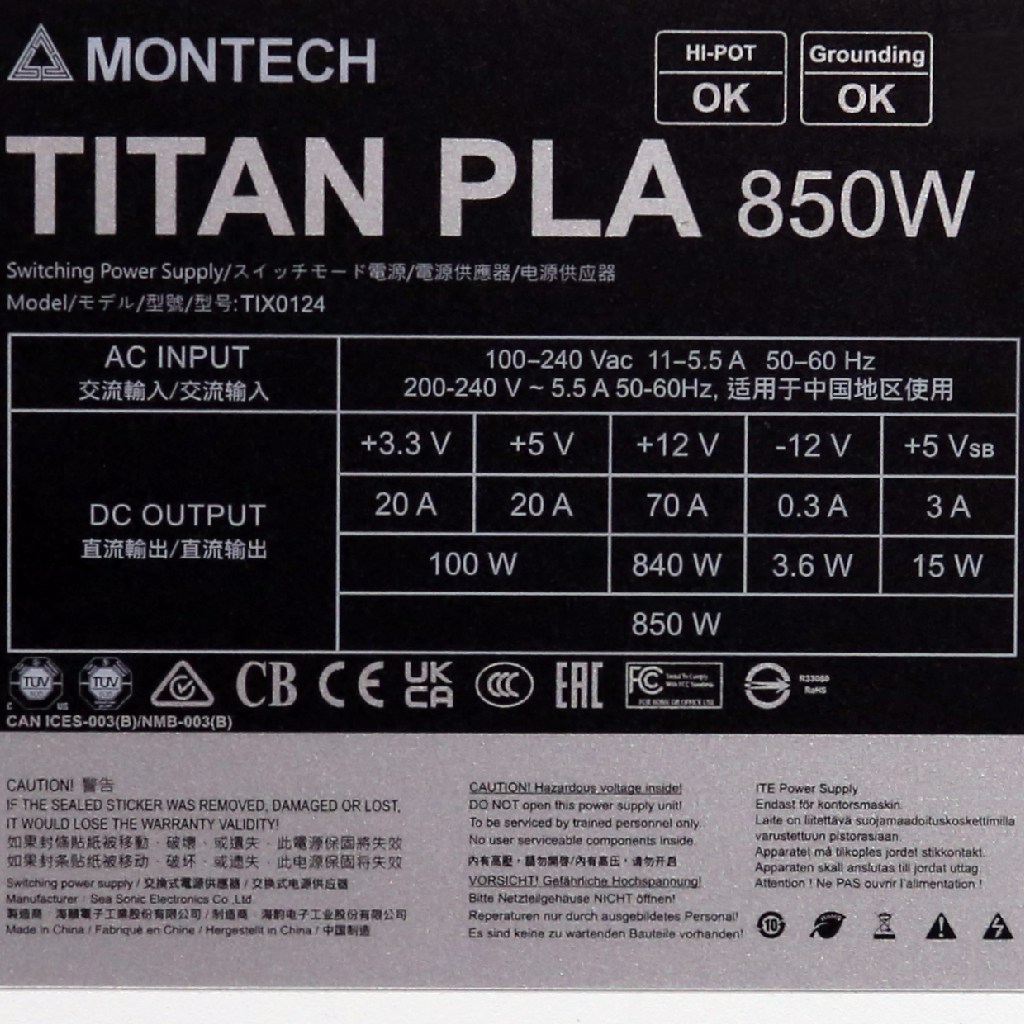

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)11-5.5
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 70 3 0.3
Watts 100 840 15 3.6
Total Max. Power (W) 850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (615mm) 1 1 16-18AWG No
4+4 pin EPS12V (710mm) 2 2 16AWG No
6+2 pin PCIe (760mm) 3 3 16-18AWG No
12+4 pin PCIe (760mm) (600W) 1 1 16-28AWG No
SATA 3.3 (515mm+160mm) 1 2 18AWG No
SATA (510mm+160mm+160mm+160mm) 2 8 18AWG No
4-pin Molex (510mm+160mm+160mm+160mm) 1 4 18AWG Νο

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 5D-20 (5 Ohm) & Relay
Bridge Rectifier(s) 2x Liteon GBU15JL (600V, 15A @ 115°C)
APFC MOSFETs 2x Infineon IPA60R160P6 (650V, 15A @ 100°C, Rds(on): 0.160Ohm)
APFC Boost Diode 1x Cree C6D10065 (650V, 10A @ 155°C)
Bulk Cap(s) 1x Nippon Chemi-con (420V, 390uF, 2,000h @ 105°C, KMR) &
1x Nippon Chemi-con (420V, 330uF, 2,000h @ 105°C, KMR)
Main Switchers 4x Infineon IPA60R190P6 (650V, 12.7A @ 100°C, Rds(on): 0.190Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 6x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V DC-DC Converters: 4x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 3x Nichicon (2-5,000h @ 105°C, HD),
4x Nippon Chemi-Con (5-6,000h @ 105°C, KZH),
4x Nippon Chemi-Con (4-10,000h @ 105°C, KY),
1x Nippon Chemi-Con (2-5,000h @ 105°C, KZE),
5x Rubycon (3-6,000h @ 105°C, YXG),
Polymer: 26x FPCAP, 8x
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller Nuvoton M031
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x
Standby PWM Controller Excelliance MOS EM85690

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 19.2
AC Loss to PWR_OK Hold Up Time  (ms) 23.9
PWR_OK Inactive to DC Loss Delay (ms) 4.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.06 V 115.02 V 113.85 V 115.10 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.21 % 2.00 % PASS
Real Power: 0.050 W 0.015 W N/A 0.080 W N/A N/A
Apparent Power: 10.675 W 10.505 W N/A 10.848 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 231.01 V 230.90 V 227.70 V 231.07 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.17 % 0.14 % N/A 0.26 % 2.00 % PASS
Real Power: 0.137 W 0.107 W N/A 0.179 W N/A N/A
Apparent Power: 34.974 W 34.683 W N/A 35.277 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

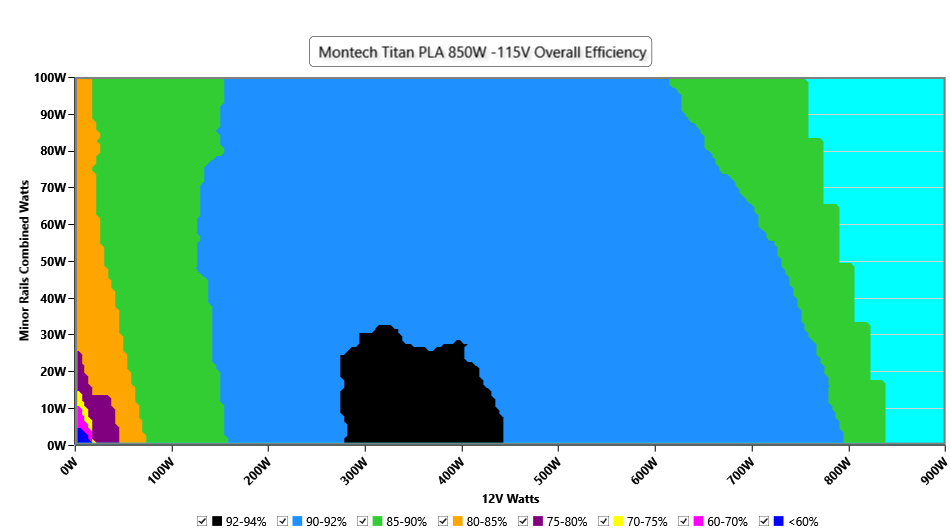

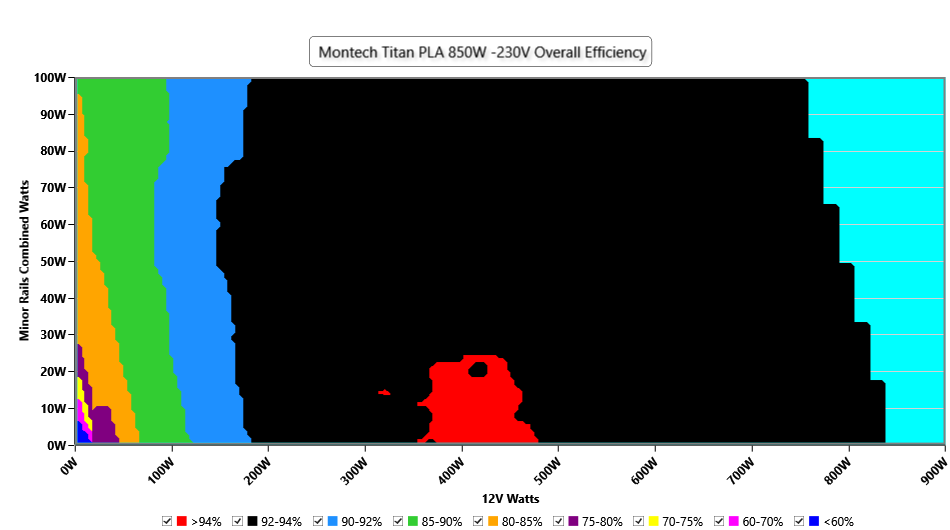

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

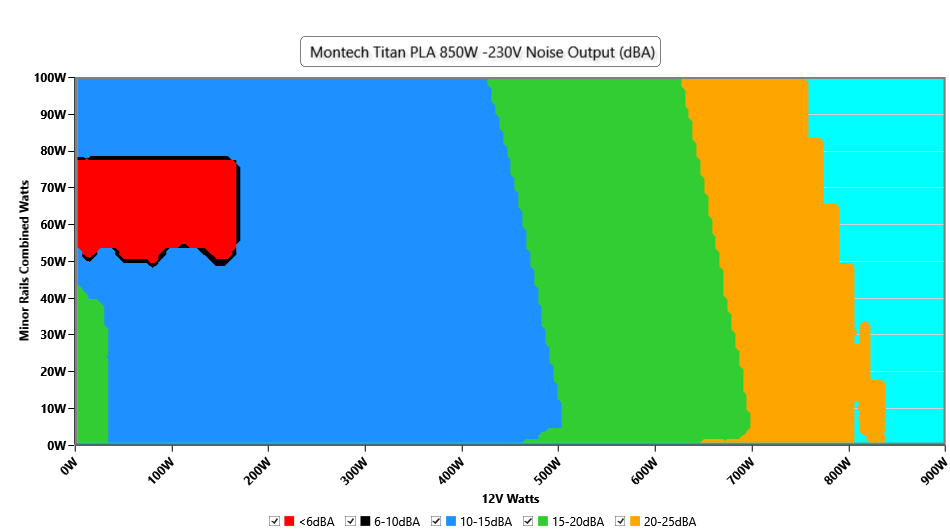

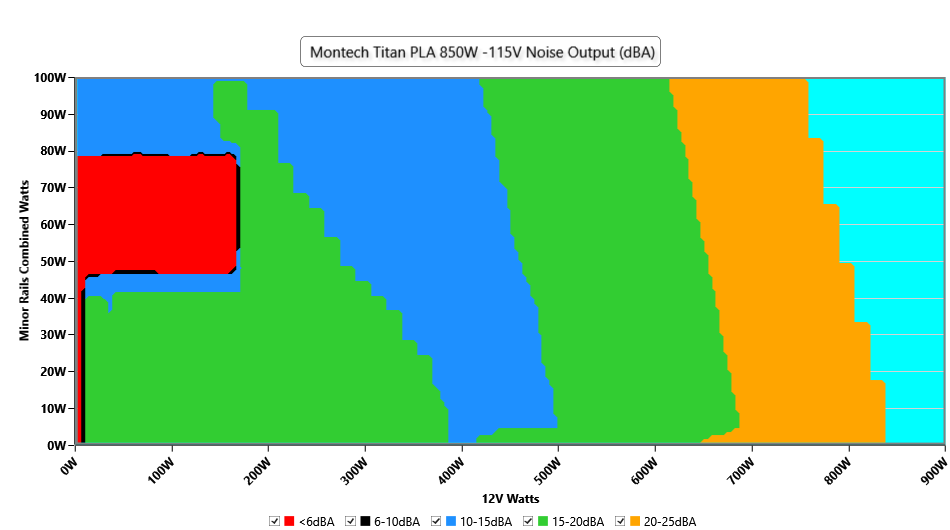

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

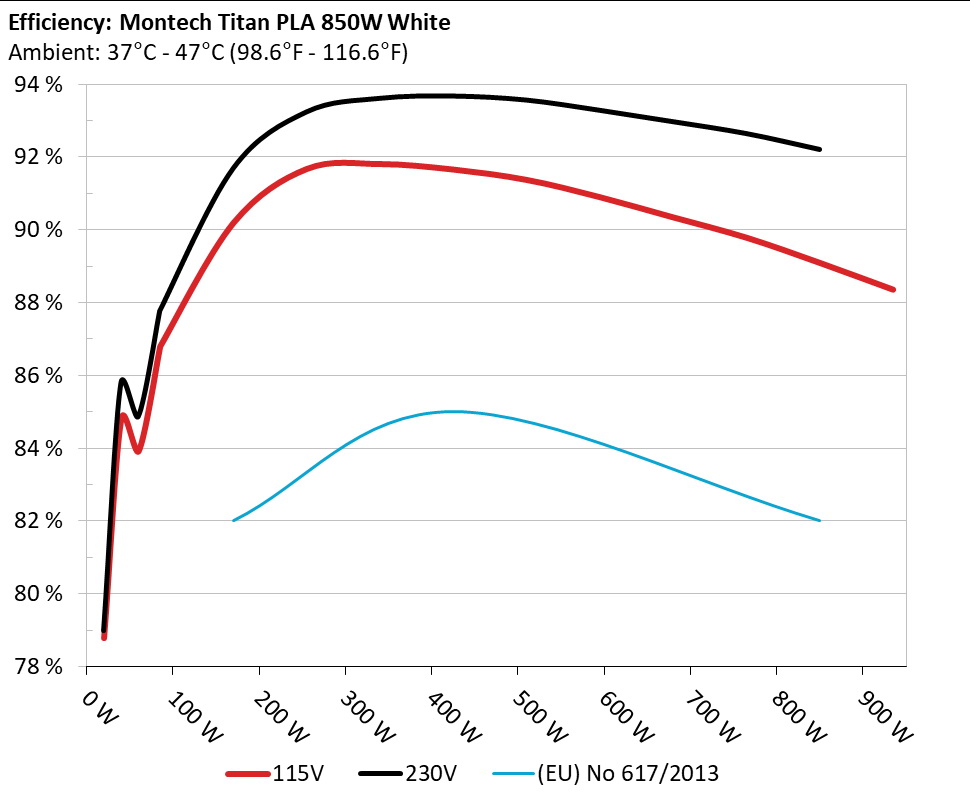

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

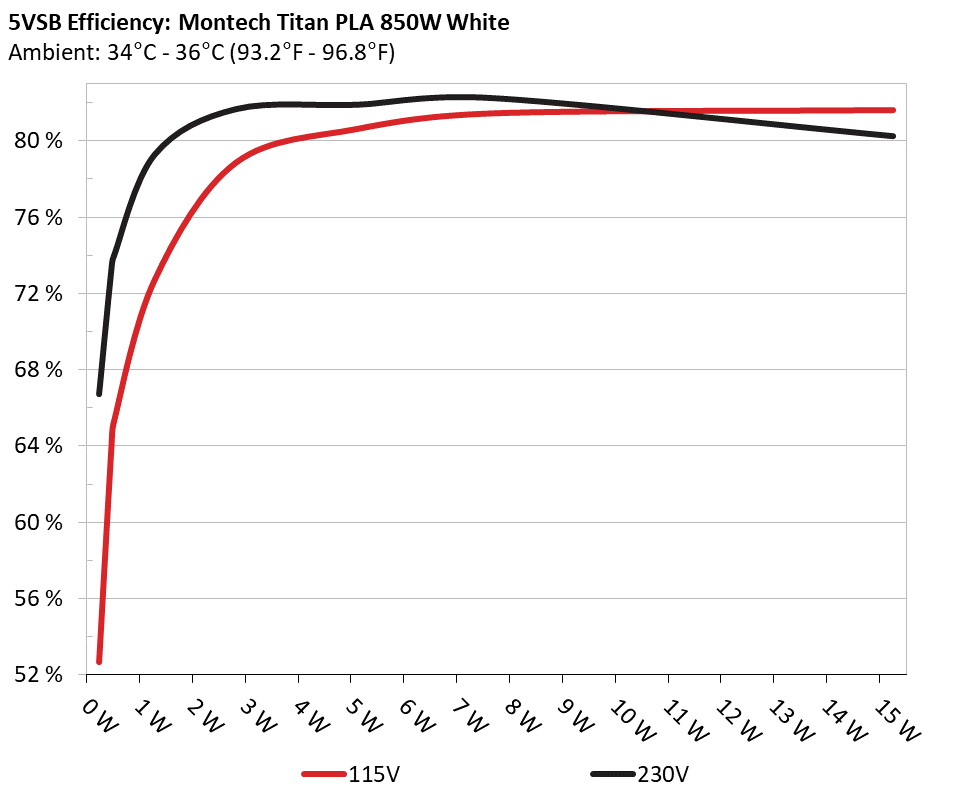

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 66.723% 0.034
5.147V 0.348W 114.91V
2 0.09A 0.463W 73.234% 0.061
5.145V 0.632W 114.93V
3 0.55A 2.824W 81.677% 0.26
5.136V 3.458W 114.91V
4 1A 5.127W 81.904% 0.35
5.126V 6.26W 114.91V
5 1.5A 7.675W 82.254% 0.408
5.117V 9.331W 114.9V
6 3A 15.253W 80.256% 0.483
5.085V 19.005W 114.9V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 52.651% 0.013
5.146V 0.442W 229.91V
2 0.09A 0.463W 63.855% 0.021
5.145V 0.725W 229.91V
3 0.55A 2.824W 78.882% 0.099
5.135V 3.581W 229.89V
4 1A 5.126W 80.651% 0.165
5.126V 6.356W 229.89V
5 1.5A 7.675W 81.467% 0.214
5.116V 9.422W 229.88V
6 3A 15.254W 81.635% 0.325
5.085V 18.686W 229.88V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.216A 1.999A 1.989A 0.976A 85.005 86.803% 0 <6.0 44.5°C 0.948
12.154V 5.004V 3.319V 5.124V 97.93 40.46°C 114.89V
20% 11.440A 3A 2.985A 1.173A 169.955 90.197% 0 <6.0 44.83°C 0.966
12.155V 5V 3.317V 5.115V 188.422 40.58°C 114.86V
30% 18.021A 3.501A 3.484A 1.371A 254.973 91.68% 0 <6.0 45.67°C 0.976
12.148V 4.998V 3.316V 5.107V 278.114 41.13°C 114.84V
40% 24.627A 4.003A 3.984A 1.57A 340.065 91.814% 727 15.1 41.57°C 0.978
12.135V 4.996V 3.314V 5.097V 370.385 46.39°C 114.8V
50% 30.865A 5.007A 4.984A 1.769A 424.92 91.664% 731 15.2 42.19°C 0.981
12.131V 4.994V 3.311V 5.088V 463.561 47.57°C 114.77V
60% 37.058A 6.011A 5.984A 1.969A 509.427 91.381% 725 17.9 42.94°C 0.982
12.133V 4.991V 3.31V 5.079V 557.488 49.21°C 114.75V
70% 43.325A 7.017A 6.985A 2.169A 594.706 90.904% 788 17.5 43.33°C 0.984
12.132V 4.989V 3.308V 5.07V 654.215 50.71°C 114.71V
80% 49.577A 8.021A 7.987A 2.271A 679.534 90.35% 854 20.2 43.88°C 0.986
12.136V 4.986V 3.306V 5.063V 752.116 52.38°C 114.68V
90% 56.233A 8.526A 8.475A 2.373A 764.953 89.789% 948 23.6 44.37°C 0.987
12.136V 4.984V 3.304V 5.056V 851.943 53.72°C 114.64V
100% 62.619A 9.031A 8.994A 2.977A 849.764 89.096% 1073 27.7 45.04°C 0.989
12.138V 4.982V 3.303V 5.039V 953.764 55.68°C 114.6V
110% 68.863A 10.041A 10.09A 2.98A 934.333 88.365% 1158 30.2 46.79°C 0.99
12.141V 4.979V 3.3V 5.034V 1057.358 57.64°C 114.57V
CL1 0.115A 12.08A 12.011A 0A 101.295 84.088% 727 15.1 40.73°C 0.954
12.194V 4.983V 3.306V 5.14V 120.463 46.08°C 114.87V
CL2 0.114A 20.061A 0A 0A 101.339 82.873% 892 21.5 40.8°C 0.953
12.184V 4.982V 3.311V 5.141V 122.283 48.71°C 114.87V
CL3 0.113A 0A 19.947A 0A 67.396 77.14% 870 20.7 40.34°C 0.941
12.177V 4.996V 3.309V 5.141V 87.368 49.59°C 114.88V
CL4 70.076A 0A 0A 0A 849.514 89.77% 1001 25.3 44.92°C 0.988
12.123V 5.001V 3.316V 5.104V 946.319 55.14°C 114.61V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.214A 1.999A 1.988A 0.976A 85 87.778% 0 <6.0 44.27°C 0.812
12.160V 5.003V 3.319V 5.124V 96.835 40.24°C 229.87V
20% 11.434A 3A 2.985A 1.173A 169.933 91.694% 0 <6.0 44.95°C 0.902
12.160V 5V 3.317V 5.116V 185.328 40.57°C 229.86V
30% 18.017A 3.501A 3.483A 1.371A 254.939 93.25% 0 <6.0 46.17°C 0.935
12.150V 4.998V 3.316V 5.107V 273.393 41.38°C 229.85V
40% 24.619A 4.003A 3.983A 1.569A 340.024 93.626% 730 15.2 41.88°C 0.95
12.138V 4.996V 3.314V 5.098V 363.169 46.84°C 229.83V
50% 30.854A 5.006A 4.983A 1.769A 424.808 93.687% 726 14.9 42.11°C 0.959
12.131V 4.994V 3.312V 5.089V 453.431 47.53°C 229.81V
60% 37.056A 6.01A 5.983A 1.969A 509.339 93.579% 723 14.8 42.56°C 0.965
12.131V 4.992V 3.31V 5.08V 544.286 49.1°C 229.8V
70% 43.322A 7.016A 6.984A 2.169A 594.646 93.297% 787 17.5 43.5°C 0.969
12.131V 4.989V 3.308V 5.071V 637.365 51.07°C 229.79V
80% 49.589A 8.021A 7.986A 2.271A 679.473 92.984% 854 20.2 43.83°C 0.972
12.131V 4.986V 3.306V 5.064V 730.751 52.42°C 229.77V
90% 56.237A 8.526A 8.474A 2.373A 764.909 92.656% 941 23.4 44.8°C 0.975
12.134V 4.984V 3.304V 5.057V 825.55 53.91°C 229.76V
100% 62.620A 9.031A 8.993A 2.976A 849.732 92.22% 1063 27.5 45.66°C 0.976
12.137V 4.982V 3.303V 5.04V 921.413 55.87°C 229.75V
110% 68.874A 10.04A 10.089A 2.979A 934.295 91.768% 1128 29.5 46.89°C 0.978
12.139V 4.979V 3.301V 5.034V 1018.1 57.69°C 229.73V
CL1 0.114A 12.077A 12.01A 0A 101.284 85.342% 731 15.2 41.92°C 0.846
12.180V 4.984V 3.306V 5.14V 118.681 47.01°C 229.87V
CL2 0.113A 20.058A 0A 0A 101.33 83.977% 891 21.4 40.97°C 0.848
12.179V 4.983V 3.312V 5.141V 120.664 48.58°C 229.87V
CL3 0.113A 0A 19.946A 0A 67.394 78.029% 869 20.7 40.25°C 0.79
12.176V 4.996V 3.309V 5.141V 86.371 50.09°C 229.87V
CL4 70.093A 0A 0A 0A 849.48 92.813% 995 25.2 45.04°C 0.976
12.120V 5.001V 3.316V 5.105V 915.273 55.55°C 229.75V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.231A 0.499A 0.497A 0.194A 19.999 78.789% 0 <6.0 40.03°C 0.824
12.063V 5.009V 3.323V 5.143V 25.383 36.72°C 114.91V
40W 2.712A 0.699A 0.696A 0.292A 39.998 84.819% 0 <6.0 41.13°C 0.906
12.055V 5.008V 3.321V 5.139V 47.158 37.74°C 114.91V
60W 4.160A 0.899A 0.894A 0.389A 59.999 83.925% 0 <6.0 42.22°C 0.934
12.145V 5.007V 3.321V 5.137V 71.491 38.42°C 114.89V
80W 5.622A 1.099A 1.093A 0.487A 79.949 86.781% 0 <6.0 42.95°C 0.944
12.150V 5.006V 3.321V 5.134V 92.131 39.1°C 114.89V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.499A 0.497A 0.194A 19.995 78.987% 0 <6.0 39.98°C 0.459
12.068V 5.009V 3.322V 5.143V 25.317 36.65°C 229.88V
40W 2.710A 0.699A 0.695A 0.292A 39.995 85.788% 0 <6.0 40.62°C 0.635
12.064V 5.008V 3.322V 5.14V 46.625 37.16°C 229.88V
60W 4.158A 0.899A 0.894A 0.389A 59.995 84.87% 0 <6.0 42.02°C 0.744
12.152V 5.007V 3.321V 5.137V 70.689 38.44°C 229.88V
80W 5.620A 1.099A 1.093A 0.487A 79.939 87.716% 0 <6.0 42.72°C 0.8
12.155V 5.006V 3.321V 5.134V 91.13 39.03°C 229.87V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.2 mV 14.1 mV 12.0 mV 15.4 mV Pass
20% Load 12.6 mV 12.6 mV 11.9 mV 14.5 mV Pass
30% Load 29.9 mV 10.5 mV 9.4 mV 13.0 mV Pass
40% Load 24.4 mV 12.2 mV 12.1 mV 25.1 mV Pass
50% Load 20.2 mV 12.4 mV 12.7 mV 25.1 mV Pass
60% Load 17.9 mV 11.9 mV 11.3 mV 24.0 mV Pass
70% Load 20.2 mV 12.3 mV 13.1 mV 26.8 mV Pass
80% Load 20.0 mV 13.0 mV 14.3 mV 27.0 mV Pass
90% Load 20.6 mV 13.3 mV 14.8 mV 28.4 mV Pass
100% Load 32.4 mV 14.6 mV 18.0 mV 31.1 mV Pass
110% Load 32.4 mV 15.9 mV 18.6 mV 31.2 mV Pass
Crossload 1 13.7 mV 14.2 mV 14.8 mV 29.2 mV Pass
Crossload 2 14.4 mV 19.6 mV 15.0 mV 28.9 mV Pass
Crossload 3 12.8 mV 14.4 mV 16.3 mV 30.4 mV Pass
Crossload 4 32.0 mV 17.0 mV 18.4 mV 31.6 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 13.4 mV 14.6 mV 12.9 mV 16.8 mV Pass
20% Load 12.3 mV 12.6 mV 11.9 mV 14.5 mV Pass
30% Load 36.0 mV 11.9 mV 11.2 mV 14.2 mV Pass
40% Load 25.6 mV 12.2 mV 12.6 mV 26.2 mV Pass
50% Load 21.8 mV 11.8 mV 12.3 mV 26.1 mV Pass
60% Load 23.3 mV 12.0 mV 13.2 mV 27.2 mV Pass
70% Load 23.2 mV 13.3 mV 13.7 mV 26.8 mV Pass
80% Load 23.1 mV 12.9 mV 15.0 mV 27.0 mV Pass
90% Load 22.9 mV 14.0 mV 16.4 mV 28.1 mV Pass
100% Load 33.4 mV 15.9 mV 17.9 mV 30.3 mV Pass
110% Load 33.3 mV 15.1 mV 18.4 mV 30.5 mV Pass
Crossload 1 13.0 mV 14.4 mV 14.3 mV 28.3 mV Pass
Crossload 2 14.2 mV 17.5 mV 15.6 mV 27.2 mV Pass
Crossload 3 13.2 mV 15.3 mV 20.2 mV 29.1 mV Pass
Crossload 4 32.6 mV 14.9 mV 17.5 mV 29.5 mV Pass

The results above are not used in the certification process

Montech Titan PLA 850W White

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
