CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Core Reactor II VE 650
Serial Number
Lab IDAD65002403
  • Report: 24PS2403A
  • Receipt Date: Mar 8, 2024
  • Test Date: Apr 4, 2024
  • Report Date: Apr 4, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesCore Reactor II VE
Model NumberCOREREACTORII650GOLD
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202054.130.3
Watts110650153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18AWG No
4+4 pin EPS12V (750mm) 2 2 18AWG No
6+2 pin PCIe (550mm) 2 2 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (440mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)23.1
AC Loss to PWR_OK Hold Up Time (ms)20.1
PWR_OK Inactive to DC Loss Delay (ms)3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.19 V 115.16 V 113.85 V 115.20 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.039 W 0.035 W N/A 0.043 W N/A N/A
Apparent Power: 9.786 W 9.783 W N/A 9.789 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.40 V 230.41 V 227.70 V 230.44 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.074 W 0.064 W N/A 0.086 W N/A N/A
Apparent Power: 32.739 W 32.730 W N/A 32.747 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

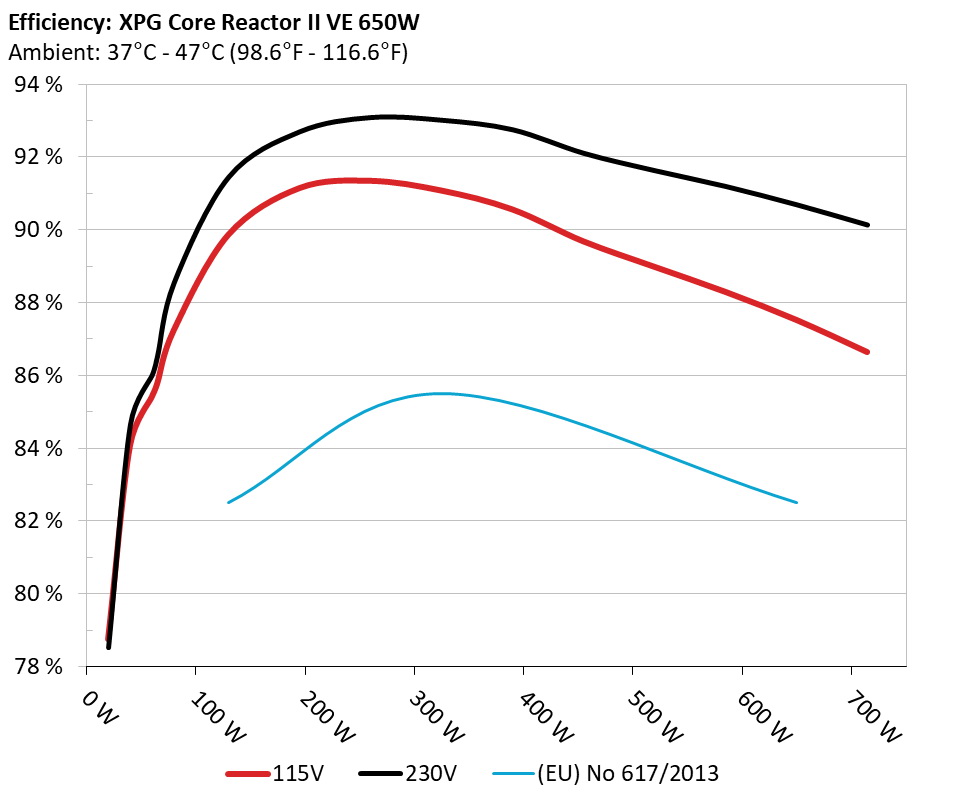

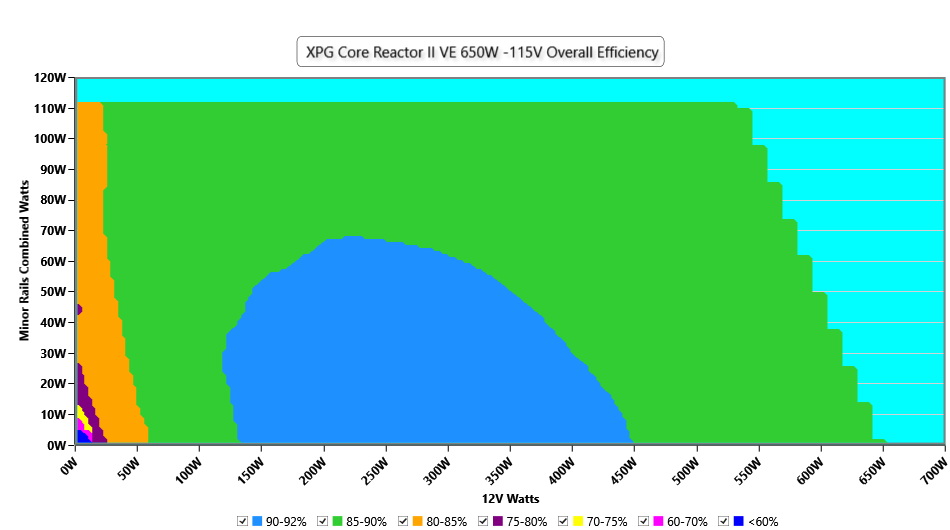

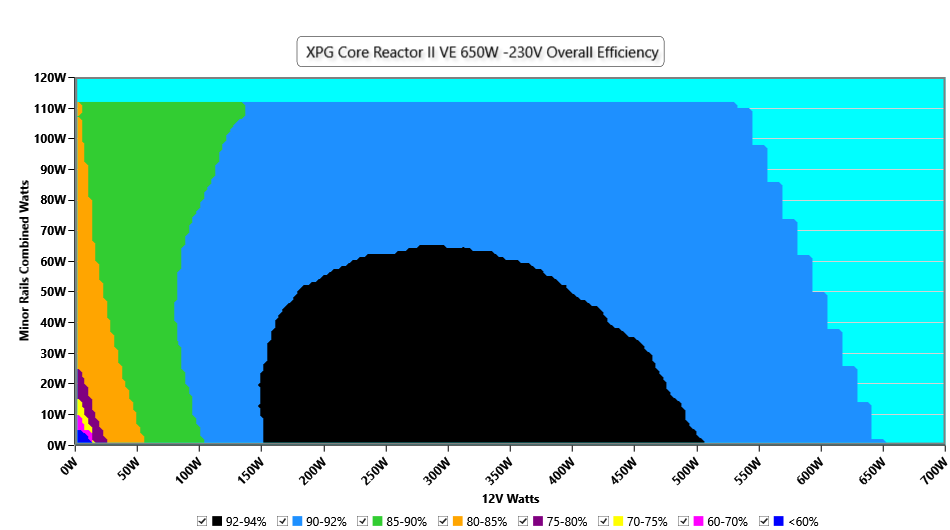

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

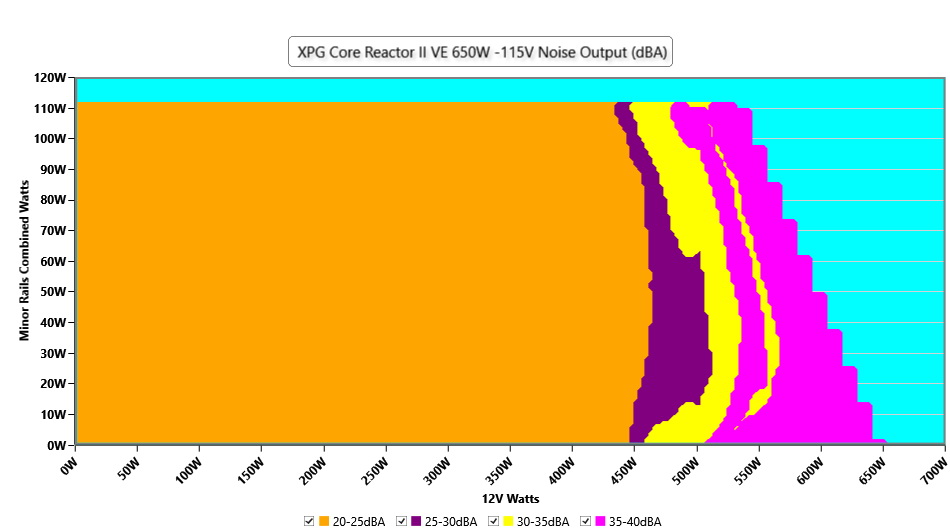

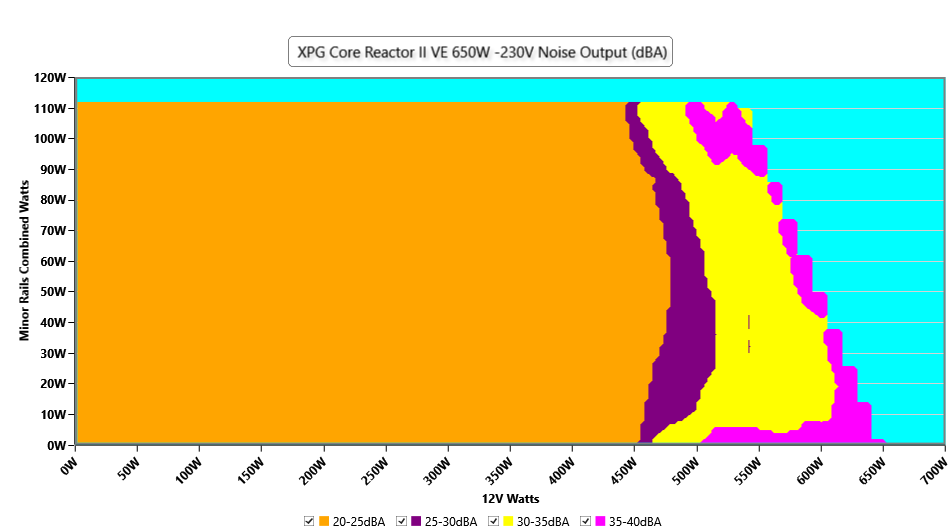

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

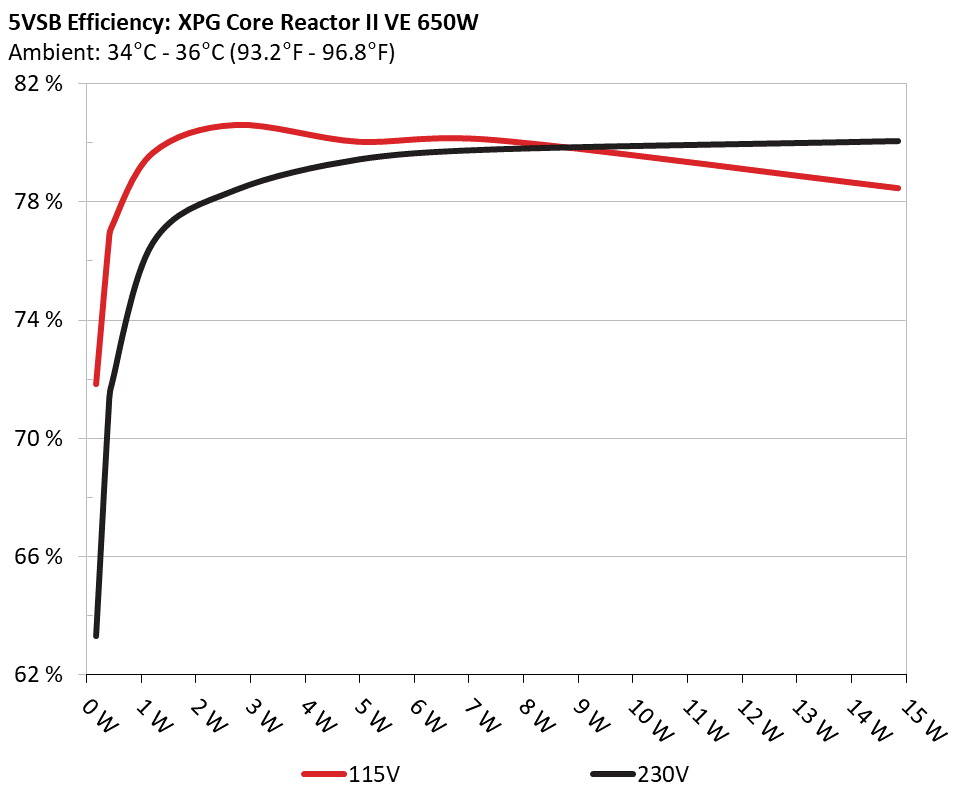

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 71.337% 0.032
5.066V 0.32W 115.18V
2 0.09A 0.456W 76.079% 0.06
5.065V 0.6W 115.18V
3 0.55A 2.778W 80.097% 0.267
5.049V 3.468W 115.18V
4 1A 5.036W 79.528% 0.365
5.034V 6.333W 115.18V
5 1.5A 7.528W 79.585% 0.414
5.017V 9.459W 115.18V
6 3A 14.898W 77.962% 0.482
4.965V 19.111W 115.17V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 62.799% 0.011
5.066V 0.364W 230.43V
2 0.09A 0.456W 70.438% 0.02
5.065V 0.648W 230.43V
3 0.55A 2.778W 77.912% 0.104
5.049V 3.566W 230.43V
4 1A 5.036W 78.95% 0.171
5.034V 6.378W 230.43V
5 1.5A 7.527W 79.29% 0.23
5.017V 9.494W 230.43V
6 3A 14.898W 79.57% 0.332
4.965V 18.727W 230.42V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.560A 1.97A 1.999A 0.99A 64.999 85.29% 948 22.4 40.27°C 0.972
12.190V 5.076V 3.3V 5.052V 76.21 44.51°C 115.12V
20% 8.184A 2.956A 3.006A 1.189A 129.935 89.363% 952 22.6 40.68°C 0.987
12.100V 5.074V 3.293V 5.047V 145.399 45.27°C 115.11V
30% 13.144A 3.451A 3.512A 1.389A 194.937 90.644% 954 22.6 41.09°C 0.99
12.088V 5.072V 3.288V 5.039V 215.057 46.09°C 115.09V
40% 18.115A 3.945A 4.02A 1.59A 260.021 90.845% 957 22.8 41.71°C 0.993
12.079V 5.07V 3.283V 5.032V 286.223 47.3°C 115.07V
50% 22.688A 4.935A 5.038A 1.791A 325.012 90.578% 960 22.9 42.13°C 0.992
12.099V 5.067V 3.275V 5.025V 358.816 48.19°C 115.05V
60% 27.188A 5.926A 6.061A 1.993A 389.426 90.065% 965 23.0 42.9°C 0.992
12.124V 5.064V 3.267V 5.018V 432.38 49.46°C 115.03V
70% 31.830A 6.919A 7.091A 2.196A 454.754 89.185% 1444 34.9 43.39°C 0.993
12.116V 5.06V 3.258V 5.01V 509.902 50.43°C 115.01V
80% 36.487A 7.912A 8.126A 2.298A 519.572 88.488% 1753 40.9 43.61°C 0.994
12.105V 5.055V 3.248V 5.005V 587.166 51.63°C 114.99V
90% 41.535A 8.411A 8.633A 2.4A 584.986 87.796% 2020 44.5 44.15°C 0.994
12.098V 5.053V 3.243V 5V 666.297 53.24°C 114.97V
100% 46.331A 8.911A 9.174A 3.013A 649.832 87.028% 2280 48.5 45.66°C 0.995
12.090V 5.05V 3.237V 4.978V 746.691 55.73°C 114.95V
110% 50.979A 9.906A 10.313A 3.014A 714.464 86.148% 2438 49.7 46.65°C 0.995
12.087V 5.048V 3.228V 4.978V 829.346 57.58°C 114.92V
CL1 0.115A 13.088A 13.525A 0A 111.286 83.686% 973 23.3 40.3°C 0.987
12.121V 5.058V 3.23V 5.104V 132.979 45.77°C 115.11V
CL2 0.115A 19.754A 0A 0A 101.389 82.591% 975 23.4 40.94°C 0.986
12.132V 5.062V 3.318V 5.136V 122.759 47.96°C 115.11V
CL3 0.115A 0A 20.671A 0A 67.383 76.877% 953 22.6 40.19°C 0.976
12.124V 5.076V 3.193V 5.072V 87.651 49.22°C 115.12V
CL4 53.739A 0A 0.003A 0.001A 649.614 87.966% 2195 47.6 45.97°C 0.995
12.088V 5.071V 3.299V 5.062V 738.485 56.93°C 114.95V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.561A 1.97A 2A 0.99A 65.005 86.058% 955 22.6 40.4°C 0.816
12.189V 5.076V 3.3V 5.052V 75.536 44.62°C 230.38V
20% 8.187A 2.957A 3.007A 1.189A 129.951 90.953% 958 22.8 40.79°C 0.922
12.098V 5.074V 3.293V 5.046V 142.881 45.37°C 230.37V
30% 13.148A 3.451A 3.513A 1.39A 194.957 92.199% 961 22.9 41.34°C 0.954
12.086V 5.072V 3.288V 5.039V 211.454 46.38°C 230.37V
40% 18.121A 3.946A 4.021A 1.59A 260.045 92.59% 964 23.0 41.67°C 0.967
12.077V 5.07V 3.283V 5.031V 280.856 47.19°C 230.36V
50% 22.693A 4.936A 5.04A 1.792A 325.043 92.516% 968 23.1 42.01°C 0.975
12.097V 5.067V 3.274V 5.024V 351.336 48.1°C 230.36V
60% 27.201A 5.926A 6.063A 1.994A 389.564 92.258% 972 23.3 42.66°C 0.98
12.123V 5.063V 3.266V 5.017V 422.252 49.23°C 230.35V
70% 31.846A 6.92A 7.093A 2.196A 454.887 91.608% 1447 34.9 43.34°C 0.983
12.113V 5.06V 3.257V 5.009V 496.557 50.43°C 230.34V
80% 36.504A 7.913A 8.129A 2.298A 519.701 91.133% 1769 41.2 43.96°C 0.985
12.103V 5.055V 3.247V 5.005V 570.268 52.08°C 230.33V
90% 41.552A 8.412A 8.637A 2.401A 585.112 90.695% 2033 44.7 44.61°C 0.986
12.096V 5.052V 3.242V 4.999V 645.141 53.65°C 230.33V
100% 46.349A 8.912A 9.178A 3.014A 649.953 90.193% 2283 48.6 45.75°C 0.988
12.087V 5.05V 3.236V 4.978V 720.627 55.79°C 230.32V
110% 51.016A 9.908A 10.319A 3.014A 714.591 89.638% 2444 49.7 46.56°C 0.989
12.081V 5.047V 3.227V 4.977V 797.195 57.48°C 230.31V
CL1 0.116A 13.091A 13.534A 0A 111.302 85.167% 978 23.5 40.41°C 0.913
12.116V 5.057V 3.229V 5.104V 130.688 45.86°C 230.39V
CL2 0.115A 19.757A 0A 0A 101.399 83.68% 981 23.6 41.78°C 0.903
12.129V 5.061V 3.317V 5.136V 121.178 49.01°C 230.39V
CL3 0.115A 0A 20.68A 0A 67.394 77.915% 962 22.9 40.73°C 0.843
12.124V 5.076V 3.191V 5.072V 86.497 49.81°C 230.4V
CL4 53.771A 0A 0.003A 0.001A 649.818 91.077% 2204 47.7 45.31°C 0.987
12.085V 5.069V 3.297V 5.06V 713.486 56.26°C 230.33V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.492A 0.498A 0.197A 19.998 78.267% 934 22 36.56°C 0.855
11.996V 5.079V 3.31V 5.075V 25.553 39.61°C 115.14V
40W 2.723A 0.689A 0.698A 0.296A 39.997 83.574% 938 22.1 37.21°C 0.943
12.004V 5.078V 3.308V 5.071V 47.858 40.53°C 115.13V
60W 4.146A 0.887A 0.898A 0.395A 59.995 84.917% 941 22.2 38.96°C 0.966
12.185V 5.076V 3.306V 5.067V 70.65 42.71°C 115.13V
80W 5.635A 1.084A 1.098A 0.494A 79.946 86.737% 945 22.3 39.6°C 0.977
12.123V 5.076V 3.305V 5.064V 92.169 43.58°C 115.12V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.492A 0.499A 0.197A 20.004 78.026% 941 22.2 36.57°C 0.484
11.994V 5.079V 3.309V 5.075V 25.638 39.64°C 230.39V
40W 2.724A 0.689A 0.698A 0.296A 40.002 84.151% 944 22.3 37.57°C 0.688
12.002V 5.078V 3.308V 5.071V 47.537 40.82°C 230.38V
60W 4.147A 0.887A 0.898A 0.395A 60 85.517% 947 22.4 38.54°C 0.8
12.184V 5.077V 3.306V 5.067V 70.162 42.03°C 230.38V
80W 5.638A 1.084A 1.098A 0.494A 79.958 88.043% 950 22.5 39.27°C 0.852
12.120V 5.076V 3.305V 5.064V 90.817 43.1°C 230.38V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.51mV6.43mV4.93mV5.86mVPass
20% Load15.84mV6.48mV6.36mV6.37mVPass
30% Load13.89mV7.60mV9.00mV6.47mVPass
40% Load14.65mV8.06mV15.92mV6.47mVPass
50% Load16.59mV9.23mV13.07mV7.13mVPass
60% Load18.98mV9.49mV15.36mV7.54mVPass
70% Load21.42mV10.56mV17.44mV8.15mVPass
80% Load23.30mV12.09mV21.97mV9.12mVPass
90% Load26.10mV12.75mV25.23mV9.02mVPass
100% Load33.76mV14.92mV28.18mV10.89mVPass
110% Load43.33mV19.45mV30.93mV19.99mVPass
Crossload127.25mV7.62mV10.99mV6.10mVPass
Crossload215.11mV7.86mV6.66mV5.35mVPass
Crossload38.50mV6.53mV12.20mV5.30mVPass
Crossload433.19mV14.25mV24.14mV10.07mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load6.62mV6.07mV5.04mV5.61mVPass
20% Load18.59mV6.78mV7.12mV5.96mVPass
30% Load13.08mV7.80mV8.80mV6.01mVPass
40% Load14.50mV8.52mV16.38mV7.08mVPass
50% Load16.43mV9.03mV12.87mV7.34mVPass
60% Load18.77mV9.39mV15.16mV6.98mVPass
70% Load21.01mV10.20mV17.40mV7.90mVPass
80% Load23.61mV11.43mV22.03mV9.22mVPass
90% Load25.64mV12.40mV25.43mV9.12mVPass
100% Load34.86mV14.15mV27.27mV10.66mVPass
110% Load36.66mV15.80mV30.58mV11.20mVPass
Crossload131.91mV7.47mV11.60mV5.92mVPass
Crossload216.06mV7.55mV6.36mV5.40mVPass
Crossload38.70mV6.12mV12.26mV5.09mVPass
Crossload434.28mV13.92mV24.08mV10.88mVPass

The results above are not used in the certification process

XPG Core Reactor II VE 650

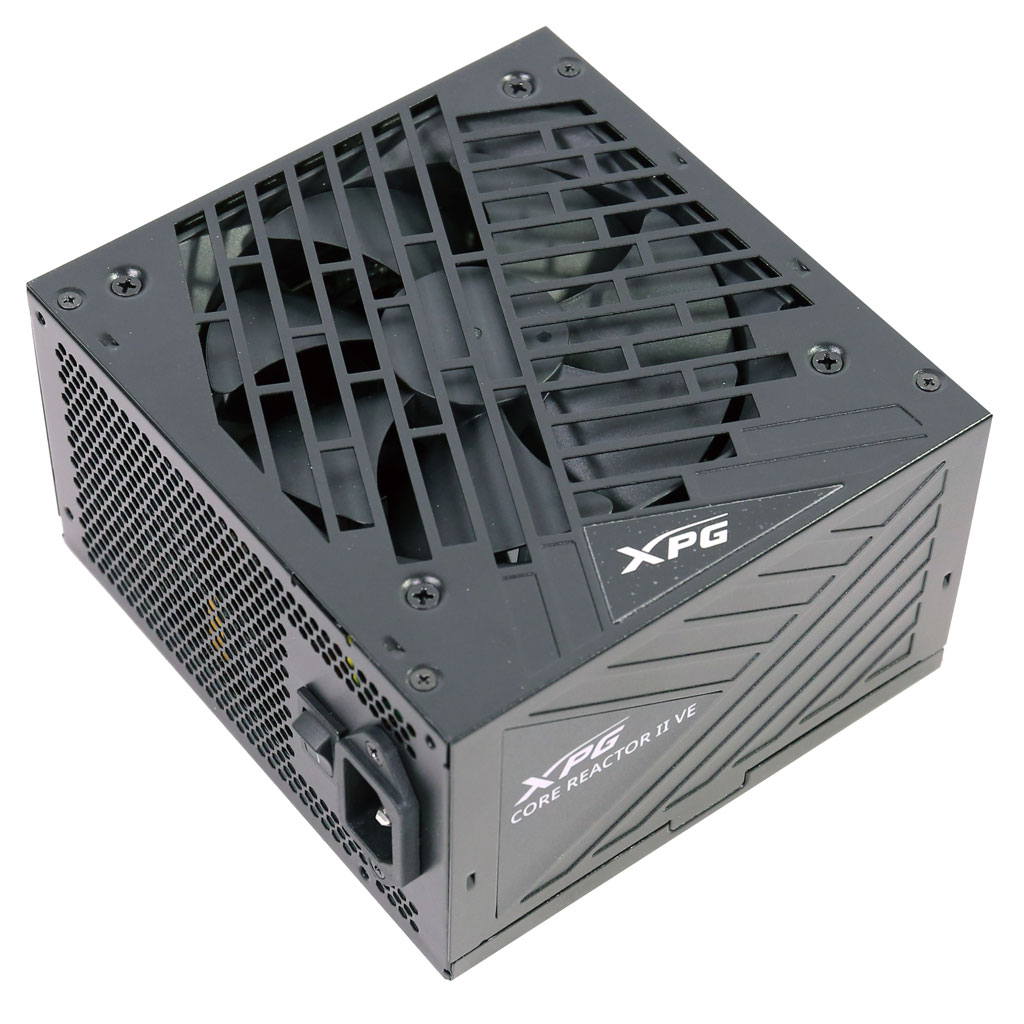

Top side

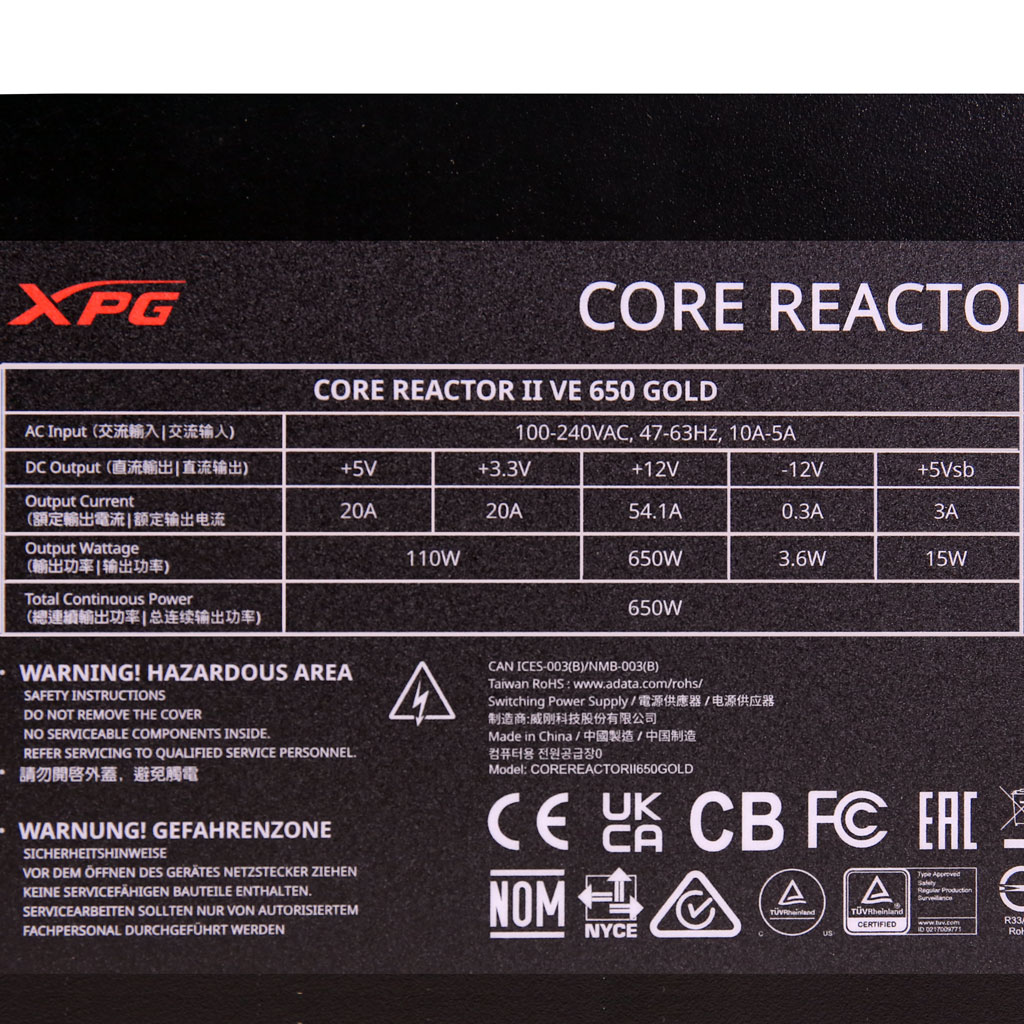

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
