CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Core Reactor II VE 750
Serial Number
Lab IDAD75002401
  • Report: 24PS2401A
  • Receipt Date: Mar 8, 2024
  • Test Date: Mar 29, 2024
  • Report Date: Apr 2, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesCore Reactor II VE
Model NumberCOREREACTORII750GOLD
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10-5
Rated Frequency (Hz)47-63
Rated Power (W)750
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222262.530.3
Watts120750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18AWG No
4+4 pin EPS12V (750mm) 2 2 18AWG No
6+2 pin PCIe (550mm) 3 3 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (440mm+150mm+150mm) / 4-pin Molex (+150mm) 2 6 / 2 18AWG No
AC Power Cord (1380mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.9
AC Loss to PWR_OK Hold Up Time (ms)19.1
PWR_OK Inactive to DC Loss Delay (ms)2.8

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.13 V 115.10 V 113.85 V 115.17 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.016 W 0.014 W N/A 0.018 W N/A N/A
Apparent Power: 9.882 W 9.879 W N/A 9.887 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.38 V 230.37 V 227.70 V 230.41 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.072 W 0.063 W N/A 0.081 W N/A N/A
Apparent Power: 33.058 W 33.049 W N/A 33.065 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Efficiency Graph

INFO

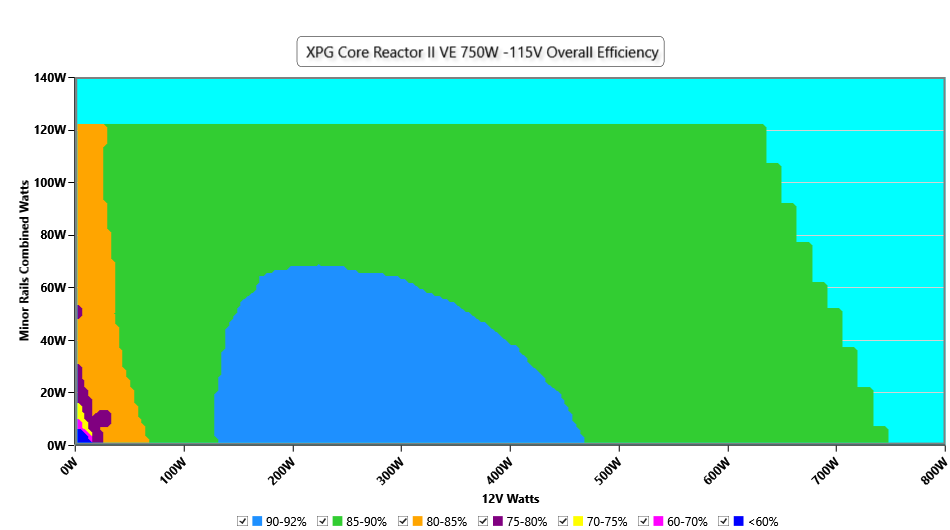

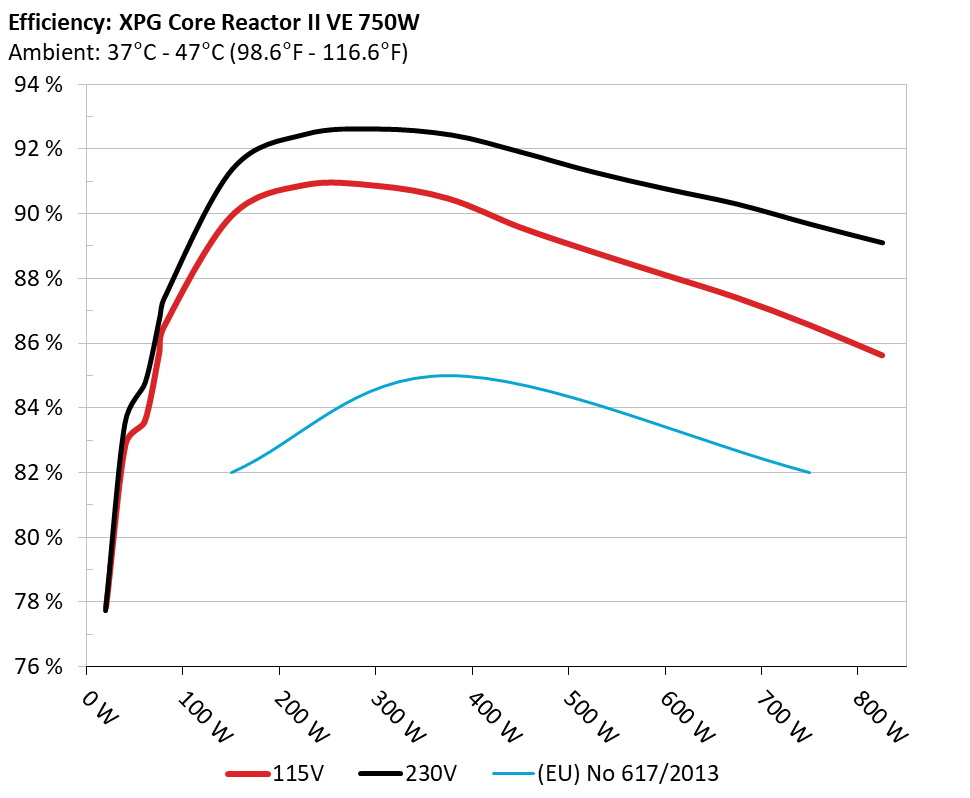

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

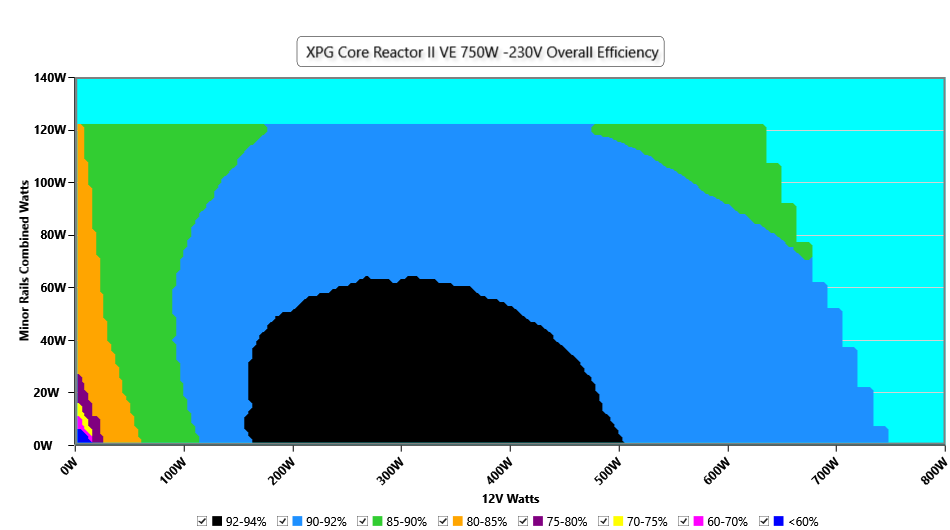

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

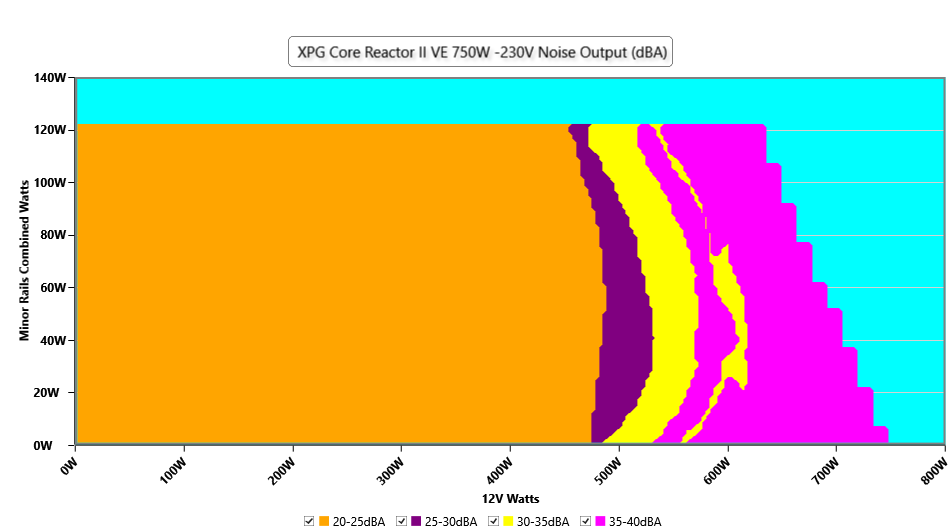

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

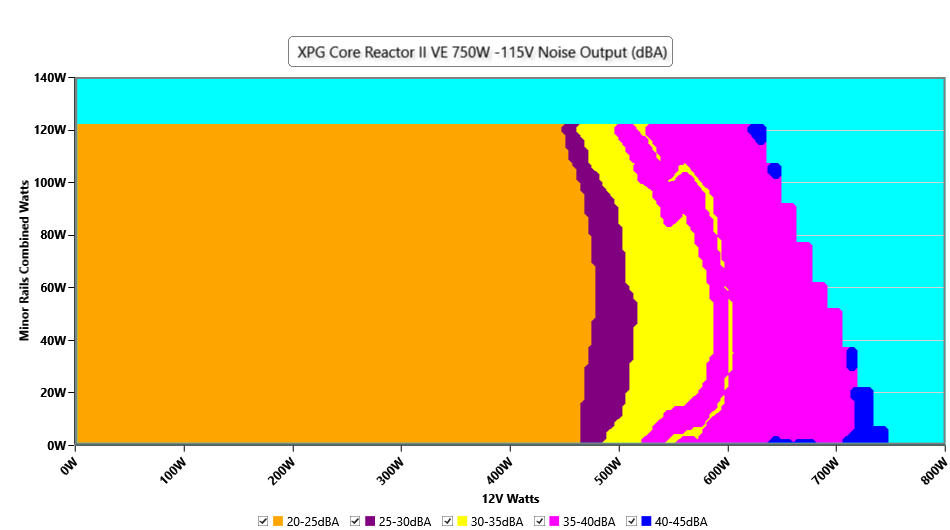

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

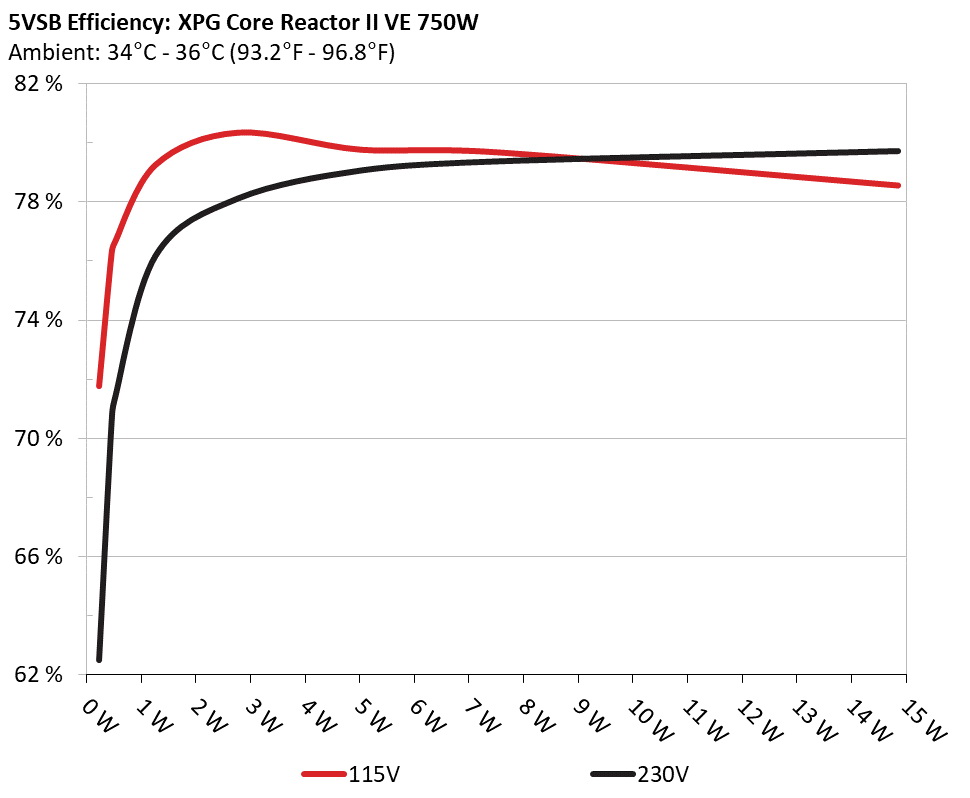

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 71.786% 0.032
5.052V 0.316W 115.17V
2 0.09A 0.455W 76.254% 0.059
5.051V 0.597W 115.17V
3 0.55A 2.77W 80.332% 0.264
5.035V 3.448W 115.17V
4 1A 5.021W 79.756% 0.356
5.02V 6.296W 115.17V
5 1.5A 7.506W 79.669% 0.408
5.003V 9.421W 115.17V
6 3.001A 14.853W 78.551% 0.475
4.95V 18.91W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 62.516% 0.011
5.052V 0.363W 230.41V
2 0.09A 0.455W 70.547% 0.02
5.05V 0.646W 230.41V
3 0.55A 2.77W 78.11% 0.102
5.034V 3.546W 230.41V
4 1A 5.021W 79.057% 0.169
5.019V 6.351W 230.41V
5 1.5A 7.505W 79.362% 0.228
5.002V 9.459W 230.41V
6 3.001A 14.852W 79.71% 0.328
4.95V 18.636W 230.41V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.377A 1.97A 1.999A 0.99A 75.009 85.695% 942 22.2 40.31°C 0.971
12.201V 5.077V 3.302V 5.053V 87.532 44.32°C 115.16V
20% 9.834A 2.957A 3.002A 1.189A 149.975 89.938% 944 22.3 40.51°C 0.99
12.108V 5.074V 3.299V 5.047V 166.754 44.81°C 115.14V
30% 15.621A 3.451A 3.505A 1.389A 224.986 90.891% 946 22.4 41.22°C 0.993
12.094V 5.072V 3.296V 5.039V 247.532 45.95°C 115.12V
40% 21.420A 3.946A 4.009A 1.591A 300.079 90.874% 949 22.5 41.65°C 0.991
12.086V 5.07V 3.293V 5.031V 330.212 46.67°C 115.09V
50% 26.721A 4.936A 5.016A 1.792A 374.733 90.481% 954 22.6 42.39°C 0.991
12.134V 5.066V 3.29V 5.024V 414.157 47.87°C 115.07V
60% 32.140A 5.928A 6.026A 1.994A 449.647 89.588% 1428 35.9 42.95°C 0.992
12.129V 5.062V 3.286V 5.016V 501.903 49.09°C 115.05V
70% 37.583A 6.923A 7.04A 2.197A 524.566 88.832% 1753 40.9 43.12°C 0.993
12.118V 5.057V 3.282V 5.008V 590.512 50.19°C 115.03V
80% 43.104A 7.917A 8.055A 2.299A 599.776 88.118% 2007 44.4 43.62°C 0.994
12.107V 5.053V 3.278V 5.003V 680.648 51.71°C 115V
90% 48.960A 8.417A 8.551A 2.402A 674.822 87.407% 2289 48.8 44.77°C 0.995
12.098V 5.05V 3.274V 4.997V 772.053 53.88°C 114.98V
100% 54.615A 8.917A 9.078A 3.016A 750.041 86.566% 2414 49.5 45.5°C 0.995
12.091V 5.047V 3.272V 4.975V 866.445 55.52°C 114.95V
110% 60.138A 9.914A 10.189A 3.016A 825.081 85.634% 2413 49.5 46.59°C 0.996
12.085V 5.044V 3.268V 4.974V 963.498 57.51°C 114.93V
CL1 0.116A 14.289A 14.502A 0A 121.309 83.582% 970 23.2 41.14°C 0.987
12.134V 5.053V 3.289V 5.111V 145.138 46.59°C 115.15V
CL2 0.115A 21.744A 0A 0A 111.402 81.781% 972 23.3 41.48°C 0.984
12.147V 5.059V 3.31V 5.152V 136.222 48.52°C 115.14V
CL3 0.115A 0A 22.052A 0A 73.996 76.888% 949 22.5 41°C 0.978
12.148V 5.08V 3.292V 5.075V 96.239 50.06°C 115.15V
CL4 62.033A 0.001A 0.004A 0.001A 749.843 87.421% 2411 49.4 45.61°C 0.995
12.088V 5.071V 3.287V 5.06V 857.741 56.57°C 114.95V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.464A 2.001A 2A 1A 76.289 86.797% 949 22.5 40.45°C 0.838
12.202V 5.077V 3.301V 5.053V 87.895 44.71°C 230.42V
20% 9.922A 3.001A 3A 1.2A 151.302 91.37% 952 22.6 40.78°C 0.933
12.105V 5.074V 3.298V 5.047V 165.592 45.36°C 230.41V
30% 15.748A 3.501A 3.501A 1.4A 226.758 92.45% 956 22.7 41.4°C 0.959
12.091V 5.072V 3.296V 5.04V 245.274 46.46°C 230.4V
40% 21.567A 4.001A 4.001A 1.6A 302.031 92.614% 958 22.8 41.62°C 0.972
12.080V 5.07V 3.293V 5.032V 326.119 47.14°C 230.39V
50% 27.049A 5.002A 5.001A 1.801A 378.813 92.428% 961 22.9 42.01°C 0.978
12.126V 5.065V 3.289V 5.024V 409.845 48.09°C 230.38V
60% 32.170A 5.93A 6.028A 1.994A 449.607 91.907% 1458 35.3 42.89°C 0.982
12.117V 5.061V 3.285V 5.016V 489.203 49.43°C 230.34V
70% 37.617A 6.925A 7.042A 2.197A 524.535 91.29% 1768 41.2 43.32°C 0.984
12.107V 5.056V 3.281V 5.008V 574.584 50.42°C 230.33V
80% 43.142A 7.919A 8.056A 2.299A 599.765 90.769% 2042 44.8 43.95°C 0.986
12.096V 5.051V 3.277V 5.003V 660.765 51.98°C 230.32V
90% 49.013A 8.42A 8.554A 2.402A 674.804 90.29% 2304 49.2 44.84°C 0.988
12.085V 5.048V 3.273V 4.998V 747.378 53.88°C 230.31V
100% 54.689A 8.92A 9.082A 3.016A 750.026 89.674% 2421 49.7 45.76°C 0.988
12.074V 5.046V 3.27V 4.975V 836.394 55.79°C 230.3V
110% 60.244A 9.919A 10.194A 3.016A 825.08 89.098% 2424 49.8 46.57°C 0.989
12.063V 5.041V 3.266V 4.974V 926.034 57.49°C 230.3V
CL1 0.116A 14.286A 14.496A 0A 121.307 84.607% 982 23.7 41.86°C 0.917
12.126V 5.054V 3.29V 5.116V 143.373 47.39°C 230.39V
CL2 0.115A 21.751A 0A 0A 111.401 82.71% 987 23.8 41.57°C 0.909
12.146V 5.057V 3.309V 5.156V 134.692 48.63°C 230.39V
CL3 0.115A 0A 22.055A 0A 73.996 77.323% 964 23.0 40.53°C 0.854
12.145V 5.08V 3.292V 5.075V 95.699 49.55°C 230.4V
CL4 62.133A 0.001A 0.004A 0.001A 749.821 90.526% 2405 49.4 45.23°C 0.988
12.067V 5.069V 3.285V 5.059V 828.295 56.19°C 230.31V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.492A 0.499A 0.197A 20.01 77.851% 927 21.8 36.89°C 0.825
12.001V 5.081V 3.304V 5.077V 25.702 39.94°C 115.18V
40W 2.722A 0.689A 0.699A 0.296A 40.007 82.869% 932 21.9 37.49°C 0.932
12.010V 5.08V 3.303V 5.073V 48.279 40.79°C 115.17V
60W 4.142A 0.887A 0.9A 0.395A 60.006 83.58% 936 22.1 38.62°C 0.965
12.198V 5.078V 3.302V 5.069V 71.796 42.37°C 115.16V
80W 5.602A 1.084A 1.1A 0.494A 79.974 86.513% 939 22.1 39.49°C 0.974
12.198V 5.078V 3.302V 5.066V 92.44 43.48°C 115.16V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.5A 0.5A 0.2A 20.097 77.729% 932 21.9 36.59°C 0.454
12.000V 5.081V 3.303V 5.077V 25.856 39.65°C 230.43V
40W 2.720A 0.7A 0.7A 0.3A 40.063 83.507% 937 18.6 37.53°C 0.656
12.009V 5.08V 3.302V 5.073V 47.973 40.85°C 230.42V
60W 4.224A 0.9A 0.9A 0.4A 61.087 84.775% 941 22.2 38.53°C 0.788
12.195V 5.078V 3.301V 5.068V 72.058 41.99°C 230.42V
80W 5.704A 1.1A 1.1A 0.5A 81.314 87.413% 944 22.3 39.02°C 0.849
12.195V 5.077V 3.301V 5.066V 93.024 42.85°C 230.42V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load6.97mV5.71mV5.29mV5.19mVPass
20% Load14.01mV6.17mV7.22mV5.40mVPass
30% Load12.57mV7.19mV9.82mV6.47mVPass
40% Load13.43mV8.31mV12.36mV6.88mVPass
50% Load16.03mV9.49mV14.85mV7.90mVPass
60% Load18.27mV10.35mV17.60mV8.87mVPass
70% Load20.76mV12.60mV20.35mV10.14mVPass
80% Load22.95mV13.77mV25.38mV10.75mVPass
90% Load25.14mV16.02mV28.28mV12.94mVPass
100% Load33.32mV18.19mV31.51mV14.18mVPass
110% Load35.47mV18.87mV35.03mV15.98mVPass
Crossload127.12mV8.29mV12.48mV6.72mVPass
Crossload216.17mV11.43mV6.76mV8.20mVPass
Crossload37.84mV5.81mV13.22mV5.40mVPass
Crossload432.35mV15.71mV27.43mV12.82mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load6.51mV5.56mV5.19mV5.25mVPass
20% Load15.84mV5.92mV7.27mV5.30mVPass
30% Load12.52mV7.25mV9.92mV6.11mVPass
40% Load13.94mV8.06mV12.81mV7.08mVPass
50% Load15.72mV9.54mV15.01mV7.74mVPass
60% Load18.06mV10.92mV17.34mV8.87mVPass
70% Load20.61mV13.01mV20.09mV10.34mVPass
80% Load22.28mV14.13mV24.92mV10.64mVPass
90% Load25.34mV17.14mV27.92mV12.94mVPass
100% Load33.01mV17.97mV31.71mV14.31mVPass
110% Load35.90mV19.01mV35.23mV15.75mVPass
Crossload128.17mV9.34mV12.95mV7.02mVPass
Crossload217.88mV12.60mV7.17mV9.68mVPass
Crossload38.04mV5.87mV13.63mV5.66mVPass
Crossload432.69mV15.79mV27.85mV12.99mVPass

The results above are not used in the certification process

XPG Core Reactor II VE 750

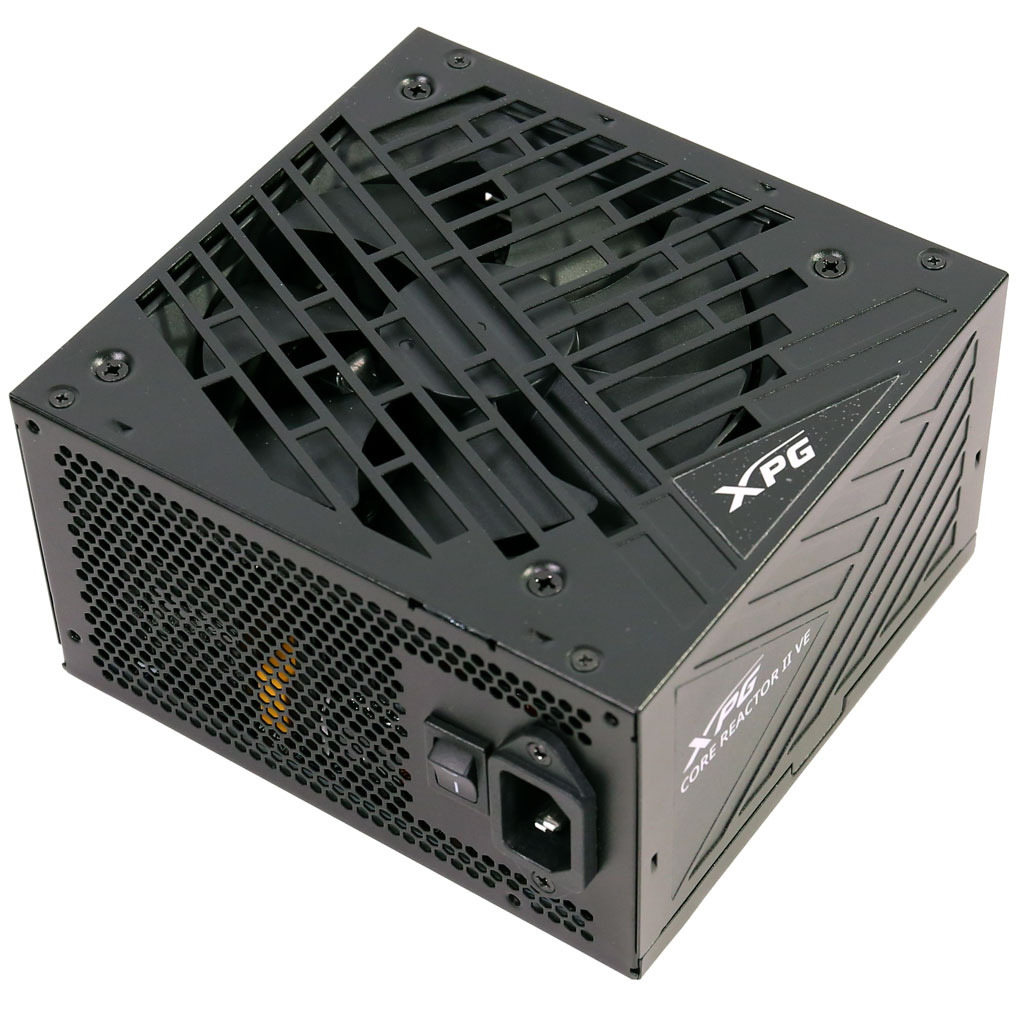

Top side

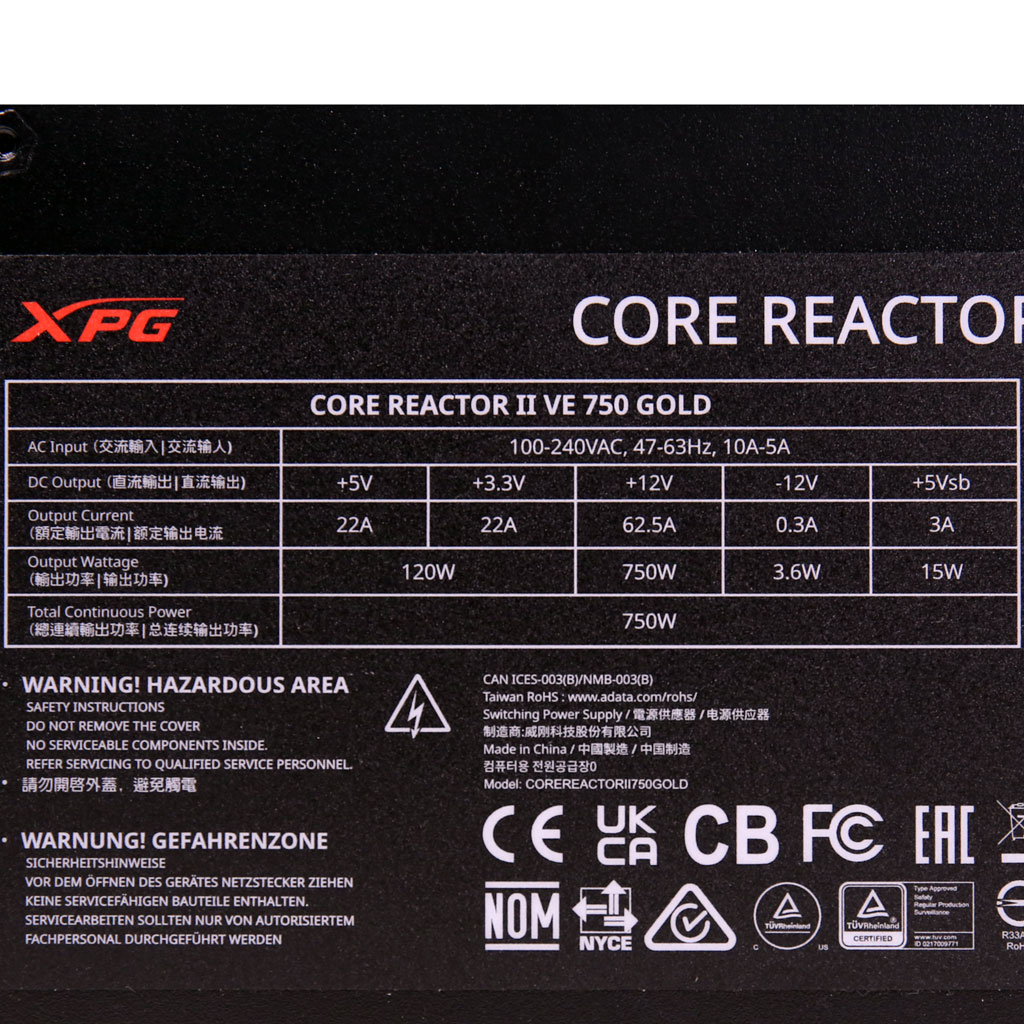

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
