CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
SeaSonic Focus Plus Gold 650W (#3)
R1708AA174160086
Lab ID236
  • Report:
  • Receipt Date: Jun 4, 2018
  • Test Date: Jun 10, 2018
  • Report Date: Jun 12, 2018
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

Seasonic
Hersteller (OEM)Seasonic
FOCUS Plus Gold
SSR-650FX
R1708AA174160086

(Vrms)100-240
(Arms)9-4.5
(Hz)50-60
(W)650
ATX12V
120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
✓ (selectable)
Fully Modular

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 20 20 54 3 0.3
Watts 100 648 15 3.6
Total Max. Power (W) 650

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (655mm) 1 1 18AWG No
6+2 pin PCIe (680mm+80mm) 2 4 18AWG No
SATA (455mm+115mm+115mm+115mm) 2 8 18AWG No
4 pin Molex (460mm+125mm+125mm) 1 3 18AWG No
FDD Adapter (+110mm) 1 1 22AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG No

Parts Description

General Data
Manufacturer (OEM) Seasonic
Platform Model FX
Primary Side
Transient Filter 4x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor & Diode
Bridge Rectifier(s) 2x GBU1006 (600V, 10A @ 100°C)
APFC MOSFETS 2x UTC GPT18N50DG (500V, 18A @ 100°C, 0.265Ohm)
APFC Boost Diode 1x BYC8-600 (600V, 8A @ 109°C)
Hold-up Cap(s) 1x Nippon Chemi-Con (400V, 450uF, 2000h @ 105°C, CE)
Main Switchers 4x UTC GBT10N50ADG
(500V, 10A @ 25°C, 0.61Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CM6901T6X
Topology Primary side: Full-Bridge & LLC Resonant Controller
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETS 2x Nexperia PSMN1R8-40YLC (40V, 100A @ 25°C, 1.8mOhm)
5V & 3.3V DC-DC Converters: 6x Infineon BSC0906NS (30V, 40A @ 100°C, 4.5mOhm)
PWM Controller: APW7159
Filtering Capacitors Electrolytics: Chemi-Con (1-5,000 @ 105°C, KZE), Chemi-Con (4-10,000 @ 105°C, KY), Chemi-Con (105°C, W)
Polymers: Chemi-Con
Supervisor IC Weltrend WT7527V (OVP, UVP, OCP, SCP, PG)
Fan Model Hong Hua HA1225H12F-Z (120mm, 12V, 0.58A, 2200 RPM, Fluid Dynamic Bearing)
5VSB Circuit
Standby PWM Controller Excelliance EM8569

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary

WirkungsgradGOLD
LautstärkeklasseA-
(>1450 load combinations)88.653%
Average Noise Output (>1450 Load Combinations)25.17dBA
(>1450 Load Combinations)0.983
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0458W
12V Ripple (Full Load)28.73mV
5V Ripple (Full Load)13.85mV
3.3V Ripple (Full Load)9.60mV
5VSB Ripple (Full Load)11.32mV
12V Load Regulation0.06%
5V Load Regulation0.34%
3.3V Load Regulation0.51%
5VSB Load Regulation2.54%
Inrush Current26.855A
WirkungsgradGOLD
LautstärkeklasseA-
(>1450 load combinations)90.679%
Average Noise Output (>1450 Load Combinations)25.40dBA
(>1450 Load Combinations)0.931
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
0.0742W
12V Ripple (Full Load)28.36mV
5V Ripple (Full Load)13.77mV
3.3V Ripple (Full Load)9.31mV
5VSB Ripple (Full Load)6.65mV
12V Load Regulation0.04%
5V Load Regulation0.36%
3.3V Load Regulation0.54%
5VSB Load Regulation2.46%
Inrush Current54.955A
12V Transient Response (150%)0.00V
5V Transient Response (150%)V
3.3V Transient Response (150%)V
5VSB Transient Response (150%)V
17.00ms
AC Loss to PWR_OK Hold Up Time15.00ms
PWR_OK Inactive to DC Loss Delay2.00ms
PSU Timings: T1 (20% / 100%)0.0ms0.0ms
PSU Timings: T3 (20% / 100%)0.0ms0.0ms
OPP (0.00°C / 0.00°C)0.00%0.00%

Hold-Up Time (ms)17
AC Loss to PWR_OK Hold Up Time (ms)15
PWR_OK Inactive to DC Loss Delay (ms)2

Stromverbrauch im Ruhezustand

Tables

Graphs

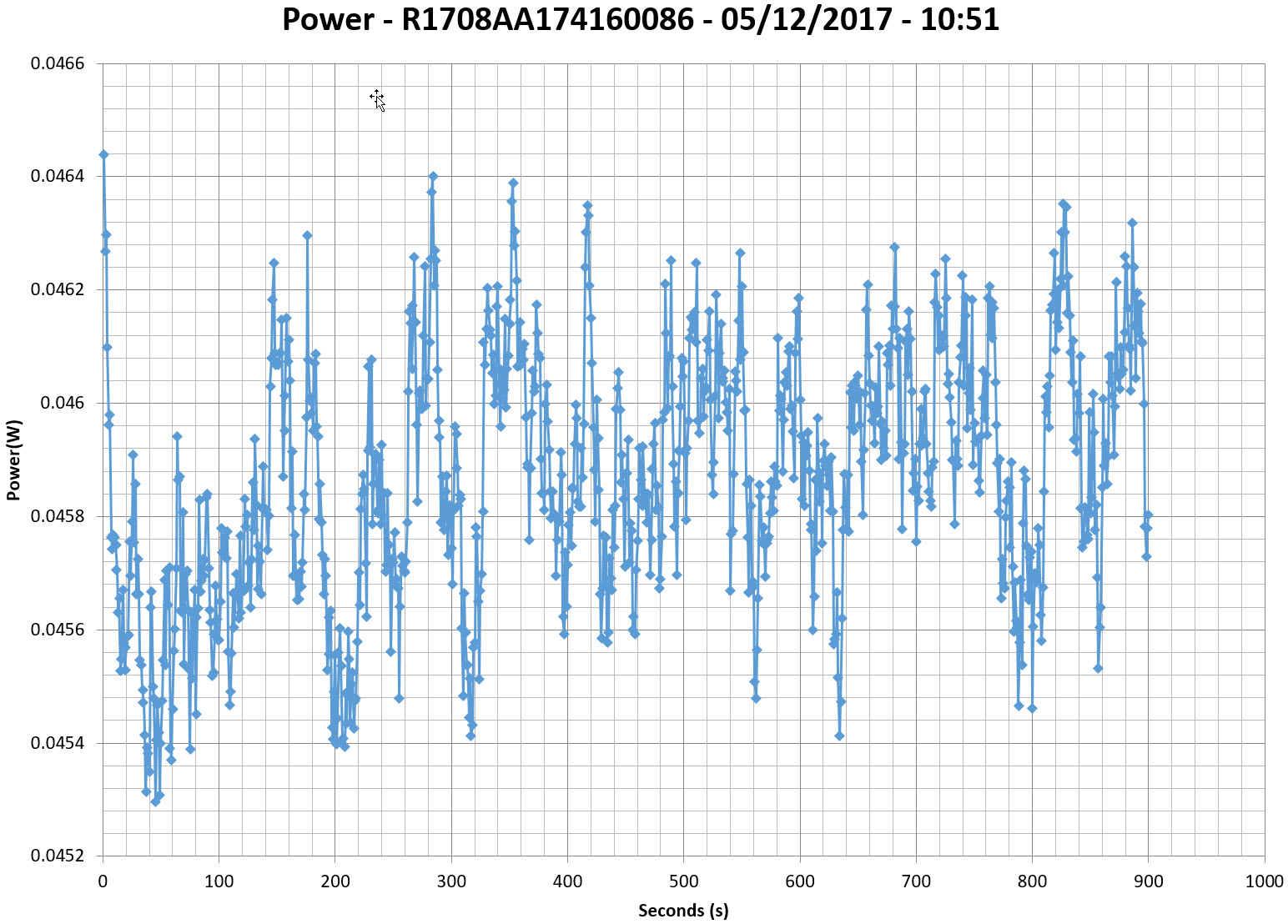

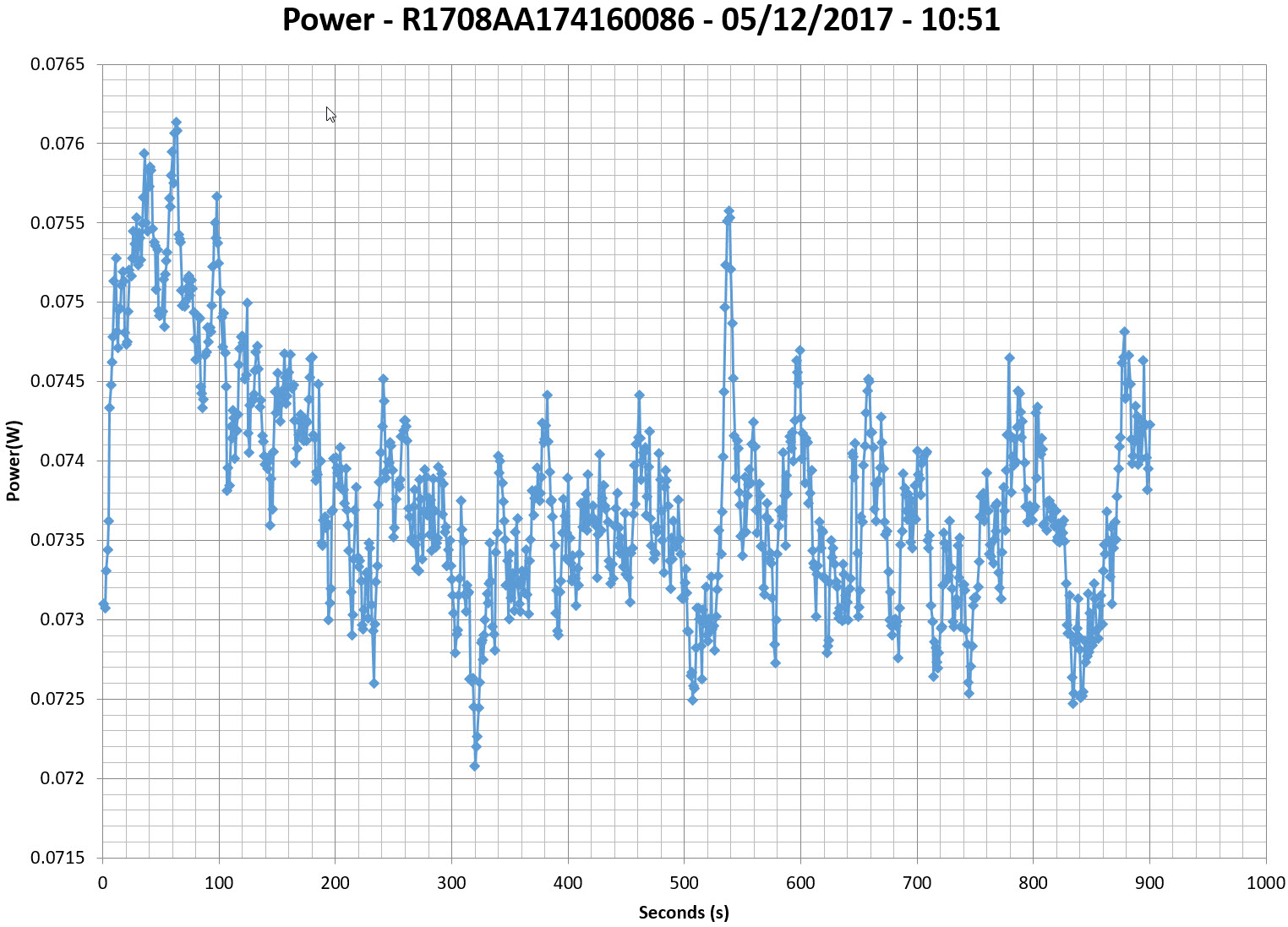

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

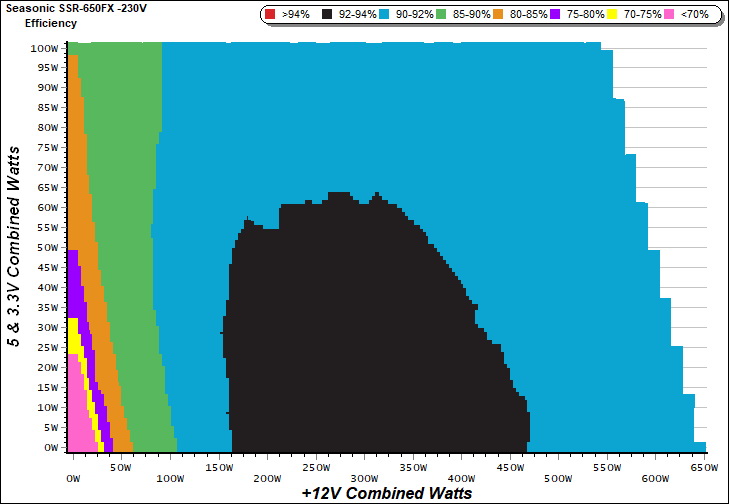

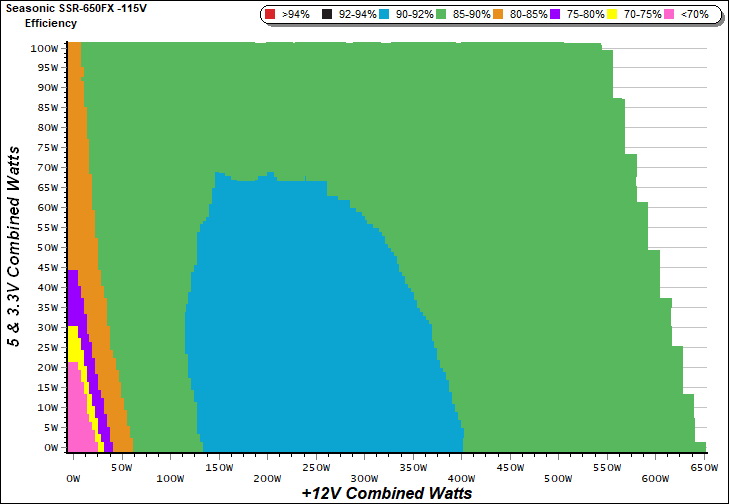

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

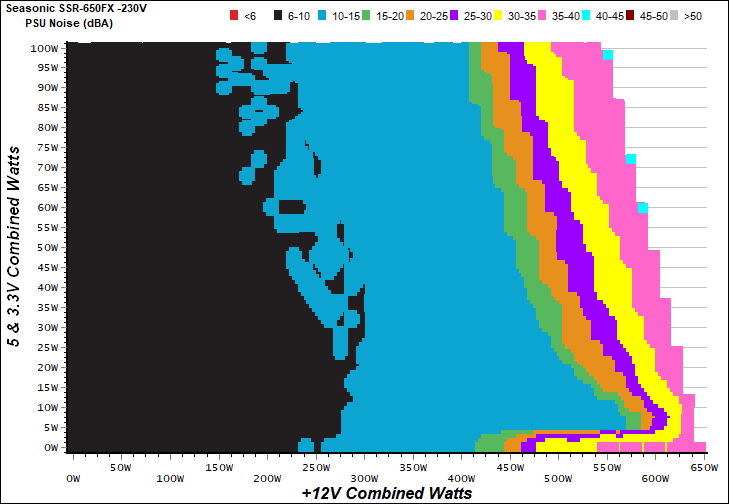

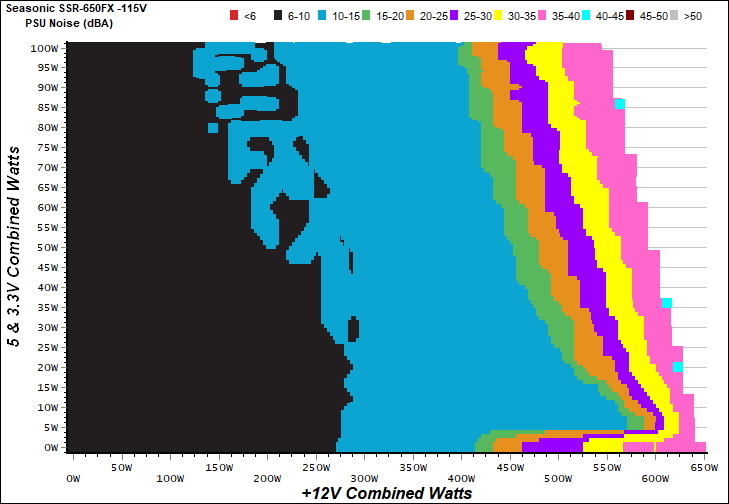

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

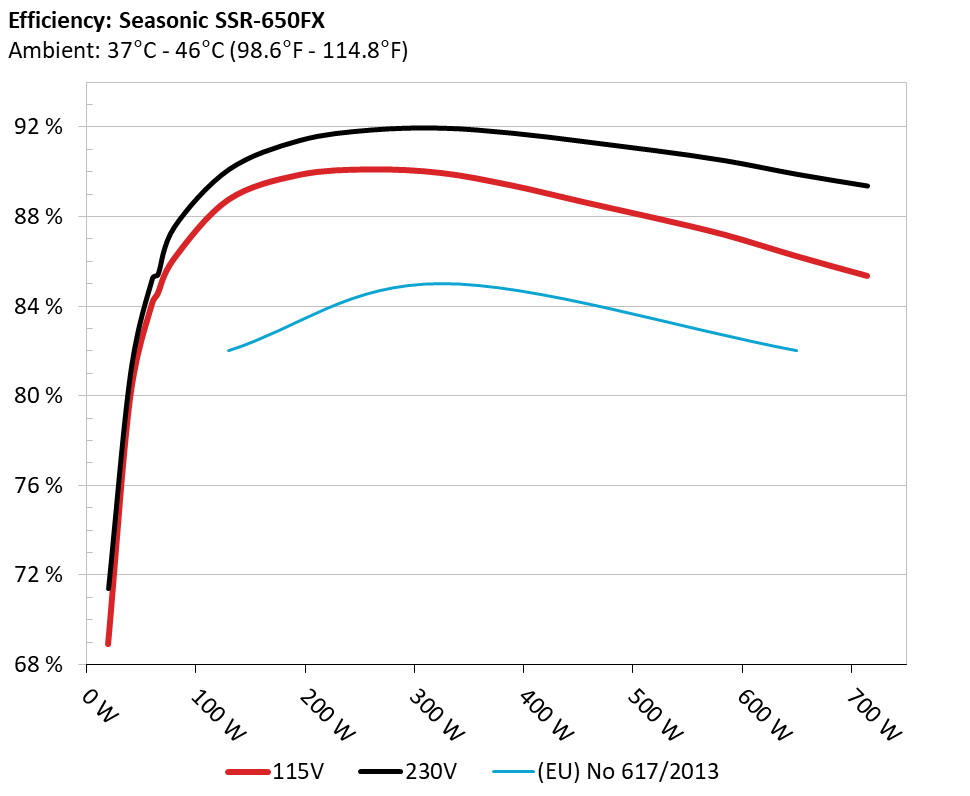

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

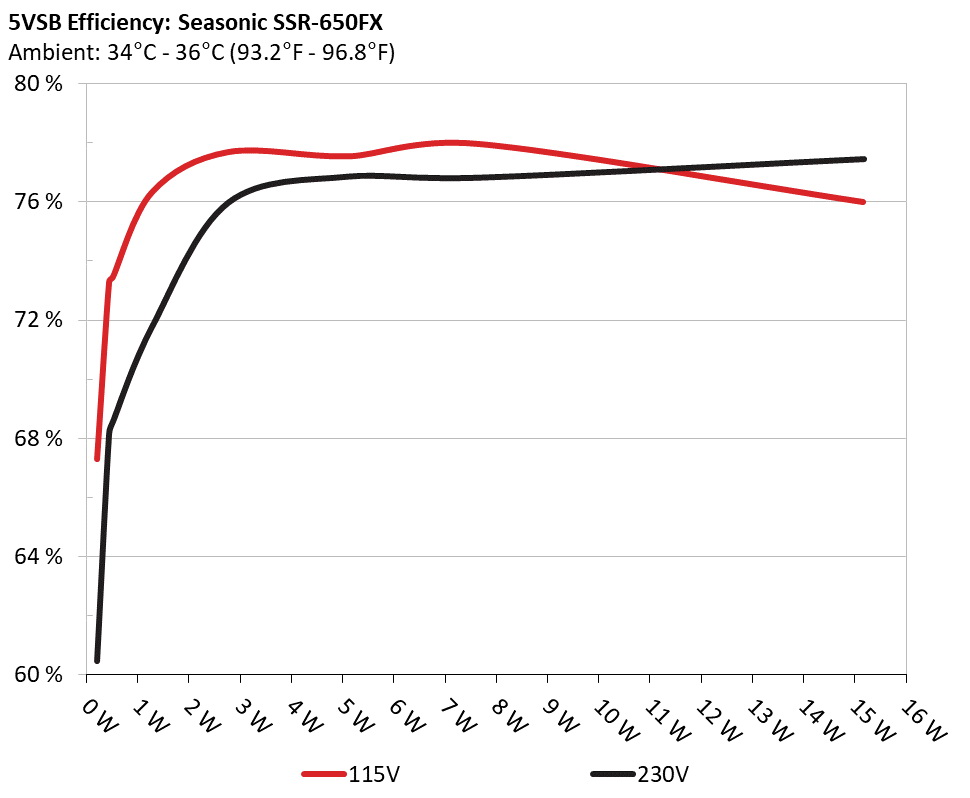

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 67.296% 0.052
5.126V 0.318 115.03V
2 0.087A 0.447 73.279% 0.097
5.125V 0.610 115.04V
3 0.542A 2.774 77.681% 0.327
5.115V 3.571 115.03V
4 1.002A 5.115 77.535% 0.397
5.104V 6.597 115.03V
5 1.502A 7.649 77.956% 0.431
5.093V 9.812 115.03V
6 3.001A 15.155 75.992% 0.478
5.050V 19.943 115.03V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.214 60.452% 0.018
5.126V 0.354 230.15V
2 0.087A 0.447 68.140% 0.032
5.125V 0.656 230.15V
3 0.542A 2.774 75.979% 0.157
5.115V 3.651 230.14V
4 1.002A 5.116 76.863% 0.239
5.104V 6.656 230.14V
5 1.502A 7.648 76.826% 0.293
5.093V 9.955 230.15V
6 3.001A 15.182 77.455% 0.367
5.059V 19.601 230.15V

Supplementary Tests (For Reference)

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.567A 1.994A 1.980A 0.981A 64.823 84.546% 0 <6.0 48.07°C 0.944
12.120V 5.015V 3.331V 5.093V 76.672 38.07°C 115.08V
2 8.162A 2.988A 2.968A 1.181A 129.797 88.769% 0 <6.0 49.17°C 0.974
12.121V 5.014V 3.330V 5.081V 146.219 38.46°C 115.08V
3 13.101A 3.494A 3.482A 1.380A 194.914 89.877% 621 11.6 39.51°C 0.984
12.122V 5.013V 3.329V 5.070V 216.868 50.93°C 115.08V
4 18.031A 3.994A 3.968A 1.580A 259.766 90.117% 550 10.4 39.76°C 0.988
12.122V 5.010V 3.324V 5.060V 288.253 51.70°C 115.07V
5 22.626A 4.988A 4.962A 1.781A 324.734 89.959% 560 10.5 39.98°C 0.990
12.122V 5.008V 3.323V 5.050V 360.981 52.34°C 115.07V
6 27.214A 5.992A 5.958A 1.981A 389.683 89.396% 560 10.5 40.21°C 0.990
12.123V 5.007V 3.321V 5.038V 435.908 52.80°C 115.07V
7 31.799A 6.997A 6.956A 2.185A 454.631 88.664% 845 20.4 41.79°C 0.991
12.124V 5.005V 3.320V 5.028V 512.760 54.64°C 115.07V
8 36.396A 7.996A 7.957A 2.390A 519.579 87.955% 1300 32.4 42.66°C 0.991
12.122V 5.003V 3.317V 5.016V 590.736 56.01°C 115.06V
9 41.418A 8.500A 8.473A 2.395A 584.571 87.196% 1890 40.5 43.26°C 0.992
12.120V 5.000V 3.315V 5.009V 670.407 57.12°C 115.06V
10 46.191A 9.010A 8.962A 3.005A 649.510 86.249% 2320 45.2 45.17°C 0.992
12.119V 4.998V 3.314V 4.988V 753.061 59.34°C 115.06V
11 51.541A 9.011A 8.963A 3.008A 714.394 85.367% 2020 42.8 46.22°C 0.993
12.120V 4.998V 3.313V 4.982V 836.853 60.47°C 115.05V
CL1 0.102A 12.011A 12.003A 0.004A 101.413 84.734% 510 6.0 42.36°C 0.969
12.123V 5.013V 3.328V 5.103V 119.684 55.07°C 115.10V
CL2 53.969A 1.002A 1.002A 1.002A 667.605 86.542% 2320 45.2 45.22°C 0.992
12.122V 5.002V 3.319V 5.045V 771.421 59.24°C 115.06V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 3.564A 1.995A 1.981A 0.981A 64.809 85.390% 0 <6.0 49.82°C 0.733
12.122V 5.017V 3.332V 5.093V 75.898 37.99°C 230.25V
2 8.159A 2.989A 2.969A 1.181A 129.795 90.092% 0 <6.0 50.93°C 0.871
12.123V 5.016V 3.331V 5.081V 144.069 38.30°C 230.24V
3 13.099A 3.494A 3.483A 1.380A 194.908 91.395% 621 11.6 38.42°C 0.919
12.123V 5.013V 3.329V 5.071V 213.258 52.21°C 230.24V
4 18.028A 3.995A 3.966A 1.580A 259.729 91.856% 459 9.9 38.88°C 0.942
12.122V 5.010V 3.324V 5.060V 282.756 52.87°C 230.25V
5 22.622A 4.990A 4.965A 1.781A 324.704 91.941% 550 10.4 39.31°C 0.955
12.122V 5.008V 3.323V 5.049V 353.166 53.82°C 230.25V
6 27.212A 5.994A 5.959A 1.982A 389.654 91.714% 560 10.5 40.17°C 0.963
12.122V 5.007V 3.321V 5.039V 424.860 55.04°C 230.25V
7 31.796A 6.997A 6.957A 2.185A 454.598 91.345% 800 18.4 41.14°C 0.969
12.124V 5.005V 3.320V 5.028V 497.674 56.61°C 230.24V
8 36.389A 7.997A 7.957A 2.391A 519.547 90.942% 1270 32.7 42.41°C 0.974
12.123V 5.003V 3.318V 5.016V 571.292 58.58°C 230.25V
9 41.424A 8.500A 8.473A 2.395A 584.640 90.485% 1960 41.4 43.79°C 0.977
12.120V 5.000V 3.315V 5.008V 646.118 60.22°C 230.25V
10 46.187A 9.011A 8.961A 3.006A 649.481 89.883% 2310 45.1 45.18°C 0.980
12.119V 4.999V 3.314V 4.989V 722.584 62.02°C 230.25V
11 51.540A 9.011A 8.962A 3.008A 714.390 89.360% 2320 45.2 46.10°C 0.982
12.120V 4.998V 3.314V 4.983V 799.454 63.83°C 230.25V
CL1 0.099A 12.013A 12.004A 0.004A 101.403 85.917% 510 6.0 43.42°C 0.838
12.123V 5.013V 3.329V 5.103V 118.025 55.70°C 230.25V
CL2 53.969A 1.004A 1.003A 1.002A 667.617 90.310% 2320 45.2 45.61°C 0.980
12.122V 5.001V 3.319V 5.045V 739.247 61.10°C 230.25V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.209A 0.488A 0.478A 0.196A 19.694 68.932% 0 <6.0 0.764
12.116V 5.019V 3.334V 5.118V 28.570 115.07V
2 2.435A 0.989A 0.990A 0.391A 39.758 79.904% 0 <6.0 0.895
12.117V 5.014V 3.330V 5.111V 49.757 115.07V
3 3.667A 1.486A 1.499A 0.586A 59.872 84.131% 0 <6.0 0.937
12.118V 5.015V 3.331V 5.102V 71.165 115.07V
4 4.886A 1.994A 1.979A 0.782A 79.788 86.118% 0 <6.0 0.956
12.119V 5.014V 3.331V 5.096V 92.650 115.07V

The results above are not used in the certification process

Test #12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts 1 1.206A0.491A 0.476A 0.196A 19.667 71.379% 0000 <6.0 0.486 12.122V 5.021V 3.336V 5.117V 27.553 230.23V 2 2.436A0.990A0.989A 0.391A 39.779 80.983% 0000 <6.0 0.605 12.122V 5.016V 3.332V 5.110V 49.120 230.26V 3 3.666A 1.486A 1.499A 0.586A 59.881 85.234% 0000 <6.0 0.710 12.122V 5.017V 3.332V 5.102V 70.255 230.25V 4 4.885A 1.995A 1.979A 0.783A 79.787 87.515% 0000 <6.0 0.782 12.122V 5.016V 3.331V 5.096V 91.170 230.25V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 9.7 mV 6.3 mV 5.3 mV 4.7 mV Pass
20% Load 13.4 mV 7.1 mV 5.7 mV 4.7 mV Pass
30% Load 16.4 mV 7.8 mV 6.5 mV 4.8 mV Pass
40% Load 18.9 mV 8.9 mV 7.0 mV 4.9 mV Pass
50% Load 20.6 mV 9.5 mV 6.9 mV 5.4 mV Pass
60% Load 22.0 mV 10.0 mV 7.8 mV 6.2 mV Pass
70% Load 23.5 mV 11.3 mV 8.0 mV 6.9 mV Pass
80% Load 24.8 mV 11.6 mV 7.9 mV 7.9 mV Pass
90% Load 26.5 mV 12.4 mV 8.9 mV 8.5 mV Pass
100% Load 28.7 mV 13.9 mV 9.6 mV 11.3 mV Pass
110% Load 30.0 mV 14.1 mV 10.1 mV 10.4 mV Pass
Crossload 1 12.5 mV 11.4 mV 7.1 mV 6.4 mV Pass
Crossload 2 28.3 mV 9.3 mV 9.1 mV 8.3 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 8.5 mV 5.9 mV 5.2 mV 4.4 mV Pass
20% Load 13.1 mV 7.1 mV 5.5 mV 4.6 mV Pass
30% Load 16.1 mV 8.2 mV 5.9 mV 4.6 mV Pass
40% Load 18.9 mV 8.9 mV 6.9 mV 4.8 mV Pass
50% Load 20.4 mV 9.2 mV 6.7 mV 5.1 mV Pass
60% Load 21.9 mV 10.0 mV 7.2 mV 5.6 mV Pass
70% Load 23.3 mV 11.0 mV 8.1 mV 5.8 mV Pass
80% Load 24.8 mV 11.3 mV 8.1 mV 6.1 mV Pass
90% Load 26.3 mV 12.4 mV 9.0 mV 6.0 mV Pass
100% Load 28.4 mV 13.8 mV 9.3 mV 6.7 mV Pass
110% Load 30.2 mV 14.1 mV 9.6 mV 6.6 mV Pass
Crossload 1 11.7 mV 11.4 mV 7.1 mV 6.4 mV Pass
Crossload 2 28.3 mV 9.6 mV 8.6 mV 5.9 mV Pass

The results above are not used in the certification process

SeaSonic Focus Plus Gold 650W (#3)

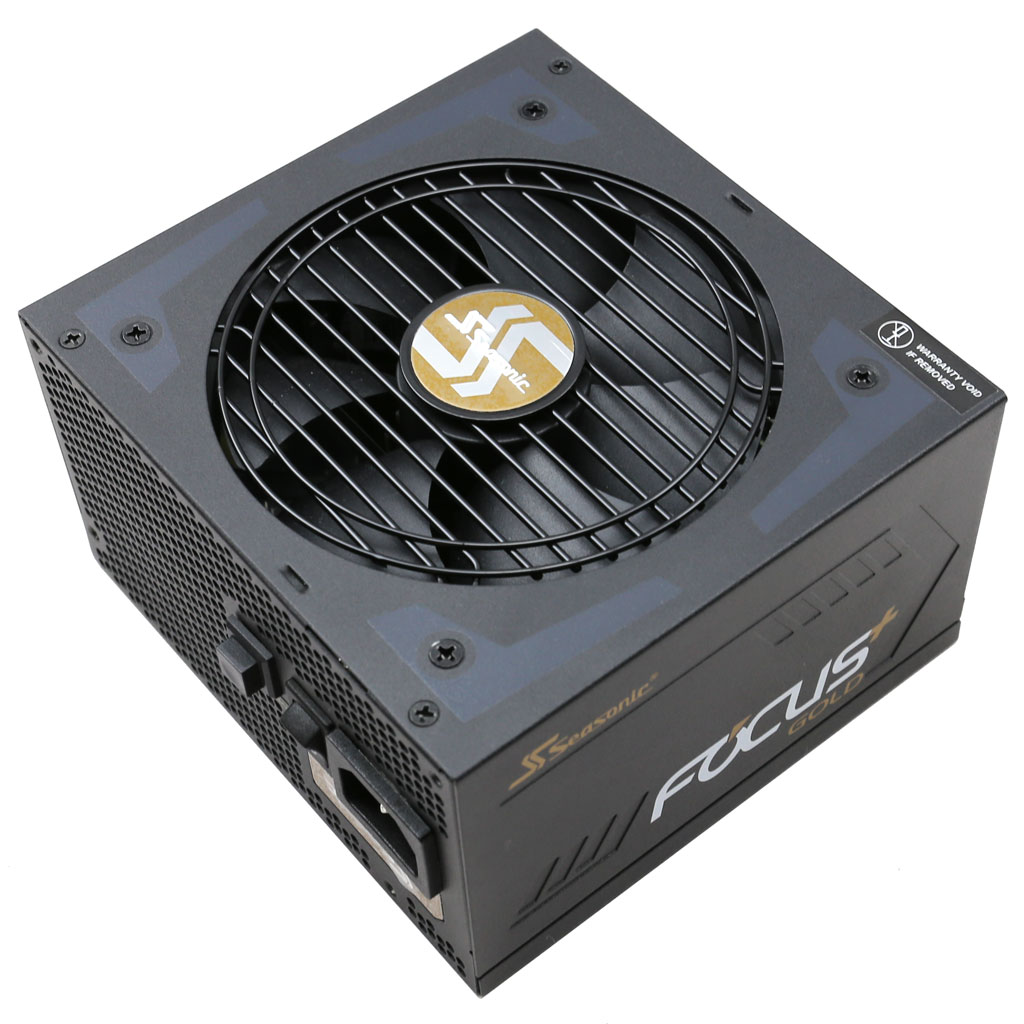

Top side

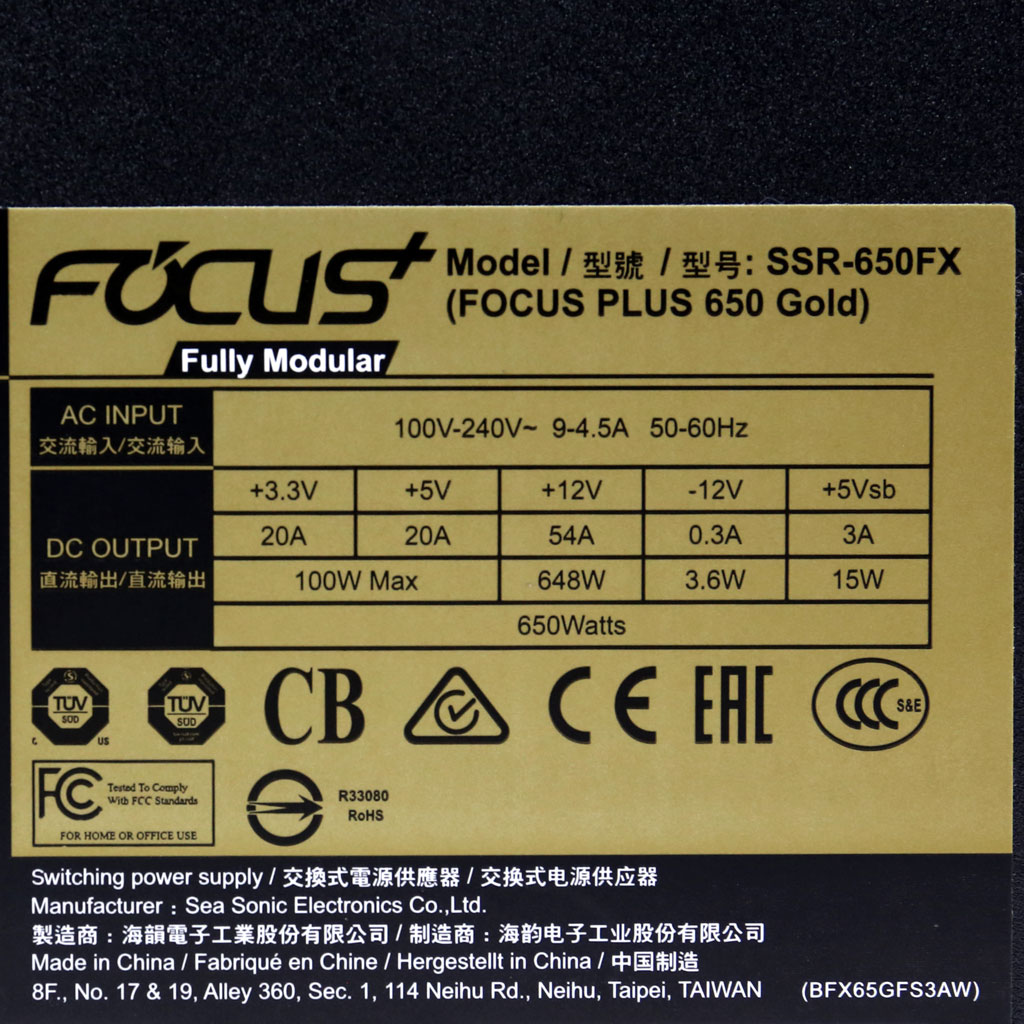

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
