FSP Technology Hydro G Pro 1200W
S3281000035
Lab IDFS12002357
  • Report: 24PS2357A
  • Receipt Date: Jan 23, 2024
  • Test Date: Feb 15, 2024
  • Report Date: Feb 16, 2024
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

FSP Technology
製造商 (OEM)FSP
Hydro G Pro
HG2-1200
S3281000035

(Vrms)100-240
(Arms)15-8
(Hz)50-60
(W)1200
ATX12V
120mm Fluid Dynamic Bearing Fan
(MGA12012XF-O25)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1201200153.6
Total Max. Power (W)1200

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (650mm) 3 3 16AWG No
12+4 pin PCIe (700mm) (600W) 1 1 16-28AWG No
SATA (500mm+155mm+155mm+155mm) 2 8 18AWG No
SATA (500mm+150mm) / 4-pin Molex (+150mm+100mm) 2 4 / 4 18AWG No
SATA (350mm+100mm+100mm) / 4-pin Molex (+100mm) 1 3 / 1 18AWG No
AC Power Cord (1390mm) - C13 coupler 1 1 14AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

效率評比GOLD
噪音評比A-
(>1450 load combinations)88.240%
Average Noise Output (>1450 Load Combinations)29.83dBA
(>1450 Load Combinations)0.989
Efficiency With 10W (≤500W) or 2% (>500W) Load63.321%
0.1130W
12V Ripple (Full Load)32.74mV
5V Ripple (Full Load)16.45mV
3.3V Ripple (Full Load)18.18mV
5VSB Ripple (Full Load)23.45mV
12V Load Regulation0.34%
5V Load Regulation0.35%
3.3V Load Regulation0.77%
5VSB Load Regulation2.13%
Inrush Current27.250A
效率評比SILVER
噪音評比A-
(>1450 load combinations)90.644%
Average Noise Output (>1450 Load Combinations)26.76dBA
(>1450 Load Combinations)0.962
Efficiency With 10W (≤500W) or 2% (>500W) Load63.851%
0.2018W
12V Ripple (Full Load)38.02mV
5V Ripple (Full Load)21.01mV
3.3V Ripple (Full Load)22.18mV
5VSB Ripple (Full Load)26.68mV
12V Load Regulation0.34%
5V Load Regulation0.45%
3.3V Load Regulation0.77%
5VSB Load Regulation2.11%
Inrush Current61.220A
12V Transient Response (200%)11.54V
5V Transient Response (200%)5.092V
3.3V Transient Response (200%)3.205V
5VSB Transient Response (200%)4.875V
21.10ms
AC Loss to PWR_OK Hold Up Time20.40ms
PWR_OK Inactive to DC Loss Delay0.70ms
PSU Timings: T1 (20% / 100%)50.0ms50.0ms
PSU Timings: T3 (20% / 100%)119.0ms119.0ms
OPP (28.92°C / 42.33°C)134.93%121.67%

Hold-Up Time (ms)21.1
AC Loss to PWR_OK Hold Up Time (ms)20.4
PWR_OK Inactive to DC Loss Delay (ms)0.7

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.04 V 115.00 V 113.85 V 115.07 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.19 % 2.00 % PASS
Real Power: 0.113 W 0.012 W N/A 0.164 W N/A N/A
Apparent Power: 10.161 W 10.122 W N/A 10.203 W N/A N/A
Power Factor: 0.015 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.78 V 227.70 V 229.99 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.15 % 0.12 % N/A 0.20 % 2.00 % PASS
Real Power: 0.202 W 0.154 W N/A 0.261 W N/A N/A
Apparent Power: 35.208 W 35.173 W N/A 35.242 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A

Graphs

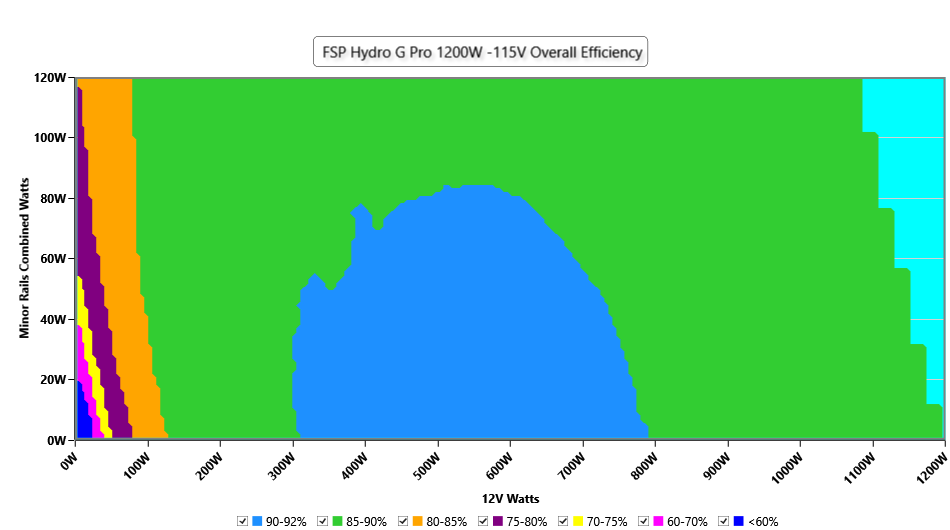

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

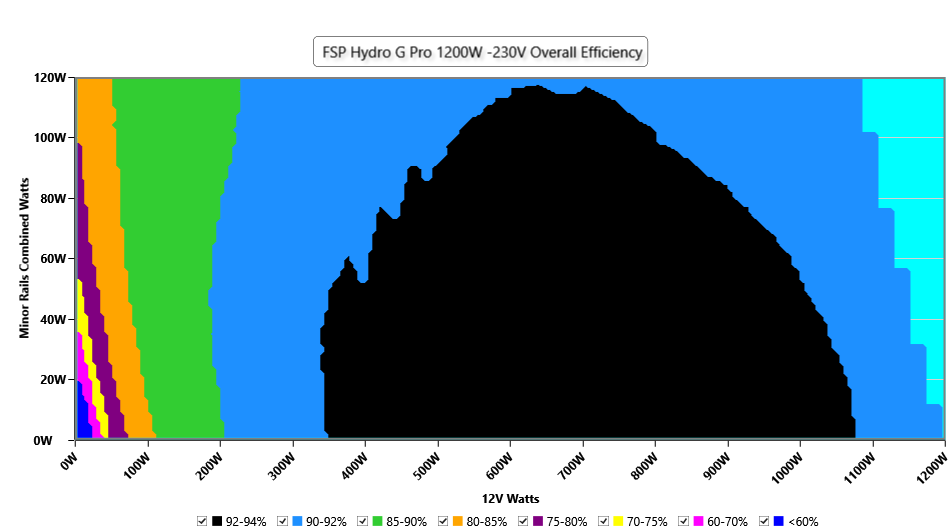

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

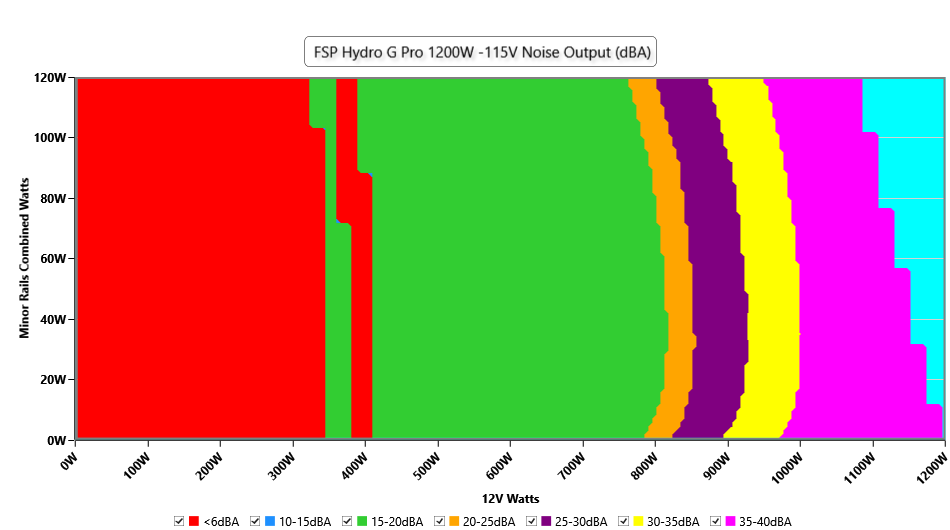

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

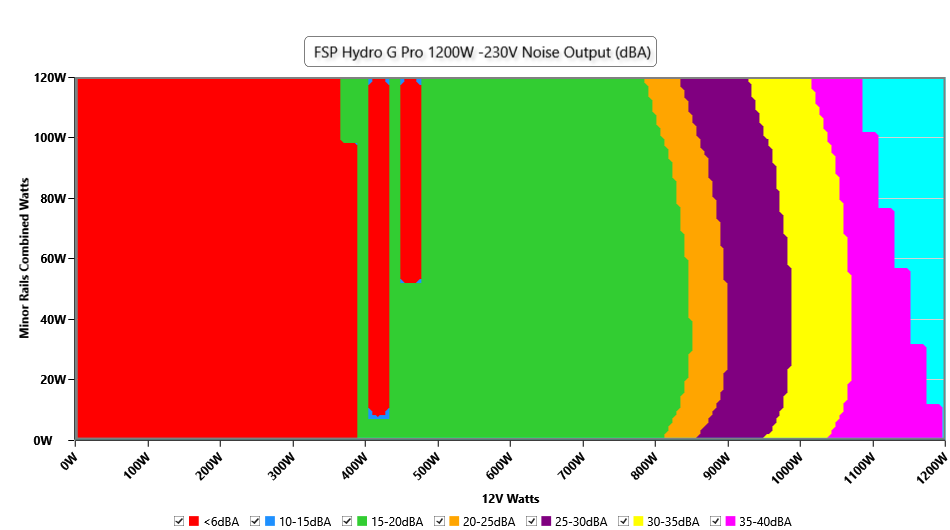

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

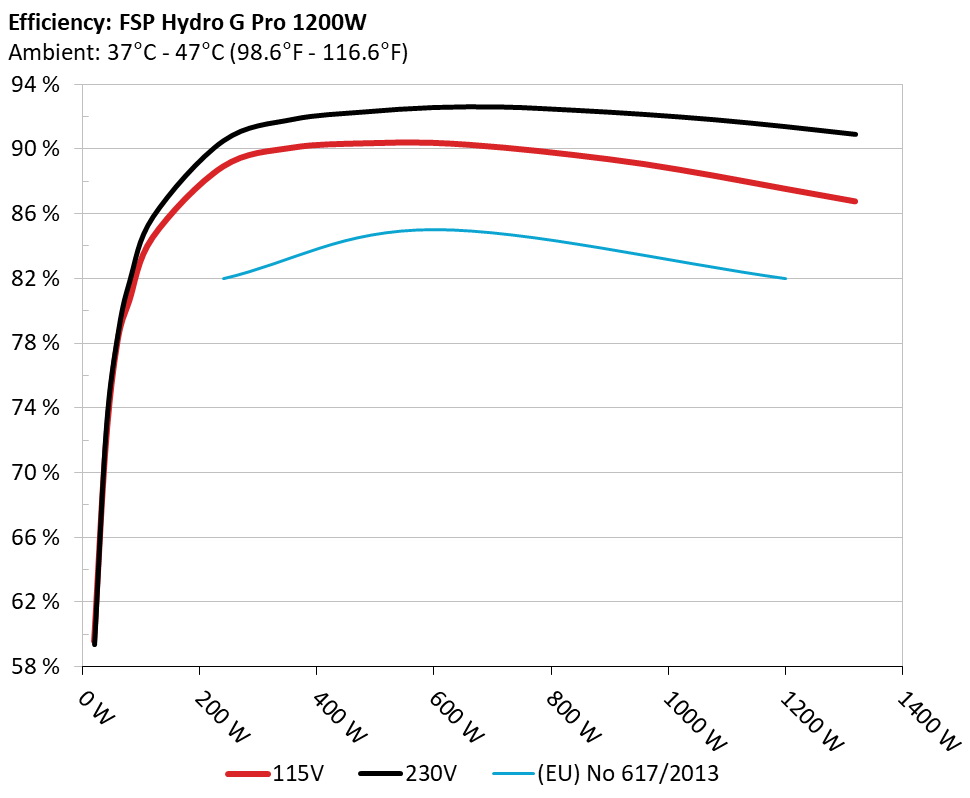

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

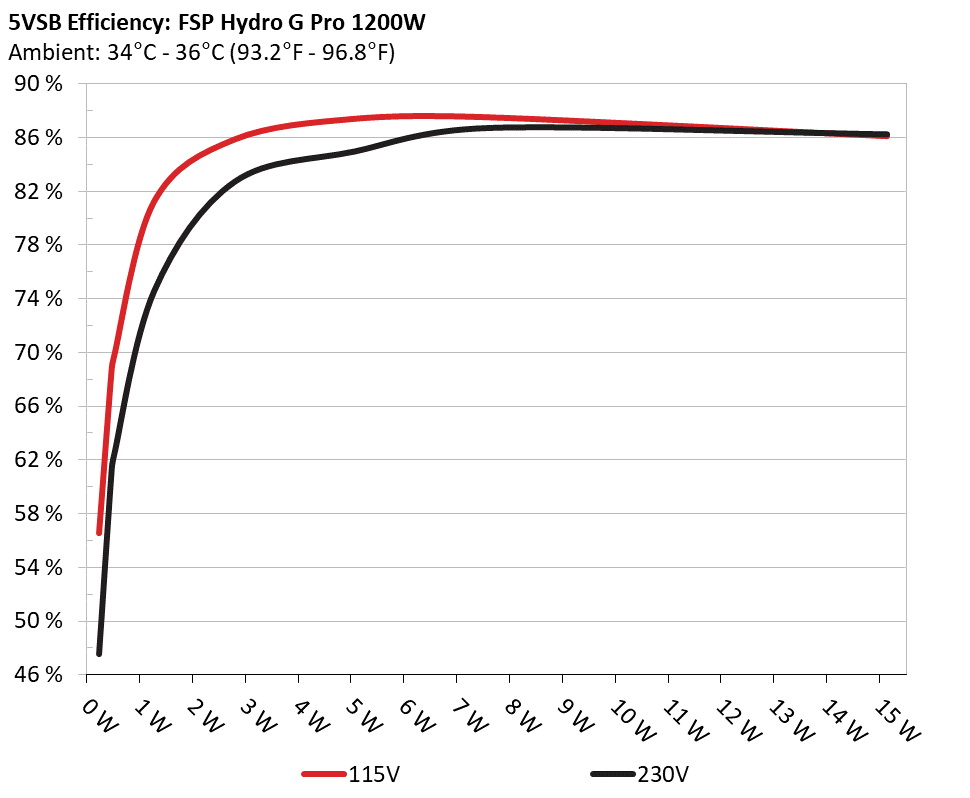

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 56.03% 0.039
5.082V 0.409W 114.92V
2 0.09A 0.457W 67.765% 0.063
5.081V 0.674W 114.92V
3 0.55A 2.791W 85.368% 0.248
5.075V 3.269W 114.92V
4 1A 5.07W 86.912% 0.346
5.07V 5.834W 114.92V
5 1.5A 7.596W 87.016% 0.392
5.063V 8.73W 114.91V
6 3A 15.134W 85.612% 0.473
5.045V 17.678W 114.91V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.229W 47.033% 0.014
5.082V 0.489W 229.88V
2 0.09A 0.457W 60.197% 0.022
5.081V 0.76W 229.88V
3 0.55A 2.792W 82.209% 0.093
5.076V 3.397W 229.88V
4 1A 5.07W 84.476% 0.154
5.07V 6.002W 229.88V
5 1.5A 7.596W 86.222% 0.19
5.063V 8.812W 229.88V
6 3A 15.139W 85.747% 0.28
5.046V 17.615W 229.88V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.010A 1.941A 1.947A 0.989A 120 84.519% 0 <6.0 44.59°C 0.975
12.284V 5.153V 3.39V 5.054V 141.983 40.34°C 114.87V
20% 17.023A 2.914A 2.924A 1.19A 239.964 88.889% 0 <6.0 45.11°C 0.984
12.281V 5.148V 3.386V 5.044V 269.959 40.55°C 114.83V
30% 26.329A 3.395A 3.41A 1.391A 359.254 90.063% 0 <6.0 46.41°C 0.987
12.275V 5.156V 3.388V 5.034V 398.892 41.33°C 114.8V
40% 35.730A 3.874A 3.894A 1.592A 479.622 90.323% 765 15.5 41.7°C 0.989
12.270V 5.163V 3.39V 5.025V 531.021 47.21°C 114.75V
50% 44.749A 4.843A 4.871A 1.795A 599.361 90.356% 764 15.5 42.38°C 0.992
12.265V 5.163V 3.388V 5.016V 663.329 48.38°C 114.7V
60% 53.833A 5.818A 5.853A 1.998A 719.91 90.062% 767 15.6 42.75°C 0.994
12.262V 5.158V 3.383V 5.006V 799.355 49.33°C 114.66V
70% 62.862A 6.79A 6.835A 2.202A 839.619 89.607% 1025 24.4 43.18°C 0.995
12.257V 5.155V 3.38V 4.997V 937.004 50.24°C 114.62V
80% 71.970A 7.758A 7.815A 2.305A 959.578 89.045% 1283 31.1 43.77°C 0.996
12.252V 5.155V 3.378V 4.989V 1077.637 52.01°C 114.56V
90% 81.396A 8.245A 8.293A 2.409A 1079.396 88.323% 1612 38.0 44.48°C 0.996
12.248V 5.154V 3.376V 4.981V 1222.102 53.58°C 114.51V
100% 90.645A 8.733A 8.803A 3.021A 1199.421 87.526% 1915 43.7 46.46°C 0.996
12.243V 5.152V 3.374V 4.966V 1370.362 56.49°C 114.46V
110% 99.836A 9.709A 9.88A 3.025A 1320.019 86.741% 2096 46.2 46.89°C 0.996
12.237V 5.149V 3.371V 4.959V 1521.795 57.81°C 114.41V
CL1 0.114A 14.024A 14.154A 0A 121.305 78.779% 764 15.5 41.48°C 0.979
12.288V 5.148V 3.37V 5.059V 153.98 46.98°C 114.85V
CL2 0.114A 19.456A 0A 0A 101.376 77.84% 757 15.2 39.86°C 0.976
12.285V 5.138V 3.385V 5.064V 130.237 47.01°C 114.87V
CL3 0.113A 0A 19.652A 0A 67.403 71.045% 0 <6.0 47.98°C 0.963
12.280V 5.141V 3.359V 5.064V 94.878 38.88°C 114.88V
CL4 98.036A 0A 0A 0.002A 1200.048 88.034% 1801 40.4 44.29°C 0.996
12.241V 5.162V 3.392V 5.007V 1363.138 55.25°C 114.45V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.012A 1.94A 1.946A 0.989A 119.999 85.787% 0 <6.0 44.51°C 0.887
12.281V 5.153V 3.391V 5.055V 139.88 40.24°C 229.87V
20% 17.027A 2.913A 2.923A 1.189A 239.96 90.481% 0 <6.0 45.47°C 0.948
12.278V 5.149V 3.387V 5.045V 265.206 40.88°C 229.85V
30% 26.329A 3.401A 3.414A 1.39A 359.215 91.811% 0 <6.0 46.21°C 0.966
12.274V 5.145V 3.384V 5.035V 391.254 41.15°C 229.83V
40% 35.729A 3.879A 3.896A 1.592A 479.572 92.263% 764 15.5 41.83°C 0.974
12.269V 5.157V 3.388V 5.025V 519.785 47.37°C 229.81V
50% 44.751A 4.847A 4.871A 1.794A 599.311 92.542% 765 15.5 42.23°C 0.979
12.263V 5.158V 3.388V 5.016V 647.611 48.27°C 229.79V
60% 53.842A 5.82A 5.852A 1.997A 719.853 92.566% 768 15.6 42.73°C 0.981
12.259V 5.155V 3.384V 5.007V 777.661 49.32°C 229.77V
70% 62.865A 6.795A 6.835A 2.201A 839.593 92.372% 1028 24.4 43.15°C 0.984
12.256V 5.152V 3.38V 4.997V 908.914 50.16°C 229.74V
80% 71.971A 7.764A 7.816A 2.305A 959.557 92.115% 1306 31.7 43.56°C 0.985
12.251V 5.151V 3.378V 4.989V 1041.693 51.59°C 229.72V
90% 81.410A 8.248A 8.292A 2.409A 1079.371 91.787% 1579 37.1 44.23°C 0.986
12.245V 5.152V 3.377V 4.981V 1175.955 53.31°C 229.7V
100% 90.662A 8.735A 8.8A 3.02A 1199.399 91.365% 1852 42.5 45.06°C 0.987
12.240V 5.151V 3.375V 4.967V 1312.742 55.13°C 229.68V
110% 99.857A 9.709A 9.875A 3.025A 1320.011 90.88% 2113 46.1 46.86°C 0.988
12.235V 5.149V 3.372V 4.959V 1452.473 57.78°C 229.66V
CL1 0.114A 14.023A 14.152A 0A 121.303 79.947% 760 15.3 43.28°C 0.898
12.286V 5.148V 3.371V 5.06V 151.73 48.8°C 229.86V
CL2 0.113A 19.451A 0A 0A 101.368 78.694% 752 15.1 40.18°C 0.875
12.283V 5.14V 3.386V 5.064V 128.813 47.24°C 229.87V
CL3 0.113A 0A 19.677A 0A 67.399 72.308% 0 <6.0 51.34°C 0.814
12.279V 5.132V 3.355V 5.064V 93.209 42.18°C 229.88V
CL4 98.054A 0A 0A 0.002A 1199.977 91.849% 1752 40.5 44.19°C 0.987
12.238V 5.157V 3.388V 5.007V 1306.461 55.17°C 229.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.484A 0.485A 0.197A 20 59.585% 0 <6.0 39.65°C 0.879
12.274V 5.166V 3.4V 5.072V 33.572 36.57°C 114.91V
40W 2.664A 0.678A 0.68A 0.296A 39.999 71.734% 0 <6.0 40.36°C 0.934
12.274V 5.16V 3.397V 5.069V 55.758 37.06°C 114.9V
60W 4.116A 0.872A 0.875A 0.395A 59.999 78.111% 0 <6.0 41.98°C 0.956
12.275V 5.159V 3.396V 5.066V 76.813 38.29°C 114.89V
80W 5.565A 1.067A 1.07A 0.494A 79.945 80.595% 0 <6.0 43.05°C 0.963
12.275V 5.156V 3.394V 5.064V 99.195 39.09°C 114.88V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.210A 0.484A 0.485A 0.197A 20.007 59.355% 0 <6.0 40.11°C 0.502
12.269V 5.168V 3.401V 5.072V 33.704 36.99°C 229.88V
40W 2.664A 0.678A 0.68A 0.296A 40.003 72.7% 0 <6.0 40.81°C 0.661
12.269V 5.164V 3.399V 5.069V 55.029 37.51°C 229.88V
60W 4.118A 0.872A 0.874A 0.395A 60 78.527% 0 <6.0 42.14°C 0.761
12.270V 5.161V 3.397V 5.067V 76.404 38.63°C 229.88V
80W 5.568A 1.066A 1.069A 0.494A 79.946 81.793% 0 <6.0 43.18°C 0.824
12.271V 5.158V 3.395V 5.064V 97.743 39.3°C 229.88V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load17.14mV14.36mV15.91mV16.88mVPass
20% Load20.11mV13.84mV16.73mV17.34mVPass
30% Load22.77mV18.70mV20.15mV19.49mVPass
40% Load24.39mV15.33mV17.85mV20.92mVPass
50% Load25.39mV16.35mV18.06mV17.91mVPass
60% Load21.93mV15.07mV17.29mV35.29mVPass
70% Load24.10mV17.68mV19.03mV37.44mVPass
80% Load23.94mV17.73mV19.85mV24.09mVPass
90% Load23.64mV17.27mV20.26mV23.78mVPass
100% Load32.74mV16.45mV18.18mV23.45mVPass
110% Load32.93mV17.21mV18.70mV23.77mVPass
Crossload120.41mV11.74mV14.93mV17.66mVPass
Crossload218.31mV16.09mV15.81mV20.20mVPass
Crossload315.60mV13.90mV17.96mV20.26mVPass
Crossload432.88mV15.86mV16.87mV27.26mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load18.77mV14.87mV17.24mV20.10mVPass
20% Load19.90mV15.02mV18.77mV18.41mVPass
30% Load22.90mV19.21mV20.26mV21.23mVPass
40% Load27.20mV16.35mV18.52mV23.58mVPass
50% Load28.22mV16.65mV19.18mV20.05mVPass
60% Load26.36mV17.37mV20.51mV42.15mVPass
70% Load25.48mV17.22mV19.54mV38.41mVPass
80% Load24.15mV18.09mV21.08mV25.22mVPass
90% Load26.65mV19.06mV21.69mV27.06mVPass
100% Load38.02mV21.01mV22.18mV26.68mVPass
110% Load39.35mV20.48mV23.55mV27.09mVPass
Crossload123.80mV15.81mV19.36mV21.90mVPass
Crossload216.93mV17.98mV17.24mV22.86mVPass
Crossload317.34mV14.00mV18.11mV21.95mVPass
Crossload438.27mV19.57mV21.94mV29.28mVPass

The results above are not used in the certification process

FSP Technology Hydro G Pro 1200W

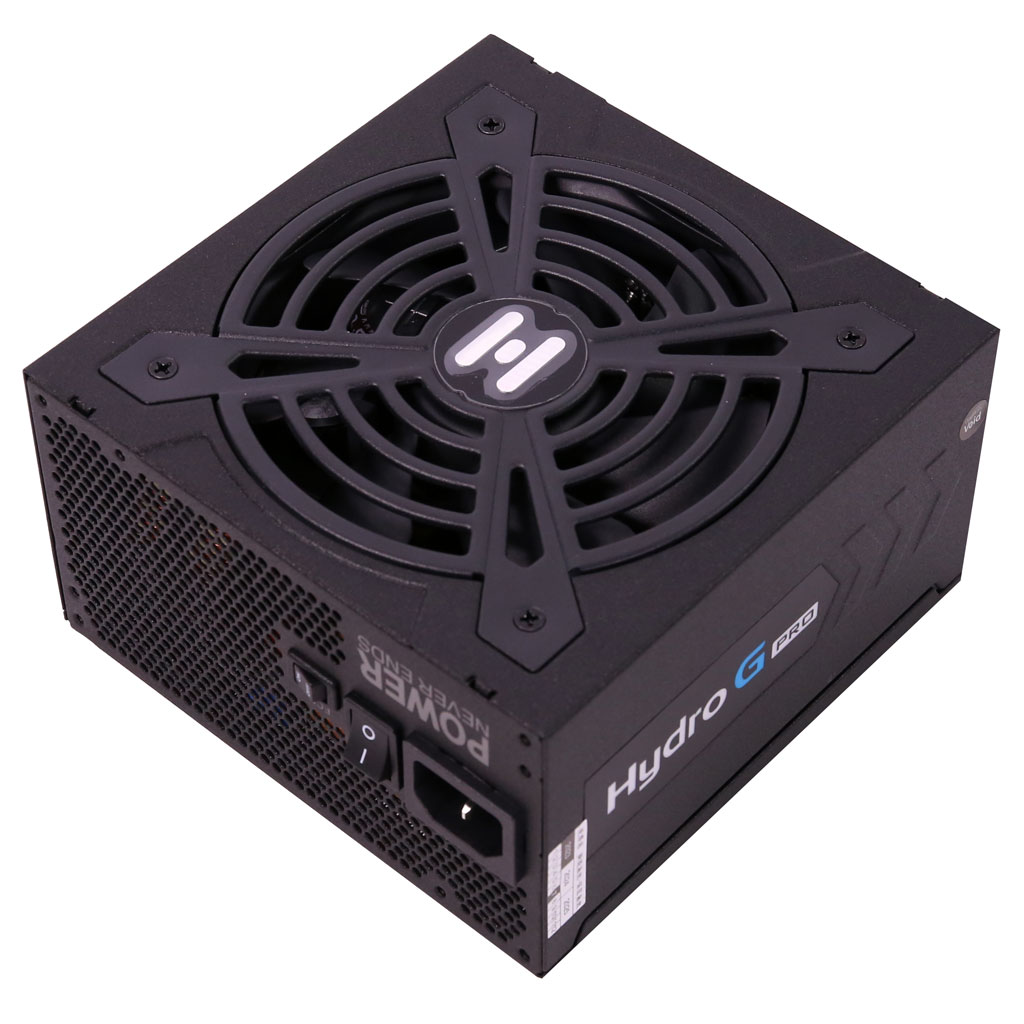

Top side

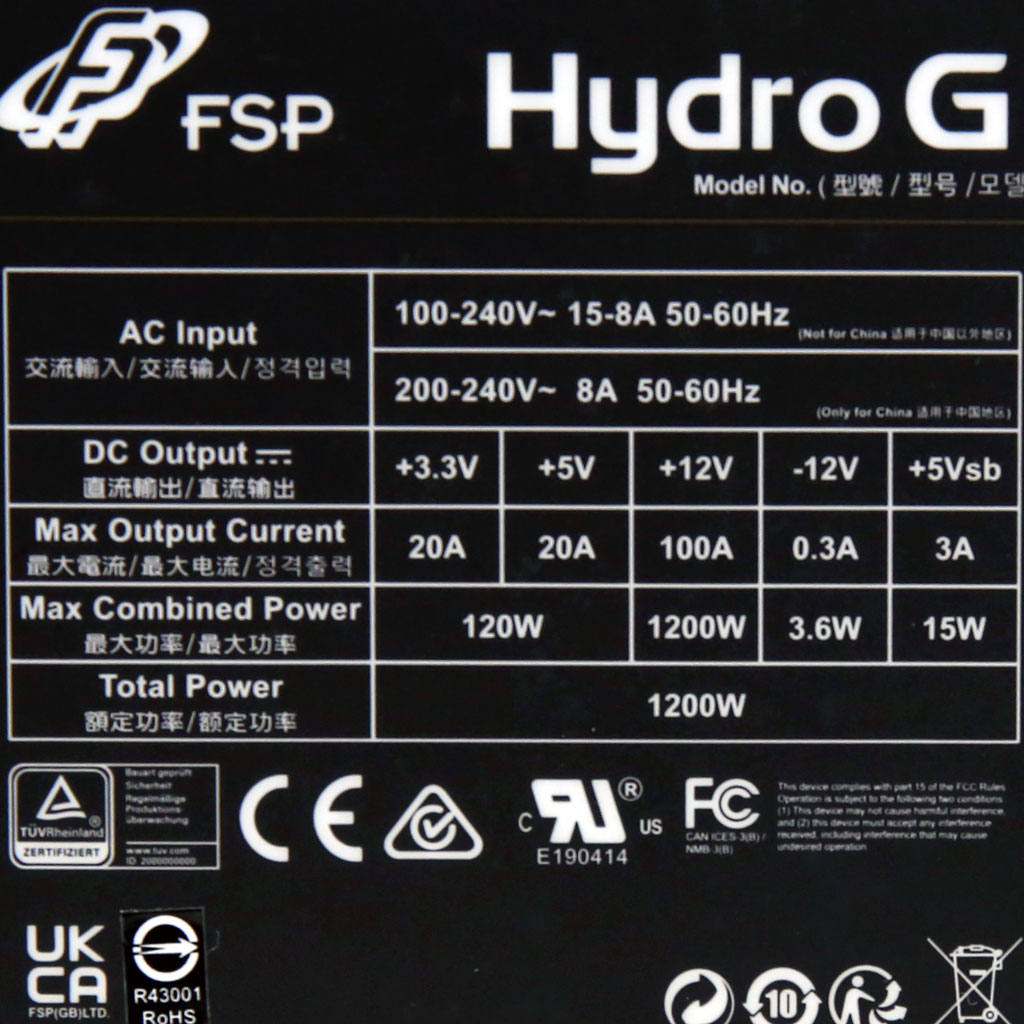

Power specifications label
CYBENETICS提供ETA和LAMBDA自願性認證 方案以推廣高效及靜音之電源供應器
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
