CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Aqirys Magnetar 850W
Serial Number
Lab IDAQ85002334
  • Report: 24PS2334A
  • Receipt Date: Dec 14, 2023
  • Test Date: Jan 23, 2024
  • Report Date: Jan 24, 2024
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandAqirys
Manufacturer (OEM)Kinpower
SeriesMagnetar
Model NumberAQRYS_MAG850W
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)50-60
Rated Power (W)850
TypeATX12V
Cooling120mm Rifle Bearing Fan
(EFS-12E12M)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps161670.830.3
Watts103850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (580mm) 1 1 18-22AWG No
4+4 pin EPS12V (600mm) 2 2 18AWG No
6+2 pin PCIe (550mm+150mm) 1 2 18AWG No
6+2 pin PCIe (500mm+150mm) 1 2 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-24AWG No
SATA (450mm+155mm+155mm) 2 6 18AWG No
4-pin Molex (400mm+150mm+150mm) 1 3 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)88.758%
Average Noise Output (>1450 Load Combinations)33.80dBA
Average PF (>1450 Load Combinations)0.980
Efficiency With 10W (≤500W) or 2% (>500W) Load70.835%
Standby Power Consumption0.0581W
12V Ripple (Full Load)21.33mV
5V Ripple (Full Load)16.62mV
3.3V Ripple (Full Load)16.86mV
5VSB Ripple (Full Load)17.30mV
12V Load Regulation1.32%
5V Load Regulation2.52%
3.3V Load Regulation4.04%
5VSB Load Regulation3.31%
Inrush Current86.660A
Efficiency RatingGOLD
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.923%
Average Noise Output (>1450 Load Combinations)33.15dBA
Average PF (>1450 Load Combinations)0.933
Efficiency With 10W (≤500W) or 2% (>500W) Load55.197%
Standby Power Consumption0.1051W
12V Ripple (Full Load)22.09mV
5V Ripple (Full Load)29.45mV
3.3V Ripple (Full Load)17.12mV
5VSB Ripple (Full Load)18.25mV
12V Load Regulation1.29%
5V Load Regulation2.54%
3.3V Load Regulation4.04%
5VSB Load Regulation3.27%
Inrush Current100.500A
12V Transient Response (200%)11.58V
5V Transient Response (200%)4.940V
3.3V Transient Response (200%)3.179V
5VSB Transient Response (200%)5.014V
Hold-Up Time & Power Ok Signal22.80ms
AC Loss to PWR_OK Hold Up Time19.80ms
PWR_OK Inactive to DC Loss Delay3.00ms
PSU Timings: T1 (20% / 100%)39.0ms39.0ms
PSU Timings: T3 (20% / 100%)116.0ms115.0ms
OPP (26.25°C / 41.39°C)123.55%117.08%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.8
AC Loss to PWR_OK Hold Up Time (ms)19.8
PWR_OK Inactive to DC Loss Delay (ms)3

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.82 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.08 % N/A 0.27 % 2.00 % PASS
Real Power: 0.058 W 0.039 W N/A 0.079 W N/A N/A
Apparent Power: 11.614 W 11.590 W N/A 11.645 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.98 V 229.89 V 227.70 V 230.02 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.15 % 0.11 % N/A 0.21 % 2.00 % PASS
Real Power: 0.105 W 0.058 W N/A 0.184 W N/A N/A
Apparent Power: 40.015 W 39.967 W N/A 40.093 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

Graphs

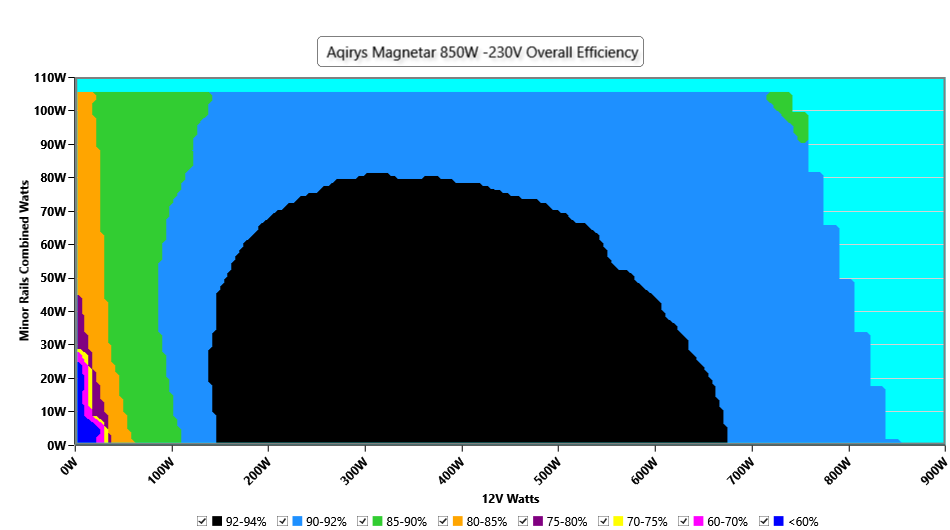

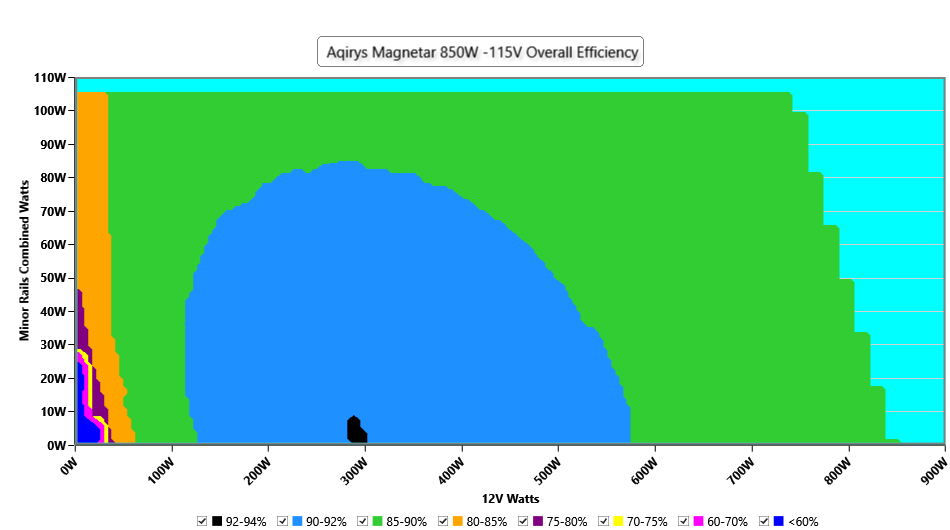

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

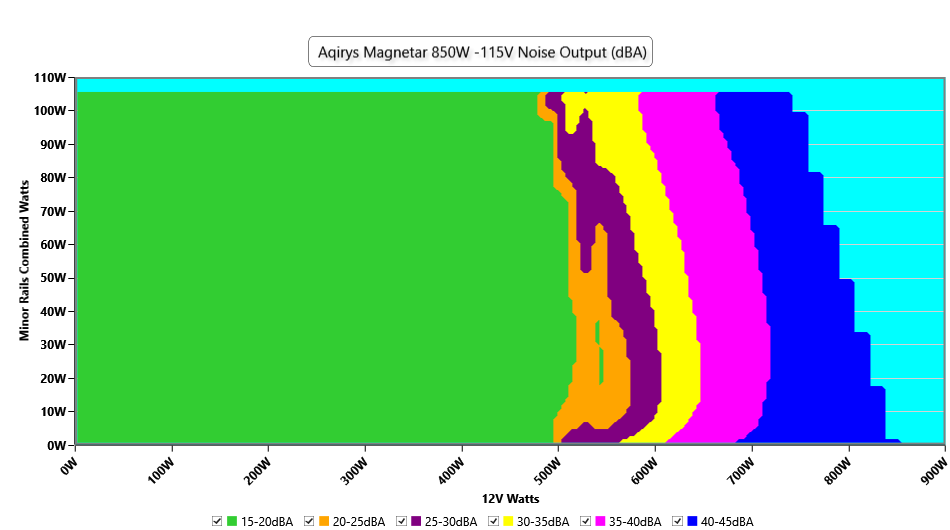

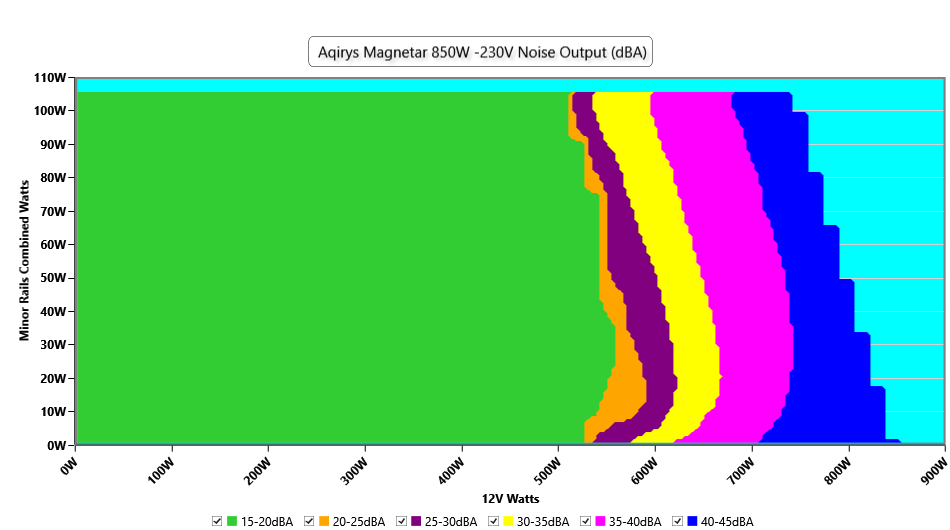

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

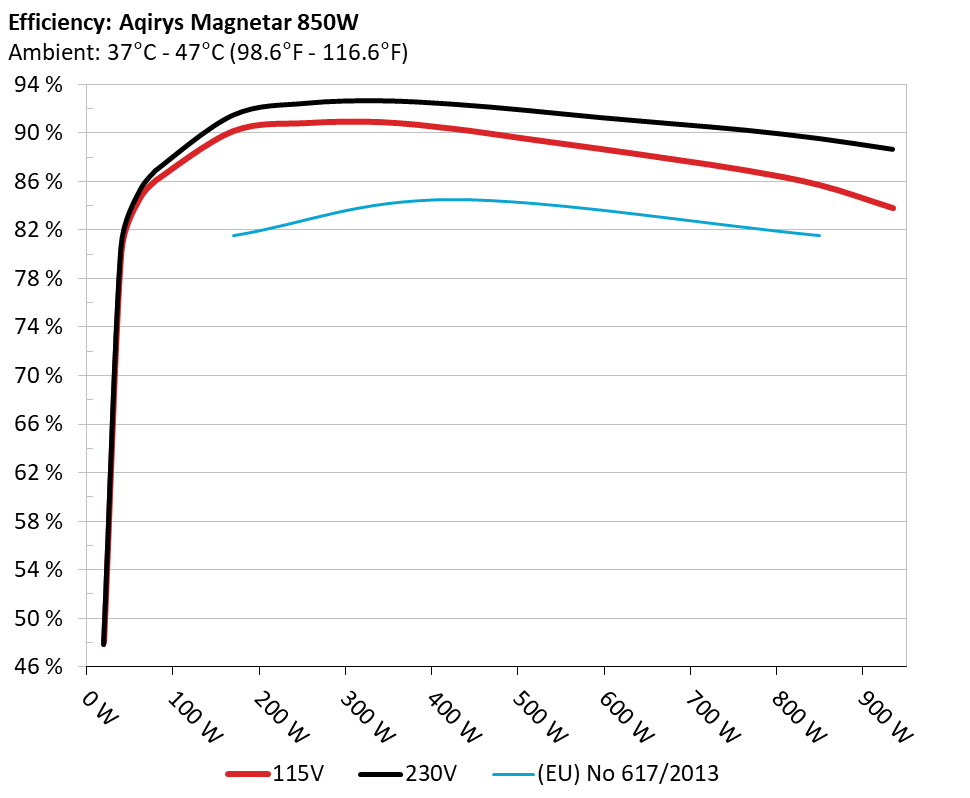

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

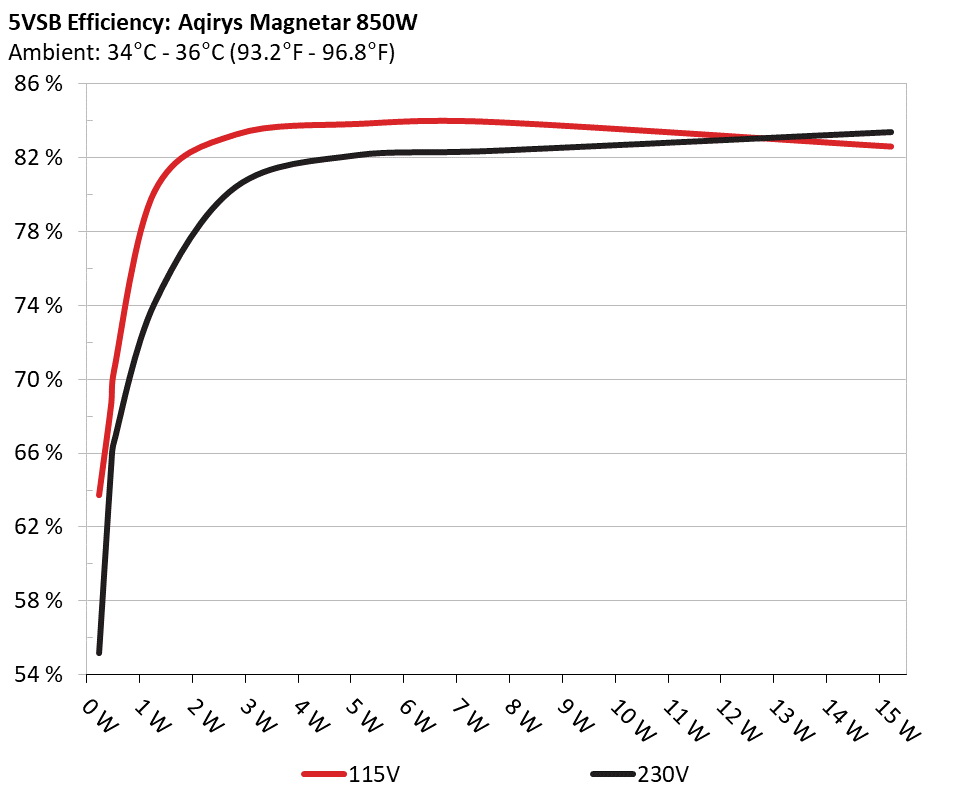

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 63.706% 0.033
5.146V 0.364W 114.87V
2 0.09A 0.463W 68.692% 0.061
5.145V 0.674W 114.87V
3 0.55A 2.823W 83.242% 0.248
5.133V 3.392W 114.87V
4 1A 5.122W 83.811% 0.347
5.122V 6.111W 114.87V
5 1.5A 7.664W 83.914% 0.394
5.109V 9.133W 114.87V
6 3A 15.211W 82.583% 0.464
5.07V 18.419W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.232W 55.202% 0.011
5.146V 0.421W 229.95V
2 0.09A 0.463W 65.442% 0.019
5.145V 0.708W 229.95V
3 0.55A 2.823W 80.44% 0.091
5.133V 3.51W 229.95V
4 1A 5.122W 82.152% 0.153
5.121V 6.234W 229.95V
5 1.5A 7.663W 82.383% 0.199
5.108V 9.302W 229.95V
6 3A 15.211W 83.395% 0.306
5.07V 18.239W 229.95V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.210A 1.971A 1.963A 0.976A 84.998 86.602% 874 19.6 40.19°C 0.95
12.168V 5.073V 3.361V 5.123V 98.147 44.47°C 114.84V
20% 11.430A 2.964A 2.957A 1.174A 169.923 90.661% 875 19.6 40.77°C 0.971
12.163V 5.06V 3.348V 5.11V 187.429 45.36°C 114.81V
30% 18.018A 3.466A 3.461A 1.374A 254.925 91.319% 878 19.7 41.42°C 0.979
12.148V 5.05V 3.337V 5.096V 279.156 46.47°C 114.78V
40% 24.624A 3.969A 3.969A 1.574A 340.005 91.398% 879 19.8 41.77°C 0.983
12.135V 5.039V 3.326V 5.082V 372.007 47.31°C 114.75V
50% 30.878A 4.975A 4.982A 1.776A 424.786 90.848% 881 19.8 42.11°C 0.985
12.121V 5.026V 3.312V 5.067V 467.58 48.14°C 114.72V
60% 37.131A 5.986A 6.003A 1.979A 509.333 90.021% 1426 34.8 42.92°C 0.984
12.106V 5.012V 3.298V 5.052V 565.797 49.51°C 114.69V
70% 43.472A 7.002A 7.033A 2.183A 594.647 89.194% 1693 39.4 43.39°C 0.984
12.089V 5V 3.285V 5.038V 666.691 50.47°C 114.66V
80% 49.827A 8.002A 8.073A 2.288A 679.384 88.333% 1805 41.6 43.96°C 0.986
12.074V 4.986V 3.27V 5.025V 769.114 52.06°C 114.62V
90% 56.589A 8.544A 8.594A 2.394A 764.903 87.408% 1809 41.7 45.02°C 0.987
12.059V 4.974V 3.258V 5.013V 875.089 54.03°C 114.59V
100% 63.104A 9.069A 9.151A 3.009A 849.729 86.205% 1811 41.7 45.34°C 0.989
12.045V 4.962V 3.245V 4.985V 985.704 55.37°C 114.56V
110% 69.501A 10.112A 10.317A 3.018A 934.312 84.314% 1810 41.7 46.67°C 0.984
12.030V 4.944V 3.227V 4.971V 1108.129 57.61°C 114.53V
CL1 0.115A 12.423A 12.453A 0A 104.29 80.895% 878 19.7 40.77°C 0.962
12.173V 4.991V 3.284V 5.129V 128.927 46.28°C 114.82V
CL2 0.114A 15.994A 0A 0A 81.388 80.187% 880 19.8 40.5°C 0.955
12.175V 5.002V 3.332V 5.142V 101.496 47.59°C 114.84V
CL3 0.113A 0A 16.012A 0A 54.179 75.105% 871 19.6 40.02°C 0.938
12.172V 5.033V 3.297V 5.141V 72.136 49.05°C 114.85V
CL4 70.547A 0A 0A 0A 849.49 87.194% 1818 41.7 45.54°C 0.989
12.042V 5.022V 3.303V 5.083V 974.267 56.52°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.210A 1.971A 1.964A 0.976A 84.993 87.392% 876 19.7 40.25°C 0.798
12.167V 5.074V 3.359V 5.124V 97.252 44.51°C 229.94V
20% 11.430A 2.964A 2.958A 1.174A 169.912 91.961% 876 19.7 40.88°C 0.897
12.163V 5.061V 3.346V 5.11V 184.772 45.41°C 229.92V
30% 18.017A 3.465A 3.463A 1.373A 254.912 92.945% 877 19.7 41.13°C 0.932
12.148V 5.05V 3.335V 5.097V 274.261 46.16°C 229.91V
40% 24.623A 3.968A 3.971A 1.574A 339.992 93.148% 879 19.8 41.83°C 0.946
12.135V 5.04V 3.324V 5.083V 365.004 47.37°C 229.89V
50% 30.875A 4.974A 4.985A 1.776A 424.744 92.87% 882 19.9 42.11°C 0.956
12.121V 5.026V 3.31V 5.068V 457.358 48.12°C 229.88V
60% 37.129A 5.985A 6.007A 1.979A 509.282 92.363% 1417 34.6 42.95°C 0.961
12.106V 5.013V 3.296V 5.054V 551.393 49.48°C 229.87V
70% 43.467A 7.001A 7.037A 2.183A 594.602 91.771% 1658 39.0 43.14°C 0.965
12.089V 5V 3.283V 5.038V 647.92 50.18°C 229.86V
80% 49.826A 8.001A 8.076A 2.288A 679.351 91.25% 1808 41.7 43.73°C 0.967
12.073V 4.987V 3.268V 5.026V 744.491 51.81°C 229.84V
90% 56.585A 8.542A 8.597A 2.393A 764.868 90.722% 1809 41.7 44.06°C 0.97
12.060V 4.975V 3.256V 5.014V 843.091 53.12°C 229.82V
100% 63.096A 9.066A 9.155A 3.008A 849.697 90.031% 1812 41.7 45.14°C 0.972
12.045V 4.963V 3.244V 4.987V 943.784 55.19°C 229.81V
110% 69.491A 10.107A 10.319A 3.015A 934.275 89.148% 1812 41.7 46.56°C 0.973
12.031V 4.946V 3.227V 4.974V 1048.01 57.48°C 229.79V
CL1 0.114A 12.417A 12.456A 0A 104.284 82.351% 879 19.8 40.02°C 0.85
12.170V 4.993V 3.283V 5.131V 126.634 45.47°C 229.94V
CL2 0.113A 15.989A 0A 0A 81.383 80.941% 880 19.8 40.06°C 0.806
12.174V 5.003V 3.331V 5.143V 100.547 47.16°C 229.94V
CL3 0.113A 0A 16.021A 0A 54.177 75.626% 872 19.6 40.78°C 0.73
12.171V 5.034V 3.295V 5.142V 71.64 49.88°C 229.94V
CL4 70.520A 0A 0A 0A 849.464 90.859% 1820 41.8 45.66°C 0.971
12.046V 5.023V 3.301V 5.084V 934.933 56.61°C 229.8V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.491A 0.489A 0.194A 19.995 48.569% 871 19.6 36.64°C 0.885
12.204V 5.087V 3.376V 5.15V 41.21 39.73°C 114.86V
40W 2.684A 0.688A 0.685A 0.291A 39.995 80.69% 870 19.4 37.34°C 0.903
12.175V 5.085V 3.374V 5.147V 49.564 40.72°C 114.85V
60W 4.152A 0.885A 0.881A 0.389A 59.995 84.923% 870 19.4 38.21°C 0.935
12.171V 5.083V 3.371V 5.143V 70.646 41.98°C 114.85V
80W 5.614A 1.083A 1.077A 0.487A 79.932 86.676% 873 19.6 39.96°C 0.946
12.168V 5.08V 3.368V 5.138V 92.217 43.92°C 114.84V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.216A 0.491A 0.489A 0.194A 19.991 48.311% 869 19.3 36.55°C 0.569
12.200V 5.089V 3.375V 5.15V 41.439 39.61°C 229.95V
40W 2.684A 0.688A 0.685A 0.291A 39.992 81.033% 870 19.4 37.47°C 0.63
12.173V 5.086V 3.372V 5.147V 49.354 40.77°C 229.95V
60W 4.152A 0.885A 0.881A 0.389A 59.993 85.483% 872 19.6 38.1°C 0.724
12.171V 5.083V 3.369V 5.142V 70.184 41.59°C 229.94V
80W 5.613A 1.083A 1.078A 0.487A 79.929 87.446% 874 19.6 39.1°C 0.786
12.168V 5.08V 3.366V 5.138V 91.4 42.96°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.21mV12.57mV12.36mV6.45mVPass
20% Load20.18mV14.68mV12.46mV6.30mVPass
30% Load13.25mV15.92mV12.67mV7.79mVPass
40% Load12.74mV16.23mV12.93mV10.12mVPass
50% Load14.28mV17.98mV13.75mV10.94mVPass
60% Load14.02mV20.14mV14.69mV12.65mVPass
70% Load14.95mV22.57mV16.08mV12.34mVPass
80% Load17.94mV31.53mV16.65mV13.01mVPass
90% Load17.43mV31.22mV15.10mV16.52mVPass
100% Load21.33mV16.62mV16.86mV17.30mVPass
110% Load22.73mV27.44mV18.49mV20.57mVPass
Crossload113.10mV30.92mV23.25mV6.10mVPass
Crossload212.32mV16.02mV26.63mV5.63mVPass
Crossload315.05mV41.22mV16.50mV5.68mVPass
Crossload418.35mV12.93mV11.94mV11.87mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.05mV13.50mV14.89mV6.24mVPass
20% Load18.99mV14.17mV13.03mV6.56mVPass
30% Load12.79mV15.87mV13.08mV7.59mVPass
40% Load12.84mV16.17mV12.77mV10.38mVPass
50% Load13.56mV18.34mV15.41mV10.79mVPass
60% Load13.97mV19.22mV14.84mV13.16mVPass
70% Load15.36mV23.75mV16.14mV11.67mVPass
80% Load18.20mV30.09mV16.45mV13.26mVPass
90% Load16.91mV27.87mV14.53mV16.16mVPass
100% Load22.09mV29.45mV17.12mV18.25mVPass
110% Load22.63mV25.07mV18.16mV17.98mVPass
Crossload123.12mV29.45mV23.68mV6.14mVPass
Crossload212.48mV16.90mV26.22mV5.52mVPass
Crossload314.95mV32.35mV16.91mV5.57mVPass
Crossload422.44mV12.75mV14.04mV11.89mVPass

The results above are not used in the certification process

Aqirys Magnetar 850W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
