CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PCCooler YN750
Serial NumberGMYN02C4600005
Lab IDPL75002306
  • Report: 23PS2306A
  • Receipt Date: Dec 5, 2023
  • Test Date: Dec 13, 2023
  • Report Date: Dec 15, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandPCCooler
Manufacturer (OEM)Andyson
SeriesYN
Model NumberP5-YN750-G1F
Serial NumberGMYN02C4600005
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)9-4.5
Rated Frequency (Hz)50-60
Rated Power (W)750
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202062.530.3
Watts100750153.6
Total Max. Power (W)750

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (500mm) 3 3 18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-26AWG No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm) 2 6 / 2 20AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Efficiency RatingGOLD
Noise RatingA+
Average Efficiency (>1450 load combinations)88.343%
Average Noise Output (>1450 Load Combinations)19.49dBA
Average PF (>1450 Load Combinations)0.981
Efficiency With 10W (≤500W) or 2% (>500W) Load72.785%
Standby Power Consumption0.0565W
12V Ripple (Full Load)16.81mV
5V Ripple (Full Load)15.00mV
3.3V Ripple (Full Load)22.14mV
5VSB Ripple (Full Load)20.01mV
12V Load Regulation0.59%
5V Load Regulation0.78%
3.3V Load Regulation1.03%
5VSB Load Regulation3.78%
Inrush Current60.040A
Efficiency RatingGOLD
Noise RatingA+
Average Efficiency (>1450 load combinations)90.345%
Average Noise Output (>1450 Load Combinations)19.56dBA
Average PF (>1450 Load Combinations)0.936
Efficiency With 10W (≤500W) or 2% (>500W) Load70.495%
Standby Power Consumption0.1407W
12V Ripple (Full Load)19.17mV
5V Ripple (Full Load)16.79mV
3.3V Ripple (Full Load)23.98mV
5VSB Ripple (Full Load)20.84mV
12V Load Regulation0.58%
5V Load Regulation0.68%
3.3V Load Regulation1.03%
5VSB Load Regulation3.84%
Inrush Current69.970A
12V Transient Response (200%)11.45V
5V Transient Response (200%)4.962V
3.3V Transient Response (200%)3.236V
5VSB Transient Response (200%)4.929V
Hold-Up Time & Power Ok Signal26.60ms
AC Loss to PWR_OK Hold Up Time21.90ms
PWR_OK Inactive to DC Loss Delay4.70ms
PSU Timings: T1 (20% / 100%)84.0ms90.0ms
PSU Timings: T3 (20% / 100%)120.0ms121.0ms
OPP (27.33°C / 42.02°C)138.81%129.54%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.6
AC Loss to PWR_OK Hold Up Time (ms)21.9
PWR_OK Inactive to DC Loss Delay (ms)4.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.84 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.17 % 2.00 % PASS
Real Power: 0.057 W -0.001 W N/A 0.093 W N/A N/A
Apparent Power: 10.591 W 10.562 W N/A 10.630 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.99 V 229.92 V 227.70 V 230.02 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.12 % 0.10 % N/A 0.14 % 2.00 % PASS
Real Power: 0.141 W 0.089 W N/A 0.202 W N/A N/A
Apparent Power: 35.913 W 35.838 W N/A 35.998 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Graphs

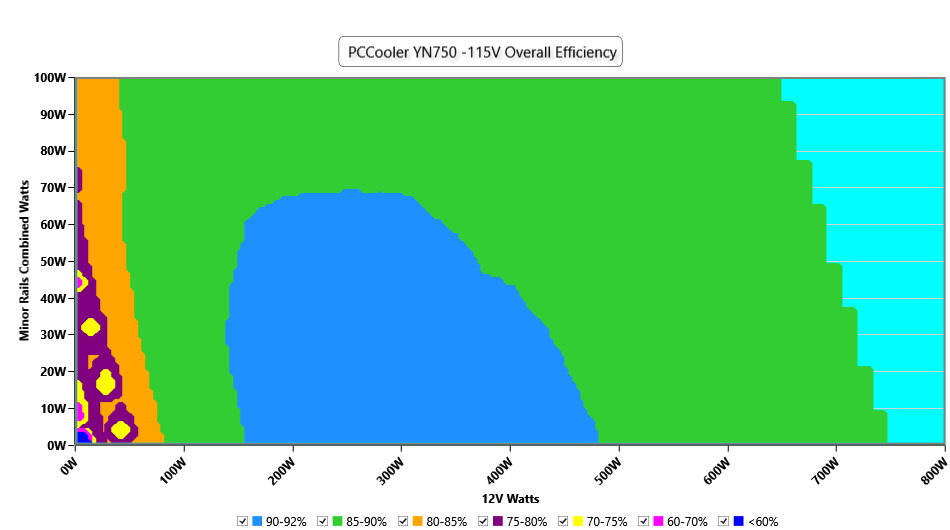

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

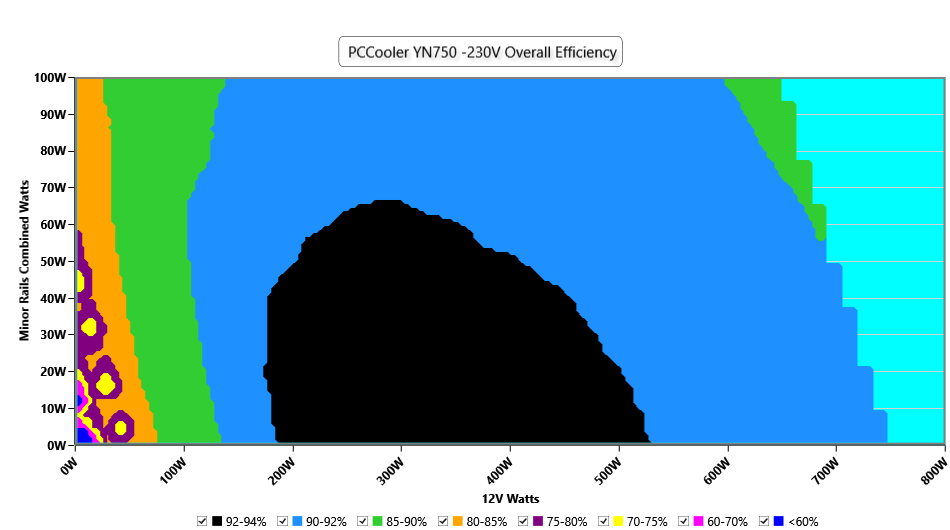

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

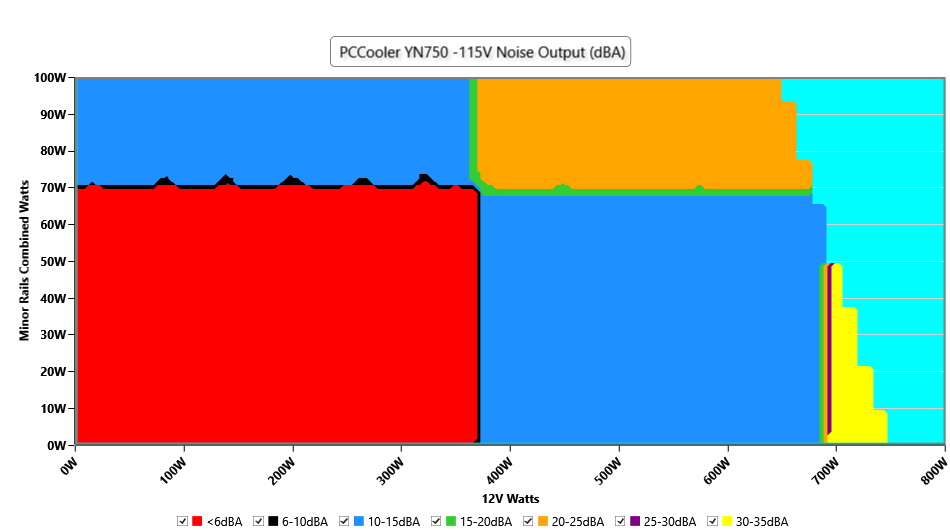

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

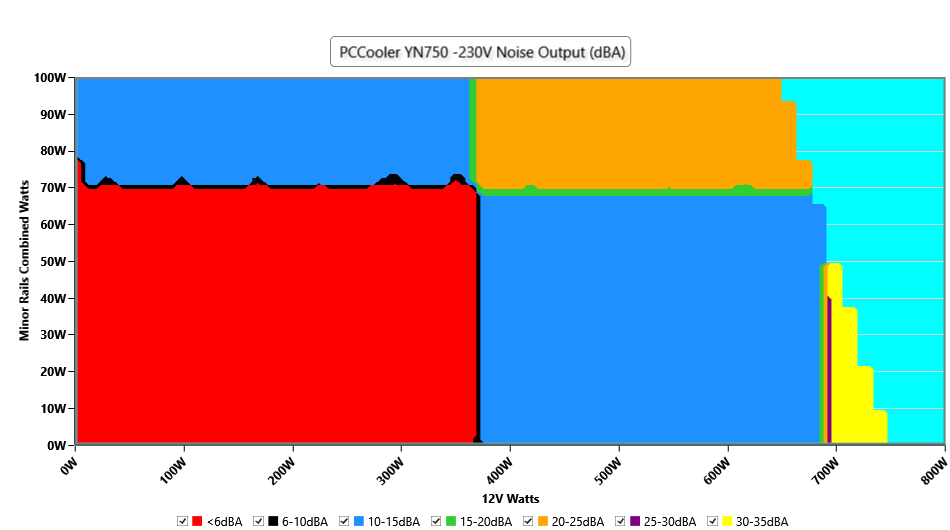

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

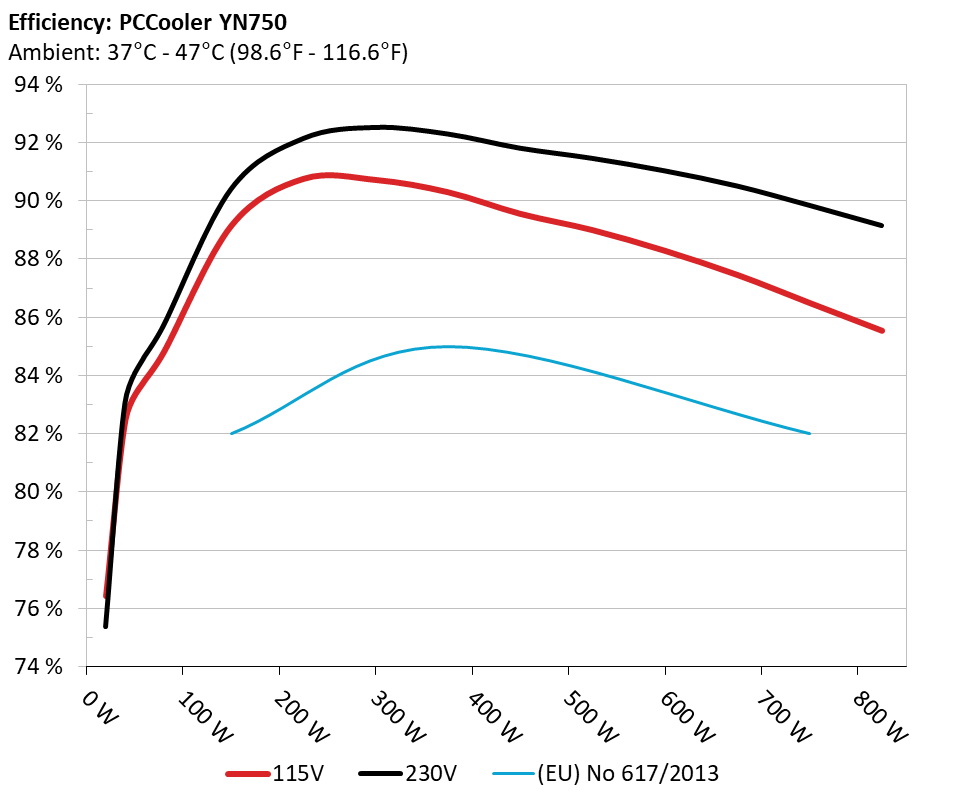

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

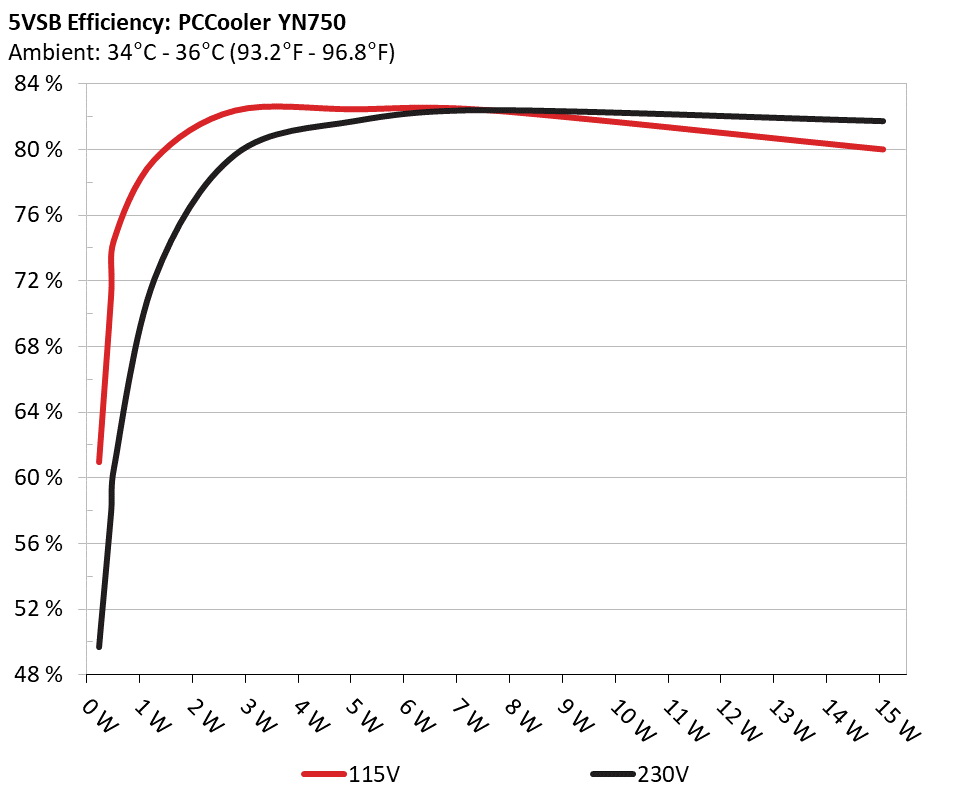

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.235W 60.952% 0.037
5.122V 0.386W 114.86V
2 0.09A 0.463W 71.131% 0.062
5.12V 0.651W 114.87V
3 0.55A 2.808W 82.385% 0.258
5.105V 3.409W 114.87V
4 1A 5.091W 82.465% 0.361
5.09V 6.174W 114.87V
5 1.5A 7.612W 82.405% 0.414
5.074V 9.237W 114.87V
6 3A 15.073W 80.018% 0.488
5.024V 18.836W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 49.713% 0.013
5.12V 0.464W 229.95V
2 0.09A 0.461W 58.036% 0.023
5.118V 0.796W 229.95V
3 0.55A 2.807W 79.688% 0.097
5.104V 3.522W 229.95V
4 1A 5.089W 81.742% 0.161
5.089V 6.225W 229.95V
5 1.5A 7.61W 82.398% 0.219
5.073V 9.235W 229.95V
6 3A 15.069W 81.728% 0.327
5.023V 18.438W 229.95V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.432A 1.978A 1.977A 0.985A 74.989 83.832% 0 <6.0 44.45°C 0.95
12.046V 5.055V 3.338V 5.077V 89.451 40.22°C 114.84V
20% 9.886A 2.969A 2.969A 1.186A 149.91 89.154% 0 <6.0 45.18°C 0.975
12.039V 5.052V 3.335V 5.06V 168.149 40.61°C 114.82V
30% 15.720A 3.465A 3.467A 1.388A 224.916 90.77% 0 <6.0 46.51°C 0.983
12.015V 5.05V 3.332V 5.044V 247.787 41.49°C 114.8V
40% 21.553A 3.963A 3.965A 1.591A 300.009 90.728% 0 <6.0 47.41°C 0.985
12.008V 5.048V 3.329V 5.027V 330.669 41.9°C 114.77V
50% 26.991A 4.957A 4.961A 1.797A 374.422 90.308% 0 <6.0 48.31°C 0.986
12.001V 5.044V 3.326V 5.01V 414.61 42.26°C 114.75V
60% 32.474A 5.957A 5.962A 2A 449.338 89.565% 863 24.8 42.6°C 0.987
11.995V 5.036V 3.321V 4.994V 501.688 49.26°C 114.72V
70% 37.956A 6.958A 6.964A 2.209A 524.23 89.006% 861 24.7 43.2°C 0.988
11.991V 5.031V 3.317V 4.979V 588.982 50.26°C 114.68V
80% 43.509A 7.956A 7.965A 2.315A 599.408 88.293% 858 24.6 43.89°C 0.989
11.986V 5.028V 3.314V 4.966V 678.887 51.98°C 114.66V
90% 49.399A 8.454A 8.455A 2.422A 674.412 87.465% 854 24.5 44.21°C 0.99
11.982V 5.026V 3.311V 4.953V 771.068 53.27°C 114.62V
100% 55.090A 8.955A 8.975A 3.046A 749.623 86.499% 850 24.3 44.93°C 0.991
11.979V 5.024V 3.309V 4.924V 866.632 54.94°C 114.59V
110% 60.657A 9.96A 10.075A 3.052A 824.646 85.544% 1429 39.4 46.98°C 0.992
11.975V 5.02V 3.305V 4.914V 964.007 57.89°C 114.56V
CL1 0.114A 11.958A 11.934A 0A 101.274 82.104% 873 25.2 40.8°C 0.966
12.045V 5.034V 3.326V 5.089V 123.35 46.26°C 114.82V
CL2 0.114A 19.917A 0A 0A 101.346 80.455% 873 25.2 40.61°C 0.966
12.046V 5.019V 3.339V 5.096V 125.967 47.63°C 114.83V
CL3 0.114A 0A 19.881A 0A 67.371 74.084% 1439 39.6 41.06°C 0.951
12.042V 5.06V 3.32V 5.093V 90.937 50.15°C 114.84V
CL4 62.584A 0A 0A 0A 749.488 87.496% 1425 39.3 45.81°C 0.991
11.975V 5.046V 3.32V 5.037V 856.601 56.79°C 114.6V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 4.432A 1.978A 1.977A 0.985A 74.987 84.647% 0 <6.0 44.51°C 0.762
12.046V 5.055V 3.338V 5.077V 88.588 40.25°C 229.94V
20% 9.884A 2.968A 2.969A 1.185A 149.896 90.409% 0 <6.0 45.18°C 0.887
12.040V 5.052V 3.334V 5.061V 165.797 40.66°C 229.93V
30% 15.716A 3.465A 3.467A 1.387A 224.886 92.152% 0 <6.0 46.37°C 0.93
12.016V 5.05V 3.331V 5.045V 244.038 41.33°C 229.92V
40% 21.548A 3.962A 3.965A 1.59A 299.962 92.534% 0 <6.0 47.4°C 0.951
12.009V 5.048V 3.329V 5.03V 324.166 41.86°C 229.91V
50% 26.981A 4.957A 4.962A 1.796A 374.307 92.309% 0 <6.0 48.21°C 0.961
12.001V 5.044V 3.325V 5.011V 405.496 42.08°C 229.89V
60% 32.470A 5.957A 5.963A 2A 449.285 91.822% 865 24.9 42.63°C 0.968
11.996V 5.037V 3.321V 4.993V 489.305 49.21°C 229.88V
70% 37.964A 6.958A 6.966A 2.211A 524.26 91.472% 864 24.9 43.43°C 0.973
11.989V 5.032V 3.317V 4.976V 573.136 50.47°C 229.87V
80% 43.518A 7.955A 7.967A 2.316A 599.492 91.043% 860 24.7 44°C 0.976
11.985V 5.029V 3.313V 4.965V 658.476 52.09°C 229.85V
90% 49.404A 8.452A 8.457A 2.423A 674.431 90.522% 857 24.6 44.13°C 0.978
11.982V 5.028V 3.311V 4.952V 745.049 53.16°C 229.84V
100% 55.095A 8.953A 8.978A 3.047A 749.642 89.857% 852 24.4 45.35°C 0.979
11.978V 5.026V 3.308V 4.923V 834.264 55.36°C 229.83V
110% 60.661A 9.956A 10.077A 3.053A 824.665 89.16% 1432 39.5 46.91°C 0.981
11.974V 5.021V 3.304V 4.912V 924.927 57.84°C 229.82V
CL1 0.114A 11.953A 11.936A 0A 101.275 83.117% 874 25.3 40.64°C 0.836
12.044V 5.036V 3.326V 5.089V 121.845 46.11°C 229.94V
CL2 0.114A 19.907A 0A 0A 101.351 81.561% 875 25.3 41.82°C 0.839
12.045V 5.022V 3.339V 5.096V 124.262 48.92°C 229.94V
CL3 0.114A 0A 19.882A 0A 67.371 74.825% 1439 39.6 41.34°C 0.766
12.042V 5.06V 3.319V 5.093V 90.038 50.35°C 229.94V
CL4 62.573A 0A 0A 0A 749.45 90.751% 1428 39.4 45.11°C 0.98
11.977V 5.046V 3.32V 5.038V 825.829 56.09°C 229.83V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.240A 0.494A 0.493A 0.196A 19.992 76.417% 0 <6.0 39.81°C 0.753
11.976V 5.063V 3.343V 5.11V 26.161 36.74°C 114.87V
40W 2.728A 0.691A 0.691A 0.294A 39.989 82.471% 0 <6.0 40.74°C 0.889
11.979V 5.062V 3.342V 5.105V 48.487 37.43°C 114.86V
60W 4.194A 0.889A 0.889A 0.392A 59.987 81.512% 0 <6.0 42.24°C 0.935
12.047V 5.061V 3.341V 5.1V 73.594 38.41°C 114.85V
80W 5.669A 1.087A 1.087A 0.491A 79.914 84.81% 0 <6.0 43.72°C 0.953
12.046V 5.059V 3.34V 5.094V 94.228 39.75°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.494A 0.494A 0.196A 19.984 75.377% 0 <6.0 39.8°C 0.407
11.977V 5.06V 3.342V 5.112V 26.138 36.75°C 229.95V
40W 2.728A 0.692A 0.691A 0.294A 39.985 83.051% 0 <6.0 40.59°C 0.579
11.979V 5.06V 3.341V 5.106V 48.144 37.24°C 229.95V
60W 4.194A 0.889A 0.889A 0.392A 59.985 82.265% 0 <6.0 41.54°C 0.706
12.047V 5.059V 3.34V 5.1V 72.917 38.01°C 229.95V
80W 5.669A 1.087A 1.087A 0.491A 79.911 85.717% 0 <6.0 43.26°C 0.775
12.045V 5.058V 3.339V 5.094V 93.225 39.43°C 229.94V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load13.56mV11.64mV15.05mV15.43mVPass
20% Load13.87mV12.73mV15.46mV14.97mVPass
30% Load13.73mV11.44mV15.72mV14.92mVPass
40% Load10.16mV12.16mV14.58mV14.97mVPass
50% Load11.19mV11.39mV14.01mV14.30mVPass
60% Load11.98mV12.52mV15.51mV17.08mVPass
70% Load12.84mV13.86mV18.36mV17.76mVPass
80% Load13.25mV14.07mV18.62mV17.96mVPass
90% Load12.78mV14.37mV19.44mV19.31mVPass
100% Load16.81mV15.00mV22.14mV20.01mVPass
110% Load18.45mV14.76mV20.17mV19.60mVPass
Crossload113.93mV14.87mV18.14mV13.22mVPass
Crossload215.88mV18.49mV15.41mV13.42mVPass
Crossload311.76mV12.88mV16.55mV11.66mVPass
Crossload418.83mV15.14mV21.01mV14.76mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.74mV12.57mV14.94mV14.76mVPass
20% Load12.74mV13.70mV16.39mV15.54mVPass
30% Load14.35mV14.32mV16.75mV16.00mVPass
40% Load11.86mV14.27mV16.81mV16.46mVPass
50% Load12.17mV14.37mV17.22mV17.03mVPass
60% Load10.26mV11.90mV15.20mV15.38mVPass
70% Load10.72mV11.44mV16.39mV15.23mVPass
80% Load14.18mV15.09mV18.15mV17.50mVPass
90% Load13.46mV15.09mV18.92mV17.45mVPass
100% Load19.17mV16.79mV23.98mV20.84mVPass
110% Load19.60mV17.03mV24.62mV20.62mVPass
Crossload114.90mV15.82mV18.61mV13.19mVPass
Crossload216.19mV17.51mV16.55mV11.72mVPass
Crossload311.60mV13.45mV16.19mV11.72mVPass
Crossload418.33mV15.62mV23.10mV15.73mVPass

The results above are not used in the certification process

PCCooler YN750

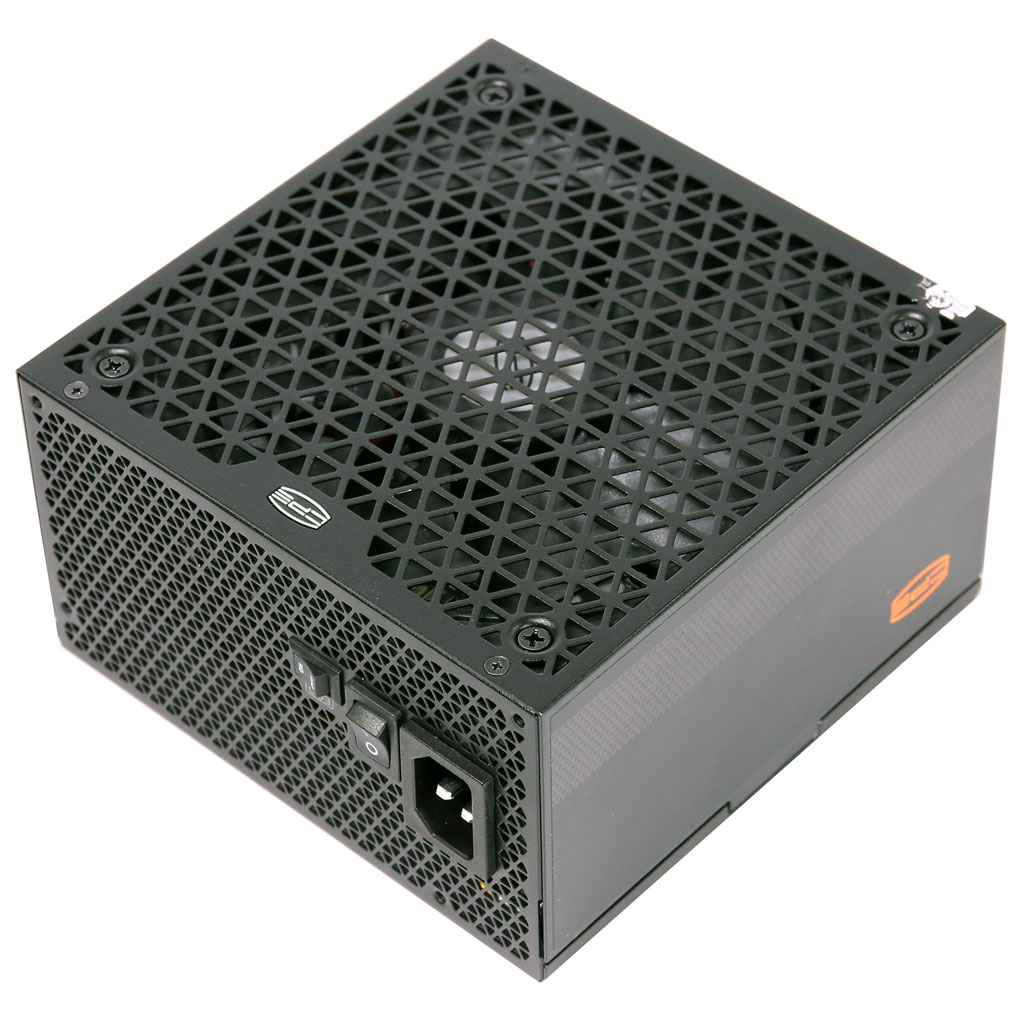

Top side

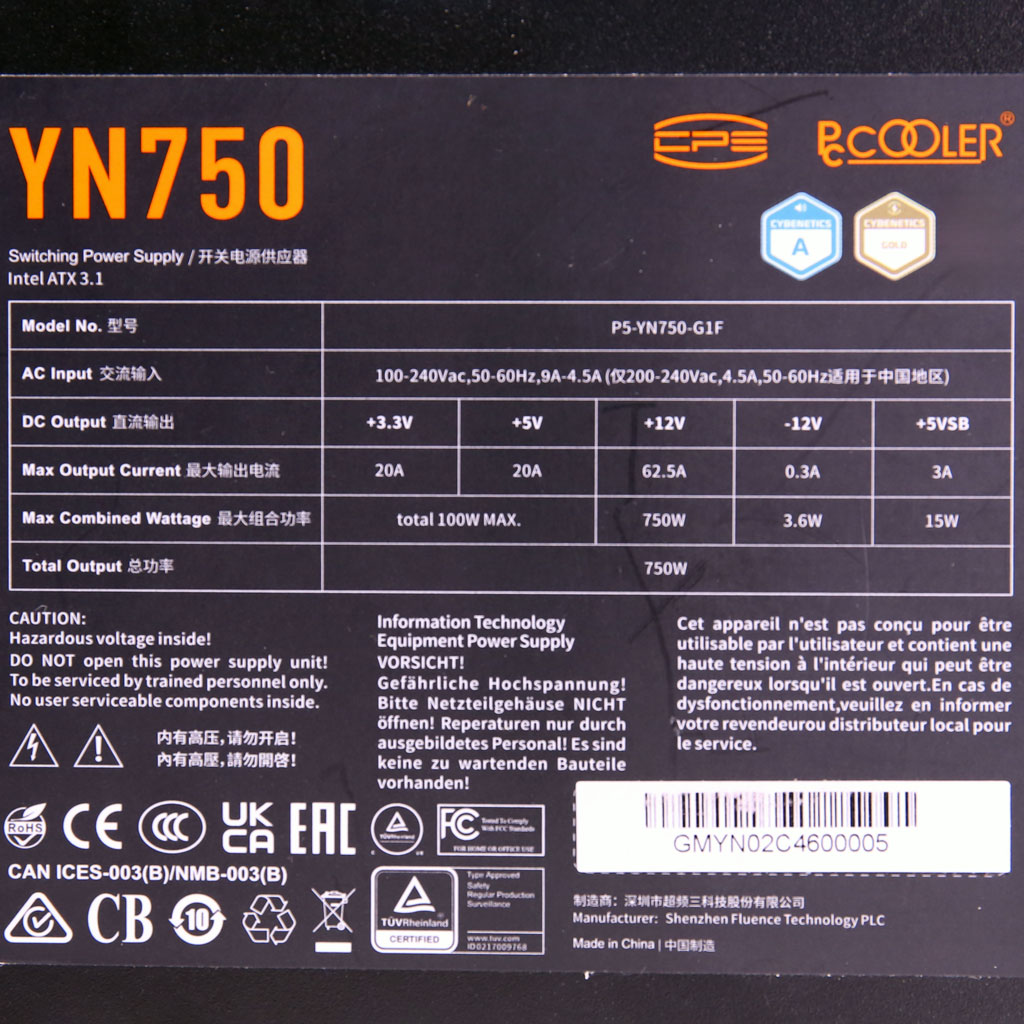

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
