CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Montech Titan PLA 1200W
Serial Number
Lab IDMT12002304
  • Report: 23PS2304A
  • Receipt Date: Nov 30, 2023
  • Test Date: Dec 11, 2023
  • Report Date: Dec 13, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandMontech
Manufacturer (OEM)Seasonic
SeriesTitan PLA
Model NumberTIX0126
Serial Number
DUT Notes3.3V rail dropped below 3.14V in the 200% Transient Response Test (ATX v3.1)

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1200
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12F-Z)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps252510030.3
Watts1251200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (630mm) 1 1 16-18AWG No
4+4 pin EPS12V (710mm) 2 2 16AWG No
6+2 pin PCIe (760mm) 3 3 16-18AWG No
12+4 pin PCIe (760mm) (600W) 1 1 16-28AWG No
SATA 3.3 (410mm+155mm) 1 2 18AWG No
SATA (510mm+155mm+155mm+155mm) 4 16 18AWG No
4-pin Molex (460mm+125mm+125mm) 1 3 18AWG Νο

Parts Description

General Data
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side
Transient Filter 4x Y caps, 3x X caps, 2x CM chokes, 1x MOV
Inrush Protection 1x NTC Thermistor MF72 5D-20 (5 Ohm) & Relay
Bridge Rectifier(s) 2x
APFC MOSFETs 2x Toshiba TK31E60W (600V, 30.8A @ 25°C, Rds(on): 0.088Ohm)
APFC Boost Diode 1x Cree C6D10065 (650V, 10A @ 155°C)
Bulk Cap(s) 1x Rubycon (420V, 470uF, 3,000h @ 105°C, MXE) &
1x Rubycon (420V, 680uF, 3,000h @ 105°C, MXK)
Main Switchers 4x Infineon IPW60R120P7 (650V, 16A @ 100°C, Rds(on): 0.12Ohm)
APFC Controller Champion CM6500UNX
Resonant Controller Champion CU6901VPA
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side
+12V MOSFETs 8x Nexperia PSMN1R0-40YLD (40V, 280A @ 25°C, Rds(on): 1.1mOhm)
5V & 3.3V DC-DC Converters: 6x Nexperia PSMN4R0-30YLD (30V, 95A @ 25°C, Rds(on): 4mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 3x Nichicon (2-5,000h @ 105°C, HD),
9x Nippon Chemi-Con (5-6,000h @ 105°C, KZH),
4x Rubycon (3-6,000h @ 105°C, YXG),
Polymer: 31x FPCAP
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller Nuvoton M031
Fan Model Hong Hua HA13525H12F-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit
Rectifier 1x
Standby PWM Controller Excelliance MOS EM85690

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)26.1
AC Loss to PWR_OK Hold Up Time (ms)21.4
PWR_OK Inactive to DC Loss Delay (ms)4.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.86 V 114.80 V 113.85 V 114.91 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.10 % N/A 0.26 % 2.00 % PASS
Real Power: 0.059 W 0.040 W N/A 0.080 W N/A N/A
Apparent Power: 10.409 W 10.378 W N/A 10.449 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.87 V 229.80 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.13 % 0.09 % N/A 0.20 % 2.00 % PASS
Real Power: 0.118 W 0.073 W N/A 0.169 W N/A N/A
Apparent Power: 35.234 W 35.194 W N/A 35.285 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

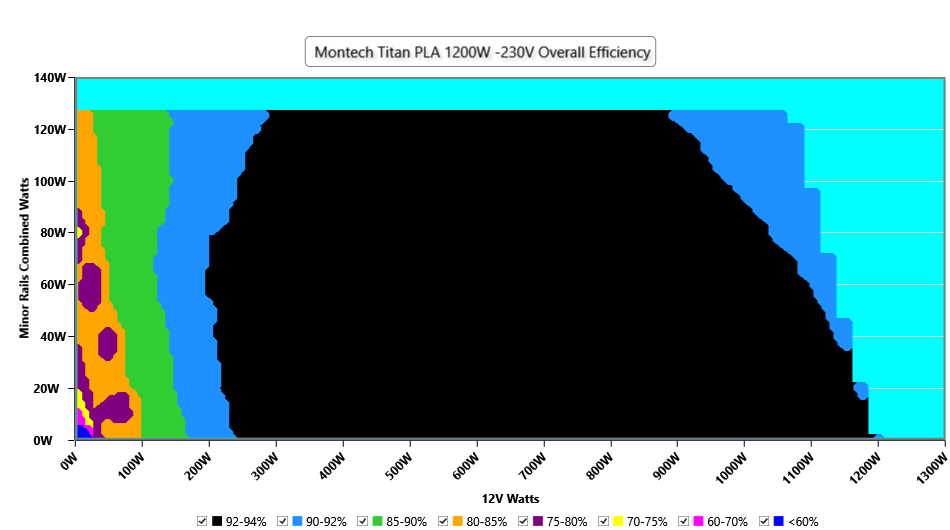

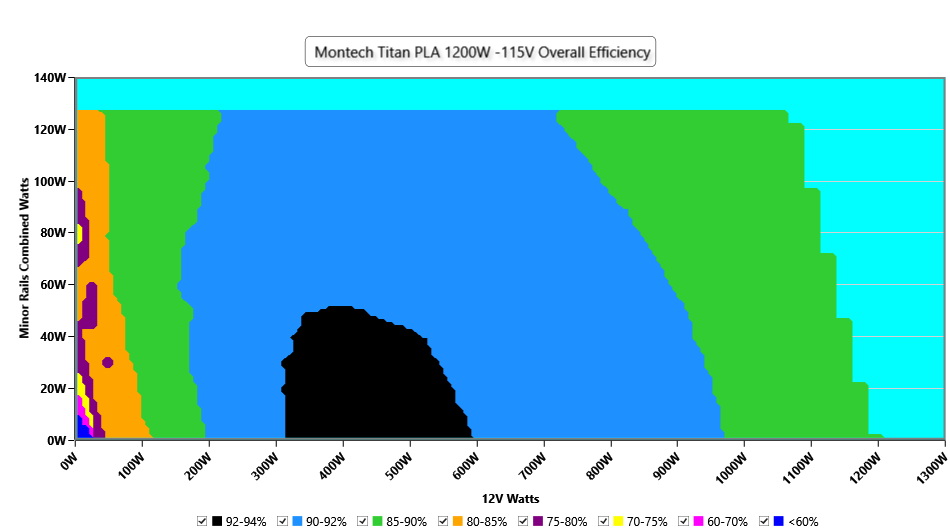

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

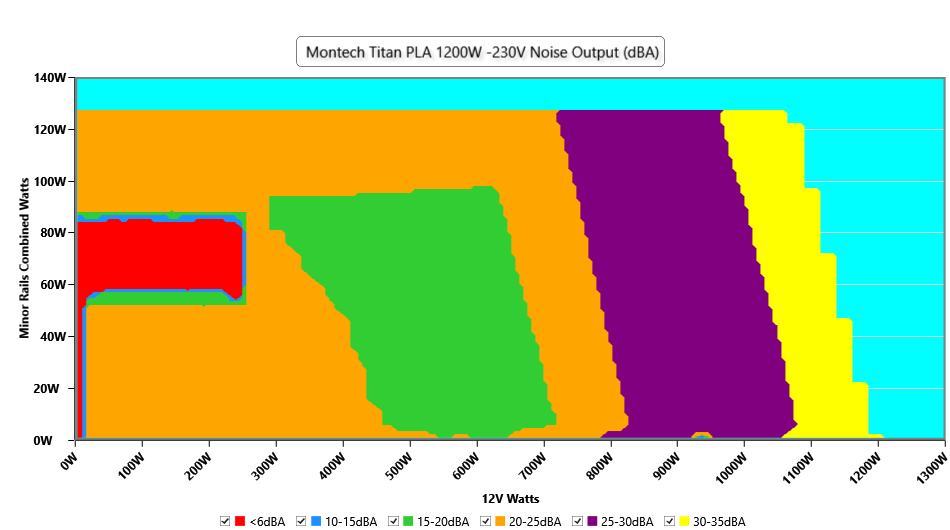

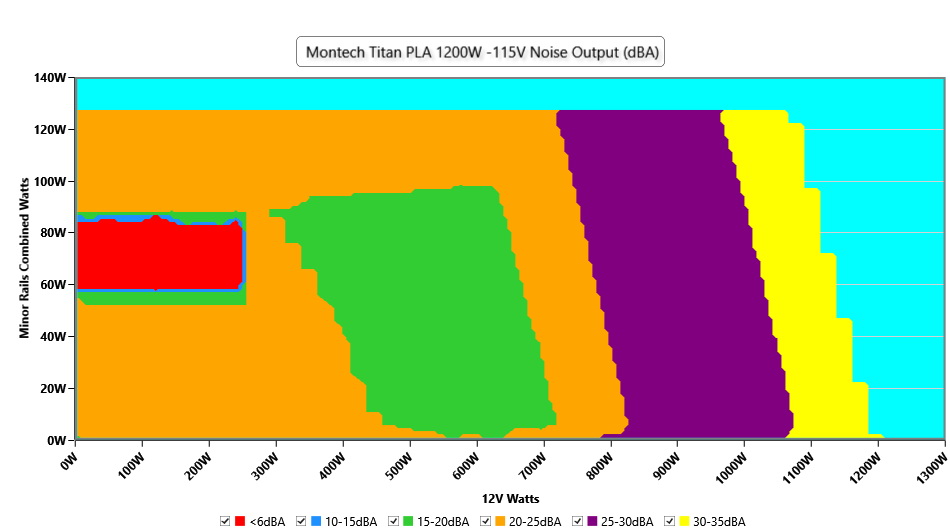

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

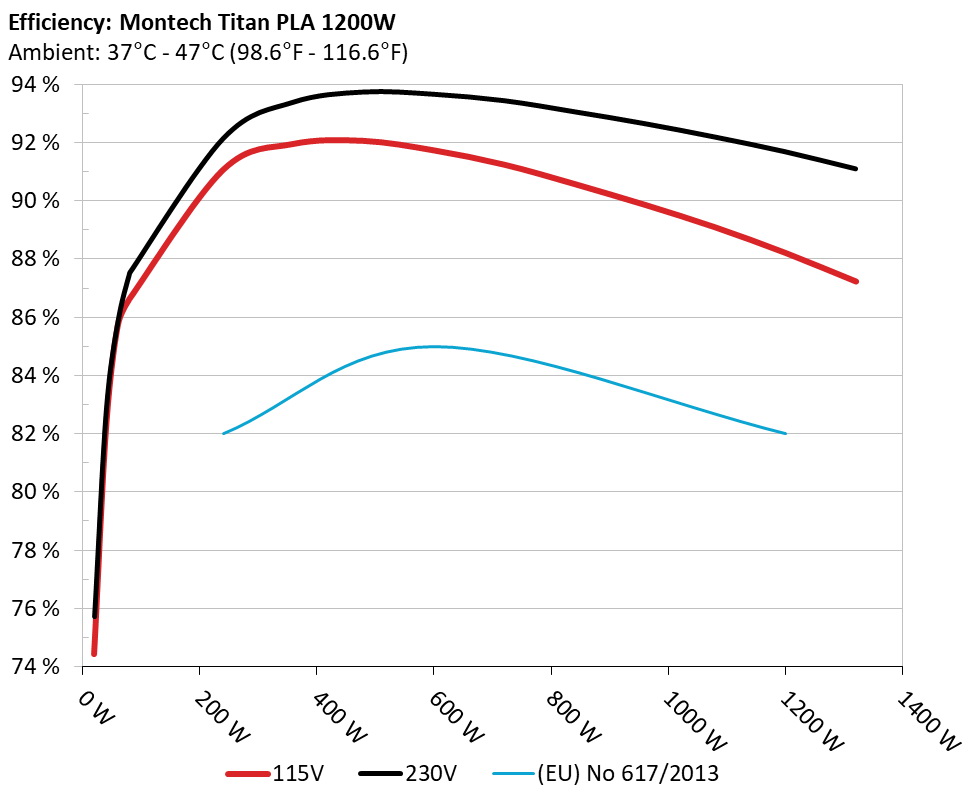

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

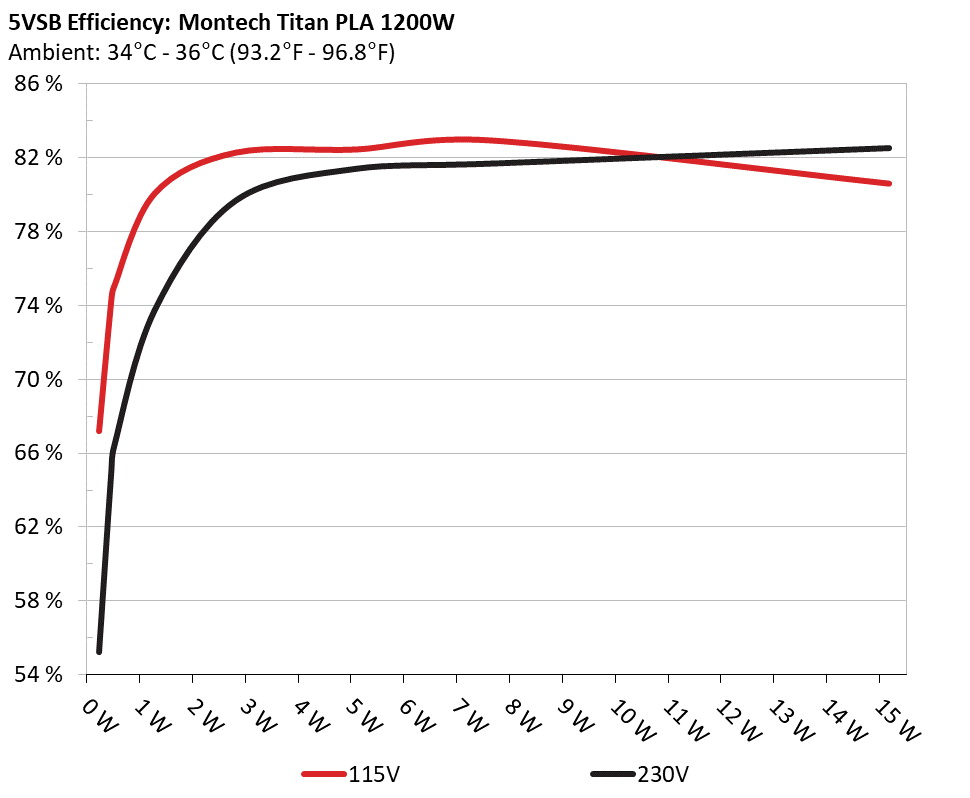

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 66.691% 0.034
5.121V 0.345W 114.87V
2 0.09A 0.461W 73.774% 0.06
5.12V 0.625W 114.87V
3 0.55A 2.81W 81.752% 0.261
5.11V 3.437W 114.87V
4 1A 5.1W 81.924% 0.355
5.1V 6.225W 114.85V
5 1.5A 7.635W 82.415% 0.412
5.089V 9.264W 114.85V
6 3A 15.168W 80.081% 0.487
5.056V 18.941W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 54.739% 0.012
5.121V 0.422W 229.87V
2 0.09A 0.461W 64.477% 0.021
5.12V 0.715W 229.86V
3 0.55A 2.81W 79.185% 0.099
5.109V 3.549W 229.87V
4 1A 5.1W 80.923% 0.164
5.1V 6.302W 229.87V
5 1.5A 7.635W 81.203% 0.219
5.089V 9.402W 229.86V
6 3A 15.171W 82.04% 0.327
5.056V 18.493W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.075A 1.993A 1.986A 0.982A 119.991 86.63% 0 <6.0 44.39°C 0.967
12.185V 5.018V 3.322V 5.094V 138.508 40.19°C 114.81V
20% 17.150A 2.991A 2.982A 1.181A 239.949 91.07% 0 <6.0 45.11°C 0.979
12.190V 5.015V 3.32V 5.082V 263.476 40.57°C 114.78V
30% 26.567A 3.491A 3.483A 1.381A 359.196 91.962% 846 21.8 41.51°C 0.983
12.163V 5.013V 3.316V 5.071V 390.589 46.53°C 114.74V
40% 36.041A 3.992A 3.982A 1.581A 479.566 92.069% 840 21.5 41.98°C 0.984
12.163V 5.011V 3.315V 5.059V 520.879 47.49°C 114.7V
50% 45.114A 4.993A 4.982A 1.783A 599.326 91.746% 833 21.2 42.27°C 0.984
12.165V 5.008V 3.312V 5.047V 653.246 48.26°C 114.66V
60% 54.233A 5.995A 5.983A 1.986A 719.845 91.252% 827 20.9 42.59°C 0.986
12.170V 5.005V 3.31V 5.035V 788.852 49.17°C 114.61V
70% 63.293A 6.999A 6.986A 2.19A 839.583 90.587% 933 24.6 43.34°C 0.988
12.173V 5.002V 3.307V 5.023V 926.825 50.36°C 114.58V
80% 72.391A 8.003A 7.989A 2.294A 959.561 89.872% 1038 28.3 43.76°C 0.99
12.180V 4.998V 3.304V 5.013V 1067.7 51.81°C 114.52V
90% 81.806A 8.507A 8.479A 2.399A 1079.381 89.103% 1138 31.1 44.83°C 0.992
12.185V 4.995V 3.302V 5.003V 1211.394 53.88°C 114.48V
100% 91.023A 9.013A 8.999A 3.011A 1199.436 88.222% 1251 34.0 45.7°C 0.993
12.191V 4.993V 3.3V 4.982V 1359.577 55.71°C 114.42V
110% 100.178A 10.021A 10.099A 3.016A 1320.06 87.238% 1956 46.1 46.65°C 0.994
12.196V 4.989V 3.297V 4.974V 1513.185 57.56°C 114.37V
CL1 0.115A 15.085A 15.023A 0.001A 126.312 82.363% 861 22.3 40.21°C 0.975
12.231V 4.992V 3.302V 5.109V 153.36 45.65°C 114.81V
CL2 0.114A 25.022A 0A 0.001A 126.258 80.897% 1069 29.1 40.97°C 0.975
12.218V 4.99V 3.314V 5.111V 156.073 47.99°C 114.8V
CL3 0.113A 0A 24.983A 0.001A 83.89 74.276% 1068 29.1 40.19°C 0.967
12.208V 5.008V 3.302V 5.111V 112.944 49.21°C 114.82V
CL4 98.547A 0A 0A 0A 1200.003 88.701% 1237 33.8 45.41°C 0.992
12.177V 5.013V 3.317V 5.052V 1352.862 56.39°C 114.42V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.068A 1.992A 1.986A 0.982A 119.984 87.521% 0 <6.0 44.24°C 0.884
12.194V 5.018V 3.323V 5.094V 137.1 40.03°C 229.85V
20% 17.139A 2.991A 2.982A 1.181A 239.942 92.133% 0 <6.0 45.46°C 0.943
12.197V 5.015V 3.32V 5.082V 260.425 40.94°C 229.83V
30% 26.553A 3.491A 3.483A 1.381A 359.172 93.372% 845 21.8 41.53°C 0.962
12.169V 5.013V 3.317V 5.071V 384.668 46.52°C 229.81V
40% 36.031A 3.991A 3.983A 1.581A 479.538 93.723% 839 21.5 41.84°C 0.97
12.166V 5.011V 3.315V 5.059V 511.654 47.31°C 229.79V
50% 45.107A 4.992A 4.983A 1.783A 599.283 93.646% 832 21.2 42.33°C 0.976
12.166V 5.008V 3.312V 5.048V 639.944 48.39°C 229.77V
60% 54.233A 5.994A 5.984A 1.986A 719.776 93.424% 825 20.8 43.08°C 0.979
12.169V 5.005V 3.309V 5.036V 770.44 49.59°C 229.75V
70% 63.284A 6.998A 6.986A 2.189A 839.51 93.045% 931 24.6 43.88°C 0.982
12.174V 5.002V 3.307V 5.024V 902.266 50.93°C 229.73V
80% 72.386A 8.001A 7.989A 2.293A 959.487 92.639% 1034 28.1 44.14°C 0.983
12.180V 4.999V 3.304V 5.014V 1035.732 52.24°C 229.71V
90% 81.782A 8.505A 8.478A 2.398A 1079.291 92.179% 1134 30.8 45.1°C 0.985
12.188V 4.996V 3.302V 5.005V 1170.87 54.17°C 229.7V
100% 91.008A 9.01A 8.999A 3.01A 1199.351 91.676% 1251 34.0 45.69°C 0.986
12.193V 4.994V 3.3V 4.984V 1308.243 55.71°C 229.67V
110% 100.168A 10.018A 10.099A 3.014A 1320.001 91.088% 1886 44.9 46.64°C 0.987
12.196V 4.991V 3.297V 4.976V 1449.144 57.56°C 229.65V
CL1 0.114A 15.082A 15.025A 0.001A 126.302 83.032% 860 22.3 39.26°C 0.895
12.230V 4.993V 3.301V 5.11V 152.113 44.74°C 229.85V
CL2 0.113A 25.015A 0A 0.001A 126.258 81.574% 1064 29.1 40.11°C 0.897
12.215V 4.992V 3.315V 5.112V 154.774 47.18°C 229.85V
CL3 0.113A 0A 24.996A 0.001A 83.885 74.776% 1063 29.1 40.66°C 0.852
12.202V 5.01V 3.3V 5.112V 112.184 49.72°C 229.86V
CL4 98.609A 0A 0A 0A 1199.923 92.166% 1232 33.6 43.47°C 0.985
12.168V 5.013V 3.317V 5.053V 1301.913 54.39°C 229.67V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.498A 0.496A 0.195A 19.996 74.437% 0 <6.0 39.78°C 0.852
12.070V 5.024V 3.326V 5.117V 26.859 36.72°C 114.85V
40W 2.708A 0.697A 0.695A 0.293A 39.997 82.091% 0 <6.0 40.55°C 0.927
12.074V 5.023V 3.325V 5.113V 48.726 37.2°C 114.84V
60W 4.183A 0.896A 0.893A 0.391A 59.997 85.697% 0 <6.0 41.98°C 0.949
12.079V 5.022V 3.325V 5.11V 70.011 38.23°C 114.83V
80W 5.608A 1.095A 1.092A 0.49A 79.939 82.65% 0 <6.0 43.24°C 0.958
12.182V 5.021V 3.324V 5.107V 96.722 39.26°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.498A 0.496A 0.195A 19.999 75.731% 0 <6.0 39.71°C 0.48
12.073V 5.024V 3.326V 5.116V 26.417 36.64°C 229.87V
40W 2.706A 0.697A 0.695A 0.293A 40 82.8% 0 <6.0 40.86°C 0.658
12.077V 5.022V 3.325V 5.113V 48.309 37.57°C 229.85V
60W 4.182A 0.896A 0.893A 0.391A 59.998 85.849% 0 <6.0 41.46°C 0.753
12.083V 5.022V 3.324V 5.11V 69.888 37.91°C 229.86V
80W 5.606A 1.095A 1.092A 0.489A 79.932 83.201% 0 <6.0 42.34°C 0.822
12.186V 5.021V 3.325V 5.107V 96.07 38.55°C 229.85V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load21.38mV16.68mV20.73mV21.45mVPass
20% Load22.35mV17.70mV18.78mV19.50mVPass
30% Load21.89mV19.09mV19.14mV30.84mVPass
40% Load23.17mV19.09mV21.24mV29.76mVPass
50% Load21.58mV20.32mV20.78mV30.48mVPass
60% Load21.02mV20.58mV20.42mV32.48mVPass
70% Load23.01mV20.48mV21.34mV28.73mVPass
80% Load21.79mV20.38mV23.55mV31.92mVPass
90% Load23.22mV21.66mV24.68mV29.66mVPass
100% Load31.84mV24.77mV27.60mV31.84mVPass
110% Load32.66mV24.74mV27.69mV32.72mVPass
Crossload120.89mV19.31mV23.14mV34.93mVPass
Crossload224.19mV27.35mV25.19mV33.76mVPass
Crossload324.65mV21.09mV25.96mV33.61mVPass
Crossload432.56mV23.40mV26.61mV32.50mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load20.51mV16.73mV19.50mV20.78mVPass
20% Load22.61mV17.55mV18.88mV18.52mVPass
30% Load20.20mV16.68mV18.27mV29.45mVPass
40% Load21.07mV18.68mV19.70mV30.94mVPass
50% Load21.07mV18.52mV21.24mV31.20mVPass
60% Load21.07mV19.40mV19.70mV31.10mVPass
70% Load21.12mV19.96mV22.57mV32.38mVPass
80% Load21.12mV22.02mV23.55mV31.04mVPass
90% Load20.82mV21.20mV23.29mV30.17mVPass
100% Load31.95mV22.81mV25.97mV32.77mVPass
110% Load32.44mV24.31mV27.50mV32.93mVPass
Crossload120.66mV19.65mV22.46mV35.70mVPass
Crossload225.01mV25.92mV26.78mV36.02mVPass
Crossload324.34mV19.14mV24.93mV35.56mVPass
Crossload431.84mV21.00mV25.79mV33.95mVPass

The results above are not used in the certification process

Montech Titan PLA 1200W

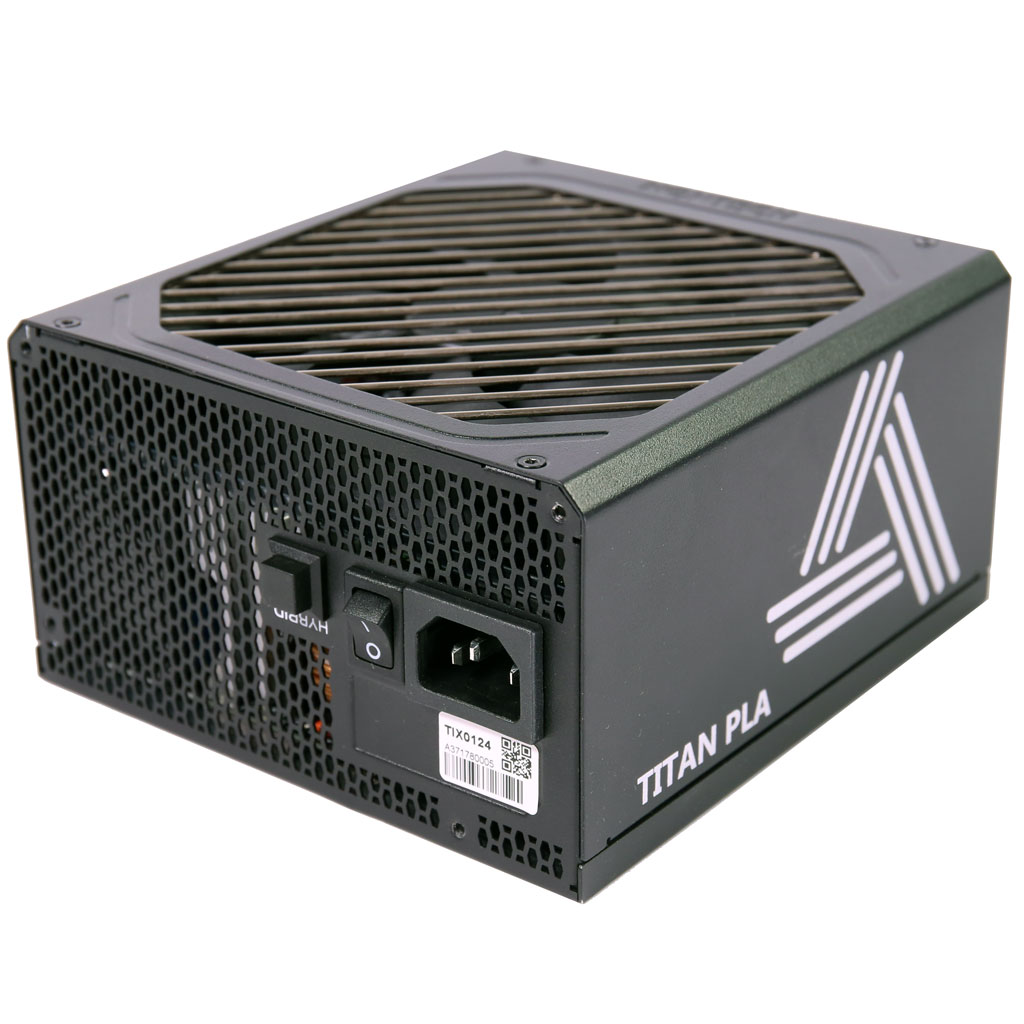

Top side

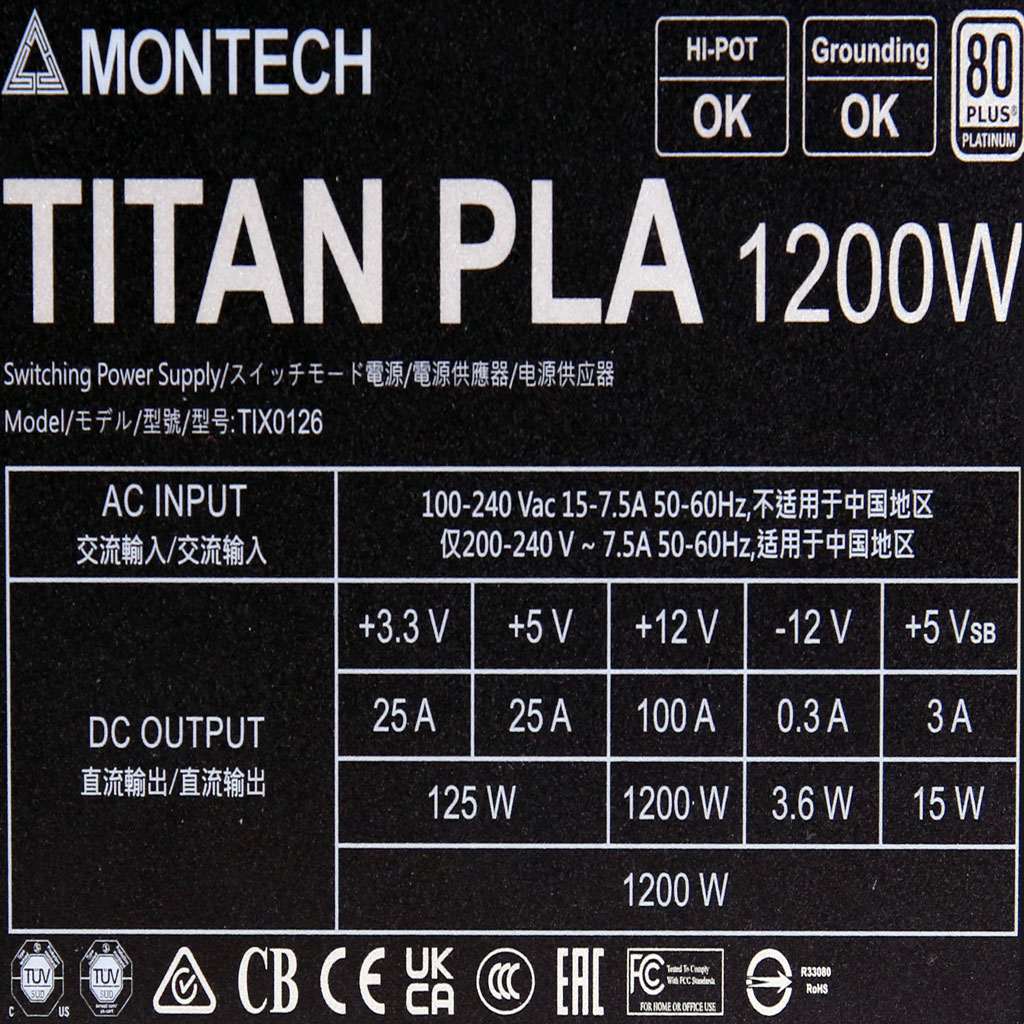

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
