CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
Game G Factor PSG1050
Serial Number7503038925466
Lab IDGF10502292
  • Report: 23PS2292A
  • Receipt Date: Nov 15, 2023
  • Test Date: Nov 23, 2023
  • Report Date: Nov 24, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandGame G Factor
Manufacturer (OEM)Vorago SA de CV
SeriesPSG
Model NumberPSG1050
Serial Number7503038925466
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-8
Rated Frequency (Hz)47-63
Rated Power (W)1050
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan
(PY-14025L12S)
Semi-Passive Operation
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525822.50.5
Watts12598412.56
Total Max. Power (W)1050

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 1 1 16AWG No
6+2 pin PCIe (550mm) 2 2 16AWG No
6+2 pin PCIe (550mm+75mm) 1 2 16-18AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm) 1 3 18AWG No
4-pin Molex (450mm+150mm+150mm) 3 9 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.2
AC Loss to PWR_OK Hold Up Time (ms)18.3
PWR_OK Inactive to DC Loss Delay (ms)2.9

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.87 V 114.80 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.27 % 2.00 % PASS
Real Power: 0.097 W 0.074 W N/A 0.124 W N/A N/A
Apparent Power: 13.620 W 13.585 W N/A 13.657 W N/A N/A
Power Factor: 0.006 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.89 V 229.84 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.184 W 0.131 W N/A 0.256 W N/A N/A
Apparent Power: 45.702 W 45.643 W N/A 45.756 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

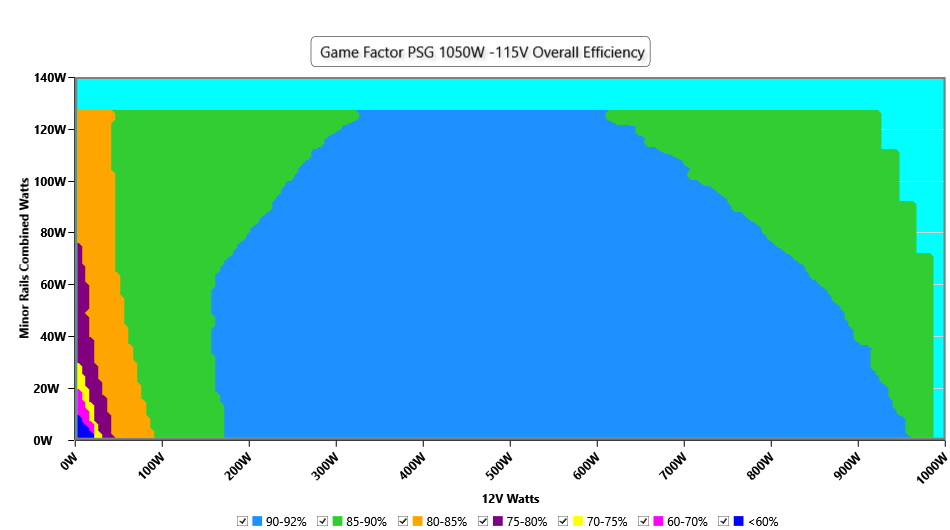

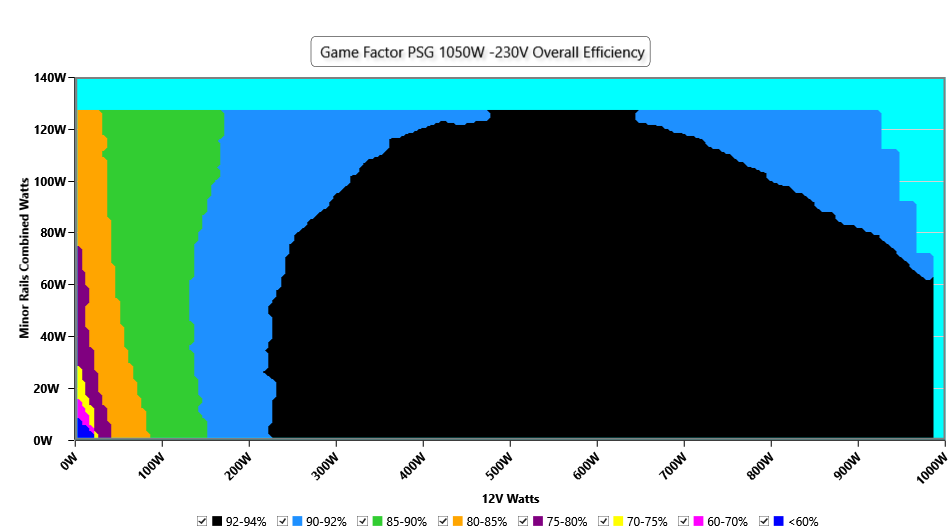

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

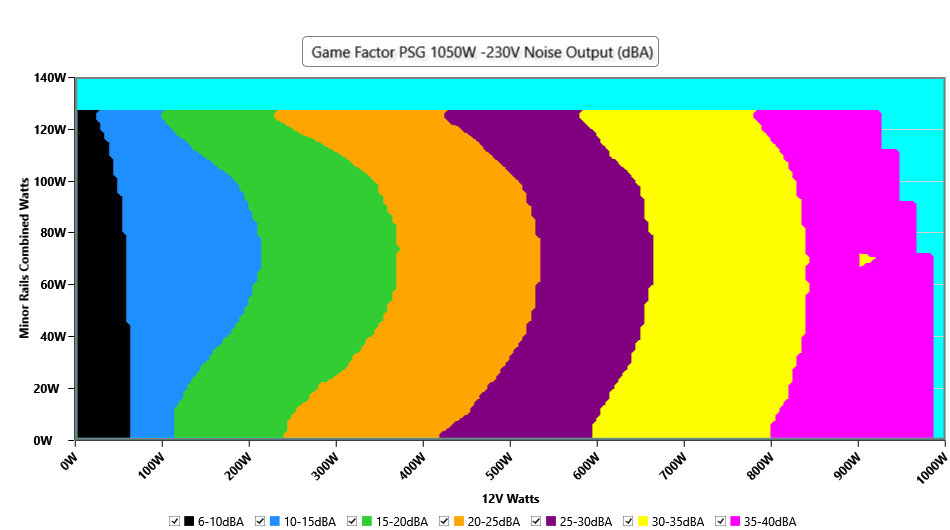

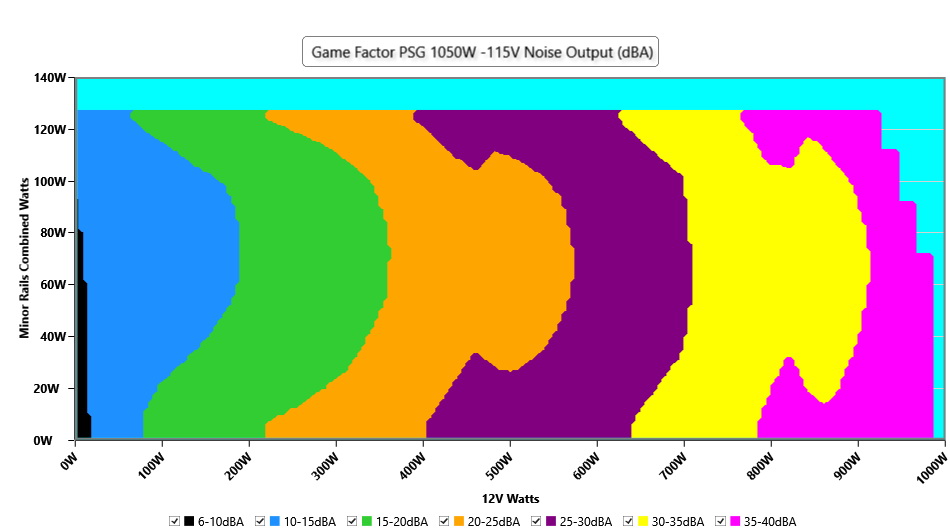

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

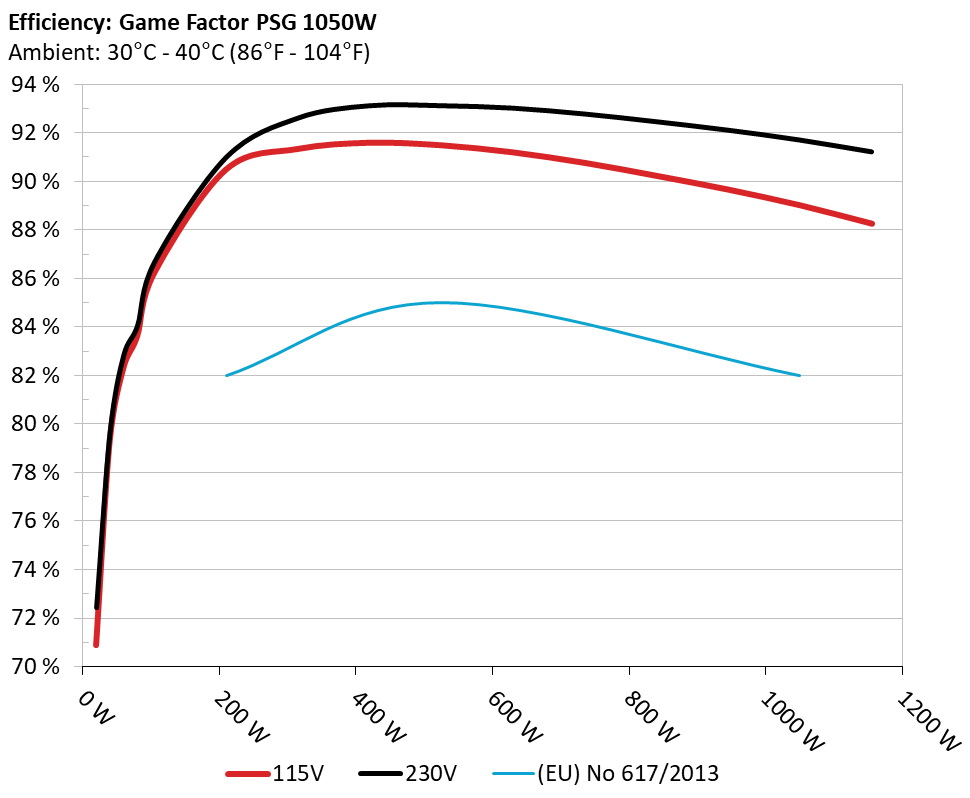

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

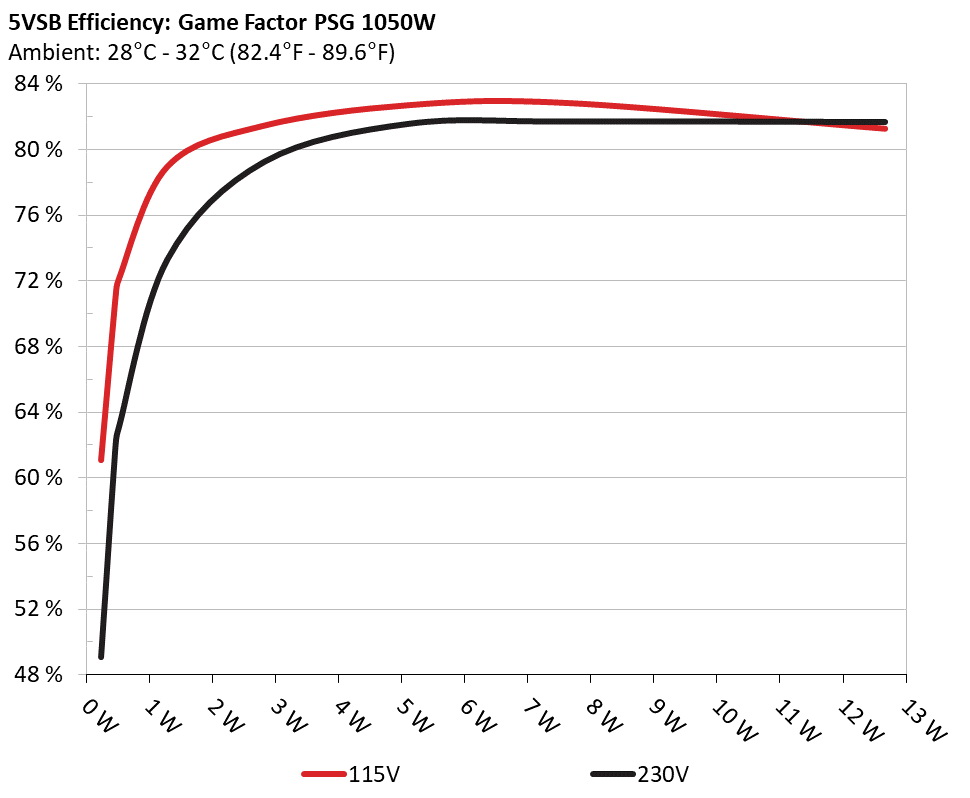

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 60.595% 0.028
5.131V 0.381W 114.85V
2 0.09A 0.462W 70.58% 0.048
5.13V 0.655W 114.86V
3 0.55A 2.815W 80.973% 0.219
5.118V 3.476W 114.85V
4 1A 5.107W 82.223% 0.32
5.106V 6.211W 114.85V
5 1.5A 7.641W 82.35% 0.382
5.093V 9.278W 114.84V
6 2.5A 12.667W 80.789% 0.453
5.066V 15.679W 114.85V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 48.598% 0.01
5.132V 0.477W 229.87V
2 0.09A 0.462W 61.534% 0.016
5.13V 0.754W 229.86V
3 0.55A 2.815W 78.735% 0.076
5.118V 3.577W 229.86V
4 1A 5.107W 81.054% 0.129
5.106V 6.302W 229.87V
5 1.5A 7.641W 81.198% 0.182
5.093V 9.411W 229.87V
6 2.5A 12.667W 81.17% 0.263
5.066V 15.606W 229.86V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.903A 1.99A 1.973A 0.98A 104.941 86.236% 264 8.9 34.3°C 0.981
12.073V 5.024V 3.346V 5.101V 121.69 38.35°C 114.84V
20% 14.837A 2.988A 2.962A 1.179A 209.931 90.502% 279 9.6 34.63°C 0.994
12.067V 5.02V 3.342V 5.089V 231.956 38.99°C 114.82V
30% 23.121A 3.488A 3.459A 1.379A 314.942 91.355% 399 13.1 35.26°C 0.994
12.062V 5.017V 3.339V 5.077V 344.742 39.98°C 114.78V
40% 31.382A 3.989A 3.956A 1.58A 419.539 91.609% 564 18.5 35.95°C 0.992
12.056V 5.014V 3.337V 5.064V 457.97 40.99°C 114.75V
50% 39.371A 4.989A 4.951A 1.782A 524.868 91.505% 709 24.5 36.05°C 0.993
12.048V 5.011V 3.333V 5.052V 573.595 41.57°C 114.72V
60% 47.305A 5.992A 5.948A 1.985A 629.399 91.214% 856 29.5 36.74°C 0.993
12.041V 5.007V 3.329V 5.039V 690.032 42.79°C 114.68V
70% 55.339A 6.998A 6.948A 2.189A 734.754 90.78% 986 33.8 37.44°C 0.993
12.028V 5.002V 3.325V 5.026V 809.388 44.52°C 114.64V
80% 63.397A 8.003A 7.949A 2.293A 839.576 90.246% 1097 35.5 37.72°C 0.994
12.015V 4.998V 3.321V 5.016V 930.313 45.82°C 114.6V
90% 71.890A 8.51A 8.439A 2.398A 944.978 89.675% 1198 37.6 38.59°C 0.994
11.997V 4.994V 3.318V 5.006V 1053.771 47.68°C 114.56V
100% 80.342A 9.017A 8.961A 2.503A 1049.686 89.029% 1272 41.3 39.56°C 0.994
11.979V 4.99V 3.314V 4.995V 1179.034 49.63°C 114.52V
110% 88.560A 10.03A 10.062A 2.507A 1155.138 88.268% 1395 42.2 40.06°C 0.993
11.962V 4.985V 3.309V 4.987V 1308.669 51.04°C 114.48V
CL1 0.116A 15.112A 14.995A 0A 126.311 81.899% 1023 34.2 35.99°C 0.985
12.066V 4.983V 3.308V 5.12V 154.227 41.51°C 114.84V
CL2 0.115A 25.119A 0A 0A 126.263 80.315% 978 33.3 35.17°C 0.985
12.068V 4.971V 3.323V 5.122V 157.211 42.18°C 114.84V
CL3 0.115A 0A 25.078A 0A 83.888 73.573% 823 28.3 34.84°C 0.977
12.068V 4.99V 3.29V 5.121V 114.022 43.88°C 114.85V
CL4 87.588A 0A 0A 0A 1049.579 89.564% 1185 37.8 40.14°C 0.994
11.983V 5.006V 3.329V 5.07V 1171.877 51.08°C 114.53V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.905A 1.991A 1.972A 0.98A 104.948 86.676% 276 9.3 34.05°C 0.881
12.072V 5.023V 3.346V 5.1V 121.077 38.11°C 229.91V
20% 14.837A 2.989A 2.962A 1.179A 209.938 90.99% 343 11.5 34.86°C 0.953
12.066V 5.019V 3.342V 5.089V 230.727 39.22°C 229.89V
30% 23.119A 3.488A 3.458A 1.379A 314.941 92.605% 471 16.3 35.33°C 0.972
12.063V 5.016V 3.34V 5.077V 340.088 39.98°C 229.88V
40% 31.381A 3.989A 3.955A 1.58A 419.52 93.115% 589 19.3 35.82°C 0.983
12.056V 5.014V 3.338V 5.064V 450.536 40.84°C 229.86V
50% 39.369A 4.989A 4.948A 1.782A 524.832 93.115% 722 24.2 36.15°C 0.988
12.048V 5.011V 3.334V 5.052V 563.641 41.63°C 229.84V
60% 47.300A 5.992A 5.945A 1.985A 629.351 93.016% 861 29.3 36.78°C 0.991
12.041V 5.007V 3.331V 5.039V 676.606 42.82°C 229.82V
70% 55.334A 6.997A 6.944A 2.189A 734.71 92.774% 987 33.8 37.16°C 0.991
12.029V 5.002V 3.327V 5.026V 791.944 44.19°C 229.82V
80% 63.393A 8.003A 7.946A 2.293A 839.549 92.458% 1107 35.5 37.92°C 0.992
12.015V 4.998V 3.322V 5.016V 908.036 46.01°C 229.8V
90% 71.886A 8.51A 8.436A 2.398A 944.96 92.108% 1200 37.6 38.21°C 0.992
11.998V 4.994V 3.319V 5.005V 1025.929 47.24°C 229.77V
100% 80.336A 9.017A 8.957A 2.503A 1049.666 91.704% 1276 41.4 39.45°C 0.99
11.980V 4.99V 3.316V 4.995V 1144.623 49.47°C 229.76V
110% 88.555A 10.03A 10.057A 2.507A 1155.124 91.218% 1396 42.2 40.26°C 0.989
11.962V 4.985V 3.311V 4.987V 1266.331 52.24°C 229.74V
CL1 0.116A 15.107A 14.983A 0A 126.305 82.786% 917 31.2 34.98°C 0.918
12.066V 4.985V 3.31V 5.119V 152.563 40.47°C 229.91V
CL2 0.115A 25.118A 0A 0A 126.261 80.805% 933 31.4 35.17°C 0.921
12.067V 4.971V 3.325V 5.121V 156.254 42.24°C 229.91V
CL3 0.115A 0A 25.069A 0A 83.886 74.012% 802 27.6 35.07°C 0.868
12.068V 4.989V 3.291V 5.121V 113.35 44.17°C 229.91V
CL4 87.580A 0A 0A 0A 1049.569 92.192% 1172 37.6 39.73°C 0.991
11.984V 5.007V 3.331V 5.07V 1138.463 50.69°C 229.76V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.497A 0.492A 0.195A 19.993 70.873% 251 8.3 30.06°C 0.835
12.078V 5.032V 3.352V 5.126V 28.209 33.13°C 114.89V
40W 2.706A 0.696A 0.689A 0.293A 39.996 79.336% 253 8.3 31.02°C 0.932
12.076V 5.03V 3.351V 5.123V 50.415 34.36°C 114.87V
60W 4.184A 0.895A 0.887A 0.391A 59.996 82.326% 256 8.4 32.19°C 0.958
12.075V 5.029V 3.35V 5.119V 72.873 35.98°C 114.87V
80W 5.657A 1.094A 1.084A 0.489A 79.935 83.619% 259 8.6 33.01°C 0.966
12.074V 5.027V 3.349V 5.115V 95.595 36.99°C 114.86V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.497A 0.492A 0.195A 19.998 72.456% 254 8.3 30.14°C 0.425
12.078V 5.031V 3.352V 5.126V 27.603 33.22°C 229.93V
40W 2.707A 0.696A 0.689A 0.293A 39.999 79.724% 256 8.4 31.34°C 0.639
12.076V 5.03V 3.352V 5.122V 50.173 34.62°C 229.92V
60W 4.185A 0.895A 0.886A 0.391A 60 82.854% 259 8.6 32.55°C 0.761
12.075V 5.028V 3.35V 5.119V 72.413 36.01°C 229.92V
80W 5.658A 1.094A 1.084A 0.489A 79.945 84.053% 262 8.9 33.37°C 0.834
12.074V 5.027V 3.349V 5.115V 95.108 37.22°C 229.92V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load12.94mV12.88mV12.11mV6.67mVPass
20% Load13.50mV14.17mV13.24mV7.54mVPass
30% Load14.17mV14.16mV13.70mV9.13mVPass
40% Load14.22mV14.63mV14.37mV8.82mVPass
50% Load14.17mV15.04mV14.16mV9.13mVPass
60% Load15.75mV15.55mV15.96mV9.29mVPass
70% Load16.11mV15.09mV15.70mV10.57mVPass
80% Load18.16mV16.32mV18.16mV11.65mVPass
90% Load20.05mV17.24mV17.85mV13.34mVPass
100% Load27.30mV16.97mV19.26mV13.64mVPass
110% Load28.84mV19.54mV18.58mV14.08mVPass
Crossload118.87mV17.61mV15.61mV12.02mVPass
Crossload220.56mV29.36mV19.50mV11.19mVPass
Crossload319.28mV18.27mV19.80mV12.01mVPass
Crossload426.45mV16.22mV17.90mV14.92mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load14.78mV14.01mV12.88mV7.34mVPass
20% Load13.55mV14.42mV13.39mV7.64mVPass
30% Load14.17mV15.09mV14.41mV8.57mVPass
40% Load14.88mV15.24mV14.83mV9.18mVPass
50% Load14.07mV15.91mV15.34mV9.08mVPass
60% Load15.65mV15.81mV15.49mV10.31mVPass
70% Load18.00mV15.55mV15.96mV10.78mVPass
80% Load18.46mV15.76mV17.08mV11.49mVPass
90% Load19.59mV16.01mV16.52mV11.39mVPass
100% Load27.64mV19.70mV21.29mV14.30mVPass
110% Load30.51mV19.55mV20.43mV14.43mVPass
Crossload117.83mV20.57mV17.18mV14.10mVPass
Crossload221.63mV31.25mV18.42mV12.62mVPass
Crossload317.80mV18.63mV20.68mV11.08mVPass
Crossload428.56mV17.91mV18.68mV14.53mVPass

The results above are not used in the certification process

Game G Factor PSG1050

Top side

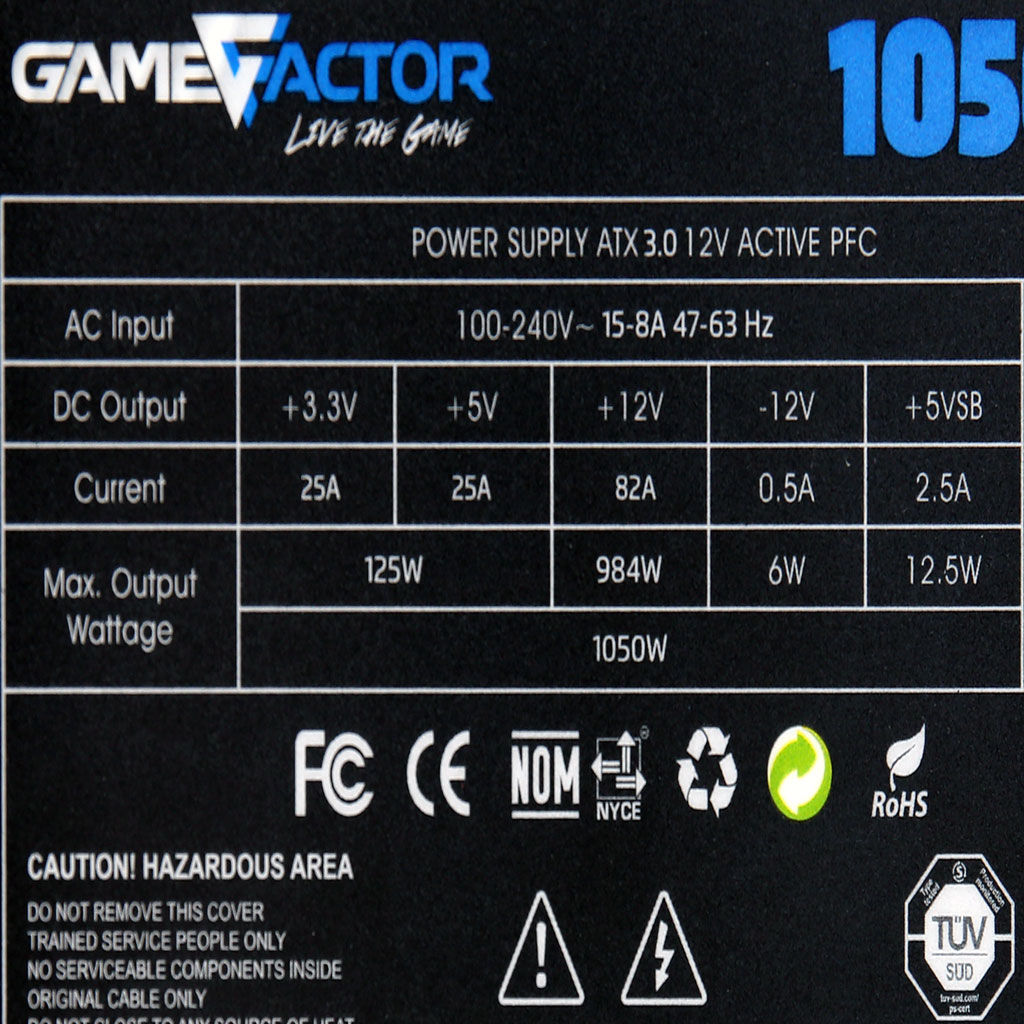

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
