CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
PCCooler YN850
Lab IDPL85002280
  • Report: 23PS2280A
  • Receipt Date: Oct 23, 2023
  • Test Date: Nov 3, 2023
  • Report Date: Nov 3, 2023
115V230V
效率評比
115V230V
噪音評比
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

PCCooler
製造商 (OEM)Andyson
YN
P5-YN850-G1F

(Vrms)100-240
(Arms)10-5
(Hz)50-60
(W)850
ATX12V
135mm Fluid Dynamic Bearing Fan
(HA13525M12F-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202070.830.3
Watts100849.6153.6
Total Max. Power (W)850

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (500mm) 3 3 18AWG No
12+2 pin PCIe (650mm) (600W) 1 1 16-26AWG No
SATA (450mm+120mm+120mm) / 4-pin Molex (+120mm) 3 9 / 3 20AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.1 PSU Power Excursion✓

Performance Summary

Hold-Up Time (ms)20.9
AC Loss to PWR_OK Hold Up Time (ms)16.2
PWR_OK Inactive to DC Loss Delay (ms)4.7

待機電源消耗

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.89 V 114.85 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.95 Hz 59.40 Hz 60.05 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.11 % N/A 0.19 % 2.00 % PASS
Real Power: 0.050 W -0.003 W N/A 0.094 W N/A N/A
Apparent Power: 10.702 W 10.672 W N/A 10.738 W N/A N/A
Power Factor: 0.007 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.96 V 229.91 V 227.70 V 229.99 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.12 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.131 W 0.085 W N/A 0.183 W N/A N/A
Apparent Power: 36.240 W 36.197 W N/A 36.290 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A

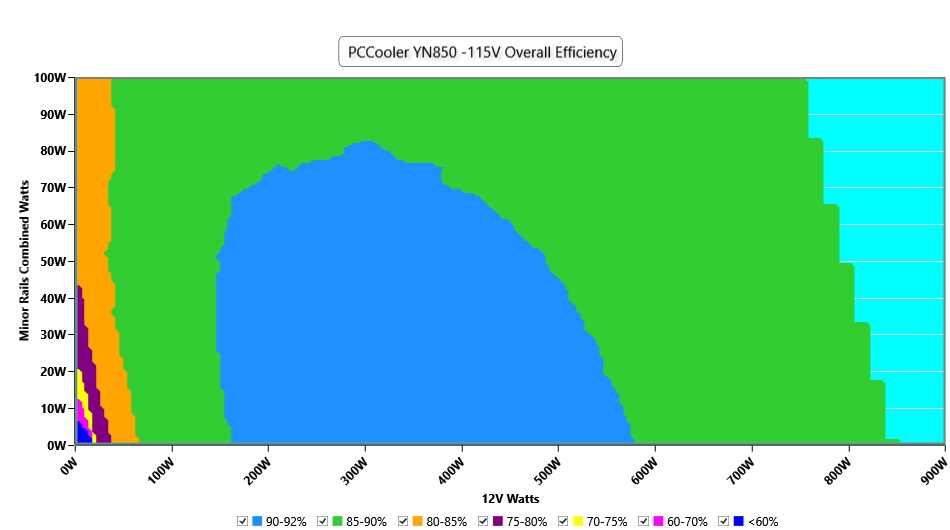

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

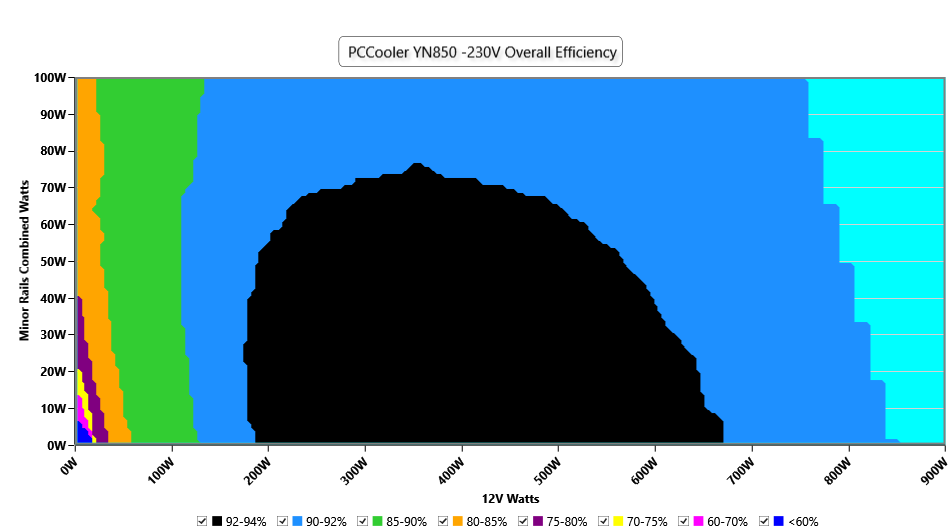

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

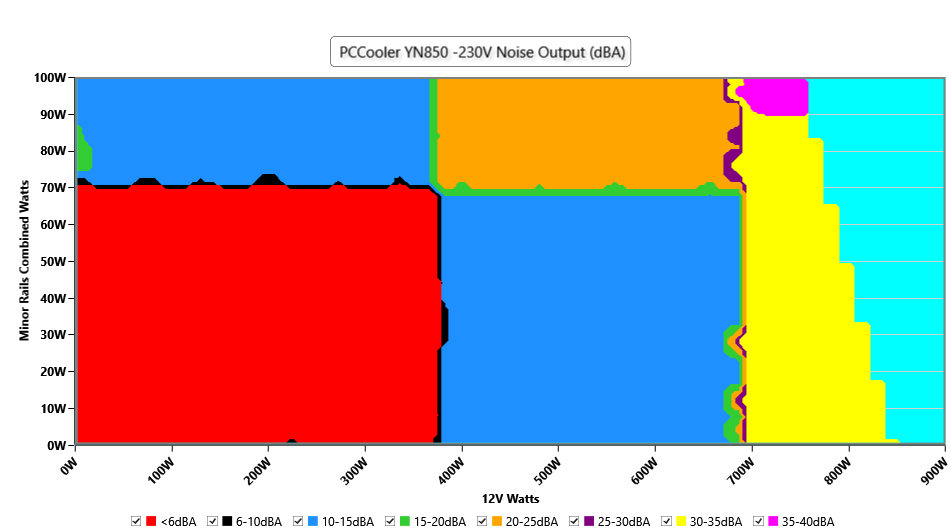

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

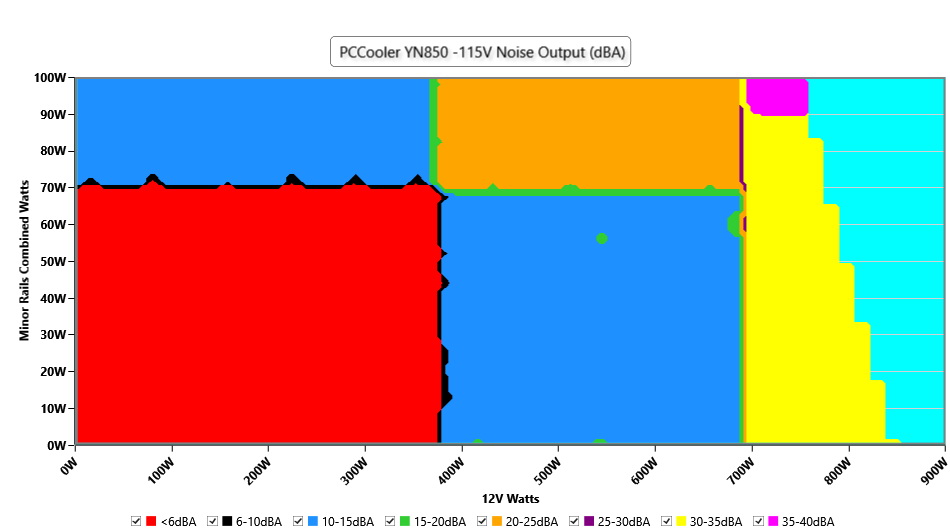

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 61.428% 0.036
5.132V 0.376W 114.88V
2 0.09A 0.462W 73.205% 0.059
5.13V 0.631W 114.88V
3 0.55A 2.814W 82.078% 0.257
5.117V 3.429W 114.87V
4 1A 5.103W 82.565% 0.357
5.103V 6.18W 114.87V
5 1.5A 7.632W 82.508% 0.409
5.088V 9.25W 114.87V
6 3A 15.123W 79.512% 0.484
5.041V 19.019W 114.87V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 49.017% 0.013
5.131V 0.472W 229.95V
2 0.09A 0.462W 63.605% 0.021
5.13V 0.727W 229.94V
3 0.55A 2.814W 79.151% 0.097
5.116V 3.554W 229.94V
4 1A 5.103W 81.18% 0.161
5.102V 6.287W 229.94V
5 1.5A 7.631W 82.226% 0.213
5.087V 9.281W 229.94V
6 3A 15.124W 82.707% 0.321
5.041V 18.287W 229.94V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.238A 1.985A 1.989A 0.983A 85.004 86.14% 0 <6.0 44.35°C 0.954
12.102V 5.037V 3.319V 5.088V 98.679 40.13°C 114.86V
20% 11.448A 2.98A 2.986A 1.183A 169.946 89.573% 0 <6.0 45.46°C 0.973
12.145V 5.034V 3.315V 5.073V 189.729 40.93°C 114.82V
30% 18.046A 3.477A 3.487A 1.385A 254.961 91.075% 0 <6.0 46.29°C 0.981
12.130V 5.034V 3.312V 5.056V 279.945 41.1°C 114.79V
40% 24.639A 3.975A 3.989A 1.587A 340.05 90.985% 0 <6.0 47.45°C 0.983
12.129V 5.032V 3.31V 5.041V 373.744 41.94°C 114.76V
50% 30.863A 4.972A 4.991A 1.791A 424.913 90.581% 0 <6.0 48.3°C 0.984
12.131V 5.03V 3.306V 5.025V 469.097 42.3°C 114.73V
60% 37.075A 5.973A 5.997A 1.997A 509.44 89.785% 872 25.2 42.87°C 0.985
12.127V 5.024V 3.302V 5.009V 567.401 49.43°C 114.7V
70% 43.359A 6.976A 7.003A 2.202A 594.726 89.212% 869 25.1 43.04°C 0.986
12.122V 5.018V 3.299V 4.997V 666.64 50.14°C 114.67V
80% 49.622A 7.977A 8.01A 2.306A 679.495 88.477% 864 24.9 43.98°C 0.987
12.123V 5.015V 3.296V 4.986V 767.99 51.99°C 114.63V
90% 56.273A 8.476A 8.502A 2.412A 764.863 87.708% 860 24.7 44.49°C 0.988
12.126V 5.014V 3.293V 4.974V 872.052 53.53°C 114.59V
100% 62.685A 8.979A 9.026A 3.032A 849.68 86.865% 1417 39.1 44.97°C 0.99
12.124V 5.011V 3.29V 4.947V 978.169 55.01°C 114.56V
110% 68.984A 9.982A 10.13A 3.037A 934.214 86.131% 1415 39.1 46.74°C 0.99
12.118V 5.008V 3.287V 4.939V 1084.651 57.66°C 114.53V
CL1 0.114A 11.995A 12.007A 0A 101.272 82.675% 884 25.7 40.52°C 0.962
12.133V 5.018V 3.306V 5.102V 122.497 45.99°C 114.84V
CL2 0.114A 19.983A 0A 0A 101.345 80.633% 1431 39.4 40.71°C 0.963
12.122V 5.003V 3.32V 5.109V 125.684 47.72°C 114.84V
CL3 0.114A 0A 20.009A 0A 67.377 75.579% 884 25.7 39.82°C 0.949
12.113V 5.043V 3.298V 5.105V 89.152 48.86°C 114.85V
CL4 70.192A 0A 0A 0.001A 849.5 87.728% 1419 39.2 45.61°C 0.989
12.103V 5.032V 3.303V 5.054V 968.345 56.59°C 114.57V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.237A 1.984A 1.989A 0.982A 84.992 87.104% 0 <6.0 44.35°C 0.788
12.105V 5.038V 3.319V 5.088V 97.577 40.15°C 229.93V
20% 11.443A 2.979A 2.986A 1.182A 169.911 90.85% 0 <6.0 45.09°C 0.898
12.149V 5.035V 3.315V 5.073V 187.027 40.5°C 229.92V
30% 18.046A 3.476A 3.487A 1.384A 254.911 92.434% 0 <6.0 46.19°C 0.934
12.128V 5.034V 3.313V 5.058V 275.777 41.09°C 229.91V
40% 24.642A 3.974A 3.988A 1.586A 339.989 92.848% 0 <6.0 47.48°C 0.951
12.125V 5.032V 3.31V 5.044V 366.175 41.93°C 229.89V
50% 30.865A 4.971A 4.99A 1.79A 424.746 92.674% 0 <6.0 48.36°C 0.961
12.125V 5.029V 3.307V 5.028V 458.323 42.32°C 229.88V
60% 37.087A 5.973A 5.996A 1.995A 509.341 92.168% 873 25.2 42.88°C 0.966
12.121V 5.023V 3.303V 5.012V 552.622 49.41°C 229.86V
70% 43.375A 6.977A 7.004A 2.201A 594.705 91.857% 870 25.1 43.28°C 0.97
12.118V 5.018V 3.299V 4.997V 647.427 50.38°C 229.85V
80% 49.643A 7.979A 8.011A 2.307A 679.534 91.463% 865 24.9 43.52°C 0.973
12.119V 5.014V 3.295V 4.985V 742.959 51.59°C 229.83V
90% 56.292A 8.478A 8.504A 2.413A 764.915 90.959% 861 24.7 44.2°C 0.975
12.122V 5.013V 3.293V 4.973V 840.945 53.27°C 229.82V
100% 62.703A 8.981A 9.028A 3.032A 849.728 90.394% 1420 39.2 45.08°C 0.977
12.121V 5.01V 3.29V 4.946V 940.03 55.17°C 229.8V
110% 68.982A 9.986A 10.133A 3.038A 934.309 89.857% 1417 39.1 46.72°C 0.978
12.120V 5.007V 3.286V 4.937V 1039.78 57.62°C 229.79V
CL1 0.115A 11.998A 12.008A 0A 101.285 83.485% 883 25.6 41.27°C 0.831
12.136V 5.017V 3.306V 5.101V 121.324 46.77°C 229.93V
CL2 0.114A 19.986A 0A 0A 101.351 81.476% 1434 39.5 40.13°C 0.836
12.122V 5.002V 3.32V 5.108V 124.391 47.14°C 229.93V
CL3 0.114A 0A 20.009A 0A 67.376 76.069% 884 25.7 40.35°C 0.765
12.112V 5.043V 3.298V 5.105V 88.564 49.37°C 229.94V
CL4 70.193A 0A 0A 0.001A 849.484 91.147% 1421 39.2 45.37°C 0.976
12.102V 5.031V 3.304V 5.054V 931.996 56.32°C 229.8V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.496A 0.496A 0.195A 19.997 74.401% 0 <6.0 39.79°C 0.789
12.079V 5.04V 3.324V 5.123V 26.878 36.7°C 114.88V
40W 2.704A 0.695A 0.695A 0.293A 39.998 81.231% 0 <6.0 40.64°C 0.899
12.085V 5.04V 3.323V 5.117V 49.24 37.35°C 114.88V
60W 4.178A 0.893A 0.894A 0.391A 59.998 84.39% 0 <6.0 41.86°C 0.935
12.091V 5.04V 3.322V 5.112V 71.096 38.05°C 114.86V
80W 5.648A 1.092A 1.093A 0.49A 79.945 86.325% 0 <6.0 43.73°C 0.951
12.096V 5.039V 3.321V 5.106V 92.612 39.75°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.496A 0.496A 0.195A 19.992 74.896% 0 <6.0 39.81°C 0.428
12.086V 5.041V 3.324V 5.122V 26.692 36.76°C 229.94V
40W 2.703A 0.694A 0.695A 0.293A 39.991 81.78% 0 <6.0 40.65°C 0.598
12.092V 5.041V 3.323V 5.117V 48.902 37.37°C 229.94V
60W 4.176A 0.893A 0.894A 0.391A 59.991 85.207% 0 <6.0 41.54°C 0.703
12.097V 5.041V 3.322V 5.112V 70.41 38.07°C 229.94V
80W 5.643A 1.091A 1.093A 0.489A 79.926 87.19% 0 <6.0 42.87°C 0.774
12.104V 5.041V 3.321V 5.106V 91.667 39.03°C 229.93V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load22.64mV7.32mV7.75mV16.00mVPass
20% Load9.18mV7.57mV9.05mV15.18mVPass
30% Load10.88mV8.14mV8.94mV15.95mVPass
40% Load9.64mV9.17mV9.93mV16.98mVPass
50% Load9.38mV8.40mV9.16mV18.63mVPass
60% Load10.16mV9.58mV9.82mV19.87mVPass
70% Load10.72mV11.49mV11.53mV22.97mVPass
80% Load11.19mV10.82mV13.03mV26.38mVPass
90% Load10.67mV11.59mV14.69mV27.05mVPass
100% Load15.59mV13.17mV15.71mV33.77mVPass
110% Load14.98mV14.59mV16.18mV37.58mVPass
Crossload126.73mV11.26mV10.98mV16.75mVPass
Crossload230.32mV15.61mV9.31mV13.06mVPass
Crossload323.25mV8.66mV10.08mV13.83mVPass
Crossload415.50mV12.32mV14.11mV23.70mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load23.61mV8.86mV8.43mV18.07mVPass
20% Load9.90mV8.09mV8.43mV16.72mVPass
30% Load10.76mV8.71mV8.90mV18.06mVPass
40% Load8.76mV10.61mV10.65mV19.61mVPass
50% Load9.44mV9.43mV9.62mV19.87mVPass
60% Load9.95mV9.94mV11.22mV20.80mVPass
70% Load10.46mV10.56mV11.01mV22.61mVPass
80% Load10.52mV10.87mV13.24mV23.74mVPass
90% Load10.77mV11.49mV11.74mV25.09mVPass
100% Load16.63mV13.46mV14.62mV28.38mVPass
110% Load15.91mV14.16mV14.73mV28.67mVPass
Crossload122.51mV10.69mV10.93mV15.53mVPass
Crossload228.51mV15.35mV8.79mV12.96mVPass
Crossload323.46mV8.86mV11.27mV13.16mVPass
Crossload415.15mV11.77mV13.72mV23.68mVPass

The results above are not used in the certification process

PCCooler YN850

Top side

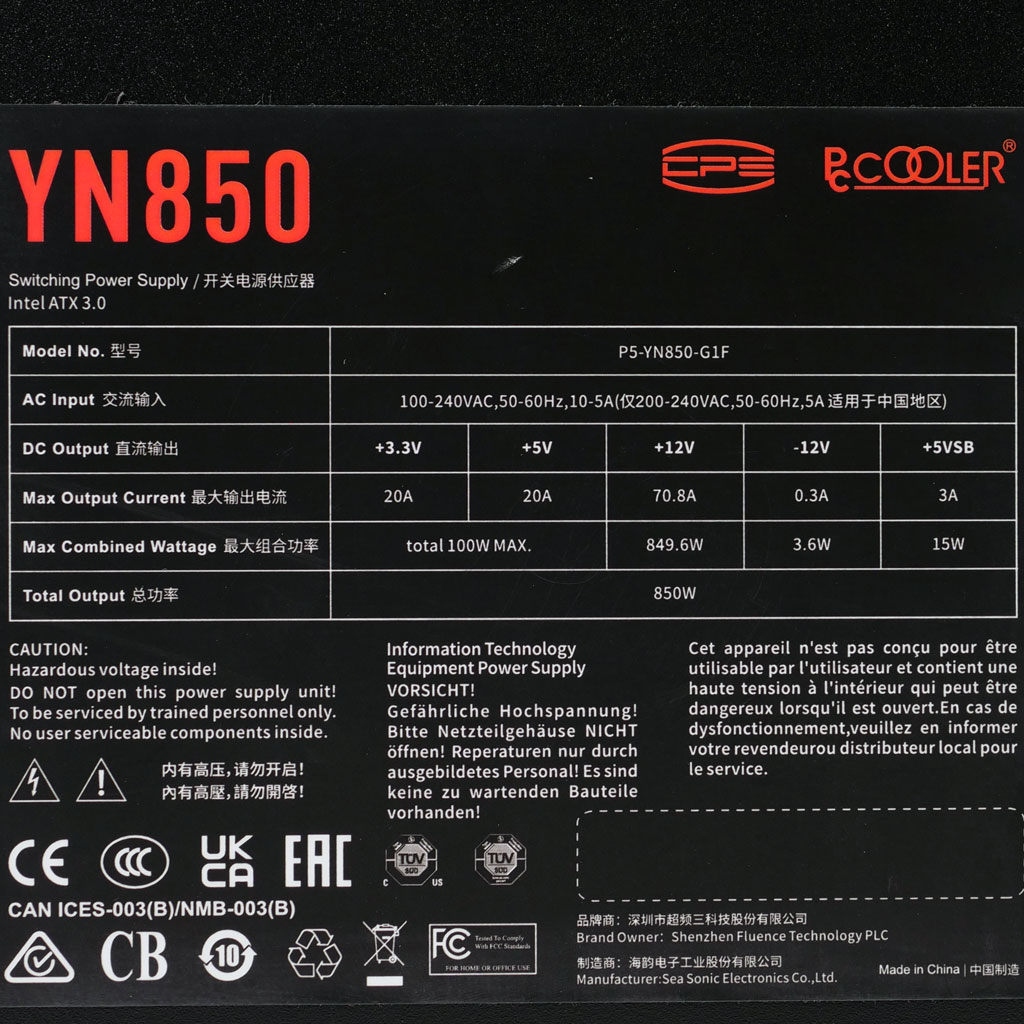

Power specifications label
