CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus

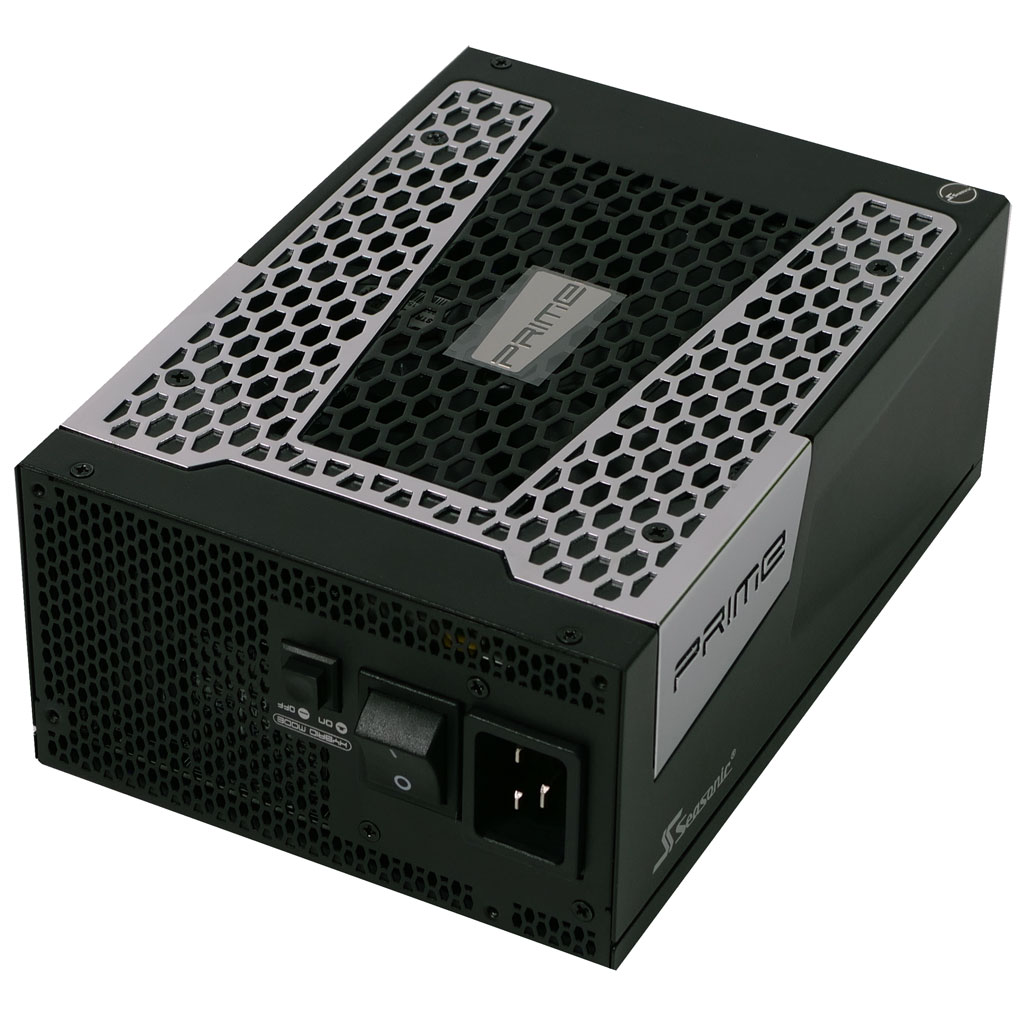

Seasonic Prime TX-1300 (ATX v3.0)
R2304AA132930002
Lab IDSS13002266
  • Report: 23PS2266A
  • Receipt Date: Sep 29, 2023
  • Test Date: Oct 23, 2023
  • Report Date: Oct 26, 2023
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

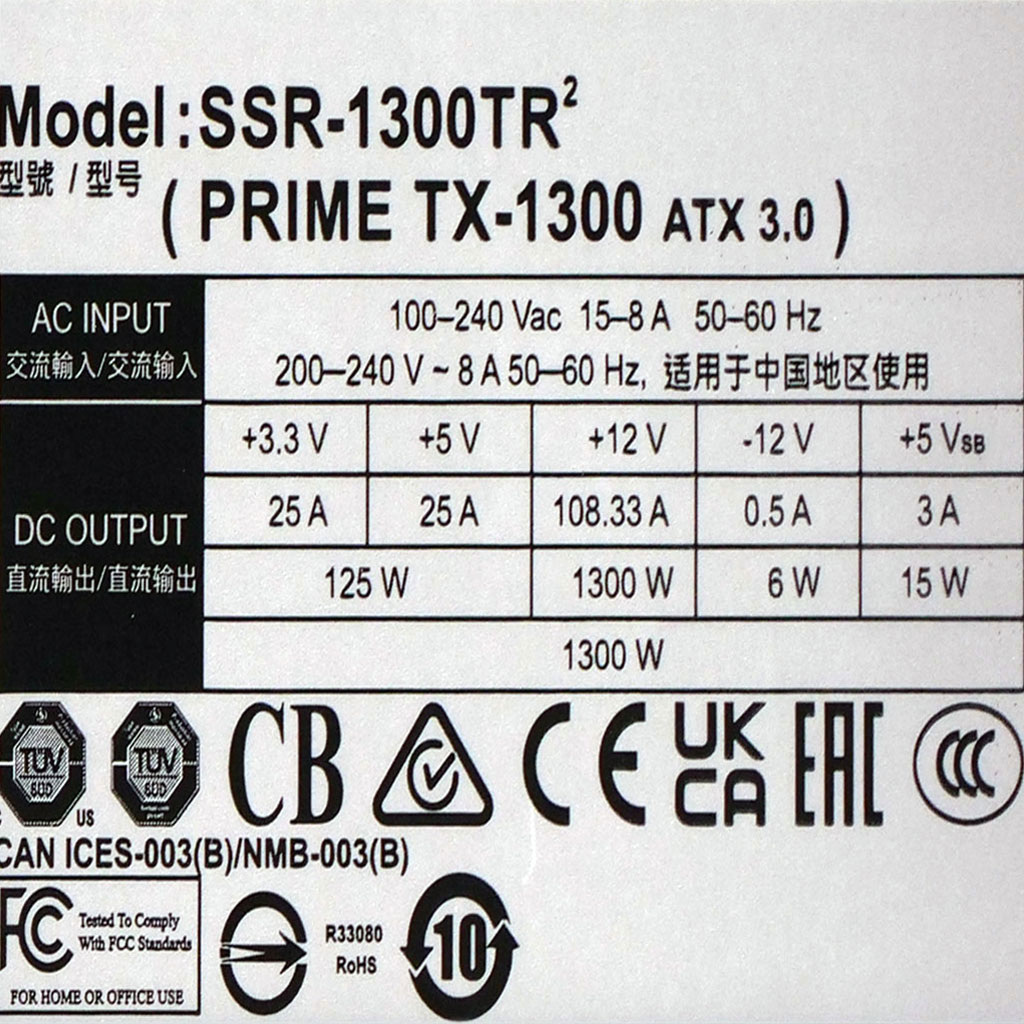

General Information

Seasonic
Hersteller (OEM)Seasonic
Prime Titanium
SSR-1300TR
R2304AA132930002

(Vrms)100-240
(Arms)15-8
(Hz)50-60
(W)1300
ATX12V
135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
✓ (selectable)
Fully Modular

Rail3.3V5V12V5VSB-12V
Max. PowerAmps2525108.3330.5
Watts1251300156
Total Max. Power (W)1300

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 16-18AWG No
4+4 pin EPS12V (700mm) 3 3 16AWG No
6+2 pin PCIe (750mm) 6 6 16AWG No
12+4 pin PCIe (750mm) (600W) 1 1 16-28AWG No
SATA (510mm+155mm+155mm+155mm) 4 16 18AWG No
SATA (410mm+150mm) 1 2 18AWG No
4-pin Molex (460mm+125mm+125mm) 1 3 18AWG No
AC Power Cord (1390mm) - C19 coupler 1 1 14AWG -

Parts Description

General Data -
Manufacturer (OEM) Seasonic
PCB Type Double-Sided
Primary Side -
Transient Filter 6x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection 2x NTC Thermistor MF72-20D20M (20 Ohm) & Relay
Rectifier FETs 4x IPB60R040C7
APFC MOSFETs 4x Infineon IPW60R125P6 (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
APFC Boost Diode 2x CREE C6D08065A (650V, 30A @ 25°C)
Bulk Cap(s) 2x Nippon Chemi-Con (420V, 680uF each or 1360uF combined, 2000h @ 105°C, KMZ) &
1x Nippon Chemi-Con (420V, 820uF, 2000h @ 105°C, KHE)
Main Switchers 4x Infineon IPW60R125P6 (600V, 19A @ 100°C, Rds(on): 0.125Ohm)
IC Driver 2x Silicon Labs Si8230BD
APFC Controller Texas Instruments UCC28070
Resonant Controller Champion CM6901T2X
Topology Primary side: Bridgeless, Interleaved PFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x Nexperia PSMN1R0-40YLD (40V, 198A @ 100°C, Rds(on): 1.93mOhm)
5V & 3.3V DC-DC Converters: 2x
PWM Controllers: 1x
Filtering Capacitors Electrolytic: Nippon Chemi-Con (2-5,000 @ 105°C, KZE),
Nippon Chemi-Con (5-6,000 @ 105°C, KZH)
5x Nippon Chemi-Con (@ 105°C, W)
3x Nichicon (6,000 @ 105°C, HV),
Polymer: 39x CAP
Supervisor IC Weltrend WT7527RA (OCP, OVP, UVP, SCP, PG)
Fan Controller Nuvoton M031FB0AE
Fan Model Hong Hua HA13525H12SF-Z (135mm, 12V, 0.5A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x Infineon BSC100N06LS3 FET (60V, 36A @ 100°C, Rds(on): 10mOhm)
Standby PWM Controller Power Integrations INN3164C

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

WirkungsgradTITANIUM
LautstärkeklasseA++
(>1450 load combinations)92.559%
Average Noise Output (>1450 Load Combinations)11.02dBA
(>1450 Load Combinations)0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load72.918%
0.0192W
12V Ripple (Full Load)19.85mV
5V Ripple (Full Load)12.50mV
3.3V Ripple (Full Load)18.03mV
5VSB Ripple (Full Load)32.89mV
12V Load Regulation0.37%
5V Load Regulation0.40%
3.3V Load Regulation0.73%
5VSB Load Regulation0.85%
Inrush Current66.180A
WirkungsgradTITANIUM
LautstärkeklasseA++
(>1450 load combinations)94.044%
Average Noise Output (>1450 Load Combinations)11.44dBA
(>1450 Load Combinations)0.940
Efficiency With 10W (≤500W) or 2% (>500W) Load71.549%
0.1095W
12V Ripple (Full Load)20.90mV
5V Ripple (Full Load)11.84mV
3.3V Ripple (Full Load)18.14mV
5VSB Ripple (Full Load)34.40mV
12V Load Regulation0.38%
5V Load Regulation0.42%
3.3V Load Regulation0.73%
5VSB Load Regulation0.79%
Inrush Current131.400A
12V Transient Response (200%)11.45V
5V Transient Response (200%)4.950V
3.3V Transient Response (200%)3.161V
5VSB Transient Response (200%)4.887V
22.60ms
AC Loss to PWR_OK Hold Up Time19.20ms
PWR_OK Inactive to DC Loss Delay3.40ms
PSU Timings: T1 (20% / 100%)39.0ms38.0ms
PSU Timings: T3 (20% / 100%)128.0ms132.0ms
OPP (25.21°C / 39.32°C)134.55%134.55%

Hold-Up Time (ms)22.6
AC Loss to PWR_OK Hold Up Time (ms)19.2
PWR_OK Inactive to DC Loss Delay (ms)3.4

Stromverbrauch im Ruhezustand

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.79 V 113.85 V 114.91 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.10 % N/A 0.27 % 2.00 % PASS
Real Power: 0.019 W 0.006 W N/A 0.035 W N/A N/A
Apparent Power: 11.679 W 11.648 W N/A 11.720 W N/A N/A
Power Factor: 0.003 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.80 V 227.70 V 229.95 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.16 % 0.12 % N/A 0.21 % 2.00 % PASS
Real Power: 0.110 W 0.074 W N/A 0.176 W N/A N/A
Apparent Power: 40.532 W 40.485 W N/A 40.591 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

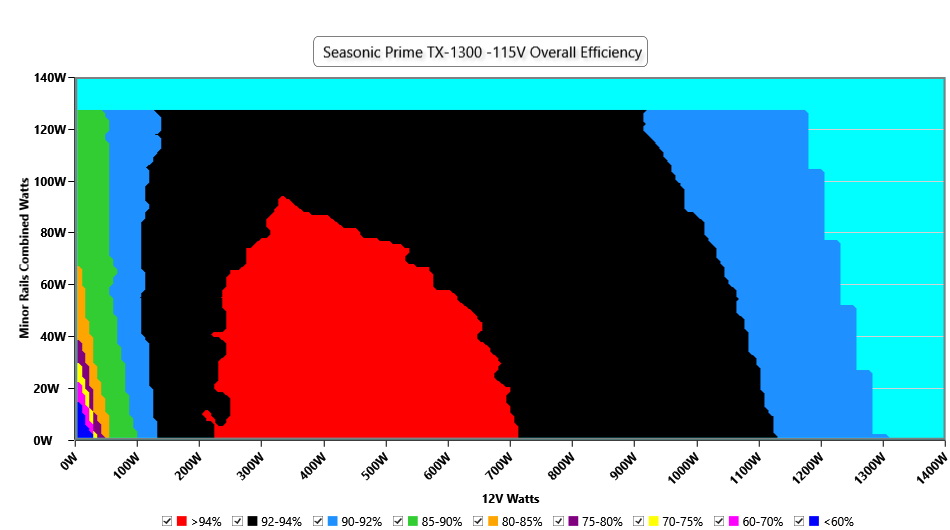

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

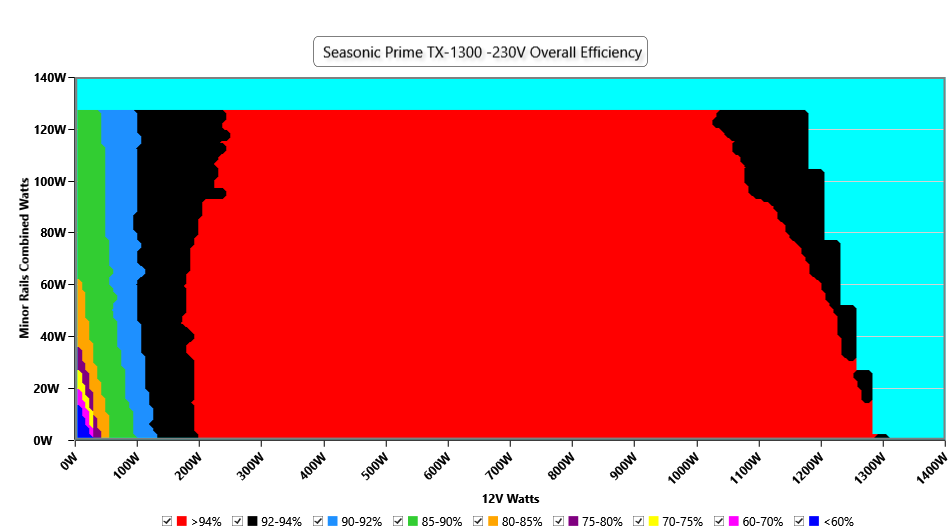

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

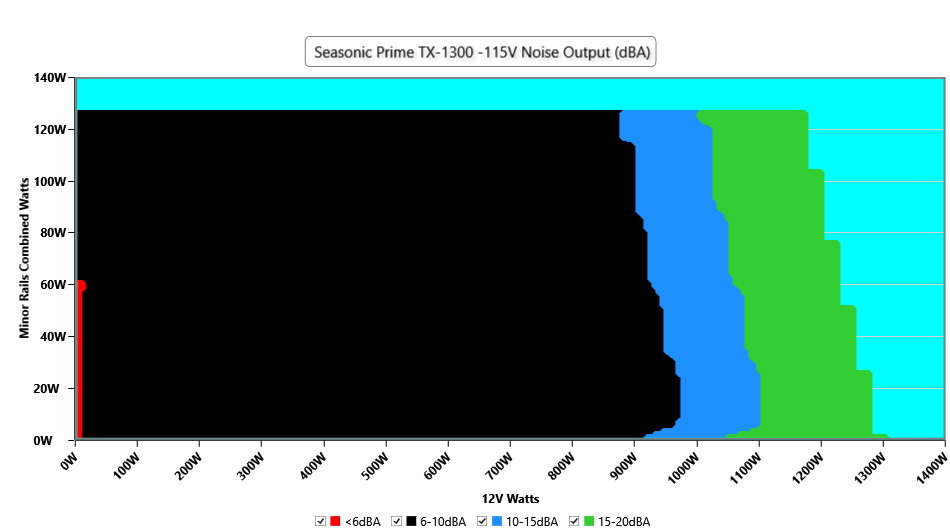

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

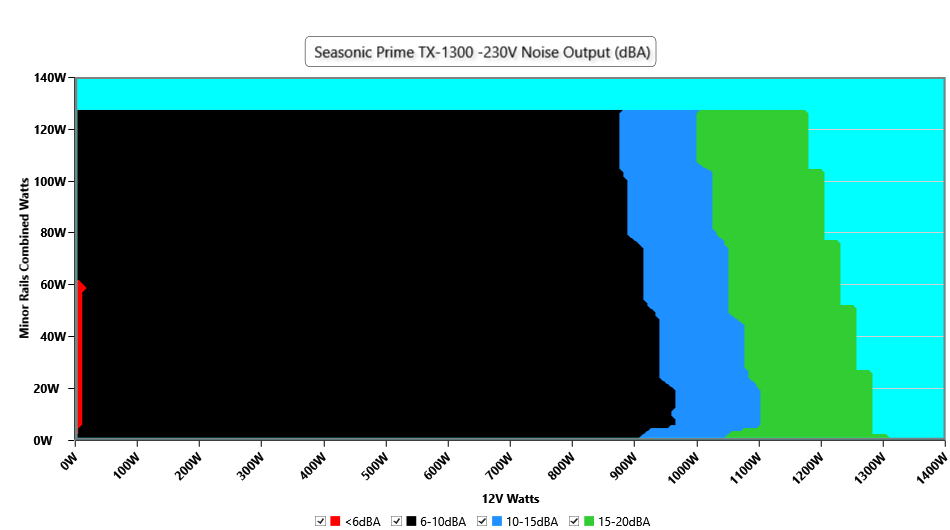

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

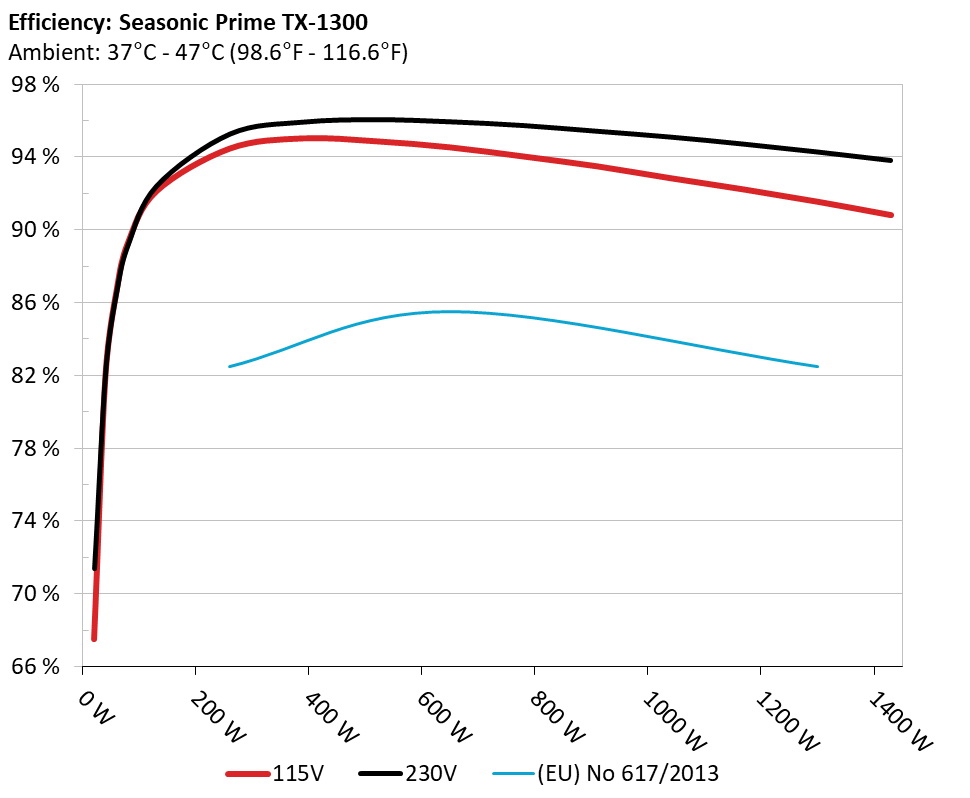

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

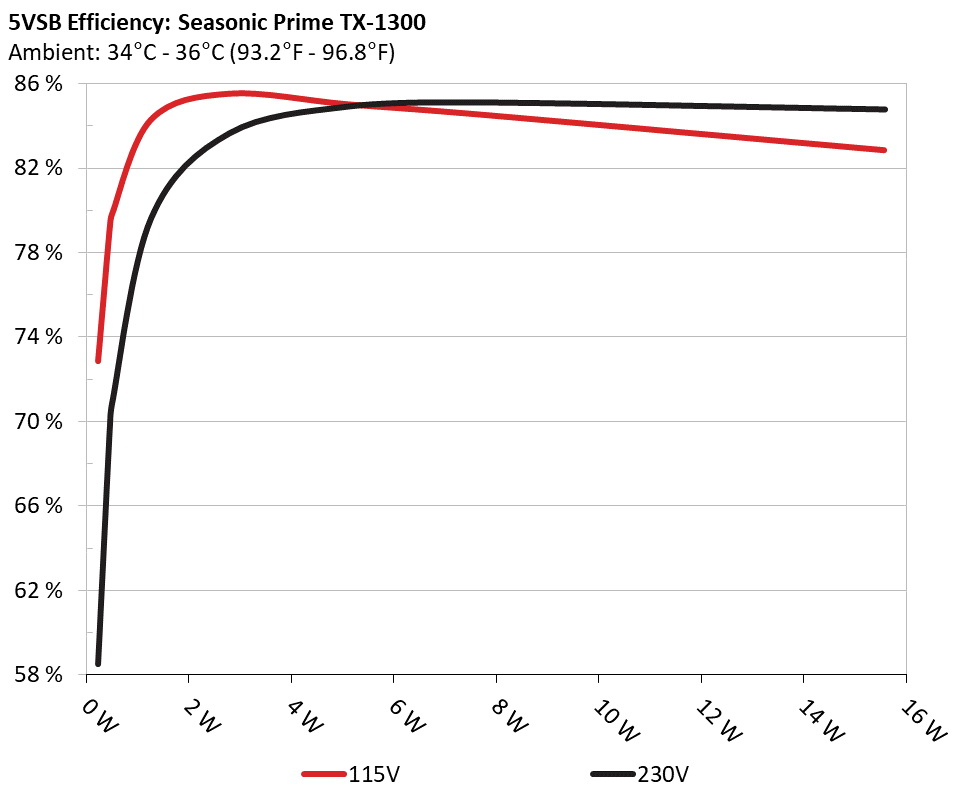

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 73.061% 0.03
5.064V 0.312W 114.84V
2 0.09A 0.456W 79.386% 0.054
5.063V 0.574W 114.85V
3 0.55A 2.791W 85.748% 0.255
5.075V 3.255W 114.85V
4 1A 5.101W 85.242% 0.369
5.101V 5.983W 114.84V
5 1.5A 7.704W 84.753% 0.425
5.136V 9.09W 114.85V
6 3A 15.574W 83.066% 0.523
5.191V 18.748W 114.84V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 58.687% 0.011
5.067V 0.389W 229.85V
2 0.09A 0.456W 69.843% 0.018
5.063V 0.653W 229.85V
3 0.55A 2.792W 83.867% 0.091
5.075V 3.329W 229.85V
4 1A 5.103W 85.137% 0.156
5.103V 5.994W 229.84V
5 1.5A 7.697W 85.331% 0.218
5.131V 9.02W 229.85V
6 3A 15.596W 85% 0.322
5.199V 18.349W 229.85V

Supplementary Tests (For Reference)

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.039A 1.978A 1.988A 0.98A 129.993 91.642% 0 <6.0 44.46°C 0.967
11.992V 5.056V 3.32V 5.104V 141.84 40.23°C 114.81V
20% 19.106A 2.968A 2.984A 1.175A 259.942 93.988% 0 <6.0 45.31°C 0.978
11.988V 5.054V 3.318V 5.106V 276.555 40.63°C 114.78V
30% 29.497A 3.463A 3.483A 1.369A 389.522 94.549% 0 <6.0 46.22°C 0.983
11.983V 5.053V 3.316V 5.113V 411.982 41.13°C 114.73V
40% 39.930A 3.959A 3.983A 1.568A 519.521 94.387% 0 <6.0 47.46°C 0.983
11.979V 5.052V 3.314V 5.102V 550.423 41.93°C 114.69V
50% 50.040A 4.951A 4.982A 1.763A 649.694 94.055% 497 9.7 42.33°C 0.987
11.974V 5.049V 3.312V 5.105V 690.754 48.34°C 114.65V
60% 60.158A 5.944A 5.983A 1.961A 779.849 93.554% 499 9.8 42.65°C 0.989
11.969V 5.048V 3.31V 5.101V 833.577 49.19°C 114.6V
70% 70.258A 6.937A 6.982A 2.156A 909.768 93.013% 497 9.7 43.39°C 0.992
11.966V 5.046V 3.308V 5.103V 978.122 50.43°C 114.56V
80% 80.388A 7.928A 7.984A 2.256A 1039.438 92.363% 544 12.4 43.7°C 0.993
11.961V 5.045V 3.306V 5.096V 1125.377 51.74°C 114.52V
90% 90.937A 8.425A 8.473A 2.357A 1169.724 91.74% 590 15.1 44.52°C 0.993
11.956V 5.044V 3.304V 5.09V 1275.044 53.56°C 114.46V
100% 101.226A 8.922A 8.993A 2.941A 1299.362 91.07% 637 17.7 45.47°C 0.994
11.950V 5.043V 3.302V 5.101V 1426.761 55.56°C 114.42V
110% 111.456A 9.916A 10.09A 2.947A 1429.606 90.332% 899 29.0 46.72°C 0.994
11.945V 5.042V 3.3V 5.09V 1582.614 57.58°C 114.36V
CL1 0.117A 14.924A 15.02A 0A 126.301 87.611% 499 9.8 41.9°C 0.968
11.991V 5.046V 3.302V 5.057V 144.168 47.38°C 114.81V
CL2 0.115A 24.726A 0A 0A 126.232 86.311% 499 9.8 40.52°C 0.968
11.991V 5.049V 3.314V 5.06V 146.25 47.56°C 114.81V
CL3 0.115A 0A 24.995A 0A 83.883 81.152% 498 9.7 40.16°C 0.958
11.991V 5.055V 3.301V 5.06V 103.361 49.23°C 114.81V
CL4 108.807A 0A 0A 0.001A 1299.941 91.443% 637 17.7 44.88°C 0.994
11.947V 5.06V 3.318V 4.994V 1421.583 55.86°C 114.41V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 9.038A 1.977A 1.988A 0.98A 129.993 91.891% 0 <6.0 44.41°C 0.837
11.993V 5.057V 3.32V 5.104V 141.466 40.21°C 229.83V
20% 19.108A 2.968A 2.984A 1.175A 259.959 94.747% 0 <6.0 45.49°C 0.906
11.988V 5.055V 3.317V 5.107V 274.373 40.92°C 229.81V
30% 29.505A 3.463A 3.484A 1.37A 389.611 95.399% 0 <6.0 46.2°C 0.93
11.983V 5.053V 3.316V 5.111V 408.405 41.13°C 229.79V
40% 39.939A 3.959A 3.983A 1.568A 519.612 95.532% 0 <6.0 47.35°C 0.939
11.979V 5.052V 3.314V 5.102V 543.913 41.87°C 229.77V
50% 50.052A 4.951A 4.982A 1.763A 649.747 95.416% 499 9.8 42.05°C 0.946
11.972V 5.05V 3.312V 5.105V 680.962 48.07°C 229.75V
60% 60.160A 5.943A 5.983A 1.961A 779.849 95.212% 496 9.7 42.62°C 0.95
11.969V 5.048V 3.31V 5.101V 819.081 49.25°C 229.73V
70% 70.281A 6.936A 6.984A 2.157A 909.926 94.897% 503 10.0 43.3°C 0.955
11.964V 5.047V 3.308V 5.1V 958.849 50.39°C 229.71V
80% 80.407A 7.927A 7.986A 2.257A 1039.523 94.58% 548 12.6 43.74°C 0.96
11.959V 5.045V 3.306V 5.095V 1099.096 51.76°C 229.69V
90% 90.950A 8.424A 8.474A 2.358A 1169.767 94.192% 594 15.3 44.18°C 0.964
11.954V 5.045V 3.304V 5.09V 1241.892 53.22°C 229.67V
100% 101.235A 8.922A 8.993A 2.94A 1299.401 93.762% 639 17.8 46°C 0.968
11.949V 5.044V 3.302V 5.101V 1385.854 56.07°C 229.64V
110% 111.460A 9.916A 10.09A 2.946A 1429.616 93.295% 806 25.5 46.84°C 0.972
11.944V 5.042V 3.3V 5.092V 1532.35 57.72°C 229.62V
CL1 0.117A 14.924A 15.02A 0A 126.302 87.796% 501 9.9 41.27°C 0.84
11.991V 5.046V 3.302V 5.058V 143.843 46.77°C 229.83V
CL2 0.115A 24.729A 0A 0A 126.236 86.465% 500 9.8 40.72°C 0.842
11.992V 5.049V 3.314V 5.061V 145.984 47.76°C 229.83V
CL3 0.115A 0A 24.994A 0A 83.882 80.827% 499 9.8 40°C 0.789
11.991V 5.055V 3.301V 5.061V 103.785 49.05°C 229.84V
CL4 108.807A 0A 0A 0.001A 1299.957 94.065% 639 17.8 45.17°C 0.968
11.947V 5.06V 3.318V 4.994V 1381.981 56.09°C 229.64V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.494A 0.496A 0.197A 19.998 67.04% 0 <6.0 39.85°C 0.845
11.989V 5.063V 3.326V 5.07V 29.837 36.78°C 114.85V
40W 2.728A 0.691A 0.695A 0.295A 39.999 81.459% 0 <6.0 40.82°C 0.907
11.986V 5.062V 3.325V 5.077V 49.101 37.53°C 114.83V
60W 4.213A 0.889A 0.894A 0.394A 59.999 86.214% 0 <6.0 42.17°C 0.941
11.994V 5.059V 3.323V 5.077V 69.593 38.36°C 114.84V
80W 5.696A 1.087A 1.093A 0.492A 79.944 88.81% 0 <6.0 42.99°C 0.951
11.994V 5.058V 3.322V 5.083V 90.015 39.07°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.238A 0.494A 0.496A 0.197A 19.997 70.88% 0 <6.0 39.7°C 0.463
11.989V 5.065V 3.326V 5.071V 28.22 36.63°C 229.85V
40W 2.727A 0.691A 0.695A 0.295A 39.995 81.789% 0 <6.0 40.99°C 0.634
11.984V 5.064V 3.325V 5.077V 48.91 37.69°C 229.84V
60W 4.212A 0.889A 0.893A 0.394A 59.994 86.206% 0 <6.0 41.95°C 0.711
11.995V 5.061V 3.323V 5.077V 69.596 38.39°C 229.85V
80W 5.694A 1.087A 1.093A 0.492A 79.932 88.697% 0 <6.0 42.89°C 0.763
11.995V 5.059V 3.322V 5.081V 90.112 39.04°C 229.84V

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load13.40mV11.80mV13.85mV20.27mVPass
20% Load12.28mV9.70mV11.80mV25.76mVPass
30% Load12.63mV10.72mV12.93mV26.22mVPass
40% Load14.73mV12.83mV14.88mV26.89mVPass
50% Load14.98mV12.63mV15.65mV14.21mVPass
60% Load15.34mV13.19mV15.49mV22.17mVPass
70% Load12.84mV10.16mV13.90mV27.45mVPass
80% Load13.04mV10.62mV13.96mV31.35mVPass
90% Load12.99mV10.98mV15.44mV31.71mVPass
100% Load19.85mV12.50mV18.03mV32.89mVPass
110% Load20.90mV12.33mV18.12mV32.54mVPass
Crossload116.98mV10.07mV16.01mV6.78mVPass
Crossload212.89mV17.76mV15.85mV7.18mVPass
Crossload310.53mV10.11mV16.67mV7.13mVPass
Crossload421.13mV12.06mV15.57mV11.22mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load12.43mV10.11mV11.95mV21.91mVPass
20% Load13.19mV10.98mV12.78mV25.29mVPass
30% Load13.40mV12.42mV13.19mV28.73mVPass
40% Load13.96mV12.57mV15.19mV28.48mVPass
50% Load14.27mV12.37mV15.08mV15.70mVPass
60% Load12.07mV9.08mV11.95mV21.96mVPass
70% Load11.97mV9.19mV12.93mV26.68mVPass
80% Load12.22mV10.57mV13.70mV30.33mVPass
90% Load12.63mV10.37mV14.37mV33.71mVPass
100% Load20.90mV11.84mV18.14mV34.40mVPass
110% Load21.44mV11.92mV18.71mV31.21mVPass
Crossload118.00mV10.75mV15.57mV7.06mVPass
Crossload212.84mV18.06mV16.06mV7.95mVPass
Crossload311.56mV10.78mV18.73mV7.44mVPass
Crossload420.20mV11.88mV17.31mV11.30mVPass

The results above are not used in the certification process

Seasonic Prime TX-1300 (ATX v3.0)

Top side
Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
