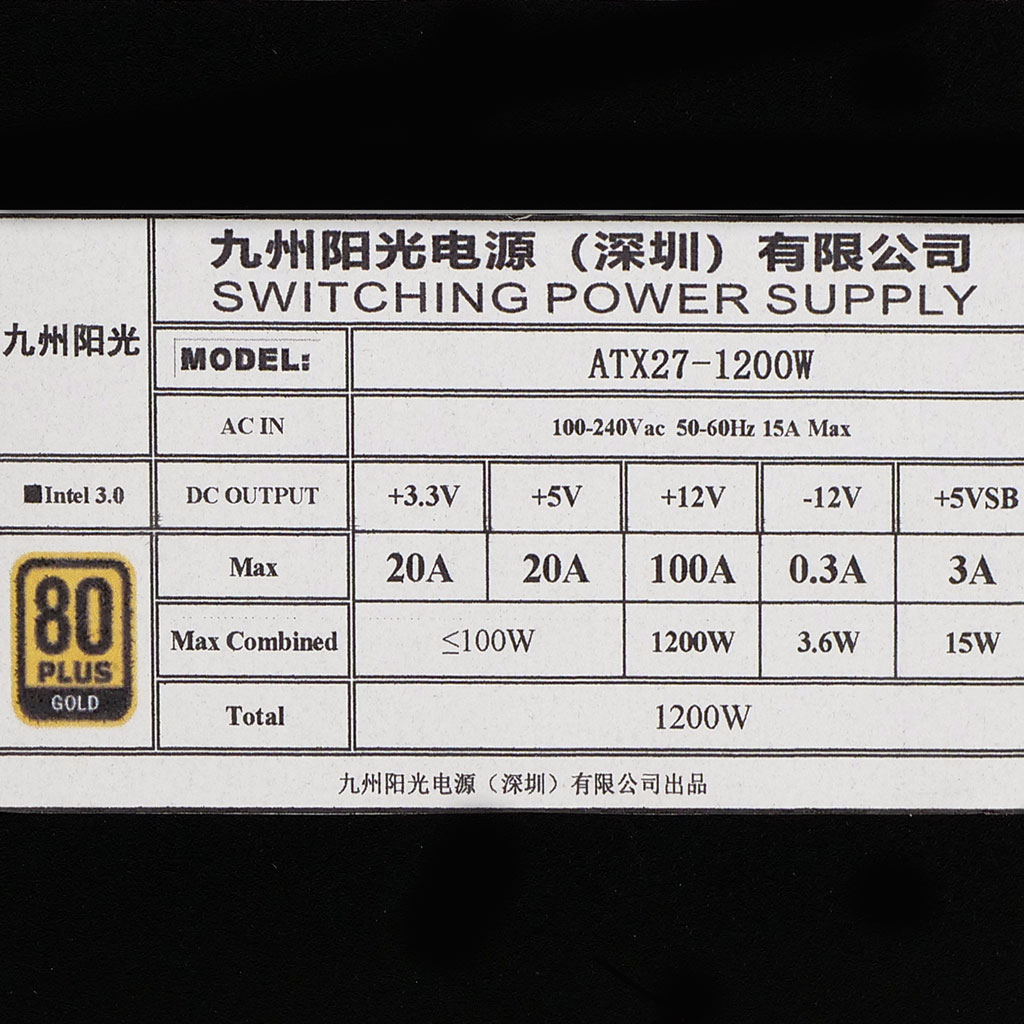

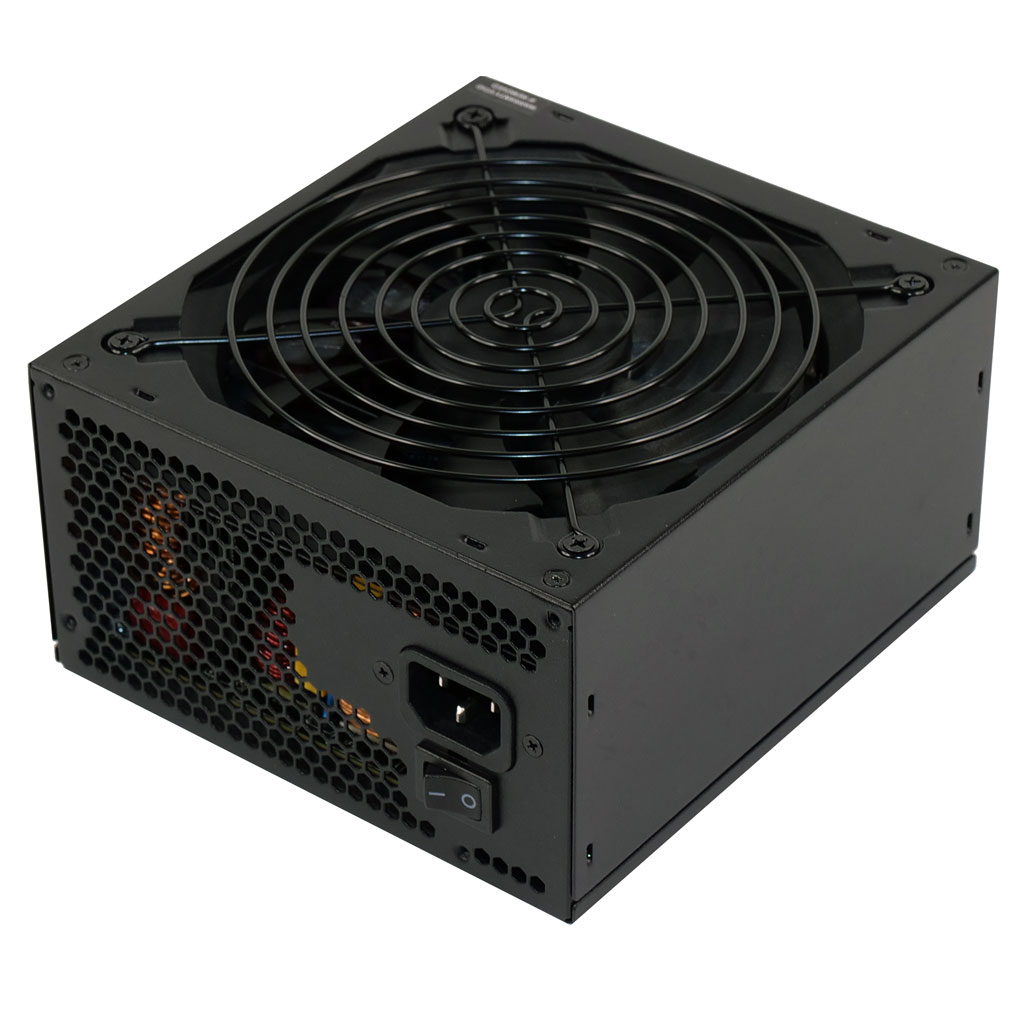

BOK Brushless BDM14025S (140mm, 12V, 0.34A, Hydraulic Bearing Fan)
5VSB Circuit
Rectifier
?
Standby PWM Controller
PN8141
Test Results
Temperature & Compliance Info
(°C /°F)
30-32 / 86-89.6
✓
✓
ALPM (Alternative Low Power Mode) compatible
✓
Performance Summary 115V
效率評比
PLATINUM
噪音評比
Standard+
(>1450 load combinations)
89.810%
Average Noise Output (>1450 Load Combinations)
36.76dBA
(>1450 Load Combinations)
0.985
Efficiency With 10W (≤500W) or 2% (>500W) Load
68.905%
0.1188W
12V Ripple (Full Load)
59.30mV
5V Ripple (Full Load)
22.23mV
3.3V Ripple (Full Load)
20.01mV
5VSB Ripple (Full Load)
20.79mV
12V Load Regulation
0.20%
5V Load Regulation
1.72%
3.3V Load Regulation
2.55%
5VSB Load Regulation
4.62%
Inrush Current
34.480A
Hold-Up Time (ms)
25.6
AC Loss to PWR_OK Hold Up Time (ms)
21.9
PWR_OK Inactive to DC Loss Delay (ms)
3.7
待機電源消耗
Tables 115V
Detailed Results
Average
Min
Limit Min
Max
Limit Max
Result
Mains Voltage RMS:
114.85 V
114.79 V
113.85 V
114.90 V
116.15 V
PASS
Mains Frequency:
60.00 Hz
59.98 Hz
59.40 Hz
60.01 Hz
60.60 Hz
PASS
Mains Voltage CF:
1.419
1.418
1.340
1.421
1.490
PASS
Mains Voltage THD:
0.15 %
0.10 %
N/A
0.26 %
2.00 %
PASS
Real Power:
0.119 W
0.100 W
N/A
0.139 W
N/A
N/A
Apparent Power:
9.932 W
9.910 W
N/A
9.954 W
N/A
N/A
Power Factor:
0.013
N/A
N/A
N/A
N/A
N/A
Graphs 115V
115V

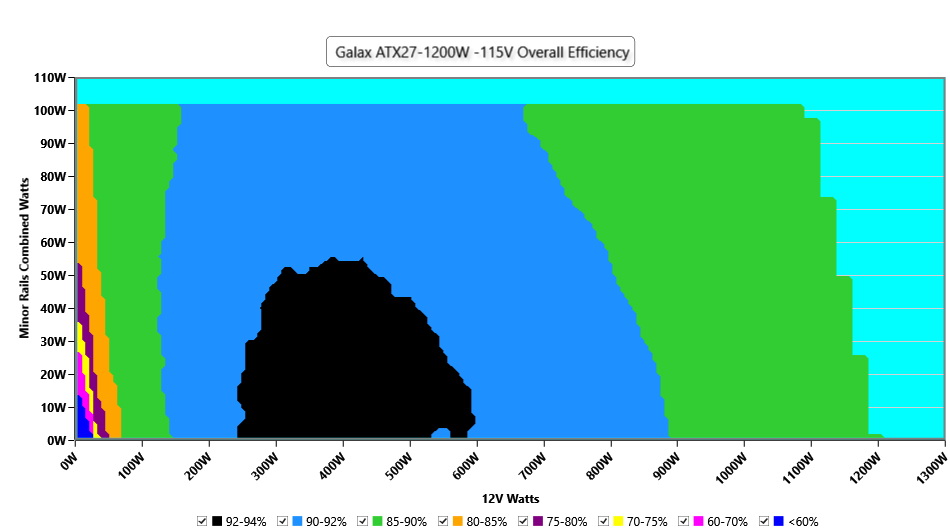

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations
115V

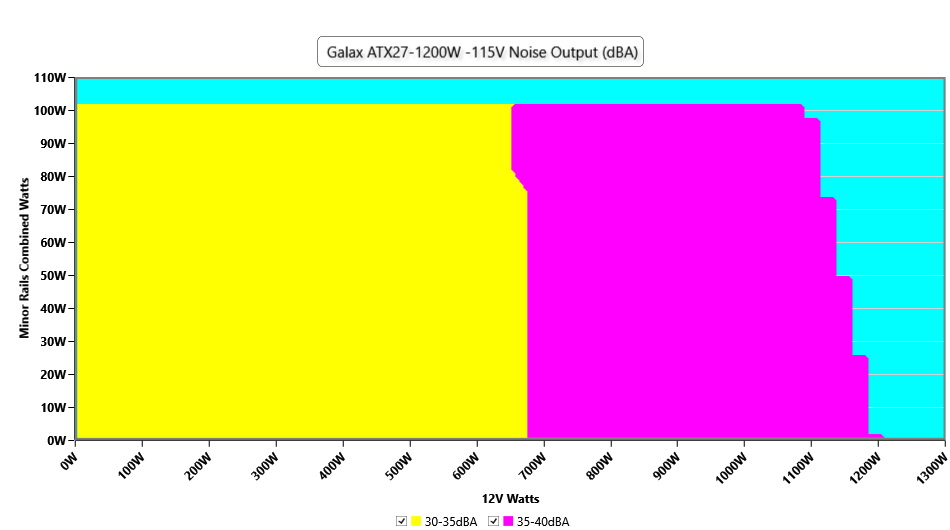

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails
Indicative Performance

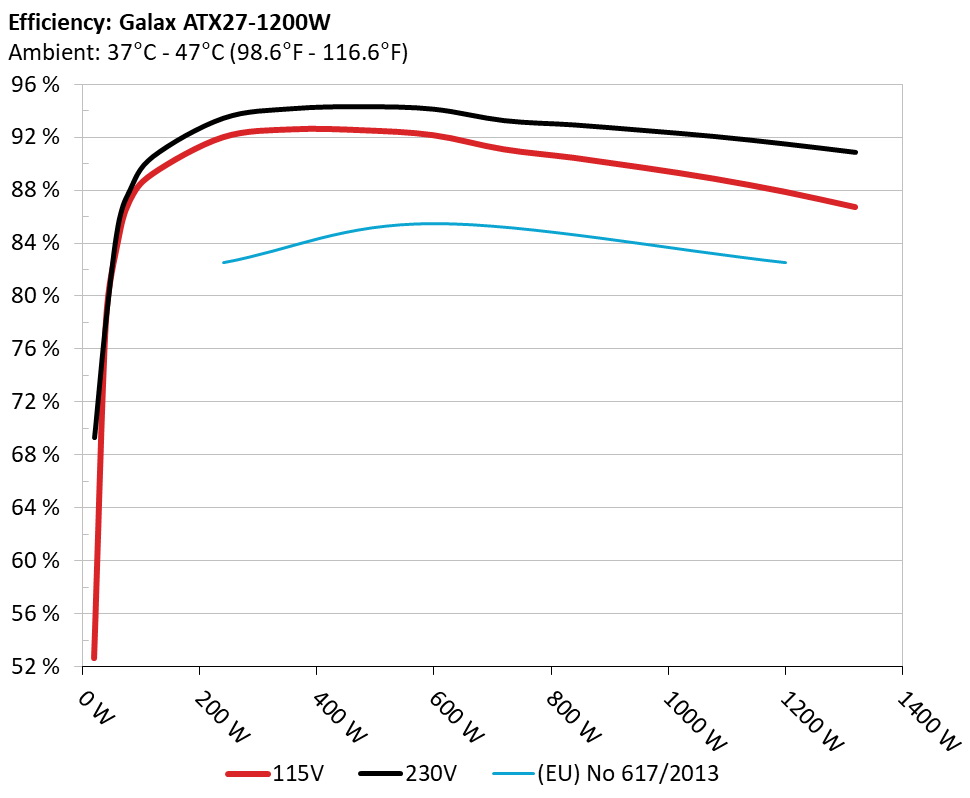

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

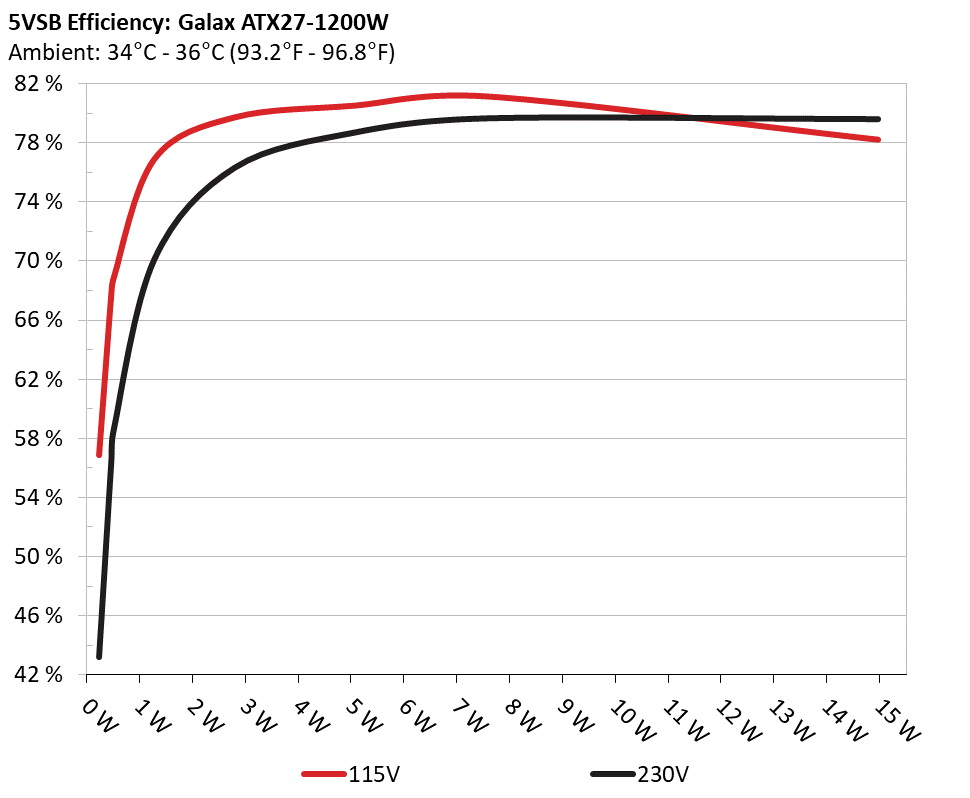

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input
115V
Test #
5VSB
DC/AC (Watts)
Efficiency
PF/AC Volts
1
0.045A
0.23W
56.877%
0.041
5.101V
0.404W
114.86V
2
0.09A
0.459W
67.678%
0.067
5.1V
0.678W
114.86V
3
0.55A
2.795W
79.747%
0.27
5.082V
3.505W
114.85V
4
1A
5.065W
80.54%
0.368
5.065V
6.289W
114.84V
5
1.5A
7.569W
81.162%
0.419
5.046V
9.326W
114.84V
6
3A
14.965W
78.234%
0.493
4.988V
19.128W
114.84V
Supplementary Tests (For Reference)
115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
10%
8.198A
1.964A
1.96A
0.99A
119.992
88.743%
1207
33.9
40.26°C
0.979
12.002V
5.092V
3.368V
5.05V
135.214
44.52°C
114.82V
20%
17.423A
2.951A
2.947A
1.193A
239.955
91.498%
1208
33.9
40.77°C
0.977
11.998V
5.084V
3.359V
5.032V
262.249
45.39°C
114.78V
30%
26.936A
3.448A
3.447A
1.396A
359.186
92.098%
1210
34.0
41.14°C
0.982
11.996V
5.076V
3.351V
5.014V
390.001
46.27°C
114.75V
40%
36.542A
3.947A
3.948A
1.602A
479.527
92.027%
1424
38.6
41.89°C
0.986
11.995V
5.068V
3.343V
4.995V
521.07
47.45°C
114.69V
50%
45.754A
4.942A
4.949A
1.809A
599.283
91.656%
1426
38.7
42.29°C
0.989
11.994V
5.059V
3.334V
4.977V
653.841
48.36°C
114.66V
60%
55.003A
5.942A
5.954A
2A
719.726
90.588%
1428
38.7
42.64°C
0.992
11.999V
5.049V
3.326V
4.958V
794.511
49.26°C
114.61V
70%
64.183A
6.945A
6.965A
2.228A
839.548
89.945%
1432
38.8
43.06°C
0.993
12.004V
5.04V
3.317V
4.937V
933.404
50.09°C
114.57V
80%
73.426A
7.95A
7.981A
2.337A
959.538
89.193%
1514
40.3
43.97°C
0.994
12.007V
5.031V
3.308V
4.921V
1075.807
52.01°C
114.53V
90%
83.002A
8.461A
8.486A
2.446A
1079.352
88.367%
1591
41.7
45.6°C
0.995
12.010V
5.023V
3.299V
4.906V
1221.448
54.64°C
114.48V
100%
92.363A
8.975A
9.024A
3.082A
1199.389
87.381%
1828
45.4
46.28°C
0.996
12.014V
5.014V
3.291V
4.867V
1372.597
56.32°C
114.44V
110%
101.635A
9.992A
10.148A
3.09A
1320.007
86.228%
1863
45.6
46.83°C
0.996
12.020V
5.004V
3.281V
4.855V
1530.808
57.76°C
114.38V
CL1
0.116A
11.874A
11.862A
0A
101.3
83.064%
1410
38.1
40.39°C
0.973
12.046V
5.07V
3.347V
5.081V
121.954
45.9°C
114.83V
CL2
0.115A
19.708A
0A
0A
101.344
82.158%
1412
38.2
40.12°C
0.973
12.021V
5.072V
3.359V
5.086V
123.353
47.16°C
114.82V
CL3
0.115A
0A
19.723A
0A
67.384
77.614%
1204
33.8
40.92°C
0.959
12.014V
5.081V
3.346V
5.086V
86.821
49.97°C
114.84V
CL4
99.860A
0A
0A
0.002A
1200.14
87.696%
1857
45.6
46.79°C
0.996
12.018V
5.038V
3.315V
4.999V
1368.533
57.71°C
114.42V
The results above are not used in the certification process
115V
Test
12V
5V
3.3V
5VSB
DC/AC (Watts)
Efficiency
Fan Speed (RPM)
PSU Noise (dB[A])
Temps (In/Out)
PF/AC Volts
20W
1.236A
0.49A
0.489A
0.196A
19.999
68.165%
1199
33.7
36.62°C
0.863
12.009V
5.1V
3.375V
5.092V
29.339
39.68°C
114.85V
40W
2.726A
0.686A
0.684A
0.295A
39.997
77.482%
1199
33.7
37.16°C
0.92
11.991V
5.099V
3.375V
5.086V
51.624
40.43°C
114.85V
60W
4.211A
0.882A
0.88A
0.394A
59.996
83.463%
1202
33.7
38.07°C
0.947
12.000V
5.099V
3.373V
5.08V
71.884
41.83°C
114.84V
80W
5.692A
1.079A
1.076A
0.493A
79.937
86.617%
1204
33.8
39.06°C
0.965
12.000V
5.097V
3.372V
5.074V
92.293
42.99°C
114.84V
The results above are not used in the certification process
115V
Test
12V
5V
3.3V
5VSB
Pass/Fail
10% Load
25.06mV
13.60mV
15.70mV
11.03mV
Pass
20% Load
41.38mV
14.27mV
16.57mV
12.21mV
Pass
30% Load
52.78mV
14.27mV
16.26mV
13.19mV
Pass
40% Load
52.27mV
16.01mV
17.24mV
14.73mV
Pass
50% Load
29.15mV
15.86mV
18.11mV
15.24mV
Pass
60% Load
30.94mV
16.83mV
18.16mV
16.93mV
Pass
70% Load
32.73mV
17.60mV
20.11mV
17.14mV
Pass
80% Load
33.96mV
18.53mV
20.88mV
19.14mV
Pass
90% Load
37.28mV
20.01mV
20.16mV
19.55mV
Pass
100% Load
59.30mV
22.23mV
20.01mV
20.79mV
Pass
110% Load
50.68mV
23.16mV
22.63mV
22.53mV
Pass
Crossload1
41.54mV
19.52mV
16.60mV
14.09mV
Pass
Crossload2
50.43mV
19.66mV
16.00mV
13.34mV
Pass
Crossload3
44.90mV
18.27mV
18.21mV
14.98mV
Pass
Crossload4
49.73mV
17.58mV
22.07mV
22.62mV
Pass
The results above are not used in the certification process
