CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Core Reactor II 1000W
Serial Number
Lab IDAD10002244
  • Report: 23PS2243A
  • Receipt Date: Aug 3, 2023
  • Test Date: Sep 25, 2023
  • Report Date: Sep 28, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesCore Reactor II
Model NumberCore Reactor II 1000W
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)13
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling135mm Fluid Dynamic Bearing Fan
(HA13525H12SF-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222283.530.3
Watts1201000153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (640mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (650mm+150mm) 3 6 16-18AWG No
2x 6+2 pin PCIe (550mm) 1 2 16AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm) / 4-pin Molex (+150mm) 3 9 / 3 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.1
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)2.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.79 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.418 1.340 1.422 1.490 PASS
Mains Voltage THD: 0.15 % 0.10 % N/A 0.26 % 2.00 % PASS
Real Power: 0.013 W 0.000 W N/A 0.027 W N/A N/A
Apparent Power: 11.009 W 10.981 W N/A 11.045 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.80 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.14 % 0.10 % N/A 0.20 % 2.00 % PASS
Real Power: 0.071 W 0.042 W N/A 0.099 W N/A N/A
Apparent Power: 38.036 W 37.967 W N/A 38.089 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

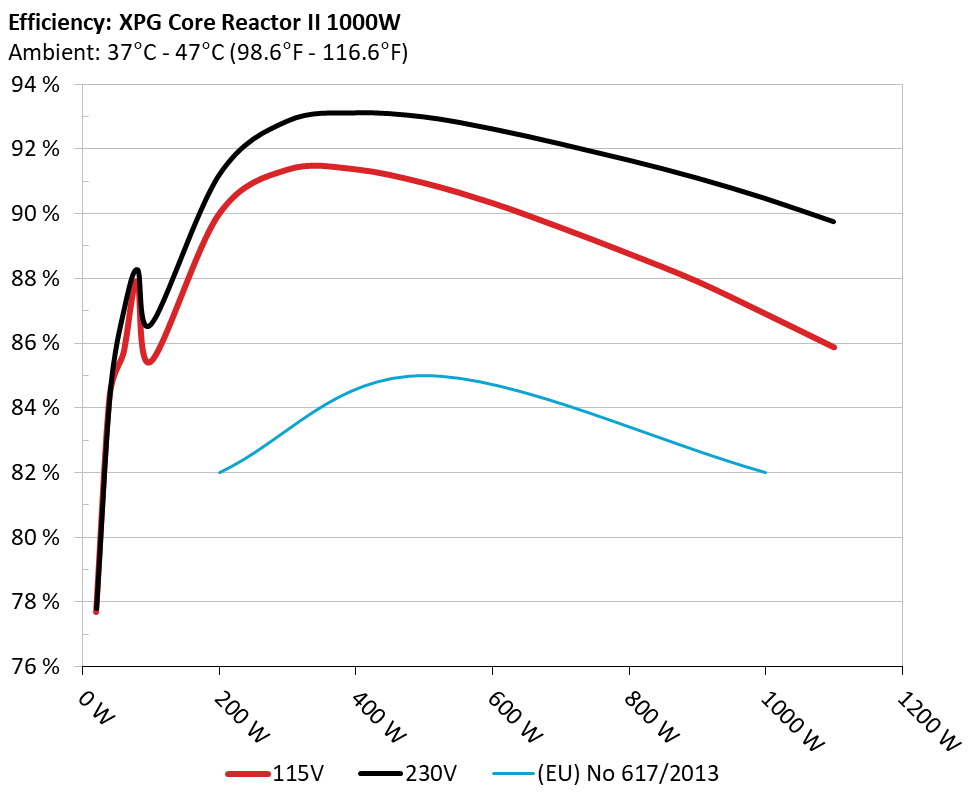

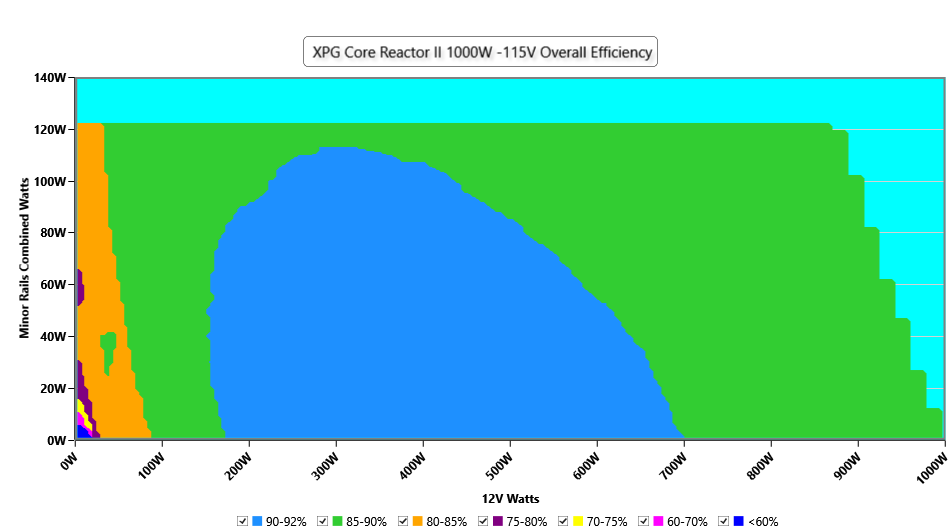

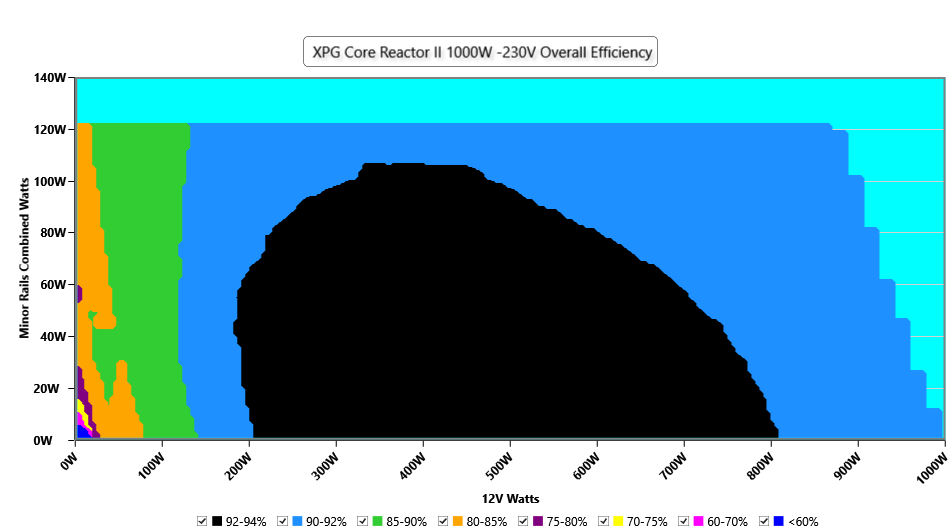

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

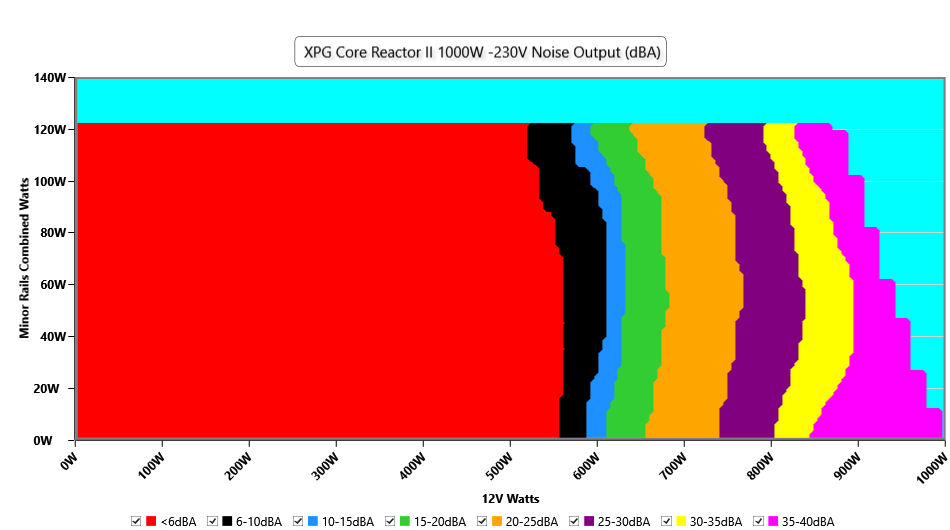

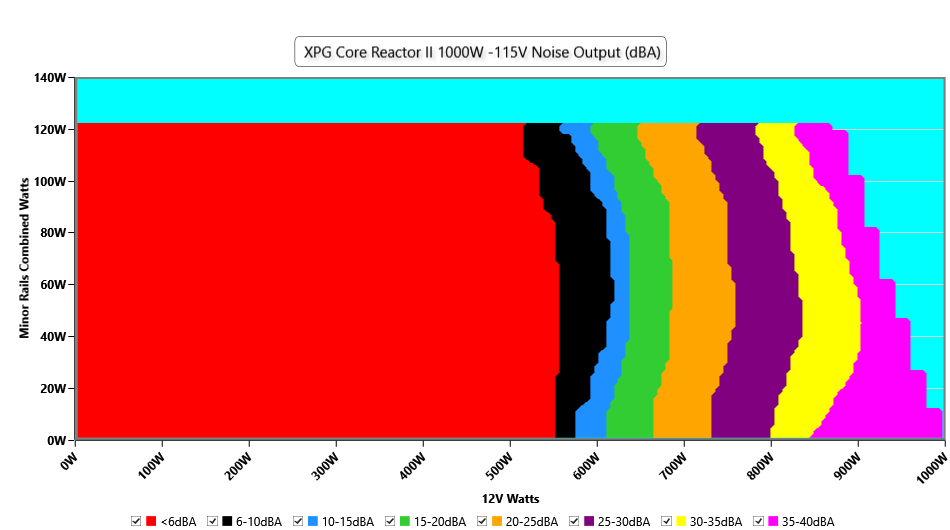

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

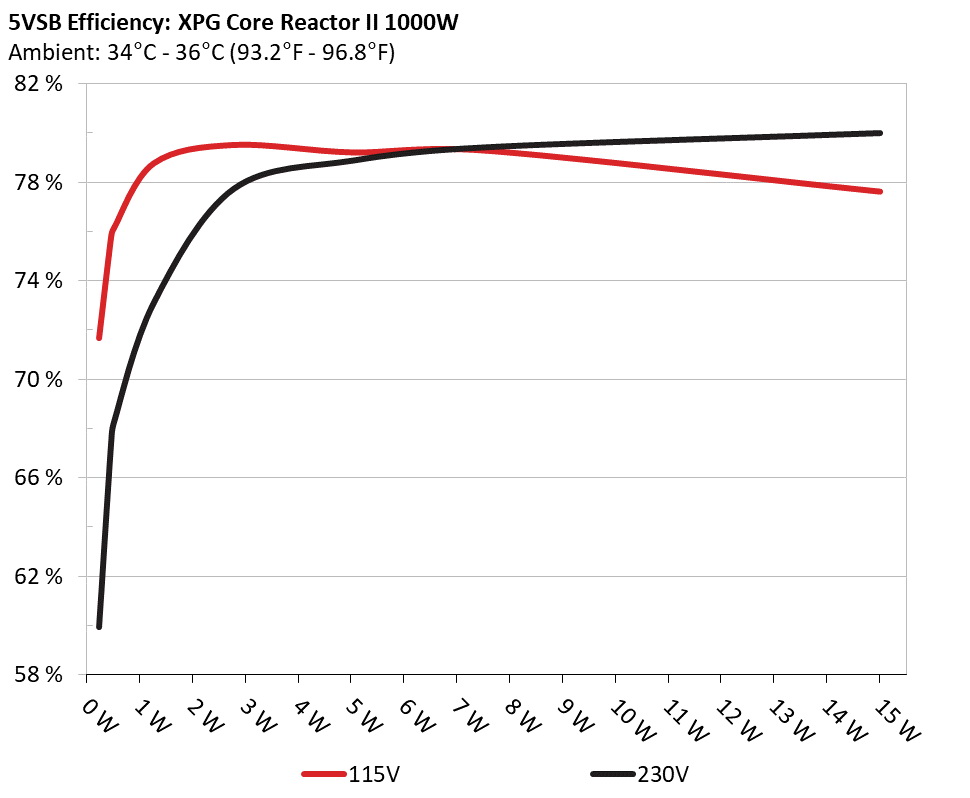

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 71.679% 0.032
5.065V 0.318W 114.84V
2 0.09A 0.456W 75.78% 0.059
5.064V 0.602W 114.85V
3 0.55A 2.78W 79.502% 0.271
5.054V 3.497W 114.84V
4 1A 5.045W 79.195% 0.36
5.044V 6.371W 114.84V
5 1.5A 7.551W 79.27% 0.423
5.034V 9.526W 114.85V
6 3A 15.006W 77.612% 0.503
5.002V 19.335W 114.83V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 59.933% 0.011
5.064V 0.381W 229.86V
2 0.09A 0.456W 67.41% 0.02
5.064V 0.676W 229.85V
3 0.55A 2.78W 77.724% 0.102
5.054V 3.577W 229.85V
4 1A 5.045W 78.87% 0.17
5.045V 6.397W 229.85V
5 1.5A 7.551W 79.405% 0.231
5.034V 9.51W 229.85V
6 3A 15.006W 79.979% 0.326
5.002V 18.763W 229.85V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.466A 1.975A 1.971A 0.993A 99.983 85.432% 394 <6.0 40.06°C 0.972
12.124V 5.062V 3.348V 5.036V 117.033 44.32°C 114.82V
20% 13.947A 2.963A 2.958A 1.194A 199.927 89.998% 394 <6.0 40.86°C 0.982
12.119V 5.062V 3.347V 5.025V 222.145 45.45°C 114.79V
30% 21.818A 3.457A 3.451A 1.377A 299.969 91.371% 394 <6.0 41.3°C 0.983
12.096V 5.061V 3.347V 5.085V 328.302 46.32°C 114.76V
40% 29.636A 3.952A 3.945A 1.572A 399.476 91.379% 395 <6.0 41.57°C 0.983
12.089V 5.061V 3.346V 5.089V 437.167 47.13°C 114.73V
50% 37.135A 4.94A 4.933A 1.772A 499.201 90.958% 395 <6.0 42.1°C 0.986
12.083V 5.06V 3.345V 5.081V 548.826 48.14°C 114.7V
60% 44.705A 5.928A 5.92A 1.972A 599.737 90.337% 396 <6.0 42.66°C 0.988
12.077V 5.061V 3.344V 5.071V 663.894 49.21°C 114.65V
70% 52.216A 6.915A 6.908A 2.173A 699.472 89.579% 753 20.2 43.19°C 0.99
12.072V 5.062V 3.344V 5.062V 780.853 50.22°C 114.62V
80% 59.805A 7.903A 7.896A 2.275A 799.486 88.771% 1025 30.3 43.7°C 0.991
12.066V 5.062V 3.343V 5.054V 900.615 52.01°C 114.58V
90% 67.739A 8.398A 8.378A 2.378A 899.292 87.917% 1448 40.8 44.39°C 0.992
12.058V 5.06V 3.342V 5.047V 1022.891 53.46°C 114.54V
100% 75.475A 8.895A 8.892A 2.983A 999.326 86.914% 1880 47.6 45.88°C 0.993
12.053V 5.059V 3.34V 5.028V 1149.796 56.01°C 114.5V
110% 83.137A 9.885A 9.967A 2.987A 1099.947 85.875% 2176 50.5 46.68°C 0.994
12.048V 5.058V 3.341V 5.022V 1280.875 57.59°C 114.47V
CL1 0.114A 14.254A 14.251A 0A 121.297 83.067% 399 <6.0 41.15°C 0.983
12.125V 5.065V 3.347V 5.051V 146.025 46.62°C 114.81V
CL2 0.114A 21.648A 0A 0A 111.284 81.187% 399 <6.0 40.63°C 0.979
12.128V 5.077V 3.359V 5.053V 137.072 48.01°C 114.82V
CL3 0.114A 0A 21.657A 0A 73.981 75.197% 398 <6.0 40.61°C 0.974
12.129V 5.079V 3.352V 5.053V 98.383 49.71°C 114.83V
CL4 82.940A 0A 0A 0A 999.895 87.64% 1755 45.1 45.04°C 0.993
12.056V 5.08V 3.358V 5.096V 1140.925 55.99°C 114.51V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.467A 1.976A 1.972A 0.993A 99.989 86.59% 393 <6.0 40.14°C 0.884
12.123V 5.061V 3.347V 5.036V 115.474 44.43°C 229.83V
20% 13.950A 2.964A 2.959A 1.194A 199.936 91.207% 393 <6.0 40.6°C 0.943
12.117V 5.06V 3.346V 5.025V 219.212 45.21°C 229.81V
30% 21.823A 3.459A 3.453A 1.377A 299.986 92.864% 394 <6.0 41.29°C 0.962
12.094V 5.06V 3.345V 5.083V 323.036 46.31°C 229.8V
40% 29.645A 3.953A 3.947A 1.572A 399.521 93.114% 395 <6.0 41.95°C 0.969
12.087V 5.059V 3.344V 5.089V 429.071 47.47°C 229.78V
50% 37.146A 4.942A 4.936A 1.772A 499.243 92.989% 395 <6.0 42.15°C 0.975
12.080V 5.059V 3.343V 5.08V 536.885 48.22°C 229.77V
60% 44.718A 5.93A 5.924A 1.972A 599.785 92.62% 396 <6.0 42.71°C 0.977
12.075V 5.06V 3.343V 5.071V 647.581 49.23°C 229.75V
70% 52.231A 6.917A 6.912A 2.174A 699.528 92.155% 710 18.4 43.03°C 0.98
12.070V 5.06V 3.343V 5.061V 759.081 50.04°C 229.74V
80% 59.823A 7.907A 7.901A 2.276A 799.55 91.654% 1007 29.8 43.87°C 0.981
12.063V 5.06V 3.341V 5.053V 872.363 52.01°C 229.71V
90% 67.758A 8.401A 8.383A 2.378A 899.356 91.105% 1430 40.1 44.04°C 0.982
12.056V 5.059V 3.34V 5.046V 987.16 53.09°C 229.7V
100% 75.492A 8.898A 8.897A 2.984A 999.388 90.474% 1843 46.8 45.31°C 0.983
12.050V 5.057V 3.338V 5.027V 1104.615 55.33°C 229.68V
110% 83.161A 9.89A 9.98A 2.988A 1099.99 89.754% 2176 50.5 46.66°C 0.985
12.045V 5.056V 3.336V 5.021V 1225.558 57.59°C 229.66V
CL1 0.116A 14.258A 14.266A 0A 121.304 83.774% 399 <6.0 40.06°C 0.914
12.124V 5.064V 3.343V 5.05V 144.804 45.54°C 229.83V
CL2 0.114A 21.656A 0A 0A 111.294 81.813% 398 <6.0 40.25°C 0.907
12.127V 5.075V 3.355V 5.053V 136.036 47.31°C 229.83V
CL3 0.114A 0A 21.679A 0A 73.985 75.879% 397 <6.0 40.5°C 0.86
12.128V 5.078V 3.349V 5.053V 97.505 49.51°C 229.83V
CL4 82.959A 0A 0A 0A 999.935 91.109% 1718 44.7 45.56°C 0.983
12.053V 5.079V 3.355V 5.095V 1097.518 56.5°C 229.68V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.492A 0.492A 0.198A 19.996 77.689% 390 <6.0 36.64°C 0.888
12.095V 5.076V 3.356V 5.058V 25.739 39.73°C 114.85V
40W 2.704A 0.689A 0.688A 0.297A 39.996 84.414% 391 <6.0 37.24°C 0.935
12.090V 5.076V 3.356V 5.055V 47.382 40.58°C 114.84V
60W 4.178A 0.888A 0.886A 0.396A 59.995 85.695% 391 <6.0 38.36°C 0.955
12.092V 5.068V 3.351V 5.051V 70.007 42.25°C 114.83V
80W 5.648A 1.086A 1.084A 0.495A 79.932 87.925% 392 <6.0 39.37°C 0.973
12.093V 5.064V 3.35V 5.048V 90.91 43.28°C 114.83V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.492A 0.492A 0.198A 20.001 77.81% 390 <6.0 36.61°C 0.499
12.095V 5.077V 3.355V 5.058V 25.707 39.69°C 229.84V
40W 2.704A 0.69A 0.688A 0.297A 39.999 84.479% 390 <6.0 37.14°C 0.698
12.090V 5.076V 3.355V 5.055V 47.349 40.43°C 229.84V
60W 4.179A 0.888A 0.886A 0.396A 59.998 87.005% 391 <6.0 38.07°C 0.799
12.092V 5.067V 3.35V 5.051V 68.959 41.61°C 229.84V
80W 5.649A 1.086A 1.084A 0.495A 79.936 88.273% 391 <6.0 39.16°C 0.847
12.092V 5.063V 3.348V 5.048V 90.56 42.99°C 229.83V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.87mV6.88mV5.90mV6.11mVPass
20% Load7.11mV7.34mV6.10mV5.95mVPass
30% Load14.89mV6.98mV6.05mV6.05mVPass
40% Load12.94mV7.44mV6.62mV6.46mVPass
50% Load11.31mV10.11mV12.11mV6.62mVPass
60% Load10.59mV6.93mV6.67mV6.47mVPass
70% Load10.95mV7.44mV6.72mV7.85mVPass
80% Load11.20mV7.90mV8.46mV8.26mVPass
90% Load12.02mV8.37mV9.49mV8.36mVPass
100% Load19.42mV8.84mV9.20mV10.71mVPass
110% Load19.48mV8.78mV10.79mV10.45mVPass
Crossload17.82mV9.14mV9.77mV8.94mVPass
Crossload210.03mV15.09mV6.82mV8.11mVPass
Crossload38.75mV7.08mV12.47mV8.26mVPass
Crossload418.97mV8.07mV6.73mV9.98mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load5.88mV6.67mV5.74mV6.16mVPass
20% Load6.39mV6.62mV6.11mV6.05mVPass
30% Load16.27mV7.14mV6.31mV6.72mVPass
40% Load13.15mV7.03mV6.41mV6.78mVPass
50% Load12.23mV10.57mV11.90mV6.98mVPass
60% Load12.59mV6.98mV7.34mV7.18mVPass
70% Load11.56mV7.08mV6.67mV7.64mVPass
80% Load11.97mV7.29mV8.62mV8.06mVPass
90% Load12.38mV7.39mV8.21mV8.62mVPass
100% Load18.80mV9.10mV9.17mV10.36mVPass
110% Load20.27mV9.49mV9.81mV10.73mVPass
Crossload18.29mV9.30mV9.64mV9.13mVPass
Crossload29.00mV14.53mV6.31mV7.95mVPass
Crossload37.42mV6.88mV11.90mV8.41mVPass
Crossload418.81mV8.10mV7.05mV10.36mVPass

The results above are not used in the certification process

XPG Core Reactor II 1000W

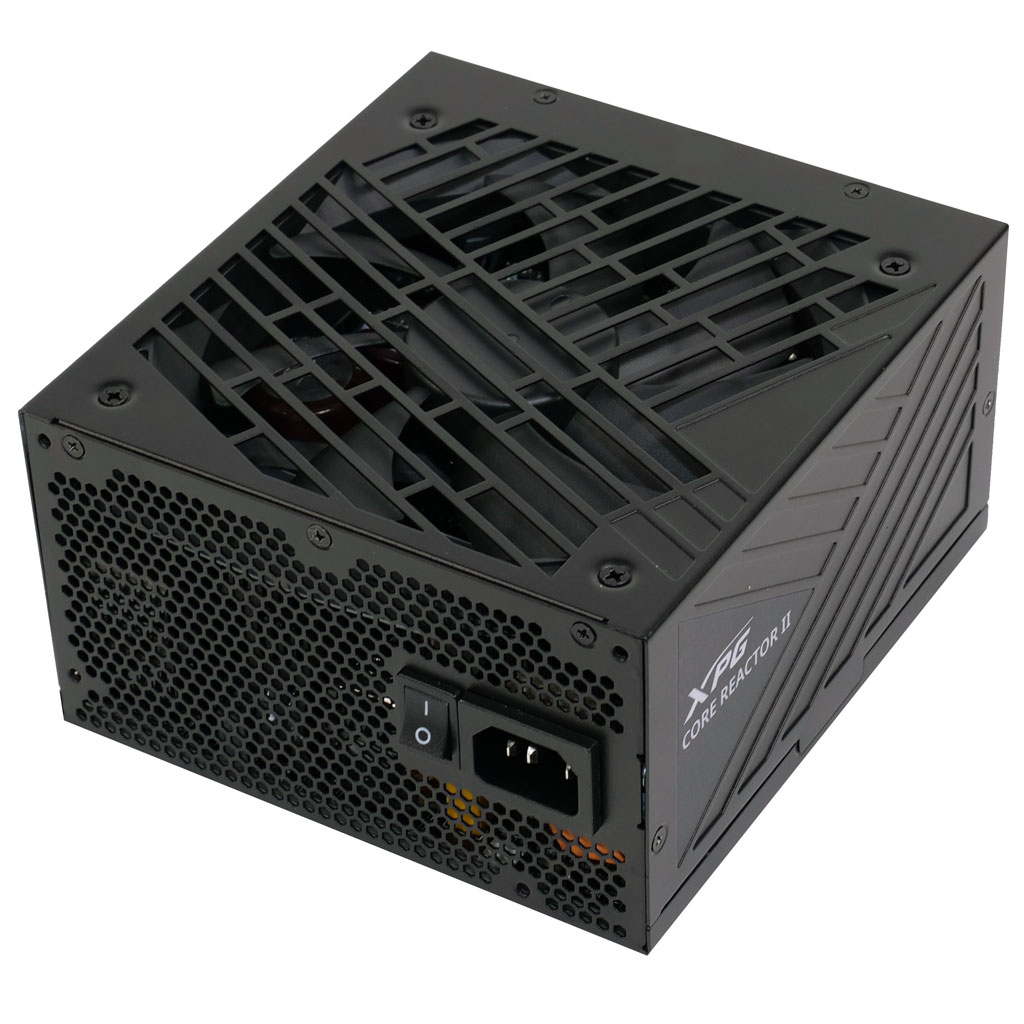

Top side

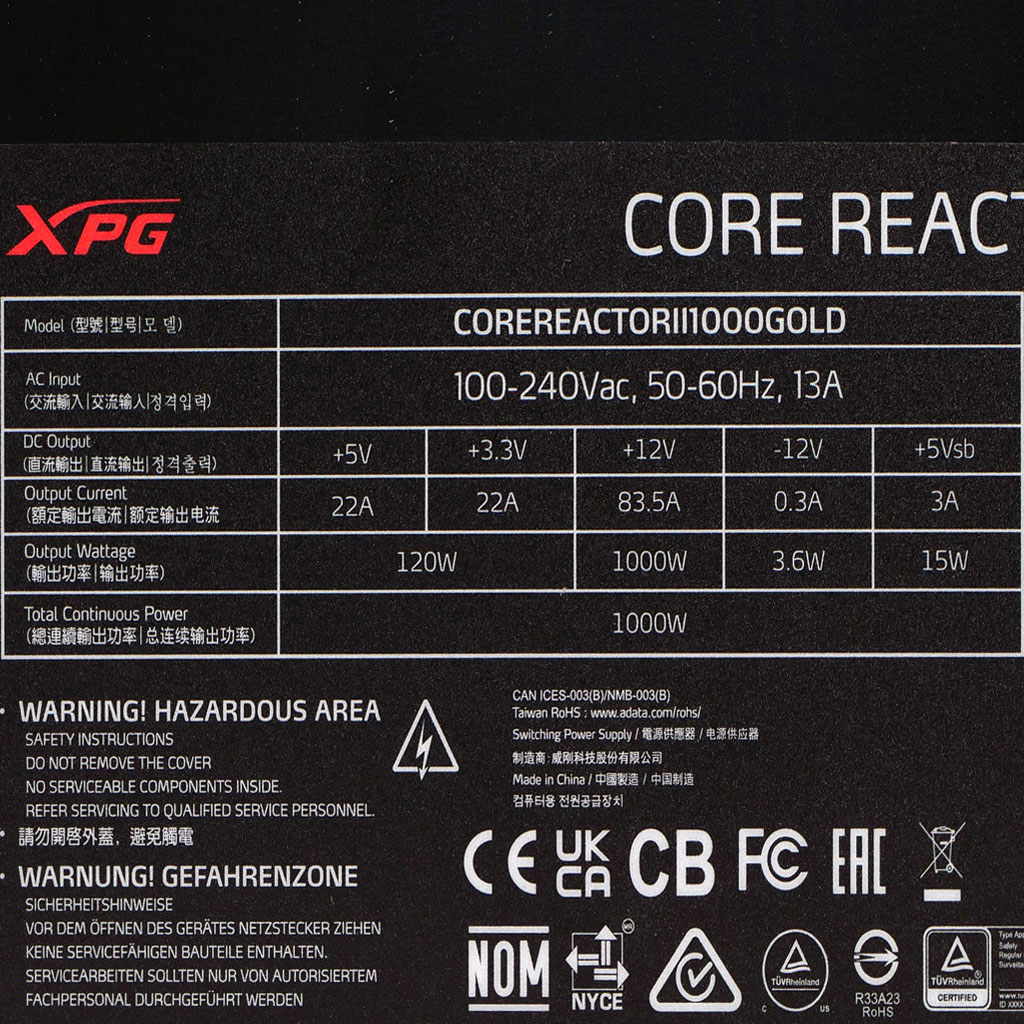

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
