EVGA SuperNOVA 550 G3
Serial Number1703470515899011
Lab ID224
  • Report:
  • Receipt Date: Nov 11, 2018
  • Test Date: Nov 20, 2018
  • Report Date: Nov 24, 2018
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandEVGA
Manufacturer (OEM)Super Flower
SeriesSuperNOVA G3
Model Number
Serial Number1703470515899011
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)50-60
Rated Power (W)550
TypeATX12V
Cooling130mm Hydraulic Dynamic Bearing Fan
(H1282412L)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail 3.3V 5V 12V 5VSB -12V
Max. Power Amps 22 22 45.8 3 0.5
Watts 110 549.6 15 6
Total Max. Power (W) 550

Test Equipment

Electronic Loads Chroma 6314A x2
63123A x6
63102A
63101A		 Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, Chroma 61604
Power Analyzers N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444 & 3424, Keysight DSOX3024A, Rigol DS2072A
Voltmeter Keithley 2015 THD 6.5 Digit
Sound Analyzer Bruel & Kjaer 2250-L G4
Microphone Bruel & Kjaer Type 4955-A, Bruel & Kjaer Type 4189
Data Loggers Picoscope TC-08 x2, Labjack U3-HV x2
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG Yes
4+4 pin EPS12V (700mm) 1 1 18-22AWG Yes
6+2 pin PCIe (700mm) 1 1 18-22AWG Yes
6+2 pin PCIe (600mm+150mm) 1 2 18-22AWG Yes
SATA (500mm+100mm+100mm) 2 6 18-20AWG No
4 pin Molex (500mm+100mm+100mm+100mm) 1 4 18AWG No
FDD Adapter (+100mm) 1 1 20AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms) 18.26
AC Loss to PWR_OK Hold Up Time  (ms) 15.70
PWR_OK Inactive to DC Loss Delay (ms) 2.56

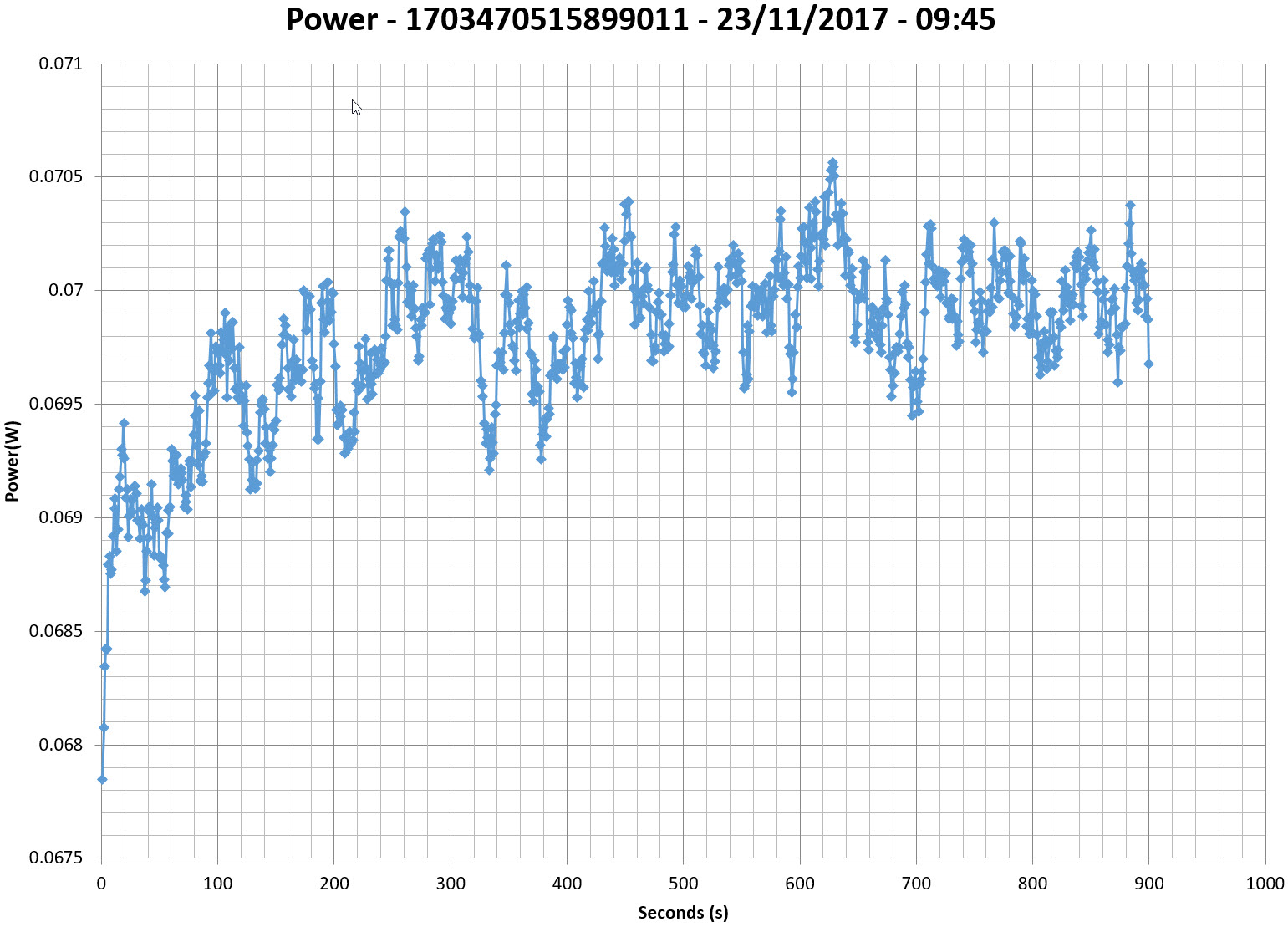

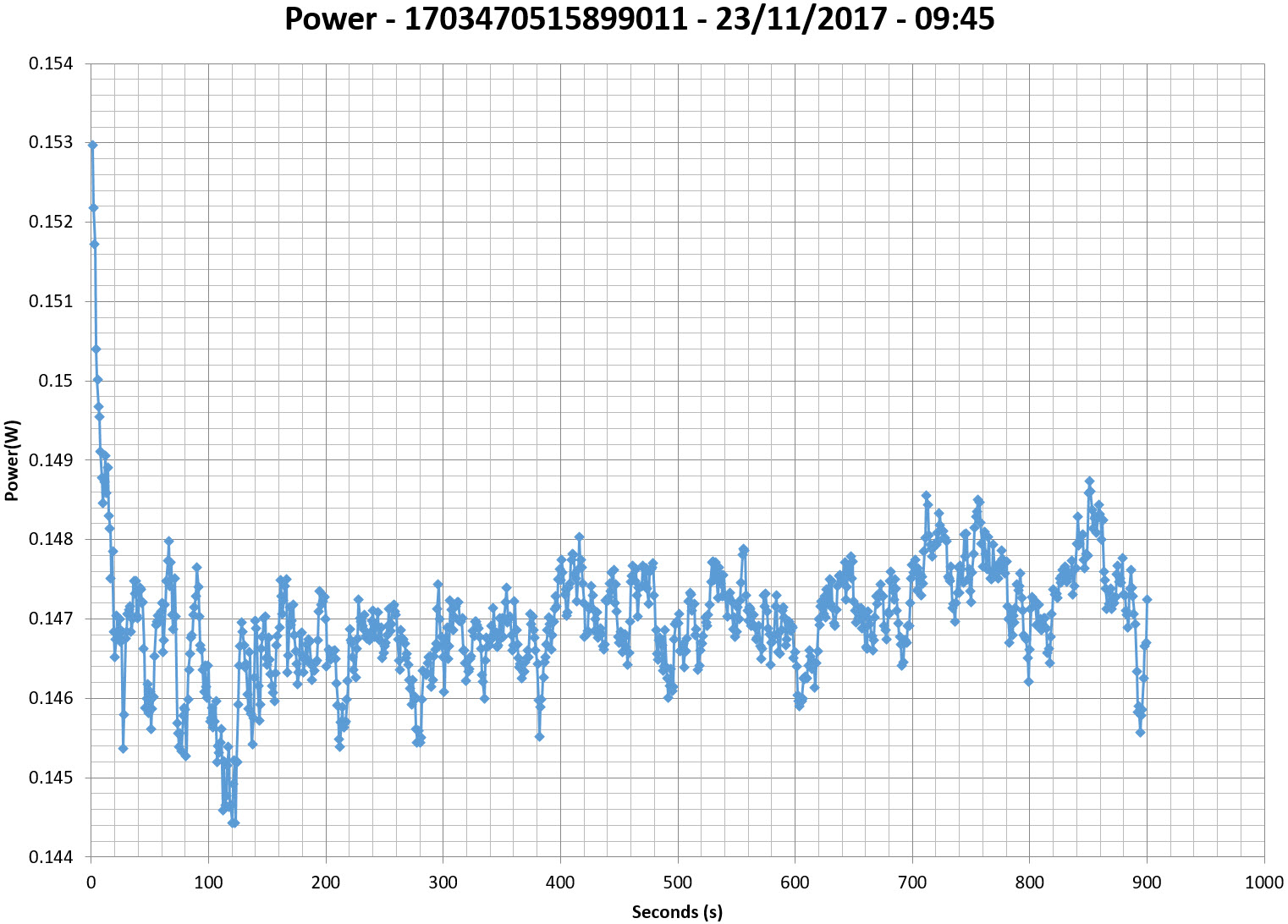

Vampire Power

Graphs

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

INFO

This graph is generated by the PPA Standby Power Analysis software which takes full control of the power analyzer during the whole procedure. This application features all of the EN50564 & IEC62301 test limits for standby power software testing.

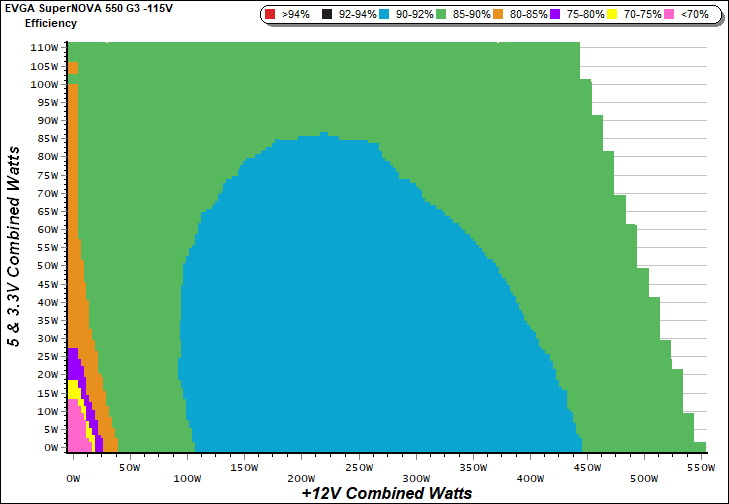

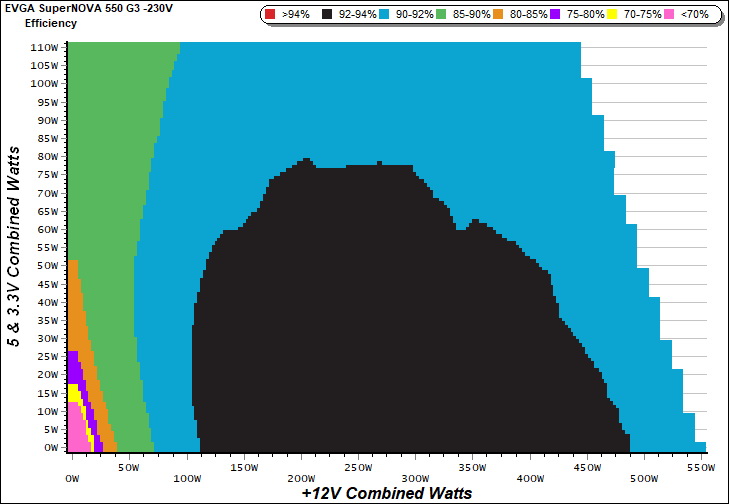

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations.

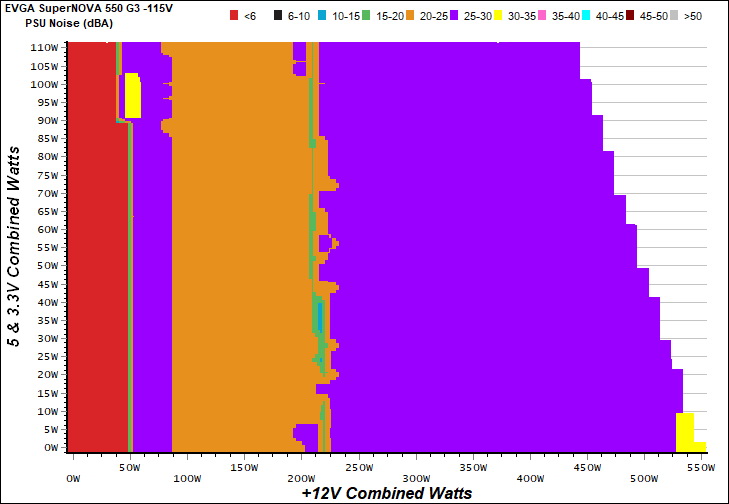

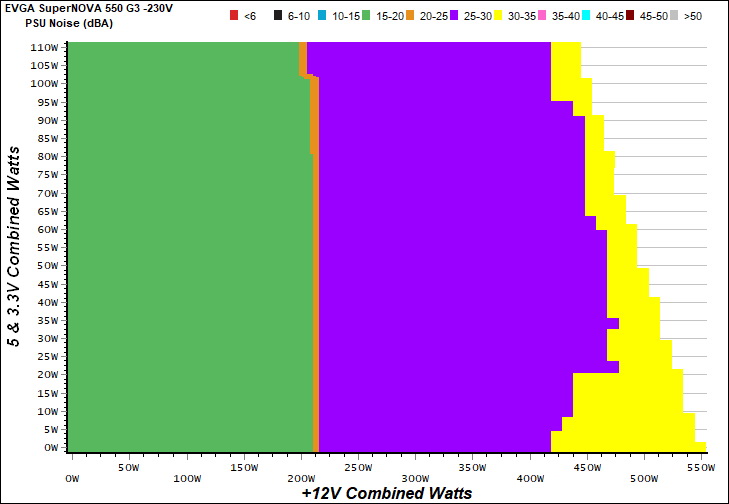

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails.

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used.

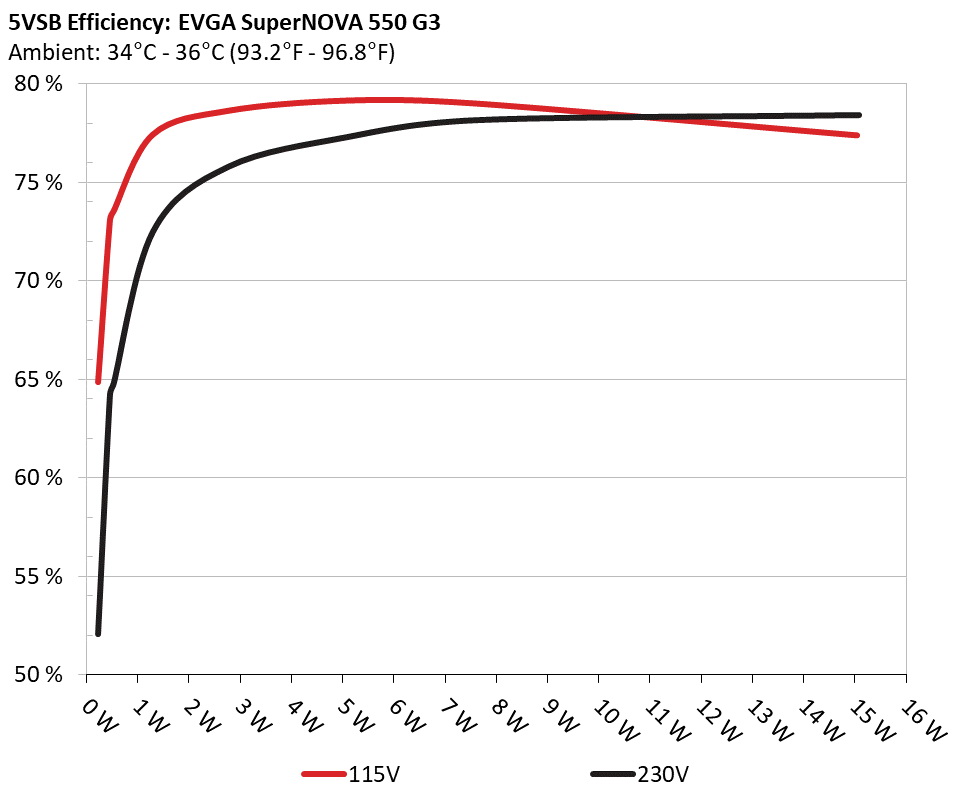

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input.

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.216 64.865% 0.031
5.102V 0.333 115.00V
2 0.088A 0.448 73.083% 0.057
5.100V 0.613 115.00V
3 0.543A 2.762 78.645% 0.254
5.089V 3.512 114.99V
4 1.003A 5.091 79.163% 0.352
5.077V 6.431 114.99V
5 1.502A 7.608 79.011% 0.406
5.065V 9.629 114.99V
6 3.002A 15.050 77.394% 0.476
5.013V 19.446 114.99V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.042A 0.216 52.048% 0.012
5.102V 0.415 230.10V
2 0.088A 0.448 64.183% 0.020
5.100V 0.698 230.11V
3 0.543A 2.761 75.768% 0.098
5.089V 3.644 230.08V
4 1.003A 5.091 77.277% 0.164
5.078V 6.588 230.09V
5 1.502A 7.607 78.133% 0.219
5.065V 9.736 230.09V
6 3.002A 15.087 78.390% 0.321
5.026V 19.246 230.09V

Supplementary Tests (For Reference)

Typical Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.713A 1.975A 1.992A 0.985A 54.789 84.773% 1233 31.7 38.00°C 0.934
12.235V 5.065V 3.310V 5.075V 64.630 39.93°C 115.09V
2 6.453A 2.960A 2.987A 1.181A 109.812 88.891% 1263 32.1 38.43°C 0.966
12.232V 5.068V 3.312V 5.068V 123.535 40.73°C 115.09V
3 10.533A 3.457A 3.500A 1.381A 164.897 90.211% 1279 32.2 38.68°C 0.979
12.229V 5.066V 3.311V 5.060V 182.790 41.51°C 115.09V
4 14.609A 3.943A 3.984A 1.581A 219.781 90.686% 1300 32.4 39.01°C 0.986
12.227V 5.066V 3.311V 5.054V 242.354 42.29°C 115.09V
5 18.350A 4.939A 4.977A 1.781A 274.795 90.675% 1340 33.1 39.31°C 0.989
12.223V 5.068V 3.312V 5.047V 303.056 43.25°C 115.09V
6 22.094A 5.917A 5.974A 1.982A 329.746 90.364% 1380 34.1 40.55°C 0.991
12.219V 5.069V 3.314V 5.039V 364.908 44.73°C 115.09V
7 25.844A 6.908A 6.965A 2.185A 384.785 89.746% 1443 36.8 41.45°C 0.993
12.215V 5.069V 3.315V 5.032V 428.748 46.55°C 115.10V
8 29.589A 7.892A 7.958A 2.386A 439.702 89.150% 1505 37.9 42.21°C 0.993
12.211V 5.070V 3.316V 5.025V 493.218 48.26°C 115.10V
9 33.774A 8.388A 8.471A 2.386A 494.812 88.462% 1572 37.6 43.73°C 0.994
12.205V 5.070V 3.316V 5.022V 559.349 50.38°C 115.10V
10 37.699A 8.877A 8.954A 2.996A 549.655 87.729% 1641 39.0 44.96°C 0.995
12.201V 5.070V 3.316V 5.004V 626.536 52.23°C 115.10V
11 42.220A 8.883A 8.957A 2.997A 604.615 87.025% 1728 39.9 46.35°C 0.995
12.196V 5.068V 3.315V 5.001V 694.759 54.53°C 115.10V
CL1 0.100A 13.020A 13.004A 0.005A 111.096 84.363% 1505 37.9 42.26°C 0.969
12.219V 5.097V 3.344V 5.097V 131.688 46.13°C 115.12V
CL2 45.789A 1.002A 1.003A 1.002A 572.195 88.280% 1593 38.3 44.28°C 0.995
12.203V 5.048V 3.293V 5.060V 648.157 51.95°C 115.10V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
1 2.689A 1.974A 1.992A 0.985A 54.483 86.741% 1233 31.7 40.11°C 0.662
12.229V 5.067V 3.312V 5.076V 62.811 43.63°C 231.02V
2 6.420A 2.961A 2.988A 1.184A 109.391 90.573% 1233 31.7 40.97°C 0.834
12.224V 5.069V 3.313V 5.070V 120.777 44.80°C 230.98V
3 10.548A 3.454A 3.470A 1.383A 164.902 91.397% 1368 33.9 41.13°C 0.903
12.220V 5.069V 3.313V 5.063V 180.424 45.59°C 230.96V
4 14.615A 3.946A 3.984A 1.583A 219.726 91.961% 1406 34.4 41.81°C 0.941
12.215V 5.069V 3.313V 5.056V 238.934 46.60°C 230.91V
5 18.352A 4.932A 4.978A 1.783A 274.631 92.129% 1380 34.1 42.17°C 0.954
12.212V 5.071V 3.315V 5.050V 298.093 47.66°C 230.86V
6 22.098A 5.916A 5.971A 1.984A 329.516 92.006% 1462 37.8 42.75°C 0.963
12.205V 5.072V 3.316V 5.042V 358.147 48.54°C 230.83V
7 25.872A 6.900A 6.962A 2.185A 384.824 91.624% 1485 37.8 43.09°C 0.969
12.203V 5.074V 3.317V 5.036V 420.003 49.16°C 230.79V
8 29.661A 7.883A 7.954A 2.387A 440.126 91.250% 1527 37.0 43.72°C 0.973
12.195V 5.075V 3.319V 5.029V 482.330 50.95°C 230.75V
9 33.808A 8.377A 8.437A 2.388A 494.639 90.861% 1560 37.3 44.12°C 0.978
12.190V 5.075V 3.319V 5.027V 544.393 51.74°C 230.70V
10 37.772A 8.868A 8.949A 2.995A 549.851 90.391% 1625 38.7 45.52°C 0.980
12.182V 5.075V 3.319V 5.010V 608.305 53.63°C 230.66V
11 42.321A 8.871A 8.951A 2.996A 605.048 90.029% 1716 39.6 46.14°C 0.983
12.177V 5.074V 3.317V 5.008V 672.061 54.60°C 230.62V
CL1 0.139A 13.003A 13.000A 0.000A 111.448 85.496% 1485 37.8 43.34°C 0.853
12.219V 5.097V 3.344V 5.098V 130.354 49.02°C 230.97V
CL2 45.835A 1.001A 1.000A 1.000A 571.872 91.136% 1527 37.0 45.93°C 0.982
12.184V 5.054V 3.295V 5.064V 627.490 53.32°C 230.65V

The results above are not used in the certification process

Light Load Tests

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.196A 0.491A 0.480A 0.196A 19.712 74.948% 1165 29.1 0.770
12.240V 5.063V 3.307V 5.097V 26.301 115.08V
2 2.412A 0.979A 0.996A 0.391A 39.760 83.339% 1186 29.5 0.893
12.237V 5.064V 3.308V 5.092V 47.709 115.08V
3 3.632A 1.473A 1.509A 0.586A 59.874 86.380% 1197 29.9 0.949
12.236V 5.064V 3.308V 5.086V 69.315 115.08V
4 4.841A 1.974A 1.992A 0.786A 79.808 87.691% 1220 30.9 0.954
12.234V 5.065V 3.310V 5.079V 91.010 115.08V

The results above are not used in the certification process

Test # 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) PF/AC Volts
1 1.187A 0.494A 0.483A 0.196A 19.620 77.409% 1220 30.9 0.409
12.234V 5.064V 3.309V 5.099V 25.346 231.03V
2 2.427A 0.988A 0.995A 0.393A 39.983 85.317% 1233 31.7 0.574
12.231V 5.065V 3.309V 5.093V 46.864 231.04V
3 3.606A 1.481A 1.480A 0.590A 59.512 88.059% 1233 31.7 0.683
12.232V 5.066V 3.310V 5.087V 67.582 231.03V
4 4.844A 1.974A 1.994A 0.787A 79.838 88.813% 1233 31.7 0.760
12.229V 5.066V 3.311V 5.081V 89.895 231.01V

The results above are not used in the certification process

Ripple Measurements

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 4.6 mV 3.9 mV 4.7 mV 6.4 mV Pass
20% Load 5.7 mV 4.7 mV 4.9 mV 7.6 mV Pass
30% Load 7.7 mV 5.4 mV 5.4 mV 8.7 mV Pass
40% Load 8.1 mV 6.1 mV 6.1 mV 9.8 mV Pass
50% Load 8.3 mV 6.8 mV 6.5 mV 11.3 mV Pass
60% Load 8.9 mV 7.6 mV 6.8 mV 12.7 mV Pass
70% Load 8.9 mV 8.8 mV 7.7 mV 17.2 mV Pass
80% Load 9.3 mV 9.9 mV 8.6 mV 19.1 mV Pass
90% Load 9.5 mV 10.5 mV 8.8 mV 19.1 mV Pass
100% Load 10.0 mV 11.5 mV 9.9 mV 22.7 mV Pass
110% Load 10.5 mV 12.5 mV 10.6 mV 26.3 mV Pass
Crossload 1 6.3 mV 6.2 mV 6.9 mV 21.0 mV Pass
Crossload 2 9.8 mV 11.3 mV 8.9 mV 18.0 mV Pass

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB Pass/Fail
10% Load 3.7 mV 4.3 mV 3.7 mV 5.9 mV Pass
20% Load 4.9 mV 5.2 mV 4.4 mV 7.1 mV Pass
30% Load 6.4 mV 5.9 mV 4.7 mV 8.0 mV Pass
40% Load 7.5 mV 6.5 mV 5.4 mV 9.1 mV Pass
50% Load 8.3 mV 8.1 mV 5.8 mV 10.4 mV Pass
60% Load 8.9 mV 8.9 mV 6.8 mV 12.0 mV Pass
70% Load 9.0 mV 10.0 mV 7.5 mV 14.0 mV Pass
80% Load 9.0 mV 11.4 mV 8.6 mV 15.6 mV Pass
90% Load 9.4 mV 12.0 mV 9.2 mV 17.2 mV Pass
100% Load 10.3 mV 13.3 mV 10.1 mV 19.7 mV Pass
110% Load 10.9 mV 14.1 mV 10.8 mV 20.8 mV Pass
Crossload 1 4.6 mV 8.4 mV 8.6 mV 21.2 mV Pass
Crossload 2 11.1 mV 11.8 mV 6.8 mV 16.0 mV Pass

The results above are not used in the certification process

EVGA SuperNOVA 550 G3

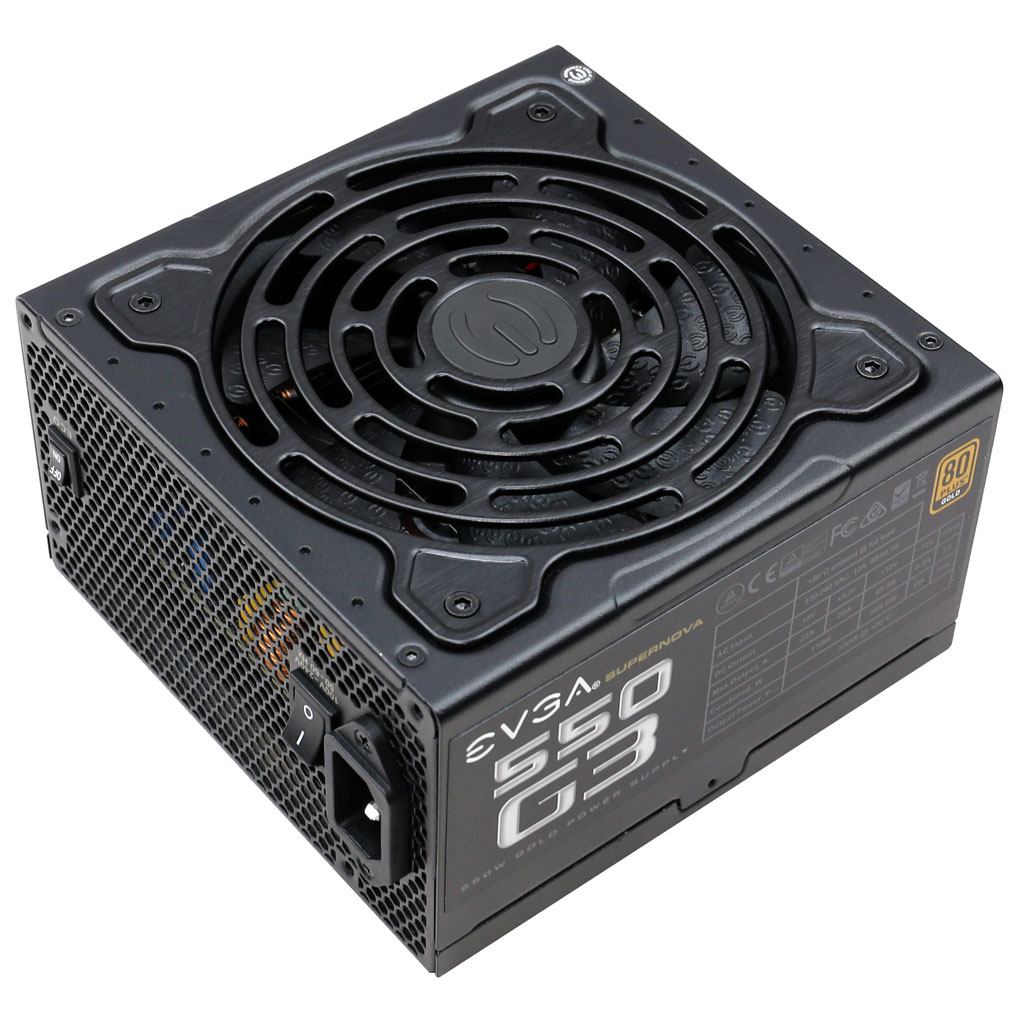

Top side

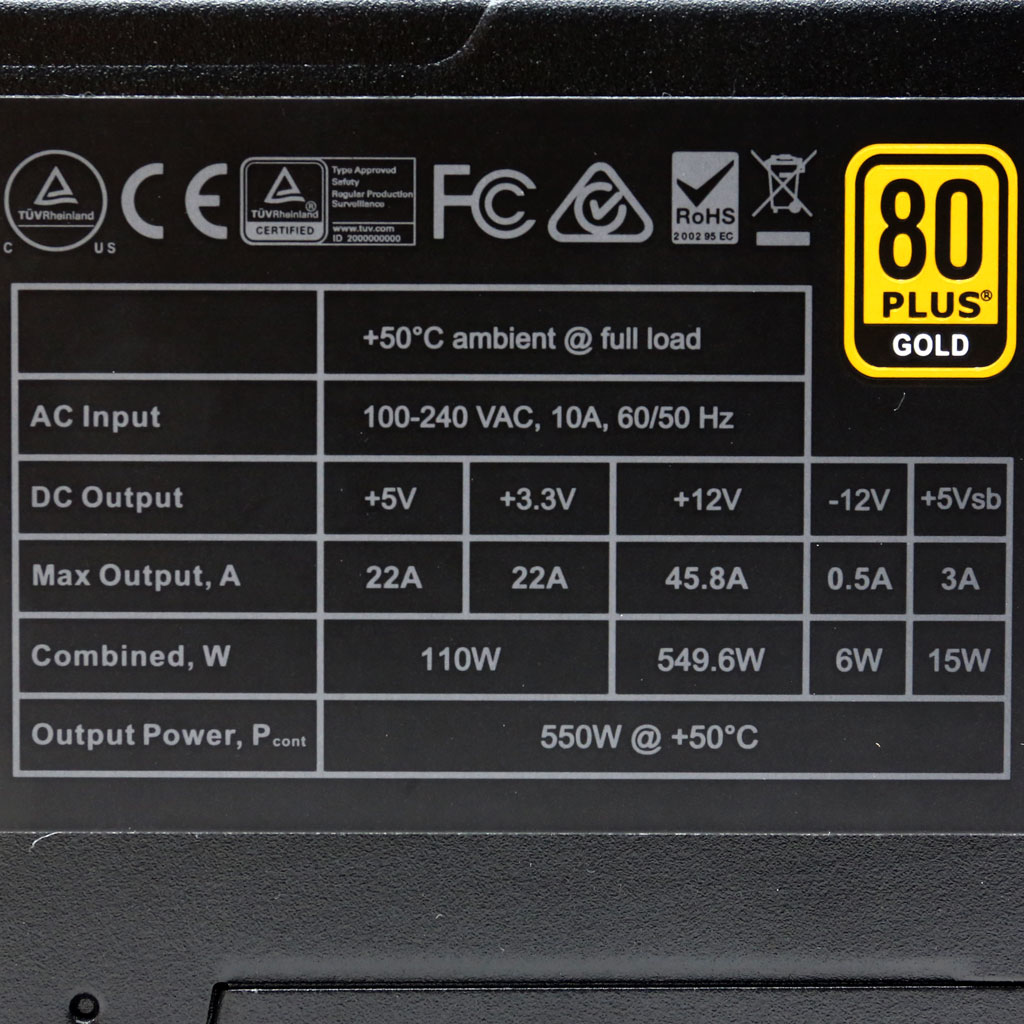

Power specifications label
