Raijintek Cratos 1200W
Serial NumberRJK1200W23060050
Lab IDRJ12002238
  • Report: 23PS2238A
  • Receipt Date: Aug 17, 2023
  • Test Date: Sep 15, 2023
  • Report Date: Sep 18, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandRaijintek
Manufacturer (OEM)SANR
SeriesCratos
Model Number
Serial NumberRJK1200W23060050
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7
Rated Frequency (Hz)47-63
Rated Power (W)1200
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(CF-D12025H12M)
Semi-Passive Operation✓
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202010030.3
Watts1301200153.6
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 18-22AWG No
4+4 pin EPS12V (650mm) 2 2 18AWG No
6+2 pin PCIe (650mm+150mm) 1 2 18AWG No
6+2 pin PCIe (550mm) 2 2 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 16-26AWG No
SATA (450mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm) 1 3 18AWG No
FDD Adapter (100mm) 1 1 18AWG No
AC Power Cord (1100mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)89.050%
Average Noise Output (>1450 Load Combinations)29.12dBA
Average PF (>1450 Load Combinations)0.984
Efficiency With 10W (≤500W) or 2% (>500W) Load70.570%
Standby Power Consumption0.0834W
12V Ripple (Full Load)27.31mV
5V Ripple (Full Load)27.64mV
3.3V Ripple (Full Load)25.65mV
5VSB Ripple (Full Load)55.18mV
12V Load Regulation0.34%
5V Load Regulation0.34%
3.3V Load Regulation0.85%
5VSB Load Regulation1.59%
Inrush Current49.620A
Efficiency RatingGOLD
Noise RatingA-
Average Efficiency (>1450 load combinations)91.354%
Average Noise Output (>1450 Load Combinations)28.03dBA
Average PF (>1450 Load Combinations)0.951
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1903W
12V Ripple (Full Load)27.85mV
5V Ripple (Full Load)27.77mV
3.3V Ripple (Full Load)25.04mV
5VSB Ripple (Full Load)56.75mV
12V Load Regulation0.38%
5V Load Regulation0.34%
3.3V Load Regulation0.85%
5VSB Load Regulation1.57%
Inrush Current64.840A
12V Transient Response (200%)11.12V
5V Transient Response (200%)4.934V
3.3V Transient Response (200%)3.181V
5VSB Transient Response (200%)4.826V
Hold-Up Time & Power Ok Signal22.40ms
AC Loss to PWR_OK Hold Up Time21.00ms
PWR_OK Inactive to DC Loss Delay1.40ms
PSU Timings: T1 (20% / 100%)107.0ms103.0ms
PSU Timings: T3 (20% / 100%)121.0ms123.0ms
OPP (31.75°C / 0.00°C)140.17%0.00%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)22.4
AC Loss to PWR_OK Hold Up Time (ms)21
PWR_OK Inactive to DC Loss Delay (ms)1.4

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.82 V 113.85 V 114.92 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.08 % N/A 0.26 % 2.00 % PASS
Real Power: 0.083 W 0.065 W N/A 0.102 W N/A N/A
Apparent Power: 10.860 W 10.839 W N/A 10.882 W N/A N/A
Power Factor: 0.008 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.95 V 229.88 V 227.70 V 230.01 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.417 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.18 % 2.00 % PASS
Real Power: 0.210 W 0.166 W N/A 0.267 W N/A N/A
Apparent Power: 37.149 W 37.111 W N/A 37.187 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

Efficiency Graph

INFO

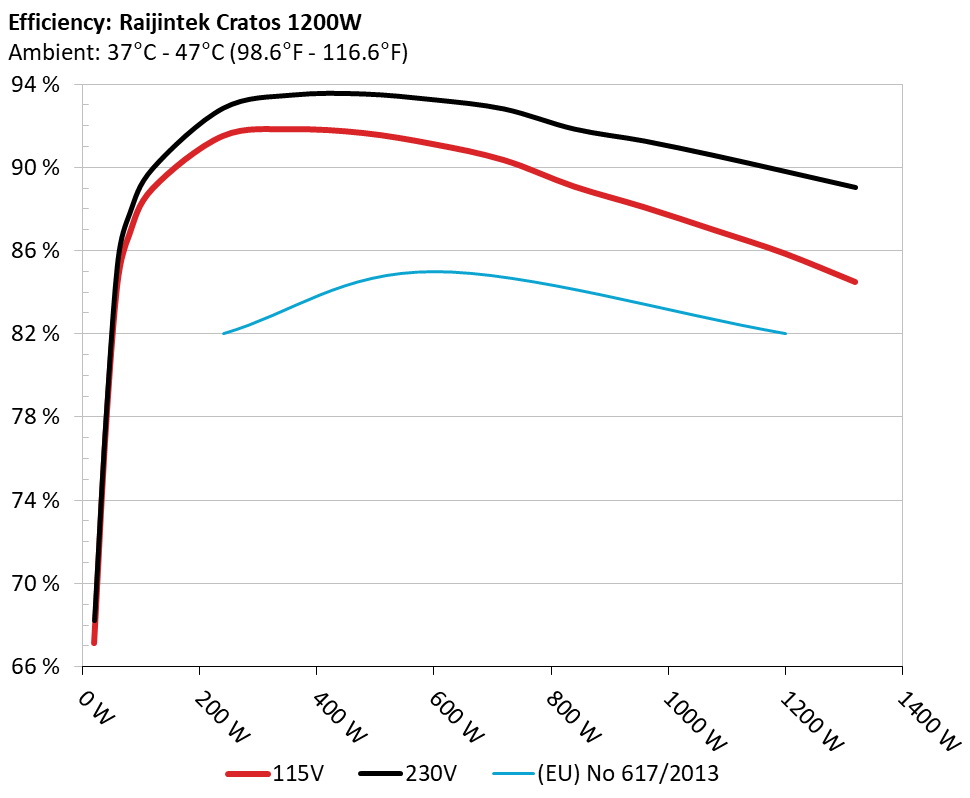

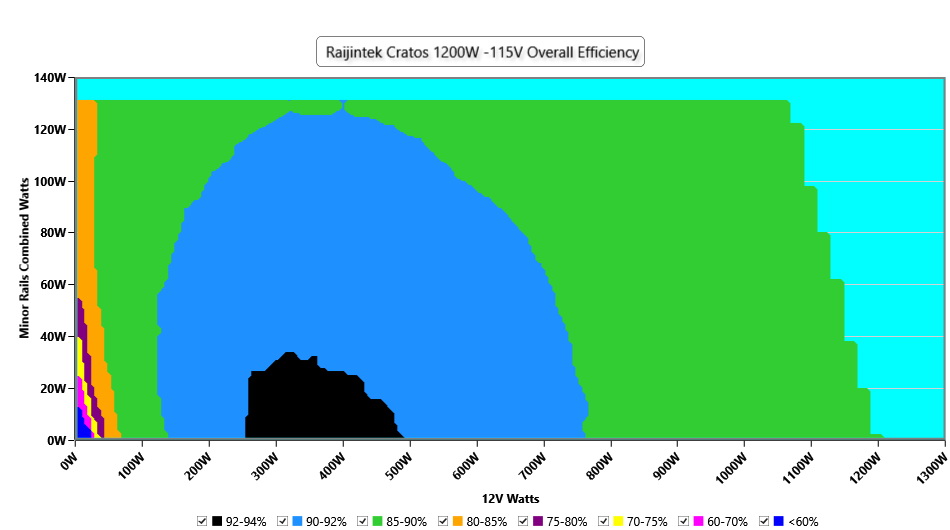

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

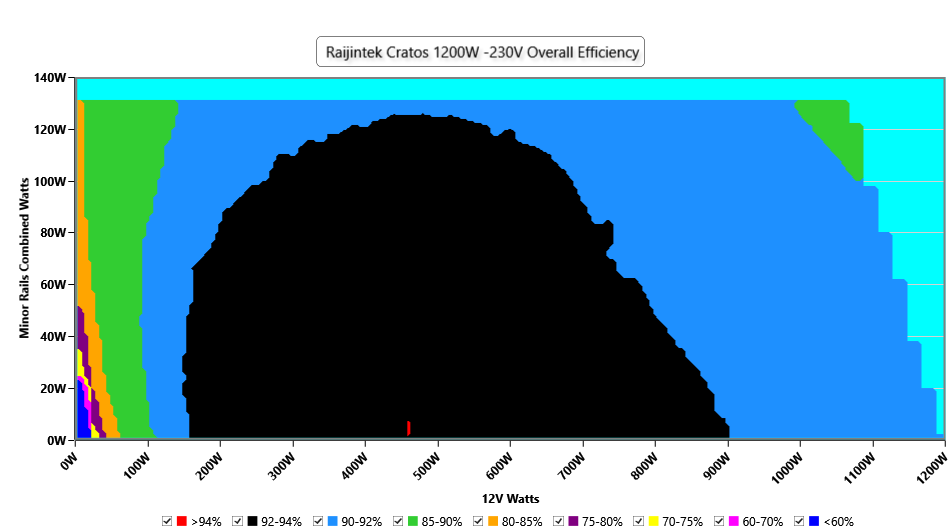

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

INFO

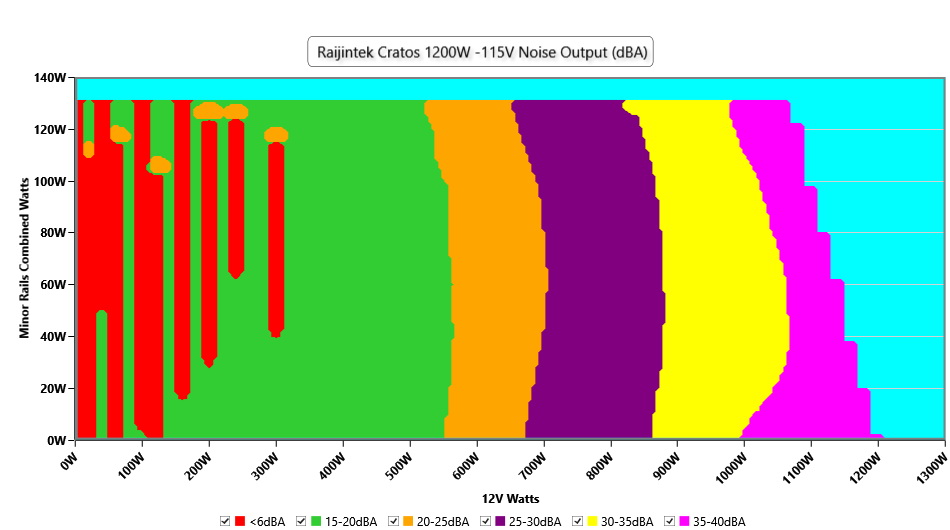

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

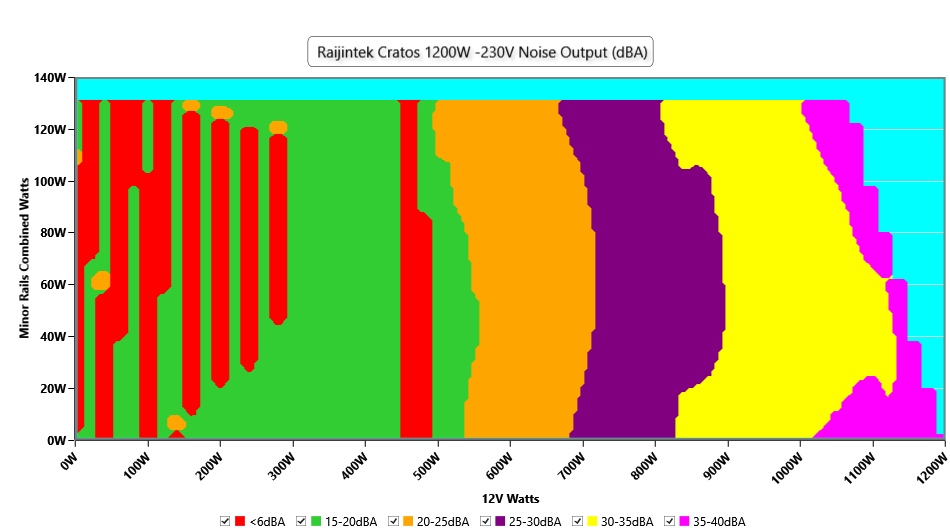

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

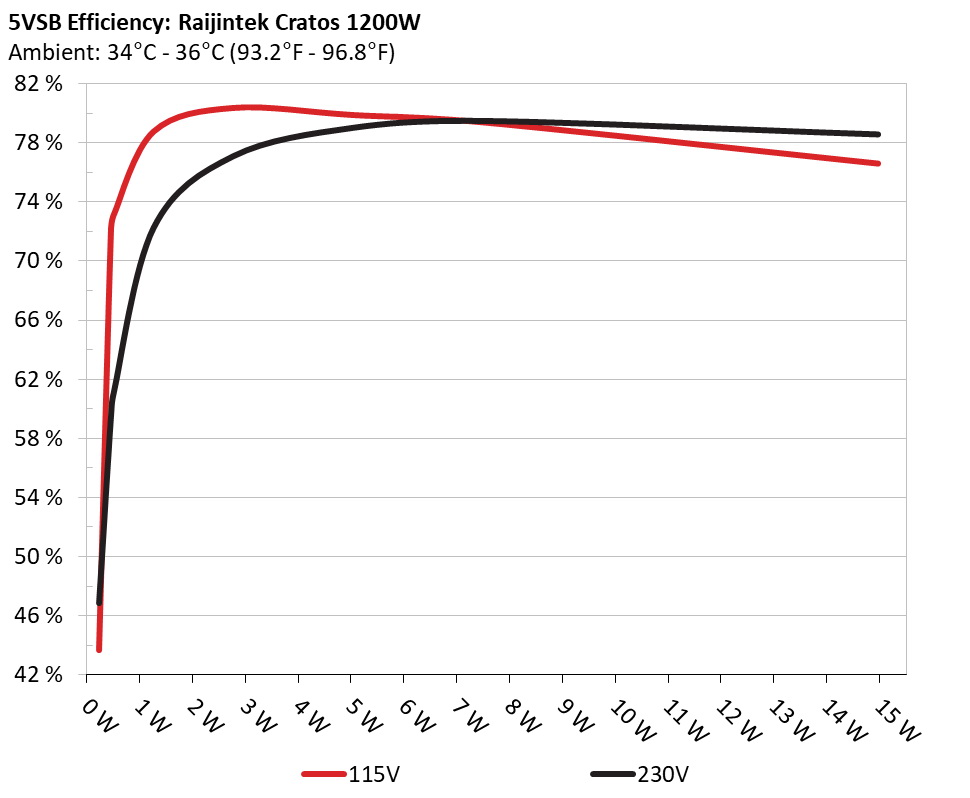

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 43.189% 0.022
5.042V 0.227W 114.87V
2 0.09A 0.454W 71.75% 0.06
5.042V 0.633W 114.87V
3 0.55A 2.768W 79.887% 0.275
5.033V 3.465W 114.87V
4 1A 5.025W 79.405% 0.397
5.026V 6.328W 114.86V
5 1.5A 7.525W 78.899% 0.47
5.017V 9.537W 114.87V
6 3A 14.97W 76.12% 0.549
4.99V 19.666W 114.86V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.227W 46.339% 0.014
5.043V 0.49W 229.94V
2 0.09A 0.454W 59.054% 0.022
5.041V 0.769W 229.94V
3 0.55A 2.768W 76.589% 0.1
5.033V 3.614W 229.94V
4 1A 5.025W 78.504% 0.168
5.026V 6.401W 229.94V
5 1.5A 7.525W 78.97% 0.233
5.017V 9.529W 229.94V
6 3A 14.97W 78.061% 0.353
4.99V 19.177W 229.94V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.151A 1.985A 1.978A 0.993A 119.977 88.981% 0 <6.0 44.58°C 0.975
12.070V 5.038V 3.337V 5.033V 134.824 40.37°C 114.84V
20% 17.325A 2.978A 2.969A 1.193A 239.928 91.502% 0 <6.0 45.36°C 0.972
12.065V 5.036V 3.334V 5.027V 262.207 40.84°C 114.79V
30% 26.783A 3.476A 3.467A 1.394A 359.099 91.821% 924 20.2 41.14°C 0.978
12.062V 5.035V 3.331V 5.021V 391.042 46.23°C 114.75V
40% 36.351A 3.974A 3.965A 1.595A 479.46 91.647% 986 21.8 41.63°C 0.984
12.056V 5.033V 3.329V 5.014V 523.162 47.21°C 114.71V
50% 45.531A 4.969A 4.96A 1.797A 599.225 91.111% 1089 24.7 42.3°C 0.988
12.052V 5.031V 3.327V 5.008V 657.688 48.27°C 114.67V
60% 54.778A 5.965A 5.958A 1.999A 719.755 90.346% 1199 27.8 42.81°C 0.99
12.048V 5.03V 3.324V 5.002V 796.671 49.36°C 114.62V
70% 63.954A 6.963A 6.958A 2.202A 839.497 89.077% 1352 31.2 43.22°C 0.993
12.046V 5.027V 3.321V 4.995V 942.439 50.29°C 114.57V
80% 73.215A 7.96A 7.958A 2.304A 959.51 88.078% 1666 37.5 43.85°C 0.994
12.042V 5.026V 3.317V 4.99V 1089.375 51.88°C 114.52V
90% 82.823A 8.459A 8.447A 2.407A 1079.31 86.981% 2046 43.2 44.14°C 0.994
12.035V 5.024V 3.315V 4.985V 1240.86 53.17°C 114.48V
100% 92.245A 8.96A 8.967A 3.017A 1199.354 85.853% 2123 44.1 45.03°C 0.995
12.029V 5.022V 3.312V 4.971V 1396.977 55.08°C 114.42V
110% 101.596A 9.959A 10.063A 3.019A 1319.964 84.483% 2125 44.1 46.68°C 0.996
12.025V 5.021V 3.309V 4.967V 1562.133 57.62°C 114.37V
CL1 0.115A 15.59A 15.518A 0A 131.292 81.748% 2100 43.8 41.53°C 0.977
12.082V 5.022V 3.325V 5.049V 160.614 47.04°C 114.83V
CL2 0.114A 19.915A 0A 0A 101.37 81.277% 969 21.3 40.73°C 0.972
12.085V 5.021V 3.339V 5.052V 124.727 47.76°C 114.84V
CL3 0.114A 0A 19.871A 0A 67.376 77.406% 931 20.3 40.59°C 0.959
12.080V 5.04V 3.321V 5.049V 87.042 49.63°C 114.85V
CL4 99.798A 0A 0A 0.002A 1199.93 86.735% 1292 30.3 45.83°C 0.994
12.023V 5.032V 3.32V 5.03V 1383.468 56.79°C 114.43V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.149A 1.985A 1.978A 0.993A 119.979 89.985% 910 19.6 40.29°C 0.859
12.073V 5.038V 3.337V 5.033V 133.329 44.54°C 229.92V
20% 17.324A 2.978A 2.969A 1.193A 239.928 92.864% 915 19.8 40.57°C 0.927
12.066V 5.036V 3.334V 5.027V 258.365 45.17°C 229.91V
30% 26.786A 3.476A 3.467A 1.394A 359.095 93.499% 923 20.2 41.35°C 0.948
12.060V 5.035V 3.332V 5.021V 384.07 46.39°C 229.89V
40% 36.357A 3.974A 3.965A 1.595A 479.511 93.547% 981 21.7 41.92°C 0.96
12.055V 5.034V 3.329V 5.014V 512.59 47.42°C 229.87V
50% 45.532A 4.968A 4.96A 1.797A 599.263 93.272% 1078 24.6 42.13°C 0.966
12.052V 5.032V 3.327V 5.008V 642.483 48.14°C 229.84V
60% 54.778A 5.965A 5.958A 1.999A 719.783 92.825% 1191 24.8 42.52°C 0.972
12.048V 5.03V 3.324V 5.002V 775.397 49.07°C 229.83V
70% 63.951A 6.962A 6.957A 2.202A 839.505 91.86% 1333 31.1 43.37°C 0.977
12.047V 5.028V 3.321V 4.995V 913.896 50.45°C 229.8V
80% 73.216A 7.96A 7.957A 2.304A 959.507 91.283% 1609 36.5 43.79°C 0.979
12.041V 5.026V 3.318V 4.991V 1051.136 51.82°C 229.78V
90% 82.823A 8.459A 8.446A 2.406A 1079.322 90.582% 1987 42.4 44.27°C 0.981
12.035V 5.024V 3.315V 4.986V 1191.512 53.32°C 229.76V
100% 92.239A 8.959A 8.966A 3.017A 1199.361 89.821% 2121 44.1 45.93°C 0.983
12.030V 5.023V 3.312V 4.971V 1335.306 55.99°C 229.75V
110% 101.594A 9.958A 10.062A 3.019A 1319.974 89.049% 2119 44.1 46.63°C 0.985
12.025V 5.021V 3.309V 4.968V 1482.295 57.53°C 229.71V
CL1 0.116A 15.59A 15.518A 0A 131.293 82.824% 2095 43.8 40.82°C 0.881
12.088V 5.022V 3.325V 5.049V 158.527 46.31°C 229.93V
CL2 0.114A 19.912A 0A 0A 101.354 82.337% 937 20.4 40.75°C 0.846
12.084V 5.021V 3.339V 5.052V 123.088 47.83°C 229.93V
CL3 0.114A 0A 19.871A 0A 67.375 78.27% 934 20.3 40.52°C 0.768
12.081V 5.041V 3.321V 5.049V 86.079 49.59°C 229.93V
CL4 99.787A 0A 0A 0.002A 1199.931 90.634% 2036 43.2 45.29°C 0.982
12.025V 5.032V 3.32V 5.03V 1323.928 56.24°C 229.74V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.496A 0.494A 0.198A 19.988 67.111% 0 <6.0 39.85°C 0.846
12.061V 5.039V 3.34V 5.05V 29.786 36.78°C 114.87V
40W 2.709A 0.695A 0.692A 0.297A 39.989 77.389% 0 <6.0 40.63°C 0.923
12.064V 5.039V 3.339V 5.048V 51.669 37.4°C 114.86V
60W 4.187A 0.893A 0.889A 0.396A 59.992 84.453% 0 <6.0 41.84°C 0.941
12.067V 5.037V 3.339V 5.045V 71.033 38.06°C 114.86V
80W 5.659A 1.091A 1.087A 0.496A 79.93 86.749% 0 <6.0 43.69°C 0.959
12.070V 5.038V 3.338V 5.043V 92.137 39.7°C 114.85V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W1.230A0.496A0.494A0.198A19.99368.209%0<6.039.86°C0.46
12.067V5.04V3.34V5.049V29.31936.8°C229.94V
40W2.708A0.694A0.692A0.297A39.99278.128%0<6.040.36°C0.627
12.070V5.04V3.339V5.047V51.1937.14°C229.94V
60W4.184A0.893A0.89A0.396A59.99285.563%0<6.041.57°C0.716
12.076V5.039V3.338V5.045V70.11638.04°C229.93V
80W5.656A1.091A1.087A0.496A79.93187.789%90819.639.37°C0.782
12.076V5.039V3.338V5.042V91.04943.24°C229.93V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load20.28mV10.66mV10.65mV8.36mVPass
20% Load19.04mV13.29mV12.00mV10.48mVPass
30% Load12.67mV13.14mV10.55mV10.84mVPass
40% Load18.32mV15.15mV13.65mV15.07mVPass
50% Load18.84mV17.36mV15.00mV17.81mVPass
60% Load18.88mV18.85mV16.75mV23.90mVPass
70% Load17.34mV24.68mV19.86mV25.96mVPass
80% Load16.93mV25.55mV20.58mV26.53mVPass
90% Load17.08mV25.09mV21.98mV30.66mVPass
100% Load27.31mV27.64mV25.65mV55.18mVPass
110% Load29.11mV30.75mV28.07mV62.70mVPass
Crossload125.54mV17.09mV19.37mV11.74mVPass
Crossload220.64mV18.50mV18.36mV10.68mVPass
Crossload316.31mV12.88mV13.91mV8.11mVPass
Crossload426.78mV25.00mV22.00mV31.22mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load24.14mV11.13mV10.50mV8.21mVPass
20% Load19.87mV13.50mV12.26mV10.63mVPass
30% Load18.22mV14.79mV13.34mV12.18mVPass
40% Load18.94mV14.99mV13.65mV13.52mVPass
50% Load19.82mV17.98mV14.89mV16.93mVPass
60% Load19.40mV18.70mV16.08mV23.12mVPass
70% Load18.78mV24.06mV20.11mV22.76mVPass
80% Load17.80mV24.58mV20.22mV26.27mVPass
90% Load17.18mV23.39mV21.05mV26.84mVPass
100% Load27.85mV27.77mV25.04mV56.75mVPass
110% Load29.72mV28.77mV26.89mV61.91mVPass
Crossload125.56mV16.45mV19.61mV11.04mVPass
Crossload222.70mV18.03mV18.20mV9.14mVPass
Crossload319.20mV12.21mV14.12mV8.36mVPass
Crossload428.05mV23.68mV21.59mV31.20mVPass

The results above are not used in the certification process

Raijintek Cratos 1200W

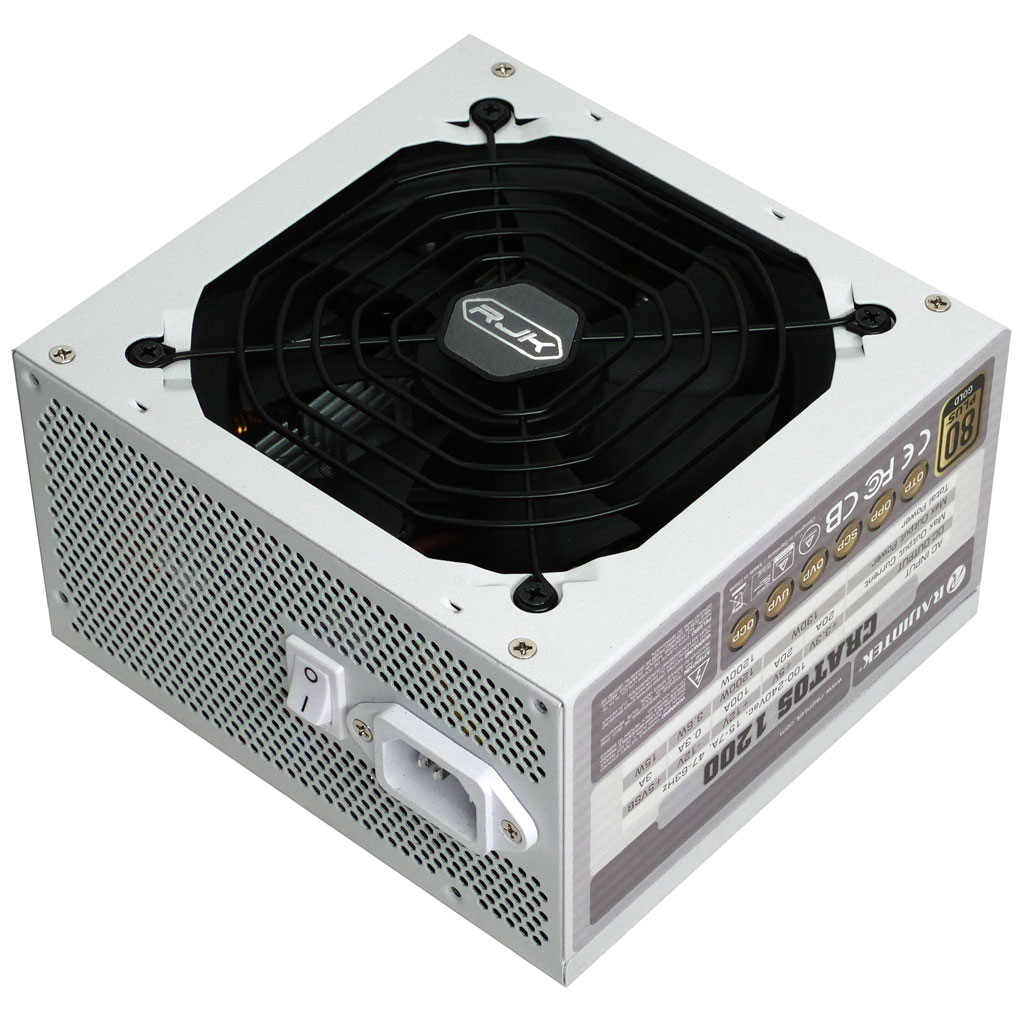

Top side

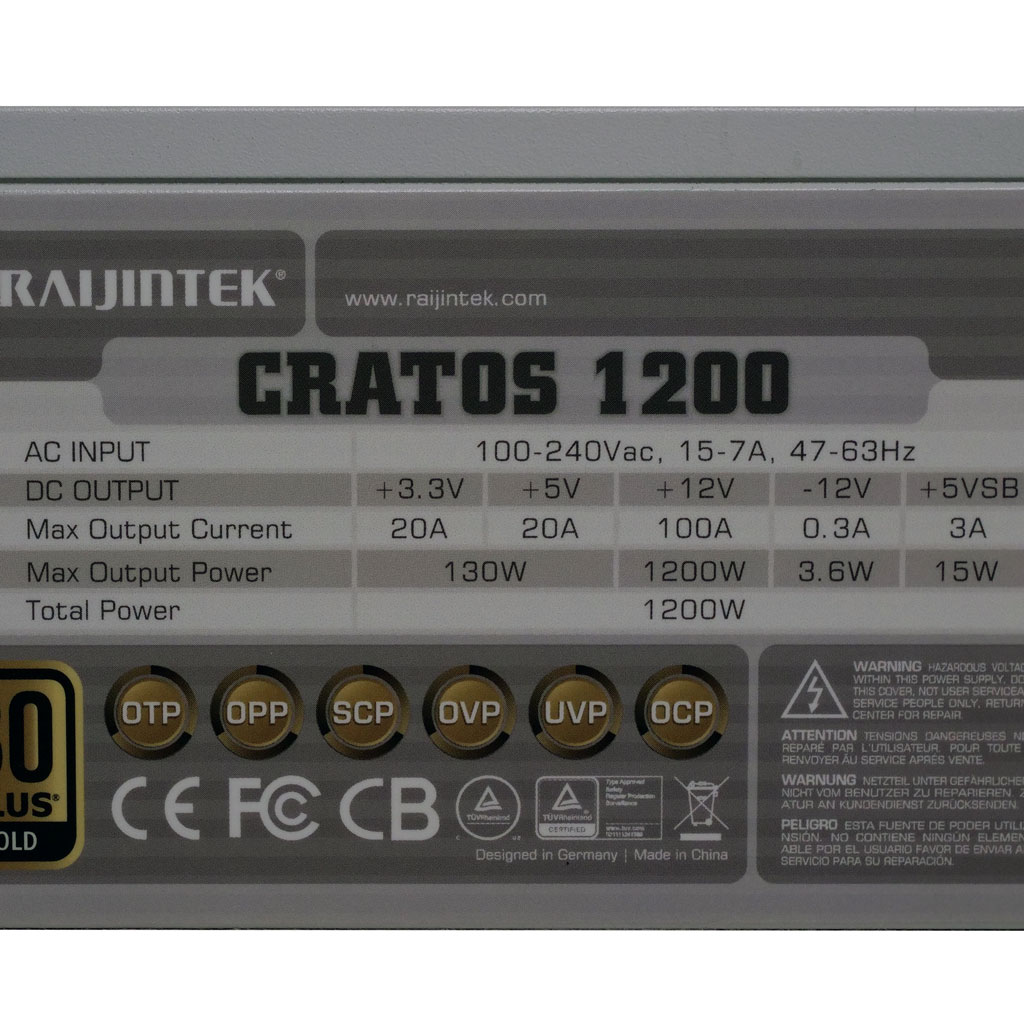

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
