CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
1st Player NGDP 1000W
Serial Number230722PSNGDP-A0757
Lab ID1P10002226
  • Report: 23PS2226A
  • Receipt Date: Jul 31, 2023
  • Test Date: Aug 24, 2023
  • Report Date: Aug 29, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

Brand1st Player
Manufacturer (OEM)Helly Technology
SeriesNGDP
Model NumberHA-1000BA3
Serial Number230722PSNGDP-A0757
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)12-6
Rated Frequency (Hz)50-60
Rated Power (W)1000
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(D12BH-12)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20208330.3
Watts120996153.6
Total Max. Power (W)1000

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (610mm) 1 1 16-22AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
6+2 pin PCIe (600mm) 4 4 16AWG No
12+4 pin PCIe (720mm) (600W) 1 1 16-24AWG No
SATA (450mm+150mm+150mm+150mm) 3 12 18AWG No
4-pin Molex (450mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1360mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) Helly Technology
PCB Type Double Sided
Primary Side -
Transient Filter 2x Y caps, 2x X caps, 2x SMDY caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor MF73T-1 20/6 (20 Ohm) & Relay
Bridge Rectifier(s) 2x GeneSiC GBU15J (600V, 15A @ 100°C) (one of them on heatsink)
APFC MOSFETs 3x Oriental Semiconductor OSG60R180FF (600V, 12.5A @ 100°C, Rds(on): 0.18Ohm)
APFC Boost Diode 1x G3S06510A (650V, 10A @ 154°C)
Bulk Cap(s) 2x Nippon Chemi-Con (400V, 680uF each or 1,360 combined, 2,000h @ 105°C, KMR)
Main Switchers 4x Oriental Semiconductor OSG55R190FF (550V, 12.5A @ 100°C, Rds(on): 0.19Ohm)
APFC Controller 1x
Resonant Controller Champion CM6901T6X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 8x G013N04G
5V & 3.3V DC-DC Converters: 2x XSEMI XP3NA3R4MT (30V, 46A @ 100°C, Rds(on): 3.4mOhm) &
3x RMN3N5R0DF (30V, 19.7A @ 70°C, Rds(on): 5mOhm)
PWM Controller(s): ANPEC APW7159C
Filtering Capacitors Electrolytic: 2x Nippon Chemi-Con (2-5,000h @ 105°C, KZE), 3x Rubycon (4-10,000h @ 105°C, YXF)
Polymer: 32x
Supervisor IC Weltrend WT7527 (OCP, OVP, UVP, PG, SCP)
Fan Model Yate Loon D12BH-12 (120mm, 12V, 0.60A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Rectifier 1x 60R20S
Standby PWM Controller Excelliance MOS EM8569C

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Efficiency RatingPLATINUM
Noise RatingStandard++
Average Efficiency (>1450 load combinations)90.361%
Average Noise Output (>1450 Load Combinations)30.73dBA
Average PF (>1450 Load Combinations)0.992
Efficiency With 10W (≤500W) or 2% (>500W) Load71.907%
Standby Power Consumption0.0788W
12V Ripple (Full Load)28.98mV
5V Ripple (Full Load)20.51mV
3.3V Ripple (Full Load)23.54mV
5VSB Ripple (Full Load)21.08mV
12V Load Regulation0.18%
5V Load Regulation0.58%
3.3V Load Regulation1.05%
5VSB Load Regulation0.99%
Inrush Current24.930A
Efficiency RatingPLATINUM
Noise RatingA-
Average Efficiency (>1450 load combinations)92.448%
Average Noise Output (>1450 Load Combinations)29.78dBA
Average PF (>1450 Load Combinations)0.972
Efficiency With 10W (≤500W) or 2% (>500W) Load0.000%
Standby Power Consumption0.1217W
12V Ripple (Full Load)27.83mV
5V Ripple (Full Load)19.44mV
3.3V Ripple (Full Load)22.22mV
5VSB Ripple (Full Load)20.13mV
12V Load Regulation0.20%
5V Load Regulation0.60%
3.3V Load Regulation1.05%
5VSB Load Regulation1.03%
Inrush Current85.010A
12V Transient Response (200%)11.47V
5V Transient Response (200%)4.917V
3.3V Transient Response (200%)3.247V
5VSB Transient Response (200%)4.920V
Hold-Up Time & Power Ok Signal28.40ms
AC Loss to PWR_OK Hold Up Time25.80ms
PWR_OK Inactive to DC Loss Delay2.60ms
PSU Timings: T1 (20% / 100%)56.0ms54.0ms
PSU Timings: T3 (20% / 100%)120.0ms124.0ms
OPP (28.87°C / 45.02°C)147.93%128.13%

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)28.4
AC Loss to PWR_OK Hold Up Time (ms)25.8
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.93 V 114.89 V 113.85 V 114.96 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.99 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.416 1.416 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.14 % 0.12 % N/A 0.19 % 2.00 % PASS
Real Power: 0.079 W 0.072 W N/A 0.088 W N/A N/A
Apparent Power: 7.558 W 7.541 W N/A 7.576 W N/A N/A
Power Factor: 0.011 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.88 V 229.83 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.417 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.122 W 0.107 W N/A 0.137 W N/A N/A
Apparent Power: 26.384 W 26.353 W N/A 26.416 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Graphs

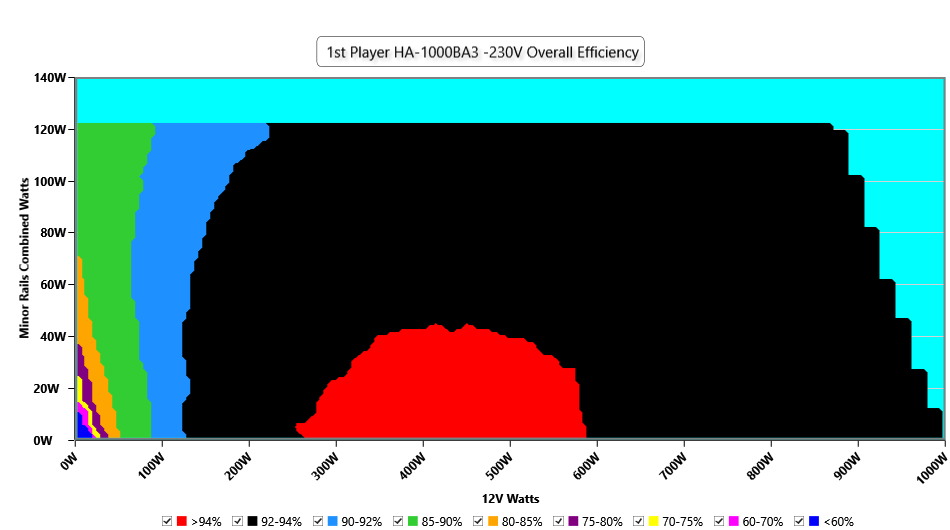

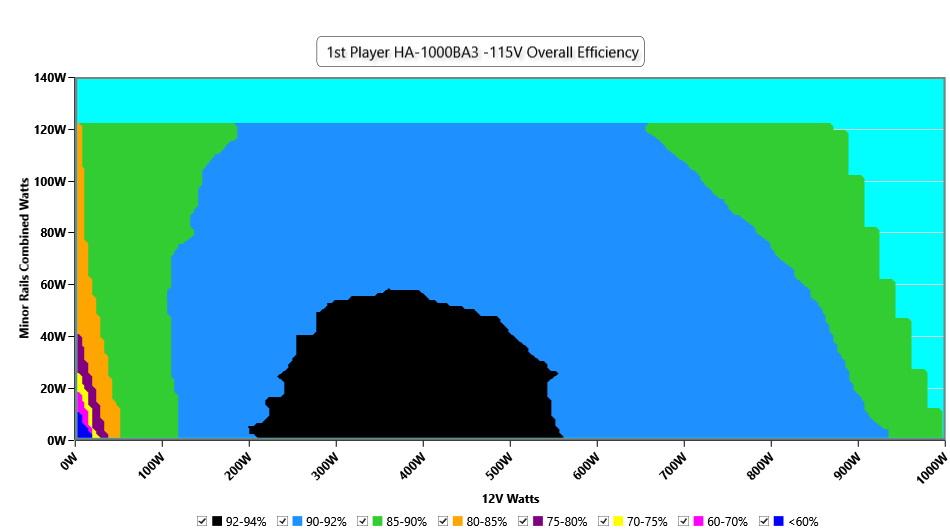

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

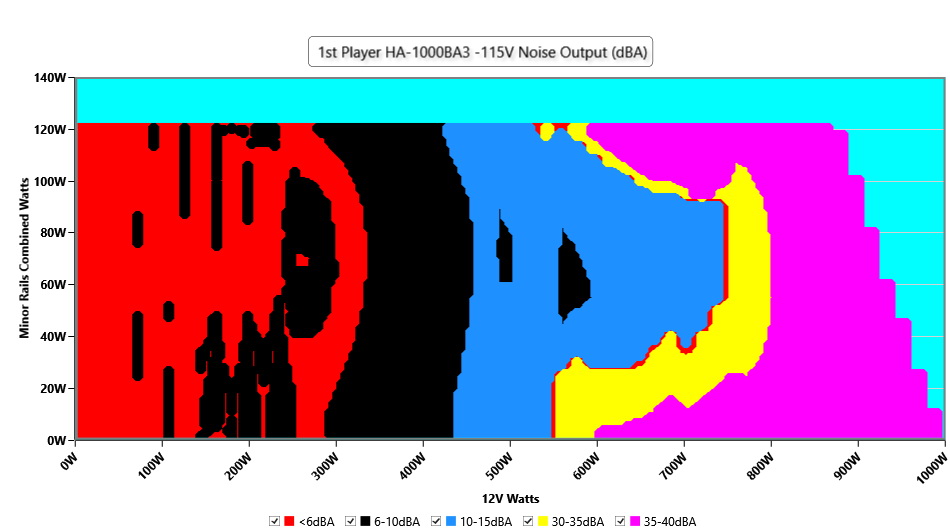

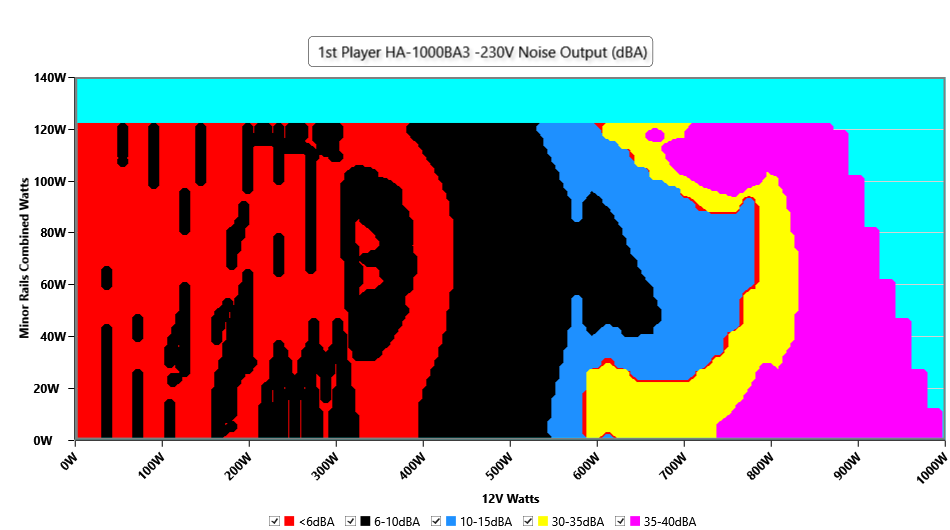

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

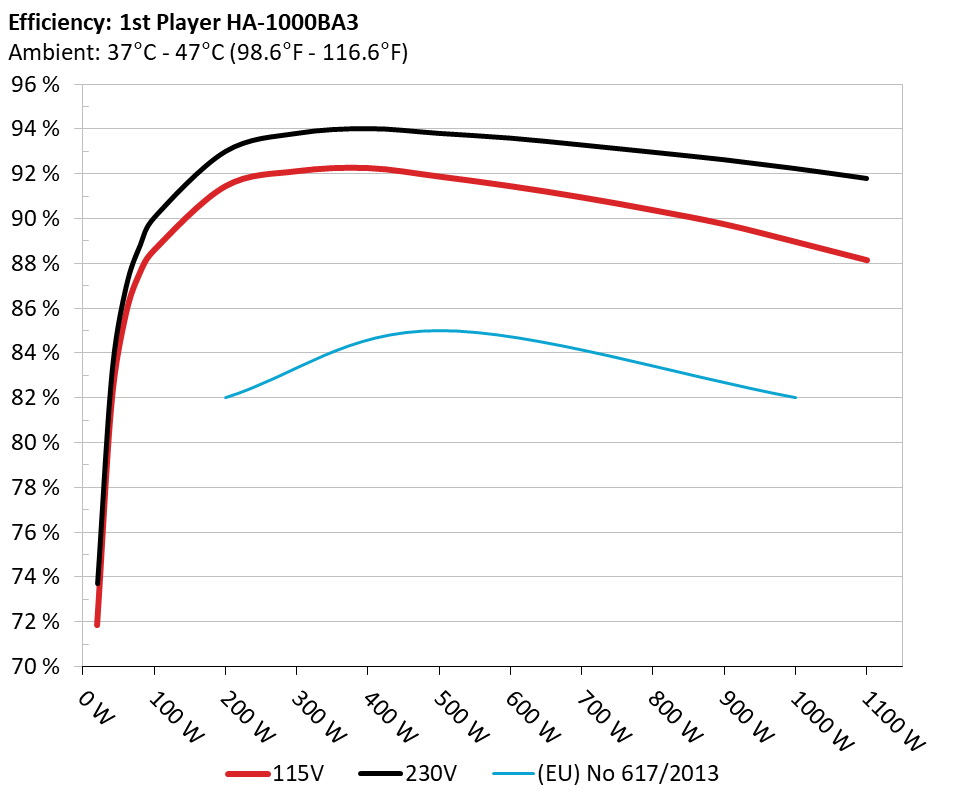

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

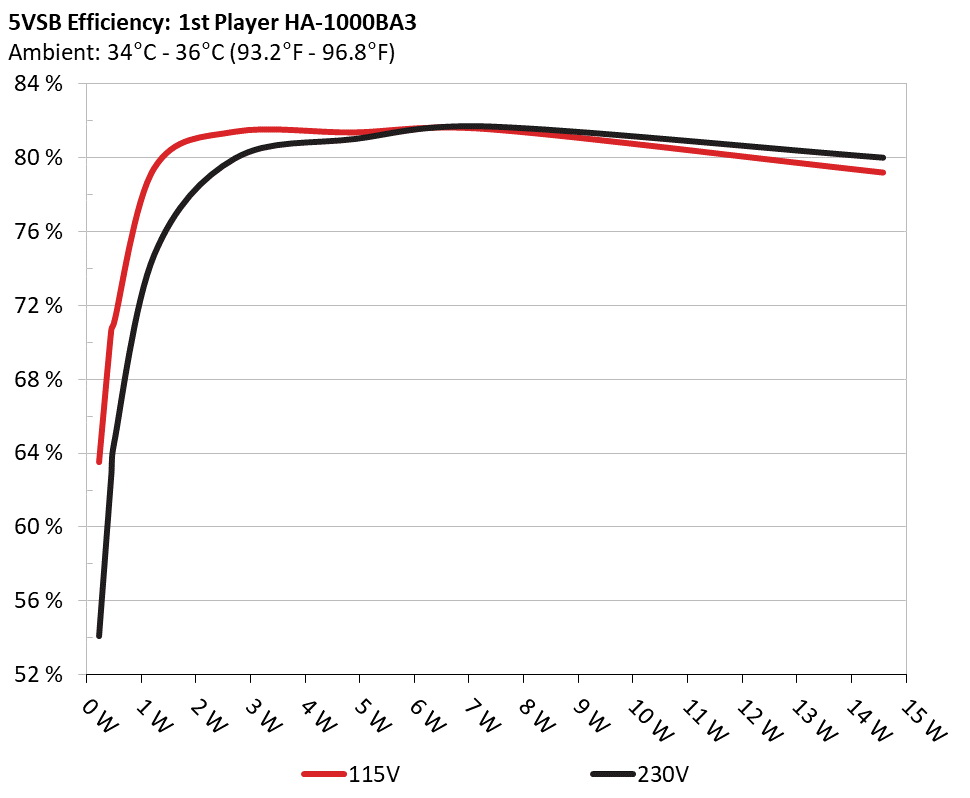

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 63.993% 0.046
4.945V 0.347W 114.93V
2 0.09A 0.445W 71.142% 0.081
4.944V 0.626W 114.94V
3 0.55A 2.712W 81.878% 0.33
4.931V 3.312W 114.94V
4 1A 4.918W 81.836% 0.446
4.918V 6.01W 114.93V
5 1.5A 7.357W 82.011% 0.506
4.904V 8.971W 114.94V
6 3A 14.587W 79.665% 0.561
4.862V 18.31W 114.93V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.222W 54.616% 0.015
4.946V 0.407W 229.9V
2 0.09A 0.445W 63.301% 0.027
4.944V 0.703W 229.89V
3 0.55A 2.712W 80.473% 0.122
4.931V 3.37W 229.89V
4 1A 4.919W 81.524% 0.204
4.918V 6.033W 229.89V
5 1.5A 7.357W 82.197% 0.274
4.904V 8.95W 229.89V
6 3A 14.587W 80.511% 0.385
4.862V 18.117W 229.89V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.458A 2.004A 1.97A 1.004A 100.015 88.611% 606 <6.0 40.05°C 0.971
12.142V 4.991V 3.35V 4.981V 112.872 44.26°C 114.94V
20% 13.929A 3.008A 2.958A 1.206A 199.973 91.465% 638 7.1 40.92°C 0.984
12.138V 4.987V 3.347V 4.977V 218.635 45.46°C 114.89V
30% 21.752A 3.51A 3.454A 1.408A 300.037 92.136% 682 8.9 41.48°C 0.991
12.136V 4.986V 3.344V 4.973V 325.652 46.51°C 114.87V
40% 29.542A 4.013A 3.951A 1.61A 399.673 92.278% 750 12.2 41.91°C 0.994
12.134V 4.984V 3.341V 4.969V 433.121 47.31°C 114.85V
50% 36.999A 5.02A 4.945A 1.812A 499.385 91.899% 1560 35.9 42.72°C 0.995
12.132V 4.981V 3.337V 4.966V 543.409 48.78°C 114.82V
60% 44.530A 6.028A 5.94A 2A 599.847 91.468% 1621 36.9 42.92°C 0.996
12.129V 4.978V 3.333V 4.963V 655.801 49.44°C 114.79V
70% 51.992A 7.037A 6.937A 2.218A 699.635 90.967% 1730 38.6 43.39°C 0.997
12.127V 4.975V 3.33V 4.96V 769.112 50.42°C 114.77V
80% 59.527A 8.046A 7.934A 2.319A 799.639 90.398% 1808 40.0 44.23°C 0.997
12.124V 4.973V 3.327V 4.96V 884.579 52.32°C 114.74V
90% 67.393A 8.552A 8.423A 2.421A 899.437 89.773% 1900 41.1 44.72°C 0.997
12.122V 4.97V 3.324V 4.957V 1001.908 53.81°C 114.72V
100% 75.062A 9.058A 8.943A 3.033A 999.451 88.982% 1934 42.2 45.96°C 0.998
12.120V 4.969V 3.321V 4.946V 1123.204 56.01°C 114.68V
110% 82.665A 10.069A 10.036A 3.032A 1100.064 88.161% 1943 42.3 47.28°C 0.998
12.118V 4.967V 3.317V 4.947V 1247.793 58.22°C 114.65V
CL1 0.115A 14.517A 14.246A 0A 121.309 83.573% 1694 38.1 44.58°C 0.98
12.143V 4.974V 3.348V 5.043V 145.154 49.99°C 114.9V
CL2 0.115A 20.133A 0A 0.001A 101.419 82.208% 1542 35.5 42.85°C 0.974
12.146V 4.968V 3.354V 5.069V 123.368 50.01°C 114.92V
CL3 0.115A 0A 19.706A 0A 67.382 78.827% 798 13.9 41.4°C 0.963
12.140V 4.998V 3.349V 4.992V 85.484 50.47°C 114.93V
CL4 82.482A 0A 0A 0.001A 1000.191 89.364% 1939 42.4 47.25°C 0.998
12.125V 4.986V 3.326V 4.974V 1119.231 58.21°C 114.68V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 6.460A 2.004A 1.97A 1.004A 100.025 90.064% 608 <6.0 39.99°C 0.903
12.141V 4.99V 3.35V 4.98V 111.069 44.21°C 229.9V
20% 13.930A 3.008A 2.958A 1.206A 199.99 93.006% 654 7.3 40.91°C 0.957
12.138V 4.988V 3.347V 4.977V 215.025 45.58°C 229.89V
30% 21.753A 3.511A 3.455A 1.408A 300.055 93.808% 700 9.9 41.33°C 0.973
12.136V 4.985V 3.343V 4.973V 319.858 46.39°C 229.89V
40% 29.550A 4.014A 3.952A 1.61A 399.757 94.018% 752 12.2 41.83°C 0.98
12.134V 4.984V 3.34V 4.969V 425.199 47.41°C 229.87V
50% 37.008A 5.021A 4.946A 1.813A 499.459 93.808% 1559 35.9 42.69°C 0.984
12.131V 4.98V 3.337V 4.965V 532.423 48.81°C 229.85V
60% 44.539A 6.029A 5.942A 2A 599.914 93.595% 1619 36.9 42.84°C 0.987
12.128V 4.977V 3.333V 4.962V 640.964 49.38°C 229.84V
70% 52.002A 7.038A 6.939A 2.218A 699.728 93.291% 1771 39.3 43.06°C 0.989
12.127V 4.975V 3.33V 4.96V 750.055 50.09°C 229.83V
80% 59.542A 8.048A 7.937A 2.32A 799.745 92.968% 1813 40.0 44.05°C 0.99
12.123V 4.972V 3.326V 4.959V 860.231 52.13°C 229.82V
90% 67.409A 8.554A 8.426A 2.422A 899.536 92.632% 1909 41.5 44.55°C 0.99
12.121V 4.97V 3.323V 4.956V 971.089 53.64°C 229.81V
100% 75.081A 9.062A 8.947A 3.034A 999.558 92.24% 1936 42.2 45.06°C 0.991
12.118V 4.968V 3.32V 4.944V 1083.647 55.11°C 229.81V
110% 82.683A 10.073A 10.04A 3.034A 1100.171 91.797% 1945 42.3 46.94°C 0.992
12.116V 4.966V 3.316V 4.946V 1198.486 57.88°C 229.78V
CL1 0.116A 14.521A 14.249A 0A 121.329 85.054% 1702 38.0 44.95°C 0.929
12.142V 4.973V 3.347V 5.042V 142.645 50.44°C 229.9V
CL2 0.115A 20.139A 0A 0.001A 101.435 83.72% 1566 35.9 43.66°C 0.914
12.145V 4.967V 3.354V 5.068V 121.155 50.71°C 229.9V
CL3 0.115A 0A 19.714A 0A 67.393 79.066% 1554 35.4 42.5°C 0.868
12.139V 4.996V 3.347V 4.99V 85.233 51.52°C 229.9V
CL4 82.500A 0A 0A 0.001A 1000.287 92.691% 1941 42.5 46.79°C 0.991
12.124V 4.986V 3.325V 4.973V 1079.165 57.73°C 229.79V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.5A 0.492A 0.2A 20.005 71.854% 0 <6.0 39.91°C 0.885
12.142V 4.998V 3.356V 4.995V 27.84 36.82°C 114.95V
40W 2.692A 0.7A 0.688A 0.3A 40.007 81.712% 0 <6.0 41.27°C 0.938
12.142V 4.997V 3.355V 4.994V 48.958 37.94°C 114.95V
60W 4.162A 0.901A 0.886A 0.401A 60.006 85.708% 0 <6.0 42.42°C 0.956
12.142V 4.996V 3.354V 4.991V 70.017 38.6°C 114.93V
80W 5.628A 1.101A 1.083A 0.501A 79.965 87.592% 0 <6.0 43.69°C 0.964
12.142V 4.995V 3.353V 4.989V 91.289 39.77°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.224A 0.5A 0.492A 0.2A 20.007 73.716% 0 <6.0 39.85°C 0.565
12.142V 4.997V 3.355V 4.995V 27.248 36.78°C 229.91V
40W 2.692A 0.7A 0.688A 0.3A 40.007 83.042% 0 <6.0 40.43°C 0.737
12.143V 4.998V 3.355V 4.994V 48.183 37.12°C 229.91V
60W 4.162A 0.901A 0.886A 0.401A 60.009 86.938% 0 <6.0 41.23°C 0.828
12.142V 4.996V 3.354V 4.992V 69.027 37.72°C 229.9V
80W 5.628A 1.102A 1.083A 0.501A 79.972 88.825% 607 <6.0 38.4°C 0.876
12.141V 4.993V 3.351V 4.987V 90.033 42.29°C 229.9V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load10.54mV9.35mV11.30mV9.57mVPass
20% Load12.13mV10.68mV13.09mV11.00mVPass
30% Load12.99mV11.59mV13.86mV11.82mVPass
40% Load14.43mV12.20mV14.01mV12.89mVPass
50% Load14.23mV13.79mV18.26mV14.23mVPass
60% Load15.71mV14.15mV17.23mV14.89mVPass
70% Load16.43mV14.25mV17.80mV15.35mVPass
80% Load18.06mV16.96mV19.89mV16.17mVPass
90% Load18.93mV18.49mV19.99mV17.96mVPass
100% Load28.98mV20.51mV23.54mV21.08mVPass
110% Load30.50mV21.05mV22.64mV20.89mVPass
Crossload118.41mV14.36mV16.08mV15.63mVPass
Crossload212.49mV13.89mV13.45mV15.10mVPass
Crossload310.34mV8.73mV16.82mV10.75mVPass
Crossload429.24mV16.08mV21.67mV16.84mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load10.49mV9.50mV11.61mV9.62mVPass
20% Load11.21mV10.68mV12.68mV10.80mVPass
30% Load12.79mV11.90mV13.96mV11.67mVPass
40% Load13.61mV13.59mV13.60mV12.69mVPass
50% Load14.33mV13.94mV15.55mV13.82mVPass
60% Load15.66mV14.45mV16.57mV14.28mVPass
70% Load16.73mV14.30mV17.44mV14.64mVPass
80% Load17.04mV17.47mV18.82mV16.79mVPass
90% Load18.93mV18.80mV20.25mV17.50mVPass
100% Load27.83mV19.44mV22.22mV20.13mVPass
110% Load29.95mV20.61mV22.81mV20.12mVPass
Crossload118.55mV13.61mV15.18mV15.11mVPass
Crossload211.46mV13.64mV13.50mV14.99mVPass
Crossload311.82mV8.73mV16.41mV10.13mVPass
Crossload427.30mV17.24mV21.45mV16.19mVPass

The results above are not used in the certification process

1st Player NGDP 1000W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
