ABKO Settler Hybrid Bronze STH-700B
Lab IDAB70002223
  • Report: 23PS2223A
  • Receipt Date: Aug 8, 2023
  • Test Date: Aug 22, 2023
  • Report Date: Aug 23, 2023
115V230V
Wirkungsgrad
115V230V
Lautstärkeklasse
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

ABKO
Hersteller (OEM)CHUANGHU ELECTRONICS
Settler Hybrid Bronze

(Vrms)200-240
(Arms)6.3
(Hz)47-63
(W)700
ATX12V
120mm Rifle Bearing Fan (BDH12025S)
✗
Fixed cables

Rail3.3V5V12V5VSB-12V
Max. PowerAmps171758.42.50.3
Watts10070012.53.6
Total Max. Power (W)700

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (550mm) 1 1 18AWG No
4+4 pin EPS12V (600mm+150mm) 1 2 18AWG No
6+2 pin PCIe (610mm+150mm) 2 4 18AWG No
12+4 pin PCIe (600mm) (600W) 1 1 18-26AWG No
SATA (470mm+160mm+160mm+160mm) 1 4 18AWG No
SATA (460mm+160mm) / 4-pin Molex (+160mm) 1 2 / 1 18AWG No
4-pin Molex (460mm+160mm) / SATA (+160mm) 1 2 /1 18AWG No

Test Results

Temperature & Compliance Info

(°C /°F)30-32 / 86-89.6
✓
✓

Performance Summary 230V

Hold-Up Time (ms)11.3
AC Loss to PWR_OK Hold Up Time (ms)12.9
PWR_OK Inactive to DC Loss Delay (ms)-1.6

Stromverbrauch im Ruhezustand

Tables 230V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.91 V 229.80 V 227.70 V 230.00 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.02 Hz 50.50 Hz PASS
Mains Voltage CF: 1.418 1.416 1.340 1.419 1.490 PASS
Mains Voltage THD: 0.20 % 0.16 % N/A 0.27 % 2.00 % PASS
Real Power: 0.213 W 0.173 W N/A 0.260 W N/A N/A
Apparent Power: 21.274 W 21.188 W N/A 21.358 W N/A N/A
Power Factor: 0.009 N/A N/A N/A N/A N/A

230V

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

230V

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

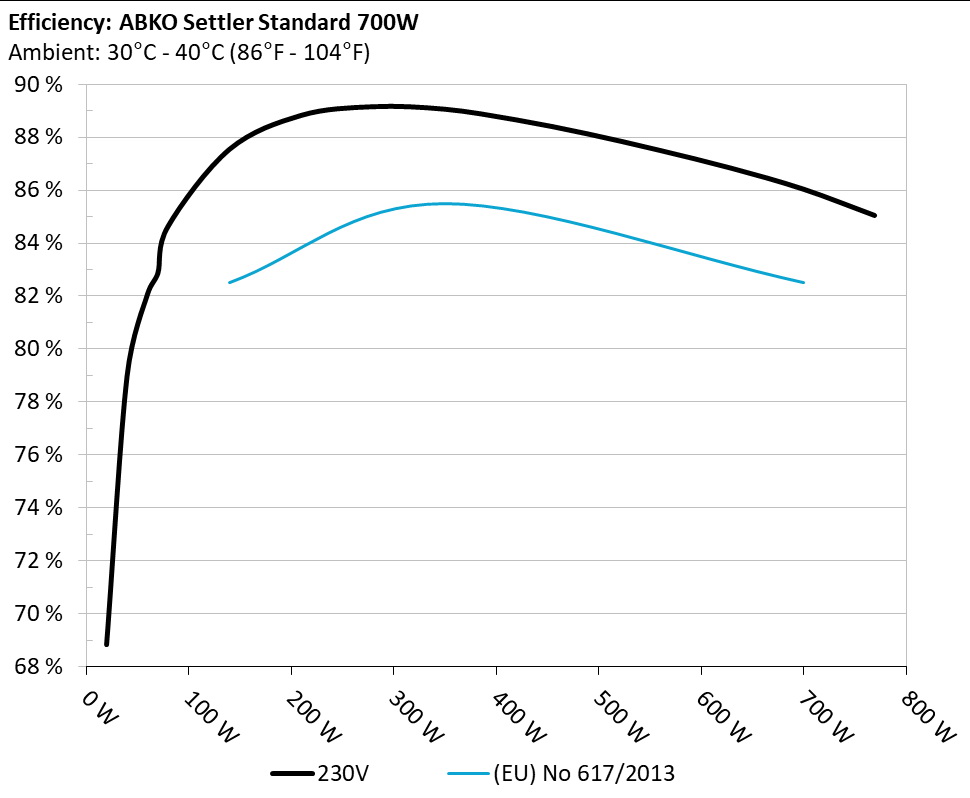

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

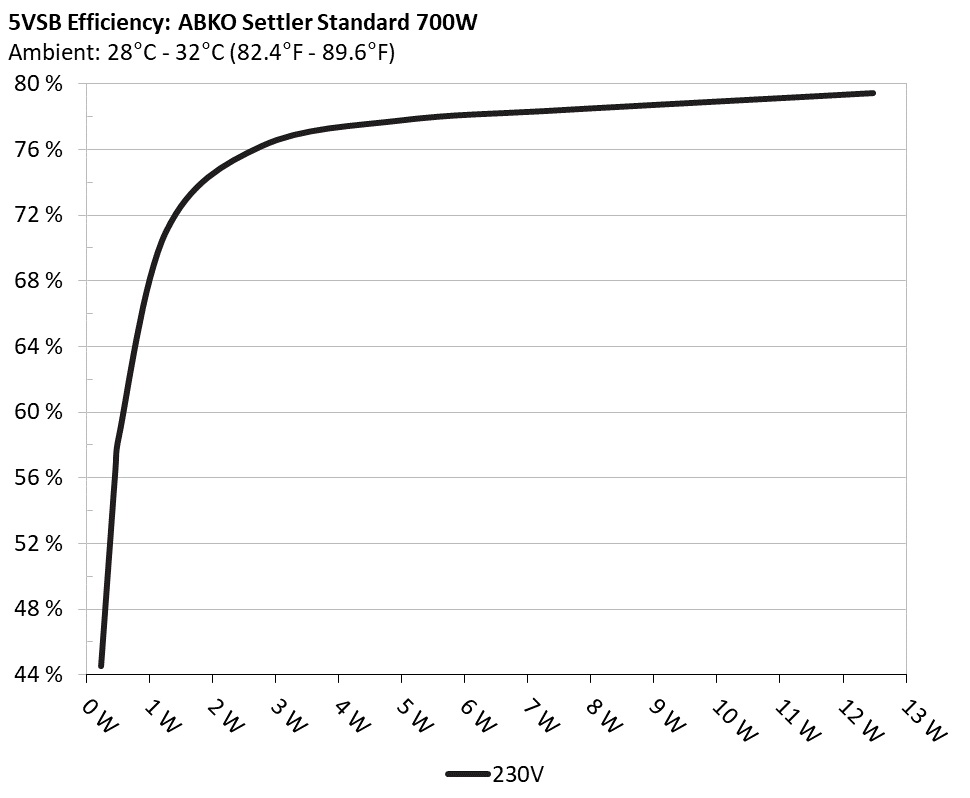

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

230V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 44.151% 0.025
5.057V 0.517W 229.89V
2 0.09A 0.455W 56.09% 0.038
5.057V 0.812W 229.9V
3 0.55A 2.774W 75.824% 0.155
5.043V 3.658W 229.88V
4 1A 5.031W 77.412% 0.233
5.031V 6.5W 229.88V
5 1.5A 7.528W 78.021% 0.284
5.018V 9.647W 229.88V
6 2.5A 12.477W 79.056% 0.342
4.991V 15.784W 229.88V

Supplementary Tests (For Reference)

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.968A 1.984A 1.943A 0.994A 70.002 82.368% 1573 37.0 34.27°C 0.905
12.197V 5.041V 3.396V 5.029V 84.986 38.56°C 229.87V
20% 8.951A 2.985A 2.925A 1.196A 139.945 87.054% 1760 39.6 34.61°C 0.959
12.182V 5.025V 3.385V 5.016V 160.756 39.25°C 229.86V
30% 14.296A 3.49A 3.421A 1.399A 209.981 88.335% 1912 41.4 35.36°C 0.977
12.166V 5.015V 3.376V 5.004V 237.709 40.39°C 229.85V
40% 19.655A 3.997A 3.92A 1.603A 280.028 88.664% 2020 42.6 35.54°C 0.983
12.151V 5.004V 3.367V 4.992V 315.832 41.19°C 229.84V
50% 24.677A 5.013A 4.919A 1.808A 350.001 88.569% 2036 42.7 36.19°C 0.988
12.136V 4.988V 3.355V 4.978V 395.173 42.29°C 229.82V
60% 29.702A 6.036A 5.925A 2A 419.778 88.166% 2037 42.7 36.96°C 0.99
12.122V 4.971V 3.342V 4.967V 476.12 43.61°C 229.81V
70% 34.761A 7.065A 6.939A 2.221A 489.933 87.633% 2038 42.7 37.3°C 0.991
12.106V 4.955V 3.33V 4.953V 559.07 44.38°C 229.8V
80% 39.832A 8.002A 7.961A 2.326A 559.042 87.021% 2039 42.7 37.86°C 0.993
12.091V 4.94V 3.316V 4.943V 642.425 46.01°C 229.78V
90% 45.313A 8.625A 8.472A 2.432A 629.721 86.339% 2039 42.7 38.62°C 0.994
12.076V 4.927V 3.305V 4.934V 729.362 47.67°C 229.77V
100% 50.808A 9.154A 9.02A 2.539A 700.035 85.547% 2041 42.7 39.58°C 0.995
12.062V 4.915V 3.293V 4.924V 818.306 49.66°C 229.75V
110% 55.913A 10.21A 10.16A 2.542A 769.438 84.556% 2043 42.7 40.37°C 0.996
12.048V 4.896V 3.277V 4.917V 909.974 51.31°C 229.74V
CL1 0.113A 12.197A 11.91A 0A 101.287 79.792% 1967 42.0 34.03°C 0.947
12.192V 4.935V 3.334V 5.046V 126.941 39.49°C 229.86V
CL2 0.113A 17.294A 0A 0A 86.37 77.905% 1931 41.6 34.25°C 0.936
12.199V 4.914V 3.376V 5.053V 110.867 41.31°C 229.87V
CL3 0.113A 0A 16.835A 0A 57.492 73.318% 1788 39.7 34.08°C 0.894
12.199V 5.031V 3.333V 5.051V 78.417 43.09°C 229.87V
CL4 58.033A 0A 0A 0A 699.92 86.433% 2043 42.7 39.11°C 0.995
12.061V 5.013V 3.356V 5.001V 809.787 50.01°C 229.76V

The results above are not used in the certification process

230V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W1.216A0.494A0.484A0.198A19.99768.343%86119.930.13°C0.686
12.205V5.063V3.41V5.055V29.2633.25°C229.88V
40W2.679A0.692A0.678A0.297A39.99578.49%98123.731.17°C0.826
12.200V5.059V3.408V5.051V50.95634.48°C229.87V
60W4.142A0.89A0.872A0.396A59.99381.586%122030.132.12°C0.885
12.197V5.055V3.405V5.046V73.53535.58°C229.87V
80W5.603A1.088A1.066A0.496A79.93384.14%138133.433.85°C0.919
12.190V5.052V3.404V5.041V94.99837.69°C229.87V

The results above are not used in the certification process

230V

Test12V5V3.3V5VSBPass/Fail
10% Load16.37mV9.81mV9.62mV25.01mVPass
20% Load16.68mV9.86mV9.46mV25.53mVPass
30% Load18.47mV10.47mV9.77mV24.81mVPass
40% Load20.57mV10.88mV10.33mV26.70mVPass
50% Load22.61mV11.50mV13.30mV28.75mVPass
60% Load28.19mV11.90mV12.99mV30.08mVPass
70% Load39.85mV12.16mV16.73mV32.58mVPass
80% Load56.02mV14.36mV20.21mV33.09mVPass
90% Load73.88mV16.65mV22.97mV33.25mVPass
100% Load84.56mV20.17mV26.39mV38.70mVPass
110% Load102.30mV21.99mV29.08mV41.62mVPass
Crossload118.08mV16.15mV15.65mV27.44mVPass
Crossload217.60mV17.52mV12.33mV28.64mVPass
Crossload316.78mV14.05mV15.30mV22.05mVPass
Crossload492.36mV19.77mV26.25mV34.57mVPass

The results above are not used in the certification process

ABKO Settler Hybrid Bronze STH-700B

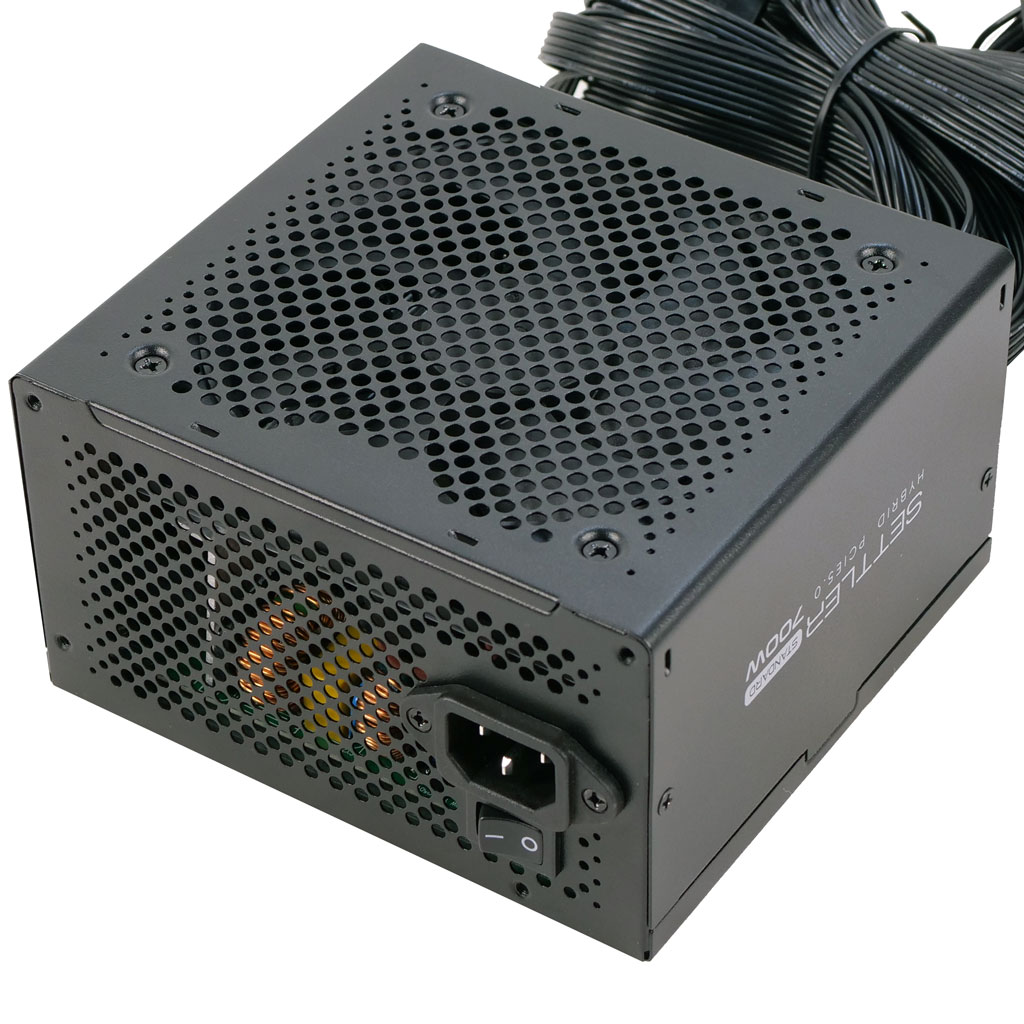

Top side

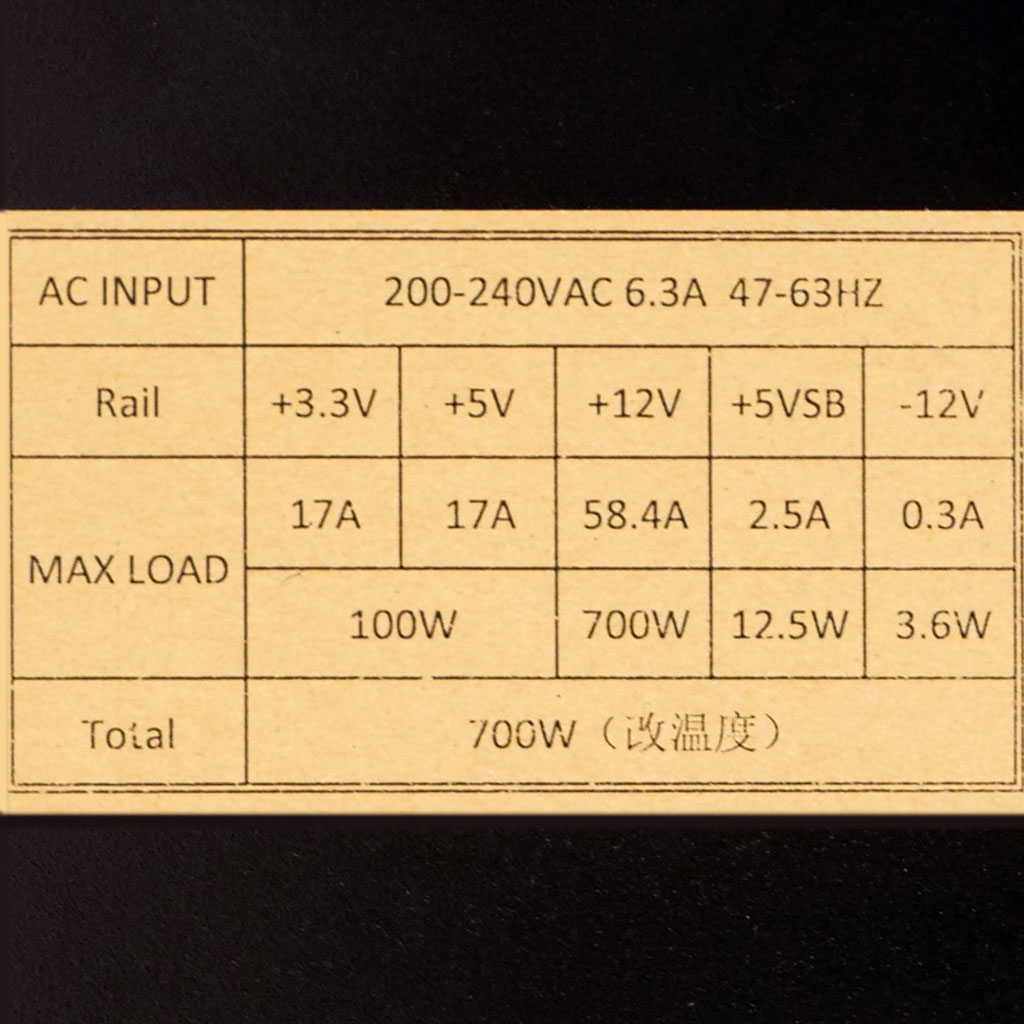

Power specifications label
ybenetics bietet die freiwilligen ETA- und Lambda-Zertifizierungsprogramme an, mit denen effiziente und leise Netzteile (PSU) beworben werden
