XPG KYBER 650
Serial Number4N1581012949
Lab IDAD65002219
  • Report: 23PS2219A
  • Receipt Date: Aug 3, 2023
  • Test Date: Aug 17, 2023
  • Report Date: Aug 18, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
This product certification body is accredited in accordance with the recognized International Standard ISO/IEC 17065:2012 Requirements for bodies certifying products, processes and services. This product certification body also meets the A2LA R308 - Specific Requirements - ISO-IEC 17065 - Telecommunication Certification Body Accreditation Program and R322 - Specific Requirements - Notified Body Accreditation Requirements. This accreditation demonstrates technical competence for a defined scope and the operation of a management system
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)CWT
SeriesKYBER
Model NumberKYBER650GOLD
Serial Number4N1581012949
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)10
Rated Frequency (Hz)47-63
Rated Power (W)650
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(DF1202512FDHN)
Semi-Passive Operation✗
Cable DesignFixed cables

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20205430.3
Watts100648153.6
Total Max. Power (W)650

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Captive Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (650mm) 1 1 18-20AWG No
8 pin EPS12V (670mm) / 4+4 EPS12V (150mm) 1 1 / 1 18AWG No
6+2 pin PCIe (600mm+150mm) 1 2 18AWG No
SATA (450mm+150mm+150mm) / 4-pin Molex (150mm) 2 6 / 2 18AWG No
Modular Cables
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Parts Description

General Data -
Manufacturer (OEM) CWT
PCB Type Single-Side
Primary Side -
Transient Filter 2x Y caps, 2x X caps, 2x CM chokes, 1x MOV
Inrush Protection NTC Thermistor SCK-056 5Ohm & Relay
Bridge Rectifier(s) 1x  GBU15005 (600V, 15A @ 100°C)
APFC MOSFETs 2x Wayon WML28N50C4 (500V, 16A , Rds(on): 0.125Ohm) &
1x Syncpower SPN5003 FET (for reduced the no-load consumption)
APFC Boost Diode 1x CRMICRO CRXI06D065G2(600V, 6A @ 167°C)
Bulk Cap(s) 1x Elite (400V, 470uF, 2000h @ 85°C, GM)
Main Switchers 4x Silan Microelectroinics SVF20N50F (500V, 12.6A @ 100°C, Rds(on): 0.27Ohm)
APFC Controller 1x Champion CM6500UNX
Resonant Controller Champion CM6901X
Topology Primary side: APFC, Full-Bridge & LLC converter
Secondary side: Synchronous Rectification & DC-DC converters
Secondary Side -
+12V MOSFETs 4x Infineon BSC014N04LS (40V, 100A @ 100°C, Rds(on): 1.4mOhm)
5V & 3.3V DC-DC Converters: 4x InfineonSPN3006 (30V, 57A @ 100°C, Rds(on): 5.5mOhm)
PWM Controller(s): APW7159C
Filtering Capacitors Electrolytic: 11x Chengx (2-3,000h @ 105°C ,GR)
Polymer: 14x CapXon
Supervisor IC IN1S313I-DAG
Fan Model Martech DF1202512FDHN (120mm, 12V, 0.42A, Fluid Dynamic Bearing Fan)
5VSB Circuit -
Standby PWM Controller Power Integrations TNY290

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)16
AC Loss to PWR_OK Hold Up Time (ms)13.4
PWR_OK Inactive to DC Loss Delay (ms)2.6

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.88 V 114.82 V 113.85 V 114.93 V 116.15 V PASS
Mains Frequency: 59.99 Hz 59.97 Hz 59.40 Hz 60.02 Hz 60.60 Hz PASS
Mains Voltage CF: 1.419 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.16 % 0.09 % N/A 0.27 % 2.00 % PASS
Real Power: 0.048 W -0.003 W N/A 0.069 W N/A N/A
Apparent Power: 11.388 W 11.363 W N/A 11.423 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A

Efficiency Graph

115V

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 67.332% 0.029
5.124V 0.297W 114.87V
2 0.09A 0.461W 75.854% 0.058
5.123V 0.608W 114.87V
3 0.55A 2.811W 79.938% 0.261
5.111V 3.517W 114.88V
4 1A 5.1W 80.165% 0.359
5.099V 6.362W 114.87V
5 1.5A 7.63W 78.013% 0.404
5.086V 9.781W 114.88V
6 3A 15.146W 76.545% 0.475
5.048V 19.786W 114.88V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 3.592A 1.994A 2.002A 0.983A 65.004 85.723% 893 19.7 34.22°C 0.946
12.084V 5.015V 3.296V 5.085V 75.83 38.37°C 114.85V
20% 8.204A 2.994A 3.007A 1.184A 129.944 89.309% 898 19.7 34.91°C 0.969
12.072V 5.012V 3.293V 5.07V 145.502 39.31°C 114.84V
30% 13.174A 3.495A 3.512A 1.385A 194.944 90.261% 901 19.7 35.29°C 0.977
12.061V 5.008V 3.289V 5.054V 215.978 40.2°C 114.8V
40% 18.160A 3.996A 4.018A 1.588A 260.026 90.44% 905 19.8 35.76°C 0.981
12.049V 5.005V 3.286V 5.037V 287.512 41.4°C 114.79V
50% 22.806A 5A 5.028A 1.794A 325.027 90.068% 911 20.0 36.26°C 0.98
12.037V 5.001V 3.282V 5.019V 360.872 42.42°C 114.76V
60% 27.412A 6.004A 6.04A 2A 389.426 89.499% 916 20.3 36.74°C 0.981
12.024V 4.998V 3.278V 5V 435.117 43.41°C 114.73V
70% 32.105A 7.009A 7.054A 2.209A 454.745 88.671% 1204 29.4 37.35°C 0.981
12.011V 4.995V 3.275V 4.981V 512.845 44.52°C 114.71V
80% 36.811A 8.002A 8.071A 2.316A 519.5 87.78% 1588 37.2 37.8°C 0.982
11.998V 4.991V 3.271V 4.966V 591.823 45.61°C 114.68V
90% 41.920A 8.52A 8.569A 2.424A 584.936 86.962% 2008 43.0 38.77°C 0.983
11.985V 4.988V 3.267V 4.951V 672.632 47.74°C 114.66V
100% 46.781A 9.027A 9.1A 3.047A 649.767 86.023% 2351 46.5 39.45°C 0.984
11.972V 4.985V 3.264V 4.923V 755.339 49.15°C 114.63V
110% 51.518A 10.039A 10.215A 3.057A 714.402 85.067% 2350 46.5 40.26°C 0.986
11.959V 4.981V 3.26V 4.908V 839.818 51.15°C 114.6V
CL1 0.115A 12.055A 12.09A 0A 101.288 83.919% 914 20.1 35.07°C 0.964
12.071V 4.994V 3.283V 5.086V 120.699 40.84°C 114.84V
CL2 0.115A 20.059A 0A 0A 101.366 82.09% 917 20.3 34.78°C 0.965
12.077V 4.984V 3.297V 5.094V 123.485 40.17°C 114.84V
CL3 0.116A 0A 20.121A 0A 67.396 76.87% 904 19.7 34.72°C 0.953
12.075V 5.016V 3.28V 5.091V 87.675 39.54°C 114.85V
CL4 54.208A 0A 0A 0A 649.577 87.403% 2159 44.2 39.27°C 0.985
11.983V 5.006V 3.277V 5.021V 743.207 46.73°C 114.64V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.498A 0.5A 0.195A 19.998 72.009% 876 19.3 30.53°C 0.84
12.093V 5.02V 3.3V 5.116V 27.77 33.62°C 114.88V
40W 2.704A 0.697A 0.7A 0.294A 40 81.991% 880 19.4 31.37°C 0.919
12.089V 5.019V 3.299V 5.111V 48.786 34.57°C 114.87V
60W 4.181A 0.897A 0.901A 0.392A 60 85.898% 884 19.5 32.24°C 0.944
12.086V 5.018V 3.298V 5.104V 69.851 35.74°C 114.86V
80W 5.654A 1.096A 1.101A 0.49A 79.948 87.714% 889 19.7 33.21°C 0.955
12.082V 5.017V 3.297V 5.098V 91.145 36.93°C 114.85V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load16.62mV17.05mV15.46mV13.99mVPass
20% Load20.79mV18.03mV15.31mV14.56mVPass
30% Load24.66mV19.27mV17.43mV19.56mVPass
40% Load26.26mV19.06mV18.36mV18.63mVPass
50% Load23.87mV20.09mV18.25mV19.10mVPass
60% Load24.64mV23.34mV17.84mV20.59mVPass
70% Load25.78mV23.59mV19.19mV22.66mVPass
80% Load29.33mV25.50mV20.37mV26.79mVPass
90% Load32.02mV26.53mV21.15mV25.65mVPass
100% Load43.74mV27.91mV22.20mV26.50mVPass
110% Load47.22mV29.34mV24.11mV28.94mVPass
Crossload133.91mV20.80mV18.79mV13.40mVPass
Crossload225.78mV31.22mV15.26mV13.73mVPass
Crossload327.27mV19.68mV22.24mV13.11mVPass
Crossload437.20mV27.88mV19.19mV18.32mVPass

The results above are not used in the certification process

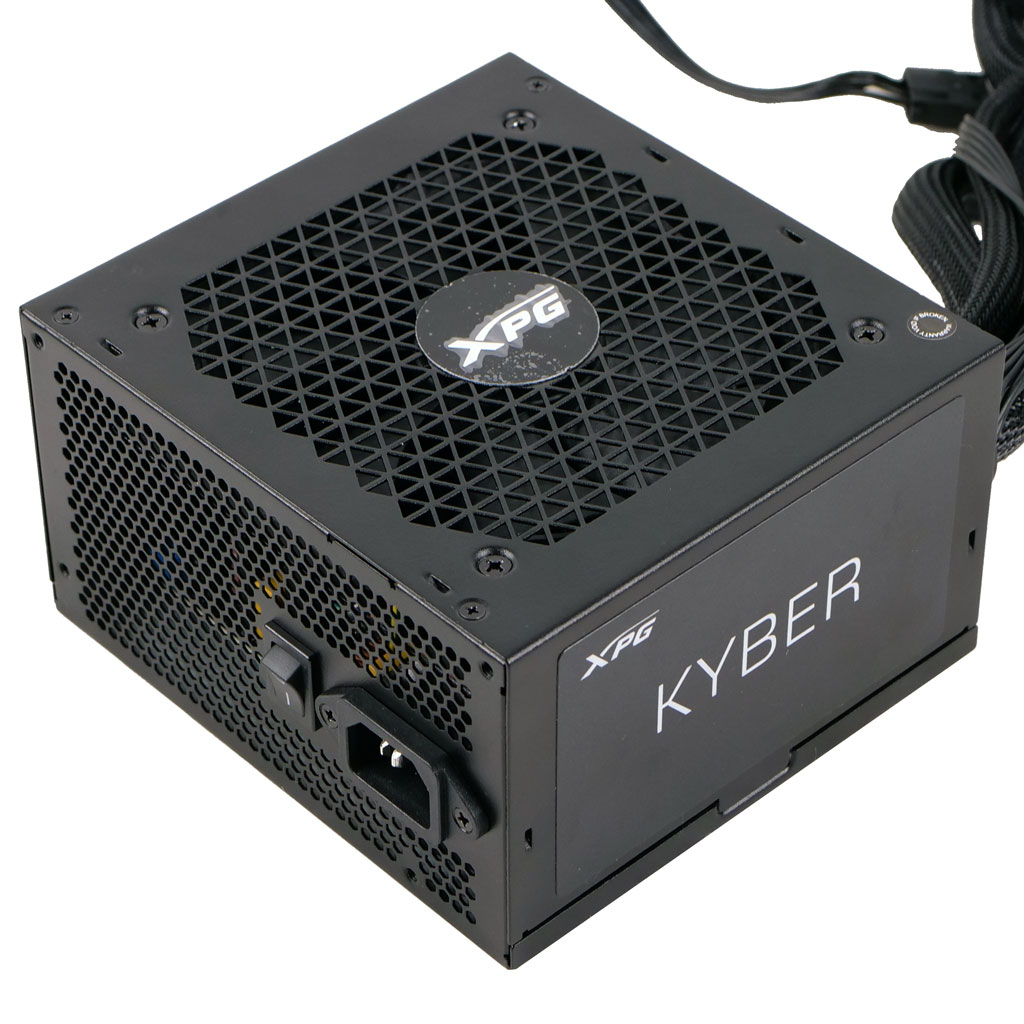

XPG KYBER 650

Top side
Power specifications label
