CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
XPG Core Reactor II 850W
Serial Number4N1680815250
Lab IDAD85002216
  • Report: 23PS2216A
  • Receipt Date: Jul 25, 2023
  • Test Date: Jul 31, 2023
  • Report Date: Aug 25, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandXPG
Manufacturer (OEM)Channel Well Technology
SeriesCore Reactor II
Model NumberCOREREACTORII850GOLD
Serial Number4N1680815250
DUT Notes

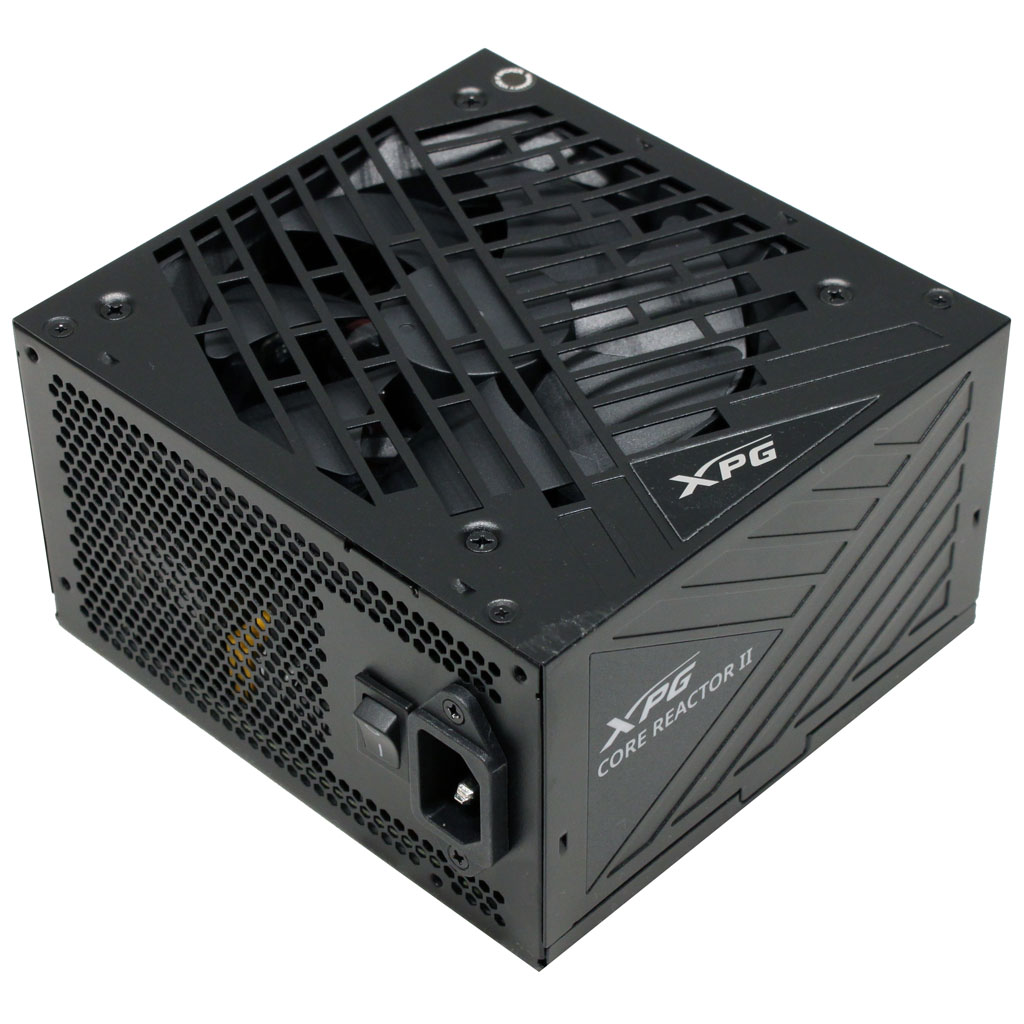

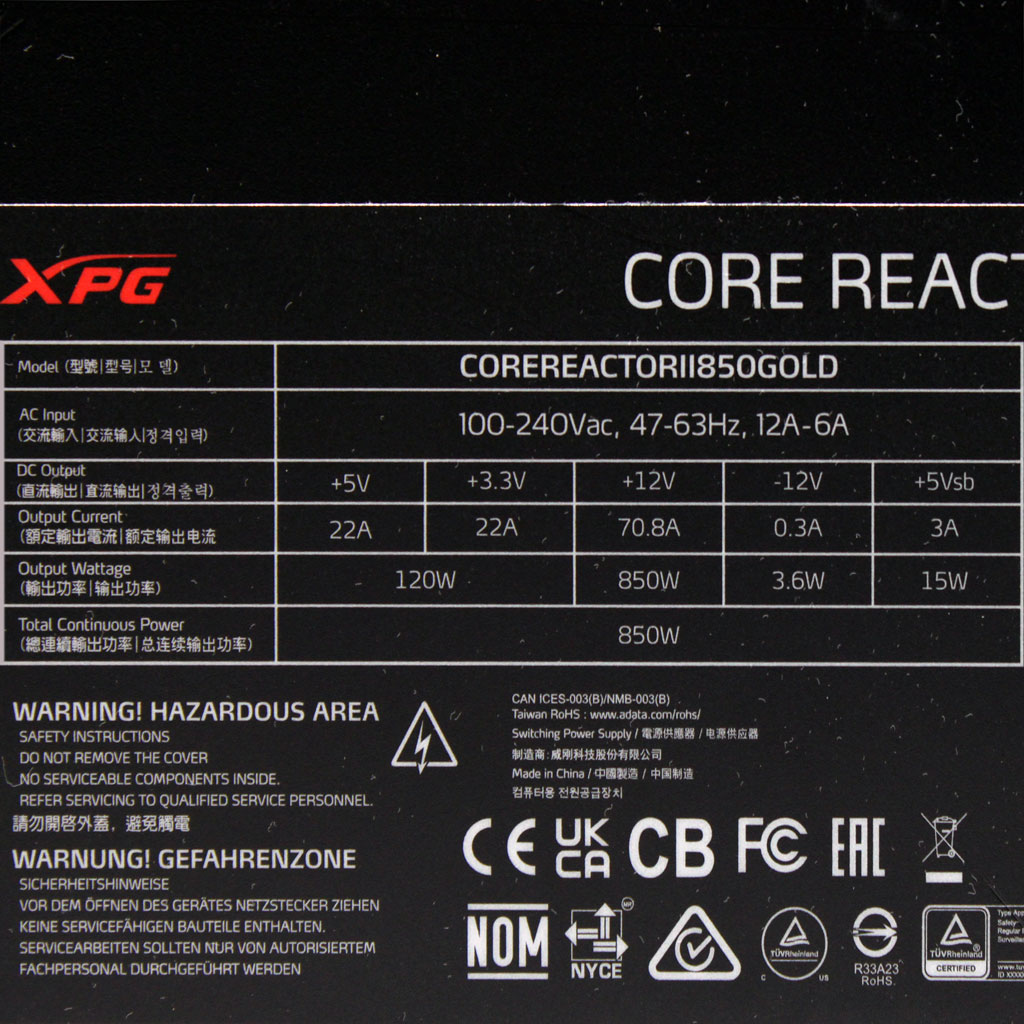

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)47-63
Rated Frequency (Hz)12-6
Rated Power (W)850
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(HA1225H12F-Z)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps222270.830.3
Watts120850153.6
Total Max. Power (W)850

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (640mm) 1 1 16-20AWG No
4+4 pin EPS12V (650mm) 2 2 16AWG No
4+4 pin EPS12V (750mm) 1 1 16AWG No
6+2 pin PCIe (650mm+150mm) 2 4 16-18AWG No
6+2 pin PCIe (650mm) 2 2 16AWG No
12+4 pin PCIe (650mm) (600W) 1 1 16-24AWG No
SATA (500mm+150mm+150mm+150mm) 2 8 18AWG No
4-pin Molex (500mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1400mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)21.4
AC Loss to PWR_OK Hold Up Time (ms)18.7
PWR_OK Inactive to DC Loss Delay (ms)2.7

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.15 V 115.14 V 113.85 V 115.17 V 116.15 V PASS
Mains Frequency: 60.00 Hz 60.00 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.040 W 0.036 W N/A 0.044 W N/A N/A
Apparent Power: 9.904 W 9.900 W N/A 9.907 W N/A N/A
Power Factor: 0.004 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 230.38 V 230.36 V 227.70 V 230.40 V 232.30 V PASS
Mains Frequency: 50.00 Hz 50.00 Hz 49.50 Hz 50.00 Hz 50.50 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.14 % 0.13 % N/A 0.16 % 2.00 % PASS
Real Power: 0.072 W 0.061 W N/A 0.096 W N/A N/A
Apparent Power: 33.110 W 33.103 W N/A 33.119 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

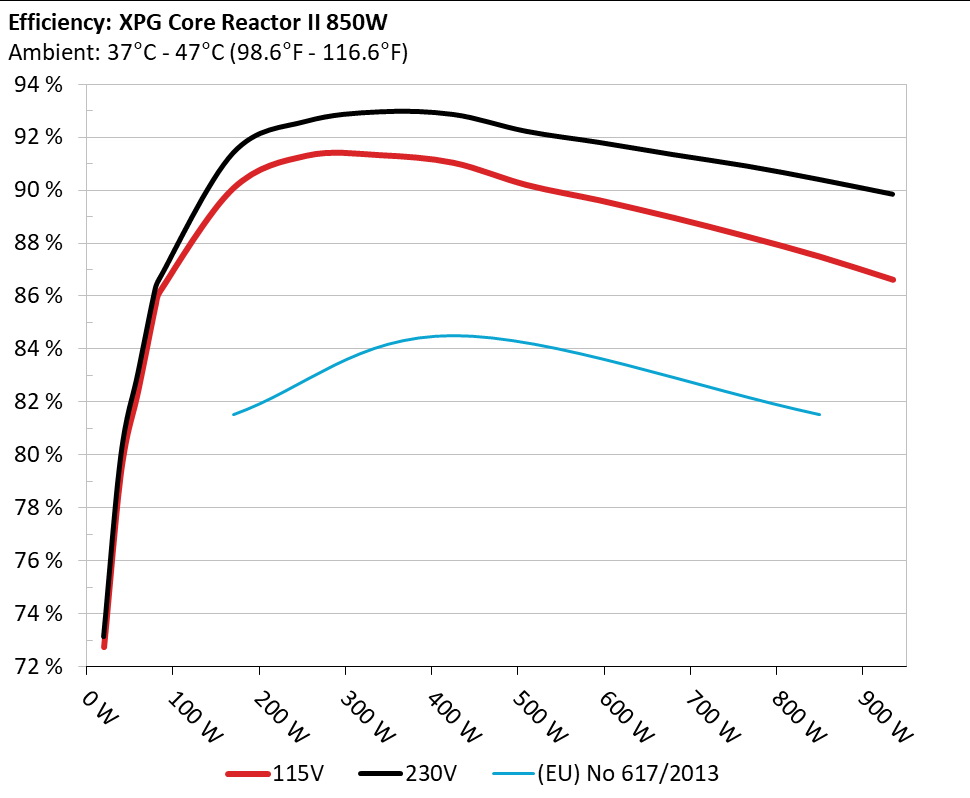

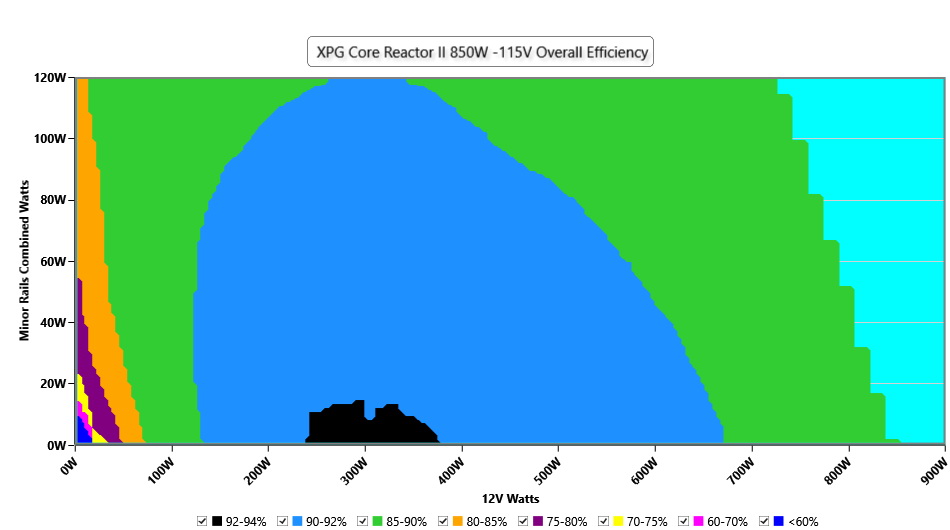

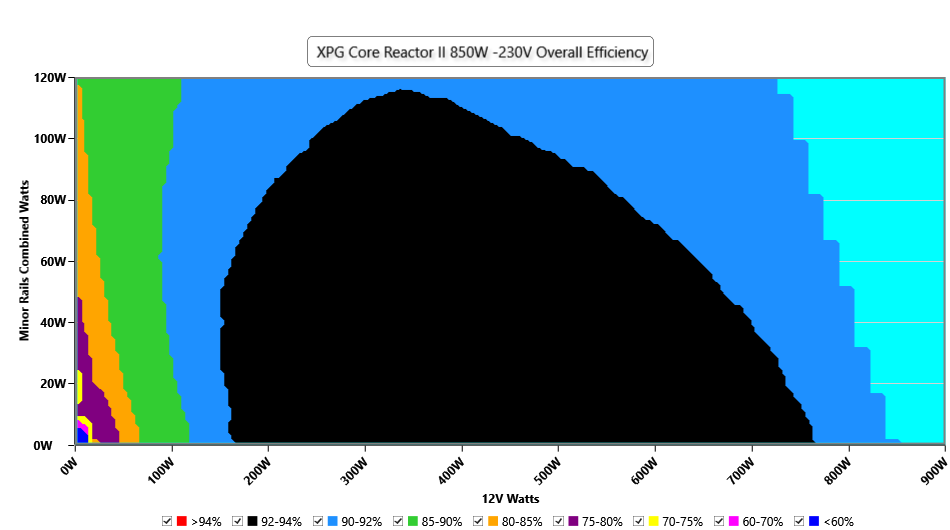

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

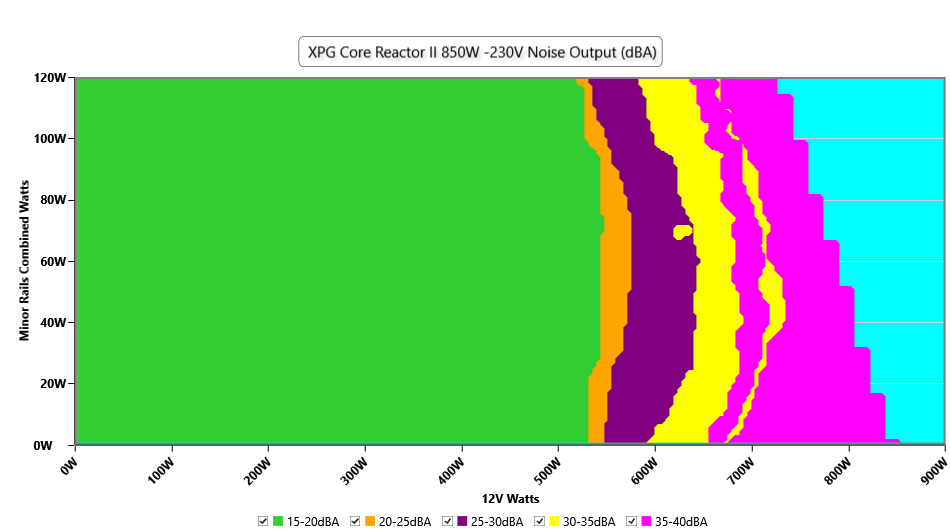

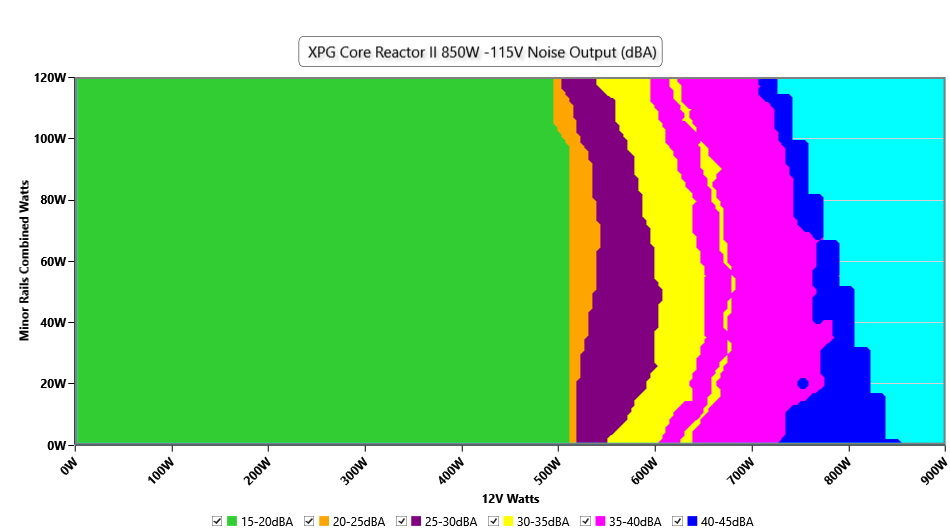

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

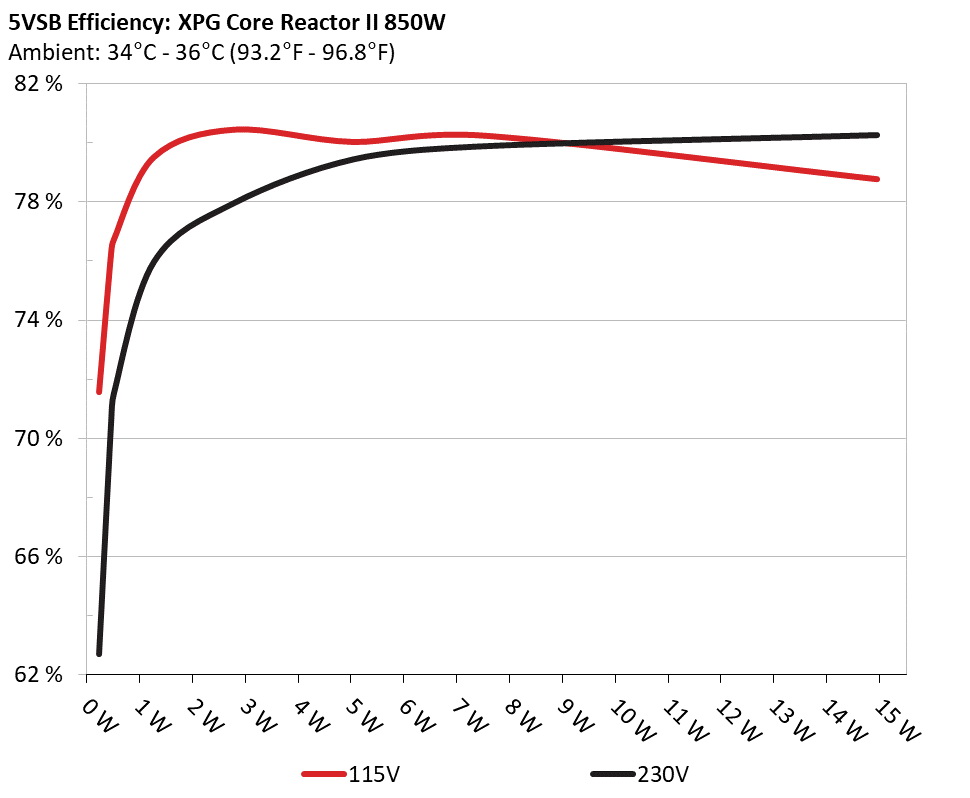

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 71.07% 0.032
5.068V 0.321W 115.17V
2 0.09A 0.456W 75.777% 0.06
5.067V 0.602W 115.16V
3 0.55A 2.78W 79.949% 0.269
5.054V 3.477W 115.16V
4 1A 5.043W 79.531% 0.369
5.042V 6.34W 115.17V
5 1.5A 7.543W 79.743% 0.42
5.028V 9.459W 115.16V
6 3A 14.957W 78.274% 0.487
4.985V 19.11W 115.16V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.228W 62.2% 0.011
5.068V 0.366W 230.39V
2 0.09A 0.456W 70.04% 0.02
5.067V 0.651W 230.39V
3 0.55A 2.78W 77.447% 0.103
5.054V 3.59W 230.39V
4 1A 5.042W 78.928% 0.171
5.041V 6.387W 230.39V
5 1.5A 7.542W 79.373% 0.23
5.027V 9.503W 230.39V
6 3A 14.956W 79.747% 0.334
4.985V 18.757W 230.38V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.182A 1.965A 1.99A 0.986A 85.001 86.674% 895 20.6 40.54°C 0.977
12.235V 5.09V 3.316V 5.072V 98.07 44.75°C 115.14V
20% 11.450A 2.949A 2.987A 1.185A 169.952 90.559% 900 20.9 40.67°C 0.99
12.143V 5.086V 3.314V 5.065V 187.668 45.23°C 115.12V
30% 18.039A 3.443A 3.486A 1.384A 254.958 91.789% 902 20.8 41.49°C 0.993
12.135V 5.083V 3.313V 5.058V 277.765 46.58°C 115.09V
40% 24.608A 3.937A 3.985A 1.584A 340.05 91.808% 905 20.9 41.9°C 0.99
12.144V 5.081V 3.312V 5.053V 370.391 47.31°C 115.07V
50% 30.739A 4.924A 4.983A 1.784A 425.044 91.518% 915 21.5 42.44°C 0.992
12.185V 5.079V 3.312V 5.047V 464.436 48.37°C 115.05V
60% 36.937A 5.913A 5.983A 1.984A 509.587 90.682% 1513 37.0 42.82°C 0.993
12.177V 5.074V 3.31V 5.04V 561.951 49.25°C 115.02V
70% 43.214A 6.905A 6.985A 2.186A 594.918 90.094% 1812 41.4 43.37°C 0.994
12.168V 5.07V 3.307V 5.033V 660.33 50.38°C 115V
80% 49.501A 7.897A 7.987A 2.288A 679.755 89.446% 2027 44.9 43.87°C 0.995
12.159V 5.065V 3.305V 5.028V 759.961 52.02°C 114.98V
90% 56.162A 8.395A 8.473A 2.389A 765.186 88.732% 2335 48.8 44.73°C 0.995
12.156V 5.063V 3.304V 5.024V 862.365 53.77°C 114.95V
100% 62.586A 8.894A 8.991A 2.996A 850.036 87.97% 2335 48.8 45.39°C 0.996
12.149V 5.06V 3.303V 5.007V 966.278 55.46°C 114.92V
110% 68.874A 9.89A 10.085A 2.998A 934.609 87.101% 2341 49.0 46.56°C 0.996
12.143V 5.056V 3.301V 5.005V 1073.021 57.48°C 114.9V
CL1 0.115A 14.199A 14.408A 0A 121.3 83.559% 1303 33.2 42.01°C 0.986
12.168V 5.085V 3.31V 5.109V 145.168 47.51°C 115.13V
CL2 0.115A 21.568A 0A 0A 111.389 82.422% 921 21.6 41.7°C 0.985
12.169V 5.1V 3.314V 5.145V 135.146 48.73°C 115.14V
CL3 0.114A 0A 21.837A 0A 73.991 77.575% 901 20.9 41.45°C 0.975
12.237V 5.095V 3.324V 5.087V 95.38 50.47°C 115.15V
CL4 69.897A 0A 0.001A 0A 849.936 88.385% 2333 48.7 45.81°C 0.996
12.160V 5.072V 3.313V 5.077V 961.631 56.75°C 114.93V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 5.180A 1.965A 1.99A 0.986A 85.003 87.159% 896 20.6 40.41°C 0.842
12.238V 5.09V 3.316V 5.072V 97.527 44.66°C 230.39V
20% 11.450A 2.95A 2.987A 1.185A 169.961 91.884% 896 20.6 40.65°C 0.938
12.145V 5.086V 3.314V 5.065V 184.978 45.29°C 230.38V
30% 18.041A 3.444A 3.487A 1.384A 254.971 93.086% 896 20.6 41.49°C 0.964
12.134V 5.083V 3.313V 5.058V 273.908 46.63°C 230.37V
40% 24.616A 3.938A 3.986A 1.584A 340.06 93.443% 903 20.8 41.78°C 0.974
12.140V 5.08V 3.312V 5.051V 363.919 47.31°C 230.36V
50% 30.744A 4.924A 4.983A 1.784A 425.074 93.343% 907 20.9 42.62°C 0.98
12.183V 5.079V 3.312V 5.047V 455.386 48.65°C 230.35V
60% 36.933A 5.912A 5.982A 1.984A 509.617 92.708% 1626 38.5 42.85°C 0.984
12.179V 5.075V 3.31V 5.041V 549.696 49.49°C 230.34V
70% 43.217A 6.905A 6.984A 2.186A 595.016 92.283% 1904 42.6 43.58°C 0.986
12.169V 5.071V 3.308V 5.033V 644.766 50.66°C 230.33V
80% 49.485A 7.895A 7.985A 2.287A 679.821 91.829% 2172 46.3 43.66°C 0.988
12.164V 5.067V 3.306V 5.029V 740.304 51.74°C 230.32V
90% 56.175A 8.395A 8.473A 2.389A 765.237 91.396% 2300 49.1 44.06°C 0.988
12.154V 5.063V 3.304V 5.023V 837.275 53.35°C 230.31V
100% 62.600A 8.895A 8.992A 2.997A 850.089 90.885% 2323 48.8 45.68°C 0.989
12.146V 5.059V 3.303V 5.006V 935.341 55.77°C 230.3V
110% 68.888A 9.889A 10.084A 2.997A 934.647 90.332% 2328 48.7 46.76°C 0.99
12.141V 5.057V 3.302V 5.005V 1034.678 57.69°C 230.29V
CL1 0.115A 14.197A 14.405A 0A 121.303 84.486% 1282 32.5 42.85°C 0.91
12.165V 5.085V 3.311V 5.109V 143.576 48.39°C 230.39V
CL2 0.115A 21.565A 0A 0A 111.39 83.362% 920 21.6 41.75°C 0.9
12.170V 5.101V 3.315V 5.145V 133.621 48.78°C 230.39V
CL3 0.114A 0A 21.861A 0A 73.992 78.168% 896 20.6 39.41°C 0.836
12.232V 5.089V 3.321V 5.081V 94.659 48.48°C 230.39V
CL4 69.924A 0A 0.001A 0A 849.983 91.407% 2326 48.8 45.78°C 0.989
12.156V 5.071V 3.313V 5.076V 929.891 56.77°C 230.3V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.498A 0.197A 20.003 73.218% 874 19.6 36.53°C 0.811
12.070V 5.089V 3.314V 5.087V 27.32 39.58°C 115.17V
40W 2.708A 0.688A 0.697A 0.295A 40 79.911% 882 20.0 37.84°C 0.927
12.071V 5.09V 3.315V 5.086V 50.058 41.09°C 115.15V
60W 4.130A 0.884A 0.896A 0.393A 59.999 82.966% 887 20.4 38.21°C 0.962
12.234V 5.09V 3.315V 5.084V 72.314 41.99°C 115.15V
80W 5.586A 1.081A 1.095A 0.492A 79.954 86.171% 889 20.4 38.93°C 0.974
12.233V 5.089V 3.315V 5.081V 92.785 42.91°C 115.14V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.230A 0.491A 0.498A 0.197A 20.003 73.624% 879 20.0 36.76°C 0.444
12.073V 5.09V 3.314V 5.087V 27.295 39.85°C 230.39V
40W 2.708A 0.688A 0.697A 0.295A 40.002 80.472% 881 20.0 36.93°C 0.639
12.072V 5.09V 3.315V 5.085V 49.707 40.23°C 230.39V
60W 4.130A 0.884A 0.896A 0.394A 60 83.616% 883 20.1 37.65°C 0.765
12.233V 5.089V 3.315V 5.083V 71.76 41.17°C 230.39V
80W 5.586A 1.081A 1.095A 0.492A 79.959 86.774% 885 20.2 38.56°C 0.829
12.233V 5.089V 3.315V 5.08V 92.15 42.29°C 230.39V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load9.24mV4.14mV5.37mV6.17mVPass
20% Load12.55mV4.35mV6.81mV6.37mVPass
30% Load10.52mV5.98mV8.85mV7.29mVPass
40% Load11.80mV5.22mV9.01mV7.39mVPass
50% Load12.62mV5.58mV10.03mV7.44mVPass
60% Load13.74mV6.24mV12.08mV8.26mVPass
70% Load15.17mV6.80mV13.00mV9.28mVPass
80% Load16.14mV7.62mV18.17mV9.58mVPass
90% Load17.47mV8.18mV19.29mV9.89mVPass
100% Load23.98mV9.67mV20.80mV11.86mVPass
110% Load25.17mV9.97mV22.86mV12.29mVPass
Crossload121.63mV5.85mV13.96mV6.80mVPass
Crossload217.71mV8.08mV6.19mV7.95mVPass
Crossload37.20mV4.55mV15.46mV6.53mVPass
Crossload423.66mV8.52mV16.42mV10.89mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load8.48mV4.25mV5.42mV6.53mVPass
20% Load12.96mV4.40mV6.60mV6.42mVPass
30% Load10.50mV5.52mV8.44mV6.88mVPass
40% Load11.39mV5.22mV8.60mV7.03mVPass
50% Load12.52mV5.68mV10.08mV8.16mVPass
60% Load13.99mV6.39mV11.31mV8.62mVPass
70% Load15.53mV7.47mV12.69mV8.87mVPass
80% Load16.24mV7.57mV17.86mV9.59mVPass
90% Load17.42mV8.08mV19.14mV10.50mVPass
100% Load23.75mV9.37mV21.62mV11.72mVPass
110% Load26.79mV10.14mV23.17mV11.70mVPass
Crossload123.08mV5.71mV13.67mV6.81mVPass
Crossload218.37mV8.54mV6.09mV7.44mVPass
Crossload37.00mV4.76mV15.61mV6.12mVPass
Crossload424.77mV8.69mV16.45mV11.04mVPass

The results above are not used in the certification process

XPG Core Reactor II 850W

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
