Aresgame AGT1300
Serial Number
Lab IDAR13002214
  • Report: 23PS2214A
  • Receipt Date: Jul 14, 2023
  • Test Date: Jul 24, 2023
  • Report Date: Jul 24, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Laboratory General Manager

General Information

DUT Information

BrandAresgame
Manufacturer (OEM)Jiumeng
SeriesAGT
Model NumberAGT1300
Serial Number
DUT Notes

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15-7.5
Rated Frequency (Hz)50-60
Rated Power (W)1300
TypeATX12V
Cooling120mm Fluid Dynamic Bearing Fan
(PY-1225M12S)
Semi-Passive Operation✗
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps20201082.50.3
Watts100129612.53.6
Total Max. Power (W)1300

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-22AWG Yes
4+4 pin EPS12V (700mm) 2 2 16AWG No
6+2 pin PCIe (550mm+150mm) 2 4 16-18AWG No
2x 6+2 pin PCIe (550mm) 1 2 18AWG No
12+4 pin PCIe (550mm) (600W) 1 1 16-26AWG No
SATA (500mm+150mm+150mm) 3 9 18AWG No
4-pin Molex (500mm+145mm+145mm) / FDD (+155mm) 1 3 / 1 18-22AWG No

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary 115V

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)13.9
AC Loss to PWR_OK Hold Up Time (ms)13.9
PWR_OK Inactive to DC Loss Delay (ms)0

Vampire Power

Tables 115V

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 115.13 V 115.12 V 113.85 V 115.17 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.94 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.415 1.415 1.340 1.416 1.490 PASS
Mains Voltage THD: 0.13 % 0.11 % N/A 0.15 % 2.00 % PASS
Real Power: 0.053 W 0.018 W N/A 0.075 W N/A N/A
Apparent Power: 13.326 W 13.315 W N/A 13.335 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A

Efficiency Graph

115V

INFO

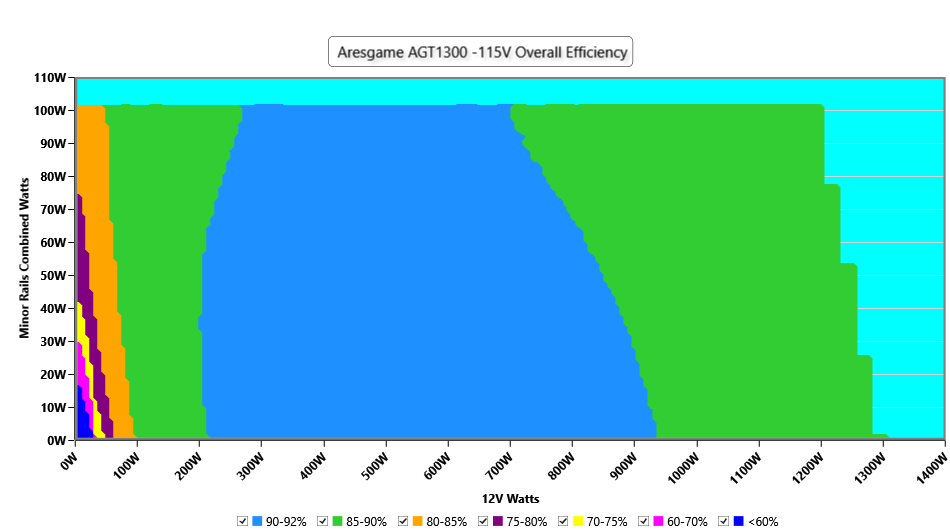

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

Noise Graph

115V

INFO

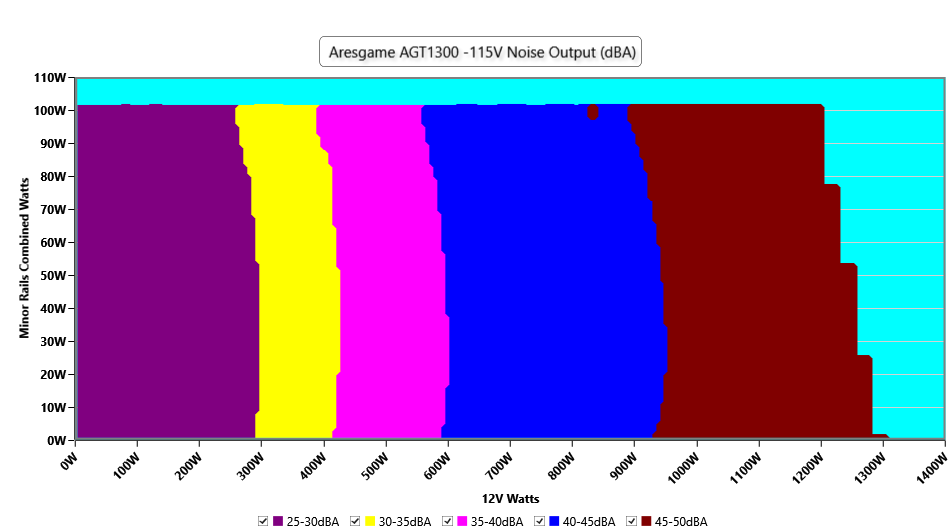

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

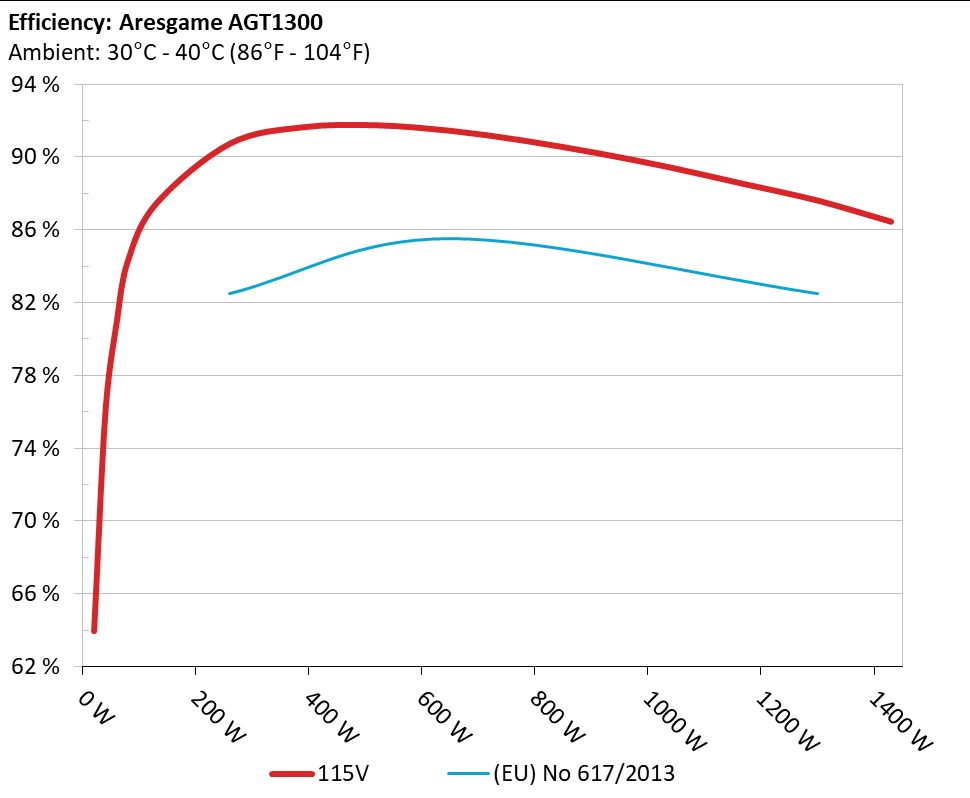

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

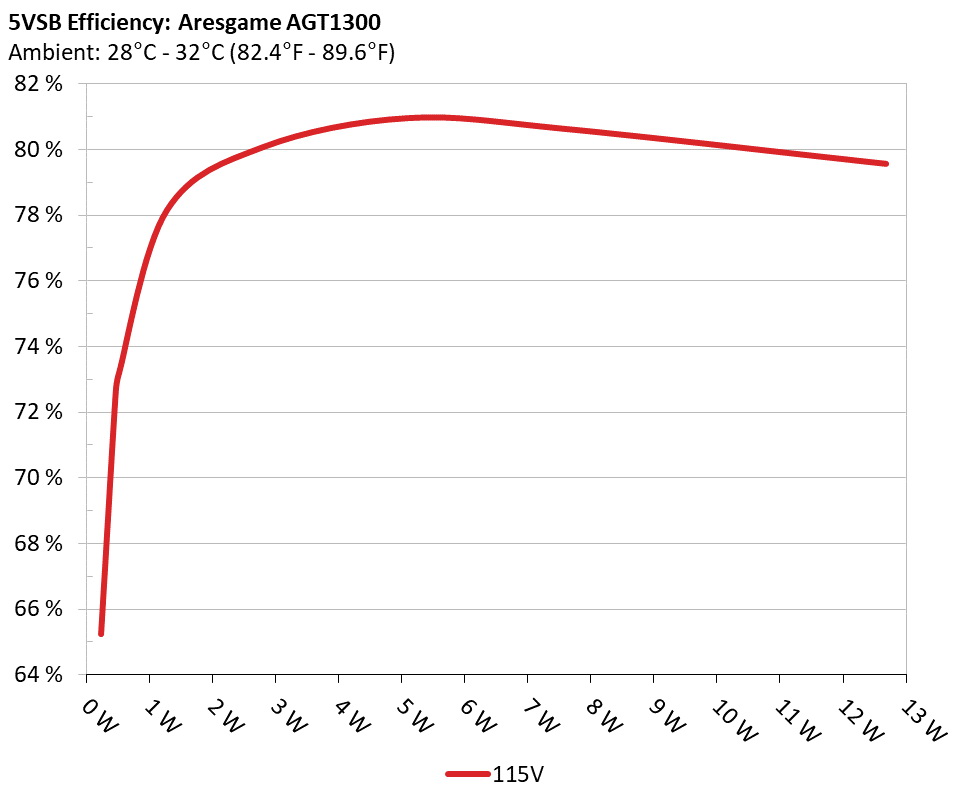

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC) 115V

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.23W 65.73% 0.026
5.113V 0.35W 115.16V
2 0.09A 0.46W 73.022% 0.047
5.113V 0.631W 115.16V
3 0.55A 2.809W 80.569% 0.215
5.106V 3.486W 115.16V
4 1A 5.099W 81.447% 0.303
5.099V 6.261W 115.16V
5 1.5A 7.637W 81.109% 0.361
5.09V 9.417W 115.15V
6 2.501A 12.685W 80.055% 0.42
5.073V 15.844W 115.15V

Supplementary Tests (For Reference)

Typical Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.974A 1.971A 1.971A 0.983A 130.005 86.953% 980 31.0 34.13°C 0.982
12.080V 5.074V 3.348V 5.089V 149.51 38.42°C 115.13V
20% 18.974A 2.964A 2.967A 1.182A 259.965 90.238% 1096 34.3 34.67°C 0.983
12.073V 5.061V 3.336V 5.078V 288.09 39.22°C 115.08V
30% 29.317A 3.467A 3.472A 1.381A 389.759 91.146% 1181 36.4 35.44°C 0.988
12.065V 5.048V 3.326V 5.068V 427.618 40.24°C 115.05V
40% 39.686A 3.973A 3.981A 1.582A 519.737 91.25% 1337 39.8 35.75°C 0.992
12.058V 5.035V 3.316V 5.058V 569.569 40.79°C 115.02V
50% 49.731A 4.981A 4.995A 1.784A 649.902 90.953% 1535 43.3 36.53°C 0.994
12.053V 5.02V 3.303V 5.046V 714.552 41.99°C 114.99V
60% 59.796A 5.995A 6.016A 1.987A 780.052 90.411% 1633 44.7 36.65°C 0.995
12.045V 5.005V 3.291V 5.034V 862.78 42.69°C 114.95V
70% 69.873A 7.016A 7.046A 2.19A 910.162 89.722% 1775 46.7 37.01°C 0.996
12.037V 4.99V 3.279V 5.023V 1014.427 44.02°C 114.91V
80% 79.953A 8.042A 8.083A 2.294A 1039.762 88.931% 1920 48.6 37.34°C 0.997
12.030V 4.974V 3.266V 5.013V 1169.186 45.44°C 114.88V
90% 90.447A 8.569A 8.604A 2.399A 1170.029 88.023% 2073 50.2 38.4°C 0.997
12.024V 4.96V 3.254V 5.004V 1329.243 47.47°C 114.84V
100% 100.939A 9.101A 9.162A 2.503A 1300.389 87.113% 2096 50.5 39.45°C 0.998
12.019V 4.945V 3.242V 4.994V 1492.757 49.51°C 114.8V
110% 111.032A 10.147A 10.321A 2.508A 1429.802 85.953% 2099 50.5 40.41°C 0.998
12.014V 4.928V 3.226V 4.985V 1663.485 51.35°C 114.75V
CL1 0.116A 11.92A 11.962A 0A 101.309 80.433% 1406 41.2 37.68°C 0.974
12.083V 5.05V 3.319V 5.094V 125.955 43.16°C 115.15V
CL2 0.116A 19.798A 0A 0A 101.399 80.115% 1194 36.6 35.53°C 0.974
12.085V 5.051V 3.327V 5.105V 126.564 42.56°C 115.14V
CL3 0.116A 0A 19.856A 0A 67.392 74.16% 1102 34.5 34.58°C 0.956
12.079V 5.064V 3.324V 5.091V 90.869 43.66°C 115.15V
CL4 108.113A 0A 0A 0.002A 1300.46 87.348% 2097 50.5 40.94°C 0.998
12.029V 4.97V 3.269V 5.044V 1488.83 51.89°C 114.8V

The results above are not used in the certification process

Light Load Tests 115V

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.229A 0.491A 0.491A 0.196A 20.005 63.466% 916 29 30.38°C 0.795
12.085V 5.088V 3.36V 5.11V 31.524 33.44°C 115.16V
40W 2.706A 0.688A 0.688A 0.294A 40.001 75.451% 917 29.1 32.57°C 0.903
12.084V 5.086V 3.358V 5.107V 53.021 35.86°C 115.15V
60W 4.182A 0.885A 0.885A 0.392A 59.999 80.431% 918 29.1 32.67°C 0.945
12.083V 5.084V 3.356V 5.104V 74.601 36.42°C 115.15V
80W 5.654A 1.083A 1.082A 0.49A 79.953 83.819% 938 29.7 33.86°C 0.959
12.085V 5.081V 3.353V 5.101V 95.39 37.84°C 115.13V

The results above are not used in the certification process

Ripple Measurements 115V

Test12V5V3.3V5VSBPass/Fail
10% Load14.69mV6.80mV13.00mV11.52mVPass
20% Load19.86mV9.26mV14.58mV11.68mVPass
30% Load19.61mV16.88mV18.02mV13.87mVPass
40% Load20.43mV7.93mV16.38mV15.55mVPass
50% Load22.22mV7.62mV18.53mV17.89mVPass
60% Load23.50mV8.64mV19.70mV17.59mVPass
70% Load25.74mV9.26mV21.34mV22.84mVPass
80% Load28.60mV11.51mV23.08mV24.73mVPass
90% Load29.37mV10.43mV25.03mV31.81mVPass
100% Load45.81mV12.61mV28.37mV35.33mVPass
110% Load51.09mV12.94mV27.36mV33.70mVPass
Crossload120.44mV9.06mV22.17mV12.83mVPass
Crossload214.61mV7.31mV19.55mV10.71mVPass
Crossload311.89mV7.46mV10.90mV10.61mVPass
Crossload446.84mV10.37mV14.56mV29.15mVPass

The results above are not used in the certification process

Aresgame AGT1300

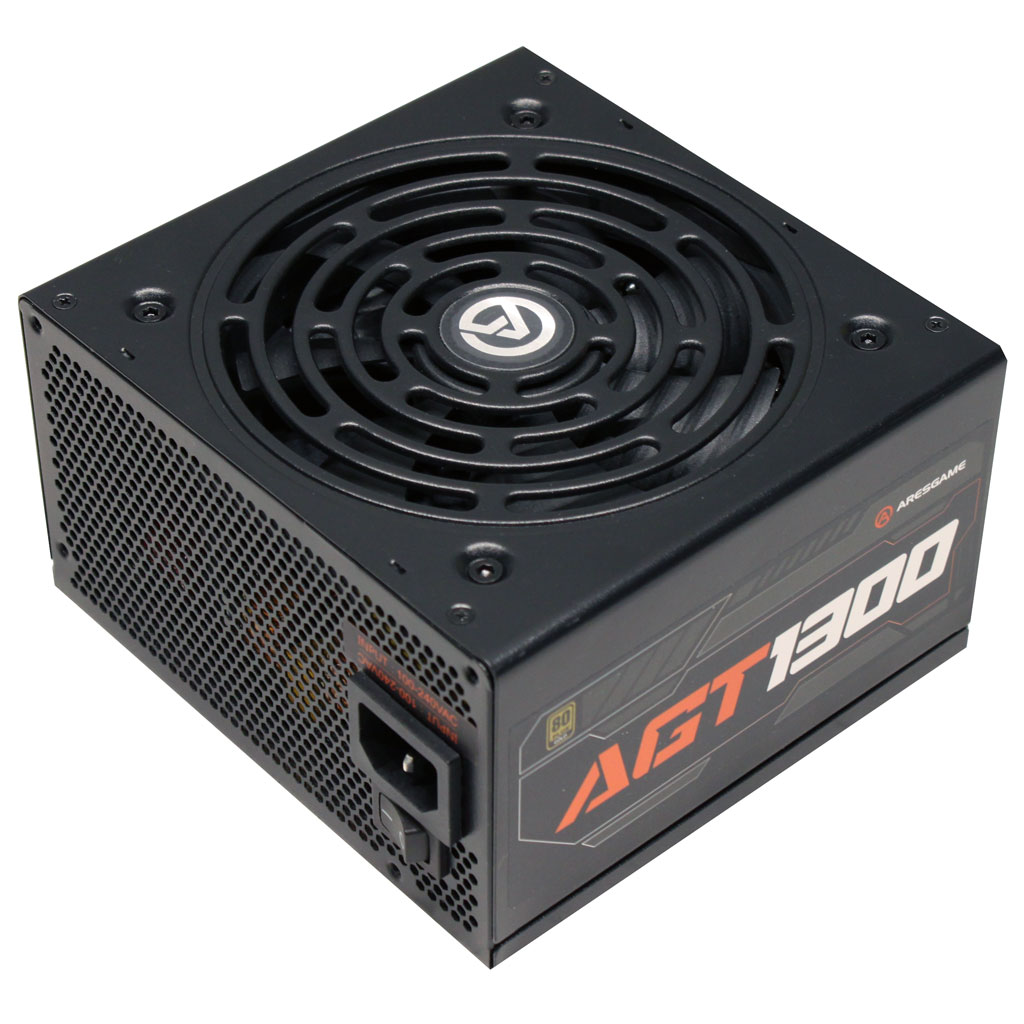

Top side

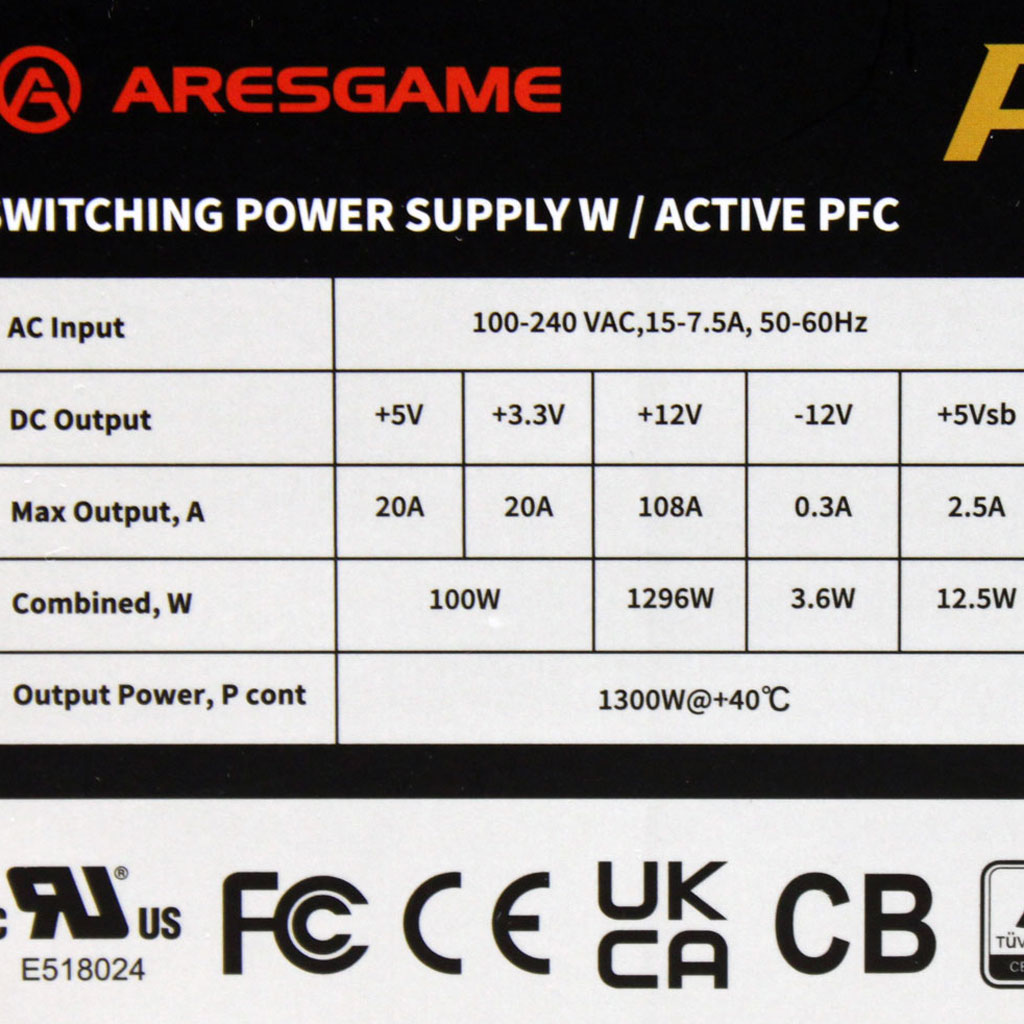

Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
