Super Flower Leadex VII XP 1200W
Serial Number
Lab IDSF12002196
  • Report: 23PS2196A
  • Receipt Date: Jun 9, 2023
  • Test Date: Jun 15, 2023
  • Report Date: Jun 16, 2023
115V230V
Efficiency Rating
115V230V
Noise Rating
Aristeidis Bitziopoulos, Lab Director

General Information

DUT Information

BrandSuper Flower
Manufacturer (OEM)Super Flower
SeriesLeadex VII
Model NumberSF-1200F14XP
Serial Number
DUT Notes

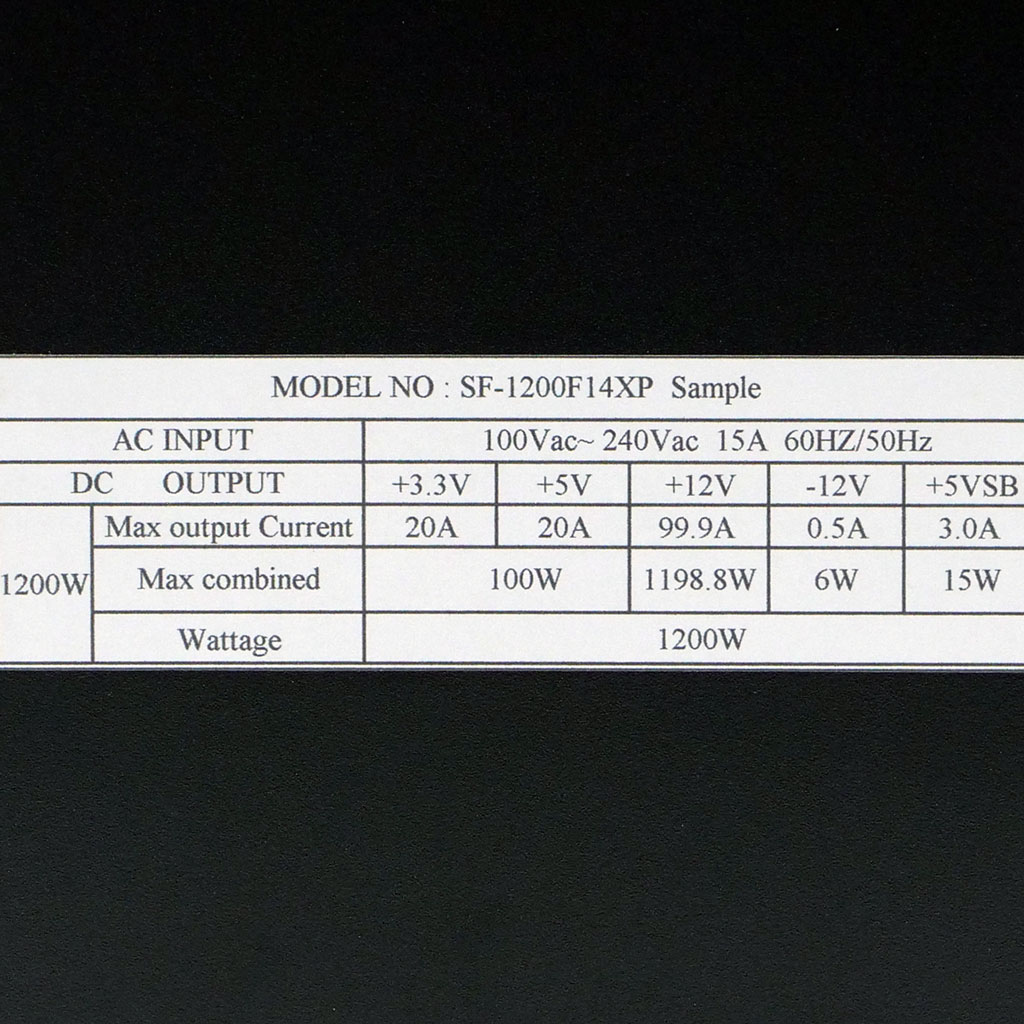

DUT Specifications

Rated Voltage (Vrms)100-240
Rated Current (Arms)15
Rated Frequency (Hz)60-50
Rated Power (W)1200
TypeATX12V
Cooling140mm Fluid Dynamic Bearing Fan
(ZFF142512D)
Semi-Passive Operation✓ (selectable)
Cable DesignFully Modular

Power Specifications

Rail3.3V5V12V5VSB-12V
Max. PowerAmps202099.930.5
Watts1001198.8156
Total Max. Power (W)1200

Test Equipment

Electronic Loads Chroma 63601-5 x2
Chroma 63600-2
63640-80-80 x10
63610-80-20
AC Sources Chroma 6530, APM SP300VAC4000W-P
Power Analyzers RS HMC8015, N4L PPA1530, N4L PPA5530
Oscilloscopes Picoscope 4444, Rigol DS7014, Siglent SDS2104X PLUS
Sound Analyzer Bruel & Kjaer 2270 G4
Microphone Bruel & Kjaer Type 4955-A
Temperature Logger Picoscope TC-08
Tachometer UNI-T UT372
Multimeters Keysight 34465A, Keithley 2015 - THD
UPS FSP Champ Tower 3kVA, CyberPower OLS3000E 3kVA
Isolation Transformer 4kVA
Testing Methodology Cybenetics PSU Test Protocol

Cables and Connectors

Modular Cables
Description Cable Count Connector Count (Total) Gauge In Cable Capacitors
ATX connector 20+4 pin (600mm) 1 1 16-20AWG No
4+4 pin EPS12V (700mm) 2 2 18AWG No
6+2 pin PCIe (700mm) 4 4 16AWG No
12+2 pin PCIe (700mm) (600W) 1 1 16-24AWG No
SATA (550mm+130mm+130mm+130mm) 3 12 18AWG No
4-pin Molex (550mm+150mm+150mm+150mm) 1 4 18AWG No
AC Power Cord (1370mm) - C13 coupler 1 1 18AWG -

Test Results

Temperature & Compliance Info

Temperature Range (°C /°F)30-32 / 86-89.6
ErP Lot 3/6 Ready✓
(EU) No 617/2013 Compliance✓
ALPM (Alternative Low Power Mode) compatible✓
ATX v3.0 Compliance✓

Performance Summary

Average Efficiency90.556%
Efficiency With 10W (≤500W) or 2% (>500W) Load -115V72.595
Average Efficiency VSB79.955%
Standby Power Consumption (W)0.0634
Average PF0.989
Avg Noise Output36.75 dB(A)
Efficiency Rating (ETA)PLATINUM
Noise Rating (LAMBDA)Standard+
Average Efficiency92.352%
Average Efficiency VSB78.992%
Standby Power Consumption (W)0.1067
Average PF0.958
Avg Noise Output36.52 dB(A)
Efficiency Rating (ETA)PLATINUM
Noise Rating (LAMBDA)Standard+

Hold-Up Time & Power Ok Signal

Hold-Up Time (ms)24.1
AC Loss to PWR_OK Hold Up Time (ms)22.6
PWR_OK Inactive to DC Loss Delay (ms)1.5

Vampire Power

Tables

Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 114.85 V 114.78 V 113.85 V 114.89 V 116.15 V PASS
Mains Frequency: 60.00 Hz 59.98 Hz 59.40 Hz 60.01 Hz 60.60 Hz PASS
Mains Voltage CF: 1.418 1.417 1.340 1.421 1.490 PASS
Mains Voltage THD: 0.15 % 0.09 % N/A 0.25 % 2.00 % PASS
Real Power: 0.063 W 0.044 W N/A 0.087 W N/A N/A
Apparent Power: 9.870 W 9.844 W N/A 9.905 W N/A N/A
Power Factor: 0.005 N/A N/A N/A N/A N/A
Detailed Results
Average Min Limit Min Max Limit Max Result
Mains Voltage RMS: 229.85 V 229.80 V 227.70 V 229.93 V 232.30 V PASS
Mains Frequency: 50.00 Hz 49.99 Hz 49.50 Hz 50.01 Hz 50.50 Hz PASS
Mains Voltage CF: 1.416 1.415 1.340 1.418 1.490 PASS
Mains Voltage THD: 0.13 % 0.08 % N/A 0.19 % 2.00 % PASS
Real Power: 0.107 W 0.068 W N/A 0.154 W N/A N/A
Apparent Power: 33.306 W 33.257 W N/A 33.356 W N/A N/A
Power Factor: 0.002 N/A N/A N/A N/A N/A

Graphs

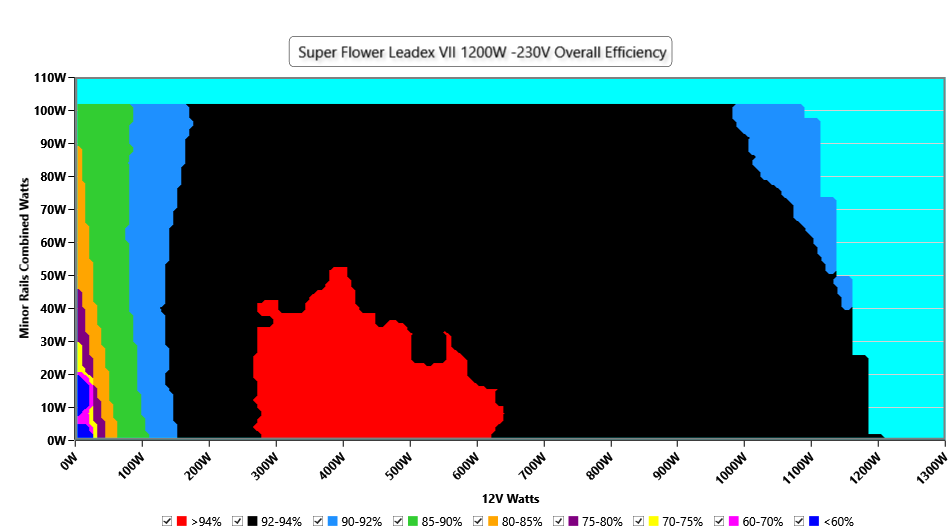

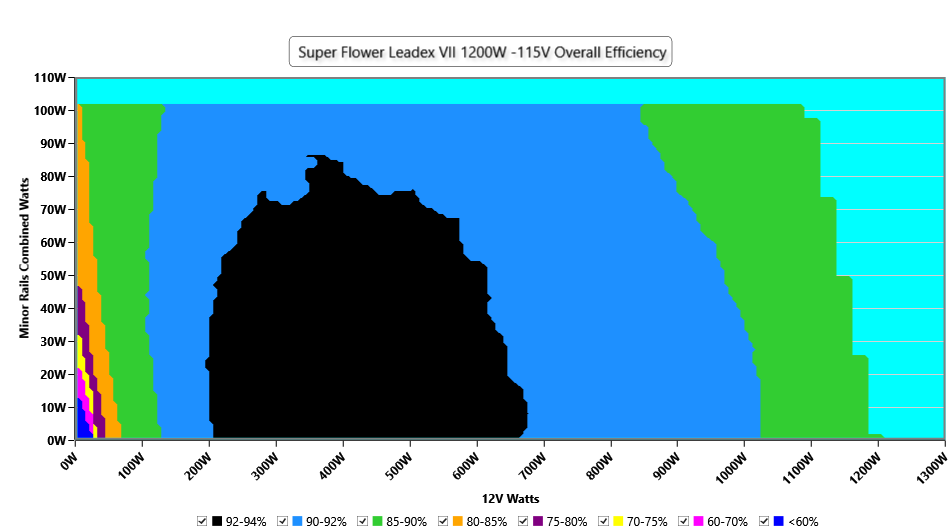

Efficiency Graph

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

INFO

This graph depicts the PSU`s efficiency throughout its entire operational range. For the generation of the efficiency and noise graphs we set our loaders to auto mode through our custom-made software before trying thousands of possible load combinations

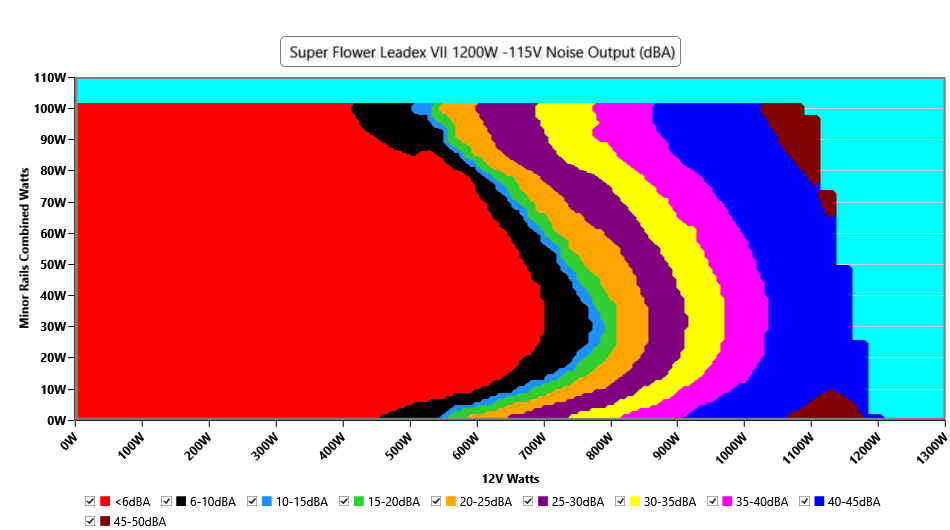

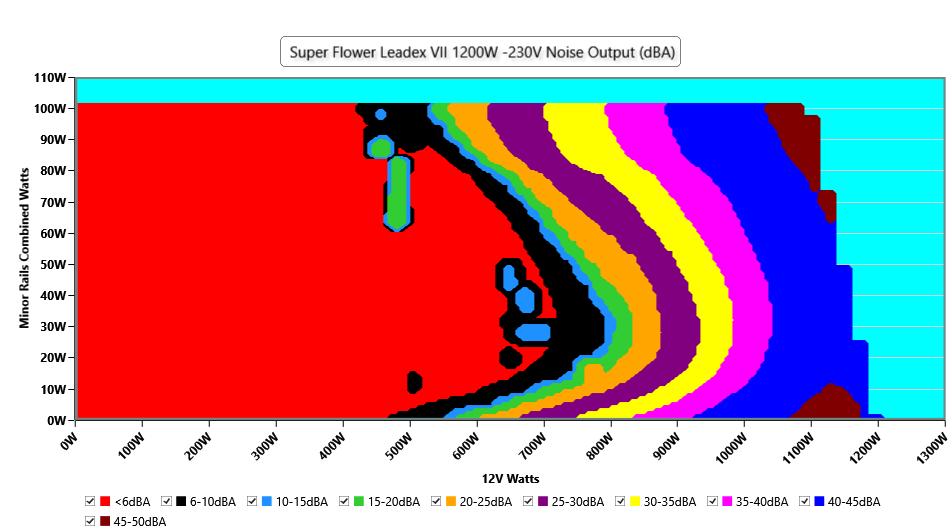

Noise Graph

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

INFO

The PSU`s noise in its entire operational range and under 30-32 °C ambient is depicted in this graph. The X axis represents the load on the +12V rail(s) while the Y axis is the load on the minor rails

Indicative Performance

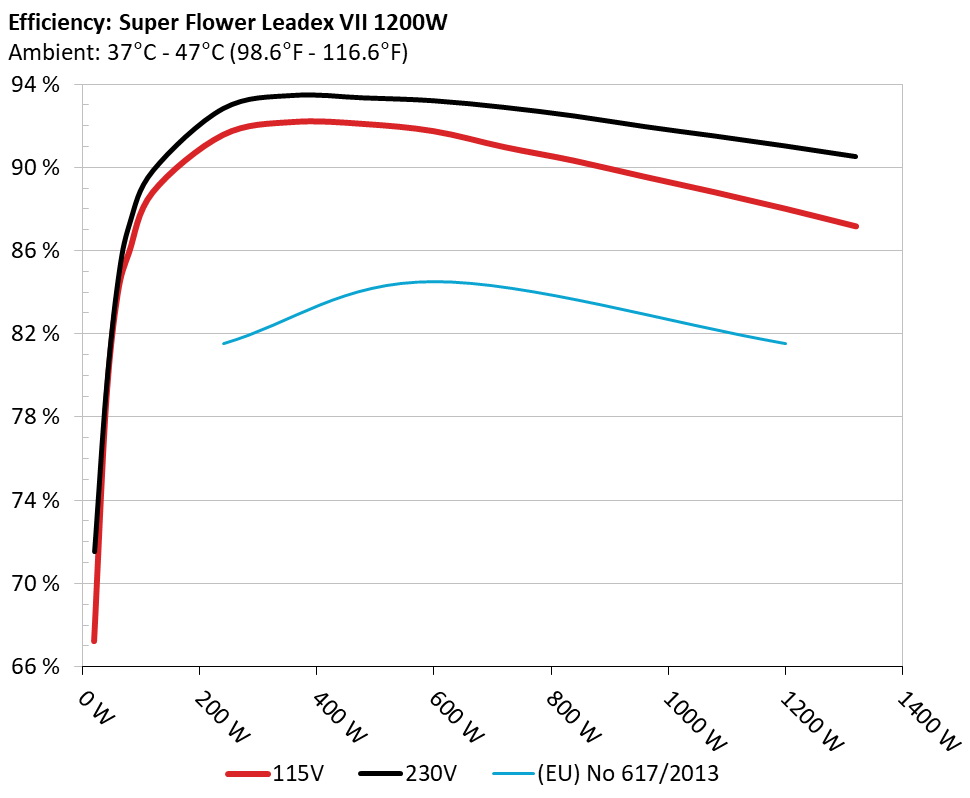

Efficiency under high ambient temperature

INFO

The PSU`s efficiency under high ambient temperatures with 115V and 230V input. For this graph the results of the 10-110% load regulation table are used

5VSB Efficiency

INFO

This graph depicts the efficiency levels of the 5VSB rail with 115V and 230V input

5VSB Efficiency (ERP LOT 3/6 & CEC)

Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 66.768% 0.035
5.124V 0.346W 114.86V
2 0.09A 0.461W 73.785% 0.063
5.123V 0.625W 114.85V
3 0.55A 2.813W 79.699% 0.271
5.115V 3.53W 114.85V
4 1A 5.107W 80.281% 0.362
5.107V 6.361W 114.85V
5 1.5A 7.647W 80.393% 0.416
5.098V 9.512W 114.86V
6 3A 15.211W 79.224% 0.483
5.07V 19.2W 114.85V
Test # 5VSB DC/AC (Watts) Efficiency PF/AC Volts
1 0.045A 0.231W 57.243% 0.012
5.124V 0.405W 229.85V
2 0.09A 0.461W 66.762% 0.021
5.123V 0.691W 229.85V
3 0.55A 2.813W 77.539% 0.105
5.115V 3.627W 229.85V
4 1A 5.107W 78.801% 0.174
5.107V 6.482W 229.85V
5 1.5A 7.647W 79.811% 0.23
5.098V 9.582W 229.85V
6 3A 15.212W 80.223% 0.337
5.071V 18.963W 229.85V

Supplementary Tests (For Reference)

Typical Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.144A 1.98A 1.983A 0.981A 119.98 89.322% 0 <6.0 44.65°C 0.978
12.081V 5.05V 3.328V 5.098V 134.322 40.43°C 114.8V
20% 17.317A 2.969A 2.976A 1.179A 239.933 92.077% 0 <6.0 45.43°C 0.982
12.071V 5.051V 3.327V 5.087V 260.58 40.8°C 114.76V
30% 26.784A 3.463A 3.473A 1.379A 359.121 92.7% 0 <6.0 46.53°C 0.99
12.062V 5.053V 3.325V 5.077V 387.403 41.39°C 114.73V
40% 36.361A 3.956A 3.97A 1.579A 479.502 92.608% 373 <6.0 41.74°C 0.993
12.054V 5.055V 3.325V 5.066V 517.782 47.25°C 114.68V
50% 45.551A 4.947A 4.965A 1.781A 599.295 92.259% 448 6.6 42.34°C 0.994
12.048V 5.054V 3.323V 5.055V 649.583 48.31°C 114.65V
60% 54.823A 5.937A 5.961A 1.983A 719.831 91.495% 822 28.9 42.61°C 0.995
12.039V 5.053V 3.322V 5.044V 786.742 49.28°C 114.6V
70% 64.042A 6.928A 6.959A 2.186A 839.566 90.833% 1109 38.5 43.3°C 0.995
12.030V 5.052V 3.32V 5.033V 924.306 50.31°C 114.56V
80% 73.331A 7.92A 7.957A 2.289A 959.582 90.062% 1377 44.4 43.81°C 0.995
12.023V 5.052V 3.318V 5.023V 1065.472 51.83°C 114.52V
90% 82.925A 8.412A 8.443A 2.394A 1079.402 89.319% 1574 48.8 44.48°C 0.996
12.021V 5.052V 3.316V 5.014V 1208.482 53.56°C 114.47V
100% 92.337A 8.907A 8.961A 3.003A 1199.444 88.528% 1755 49.4 45.36°C 0.996
12.018V 5.052V 3.314V 4.995V 1354.881 55.38°C 114.42V
110% 101.701A 9.894A 10.05A 3.008A 1320.072 87.68% 1858 51.8 46.96°C 0.996
12.013V 5.054V 3.313V 4.987V 1505.561 57.88°C 114.37V
CL1 0.116A 11.907A 11.915A 0A 101.309 82.99% 624 19.8 41.4°C 0.98
12.087V 5.056V 3.332V 5.109V 122.093 46.84°C 114.81V
CL2 0.115A 19.764A 0A 0A 101.346 82.609% 385 <6.0 40.72°C 0.979
12.089V 5.057V 3.339V 5.112V 122.681 47.732°C 114.8V
CL3 0.115A 0A 19.83A 0A 67.388 76.325% 653 21.5 40.27°C 0.958
12.087V 5.064V 3.328V 5.109V 88.297 49.34°C 114.82V
CL4 99.861A 0A 0A 0A 1200.002 89.223% 1579 48.8 45.51°C 0.996
12.017V 5.05V 3.316V 5.058V 1344.967 56.44°C 114.43V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
10% 8.144A 1.98A 1.983A 0.981A 119.984 90.349% 0 <6.0 44.29°C 0.868
12.081V 5.049V 3.328V 5.098V 132.808 40.04°C 229.83V
20% 17.316A 2.97A 2.976A 1.18A 239.936 93.332% 0 <6.0 45.52°C 0.943
12.072V 5.05V 3.326V 5.087V 257.078 40.91°C 229.81V
30% 26.781A 3.464A 3.473A 1.379A 359.126 93.961% 0 <6.0 46.21°C 0.966
12.063V 5.052V 3.325V 5.076V 382.217 41.05°C 229.78V
40% 36.355A 3.957A 3.97A 1.579A 479.501 93.844% 371 <6.0 41.55°C 0.978
12.056V 5.054V 3.325V 5.065V 510.949 47.26°C 229.77V
50% 45.546A 4.948A 4.966A 1.781A 599.29 93.706% 461 8.0 42.18°C 0.98
12.049V 5.053V 3.323V 5.055V 639.54 48.36°C 229.75V
60% 54.819A 5.938A 5.962A 1.983A 719.825 93.385% 815 28.7 42.71°C 0.981
12.040V 5.052V 3.321V 5.043V 770.817 49.25°C 229.73V
70% 64.038A 6.929A 6.96A 2.186A 839.556 92.971% 1111 38.5 43.24°C 0.982
12.031V 5.052V 3.319V 5.032V 903.028 50.25°C 229.71V
80% 73.333A 7.92A 7.958A 2.29A 959.576 92.462% 1381 44.5 43.53°C 0.983
12.023V 5.051V 3.317V 5.023V 1037.803 51.59°C 229.69V
90% 82.928A 8.414A 8.445A 2.394A 1079.395 92.008% 1574 48.8 44.07°C 0.985
12.021V 5.051V 3.316V 5.014V 1173.15 53.13°C 229.67V
100% 92.336A 8.908A 8.962A 3.003A 1199.428 91.53% 1749 49.3 45.34°C 0.986
12.018V 5.051V 3.314V 4.995V 1310.421 55.37°C 229.65V
110% 101.694A 9.897A 10.053A 3.008A 1320.063 91.019% 1851 51.9 46.86°C 0.987
12.014V 5.052V 3.312V 4.987V 1450.311 57.79°C 229.63V
CL1 0.116A 11.91A 11.918A 0A 101.307 84.054% 497 12.2 40.03°C 0.85
12.088V 5.055V 3.331V 5.109V 120.541 45.52°C 229.83V
CL2 0.115A 19.768A 0A 0A 101.347 83.504% 385 <6.0 39.97°C 0.851
12.090V 5.056V 3.338V 5.112V 121.368 47.04°C 229.83V
CL3 0.114A 0A 19.832A 0A 67.386 77.628% 637 20.6 40.06°C 0.788
12.088V 5.063V 3.328V 5.109V 86.804 49.13°C 229.84V
CL4 99.865A 0A 0A 0A 1200.006 92.135% 1615 48.5 45.04°C 0.986
12.016V 5.05V 3.315V 5.058V 1302.452 56.02°C 229.65V

The results above are not used in the certification process

Light Load Tests

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.495A 0.496A 0.195A 19.994 67.73% 0 <6.0 39.57°C 0.821
12.089V 5.045V 3.328V 5.119V 29.521 36.51°C 114.84V
40W 2.704A 0.693A 0.694A 0.293A 39.994 78.964% 0 <6.0 40.86°C 0.909
12.087V 5.047V 3.328V 5.116V 50.651 37.58°C 114.84V
60W 4.180A 0.891A 0.892A 0.391A 59.994 84.406% 0 <6.0 42.14°C 0.946
12.085V 5.048V 3.328V 5.113V 71.075 38.42°C 114.82V
80W 5.652A 1.089A 1.09A 0.489A 79.932 86.46% 0 <6.0 43.8°C 0.961
12.083V 5.049V 3.328V 5.11V 92.45 39.82°C 114.82V

The results above are not used in the certification process

Test 12V 5V 3.3V 5VSB DC/AC (Watts) Efficiency Fan Speed (RPM) PSU Noise (dB[A]) Temps (In/Out) PF/AC Volts
20W 1.228A 0.496A 0.496A 0.195A 19.995 72.015% 0 <6.0 39.94°C 0.485
12.090V 5.044V 3.328V 5.119V 28.837 36.87°C 229.85V
40W 2.704A 0.694A 0.694A 0.293A 39.995 79.808% 0 <6.0 41.12°C 0.649
12.087V 5.045V 3.328V 5.116V 50.115 37.88°C 229.85V
60W 4.180A 0.891A 0.892A 0.391A 59.994 85.041% 0 <6.0 41.99°C 0.737
12.086V 5.046V 3.328V 5.113V 70.554 38.56°C 229.84V
80W 5.652A 1.089A 1.091A 0.489A 79.933 87.801% 0 <6.0 42.63°C 0.797
12.084V 5.047V 3.328V 5.11V 91.038 38.78°C 229.83V

The results above are not used in the certification process

Ripple Measurements

Test12V5V3.3V5VSBPass/Fail
10% Load8.74mV9.29mV9.70mV7.18mVPass
20% Load9.05mV9.03mV9.70mV7.28mVPass
30% Load10.49mV9.85mV10.10mV7.49mVPass
40% Load11.46mV9.39mV10.11mV8.21mVPass
50% Load15.34mV10.01mV10.93mV7.70mVPass
60% Load13.66mV10.21mV11.13mV8.26mVPass
70% Load12.89mV11.29mV10.93mV9.44mVPass
80% Load13.14mV12.16mV11.70mV9.65mVPass
90% Load14.06mV13.65mV12.11mV10.36mVPass
100% Load18.32mV16.14mV13.34mV13.11mVPass
110% Load18.71mV18.42mV15.24mV13.25mVPass
Crossload111.14mV11.81mV12.99mV22.63mVPass
Crossload29.46mV15.09mV10.88mV21.81mVPass
Crossload38.49mV11.34mV13.34mV20.06mVPass
Crossload417.76mV15.58mV11.94mV22.16mVPass

The results above are not used in the certification process

Test12V5V3.3V5VSBPass/Fail
10% Load9.67mV8.88mV9.54mV7.49mVPass
20% Load9.72mV8.93mV10.16mV8.31mVPass
30% Load11.25mV9.80mV10.16mV7.64mVPass
40% Load12.43mV10.27mV10.98mV7.90mVPass
50% Load12.07mV10.42mV10.26mV8.26mVPass
60% Load12.94mV10.78mV10.62mV8.47mVPass
70% Load13.55mV11.55mV11.34mV8.47mVPass
80% Load13.76mV12.27mV12.16mV9.24mVPass
90% Load14.32mV14.32mV11.69mV10.36mVPass
100% Load18.84mV16.74mV14.43mV12.86mVPass
110% Load18.83mV19.84mV14.75mV13.34mVPass
Crossload111.60mV12.24mV12.94mV22.62mVPass
Crossload29.92mV15.45mV11.19mV21.04mVPass
Crossload38.23mV11.29mV13.70mV19.29mVPass
Crossload418.30mV16.55mV13.03mV22.96mVPass

The results above are not used in the certification process

Super Flower Leadex VII XP 1200W

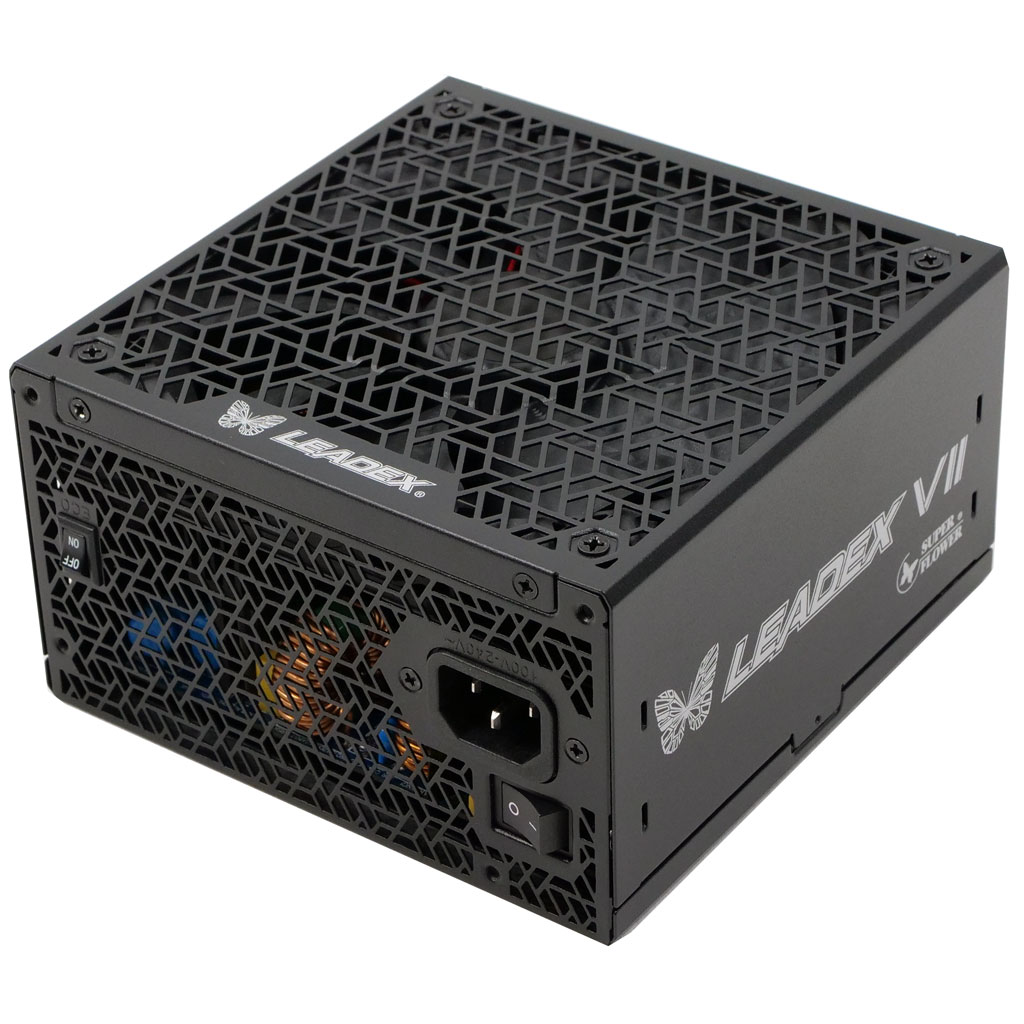

Top side
Power specifications label
All data and graphs included in this test report can be used by any individual on the following conditions:
› It should be mentioned that the test results are provided by Cybenetics
› The link to the original test results document should be provided in any case
Cybenetics offers the ETA and Lambda voluntary certification programs, through which the efficient and silent power supplies are promoted
CYBENETICS LTD Syrou 6, Latsia, 2231, Nicosia Cyprus
www.cybenetics.com - info@cybenetics.com
